  1. GPGPU Accounting John Gordon STFC EGI CF – Accounting and Billing

  2. Accounting Overview • Parse Batch Logs • Get Identity Information • Join and cut UR • Publish to APEL • APEL receives UR into database • APEL Summarises • Portal Visualises from Summaries Business Models & Sustainability – EGI TF Lyon - Sept 2011

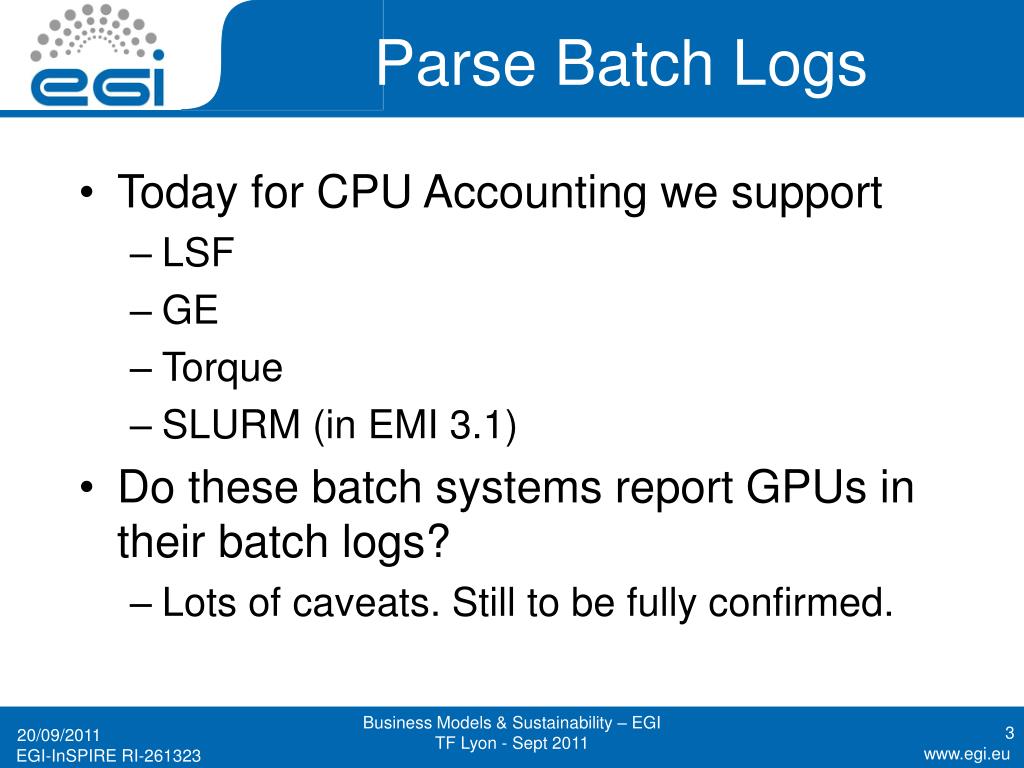

  3. Parse Batch Logs • Today for CPU Accounting we support • LSF • GE • Torque • SLURM (in EMI 3.1) • Do these batch systems report GPUs in their batch logs? • Lots of caveats. Still to be fully confirmed. Business Models & Sustainability – EGI TF Lyon - Sept 2011

  4. Get Identity Information • No change • Done by BLAH in CREAM Business Models & Sustainability – EGI TF Lyon - Sept 2011

  5. Join and cut UR • Extend UR to include second type of CPU • Do this in conjunction with OGF UR-WG. • UR 2.0 doesn’t support multiple CPU types in a job or attached processors. • nb Intel Phi is an attached processor(s) so we will need to address this anyway. Business Models & Sustainability – EGI TF Lyon - Sept 2011

  6. Publish to APEL • SSM ignores the content of the records it transports Business Models & Sustainability – EGI TF Lyon - Sept 2011

  7. APEL receives UR into database • APEL would need to extend the job record database to add extra columns • Simple for a test system but a mammoth task to migrate the production database. Business Models & Sustainability – EGI TF Lyon - Sept 2011

  8. APEL Summarises • Aggregating total GPU Use for a User, VO, Site, Country, NGI, etc is straightforward • Correlations like GPU/CPU, GPU/wallclock, etc are more complicated • Requirements? Business Models & Sustainability – EGI TF Lyon - Sept 2011

  9. Portal Visualises from Summaries • Straightforward to add other variables GPU, normalised GPU to the existing ones. • Portal displays one variable (njobs, totcpu, etc) as function of two others • Site vs VO • Region vs Date • Etc. Business Models & Sustainability – EGI TF Lyon - Sept 2011

  10. Summary • Most things possible once the major condition is met. • i.e. Batch logs report reliably and understandably on GPU identified with a batch job • Still a lot of work to be done to understand this • See John Walsh’s experiences • PRACE reported that they don’t. Business Models & Sustainability – EGI TF Lyon - Sept 2011

  11. What Can We Do? • The APEL Team could implement a test server receiving records from a hacked apel client once the research had been done on retrieving the relevant infor from batch records • After the end of EMI and with a full roadmap for 2013 we don’t have enough effort to do this research or to do the development in extending the relevant parsers for all batch systems. Business Models & Sustainability – EGI TF Lyon - Sept 2011
