  1. Software Inventory Connectathon Manager Training Steve Moore Mallinckrodt Institute of Radiology

  2. My Favorite Tool

  3. Kudu • Le Kudu estmort!! • Vive le Kudu!!

  4. Gazelle • INRIA / MIR • Connectathonmanagement tool • Test session management tool • Test definitions, test execution • People registration • It will even page you in a restaurant

  5. Gazelle System Architecture Database (Configuration / Results) Control System (Web GUI) Patient Demographics Service n Service Test Engine (BPEL Based) External Validation Service Control, Demographics Feedback Actor / Simulator Actor / Simulator Actor / Simulator Test Scenario Gazelle Actor / Simulator Test Scenario Test Scenario Test Scenario System Under Test Proxy Network (Internet, Intranet)

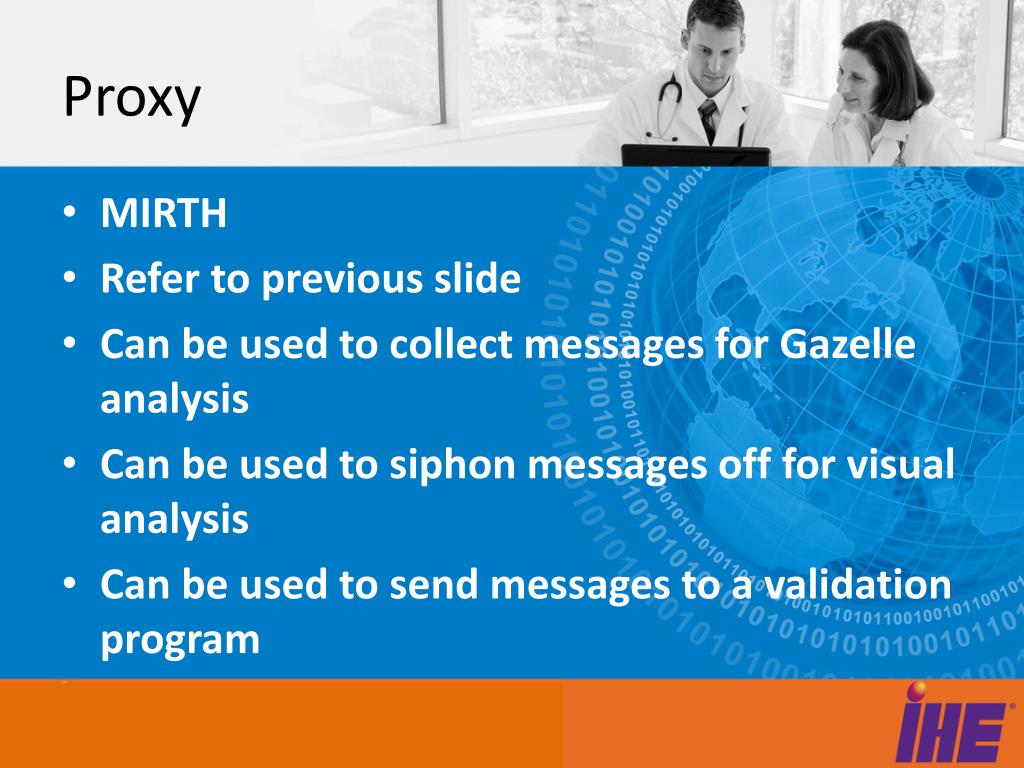

  6. Proxy • MIRTH • Refer to previous slide • Can be used to collect messages for Gazelle analysis • Can be used to siphon messages off for visual analysis • Can be used to send messages to a validation program

  7. DICOM Archive • DCM4CHEE • We need a central repository for DICOM objects • Every participant should be able to implement • C-Store • C-Find • C-Move

  8. XDS Tools • NIST / Bill Majurski • Test the XD… family of profiles

  9. Audit Record Repository • NIST / Majurski • Collects ATNA audit messages • Serves as a proxy as it can route them as well • Provides message validation

  10. RIS Mall • MIR / Moore • Radiology / Cardiology tool for SWF like profiles • Sends ADT messages • Sends Orders • Provides Modality Worklist • This is the big winner

  11. CDA Validation • NIST / McCaffrey • Web based PCC / CDA validation • CDA Schema • PCC Schematron • Also can run as a web service so Gazelle or other tools can invoke as a service

  12. Geneva • RSNA / Perry, Ron Popeil, now Moore • First designed for XDS demonstrations • Kicks off XD* family of tests • ADT to PIX Manager • ADT to Registry • ADT to EHR’s (not really IHE, but it enables them) • XDS.b submission to Repository • Julienne fries

  13. Patient Demographics Service • INRIA • Web GUI to allow you to request a new patient using names/addresses appropriate to your region • Web services interface to allow an application to request a new patient

  14. Google Groups • Email list for your participants • Community support • XDS Implementers • PCC Implementers • PIX / PDQ Testing • Connectathon Managers
