  1. HIV TestingCDC power point edited by M. Myers

  2. Message • There are numbers of tests • They should be used in combination (strategies) • Combinations must be consistent

  3. Laboratory Tests • diagnosis of infection • acute, recent, established or late stage disease • prognostic markers • monitoring of ARV therapies • immunological and virological markers • toxicities • diagnosis of opportunistic infections • drug resistance testing

  4. ‘typical’ primary HIV-1 infection symptoms symptoms HIV proviral DNA HIV antibodies ‘window’ period HIV viral load HIV-1 p24 antigen 01 2 3 4 5 6 / 2 4 6 8 10 1° infection weeks years Time following infection

  5. HIV Assays: MethodologiesFOR THE DIAGNOSIS (DETECTION) Virus Detection EIASimple, rapid tests Immunoblots Incident assays Antibody Antigen Detection + DNA(RNA) DIAGNOSIS MANAGEMENT

  6. HIV Testing -Direct Detection of Virus • HIV antigen– serology • - In isolation • - Diagnosis of primary infection viraemia • Virus culture / isolation • Nucleic acid detection - (NAT) • Clinical uses Proviral DNA vs. plasma RNA (viral load) • resolution of inconclusive serology / neonatal • subtyping • drug resistance monitoring

  7. Available Assays • EIAs including • rapid, simple • particle agglutination, • dot/blot • Western blot • Antigen & Ab/Ag • Incidence assays • Direct Virus Detection

  8. Particle Agglutination

  9. Western Blot • Expensive – $ 80 - 100 • technically more difficult • visual interpretation • lack standardisation • - performance • - interpretation • - indeterminate reactions – resolution of ?? • ‘Gold Standard’ for confirmation

  10. Antibody testing limitations • Difficulties in interpretation • Limitations - ‘window period’ • antibodies appear within 3-4 weeks • Direct detection – HIV p24 antigen or DNA/RNA (NAT) – pre-antibody • Combo test = earlier detection • Primary infection + therapy = delayed antibody response

  11. Ag & Ab Ag/Ab Combo tests Ab & Ag • Detection of Ag & Ab in a single test • utility in primary infection – pre-seroconversion ‘window period’ • Incident populations – ‘at risk’ • Blood bank • Automated platforms available

  12. Issues with Combo Assays • Testing strategies • False reactivity rates • Confirmation strategies • Replacement of other assays (especially in the USA) • Cost • Legal issues

  13. What about simple assays?

  14. HIV Determine test • Detect HIV-1 & HIV-2 • Cannot differentiate • Procedural control – anti Hu IgG • Whole blood or serum/plasma • Widely available • No additional reagents required • Room temperature storage • 15 minutes to result

  15. BioRad HIV-1/2 Multispot • Detects HIV-1 and HIV-2 • Will differentiate 1 and 2 • Procedural control – anti-Hu IgG • Serum / plasma only • Additional reagents (included) • Requires refrigerated storage • ‘Immunoconcentration’ principle • 15 minutes to result

  16. WHO Recommended Strategies • Strategy I Test all samples with one EIA • Strategy II Strategy I with all reactives retested in a more specific test with different principle and/or antigen. • Strategy III Strategy II with reactives tested in a third test differing from the first two tests.

  17. Transfusion safety Surveillance Diagnosis Risk factors No risk factors Strategy I >10% I <10% II Strategy II >10% II <10% III WHO Recommended Testing Strategies

  18. Testing Strategies AIM: To develop the logic used in establishing the use of HIV tests (testing strategies)

  19. Objectives of Testing Strategies • To achieve the correct diagnosis in the most efficient manner • To maintain consistency in testing • To know the predictive value of the testing process • To develop baseline data for assessing changes • To deliver useful results

  20. Aims in Developing HIV Testing Strategies • To arrive at the correct sero-diagnosis • To minimise total testing; thus cost • Minimise samples classed as indeterminate or dual reactors • Detect HIV-1 negative but HIV-2 positive • Follow likely seroconverters (HIV-1 or -2)

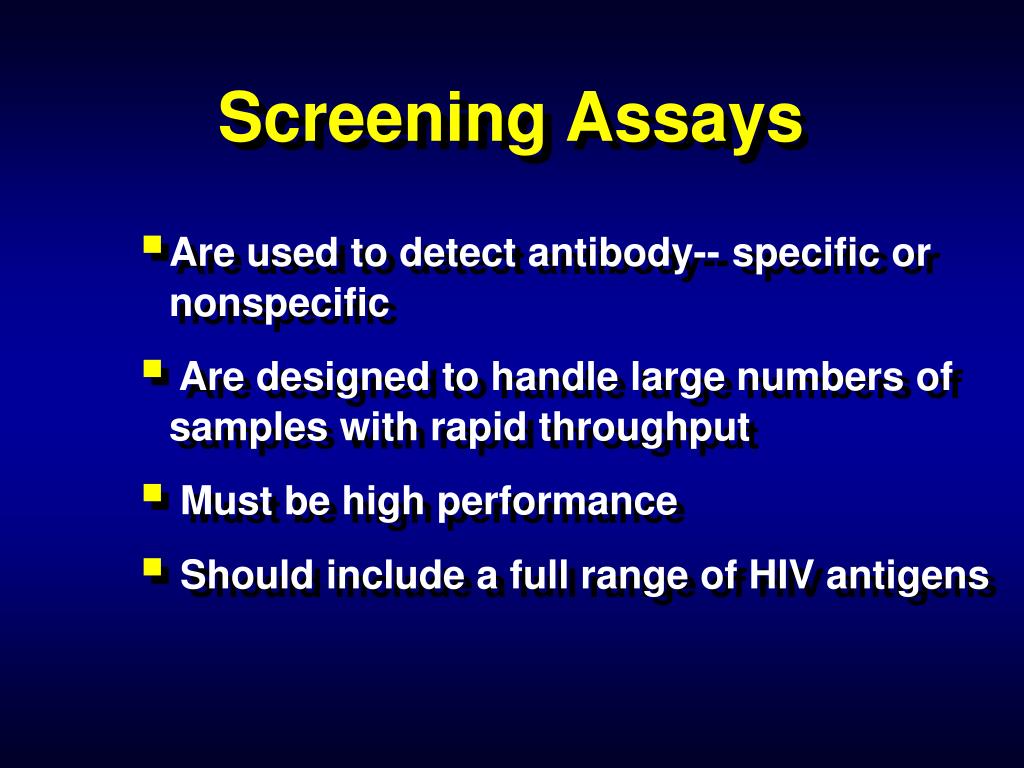

  21. Screening Assays • Are used to detect antibody-- specific or nonspecific • Are designed to handle large numbers of samples with rapid throughput • Must be high performance • Should include a full range of HIV antigens

  22. SCREENING TEST, highly sensitive NEG REACTIVE SUPPLEMENTAL TEST, highly sensitive & higher specificity POS NEG IND NEG ADDITIONAL TESTS POS IND Serological Testing Strategy

  23. HIV Testing Strategy HIV1/2 SCREEN NEG SCREENING REACTIVE HIV-1 WB POS NEG IND NEG SUPPLEMENTAL ADDITIONAL TESTS POS IND POINT OF REPORTING

  24. Supplemental Assays • Range of assays that further define sero-status • High Performance (higher specificity)

  25. The Use of Screening Assays • Define samples as negative for a given analyte • Enable high throughput

  26. Predictive Values Positive Predictive Values: The likelihood of a sample identified as a reactive by a test being truly POSITIVE for the analyte used as the basis of the test. True Positives PPV = X 100% True Positives + False Reactives

  27. True Negatives X 100% NPV = True Negatives + False Negatives Predictive Values Negative Predictive Values: The likelihood that a sample identified as a non-reactive by a test is truly NEGATIVE for the analyte used as the basis of the test.

  28. WHO Recommended Strategies • Strategy I Test all samples with one EIA • Strategy II Strategy I with all reactives retested in a more specific test with different principle and/or antigen. • Strategy III Strategy II with reactives tested in a third test differing from the first two tests.

  29. Transfusion safety Surveillance Diagnosis Risk factors No risk factors Strategy I >10% I <10% II Strategy II >10% II <10% III WHO Recommended Testing Strategies

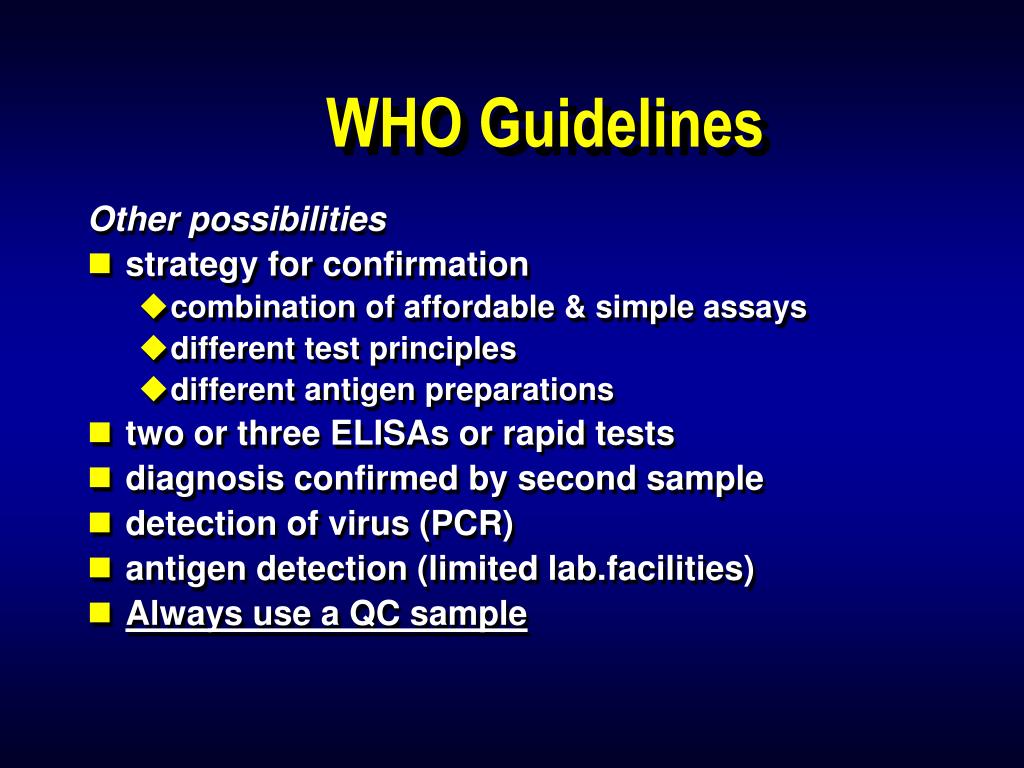

  30. WHO Guidelines Other possibilities • strategy for confirmation • combination of affordable & simple assays • different test principles • different antigen preparations • two or three ELISAs or rapid tests • diagnosis confirmed by second sample • detection of virus (PCR) • antigen detection (limited lab.facilities) • Always use a QC sample

  31. Cost of HIV Testing comparative costs • ELISA (Ab only) - $2 per test • EIA (Ab/Ag combo) - $3.50 • rapid test - $10-20 per test • Western blot $80 - 100 • p24 antigen $30 • PCR - qualitative $80 - 100 • PCR - quantitative (viral load) $90 – 150* • DNA sequencing (resistance) $400 – 700

  32. - - Screening test x1 NEG Eliminates laboratory error R - Screening test x2 - NEG RR or R- + POS Supplemental test NEG Other tests Summary of Testing Strategies
