  1. VO Naming Proposals Explanation (first) and Discussion (after first) Oscar Koeroo JRA3

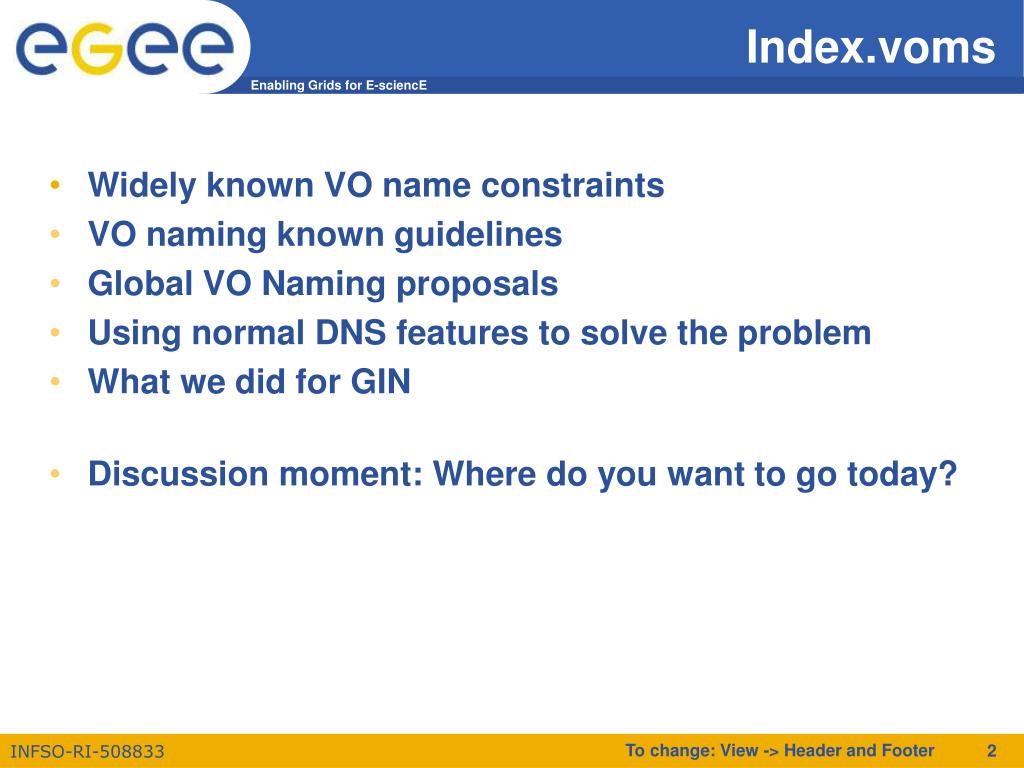

  2. Index.voms • Widely known VO name constraints • VO naming known guidelines • Global VO Naming proposals • Using normal DNS features to solve the problem • What we did for GIN • Discussion moment: Where do you want to go today? To change: View -> Header and Footer

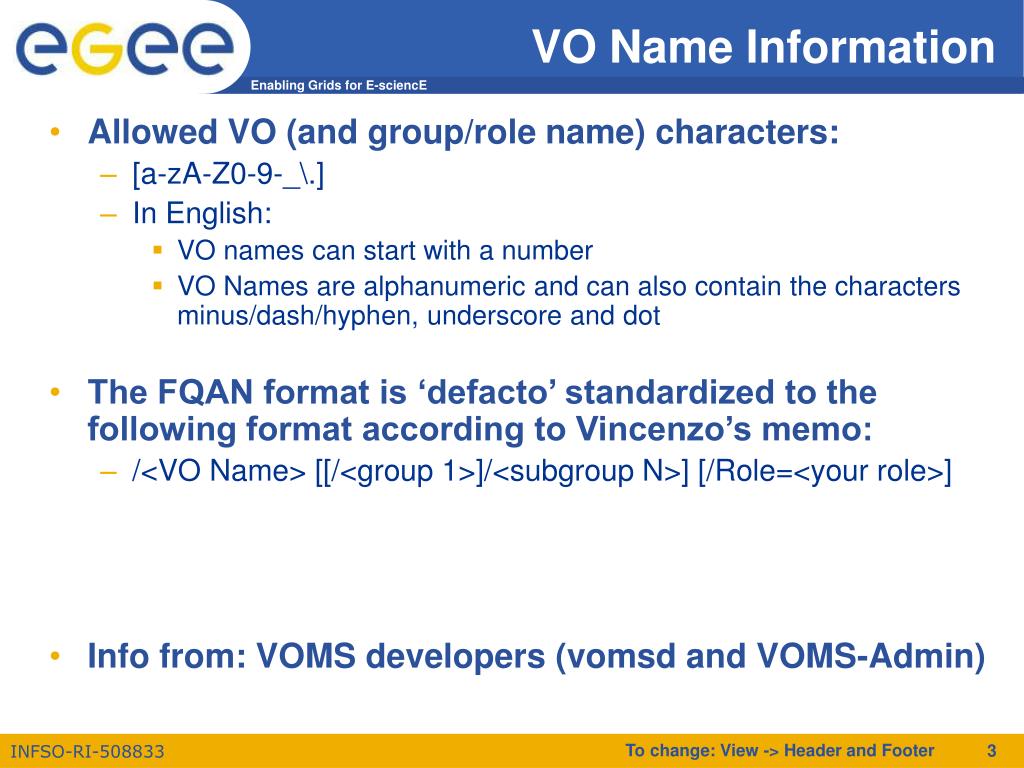

  3. VO Name Information • Allowed VO (and group/role name) characters: • [a-zA-Z0-9-_\.] • In English: • VO names can start with a number • VO Names are alphanumeric and can also contain the characters minus/dash/hyphen, underscore and dot • The FQAN format is ‘defacto’ standardized to the following format according to Vincenzo’s memo: • /<VO Name> [[/<group 1>]/<subgroup N>] [/Role=<your role>] • Info from: VOMS developers (vomsd and VOMS-Admin) To change: View -> Header and Footer

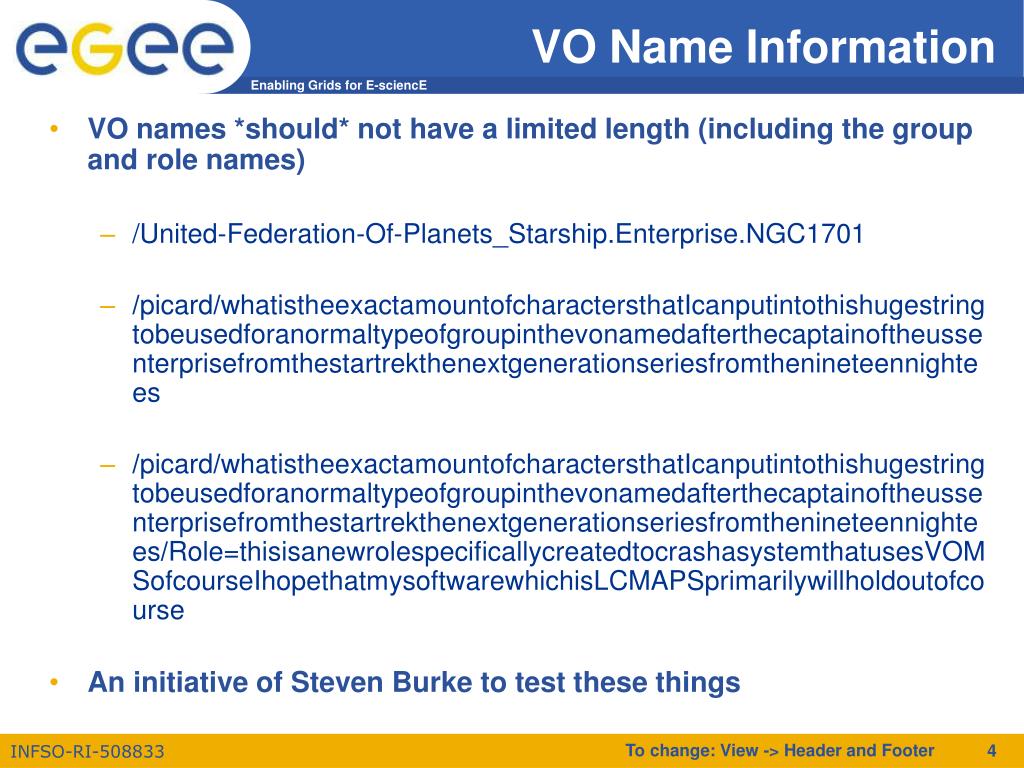

  4. VO Name Information • VO names *should* not have a limited length (including the group and role names) • /United-Federation-Of-Planets_Starship.Enterprise.NGC1701 • /picard/whatistheexactamountofcharactersthatIcanputintothishugestringtobeusedforanormaltypeofgroupinthevonamedafterthecaptainoftheussenterprisefromthestartrekthenextgenerationseriesfromthenineteennightees • /picard/whatistheexactamountofcharactersthatIcanputintothishugestringtobeusedforanormaltypeofgroupinthevonamedafterthecaptainoftheussenterprisefromthestartrekthenextgenerationseriesfromthenineteennightees/Role=thisisanewrolespecificallycreatedtocrashasystemthatusesVOMSofcourseIhopethatmysoftwarewhichisLCMAPSprimarilywillholdoutofcourse • An initiative of Steven Burke to test these things To change: View -> Header and Footer

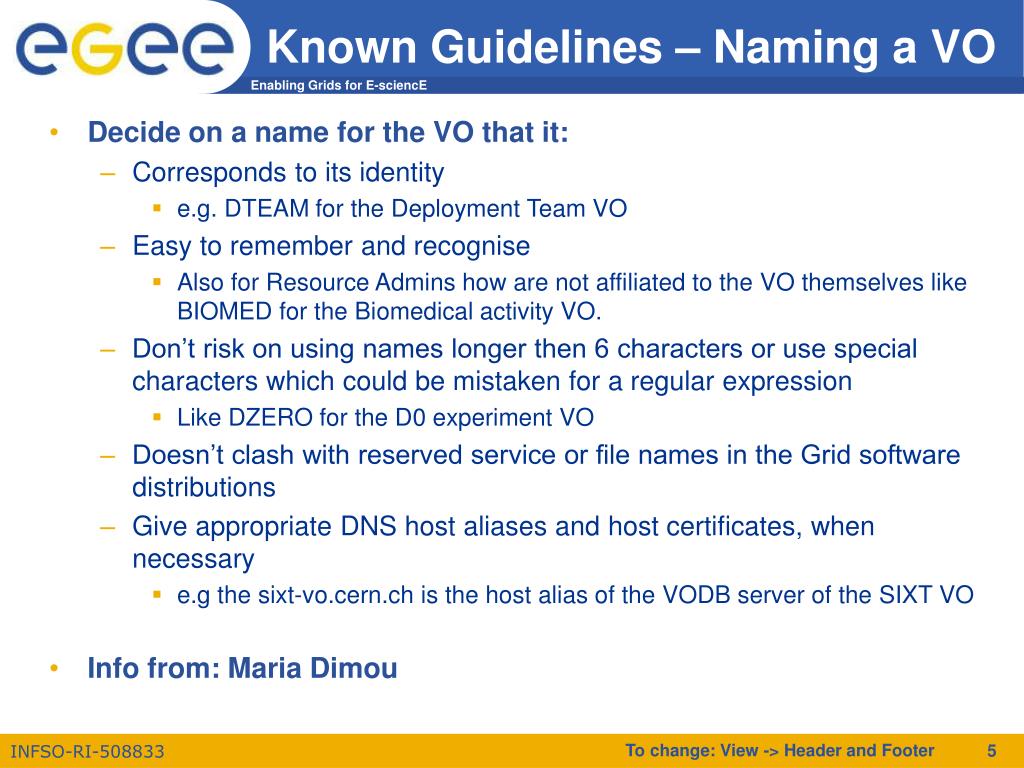

  5. Known Guidelines – Naming a VO • Decide on a name for the VO that it: • Corresponds to its identity • e.g. DTEAM for the Deployment Team VO • Easy to remember and recognise • Also for Resource Admins how are not affiliated to the VO themselves like BIOMED for the Biomedical activity VO. • Don’t risk on using names longer then 6 characters or use special characters which could be mistaken for a regular expression • Like DZERO for the D0 experiment VO • Doesn’t clash with reserved service or file names in the Grid software distributions • Give appropriate DNS host aliases and host certificates, when necessary • e.g the sixt-vo.cern.ch is the host alias of the VODB server of the SIXT VO • Info from: Maria Dimou To change: View -> Header and Footer

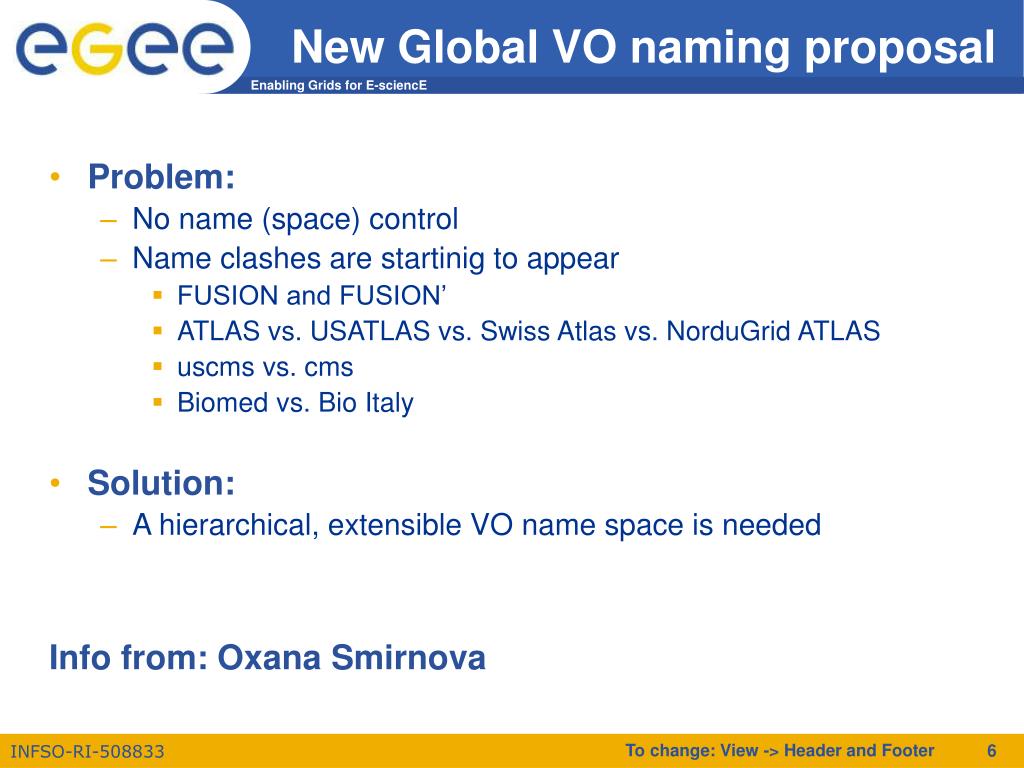

  6. New Global VO naming proposal • Problem: • No name (space) control • Name clashes are startinig to appear • FUSION and FUSION’ • ATLAS vs. USATLAS vs. Swiss Atlas vs. NorduGrid ATLAS • uscms vs. cms • Biomed vs. Bio Italy • Solution: • A hierarchical, extensible VO name space is needed Info from: Oxana Smirnova To change: View -> Header and Footer

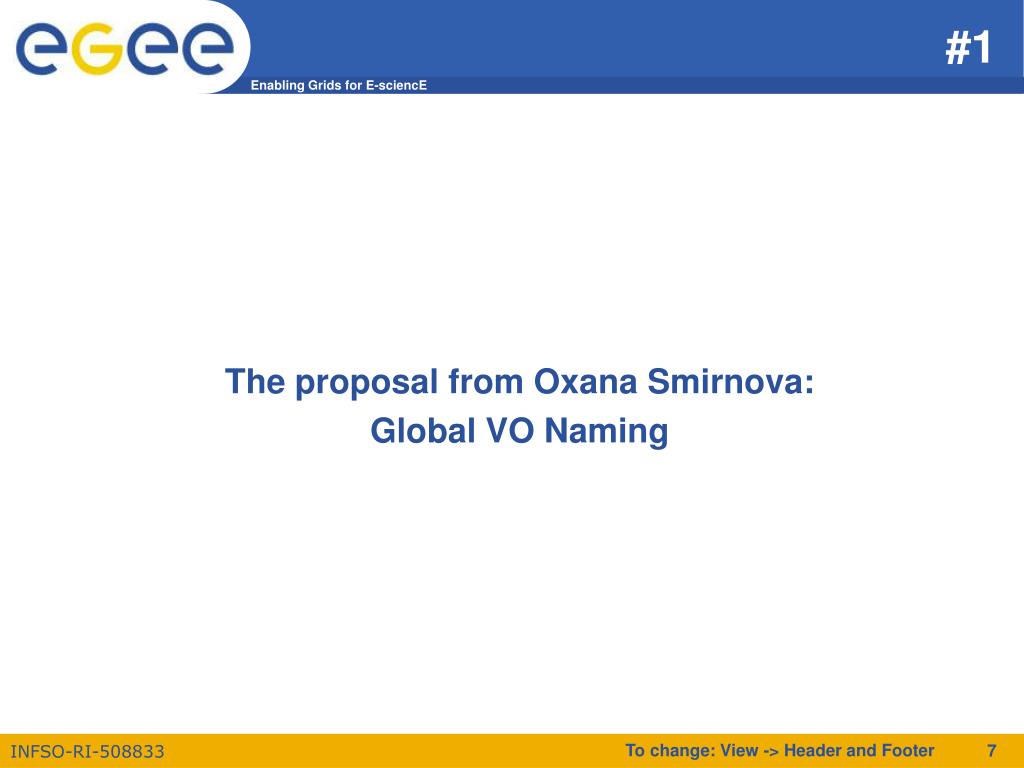

  7. #1 The proposal from Oxana Smirnova: Global VO Naming To change: View -> Header and Footer

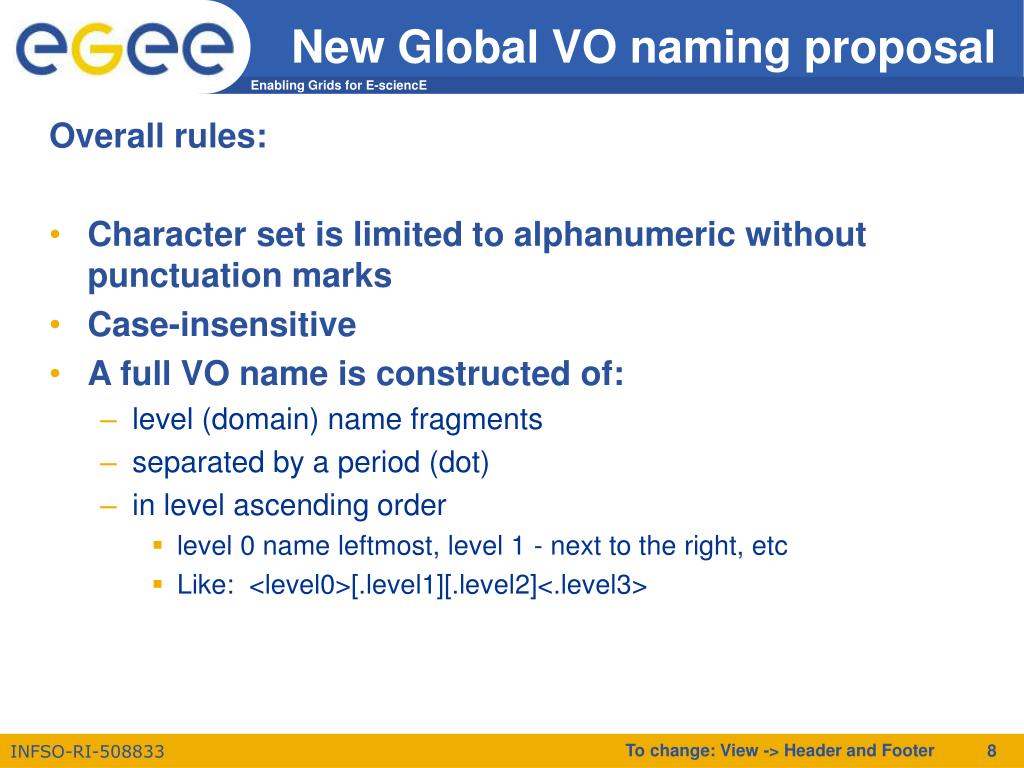

  8. New Global VO naming proposal Overall rules: • Character set is limited to alphanumeric without punctuation marks • Case-insensitive • A full VO name is constructed of: • level (domain) name fragments • separated by a period (dot) • in level ascending order • level 0 name leftmost, level 1 - next to the right, etc • Like: <level0>[.level1][.level2]<.level3> To change: View -> Header and Footer

  9. level 0 • Level 0: (top level) national, global/international • Consists of 241 domains • 240 official two-letter country code • one cross-country domain named "int“ • Each national level is controlled by the respective national Grid Forum or a similar body • INT domain is controlled by the GGF/EGA • Examples: • SE.SWEGRID (Swedish VOs) • RU.DUBNAGRID (Town Grid project) • IT.ENEA (a cross-national VO) • INT.CERN (International HEP lab) To change: View -> Header and Footer

  10. level 1 • Level 1: International regional level (optional) • INT domain may have several sub-domains, introduced whenever necessity appears • Each such sub-domain is controlled by the respective international Grid initiative, congress or another forum • This level is optional and can be omitted for global transnational organizations, such as CERN • The level can contain VOs or area/infrastructure sub-levels • Examples: • INT.BALTIC.BALTICGRID (a regional VO) • INT.CE.VOCE (a regional VO) • INT.EU.EGEE (EU infrastructure sub-level) To change: View -> Header and Footer

  11. level 2 • Level 2: Area or infrastructure level (optional) • If necessary, regional, national or international domains may have area- or infrastructure-specific sub-domains, aiming at grouping VOs • Each such sub-domain is controlled by the respective infrastructure project or area-specific initiative • Examples: • CH.SWISSGRID.ATLAS (Swiss ATLAS Grid VO) • SE.SWEGRID.snic-003-04-59 (a national VO) • INT.EU.EGEE.DTEAM (EGEE VO) • INT.CERN.ATLAS (International HEP VO) To change: View -> Header and Footer

  12. level 3 • Level 3: Virtual Organization Level • This is the actual level controlled by VOs and having VO-specific structure (not discussed here) • User communities can decide on a simple name here and should consider to use the guidelines of naming a VO To change: View -> Header and Footer

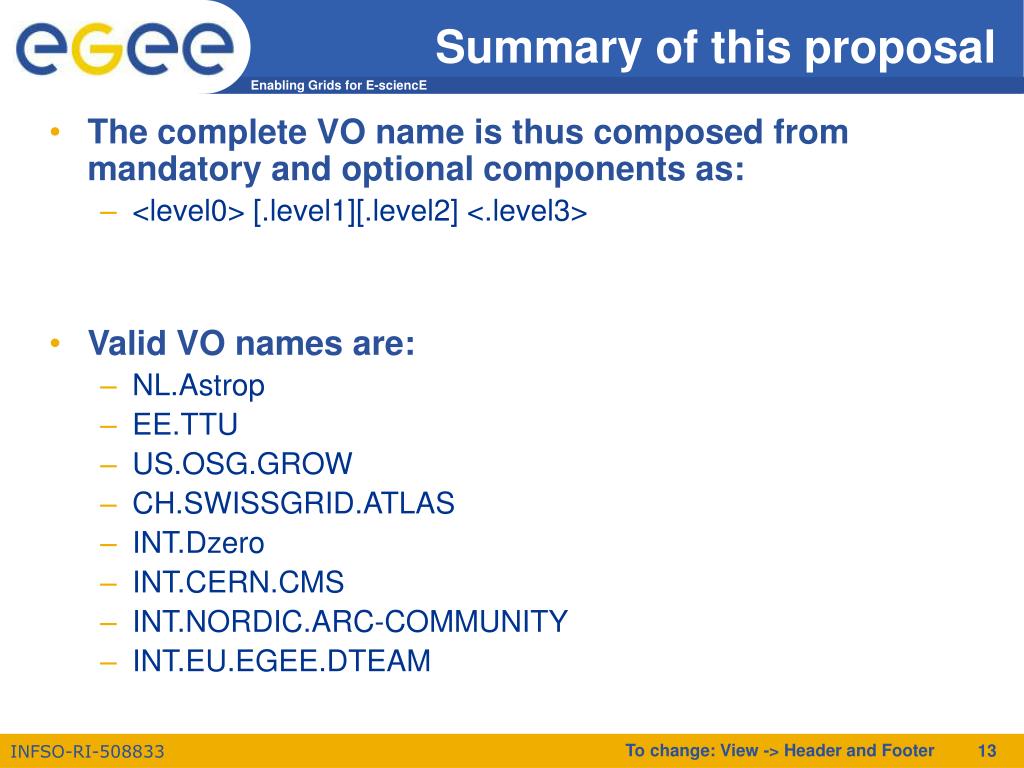

  13. Summary of this proposal • The complete VO name is thus composed from mandatory and optional components as: • <level0> [.level1][.level2] <.level3> • Valid VO names are: • NL.Astrop • EE.TTU • US.OSG.GROW • CH.SWISSGRID.ATLAS • INT.Dzero • INT.CERN.CMS • INT.NORDIC.ARC-COMMUNITY • INT.EU.EGEE.DTEAM To change: View -> Header and Footer

  14. Personal feelings • It looks like a reversed DNS naming, but it isn’t • It relies on community effort • No formal bodies are do this work which means they’ll need to be appointed • People could freely interpret the rules if this scheme doesn’t come with (practical) guidelines • How to endorse? • Who is the boss of int.* or int.eu* or us.*? • Tendency to put meta-data in these names • Some organizational meta-data could perhaps not fit the scheme To change: View -> Header and Footer

  15. #2 An idea from David Groep / Oscar Koeroo: DNS (and making use of RFC 2782) To change: View -> Header and Footer

  16. DNS • Personally I would vote for a real DNS solution… • Less confusion and mix-ups • Why should we not use standards if they’re already available? • RFC 1034 • Domain names - concepts and facilities • Section 3.4 - Example name space • Strong urge to only use 7-bit ASCII characters • a-zA-Z[a-zA-Z0-9-\.]*\. • RFC 2782 • A DNS RR for specifying the location of services (DNS SRV) To change: View -> Header and Footer

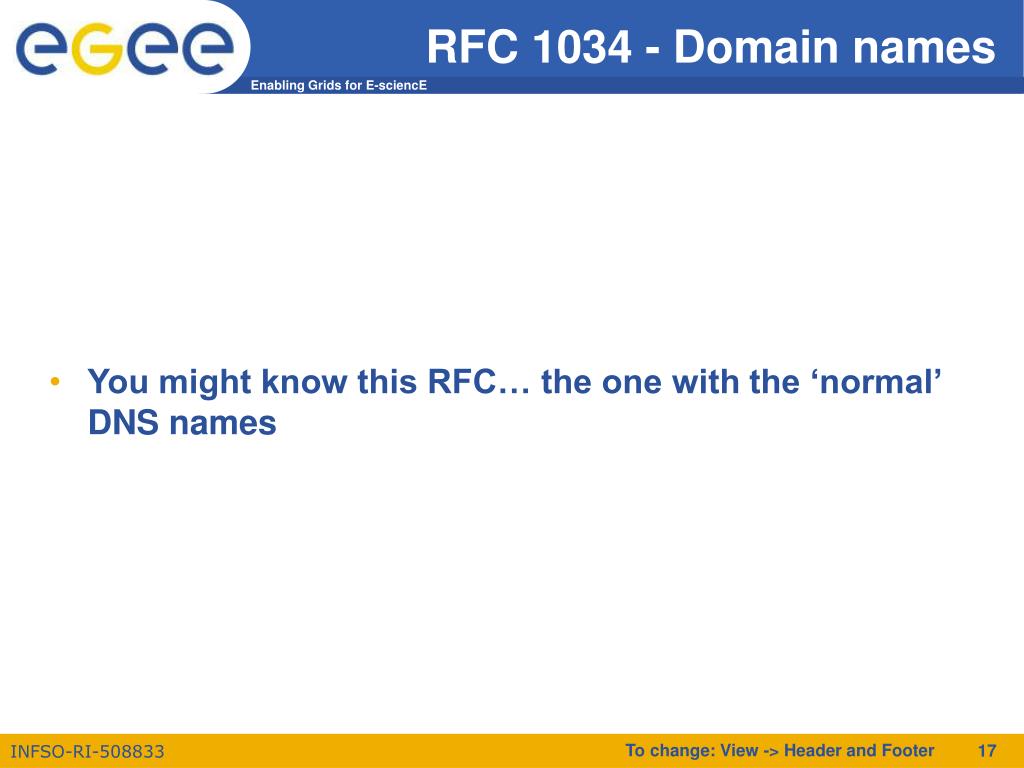

  17. RFC 1034 - Domain names • You might know this RFC… the one with the ‘normal’ DNS names To change: View -> Header and Footer

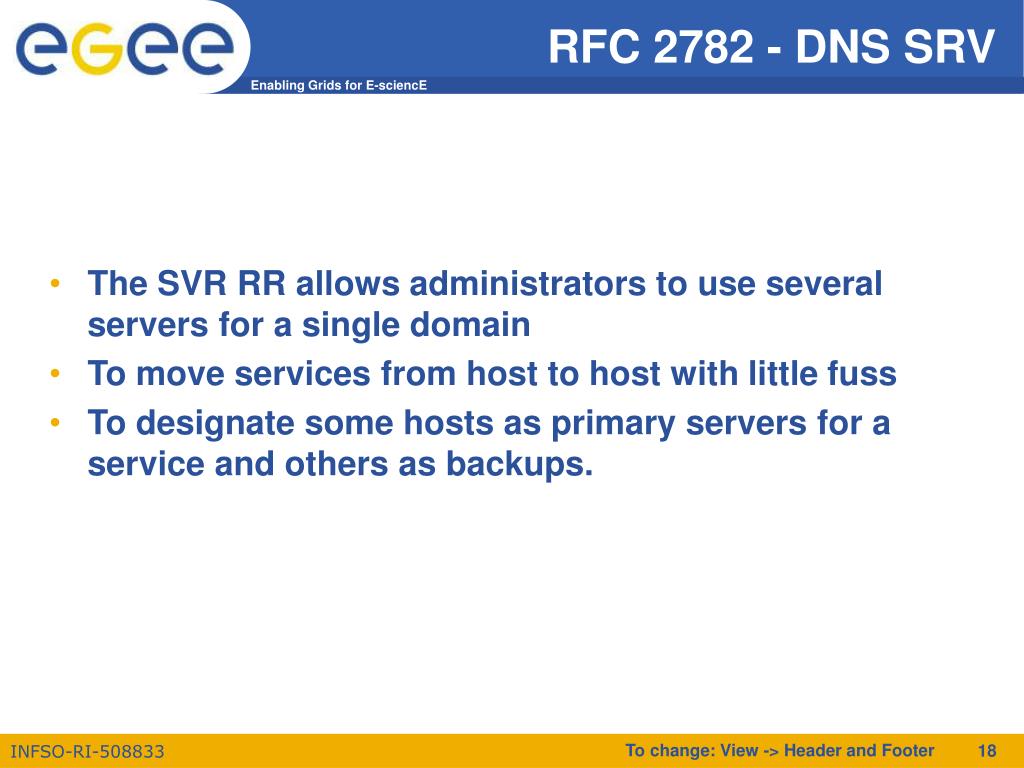

  18. RFC 2782 - DNS SRV • The SVR RR allows administrators to use several servers for a single domain • To move services from host to host with little fuss • To designate some hosts as primary servers for a service and others as backups. To change: View -> Header and Footer

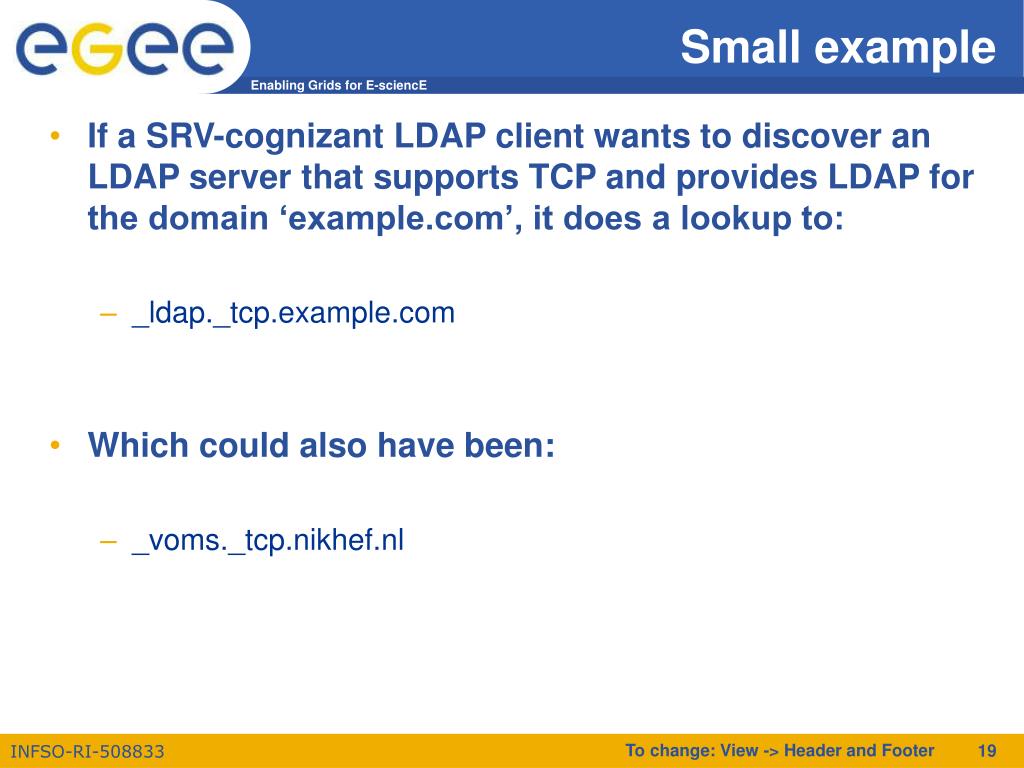

  19. Small example • If a SRV-cognizant LDAP client wants to discover an LDAP server that supports TCP and provides LDAP for the domain ‘example.com’, it does a lookup to: • _ldap._tcp.example.com • Which could also have been: • _voms._tcp.nikhef.nl To change: View -> Header and Footer

  20. The format _Service._Proto.Name TTL Class SRV Priority Weight Port Target • Service: • The symbolic name for the desired service • Proto: • The symbolic name for the desired protocol • Name • The domain this RR refers to. • TTL • Standard DNS meaning • Class • Standard DNS meaning; SRV records occur in the IN Class • Priority • The priority of this target host expressed in a 16 bit unsigned integer. • Lowest value is best and the client MUST try the best service first • The weight field is considered when two services have the same priority • Weight • Expressed in a 16bit unsigned integer • Larger weight SHOULD be given a proportionately higher probability of being selected • When there is no server selection, the admin SHOULD use Weight 0 when there isn’t any server selection • Client computes the sum of all weights, then creates a random number between 0 and the sum of weights. The first weight greater or equal then the random number is the service to be used by the client • Port • 16 bit unsigned integer service port number • Target • Domain name of the target host Note: the _ (underscore) is used to avoid collisions with DNS labels To change: View -> Header and Footer

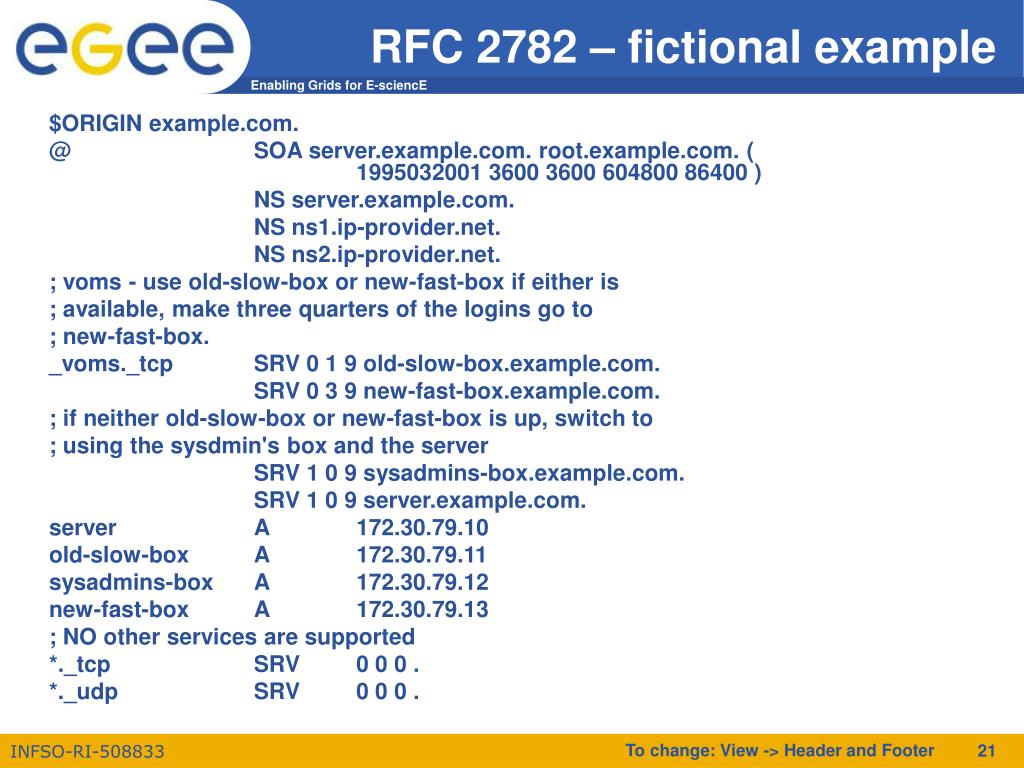

  21. RFC 2782 – fictional example $ORIGIN example.com. @ SOA server.example.com. root.example.com. ( 1995032001 3600 3600 604800 86400 ) NS server.example.com. NS ns1.ip-provider.net. NS ns2.ip-provider.net. ; voms - use old-slow-box or new-fast-box if either is ; available, make three quarters of the logins go to ; new-fast-box. _voms._tcp SRV 0 1 9 old-slow-box.example.com. SRV 0 3 9 new-fast-box.example.com. ; if neither old-slow-box or new-fast-box is up, switch to ; using the sysdmin's box and the server SRV 1 0 9 sysadmins-box.example.com. SRV 1 0 9 server.example.com. server A 172.30.79.10 old-slow-box A 172.30.79.11 sysadmins-box A 172.30.79.12 new-fast-box A 172.30.79.13 ; NO other services are supported *._tcp SRV 0 0 0 . *._udp SRV 0 0 0 . To change: View -> Header and Footer

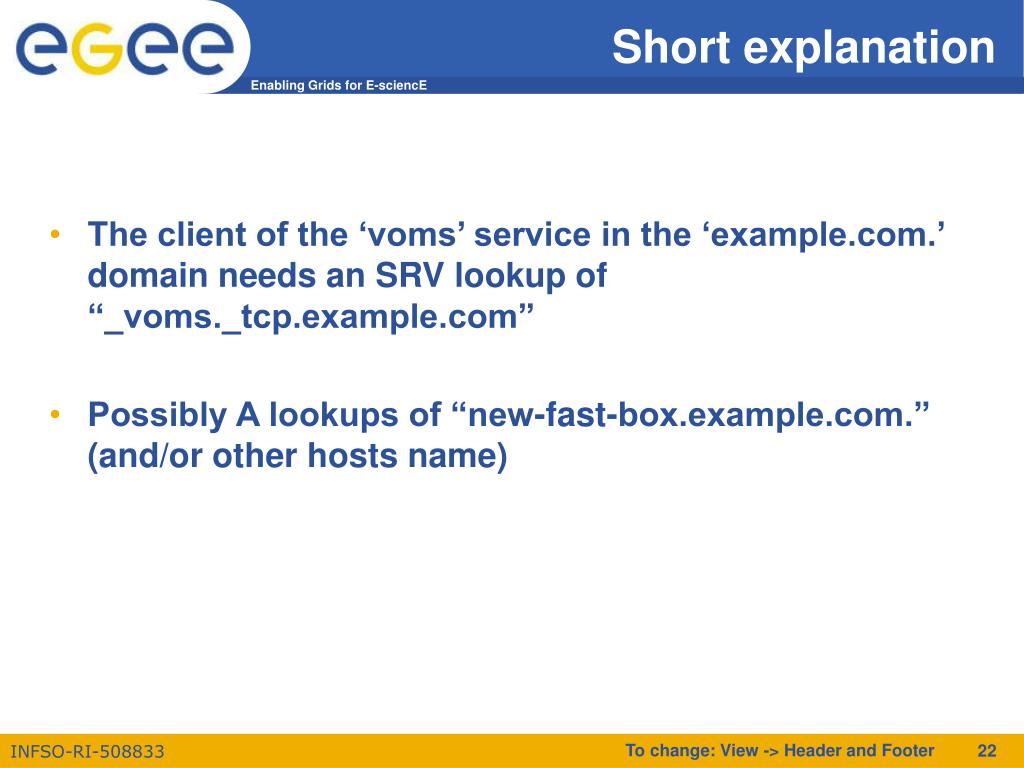

  22. Short explanation • The client of the ‘voms’ service in the ‘example.com.’ domain needs an SRV lookup of “_voms._tcp.example.com” • Possibly A lookups of “new-fast-box.example.com.” (and/or other hosts name) To change: View -> Header and Footer

  23. Critical detail • DNS Spoofing could become a whole new ballgame… • As a service you are not controlling this information flow about your service To change: View -> Header and Footer

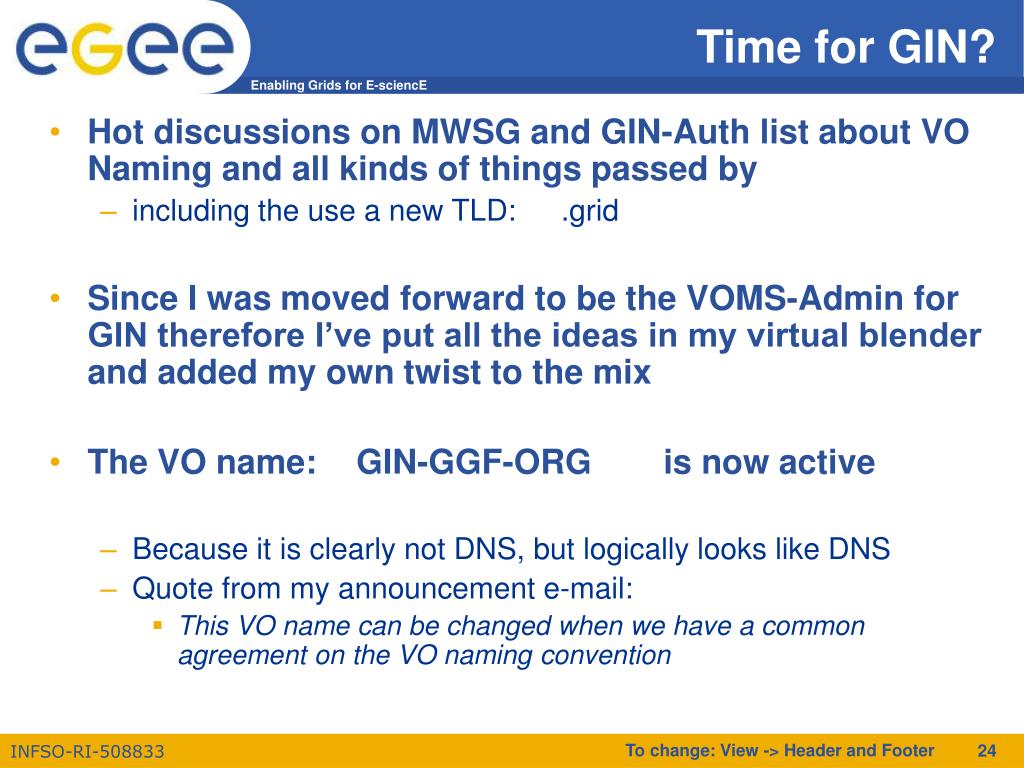

  24. Time for GIN? • Hot discussions on MWSG and GIN-Auth list about VO Naming and all kinds of things passed by • including the use a new TLD: .grid • Since I was moved forward to be the VOMS-Admin for GIN therefore I’ve put all the ideas in my virtual blender and added my own twist to the mix • The VO name: GIN-GGF-ORG is now active • Because it is clearly not DNS, but logically looks like DNS • Quote from my announcement e-mail: • This VO name can be changed when we have a common agreement on the VO naming convention To change: View -> Header and Footer

  25. Where do you want to go today? A few options: • 1.) We keep on hurdling with just the VO names • Pro: no change needed anywhere • Con: one can expect pitfalls down the road… • 2.) Implement the VO Naming proposal • Pro: Name space regulation, controlled by ‘others’ • Cons: takes time to setup authoritive groups • Cons: relocation problems when pinned to a level0 to level3 domain • 3.) A real DNS solution • RFC 1034 for Domain Names • RFC 2782 for the DNS SRV • 4.) Something completely different? • DNS trickery • Logical DNS: GIN-GGF-ORG • DNS-alike: picard|kuiken.nikhef.nl • e-mail-alike: picard@kuiken.nikhef.nl • 5.) Please fill in blank with your idea: ______ To change: View -> Header and Footer
