Calculation of Hydrogen Gas Volume from Sodium and Phosphoric Acid Reaction

This document details the reaction of sodium with phosphoric acid to produce hydrogen gas, analyzing both theoretical and actual yields. The reaction 6Na + 2H3PO4 → 3H2 + 2Na3PO4 is used to calculate the volume of hydrogen gas generated under standard temperature and pressure (STP). Key calculations determine the theoretical yield as 0.336 L, while the actual yield is measured at 0.30 L, yielding a percent yield of 89%. Further calculations are provided to find the volume of the gas at room temperature after adjusting for pressure and temperature changes.

brady-logan
Télécharger la présentation

Calculation of Hydrogen Gas Volume from Sodium and Phosphoric Acid Reaction

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Quiz 4-26-12 Answers

  2. 2.30 g Na are reacted with 100.0 mL of 0.10 M phosphoric acid. Calculate the number of liters of hydrogen gas formed at STP. 6 Na + 2H3PO4 3 H2 + 2 Na3PO4 2.30 g Na 1 mole Na 3 mole H2 22.4 L H2 = 1.12 L H2 23.0 g Na 6 mole Na 1 mole H2

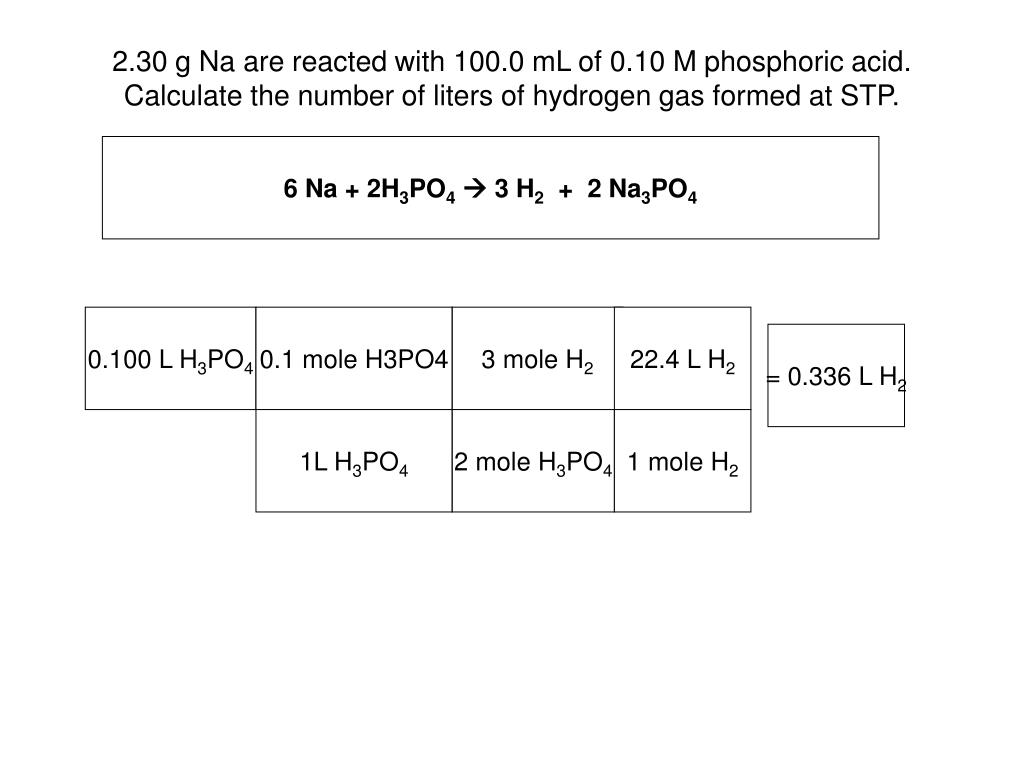

  3. 2.30 g Na are reacted with 100.0 mL of 0.10 M phosphoric acid. Calculate the number of liters of hydrogen gas formed at STP. 6 Na + 2H3PO4 3 H2 + 2 Na3PO4 0.100 L H3PO4 0.1 mole H3PO4 3 mole H2 22.4 L H2 = 0.336 L H2 1L H3PO4 2 mole H3PO4 1 mole H2

  4. When you actually perform the experiment, you get 0.30 L of H2. What is the percent yield. • The two values for the volume of H2 were 0.336 L and 1.12 L of H2 • 0.336 L is the theoretical yield. 1.12 is just wishful thinking. • 0.30 L is the actual yield. Actual yield 0.30 L H2 X 100 % = 89% theoretical yield 0.336 L H2

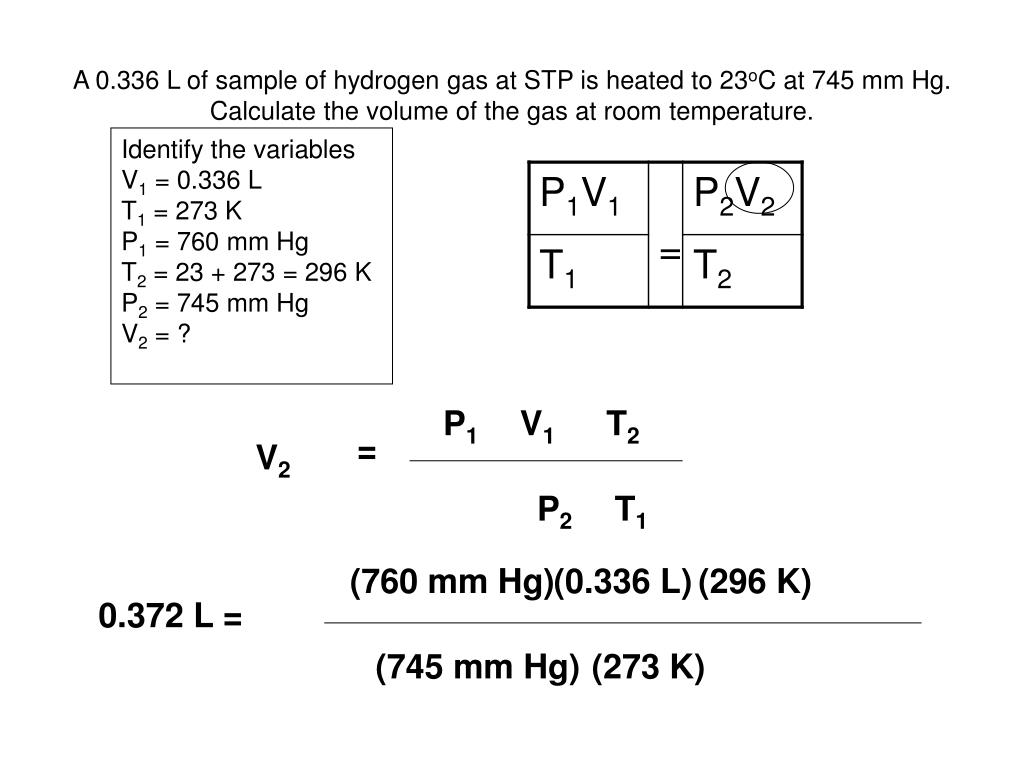

  5. A 0.336 L of sample of hydrogen gas at STP is heated to 23oC at 745 mm Hg.Calculate the volume of the gas at room temperature. Identify the variables V1 = 0.336 L T1 = 273 K P1 = 760 mm Hg T2 = 23 + 273 = 296 K P2 = 745 mm Hg V2 = ? P1 V1 T2 = V2 P2 T1 (760 mm Hg) (0.336 L) (296 K) 0.372 L = (745 mm Hg) (273 K)
