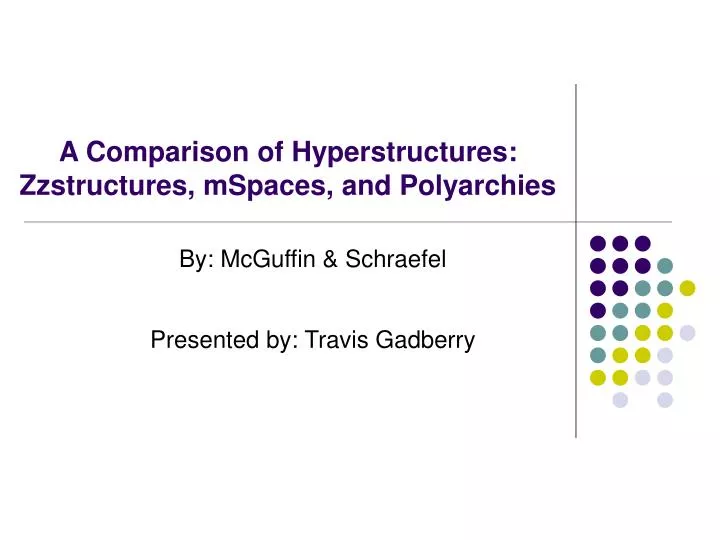

  1. A Comparison of Hyperstructures: Zzstructures, mSpaces, and Polyarchies By: McGuffin & Schraefel Presented by: Travis Gadberry

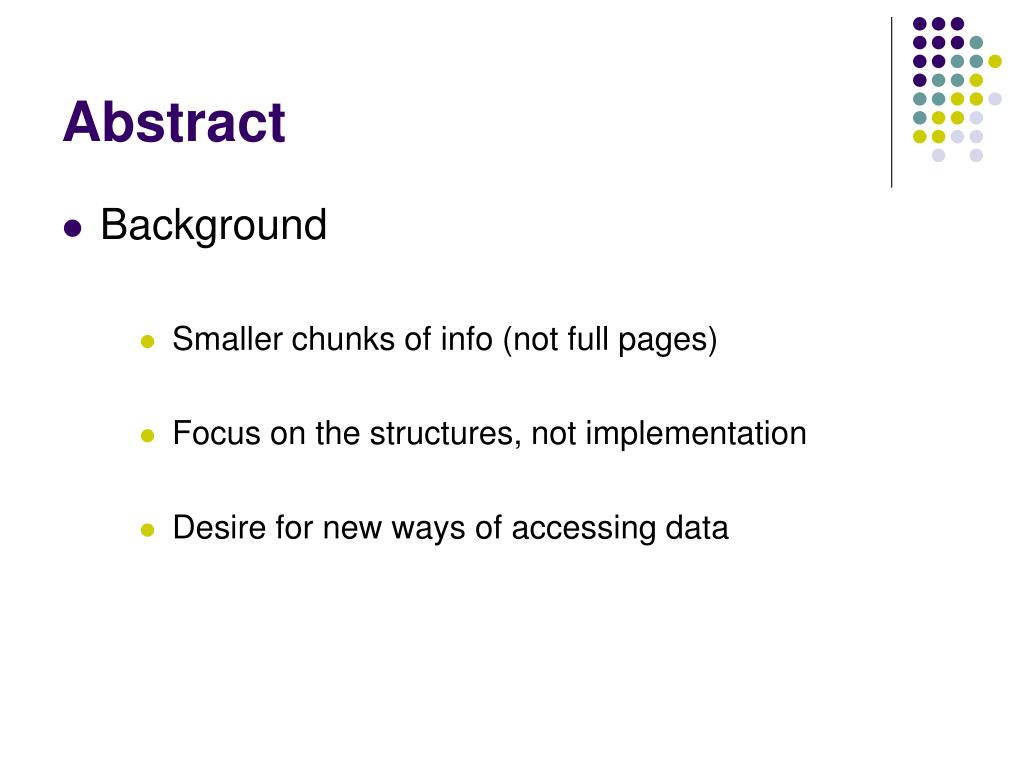

  2. Abstract • Background • Smaller chunks of info (not full pages) • Focus on the structures, not implementation • Desire for new ways of accessing data

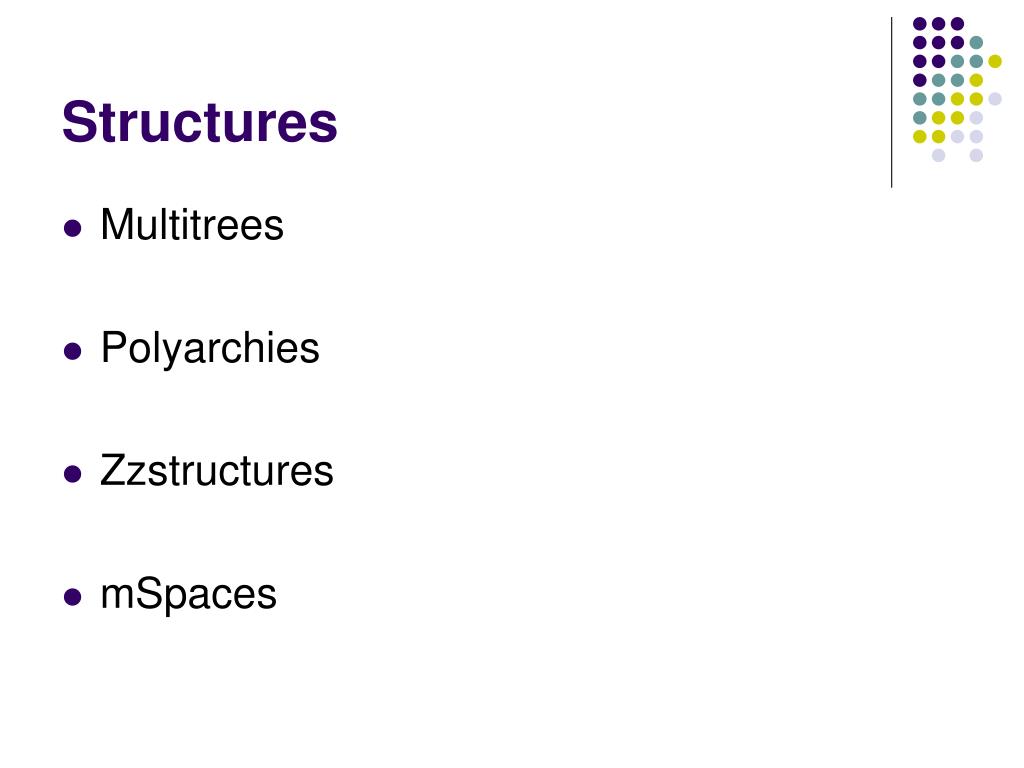

  3. Structures • Multitrees • Polyarchies • Zzstructures • mSpaces

  4. Multitrees • Kind of DAG • Can contain multiple overlapping trees • Overlaps must share subtrees • Ex. Human genealogies

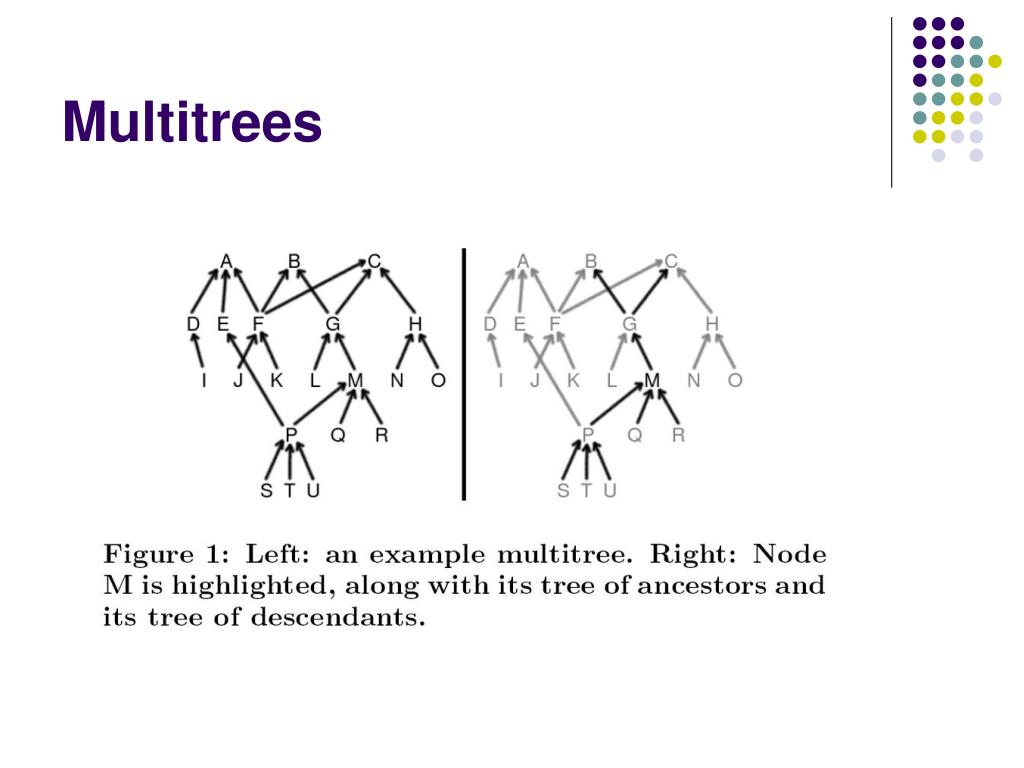

  5. Multitrees

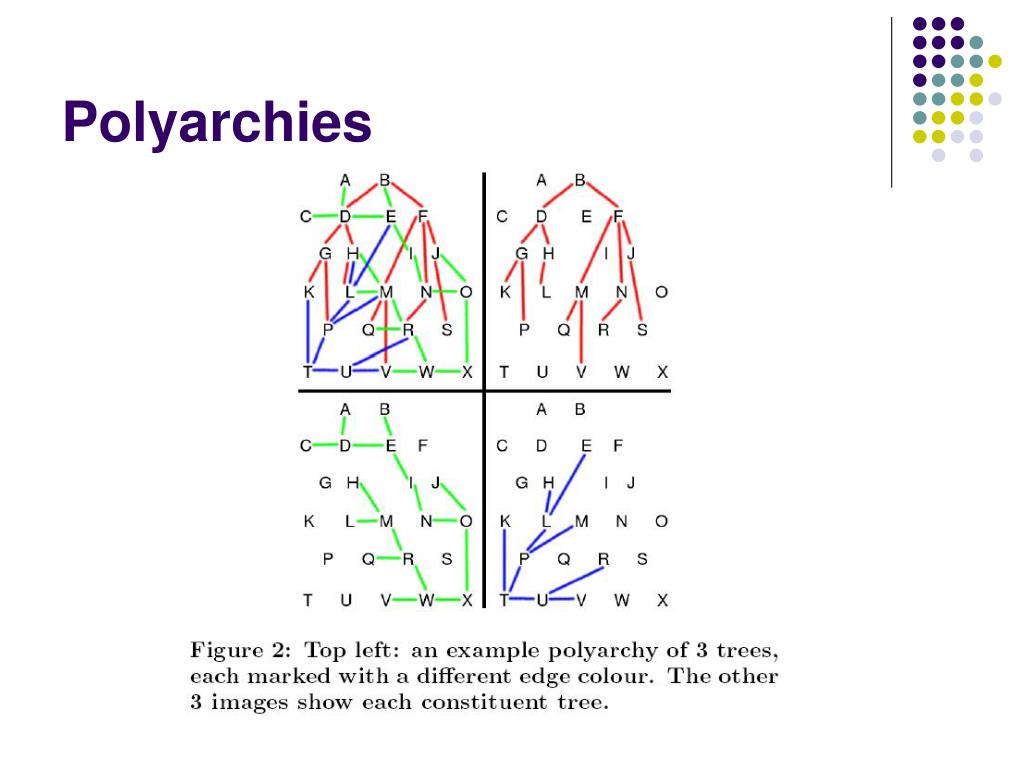

  6. Polyarchies • Can contain multiple overlapping trees • Overlaps may contain subtrees • Overlaps may happen at arbitrary nodes • Coloring edges distinguishes different trees

  7. Polyarchies

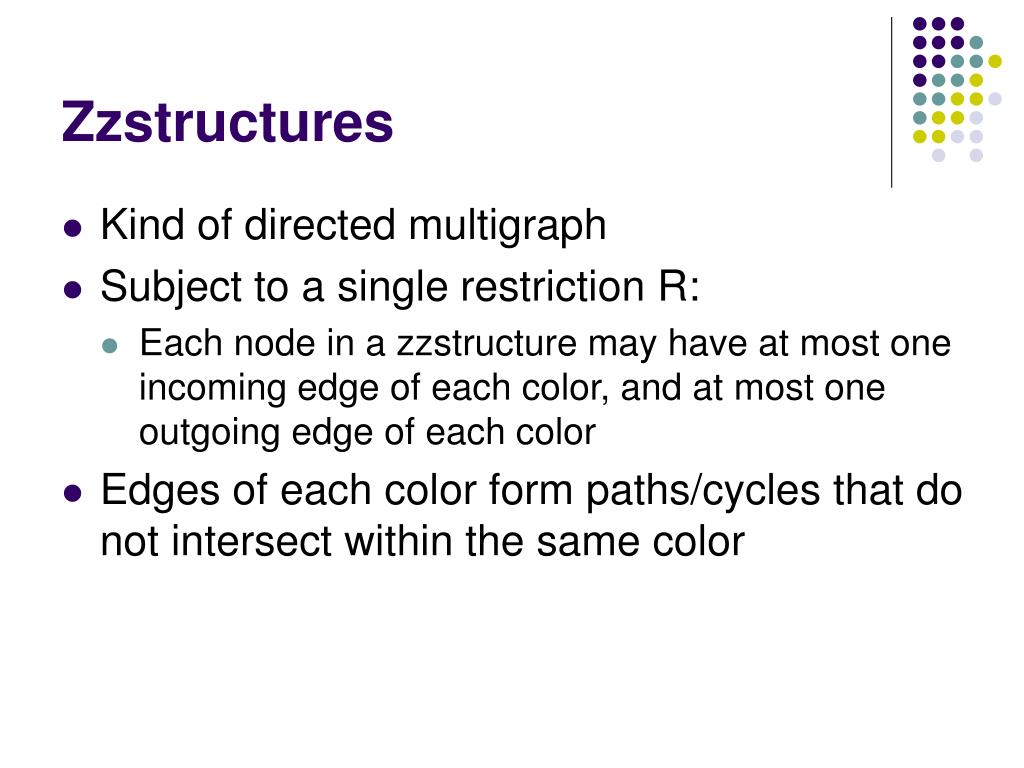

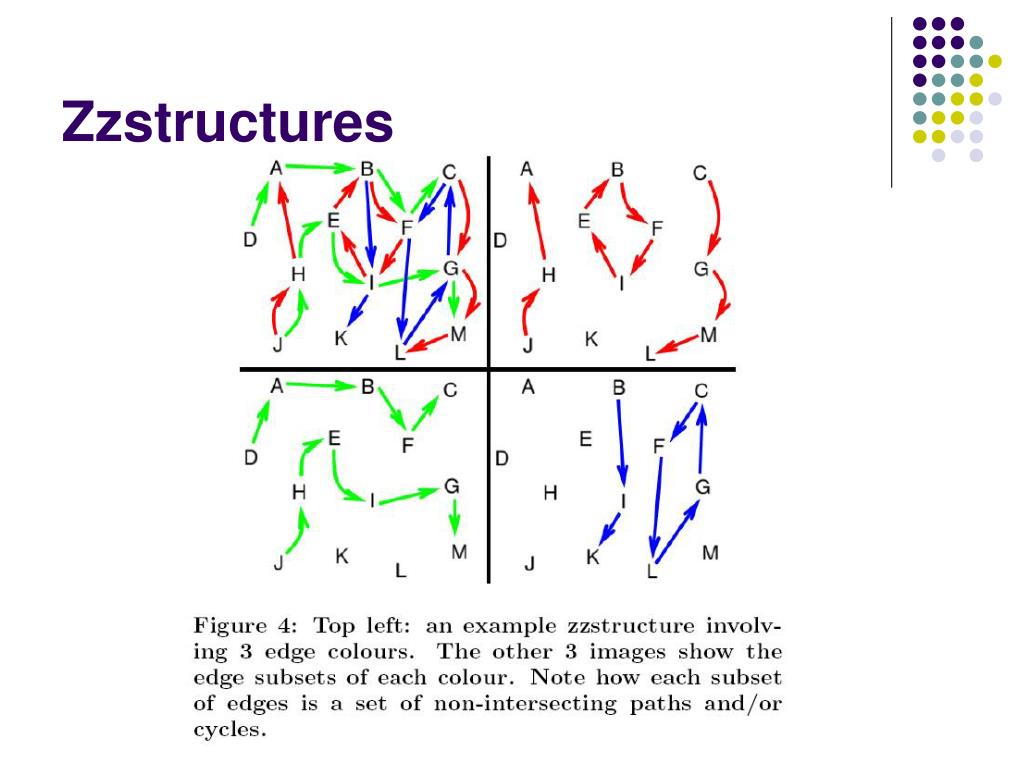

  8. Zzstructures • Kind of directed multigraph • Subject to a single restriction R: • Each node in a zzstructure may have at most one incoming edge of each color, and at most one outgoing edge of each color • Edges of each color form paths/cycles that do not intersect within the same color

  9. Zzstructures

  10. Zzstructures

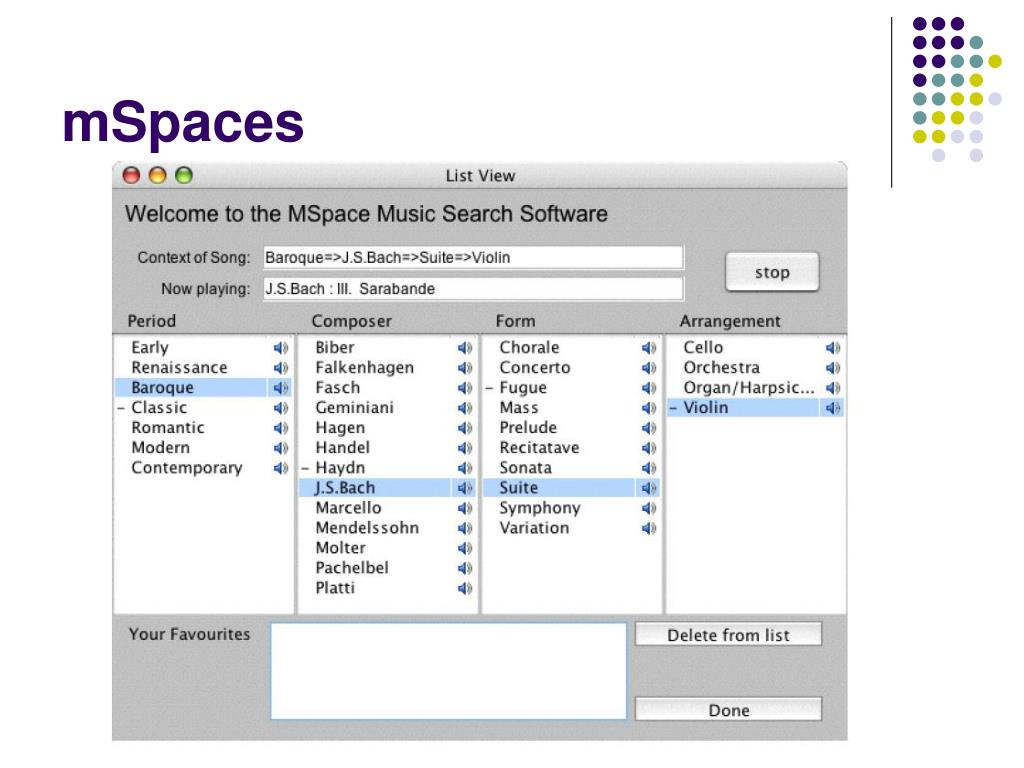

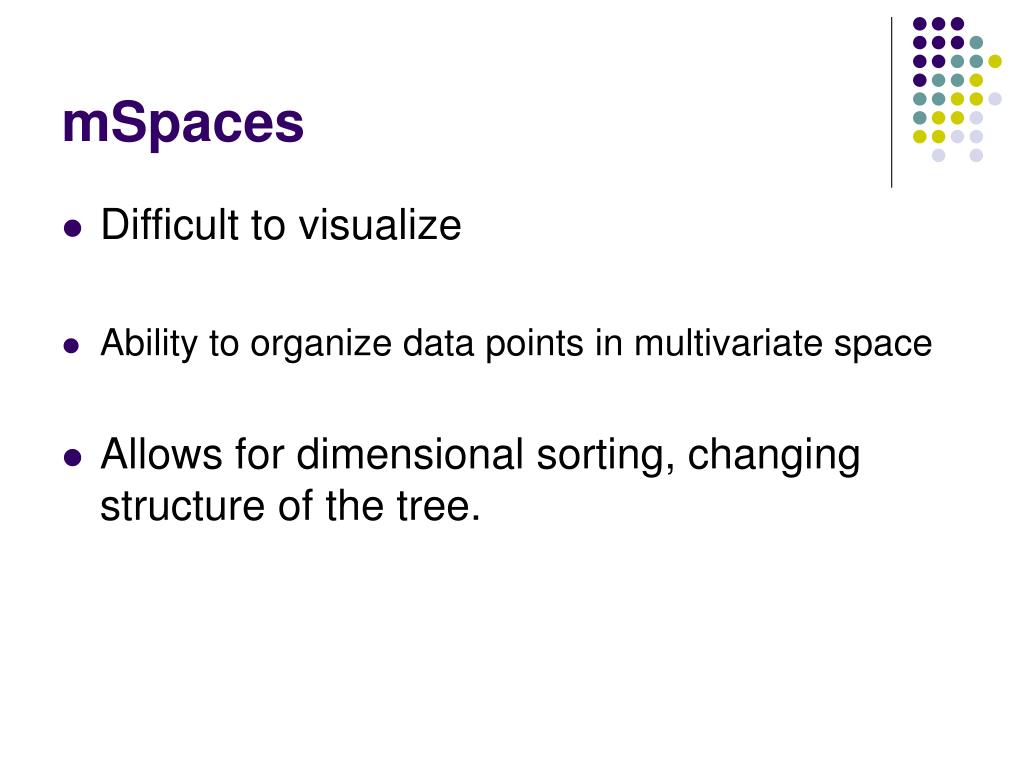

  11. mSpaces • Difficult to visualize • Ability to organize data points in multivariate space • Allows for dimensional sorting, changing structure of the tree.

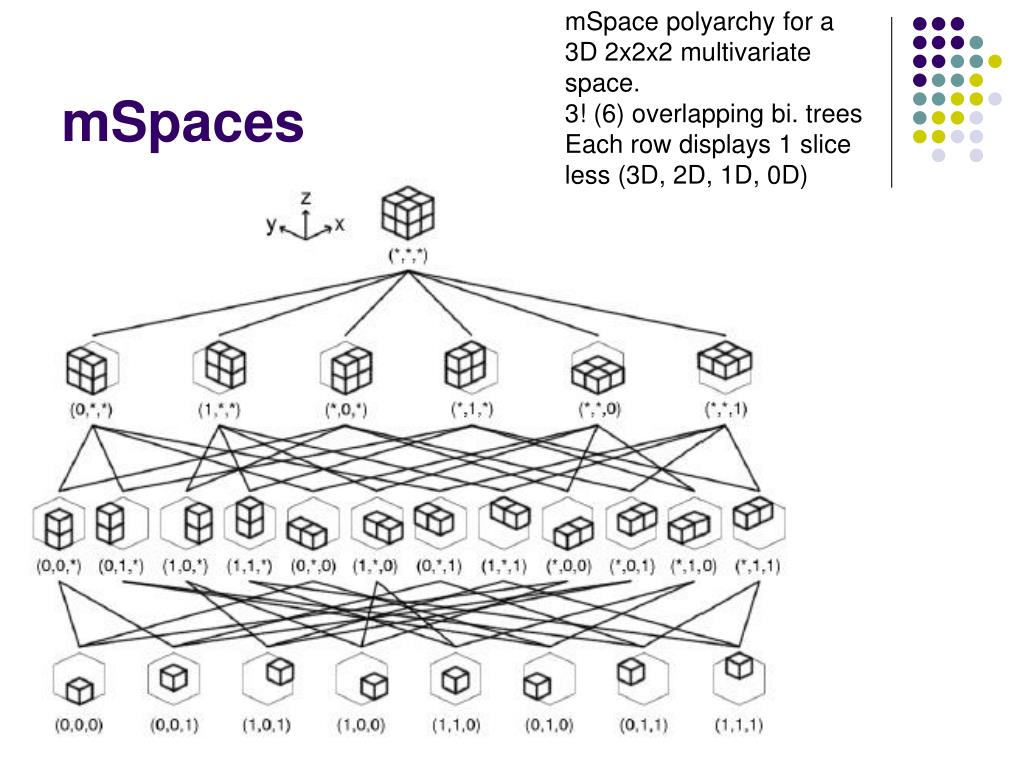

  12. mSpace polyarchy for a 3D 2x2x2 multivariate space. 3! (6) overlapping bi. trees Each row displays 1 slice less (3D, 2D, 1D, 0D) mSpaces

  13. mSpaces

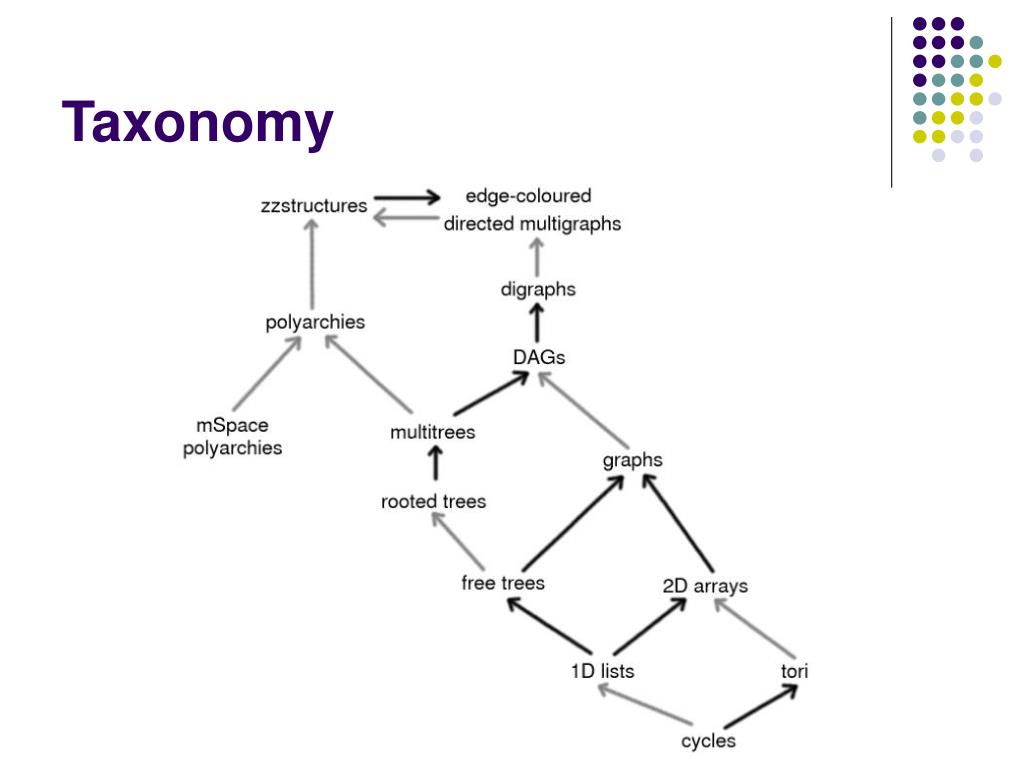

  14. Taxonomy

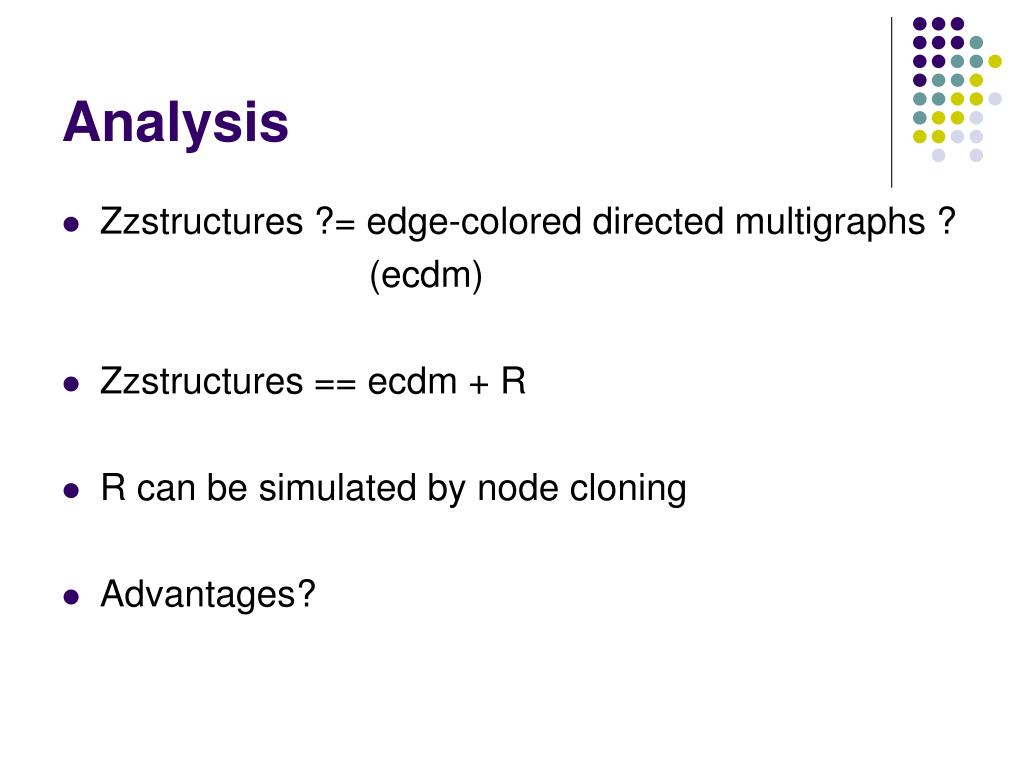

  15. Analysis • Zzstructures ?= edge-colored directed multigraphs ? (ecdm) • Zzstructures == ecdm + R • R can be simulated by node cloning • Advantages?

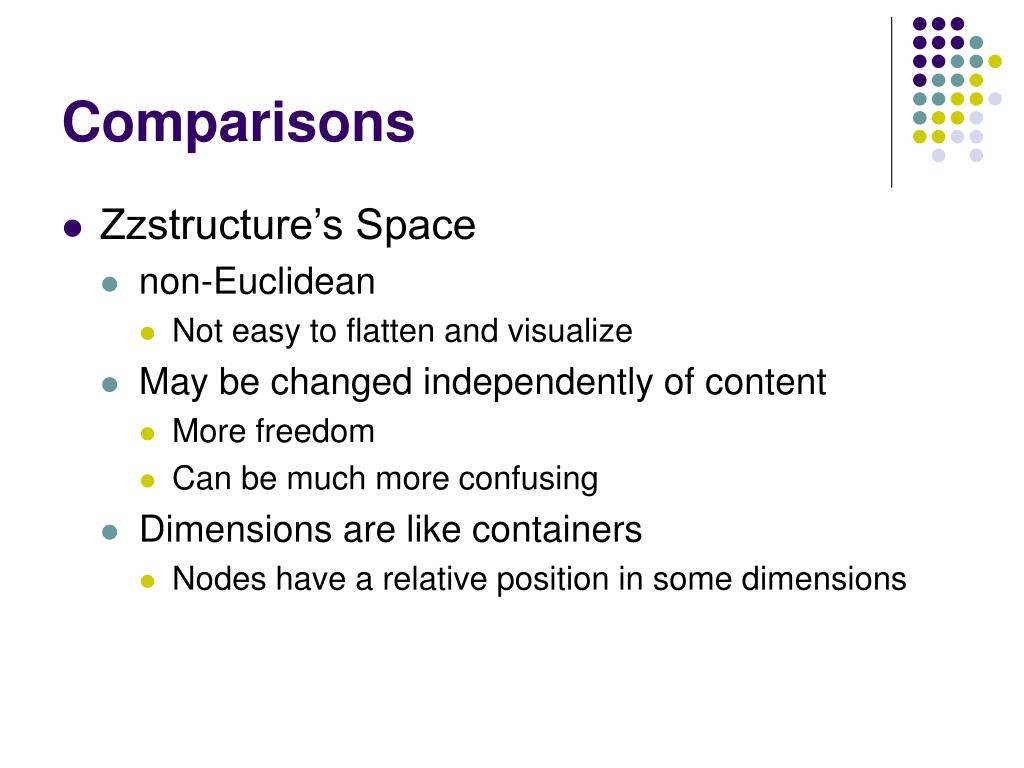

  16. Comparisons • Zzstructure’s Space • non-Euclidean • Not easy to flatten and visualize • May be changed independently of content • More freedom • Can be much more confusing • Dimensions are like containers • Nodes have a relative position in some dimensions

  17. Comparisons • mSpace’s Space • Euclidean • Like a high-dimensional grid • Slices can be taken and visualized • Space determined by attributes on content • More structured • Changing location of nodes doesn’t affect space • Dimensions are variables • Nodes have a value in every dimension

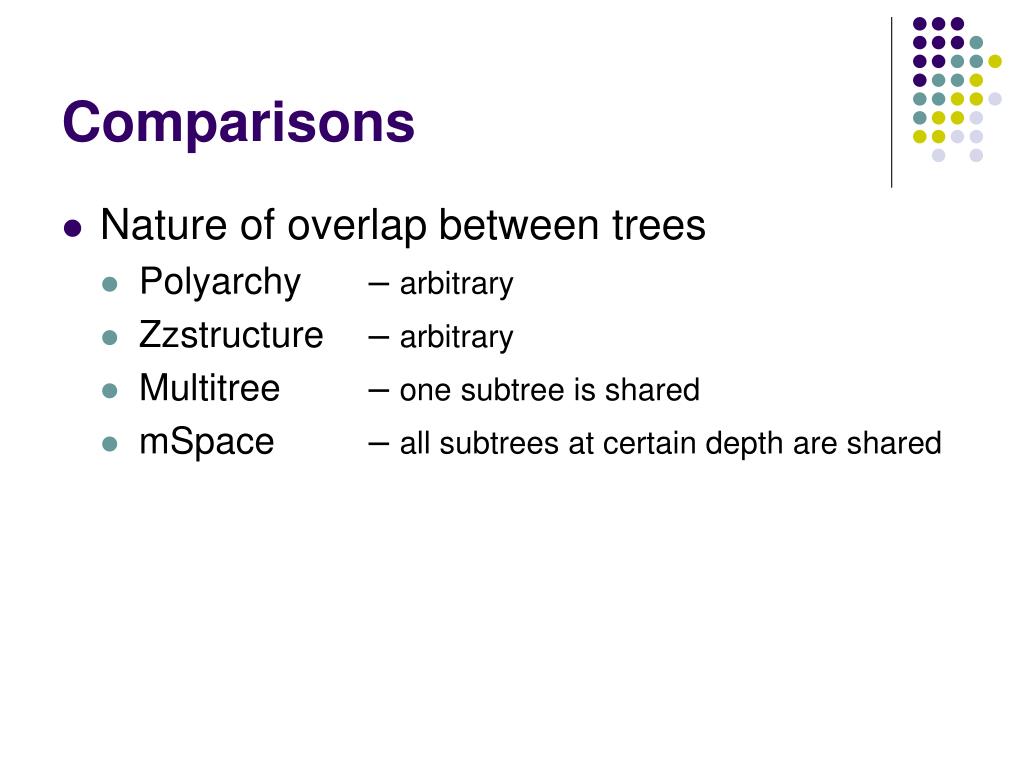

  18. Comparisons • Nature of overlap between trees • Polyarchy – arbitrary • Zzstructure – arbitrary • Multitree – one subtree is shared • mSpace – all subtrees at certain depth are shared

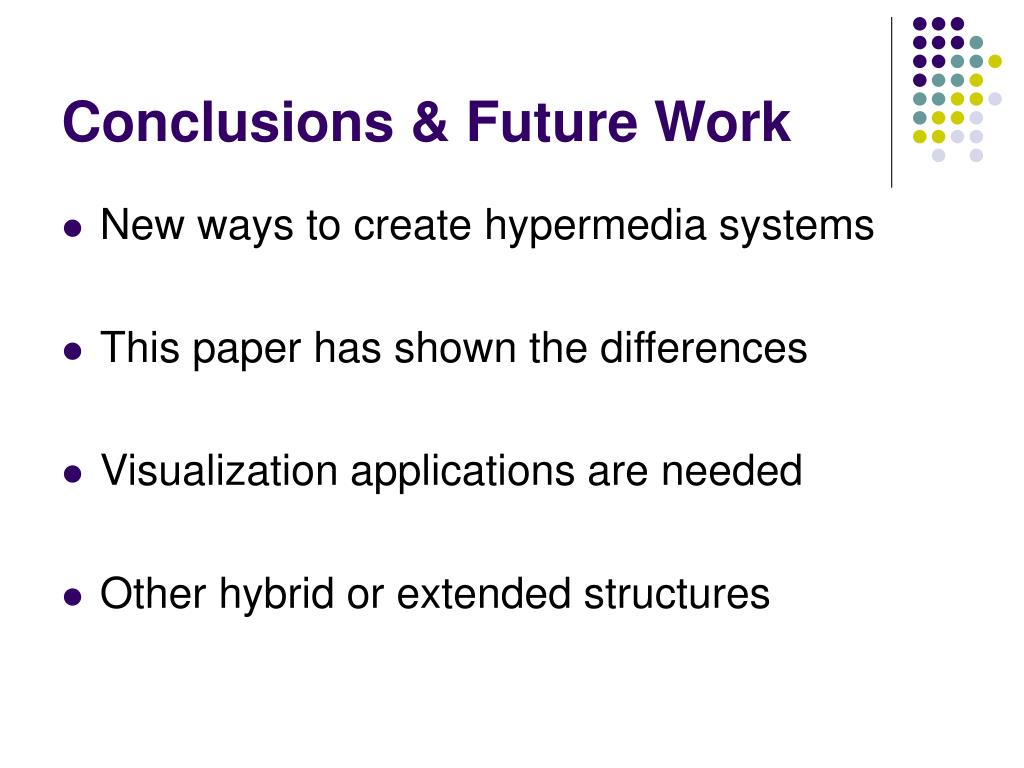

  19. Conclusions & Future Work • New ways to create hypermedia systems • This paper has shown the differences • Visualization applications are needed • Other hybrid or extended structures
