  1. Optimizations for Faster Execution of Esterel Programs Dumitru Potop Robert de Simone IRISA Rennes INRIA Sophia Antipolis

  2. Outline • The Esterel language • The problem of efficient code generation • The GRC intermediate representation • Intuitive description • Software code generation • Code analysis and optimizations • Practical results. Conclusion. Future work

  3. The Esterel language • Formal semantics (FSMs, circuits) • Formal verification Esterel specification SW translation HW (RTL) generation • Simulation • SW implementation • HW prototype (FPGA) • Synthesis input

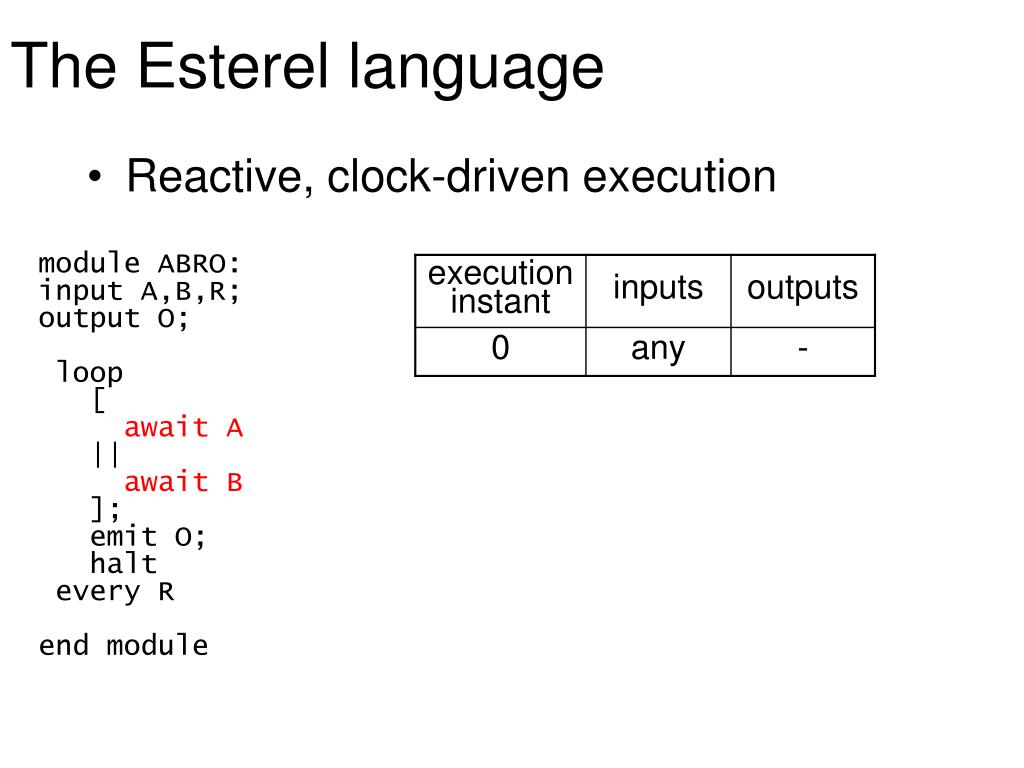

  4. The Esterel language • Reactive, clock-driven execution module ABRO: input A,B,R; output O; » loop [ await A || await B ]; emit O; halt every R end module

  5. The Esterel language • Reactive, clock-driven execution module ABRO: input A,B,R; output O; loop [ await A || await B ]; emit O; halt every R end module

  6. The Esterel language • Reactive, clock-driven execution module ABRO: input A,B,R; output O; loop [ await A || await B ]; emit O; halt every R end module

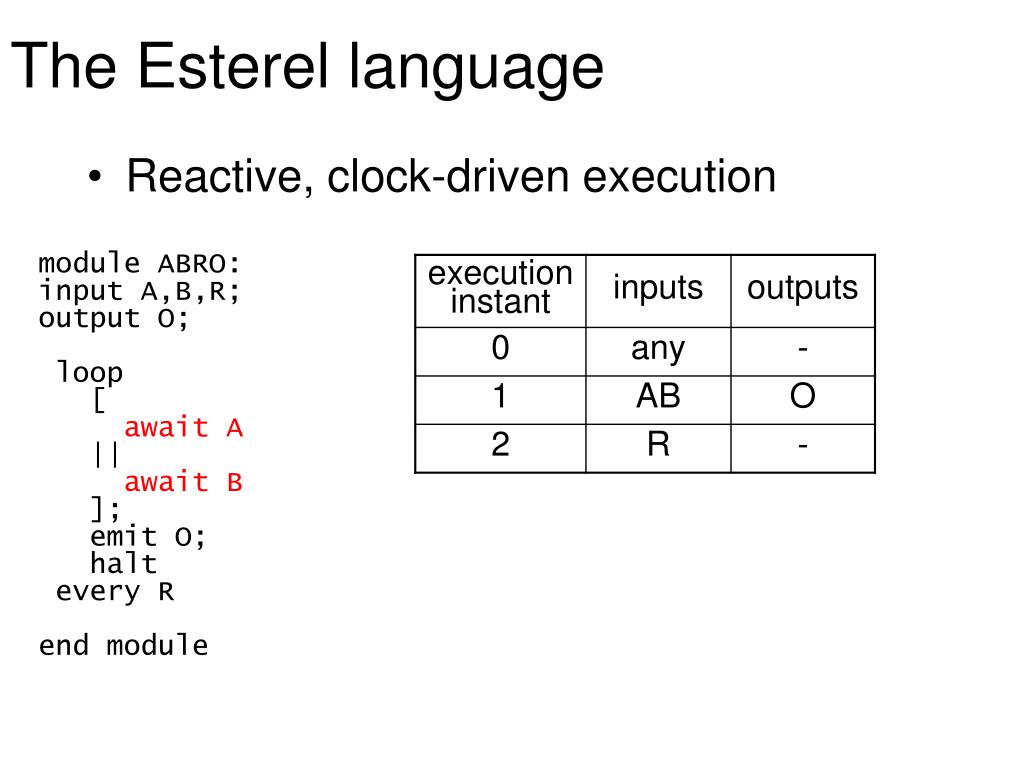

  7. The Esterel language • Reactive, clock-driven execution module ABRO: input A,B,R; output O; loop [ await A || await B ]; emit O; halt every R end module

  8. The Esterel language • Synchrony • Causality cycles present S else emit S end • Constructive semantics (SOS rules) ·signal S,T in emit S; present T then present S else emit T end else emit O end; end

  9. The Esterel language • Synchrony • Causality cycles present S else emit S end • Constructive semantics (SOS rules) signal S,T in ·emit S; present T then present S else emit T end else emit O end; end

  10. The Esterel language • Synchrony • Causality cycles present S else emit S end • Constructive semantics (SOS rules) signal S,T in emit S; ·present T then present S else emit T end else emit O end; end

  11. The Esterel language • Synchrony • Causality cycles present S else emit S end • Constructive semantics (SOS rules) causality cycle signal S,T in emit S; ·present T then present S else emit T end else emit O end; end

  12. The Esterel language • Synchrony • Causality cycles present S else emit S end • Constructive semantics (SOS rules) causality cycle signal S,T in emit S; ·present T then present S else emit T end else emit O end; end break the cycle

  13. First compilation scheme (1980’s) • FSM-based translation • Exhaustive semantic expansion • Explosion in size, expensive analysis • Fast code (execute only active code) 0 loop [ await A || await B ]; emit O; halt every R 1 2 3 4

  14. Second compilation scheme (1990’s) • Circuit-based translation • Encode primitives into gates • Small circuit size (quasi-linear) • Slow software code (acyclic circuit evaluation) A loop [ await A || await B ]; emit O; halt every R R O start B

  15. Third compilation scheme (2000’s) • “Simulation” code • Follows the naïve semantics (control-flow) • Accept less programs (acyclic circuits) • Code:small andvery fast(statically scheduled) • Edwards, Closse/Weil if(START){A_active=1;B_active=1;START=0} else { if(R){A_active=1;B_active=1;} else if(A_active|B_active) { if(A_active) if(A) A_active=0; if(B_active) if(B) B_active=0; if(!(A_active|B_active)) O=1; } } loop [ await A || await B ]; emit O; halt every R

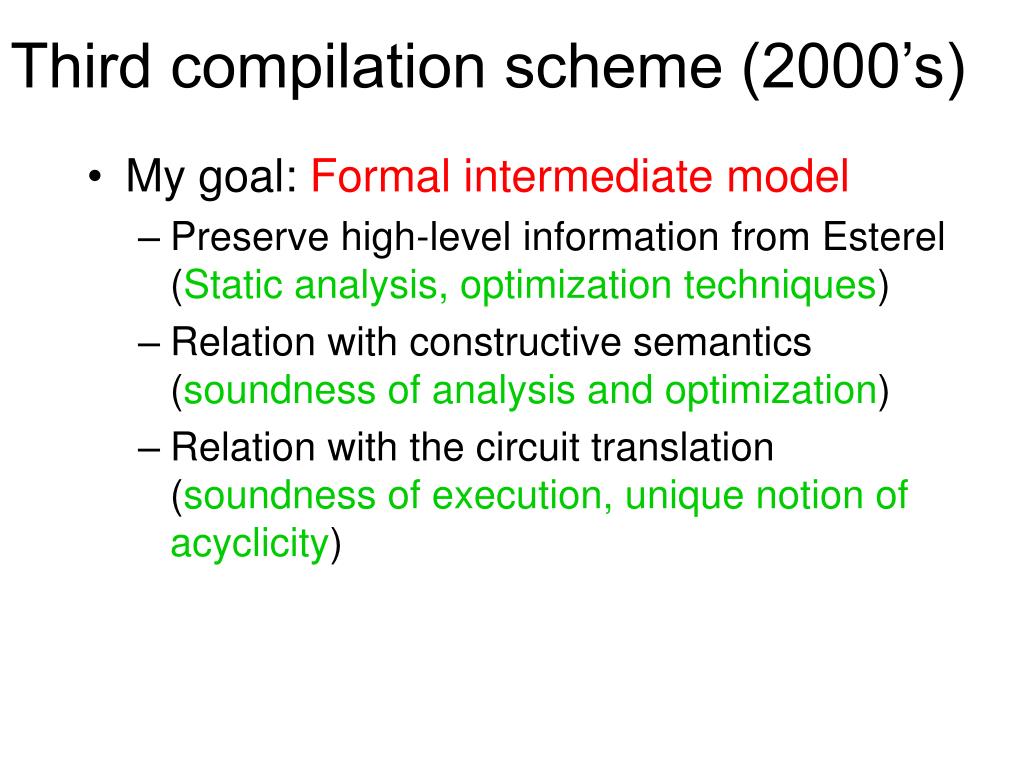

  16. Third compilation scheme (2000’s) • My goal:Formal intermediate model • Preserve high-level information from Esterel (Static analysis, optimization techniques) • Relation with constructive semantics (soundness of analysis and optimization) • Relation with the circuit translation (soundness of execution, unique notion of acyclicity)

  17. The GRC intermediate format 1 boot: 0 # Hierarchical state (structure) 4 await A 3 || await B 2 5 loop [ await A;emit B || await B ]; emit O; halt every R # sequence loop-every halt 6 activation new state enter4 exit 1 enter2 enter3 3 enter5 [1] exit2 0 Inactive[4] [2] R 4 exit4 emit B term[4] exit3 enter6 emit O term A Control/Data flow graph (behaviour) [3] pause 3 pause[4] Inactive[5] 2 [6] 5 exit5 term[5] B 3 pause[5]

  18. The hierarchical state structure 1 boot: loop [ await A;emit B || await B ]; emit O; halt every R 0 # 4 await A 3 || await B 2 5 # sequence loop-every halt 6 • parallel/exclusive abstraction of the syntax tree • nodes represent the activity condition of various subprogram fragments

  19. Activated from the hierarchical state Flowgraph execution 1 boot: loop [ await A;emit B || await B ]; emit O; halt every R 0 # 4 await A 3 || await B 2 5 # sequence loop-every halt 6 enter4 exit 1 enter2 enter3 3 enter5 [1] exit2 0 Inactive[4] [2] R 4 exit4 emit B term[4] exit3 enter6 emit O term A [3] pause 3 pause[4] Inactive[5] 2 [6] 5 exit5 term[5] B 3 pause[5]

  20. Activated from the hierarchical state Flowgraph execution 1 boot: • loop [ await A;emit B || await B ]; emit O; halt every R 0 # 4 await A 3 || await B 2 5 # sequence loop-every halt 6 enter4 exit 1 enter2 enter3 3 enter5 [1] exit2 0 Inactive[4] [2] • R 4 exit4 emit B term[4] exit3 enter6 emit O term A [3] pause 3 pause[4] Inactive[5] 2 [6] 5 exit5 term[5] Rabsent, Apresent B 3 pause[5]

  21. Activated from the hierarchical state Flowgraph execution 1 boot: •loop [ await A;emit B || await B ]; emit O; halt every R 0 # 4 await A 3 || await B 2 5 # sequence loop-every halt 6 enter4 exit 1 enter2 enter3 3 enter5 [1] exit2 0 Inactive[4] [2] R 4 exit4 emit B term[4] exit3 enter6 emit O • term A [3] pause 3 pause[4] Inactive[5] 2 [6] 5 exit5 term[5] Rabsent, Apresent B 3 pause[5]

  22. Activated from the hierarchical state Flowgraph execution 1 boot: loop [ await A;emit B •|| await B ]; emit O; halt every R 0 # 4 await A 3 || await B 2 5 # sequence loop-every halt 6 enter4 exit 1 enter2 enter3 3 enter5 [1] exit2 0 Inactive[4] [2] R 4 exit4 emit B term[4] exit3 enter6 emit O term A [3] pause 3 pause[4] • Inactive[5] 2 [6] 5 exit5 term[5] Rabsent, Apresent B 3 pause[5]

  23. Activated from the hierarchical state Flowgraph execution 1 boot: loop [ •await A;emit B || await B ]; emit O; halt every R 0 # 4 await A 3 || await B 2 5 # sequence loop-every halt 6 enter4 exit 1 enter2 enter3 3 enter5 [1] exit2 0 Inactive[4] [2] R 4 exit4 emit B term[4] exit3 enter6 emit O term A [3] • pause 3 pause[4] Inactive[5] 2 [6] 5 exit5 term[5] Rabsent, Apresent B 3 pause[5]

  24. Activated from the hierarchical state Flowgraph execution 1 boot: loop [ await A;•emit B || await B ]; emit O; halt every R 0 # 4 await A 3 || await B 2 5 # sequence loop-every halt 6 enter4 exit 1 enter2 enter3 3 enter5 [1] exit2 0 Inactive[4] [2] • R 4 exit4 emit B term[4] exit3 enter6 emit O term A [3] pause 3 pause[4] Inactive[5] 2 [6] 5 exit5 term[5] Rabsent, Apresent B 3 pause[5]

  25. Activated from the hierarchical state Flowgraph execution 1 boot: loop [ await A;emit B• || await B ]; emit O; halt every R 0 # 4 await A 3 || await B 2 5 # sequence loop-every halt 6 enter4 exit 1 enter2 enter3 3 enter5 [1] exit2 0 Inactive[4] [2] R 4 exit4 emit B term[4] exit3 enter6 emit O term A [3] pause 3 pause[4] Inactive[5] 2 [6] 5 exit5 term[5] Rabsent, Apresent B 3 pause[5]

  26. Activated from the hierarchical state Flowgraph execution 1 boot: loop [ await A;emit B || await B ]; •emit O; halt every R 0 # 4 await A 3 || await B 2 5 # sequence loop-every halt 6 enter4 exit 1 enter2 enter3 3 enter5 [1] exit2 0 Inactive[4] [2] • R 4 exit4 emit B term[4] exit3 enter6 emit O term A [3] pause 3 pause[4] Inactive[5] 2 [6] 5 exit5 term[5] Rabsent, Apresent B 3 pause[5]

  27. Activated from the hierarchical state Flowgraph execution 1 boot: loop [ await A;emit B || await B ]; emit O; •halt every R 0 # 4 await A 3 || await B 2 5 # sequence loop-every halt 6 enter4 exit 1 enter2 enter3 3 enter5 [1] exit2 0 Inactive[4] [2] • R 4 exit4 emit B term[4] exit3 enter6 emit O term A [3] pause 3 pause[4] Inactive[5] 2 [6] 5 exit5 term[5] Rabsent, Apresent B 3 pause[5]

  28. Activated from the hierarchical state Flowgraph execution 1 boot: loop [ await A;emit B || await B ]; emit O; halt every R 0 # 4 await A 3 || await B 2 5 # sequence loop-every halt 6 enter4 exit 1 enter2 enter3 3 enter5 [1] exit2 0 Inactive[4] [2] R 4 exit4 emit B term[4] exit3 enter6 emit O term A [3] pause 3 pause[4] Inactive[5] 2 [6] 5 exit5 term[5] Rabsent, Apresent B 3 pause[5]

  29. Simulation code generation • State encoding • Static scheduling • Sequential code • Respects the causality (signal emission statements before tests statements)

  30. Simulation code generation boot: 0 0 # 4 1 await A 3 • State encoding || await B 0 5 2 # 1 loop-every halt 6 S[3]=1 S[1]=1 S[2]=0 3 S[4]=1 S[1] Inactive[4] S[3] R S[3]=0 emit B term[4] term S[2]=1 emit O A pause 3 pause[4] Inactive[5] S[4] S[2] S[4]=0 term[5] B 3 pause[5]

  31. Simulation code generation bool aux=0; if(S[1]){ if(R){aux=1;} else { if(!S[2]){ if(S[3])if(A){S[3]=0;B=1;} if(S[4])if(B)S[4]=0; if(S[3]=0&S[4]=0){ O=1;S[2]=1; } }} } else {aux=1;} if(aux){S[1..4]=1011;} • Static scheduling S[1..4]=1011 S[1] Inactive[4] S[3] R S[3]=0 emit B term[4] S[2]=1 term emit O A pause 3 pause[4] Inactive[5] S[4] S[2] S[4]=0 term[5] B 3 pause[5]

  32. Optimizations • Based on static analysis (semantic-preserving, fast, efficient) • Redundant state bit elimination • False signal/data dependency elimination • Node grouping • Dead code removal

  33. Optimizations • Utility • Simplify the state access/update protocol • Simplify the state encoding boot: • Static analysis, example trap T in sustain A || await B;await C;exit T end # nt: sustain A || await B Same status at all instants # nt: await C

  34. GRC code optimizations 1 boot: 0 3 # • Dependency removal pause; present S then emit T end; pause; emit S; 2 # 4 exit 1 enter 2 enter 3 [1] 0 emit T [2] exit 3 enter 4 S [3] 2 [4] exit 4 emit S exit 2 exit 0

  35. GRC code optimizations 1 boot: 0 3 # • Dependency removal pause; present S then emit T end; pause; emit S; 2 # 4 exit 1 enter 2 enter 3 [1] 0 emit T [2] exit 3 enter 4 S [3] 2 [4] exit 4 emit S exit 2 exit 0

  36. GRC code optimizations 1 boot: 0 3 # • Dependency removal pause; present S then emit T end; pause; emit S; 2 # 4 exit 1 enter 2 enter 3 [1] 0 emit T [2] exit 3 enter 4 S [3] 2 [4] exit 4 emit S exit 2 exit 0

  37. Results • Optimizing compiler • Examples: • Turbo channel bus • Berry’s wristwatch • Video generator • Shock absorber • Operating system model • Avionics fuel controller • Avionics cockpit • Man-machine interface Test configuration: PIII/1GHz/128M/Linux gcc-2.96 –O, 1Mcycle random or given

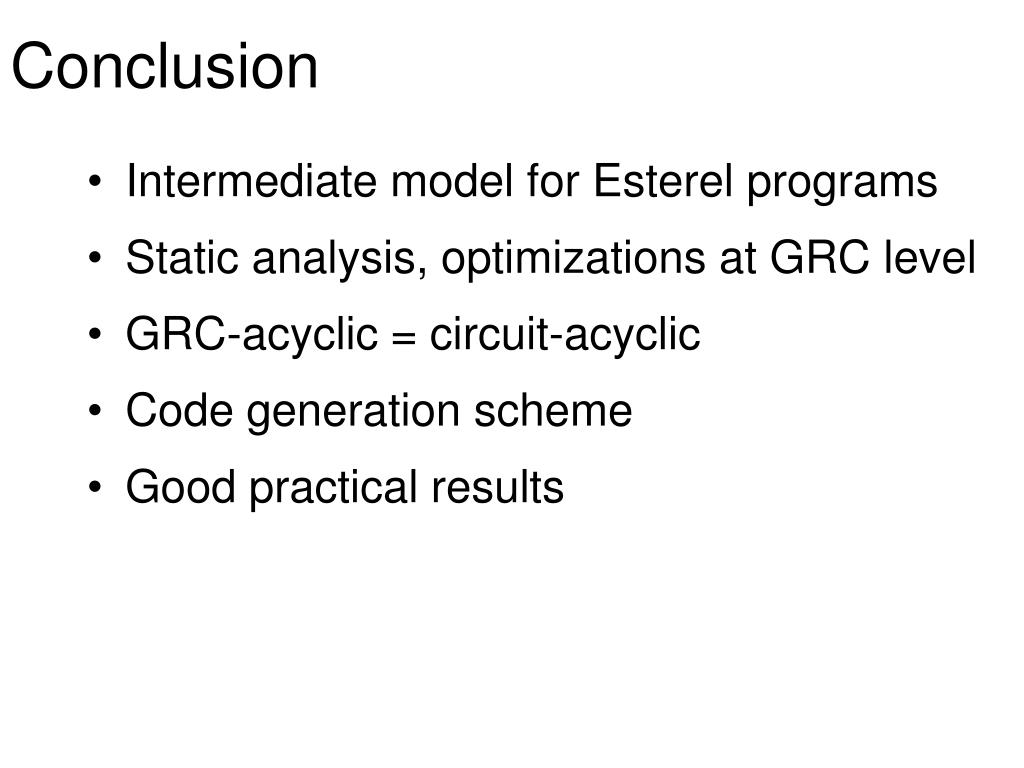

  38. Conclusion • Intermediate model for Esterel programs • Static analysis, optimizations at GRC level • GRC-acyclic = circuit-acyclic • Code generation scheme • Good practical results

  39. Future work • Digital circuit synthesis • State encoding + translation into gates • Good partial results • Distributed implementation • Connection between Esterel and Signal at source or GRC/HCDG level Control registers Control clock hierarchy
