  1. The Visible Human Project "The Visible Human Project includes digitized photographic images for cryosectioning, digital images derived from computerized tomography and digital magnetic resonance images of cadavers."

  2. The Visible Human Project Find a normal male and female cadaver Fresh CT & MR Fill blood vessels and cavities with contrast media Pose and stabilize in opaque gel Freeze the cadaver Cut cadaver into blocks Frozen CT Grind down block and take photograph

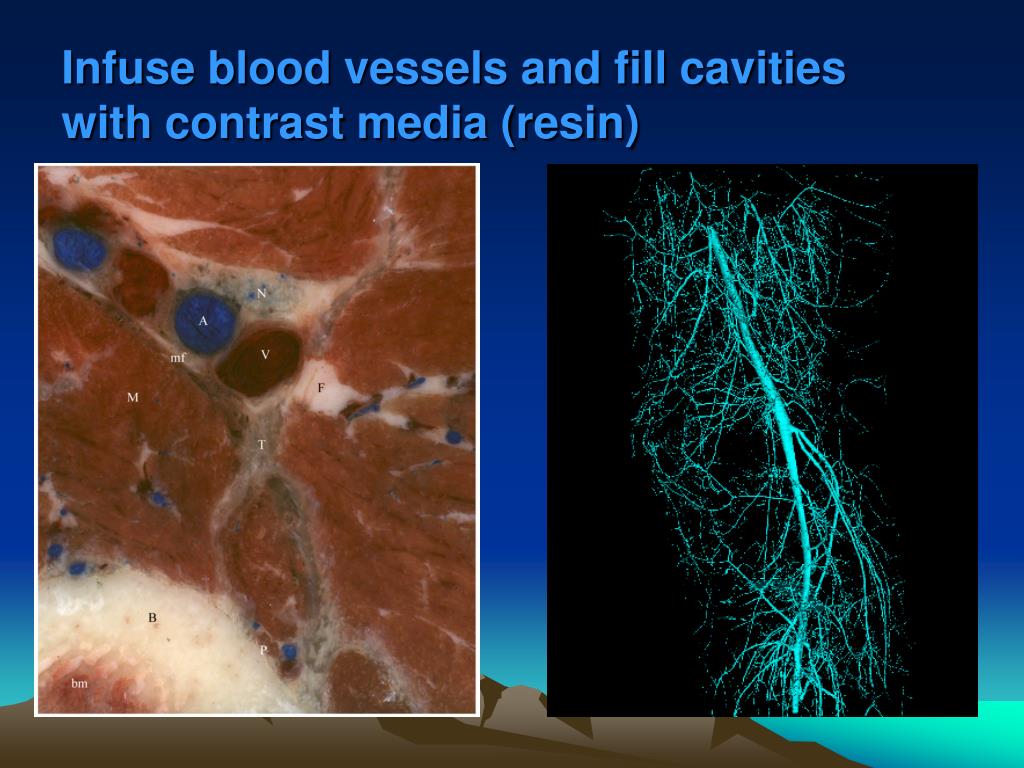

  3. Infuse blood vessels and fill cavities with contrast media (resin)

  4. Cryo-section Data Collection

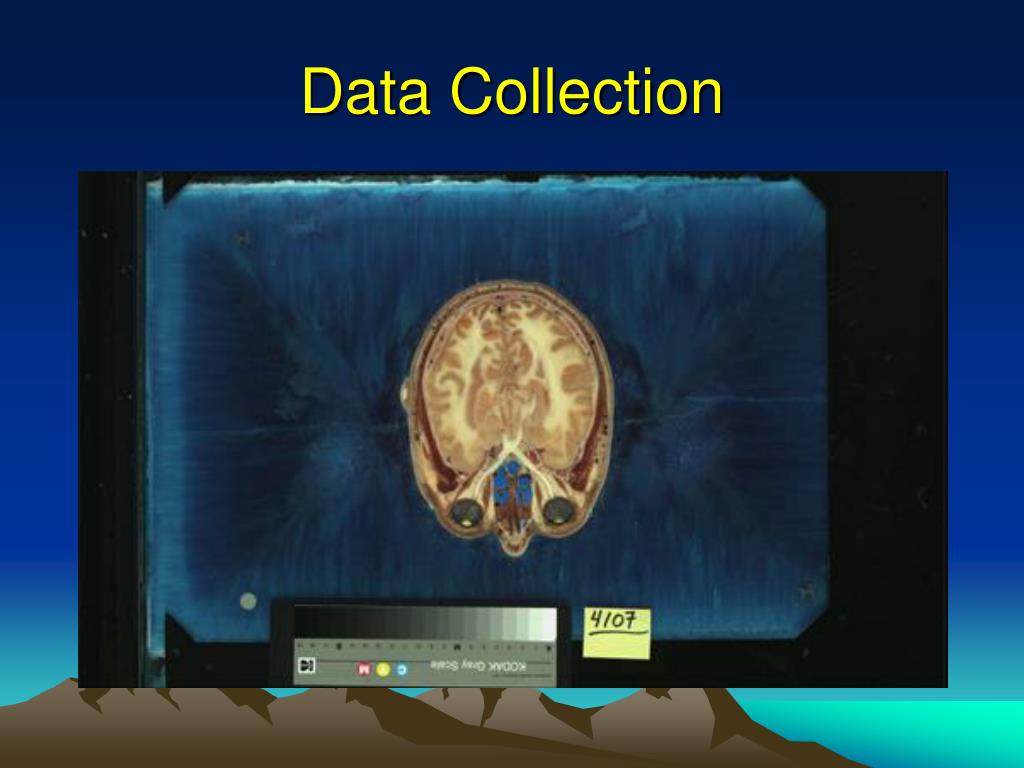

  5. Data Collection

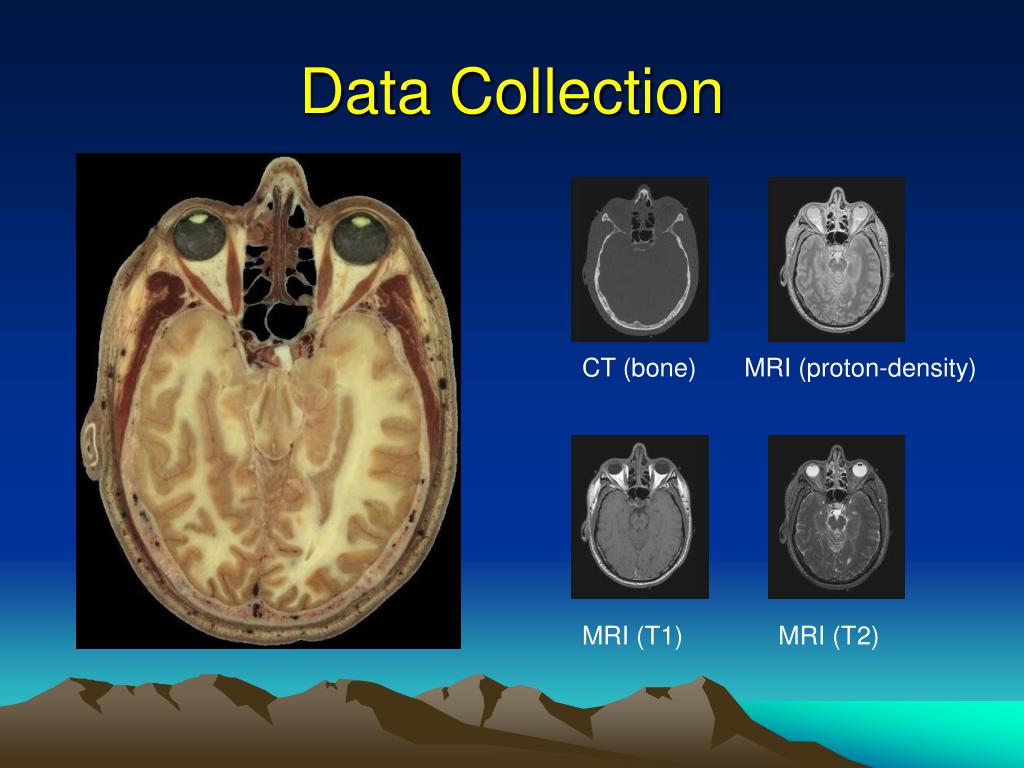

  6. Data Collection CT (bone) MRI (proton-density) MRI (T1) MRI (T2)

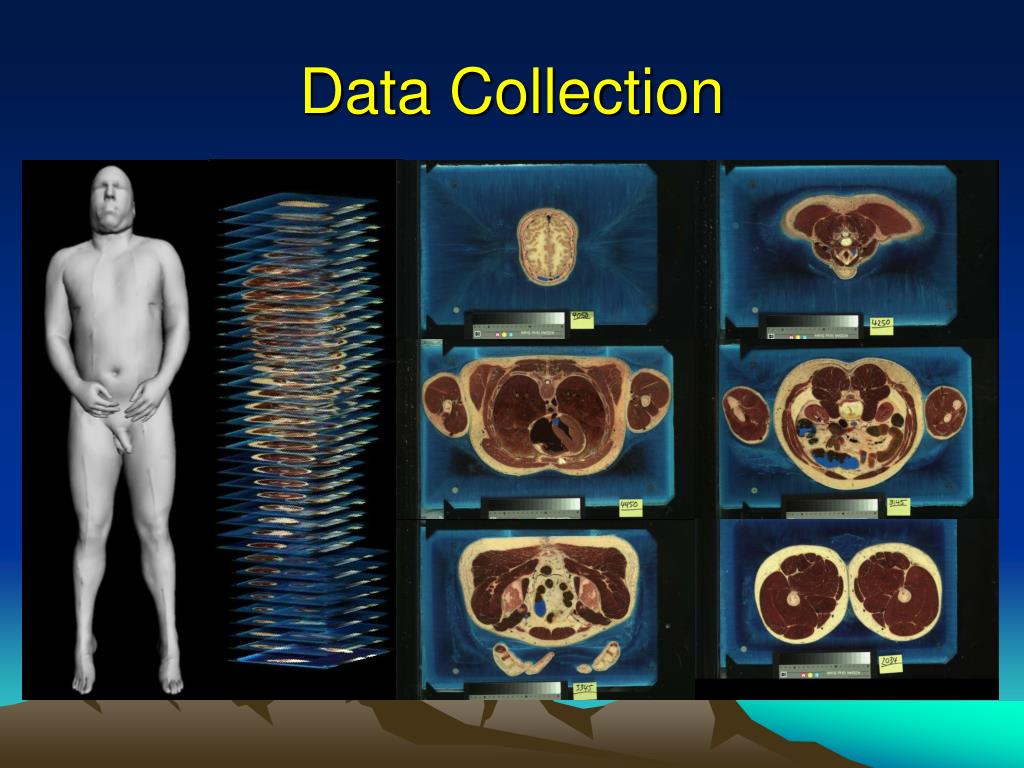

  7. Data Collection

  8. Data Collection • Photographic cross-sections: Volume Dimensions: 1760 x 1024 x 1878Pixel Dimensions: .33 mm x .33 mm x 1 mmPixel Depth: 24-bit (8-bits x RGB)Volume Size: 9.5 GB • Computed Tomography (CT) - in fresh state: Volume Dimensions: 512 x 512 x 500Pixel Dimensions: variable x variable x 1 mmPixel Depth: 16-bitVolume Size: 250 MB • Computed Tomography (CT) – in frozen state: Volume Dimensions: 512 x 512 x 1878Pixel Dimensions: variable x variable x 1 mmPixel Depth: 16-bitVolume Size: 939 MB

  9. Data Collection • Photographic cross-sections: Volume Dimensions: 1664 x 928 x 5189 Pixel Dimensions: .33 mm x .33 mm x .33 mm Pixel Depth: 24-bit (8-bits x RGB) Volume Size: 22.4 GB • Computed Tomography (CT) - in fresh state: Volume Dimensions: 512 x 512 x 1730 Pixel Dimensions: variable x variable x 1 mm Pixel Depth: 16-bit Volume Size: 864 MB

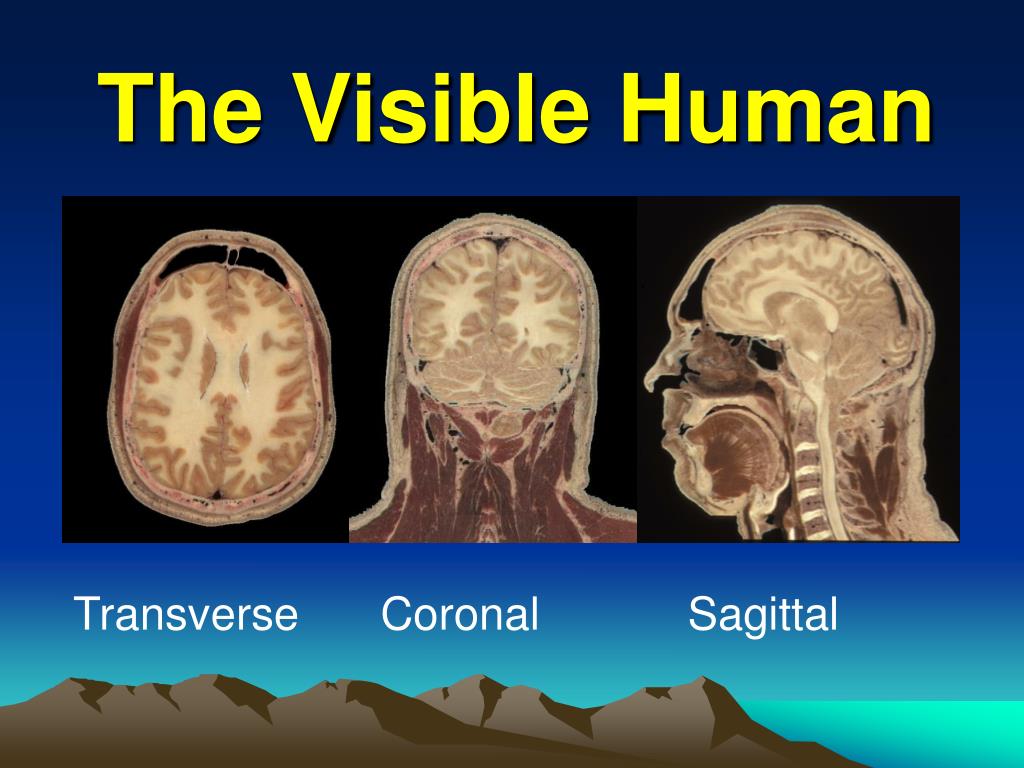

  10. The Visible Human Transverse Coronal Sagittal

  11. Segmentation and Classification

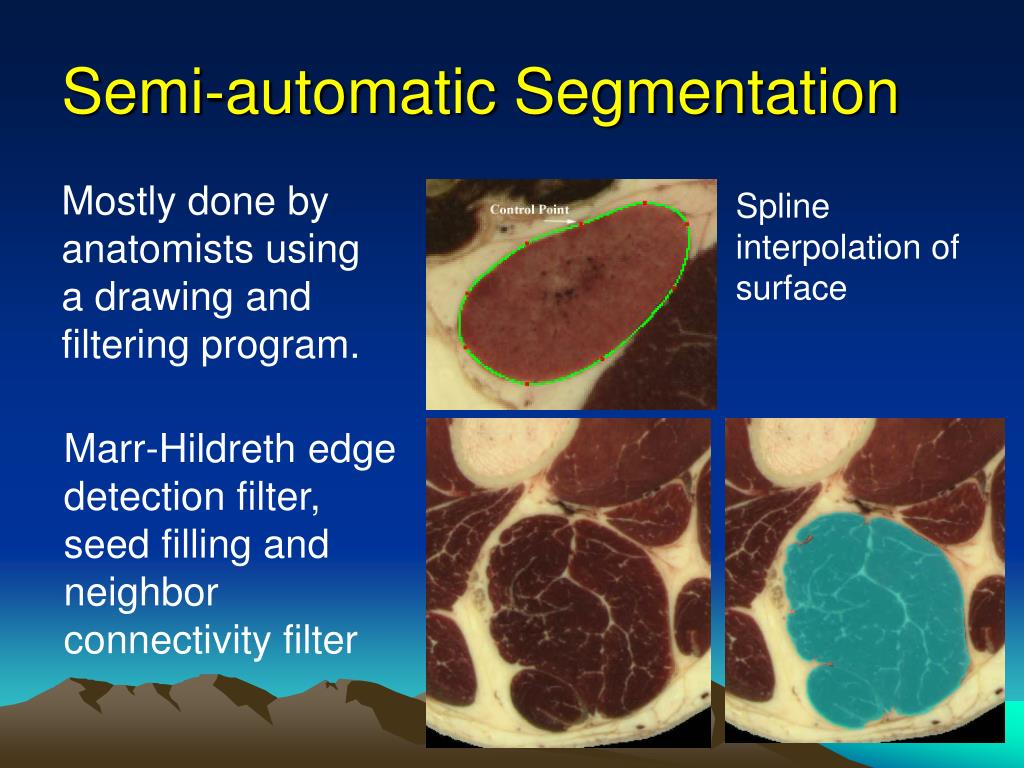

  12. Semi-automatic Segmentation Mostly done by anatomists using a drawing and filtering program. Marr-Hildreth edge detection filter, seed filling and neighbor connectivity filter Spline interpolation of surface

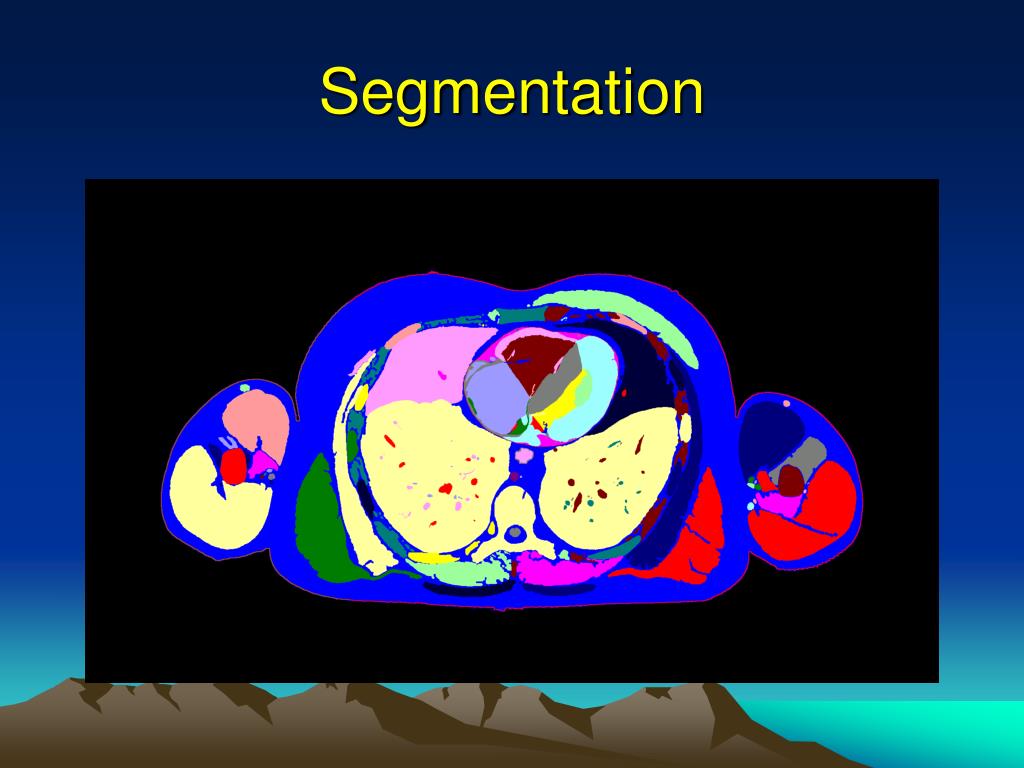

  13. Segmentation

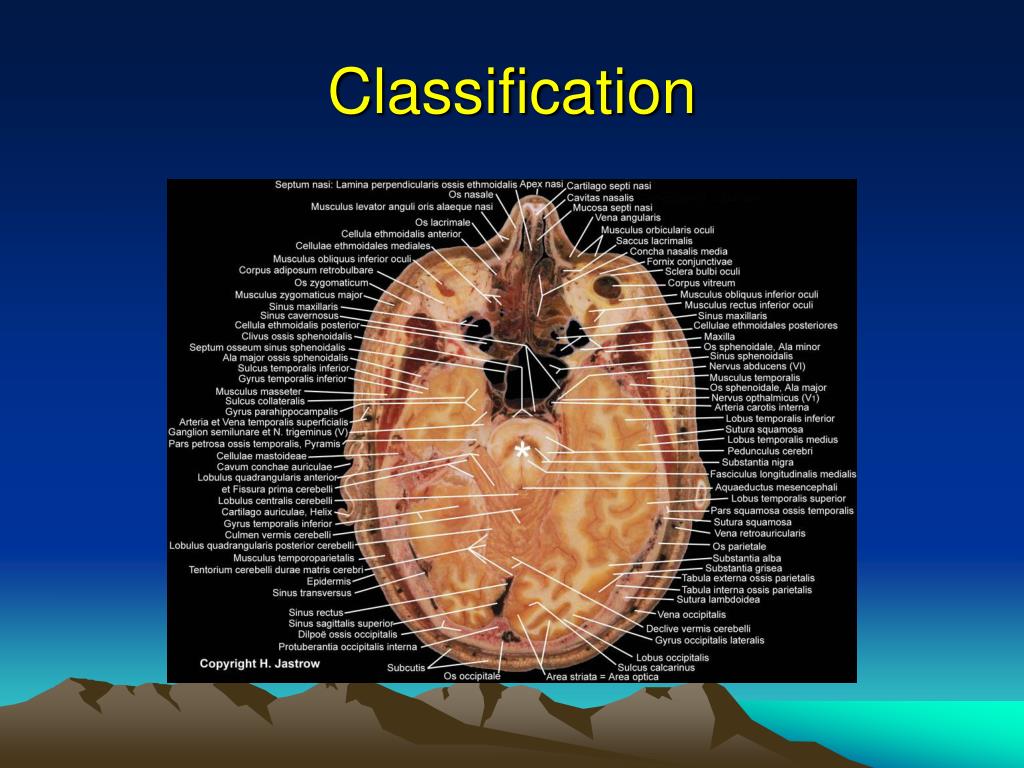

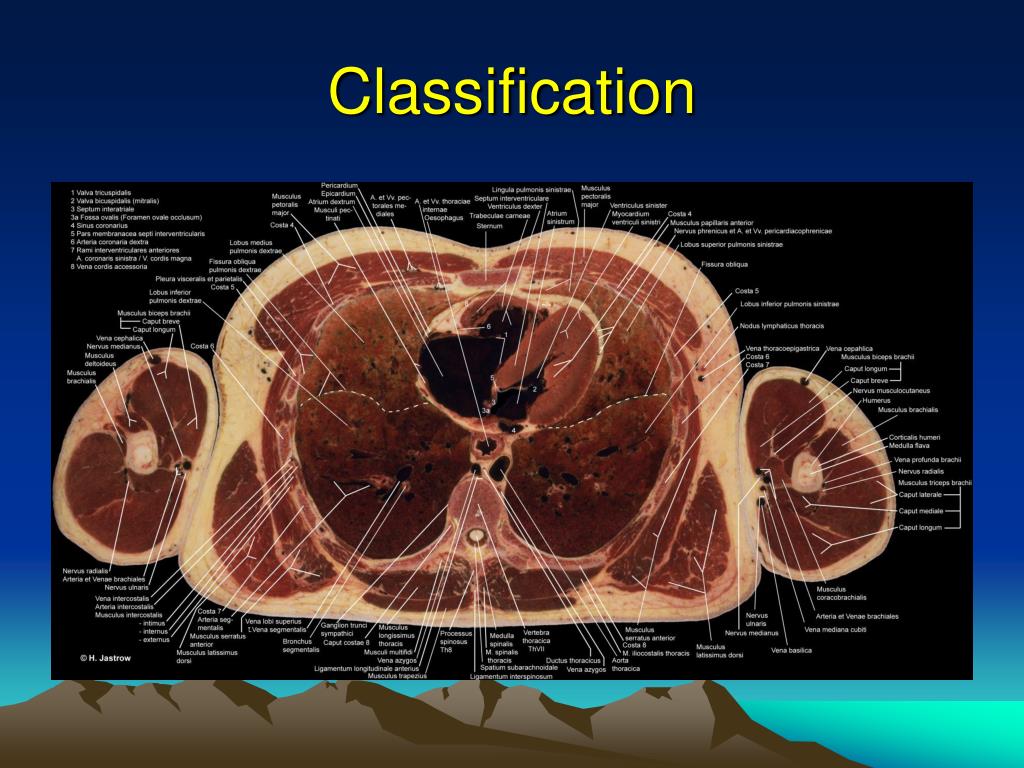

  14. Classification

  15. Classification

  16. Classification
