Geologic Time and the Fossil Record

1. Geologic Time and the Fossil Record

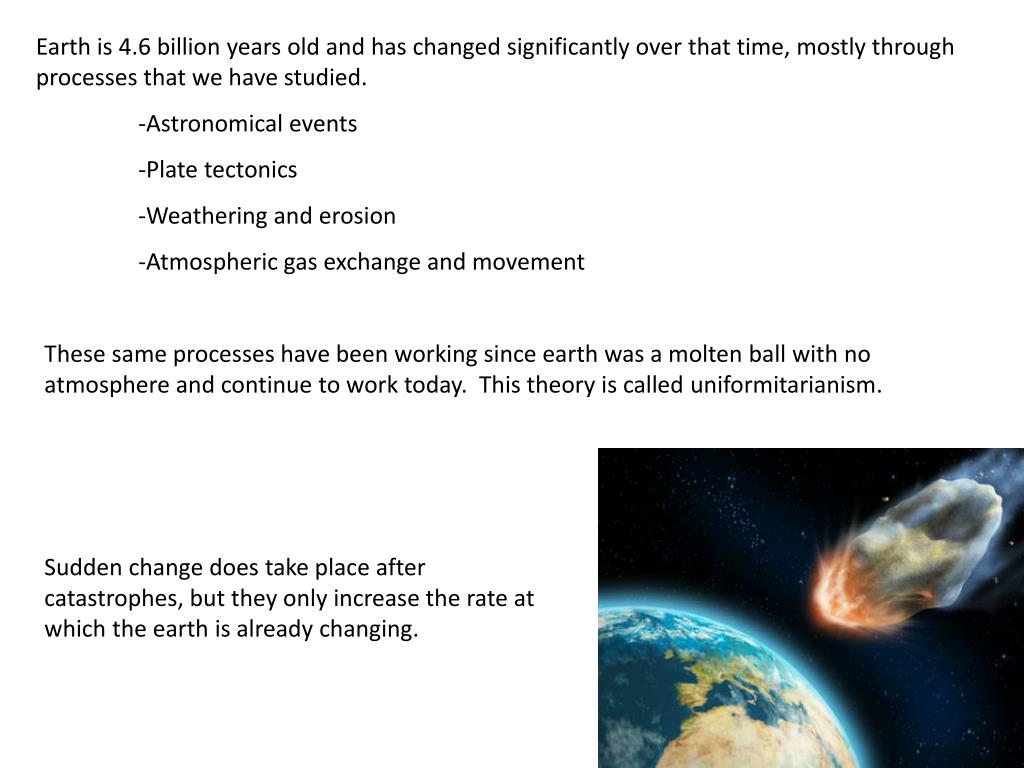

2. Earth is 4.6 billion years old and has changed significantly over that time, mostly through processes that we have studied. -Astronomical events -Plate tectonics -Weathering and erosion -Atmospheric gas exchange and movement These same processes have been working since earth was a molten ball with no atmosphere and continue to work today. This theory is called uniformitarianism. Sudden change does take place after catastrophes, but they only increase the rate at which the earth is already changing.

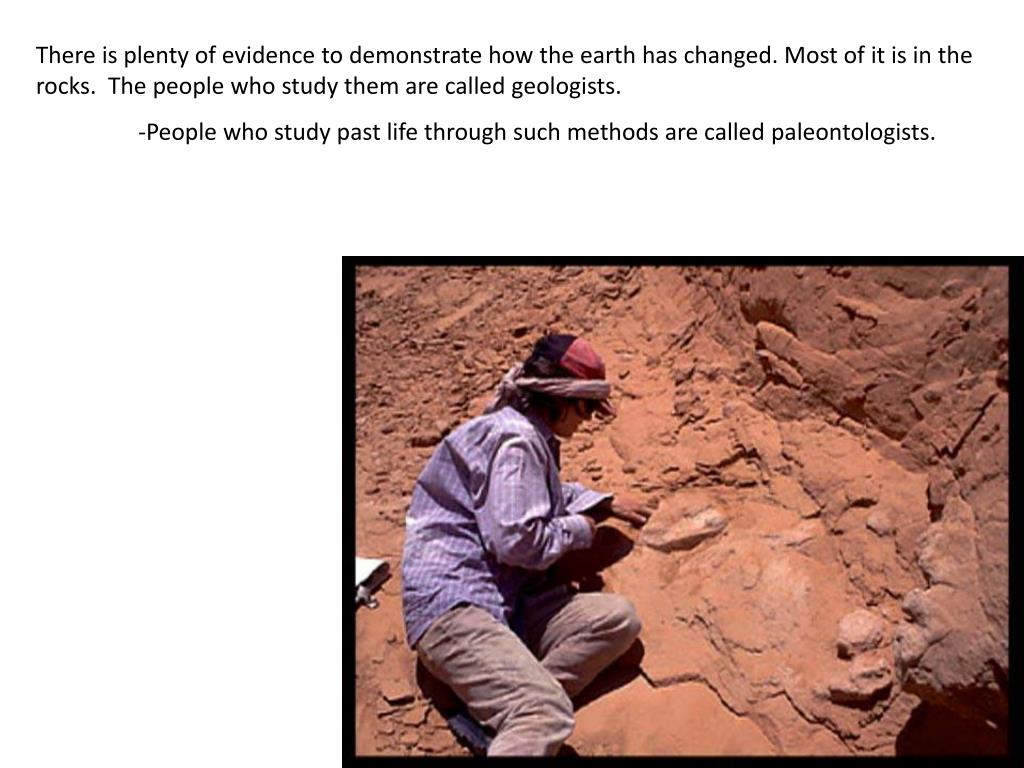

3. There is plenty of evidence to demonstrate how the earth has changed. Most of it is in the rocks. The people who study them are called geologists. -People who study past life through such methods are called paleontologists.

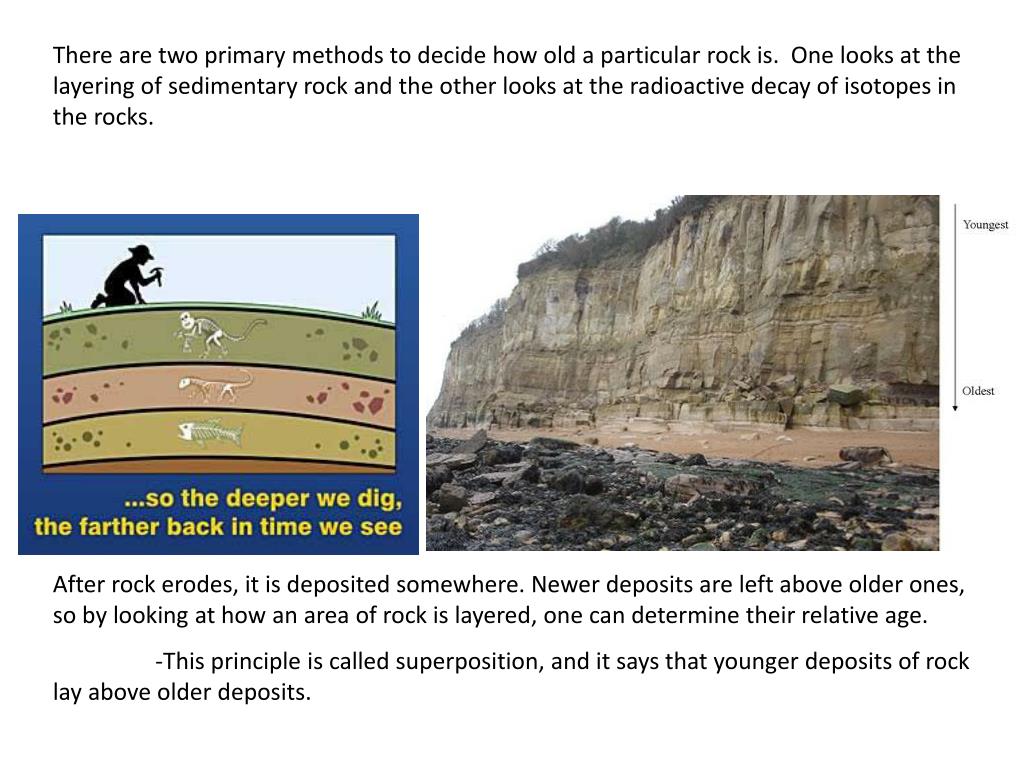

4. There are two primary methods to decide how old a particular rock is. One looks at the layering of sedimentary rock and the other looks at the radioactive decay of isotopes in the rocks. After rock erodes, it is deposited somewhere. Newer deposits are left above older ones, so by looking at how an area of rock is layered, one can determine their relative age. -This principle is called superposition, and it says that younger deposits of rock lay above older deposits.

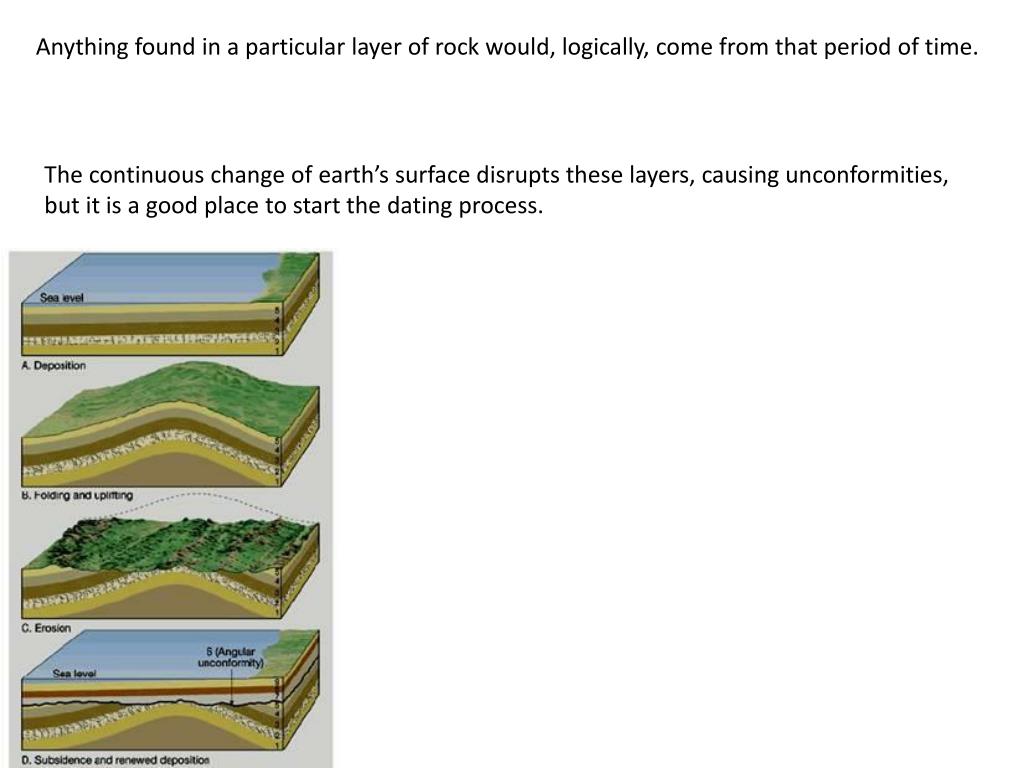

5. Anything found in a particular layer of rock would, logically, come from that period of time. The continuous change of earth’s surface disrupts these layers, causing unconformities, but it is a good place to start the dating process.

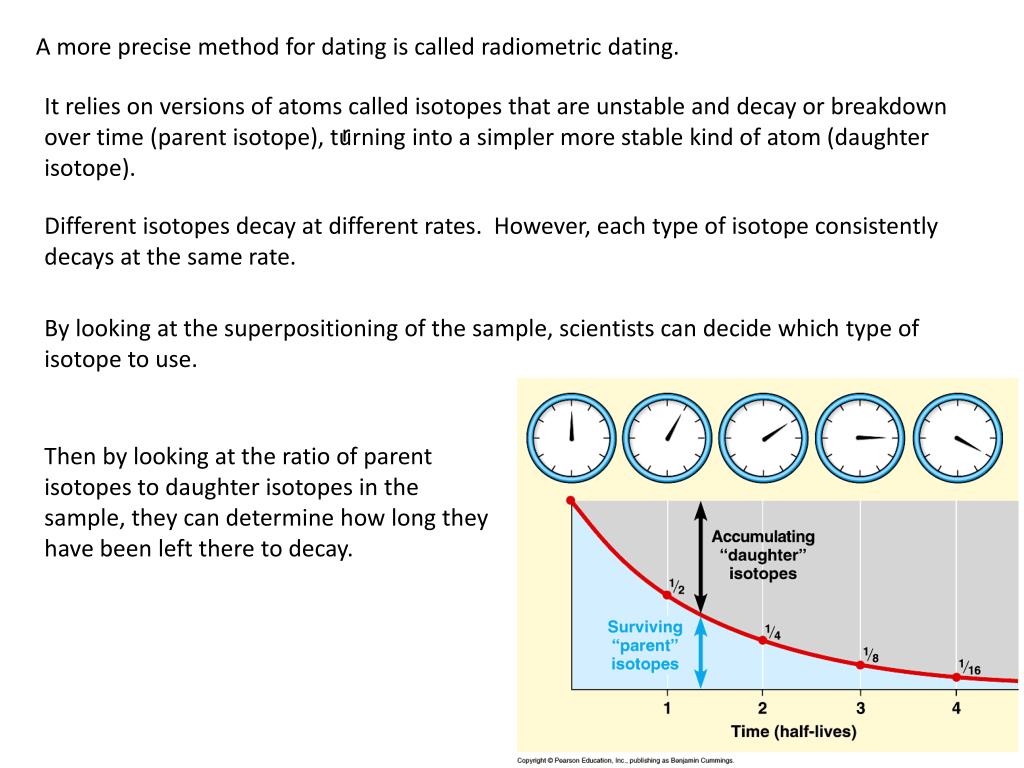

6. A more precise method for dating is called radiometric dating. It relies on versions of atoms called isotopes that are unstable and decay or breakdown over time (parent isotope), turning into a simpler more stable kind of atom (daughter isotope). r Different isotopes decay at different rates. However, each type of isotope consistently decays at the same rate. By looking at the superpositioning of the sample, scientists can decide which type of isotope to use. Then by looking at the ratio of parent isotopes to daughter isotopes in the sample, they can determine how long they have been left there to decay.

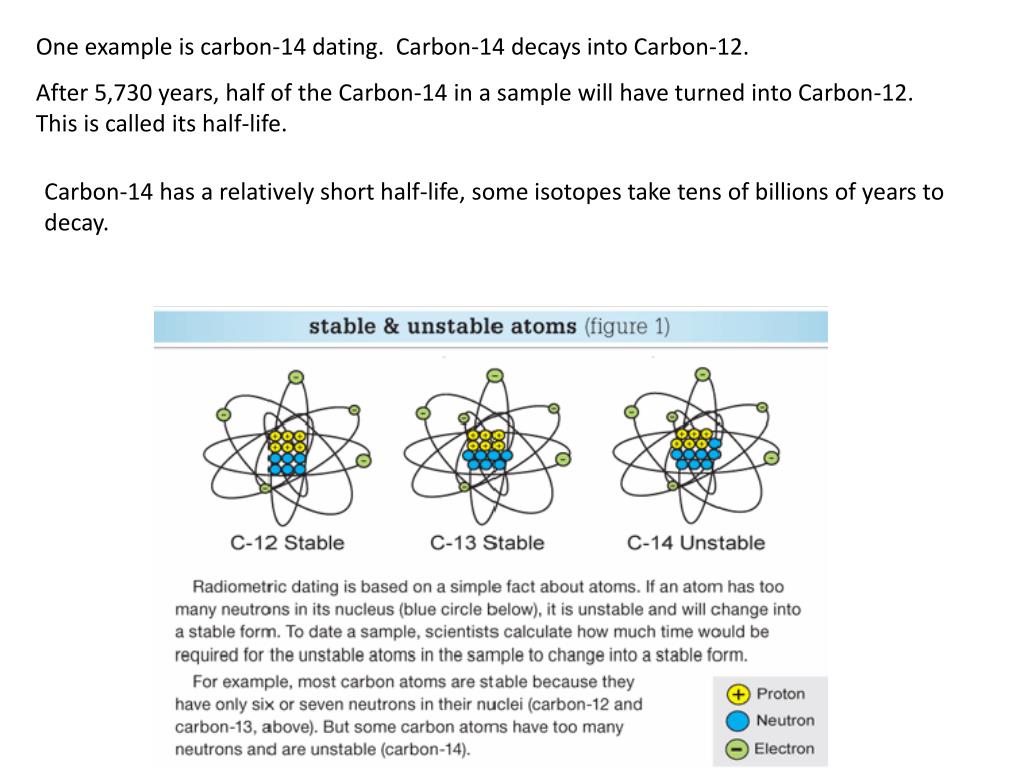

7. One example is carbon-14 dating. Carbon-14 decays into Carbon-12. After 5,730 years, half of the Carbon-14 in a sample will have turned into Carbon-12. This is called its half-life. Carbon-14 has a relatively short half-life, some isotopes take tens of billions of years to decay.

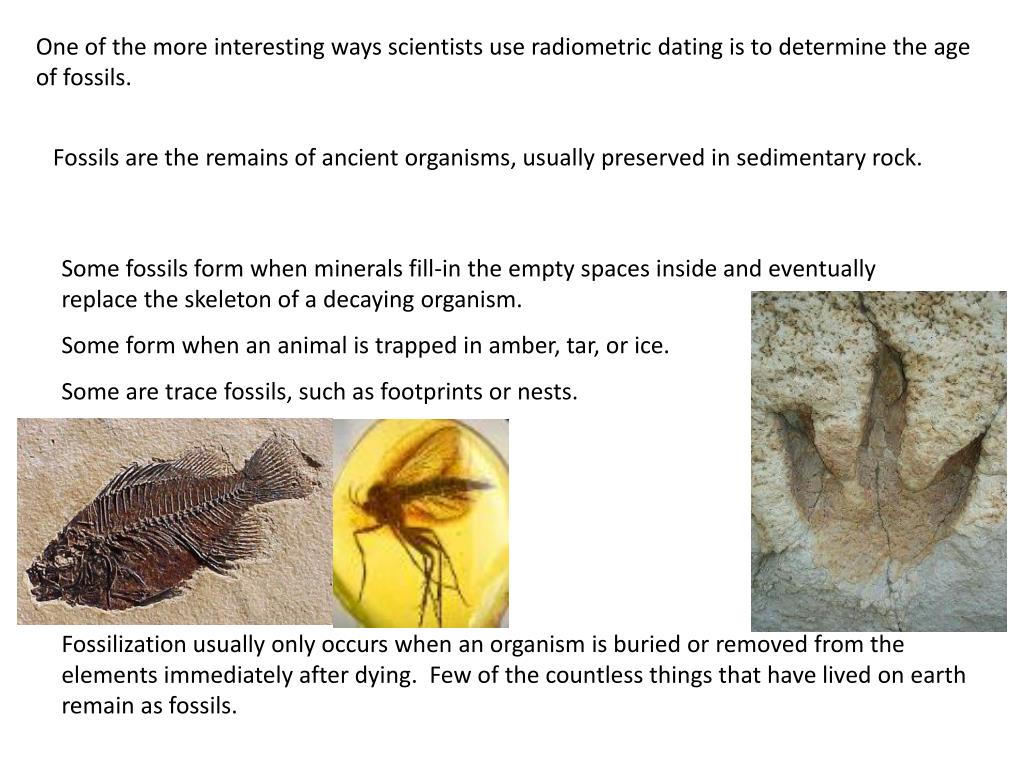

8. One of the more interesting ways scientists use radiometric dating is to determine the age of fossils. Fossils are the remains of ancient organisms, usually preserved in sedimentary rock. Some fossils form when minerals fill-in the empty spaces inside and eventually replace the skeleton of a decaying organism. Some form when an animal is trapped in amber, tar, or ice. Some are trace fossils, such as footprints or nests. Fossilization usually only occurs when an organism is buried or removed from the elements immediately after dying. Few of the countless things that have lived on earth remain as fossils.

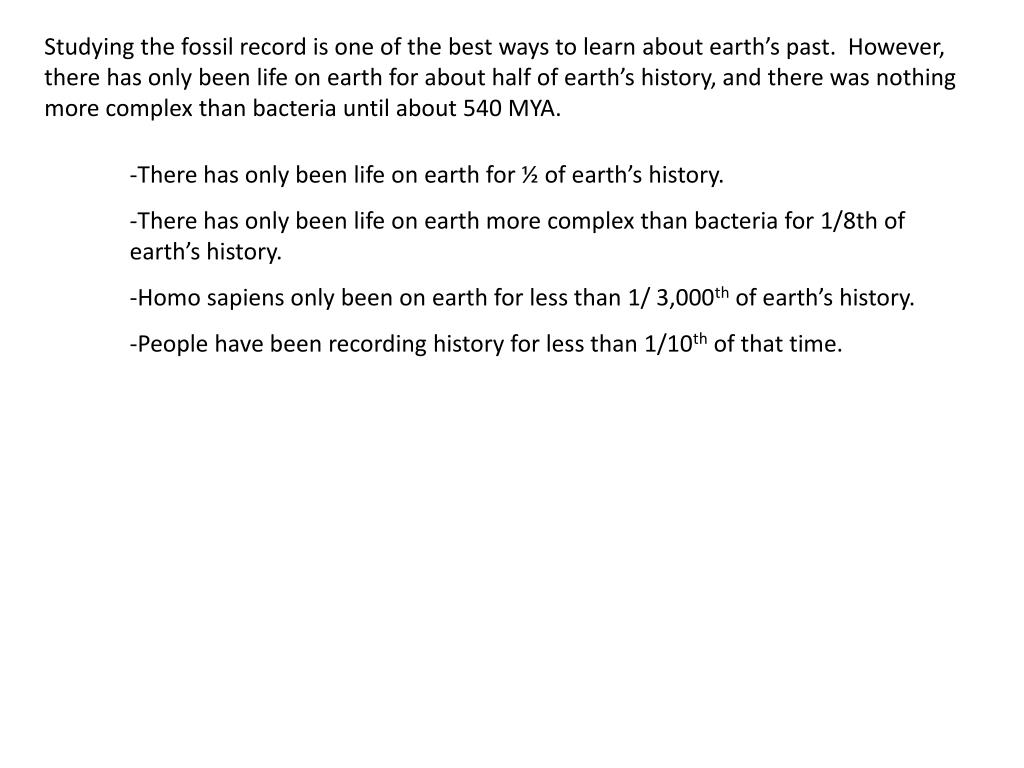

9. Studying the fossil record is one of the best ways to learn about earth’s past. However, there has only been life on earth for about half of earth’s history, and there was nothing more complex than bacteria until about 540 MYA. -There has only been life on earth for ½ of earth’s history. -There has only been life on earth more complex than bacteria for 1/8th of earth’s history. -Homo sapiens only been on earth for less than 1/ 3,000th of earth’s history. -People have been recording history for less than 1/10th of that time.

10. The word history refers to a written record of time. Since earth is so old, we have to break it down into larger segments of time than days, months, years, decades, centuries, or millennia. We use the geologic time scale instead. This divides the time since earth’s formation into… Eons Eras Periods Epochs The divisions are based on significant geologic changes to earth or changes to the organisms living on it, such as the first rocks formed on earth, the first living things, the first complex organisms, etc.

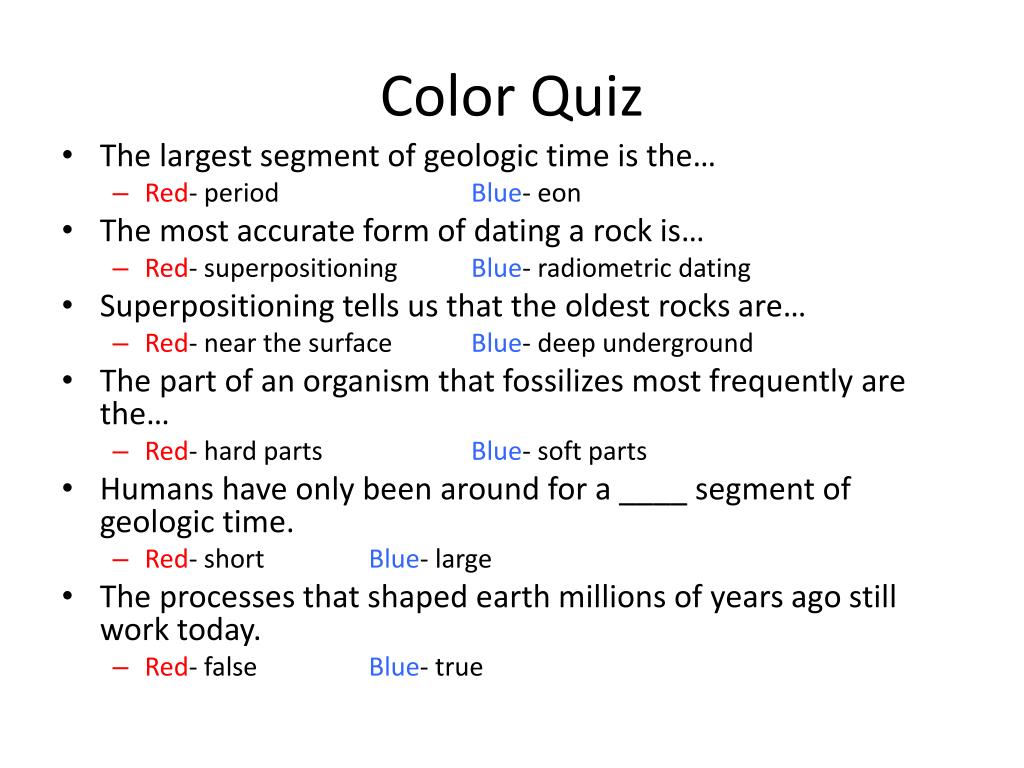

12. Color Quiz • The largest segment of geologic time is the… • Red- period Blue- eon • The most accurate form of dating a rock is… • Red- superpositioning Blue- radiometric dating • Superpositioning tells us that the oldest rocks are… • Red- near the surface Blue- deep underground • The part of an organism that fossilizes most frequently are the… • Red- hard parts Blue- soft parts • Humans have only been around for a ____ segment of geologic time. • Red- short Blue- large • The processes that shaped earth millions of years ago still work today. • Red- false Blue- true

13. What are tectonic plates? The Lithosphere is broken into pieces called tectonic plates that float and move on the denser Mantle. These plates include some oceanic crust, continental crust, and some of the mantle beneath them.

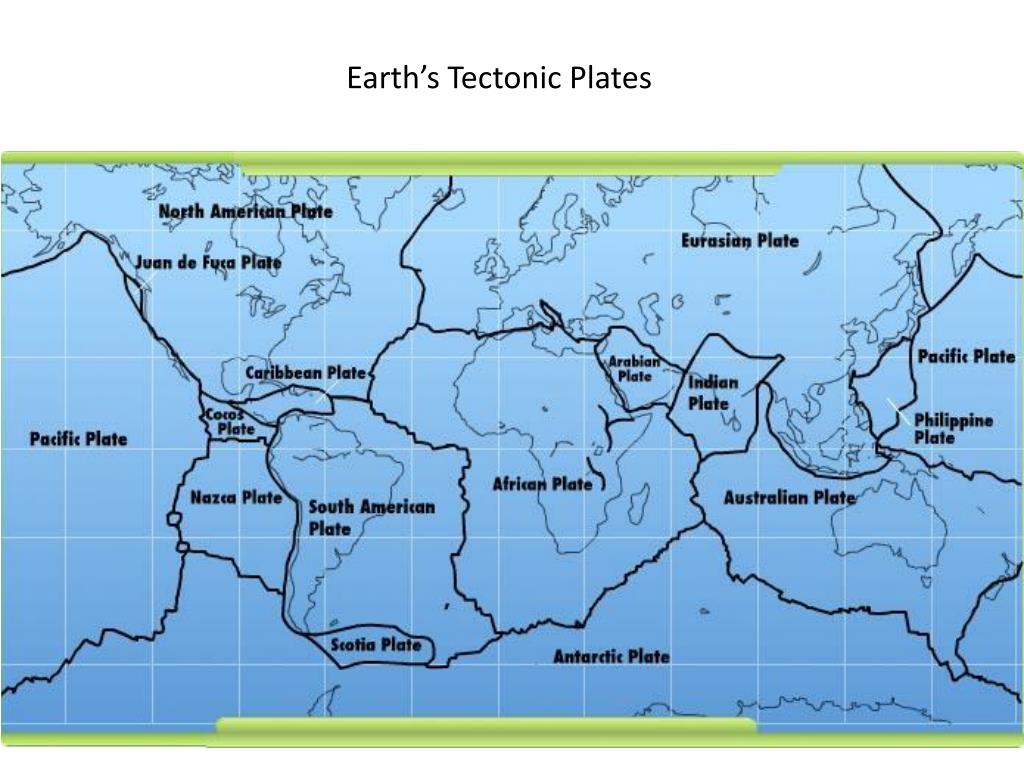

14. Earth’s Tectonic Plates

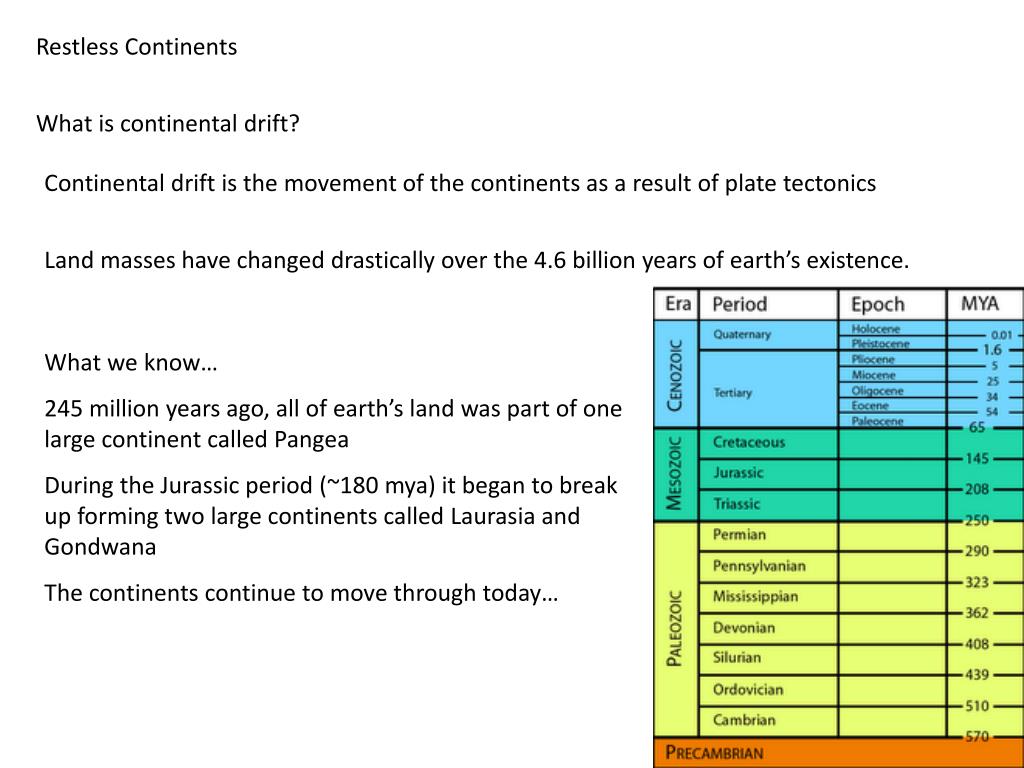

15. Restless Continents What is continental drift? Continental drift is the movement of the continents as a result of plate tectonics Land masses have changed drastically over the 4.6 billion years of earth’s existence. What we know… 245 million years ago, all of earth’s land was part of one large continent called Pangea During the Jurassic period (~180 mya) it began to break up forming two large continents called Laurasia and Gondwana The continents continue to move through today…

16. How did things change between 225 mya and 200mya? Between 200 and 150 mya? Between 150 and 65 mya? Between 65 mya and today?

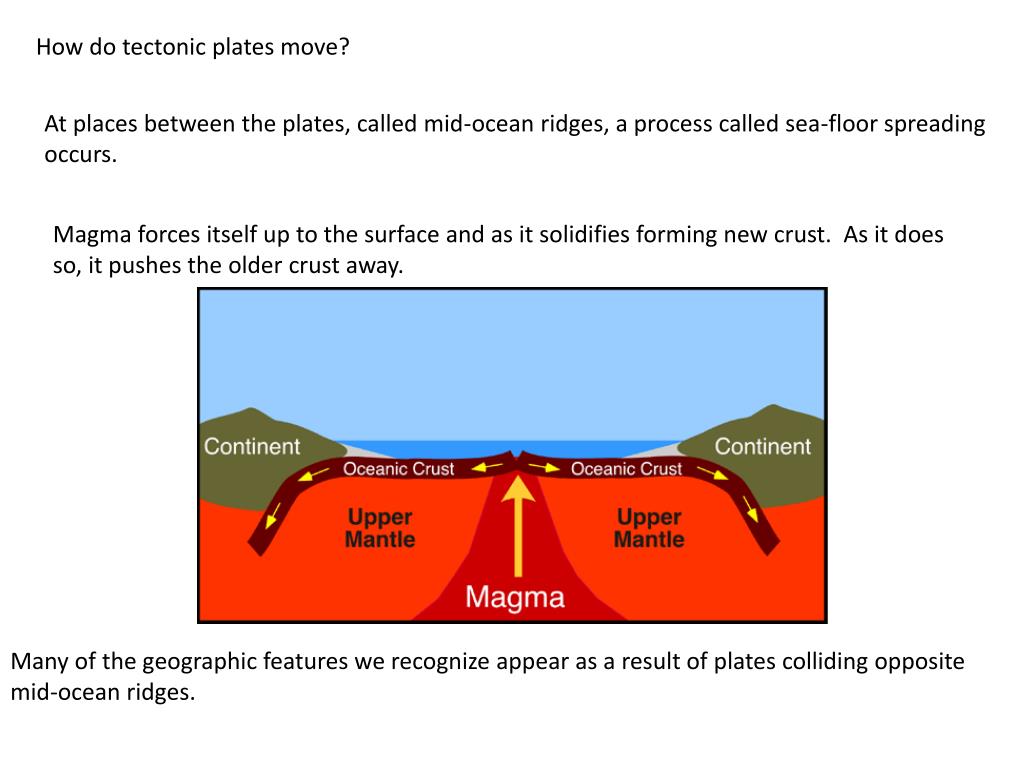

17. How do tectonic plates move? At places between the plates, called mid-ocean ridges, a process called sea-floor spreading occurs. Magma forces itself up to the surface and as it solidifies forming new crust. As it does so, it pushes the older crust away. Many of the geographic features we recognize appear as a result of plates colliding opposite mid-ocean ridges.

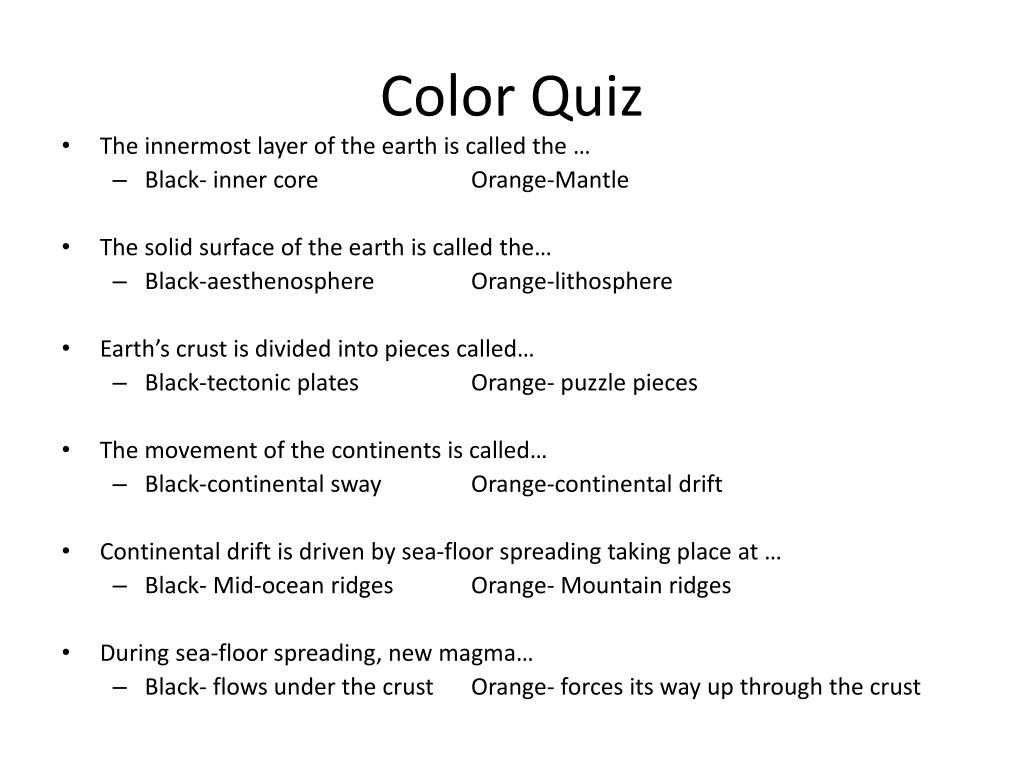

18. Color Quiz • The innermost layer of the earth is called the … • Black- inner core Orange-Mantle • The solid surface of the earth is called the… • Black-aesthenosphere Orange-lithosphere • Earth’s crust is divided into pieces called… • Black-tectonic plates Orange- puzzle pieces • The movement of the continents is called… • Black-continental sway Orange-continental drift • Continental drift is driven by sea-floor spreading taking place at … • Black- Mid-ocean ridges Orange- Mountain ridges • During sea-floor spreading, new magma… • Black- flows under the crust Orange- forces its way up through the crust

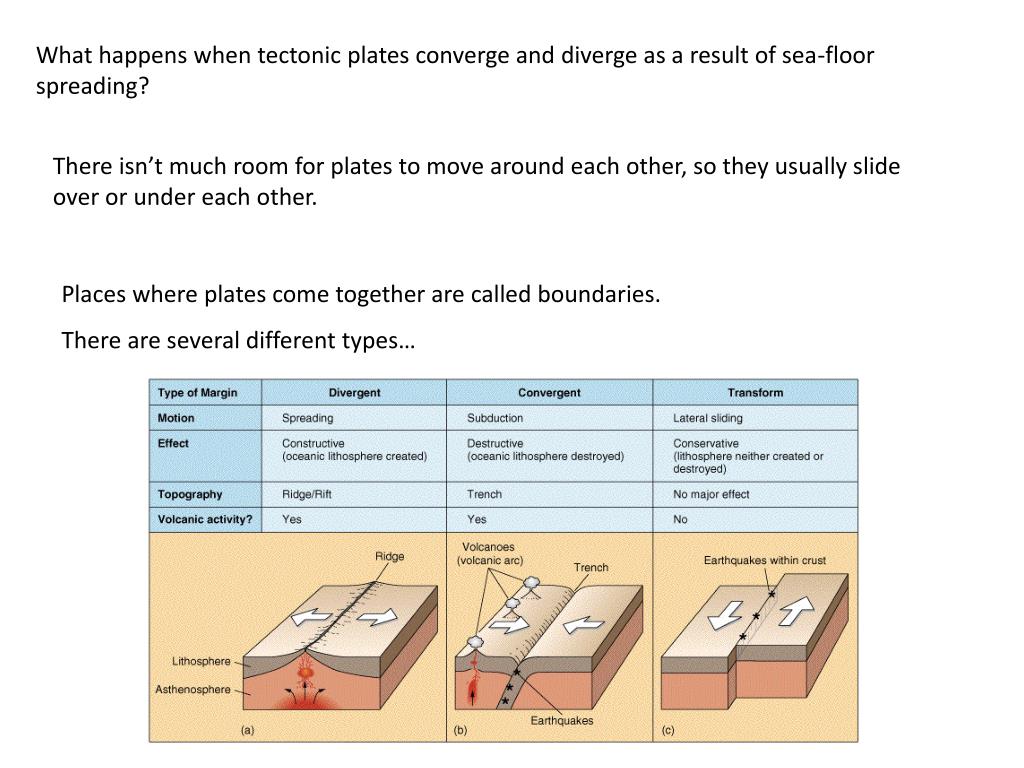

19. What happens when tectonic plates converge and diverge as a result of sea-floor spreading? There isn’t much room for plates to move around each other, so they usually slide over or under each other. Places where plates come together are called boundaries. There are several different types…

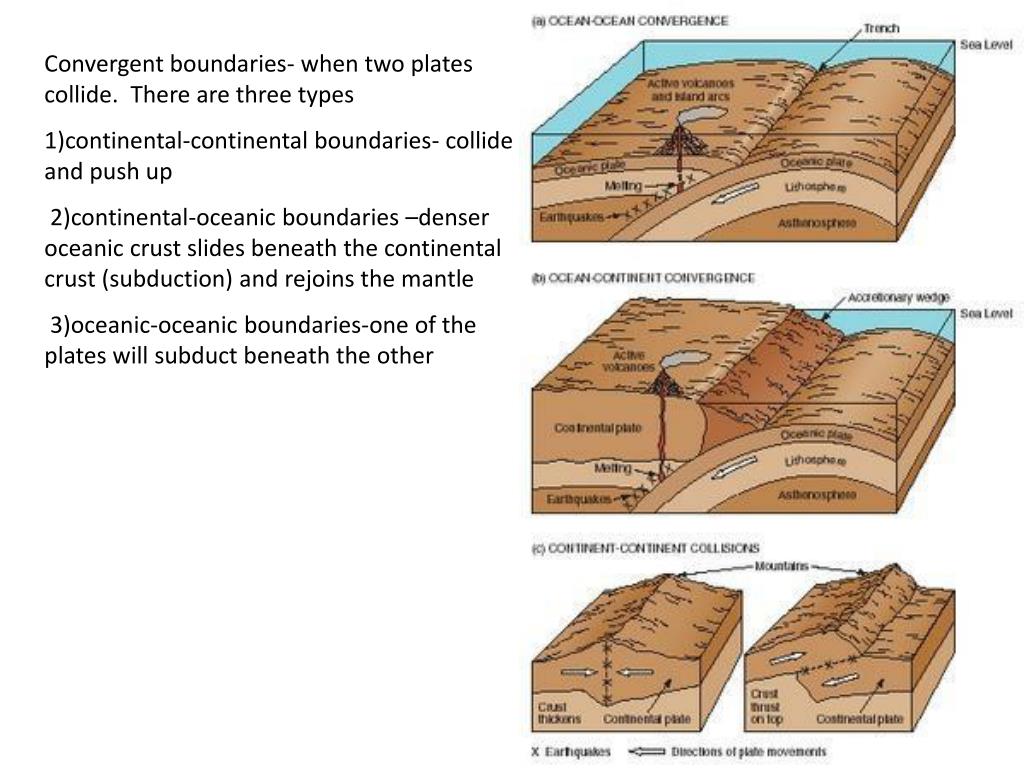

20. Convergent boundaries- when two plates collide. There are three types 1)continental-continental boundaries- collide and push up 2)continental-oceanic boundaries –denser oceanic crust slides beneath the continental crust (subduction) and rejoins the mantle 3)oceanic-oceanic boundaries-one of the plates will subduct beneath the other

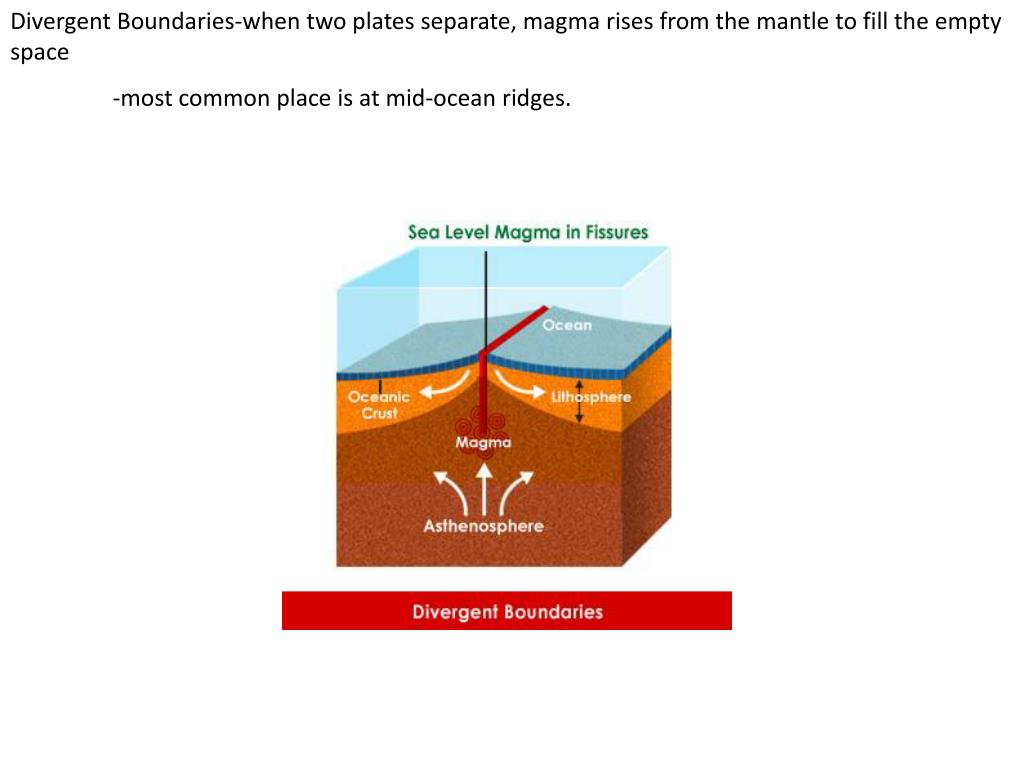

21. Divergent Boundaries-when two plates separate, magma rises from the mantle to fill the empty space -most common place is at mid-ocean ridges.

22. Transform Boundaries- When two plates slide past each other horizontally -when they catch or bump, earthquakes occur

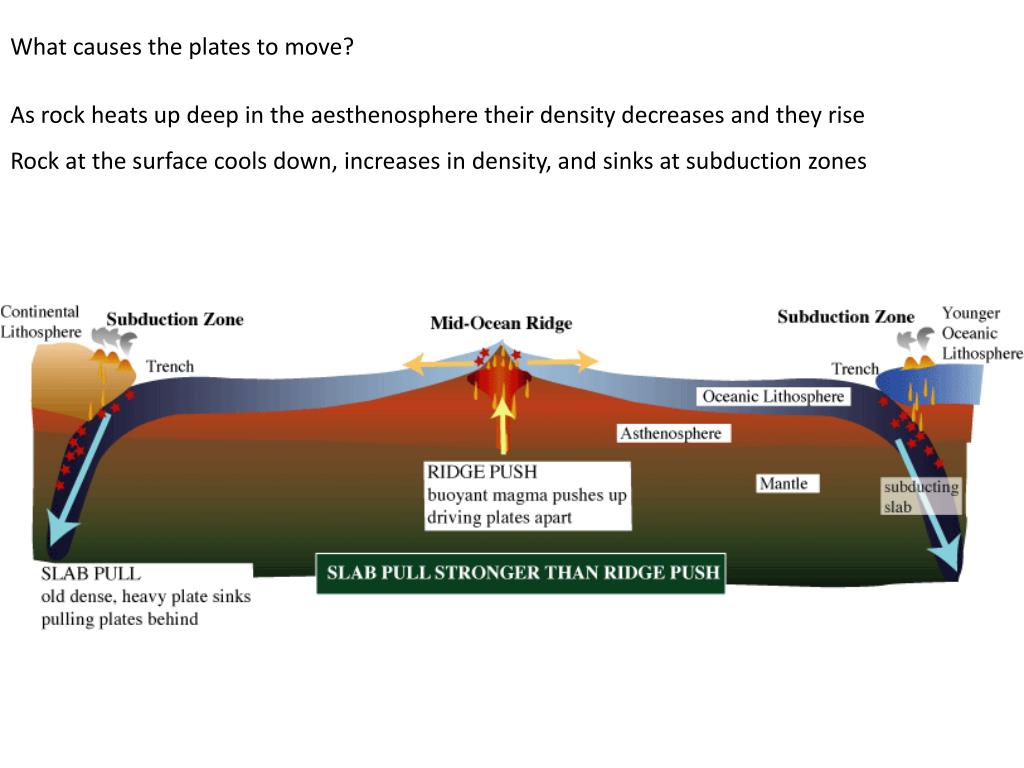

23. What causes the plates to move? As rock heats up deep in the aesthenosphere their density decreases and they rise Rock at the surface cools down, increases in density, and sinks at subduction zones

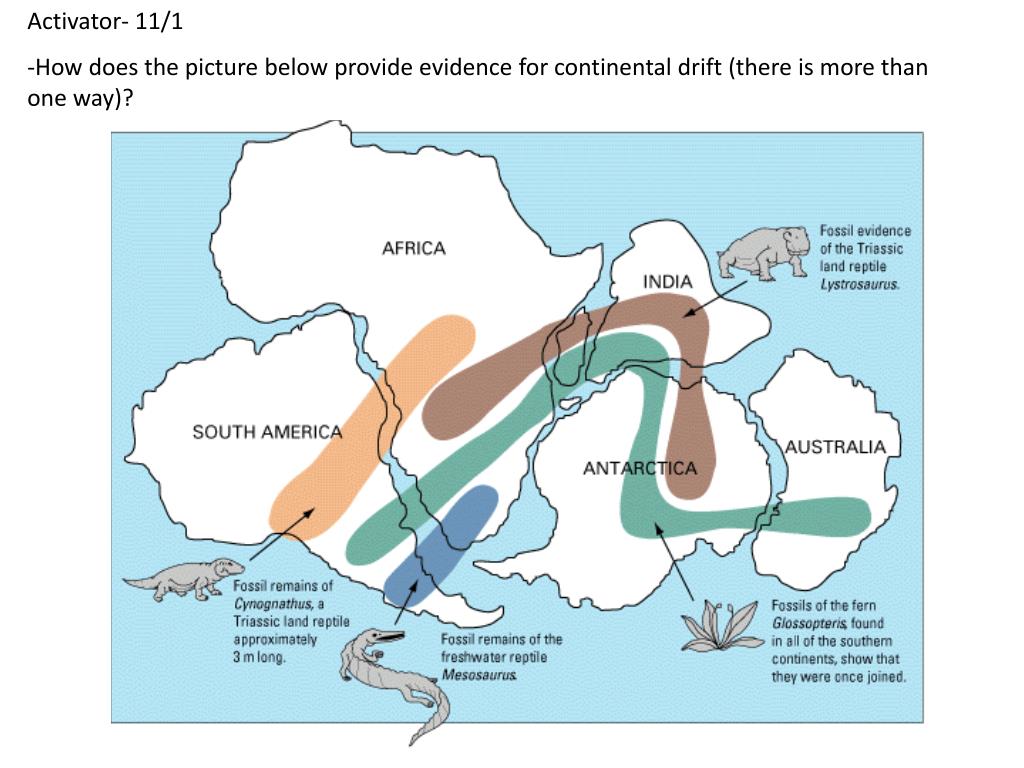

24. Activator- 11/1 -How does the picture below provide evidence for continental drift (there is more than one way)?

25. Evidence for Continental Drift Geographical- continents fit together like a puzzle Geological- rocks of the same age and type line up across continents no longer connected Climatic- remains of glaciers show some continents not in polar regions used to be Paleomagnetic- the alignment of magnetized particles in old rocks shows that they have moved relevant to the poles Biological- fossils of the same species appear on currently distant continents

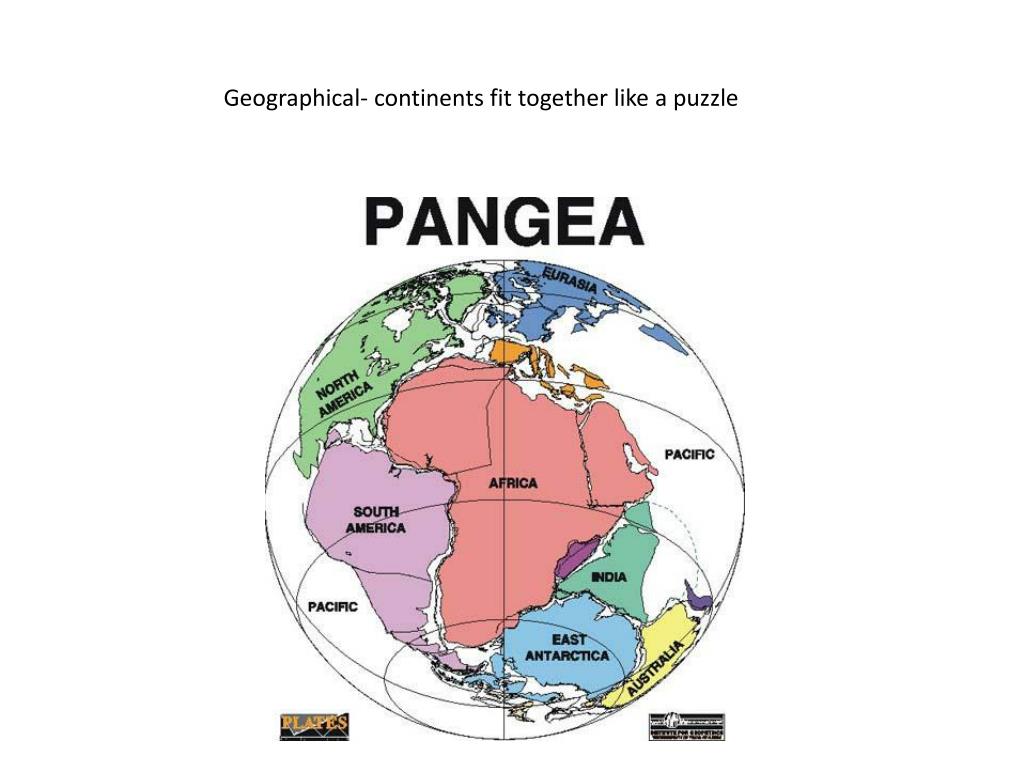

26. Geographical- continents fit together like a puzzle

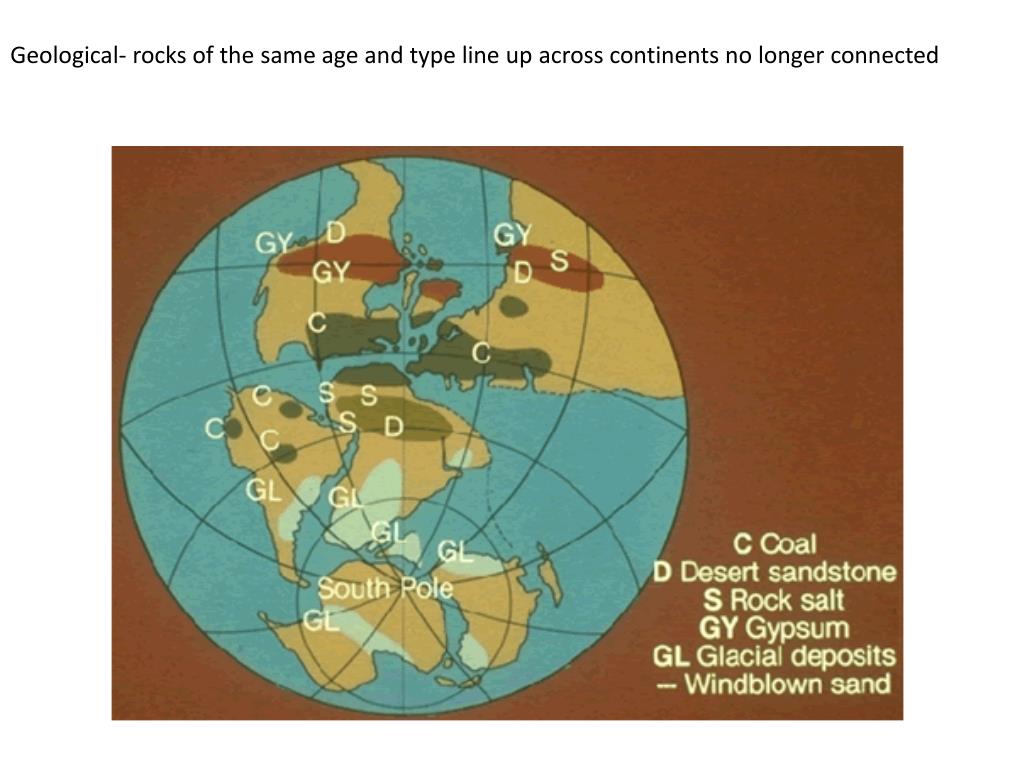

27. Geological- rocks of the same age and type line up across continents no longer connected

28. Climatic- remains of glaciers show that some continents not in polar regions used to be

29. Paleomagnetic- the alignment of magnetized particles in old rocks shows that they have moved relevant to the poles

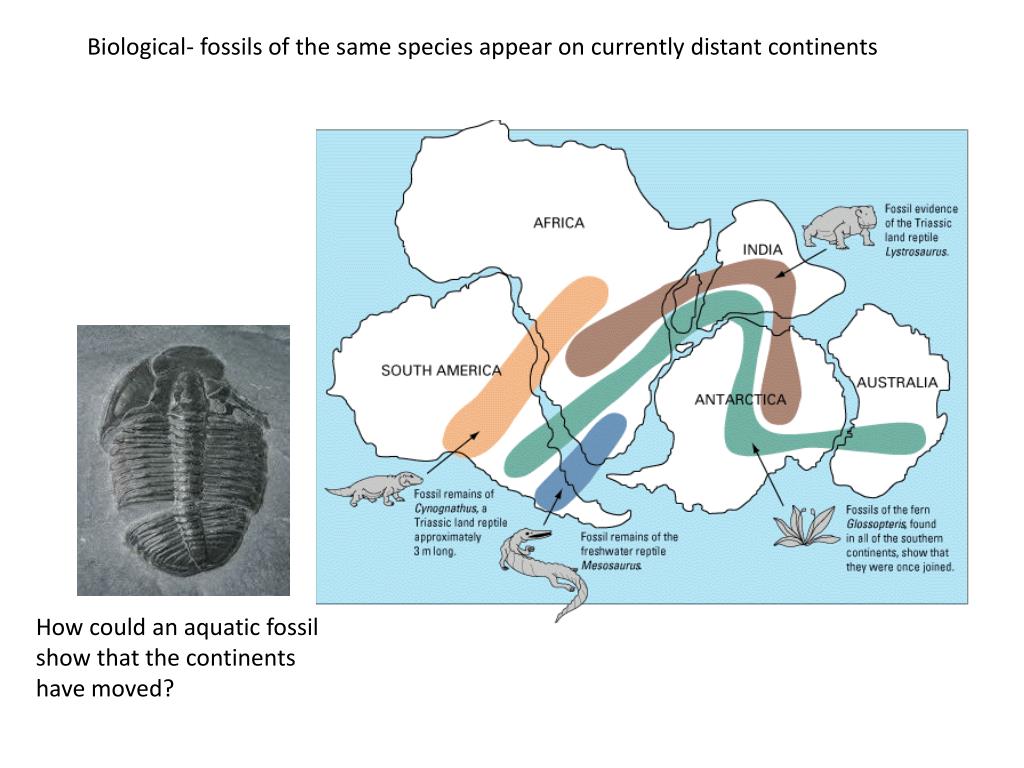

30. Biological- fossils of the same species appear on currently distant continents How could an aquatic fossil show that the continents have moved?

31. Activator -11/1 Identify each of the tectonic boundaries below as divergent, convergent, or transform.

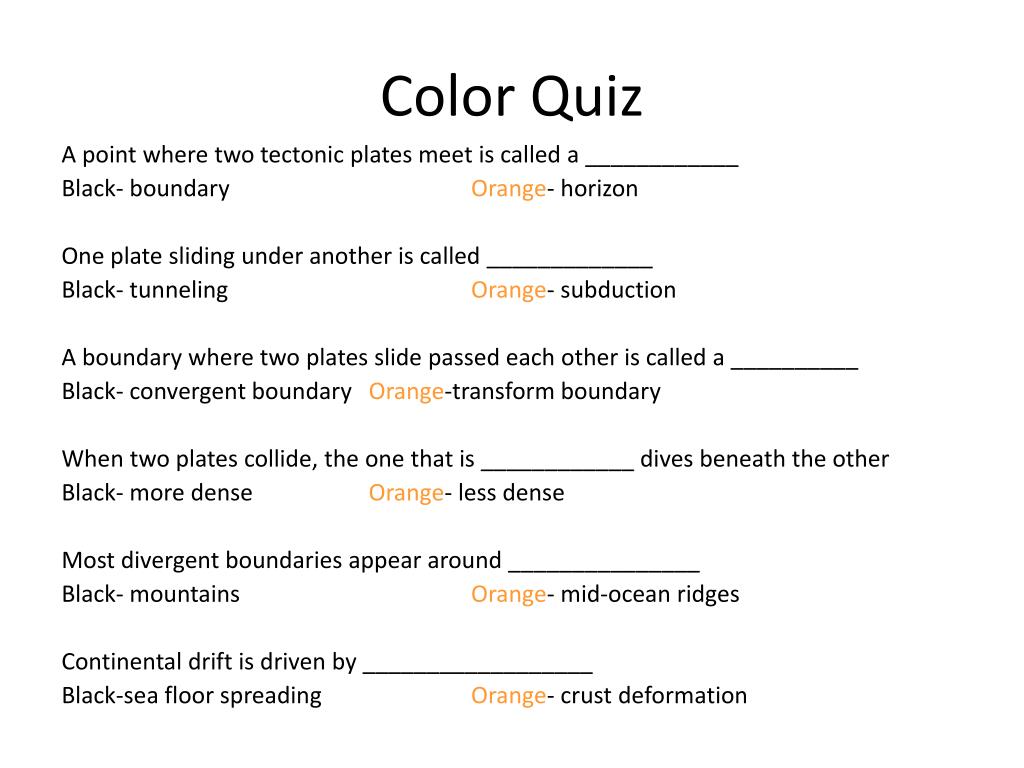

32. Color Quiz A point where two tectonic plates meet is called a ____________ Black- boundary Orange- horizon One plate sliding under another is called _____________ Black- tunneling Orange- subduction A boundary where two plates slide passed each other is called a __________ Black- convergent boundary Orange-transform boundary When two plates collide, the one that is ____________ dives beneath the other Black- more dense Orange- less dense Most divergent boundaries appear around _______________ Black- mountains Orange- mid-ocean ridges Continental drift is driven by __________________ Black-sea floor spreading Orange- crust deformation

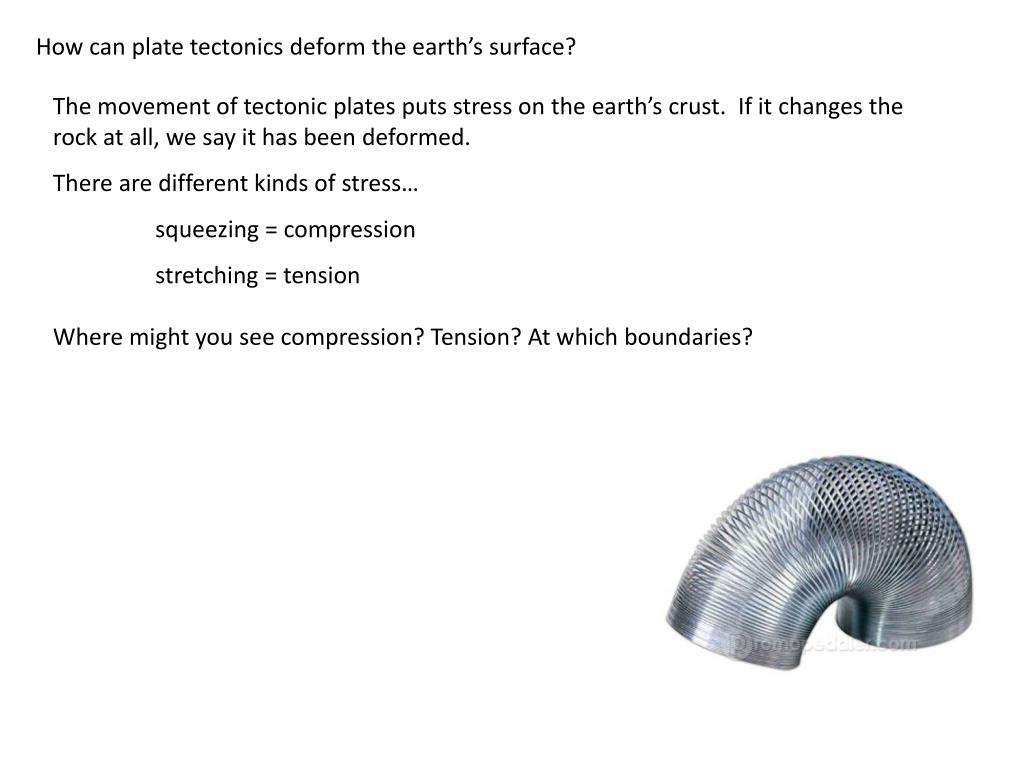

33. How can plate tectonics deform the earth’s surface? The movement of tectonic plates puts stress on the earth’s crust. If it changes the rock at all, we say it has been deformed. There are different kinds of stress… squeezing = compression stretching = tension Where might you see compression? Tension? At which boundaries?

34. If rocks bend as a result of stress, it is called folding. -anticline- bending upwards -syncline- bending downwards -monocline- bending that results in a bend that has horizontal ends

35. If the rock breaks as a result of stress, you have a fault. -there are several types of faults, depending on where the block of crust slides. Normal Fault- the hanging wall slides down relative to the foot wall -it looks like a piece has slide down and away from the other Reverse Fault- the hanging wall slides up and over the footwall -it looks like a piece has slide up and into the other Strike-slip Fault- the two pieces have slid horizontally to each other

36. What type of stress is causing each of these faults to occur? Shear is a type of stress where one object is pushed in opposite directions at different points

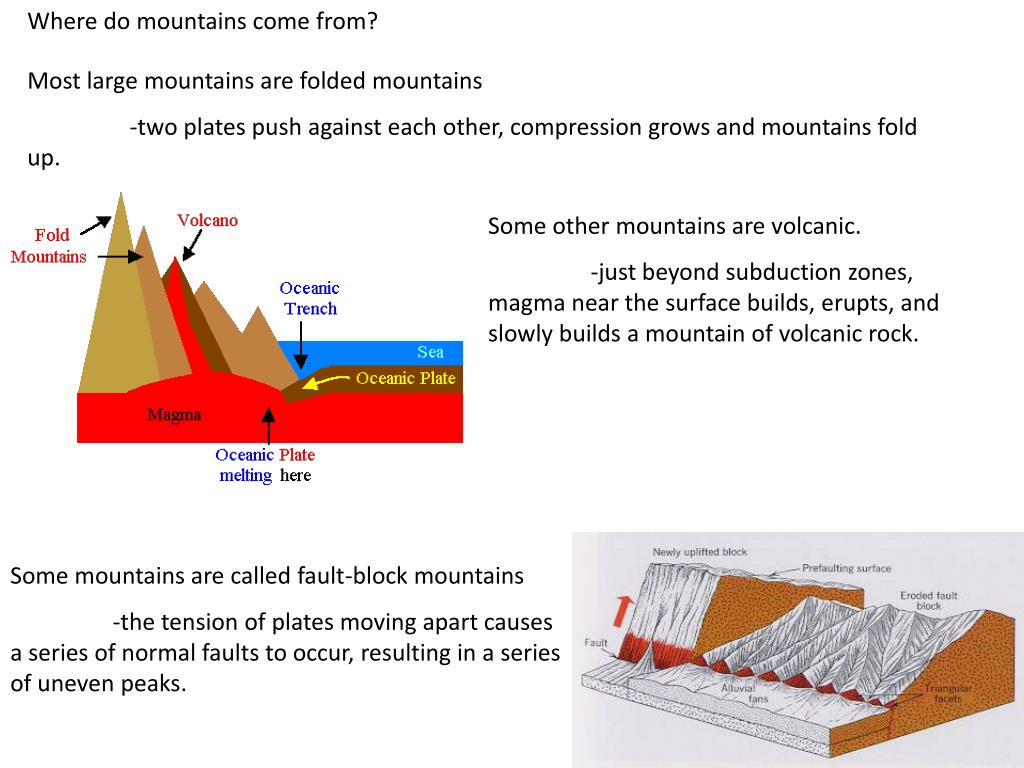

37. Where do mountains come from? Most large mountains are folded mountains -two plates push against each other, compression grows and mountains fold up. Some other mountains are volcanic. -just beyond subduction zones, magma near the surface builds, erupts, and slowly builds a mountain of volcanic rock. Some mountains are called fault-block mountains -the tension of plates moving apart causes a series of normal faults to occur, resulting in a series of uneven peaks.

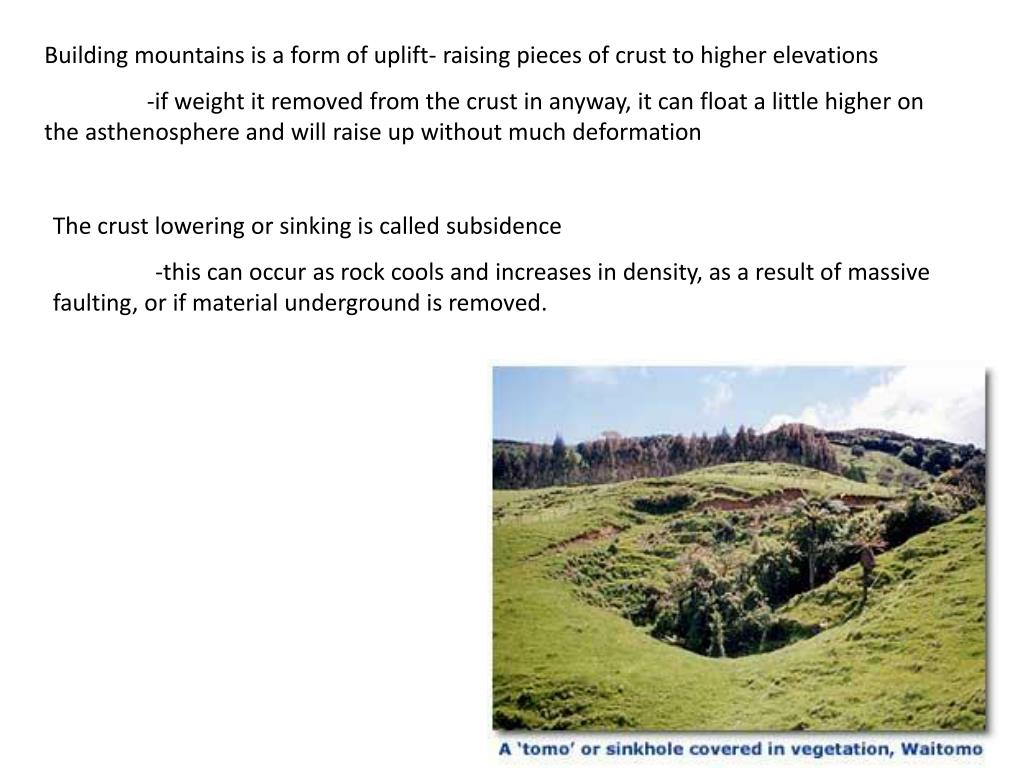

38. Building mountains is a form of uplift- raising pieces of crust to higher elevations -if weight it removed from the crust in anyway, it can float a little higher on the asthenosphere and will raise up without much deformation The crust lowering or sinking is called subsidence -this can occur as rock cools and increases in density, as a result of massive faulting, or if material underground is removed.

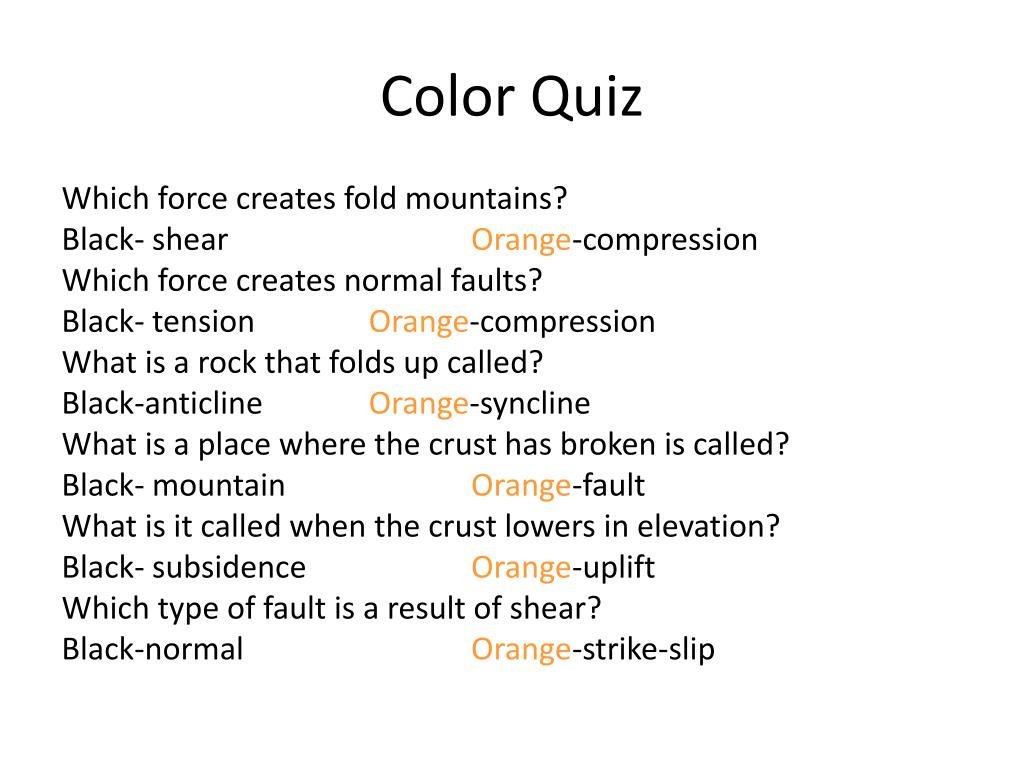

39. Color Quiz Which force creates fold mountains? Black- shear Orange-compression Which force creates normal faults? Black- tension Orange-compression What is a rock that folds up called? Black-anticline Orange-syncline What is a place where the crust has broken is called? Black- mountain Orange-fault What is it called when the crust lowers in elevation? Black- subsidence Orange-uplift Which type of fault is a result of shear? Black-normal Orange-strike-slip

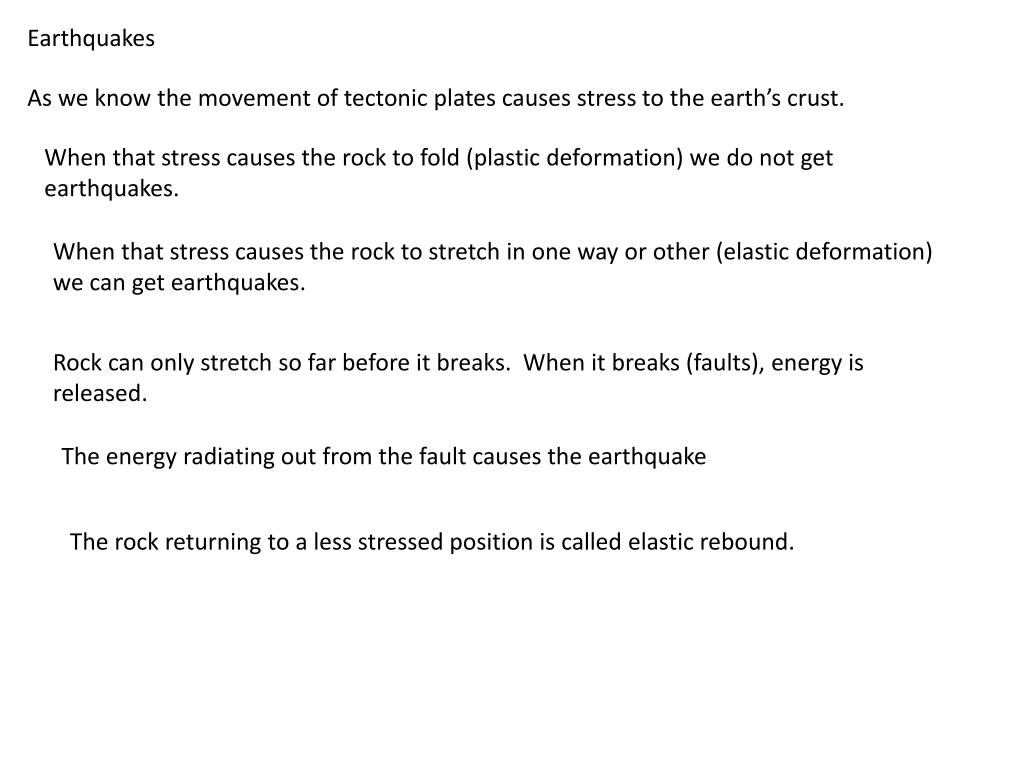

40. Earthquakes As we know the movement of tectonic plates causes stress to the earth’s crust. When that stress causes the rock to fold (plastic deformation) we do not get earthquakes. When that stress causes the rock to stretch in one way or other (elastic deformation) we can get earthquakes. Rock can only stretch so far before it breaks. When it breaks (faults), energy is released. The energy radiating out from the fault causes the earthquake The rock returning to a less stressed position is called elastic rebound.

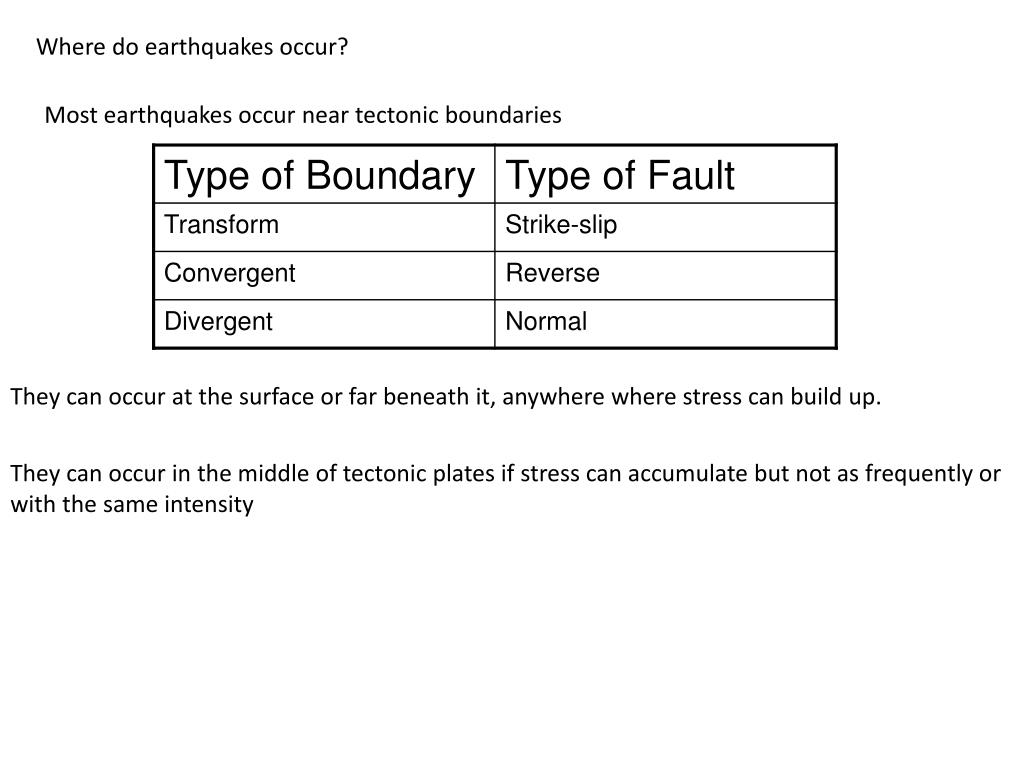

42. Where do earthquakes occur? Most earthquakes occur near tectonic boundaries They can occur at the surface or far beneath it, anywhere where stress can build up. They can occur in the middle of tectonic plates if stress can accumulate but not as frequently or with the same intensity

43. The area around the pacific plate is called the ring of fire, because of its intense seismic and volcanic activity.

44. Earthquakes are caused by waves of energy moving through the crust, called seismic waves. There are two main types of waves, surface waves and body waves. Body waves- travel through the earth’s interior. Since it is denser there, they move faster than surface waves. p-waves (pressure waves or primary waves)- travel through matter causing it to go back and forth as one bit collides with the next. They are the fastest waves. s-waves (shear waves or secondary waves)- push through solid rock only and cause it to move side to side Surface waves- travel through the upper few kilometers of the earth’s surface -they can move rock up and down (rayleigh waves) or side to side (love waves), but do so in a slower, more destructive manner

46. How are earthquakes measured? Seismographs are instruments that detect seismic waves. The more energy an earthquake produces the more the seismograph moves, creating an image of the earthquakes waves called a seismogram.

47. By comparing multiple seismograms taken at different locations, scientists can determine when an earthquake began and where it originated. The point inside the earth where an earthquake originates is called the focus. The point on the surface of the earth directly above the focus is called the epicenter.

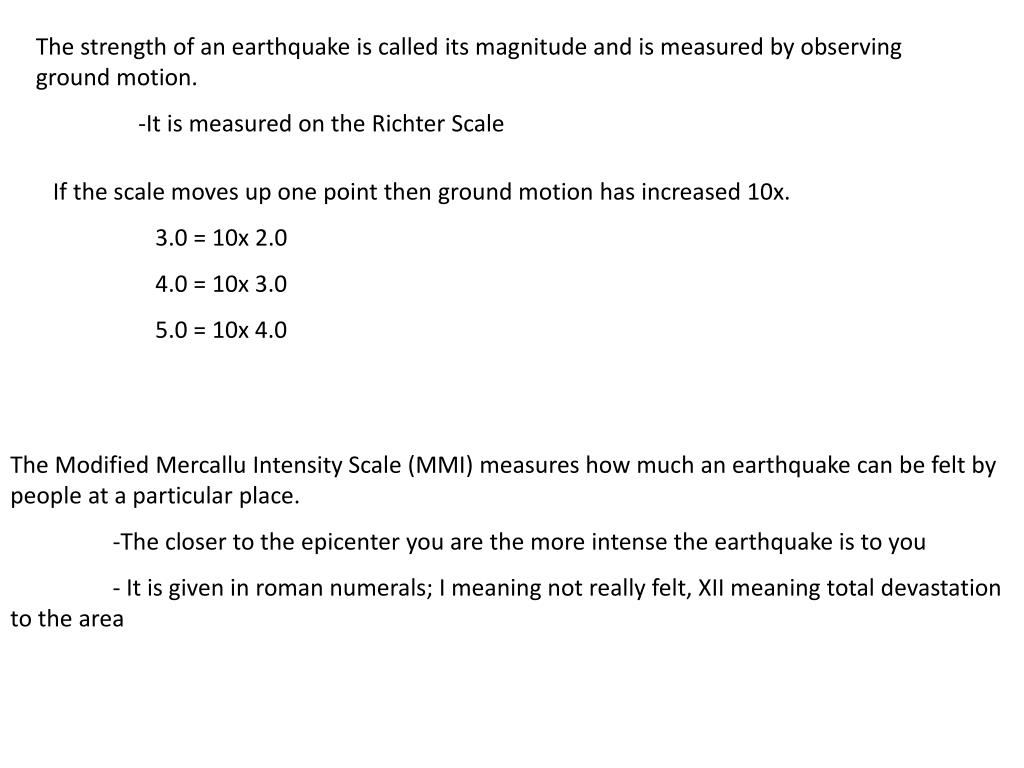

48. The strength of an earthquake is called its magnitude and is measured by observing ground motion. -It is measured on the Richter Scale If the scale moves up one point then ground motion has increased 10x. 3.0 = 10x 2.0 4.0 = 10x 3.0 5.0 = 10x 4.0 The Modified Mercallu Intensity Scale (MMI) measures how much an earthquake can be felt by people at a particular place. -The closer to the epicenter you are the more intense the earthquake is to you - It is given in roman numerals; I meaning not really felt, XII meaning total devastation to the area

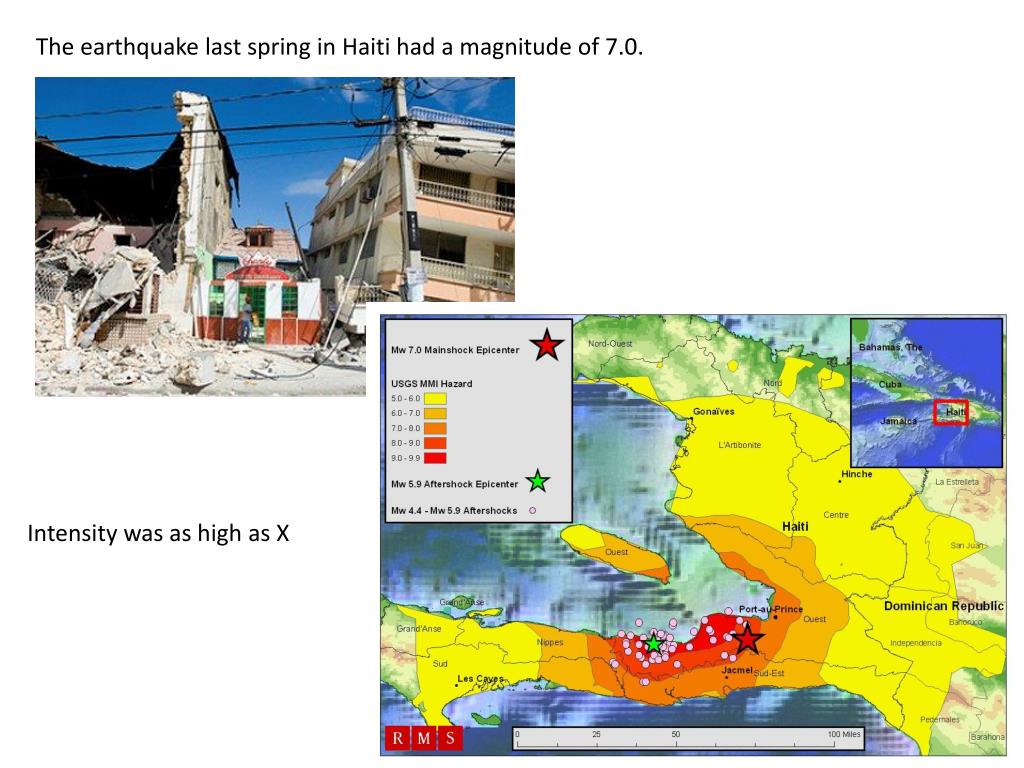

49. The earthquake last spring in Haiti had a magnitude of 7.0. Intensity was as high as X

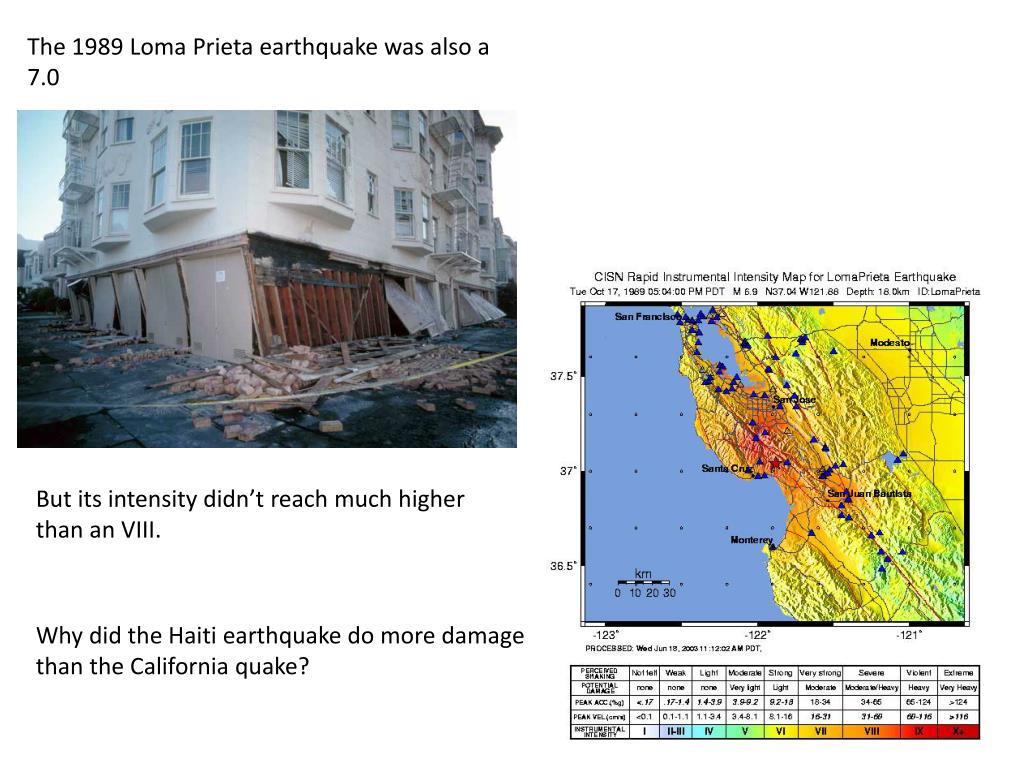

50. The 1989 Loma Prieta earthquake was also a 7.0 But its intensity didn’t reach much higher than an VIII. Why did the Haiti earthquake do more damage than the California quake?
