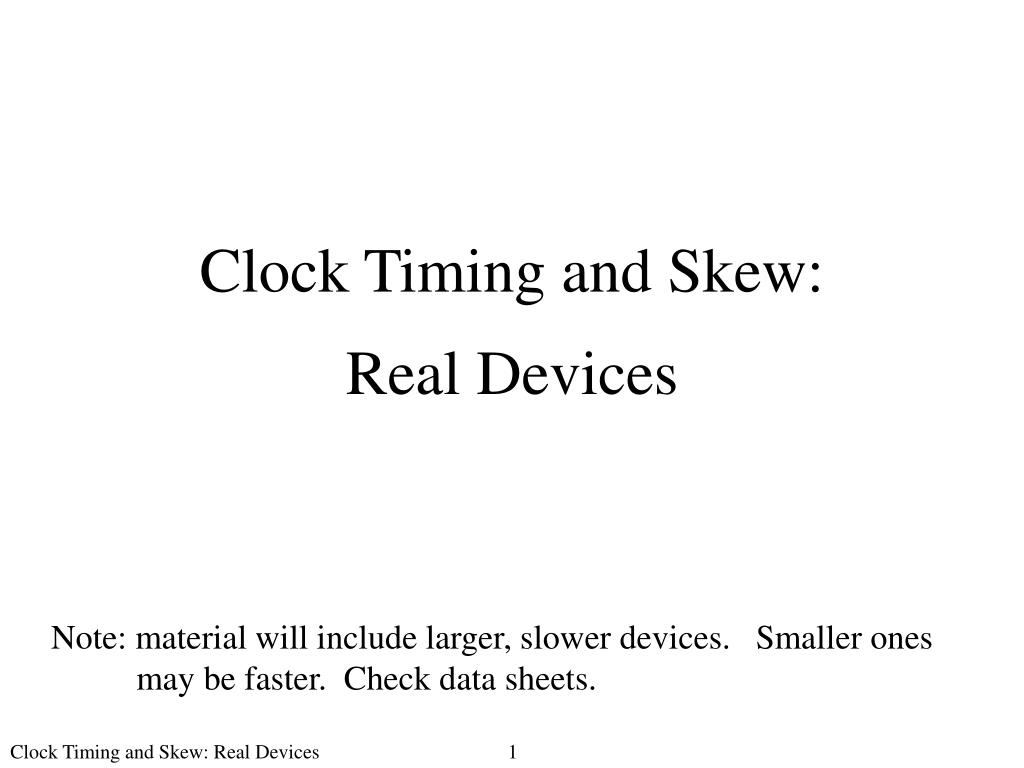

  1. Clock Timing and Skew:Real Devices Note: material will include larger, slower devices. Smaller ones may be faster. Check data sheets.

  2. Actel • Xilinx • Chip Express QYH500 • Atmel/Honeywell AT6K • MRC • UTMC/Quicklogic

  3. Atmel/Honeywell AT6K

  4. Atmel/Honeywell AT6K

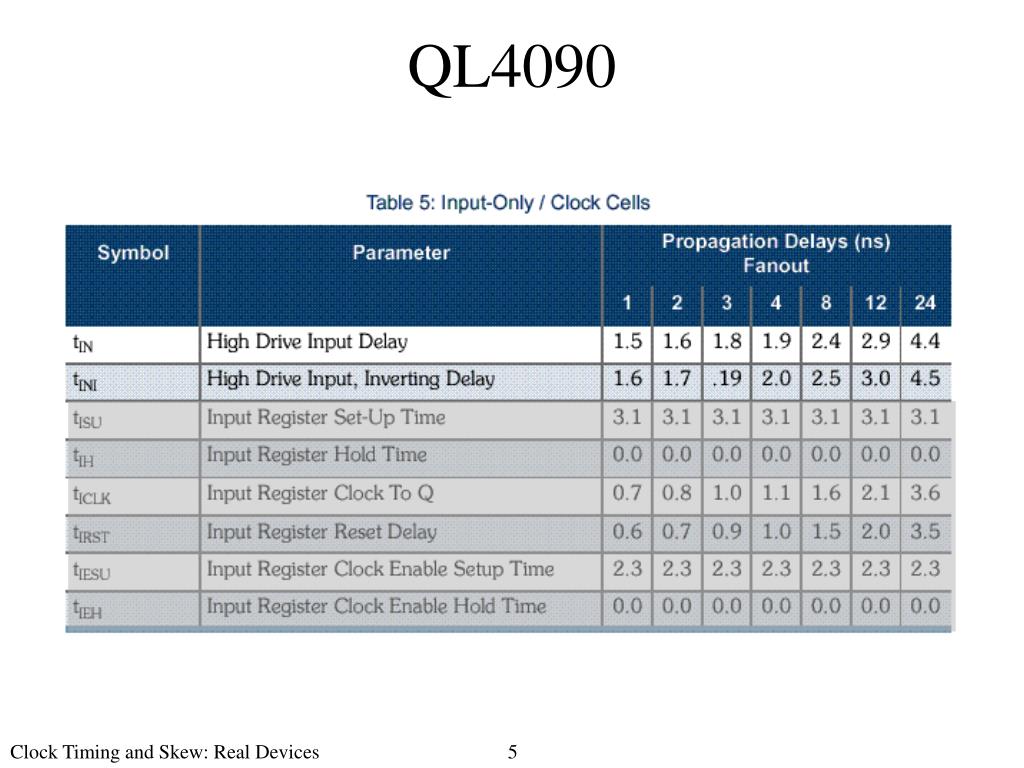

  5. QL4090

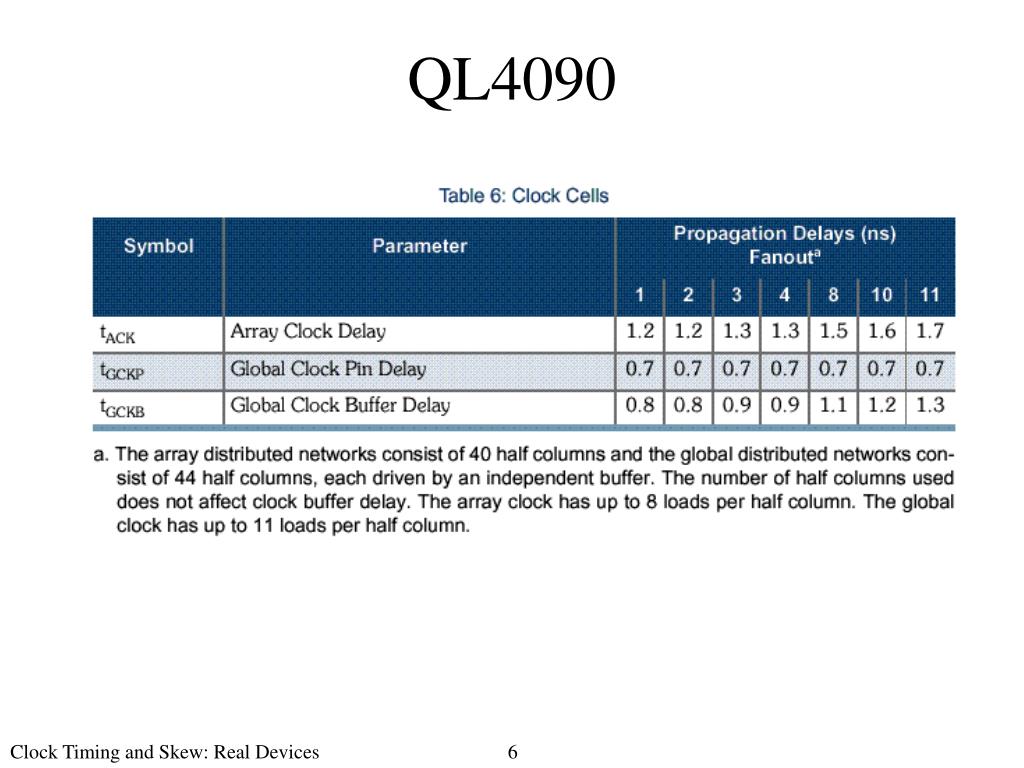

  6. QL4090

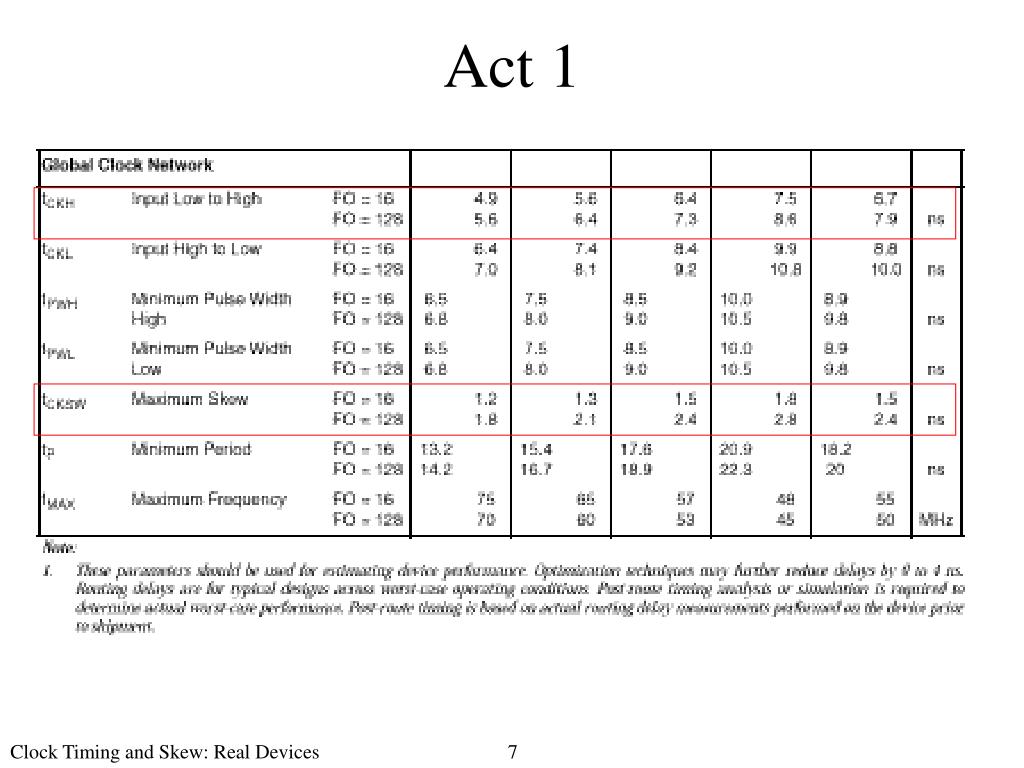

  7. Act 1

  8. Act 2: 1280

  9. Act 3

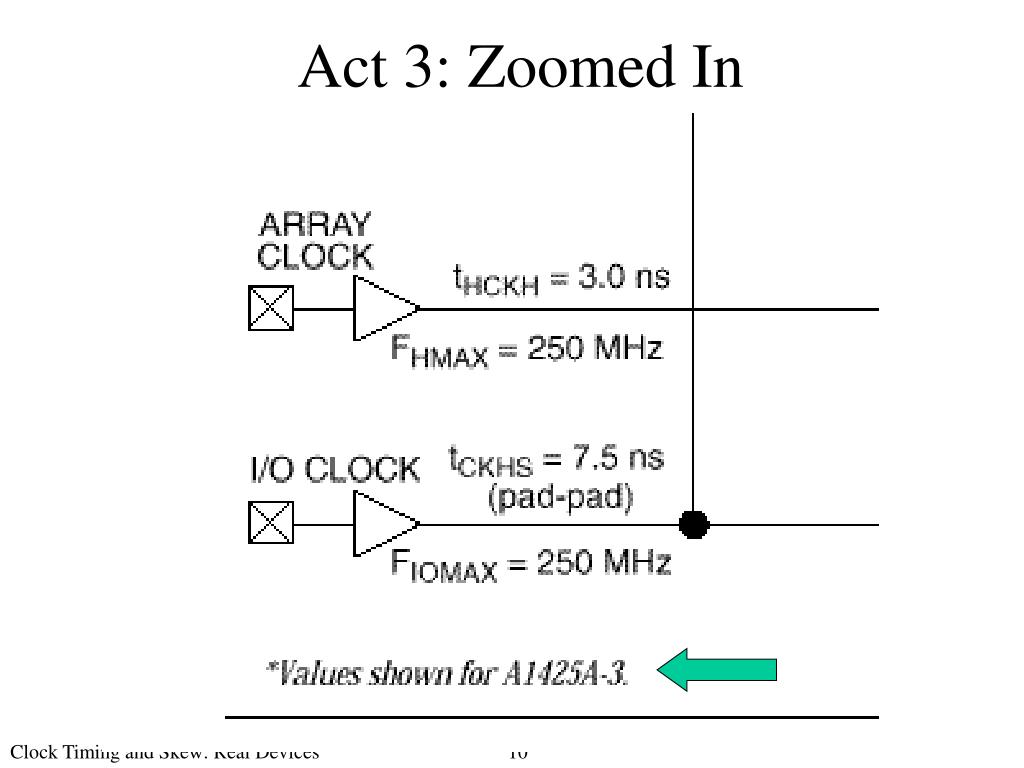

  10. Act 3: Zoomed In

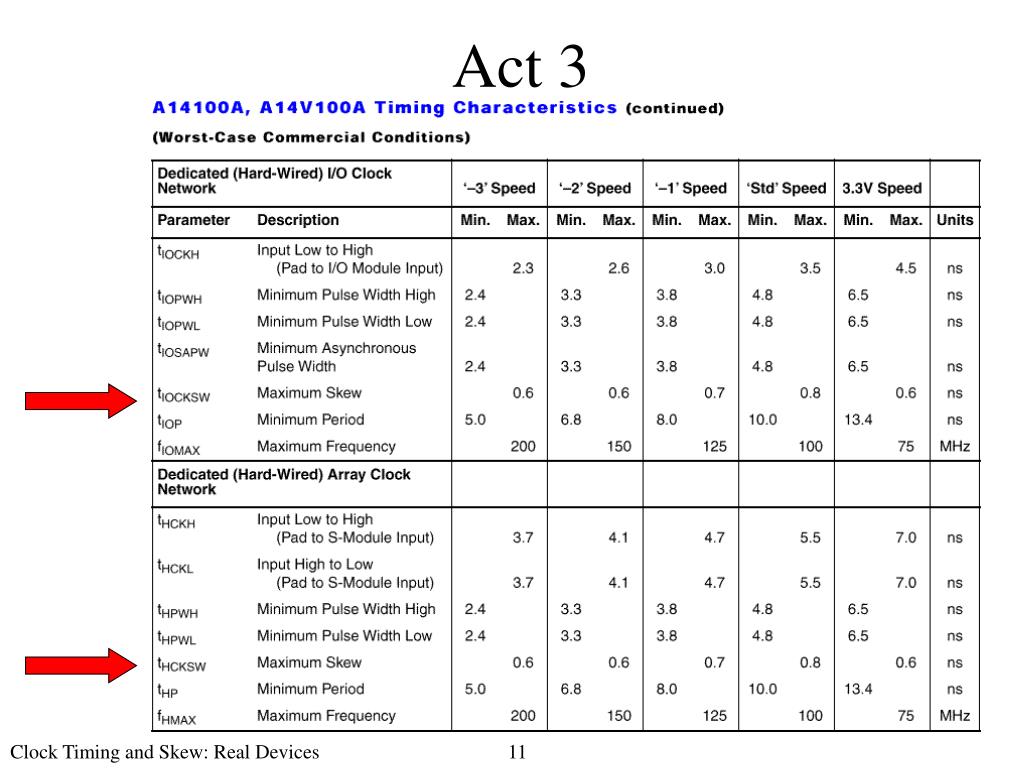

  11. Act 3

  12. Act 3A14100A, Worst-Case Commercial Conditions

  13. Act 3 Act 3A14100A, Worst-Case Commercial Conditions Critical clock-to-clock skews.

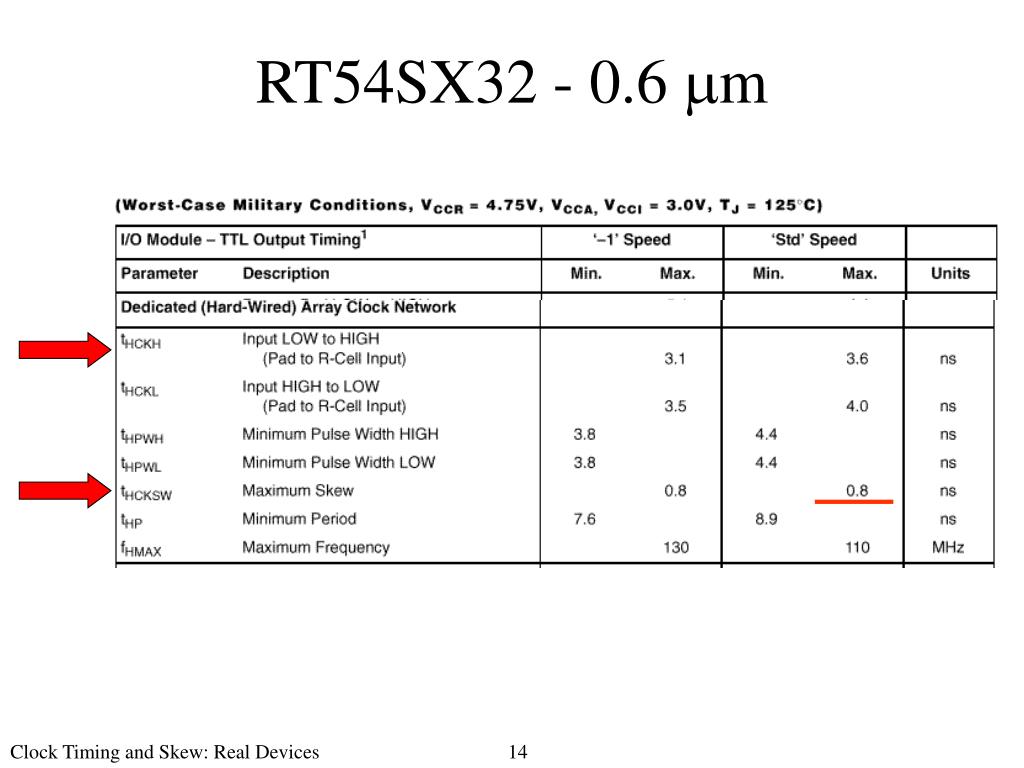

  14. RT54SX32 - 0.6 m

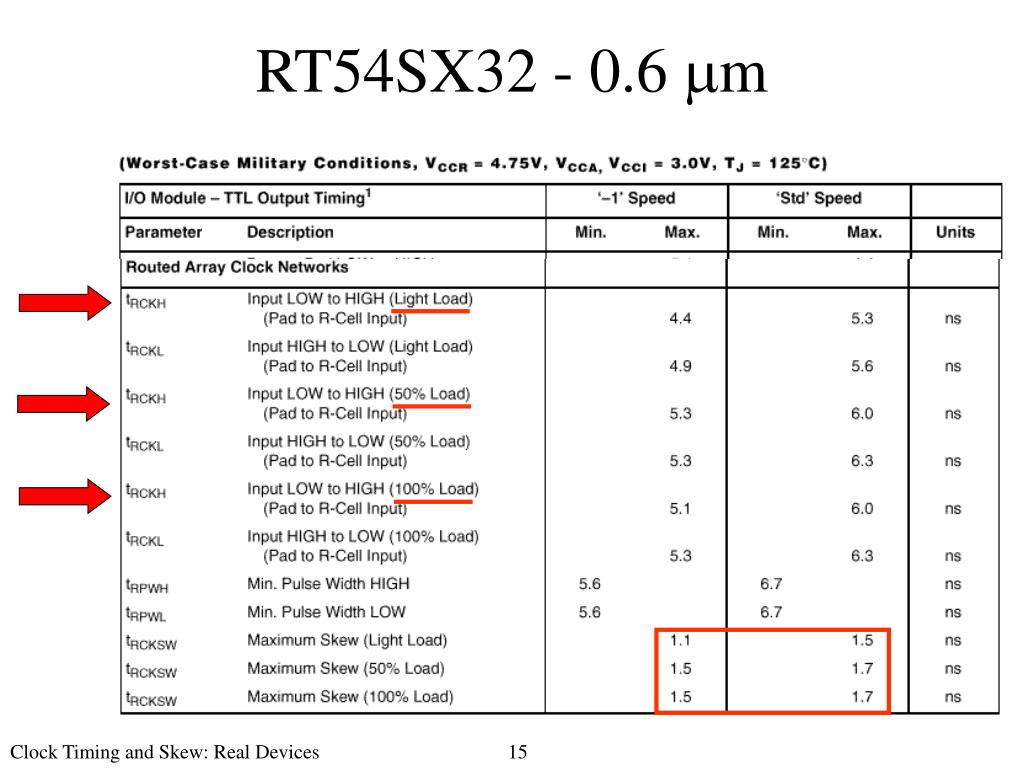

  15. RT54SX32 - 0.6 m

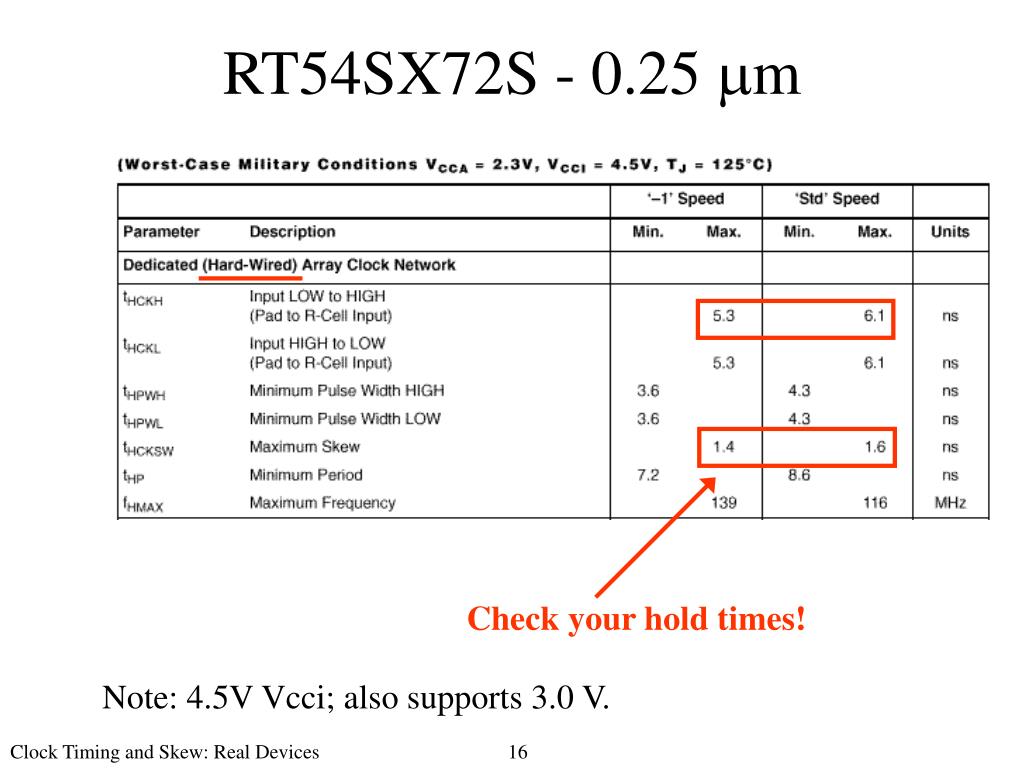

  16. RT54SX72S - 0.25 m Check your hold times! Note: 4.5V Vcci; also supports 3.0 V.

  17. RT54SX72S - 0.25 m Check your hold times! Note: 4.5V Vcci; also supports 3.0 V.

  18. SX-S Timing Note the clock load in each R-Cell is 3x in the SX-S series.

  19. AX PLL Performance Note: Can not run with a moderate frequency clock.

  20. Skew, Virtex, IOB Flip-Flops Skews increase with device size.

  21. Virtex, CLK  Out, w/ DLL

  22. Virtex, CLK  Out, w/out DLL

  23. Virtex DLL Timing Parameters Notes 1. Like many FPGA parameters, guaranteed but not tested. 2. Can not run with a moderate frequency clock.

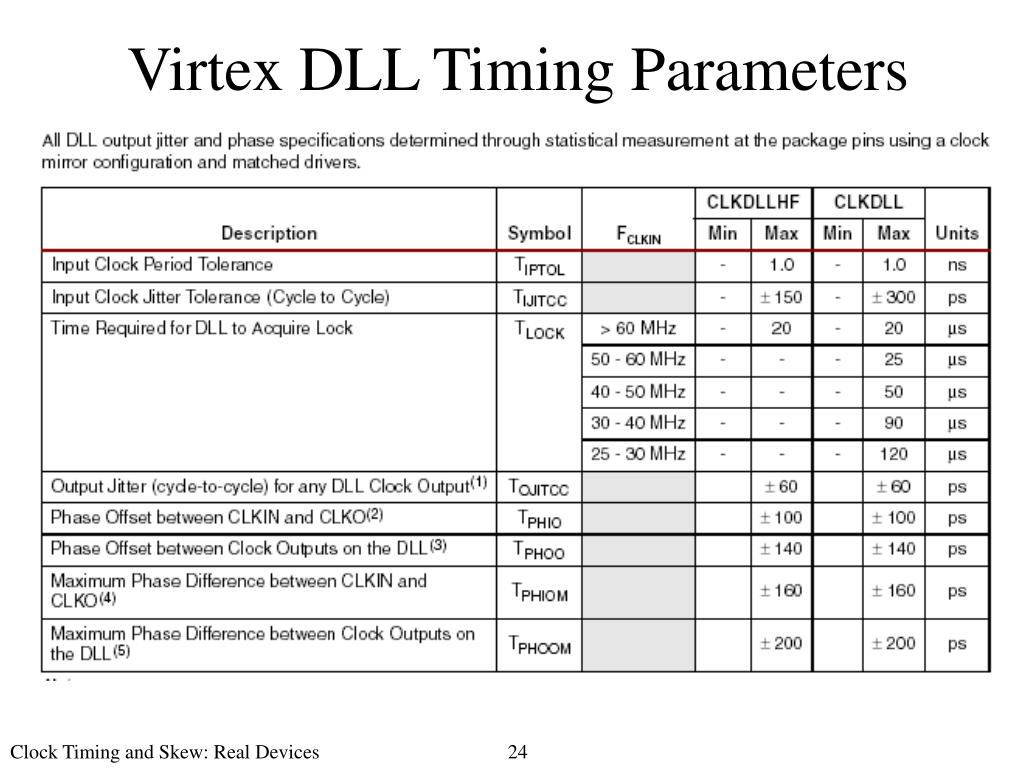

  24. Virtex DLL Timing Parameters

  25. Virtex DLL Timing Parameters Notes
