  1. Product OverviewE-Class Mark III

  2. Product Overview What is the E-Class Mark III? • Entirely NEW Desktop Printer Family • Designed, Owned, and Managed by D-O • Focused on Customer Needs and Concerns • Addresses Needs of the Market • Not based on E-Class Mark II E-Class Mark II E-Class Mark III

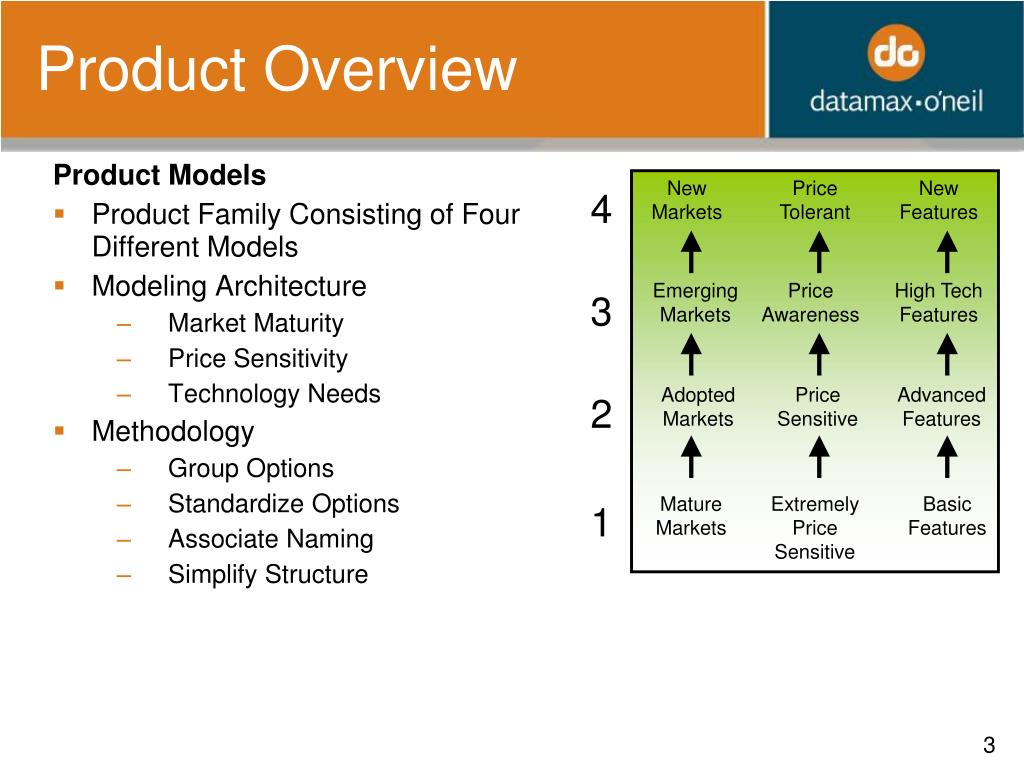

  3. Product Overview Product Models • Product Family Consisting of Four Different Models • Modeling Architecture • Market Maturity • Price Sensitivity • Technology Needs • Methodology • Group Options • Standardize Options • Associate Naming • Simplify Structure New Markets Price Tolerant New Features 4 Emerging Markets Price Awareness High Tech Features 3 Adopted Markets Price Sensitive Advanced Features 2 Mature Markets Extremely Price Sensitive Basic Features 1

  4. Product Overview Common Specs All Models • USB/Serial Ports • Double Walled Construction • Large Clear Wrap Around Window • Wide Open Easy Loading • Free Emulations • ZPL/EPL • IPL • FGL (Boca) • Easy Change Wearable Parts • Extended Warranty Program

  5. Product Overview Common Specs All Models • Independent Accuracy Guides • Power Cord Selection • Sealed User Interface • Thermal Transfer • TT Ribbon CSI/CSO • Ribbon ½ core 110m Long and 1” core 300m • 64MB Flash • Industrial Grade Feed Switch • External Feed Slot • Configuration Software & Drivers • NEW Software Packages Coming!

  6. Product Overview Accessories • Battery & Power Pack Accessory Lower matching case accommodates both … • Battery Pack or • Power Supply • Chute Accessory • Reduces down time by loading without opening printer. • External Large Roll Media Stand • Saves printing supplies costs by using larger media roll.

  7. Product Specifications (S)tandard, (O)ptional, (A)ccessory

  8. Product Specifications (S)tandard, (O)ptional, (A)ccessory

  9. Product Specifications (S)tandard, (O)ptional, (A)ccessory

  10. Product Specifications (S)tandard, (O)ptional, (A)ccessory

  11. Product Specifications (S)tandard, (O)ptional, (A)ccessory

  12. Product Specifications (S)tandard, (O)ptional, (A)ccessory

  13. 3 Dimensions of Value • 1. Affordable to Own • Low Service Costs • Few Wearable Parts • Printhead & Platen • Changeable on Site

  14. 3 Dimensions of Value • 1. Affordable to Own • Long Life Reliability • Tested 5 to 10 Million Inches/printer • 6 to 11K Labels/Day • Longer Life = Better Investment

  15. 3 Dimensions of Value • Affordable to Own • Long Life/Reliability • Industrial Switches • Sealed Interface • Double Walled Interlocking Construction

  16. 3 Dimensions of Value • 2. Easy to Use • Media Level Recognition • Easy Interface • Calibrate • Toggle • Menus • Dealer/Factory Reset

  17. 3 Dimensions of Value • 2. Easy to Use • Easy Loading • Fully Accessible • Rolls • Ribbon

  18. 3 Dimensions of Value • 2. Easy to Use • Easy maintenance • No Tools Replacement • Platen & Printhead Latch Thumbscrew Latch

  19. Vertical Markets and Applications E-Class Mark III

  20. Vertical Markets and Applications Industrial/Manufacturing Healthcare Parcel/Post Commercial Services Transportation/Logistics Retail Vertical Market to Printer Model Match

  21. Product IntroductionVertical Markets Fit
