1. Open Source Machine Learning Open Source Probabilistic Network Library Gary Bradski Program Manager Systems Technology Labs - Intel

2. What are we announcing today? • Intel is releasing a library of Open Source Software for Machine Learning • First library is Probabilistic Network Library (PNL);comprised of code for inference and learning using Bayesian Networks • Research and Development was conducted in Intel research labs in US, Russia and China • Software is released as part of Intel Open Research Program • Tool for research in many application areas • Open Source under a BSD license • The code is free for academic and commercial use • More info: http://www.intel.com/research/mrl/pnl

3. Why is Intel involved? • Statistical Computing and Machine Learning can change computing applications in a considerable way • Machine Learning requires high-powered processors • Ties into Intel’s research in other areas such as wireless networking, sensor networks and Proactive Health

4. What is Machine Learning? • Machine Learning allows computers to learn from their experiences and from gathered data • We’ve known for > 200 years that probability theory is the right tool to model systems, but it has always been too hard to compute. Recent advances in computing allow calculation of complex models • Machines are good at gathering data and performing complex analysis • Machine Learning is a sea change in development of applications since it allows computers to be more proactive and predictive

5. Applications of Machine Learning • Interface – Audio Visual Speech Recognition (AVSR); natural language processing, etc. • AI – robotics, computer games, entertainment, etc. • Data Analysis – information retrieval, data mining, etc. • Biological – gene sequencing, genomics, computational pharmacology • Computer – run time optimization • Industrial – fault diagnosis • Applications of machine learning cover a broad range • Genomics - matching of protein strands • Collaborative Filtering - personal “Google” • Drug Discovery – shortening of drug discovery cycle • Patient and elder care – wireless camera and sensor network help monitor patients

6. Statistical Learning OpenSL - 2004 Open ML Components & Plan • Key: • Optimized • Implemented • Not implemented • Boosted decision trees OpenML • Influence diagrams Supervised • SVM • BayesNets: Classification • Decision trees • K-NN • Bayesnet structure learning Bayesian Networks OpenPNL-2003 • K-means • Dependency Nets Unsupervised • BayesNets: Parameter fitting • Spectral clustering • Agglomerative clustering • PCA Modeless Model based

7. Model Based Machine Learning • Machine Learning can be based on Models (model-based) or it could be Model-less • In version 1.0 of OpenML Intel is focusing on Bayesian Networks and the Probabilistic Networks which fall under model-based category • The Bayesian approach provides a mathematical rule explaining how one should change existing beliefs in the light of new evidence • Model-less approaches are used for clustering and classification • Intel will release libraries using model-less approaches next year

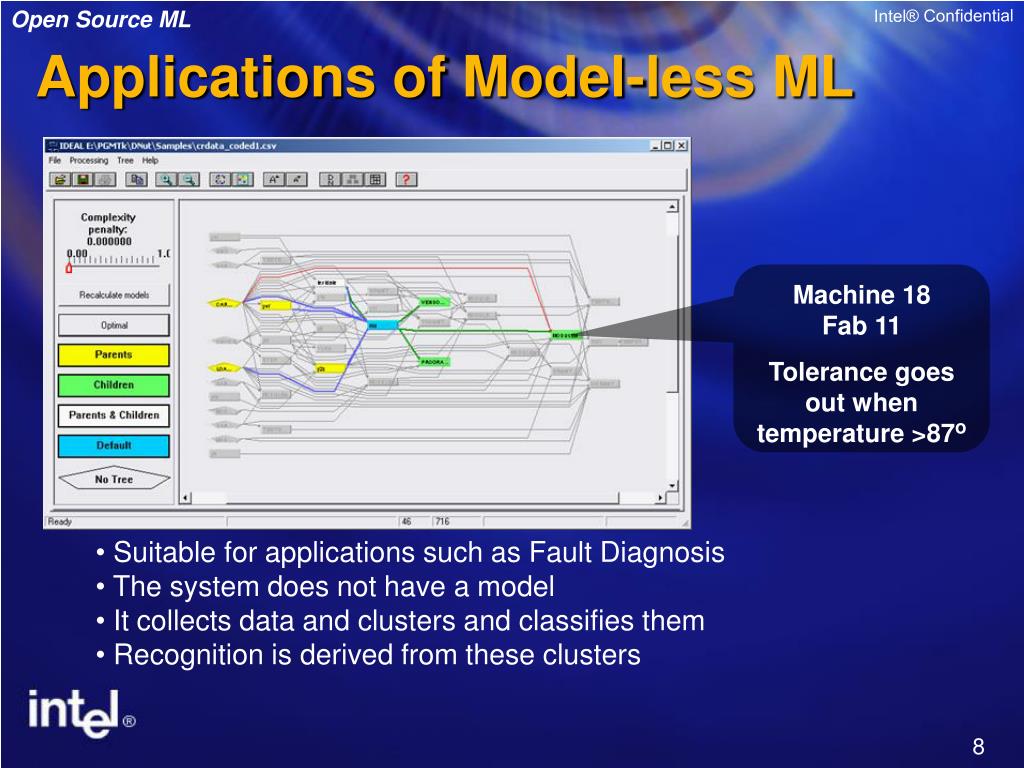

8. Applications of Model-less ML Machine 18Fab 11 Tolerance goes out when temperature >87o • Suitable for applications such as Fault Diagnosis • The system does not have a model • It collects data and clusters and classifies them • Recognition is derived from these clusters

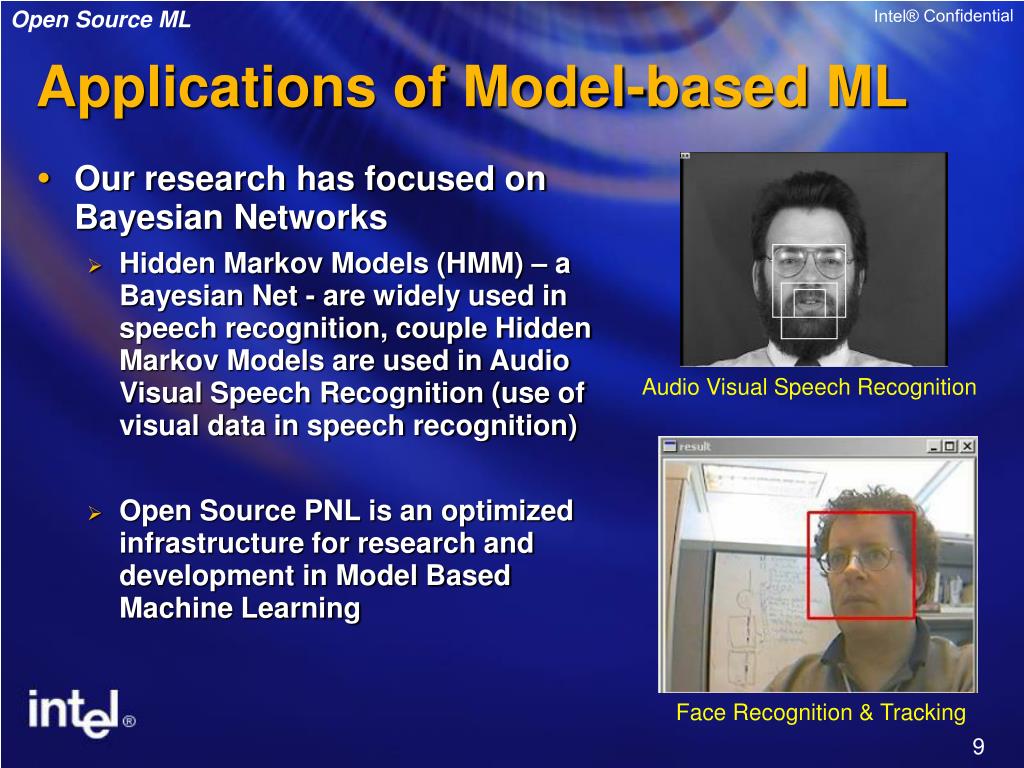

9. Applications of Model-based ML • Our research has focused on Bayesian Networks • Hidden Markov Models (HMM) – a Bayesian Net - are widely used in speech recognition, couple Hidden Markov Models are used in Audio Visual Speech Recognition (use of visual data in speech recognition) • Open Source PNL is an optimized infrastructure for research and development in Model Based Machine Learning Audio Visual Speech Recognition Face Recognition & Tracking

10. Example: Vision Applications Image super resolution - Use a Bayesian method to develop a clear image from a small resolution picture

11. Intel Systems Technology Lab Beijing, PR China China Research Center Speech and Machine Learning Hillsboro, OR, USA Wireless Systems Media 3D Graphics Tech. Management Santa Clara, CA, USA Graphics Lab Machine Learning Architecture Lab Nizhny Novgorod, Russia Architecture for Machine Learning, Media, 3D Graphics, Computer Vision • One of three major labs of Intel Corporate Technology Group • 300 researchers worldwide • Focus on impact on Intel Architecture • Drive university and industry initiatives

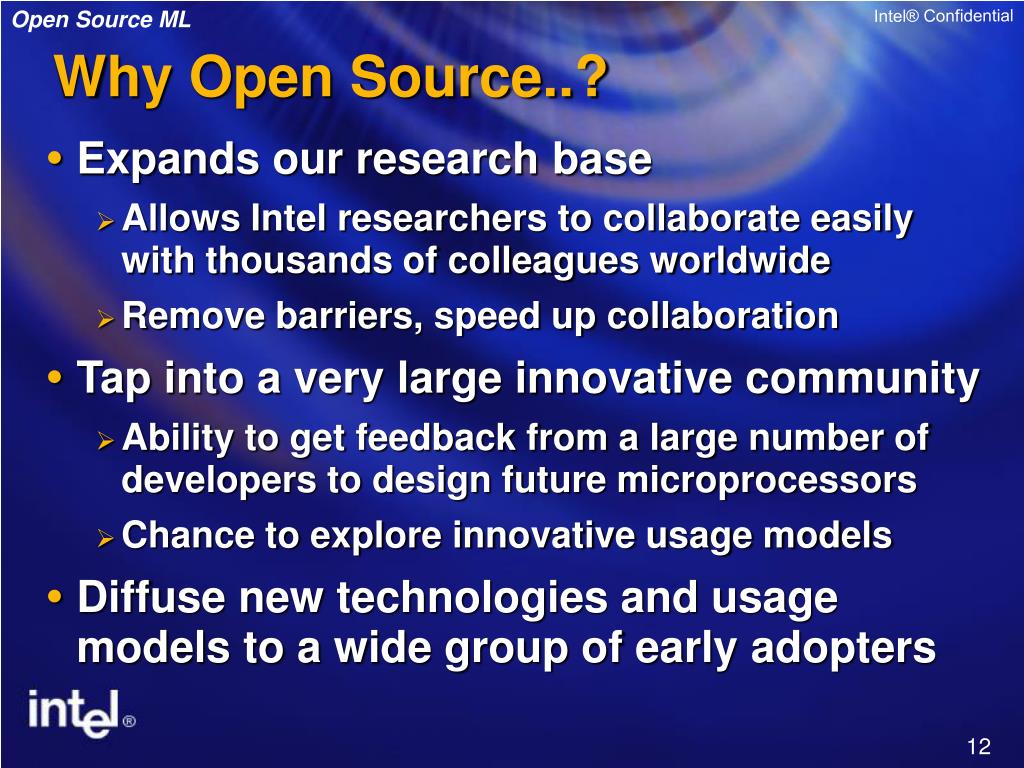

12. WhyOpen Source..? • Expands our research base • Allows Intel researchers to collaborate easily with thousands of colleagues worldwide • Remove barriers, speed up collaboration • Tap into a very large innovative community • Ability to get feedback from a large number of developers to design future microprocessors • Chance to explore innovative usage models • Diffuse new technologies and usage models to a wide group of early adopters

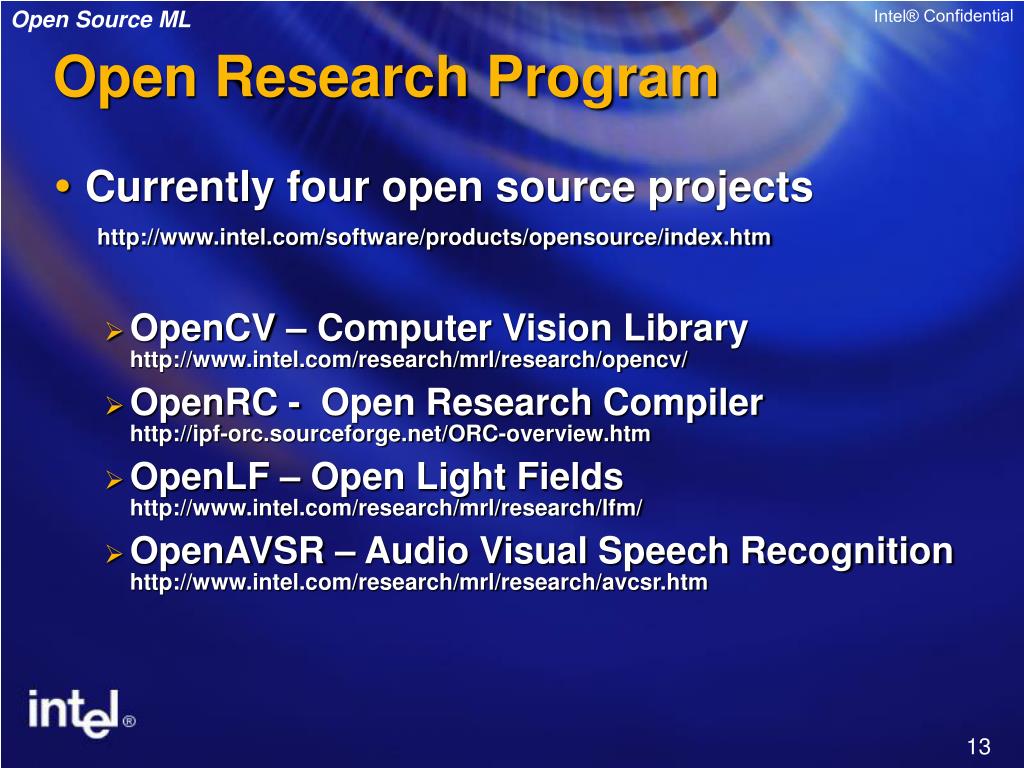

13. Open Research Program • Currently four open source projectshttp://www.intel.com/software/products/opensource/index.htm • OpenCV – Computer Vision Libraryhttp://www.intel.com/research/mrl/research/opencv/ • OpenRC - Open Research Compilerhttp://ipf-orc.sourceforge.net/ORC-overview.htm • OpenLF – Open Light Fieldshttp://www.intel.com/research/mrl/research/lfm/ • OpenAVSR – Audio Visual Speech Recognitionhttp://www.intel.com/research/mrl/research/avcsr.htm

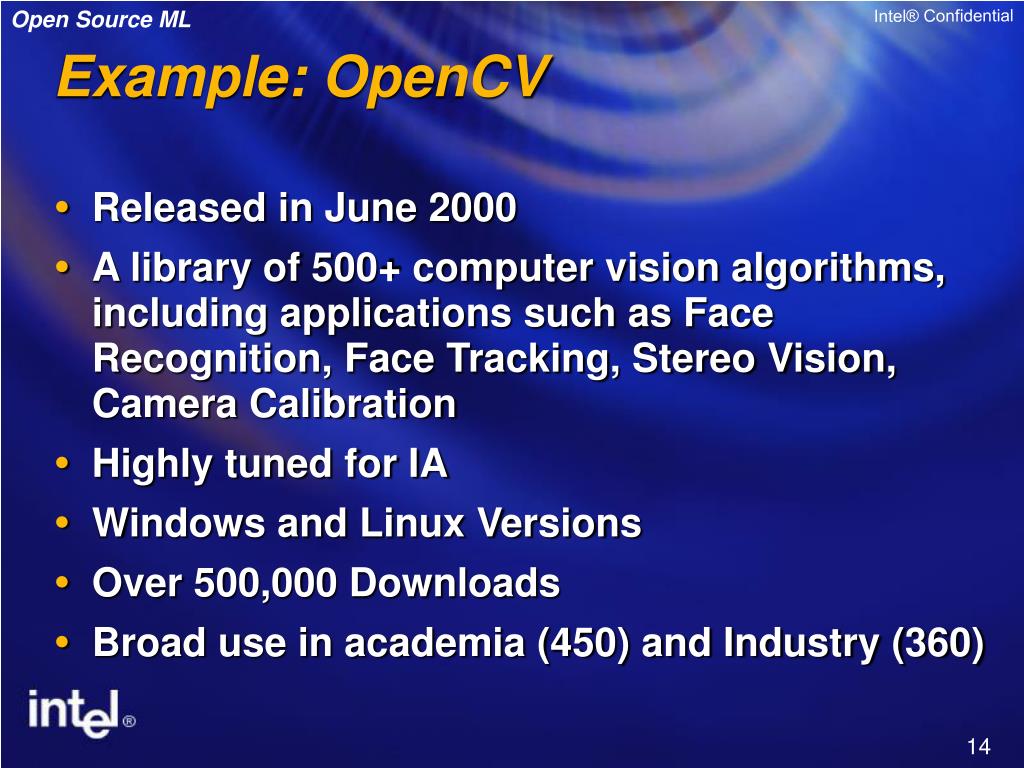

14. Example: OpenCV • Released in June 2000 • A library of 500+ computer vision algorithms, including applications such as Face Recognition, Face Tracking, Stereo Vision, Camera Calibration • Highly tuned for IA • Windows and Linux Versions • Over 500,000 Downloads • Broad use in academia (450) and Industry (360)

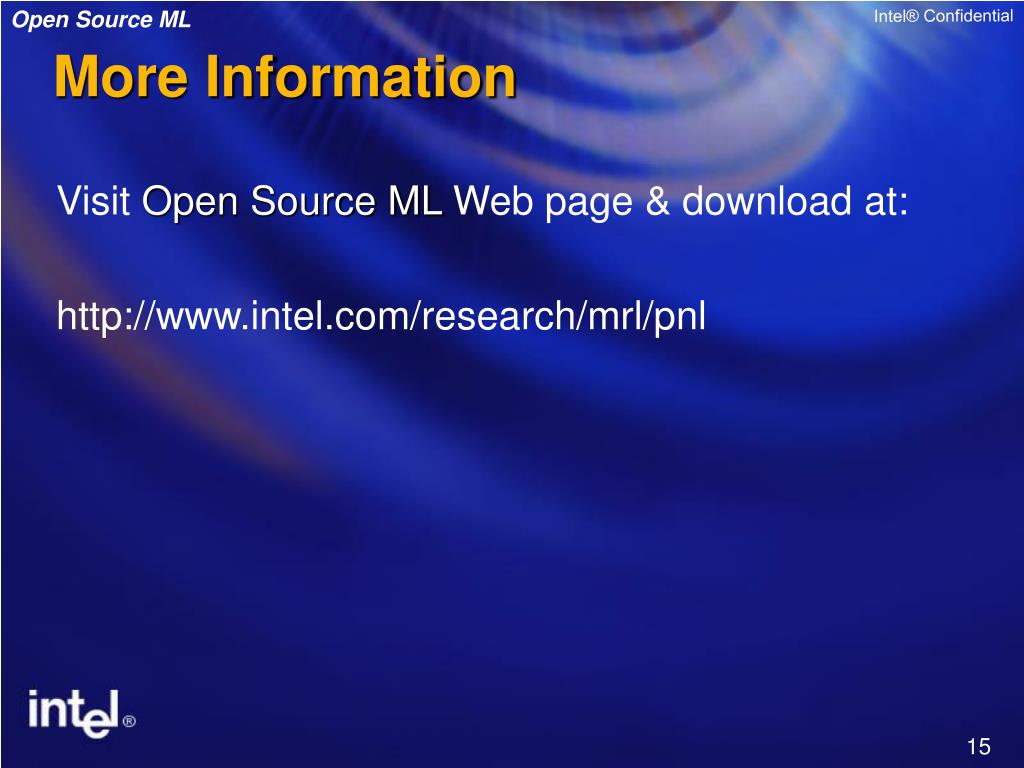

15. More Information Visit Open Source ML Web page & download at: http://www.intel.com/research/mrl/pnl

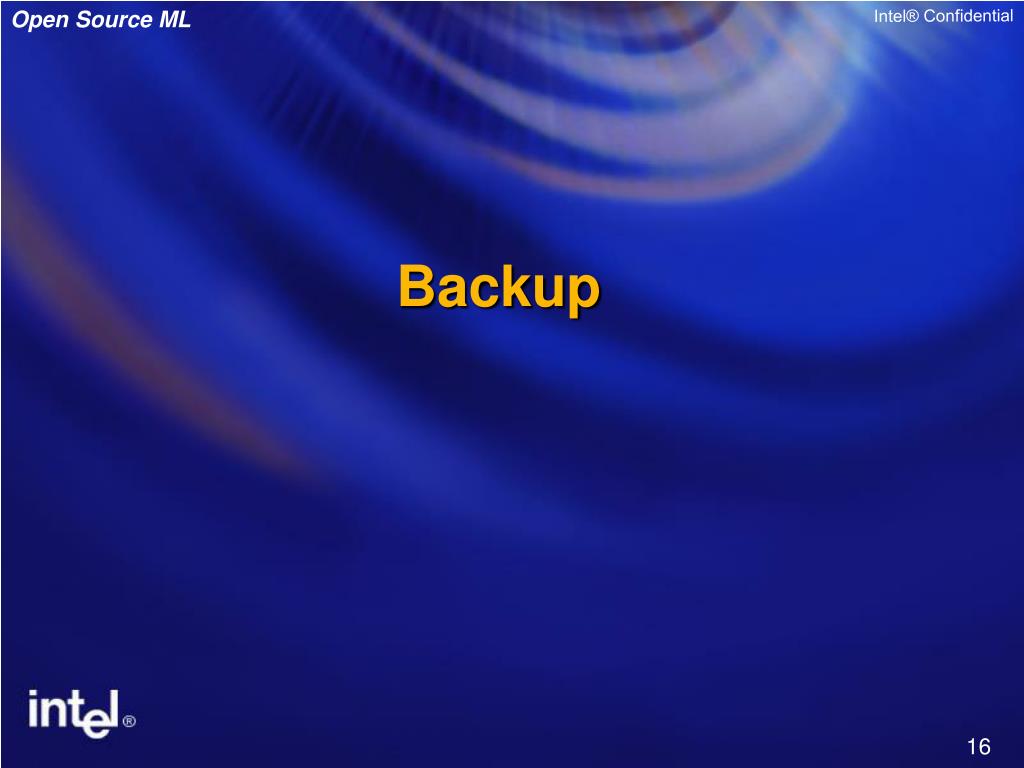

16. Backup

17. Modeless Classifiers Clustering Kernel estimators Model Based Bayesian Networks Function fitters Regression Filters Modeless and Model Based ML We’ll use an example application from our current research to descibe two basic approaches to machine learning: A AACACB CBABBC CCB AAA CB ABBC B C C B

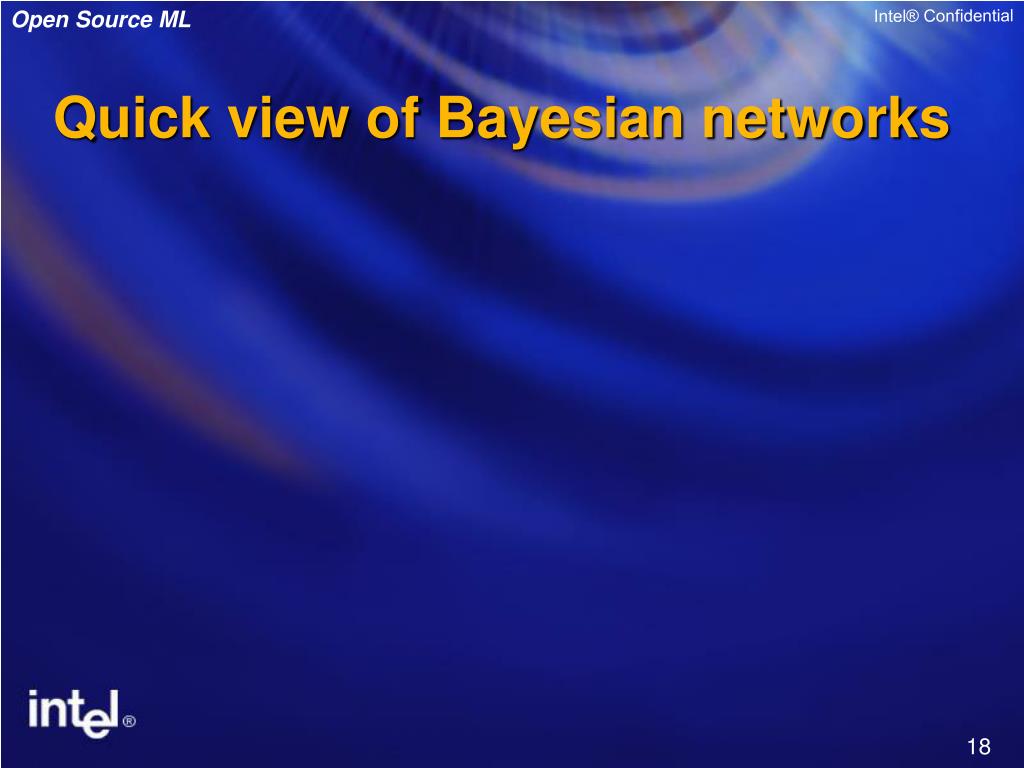

18. Quick view of Bayesian networks

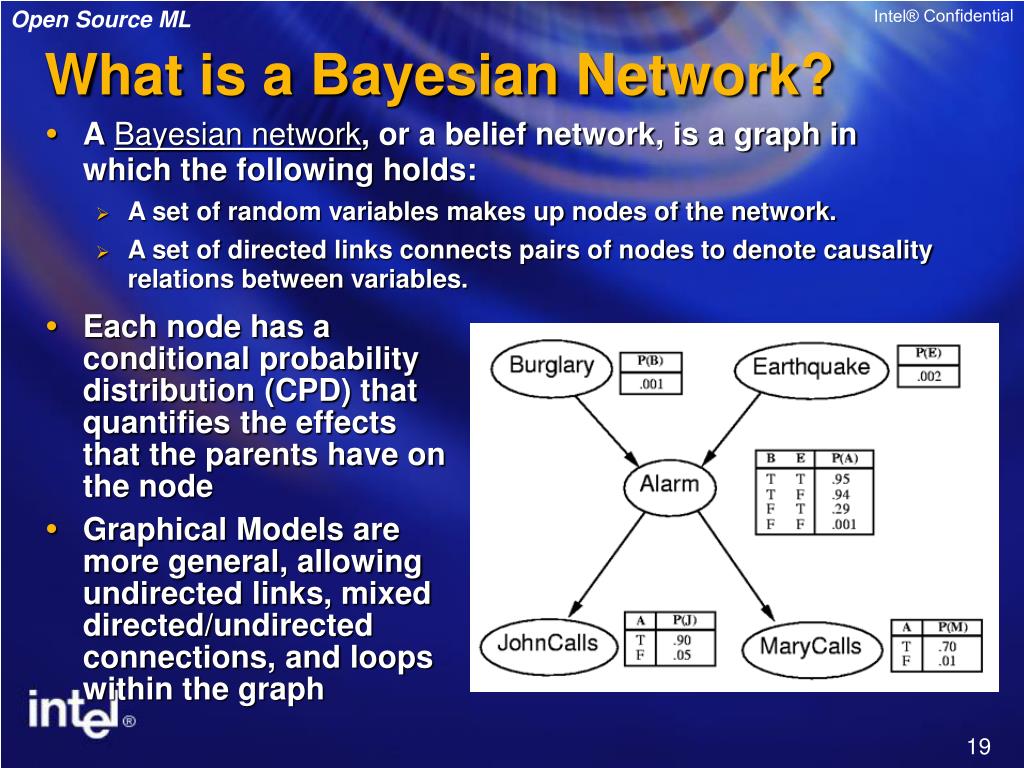

19. What is a Bayesian Network? • ABayesian network, or a belief network, is a graph in which the following holds: • A set of random variables makes up nodes of the network. • A set of directed links connects pairs of nodes to denote causality relations between variables. • Each node has a conditional probability distribution (CPD) that quantifies the effects that the parents have on the node • Graphical Models are more general, allowing undirected links, mixed directed/undirected connections, and loops within the graph

20. A B C Computational Advantages ofBayesian Networks • Bayesian Networks graphically express conditional independence of probability distributions. • Independencies can be exploited for large computational savings. EXAMPLE: Joint probability of 3 discrete variable (A,B,C) system with 5 possible values each: A P(A,B,C) = 5x5x5 table: C 125 parameters B But a graphical model factors the probabilities taking advantage of the independencies: A A A B C 55 parameters

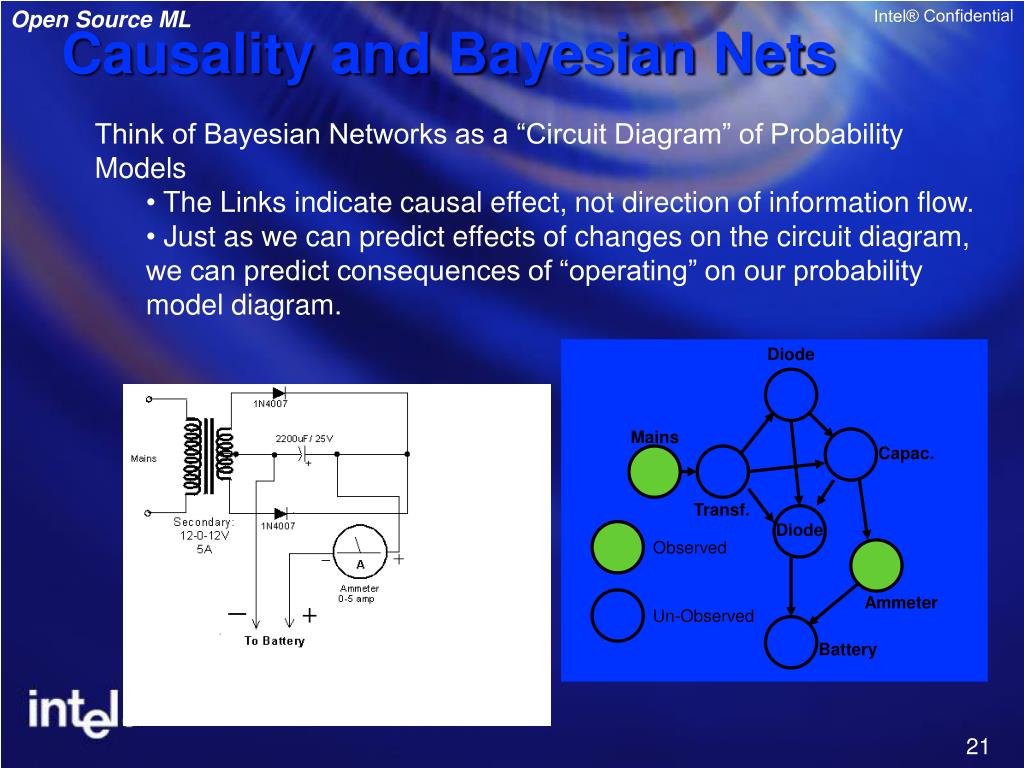

21. Causality and Bayesian Nets • Think of Bayesian Networks as a “Circuit Diagram” of Probability Models • The Links indicate causal effect, not direction of information flow. • Just as we can predict effects of changes on the circuit diagram, we can predict consequences of “operating” on our probability model diagram. Diode Mains Capac. Transf. Diode Observed Ammeter Un-Observed Battery

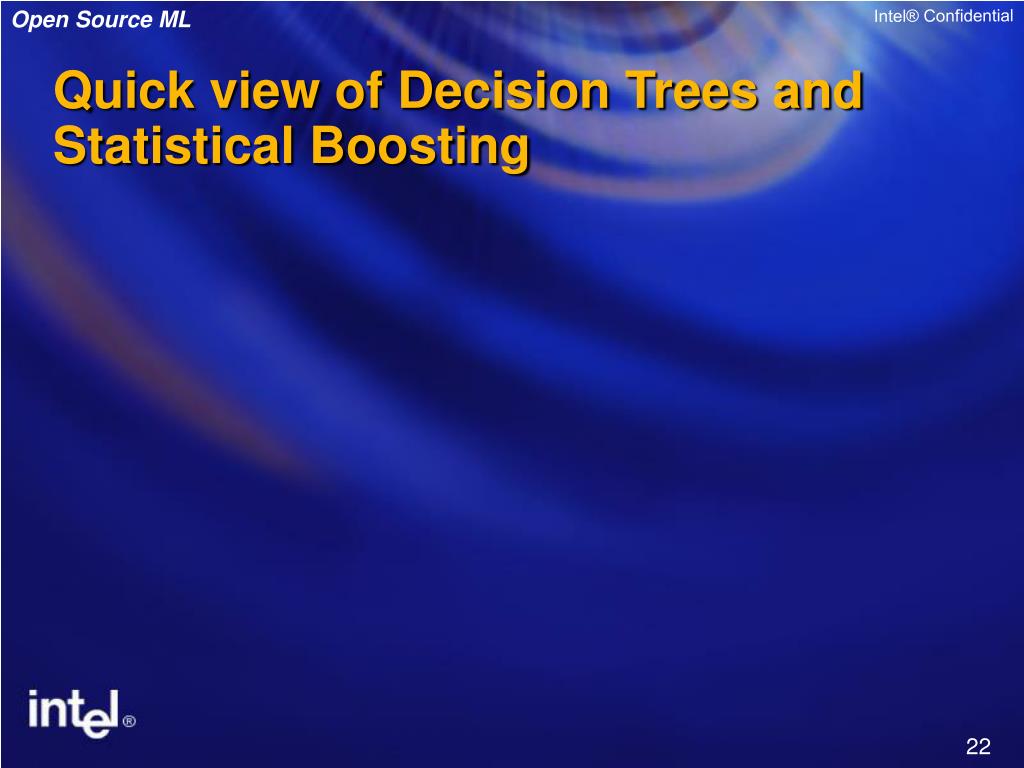

22. Quick view of Decision Trees and Statistical Boosting

23. AACACB CBABBC AACACB CBABBC CCB AAA CB ABBC C B Statistical Classification Cluster data to infer or predict properties • Example: Decision trees Find splits that most “purify” the labeled data Prune the tree to minimize complexity AACBAABBCBCC All the way down … AACACB CBABBC CCB AAA CB ABBC The split rules are used to classify Future data CC B C B A BBC BB C

24. Decision1 * W1 Decision2 * W2 DecisionN * WN Weighted Sum Decision AACBAABBCBCC AACBAABBCBCC AACBAABBCBCC AACBAABBCBCC AACBAABBCBCC AACBAABBCBCC AACBAABBCBCC AACBAABBCBCC AAABBB AAABBB AAABBB AAABBB AAABBB ACCCCB ACCCCB ACCCCB ACCCCB ACCCCB AAAA AAAA AAAA CBCCBBBC CBCCBBBC CBCCBBBC AACBAABBCBCC AACBAABBCBCC AACBAABBCBCC AACBAABBCBCC AACBAABBCBCC AACBAABBCBCC AACBAABBCBCC AACBAABBCBCC AACC AACC AACC AACC CCAABBBB CCAABBBB CCAABBBB CCAABBBB AAAABBBB AAAABBBB AAAABBBB AAAABBBB CCCC CCCC CCCC CCCC Statistical ClassificationBoosting Use a weak classifier such as a 1 level tree: Use the error weighted forest to vote on the classification of new data AACBAABBCBCC AACACB CBABBC Re-weight the error cases and classify again; Record weight factor “Wi” for “ith” case. AACBAABBCBCC AAAACB CCBBBC Repeat until you have a “forest”

25. Application areas and libraries

26. Actively working on Speech Lips+Speech AVSR Trace Compression Information Retrieval Genomics Vision Models Biometric ID Binary Trans Adaptation Compiler Optimization Run Time Optimization Supply Chain Datamining Natural Lang. Models of Manufacturing Cognitive Modeling Disposition Action Planning Game Play Computational Pharmacology Collaborative Filtering Info Filtering Text Recog. Gene Sequencing Robotics Mapping Process Control Audio Models Sensor Fusion Proteomics Metabolics Epidemiology Graphical Models/MRFs Bayesian Networks Fault Diagnosis Decision Theory, Influence Diagrams Adaptive Filters Relational Networks Ramping Applications of ML Key: Past work External activity Interface AI Data Analysis Biologic Computer Industrial TOOLS: Statistical Regression, ANOVA, … Trees, Boosting, Random forest Neural Nets SVM Stochastic Discrimination Genetic Algorithms Reinforcement Learning

27. Speech Information Retrieval Game Play Info Filtering Robotics Biometric ID Supply Chain Genomics Models of Manufacturing Disposition Junction Tree Factor Graph Structure Learning Gibbs Sampling Particle Filter Process Control Bayesian Network Engine Architecture Audio Models Decision & Utility theory Natural Lang. EM Reinforcement Dynamic BN MRFs Loopy Belief Variational Data Handling Cross Validation Plates Fault Diagnosis Theories & Algorithms Probabilistic Network Library Intel Universities Application Driven Data Mining “AI” Industrial Interface Trace Compression Lips+Speech AVSR Cognitive Modeling Gene Sequencing Vision Models Learned Control Epidemiology Workload Analysis Drive into Future Hardware Drive into hardware Modify Existing Architectures Create New Architectures Chipset cache Platform CPU Instructions

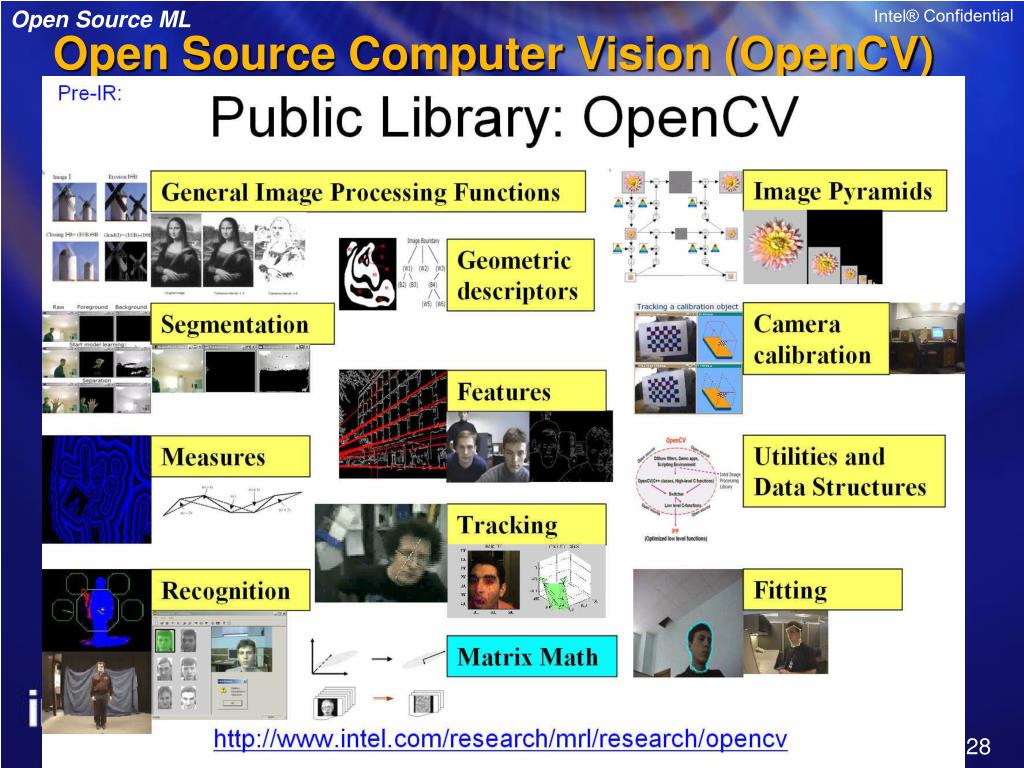

28. Open Source Computer Vision (OpenCV)

29. AACBAABBCBCC AACACB CBABBC CCB AAA CB ABBC CC B C B A BBC BB C Machine Learning Library (OpenMLL) CLASSIFICATION / REGRESSION CART Statistical Boosting MART Random Forests Stochastic Discrimination Logistic SVM K-NN CLUSTERING K-Means Spectral Clustering Agglomerative Clustering LDA, SVD, Fisher Discriminate TUNING/VALIDATION Cross validation Bootstrapping Sampling methods Alpha Q1’04, Beta Q4’04

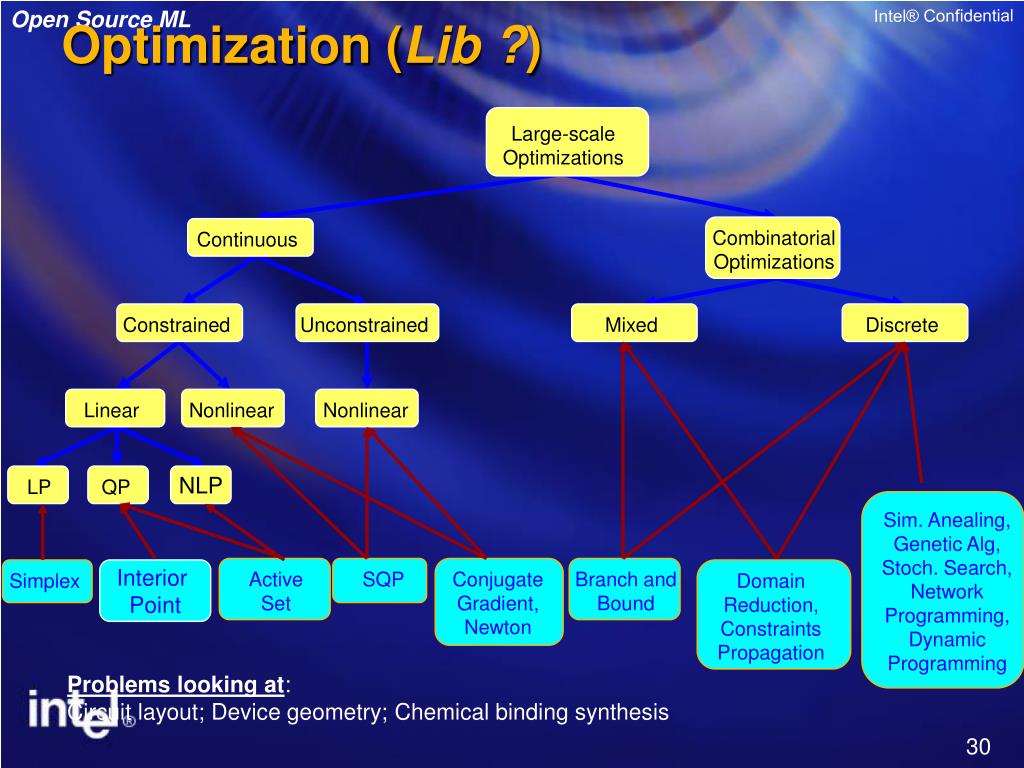

30. Optimization (Lib ?) Large-scale Optimizations Combinatorial Optimizations Continuous Constrained Unconstrained Mixed Discrete Linear Nonlinear Nonlinear NLP LP QP Sim. Anealing, Genetic Alg, Stoch. Search, Network Programming, Dynamic Programming Interior Point Active Set SQP Conjugate Gradient, Newton Branch and Bound Simplex Domain Reduction, Constraints Propagation Problems looking at: Circuit layout; Device geometry; Chemical binding synthesis
