Query XML Documents with XQuery

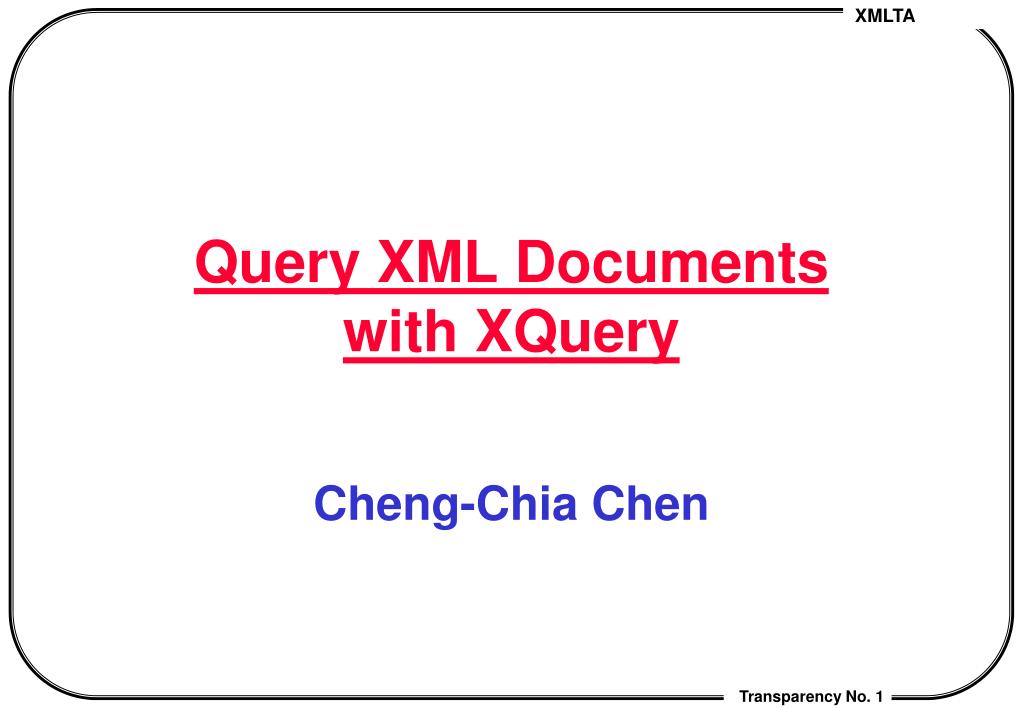

Query XML Documentswith XQuery Cheng-Chia Chen

Objectives • How XML generalizes relational databases • The XQuery language • How XML may be supported in databases

XQuery 1.0 • XML documents naturally generalize database relations • XQuery is the corresponding generalization of SQL

Queries on XML documents • XML documents generalize relational data: • A database is composed of many tables • A table (relation) is composed of tuples • A tuple (record; rows) is composed of attributes • An attribute (field; column) contains a primitve data (, which may serves as a key/key reference) .

From Relations to Trees

Only Some Trees are Relations • A relation is a tree • of height two with • an unbounded number of children (rows) all of which • have the same fixed number of child nodes (columns) • The database community has been looking for aricher data model than relations. Hierarchical, object-oriented, or multi-dimensional databases have emerged, but neither has reached consensus. • A DTD for RDB : • <!ELEMENT PeopleDataBase (PeopleTable, …) > • <!ELEMENT PeopleTable (PeopleRow*) > • <!ELEMENT PeopleRow (%Column;) > • <!ENTITY % Column “FirstName, LastName, Age “ > • <!ELEMENT FirstName (#PCDATA)> • <!ELEMENT LastName (#PCDATA)> • <!ELEMENT Age (#PCDATA)>

Trees Are Not Relations • Not all XML Document trees satisfy the previous characterization • Trees are ordered, while both rows and columns of tables may be permuted without changing the meaning of the data • Trees may have height > 2. • Trees is in general not homogeneous. • Elements of the same type may have different number and types of children. • This does not mean that we cannot store these documents in traditional data base but only means that a more complex encoding of xml documents into data base tables is required.

An examlpe student grade records <students> <student id="100026"> <name>Joe Average</name> <age>21</age> <major>Biology</major> <grades> <result course="Math 101" grade="C-"/> <result course="Biology 101" grade="C+"/> <result course="Statistics 101" grade="D"/> </grades> </student> <student id="100078"> <name>Jack Doe</name> <age>18</age> <major>Physics</major><major>XML Science</major> <grades> <result course="Math 101" grade="A"/> <result course="XML 101" grade="A-"/> <result course="Physics 101" grade="B+"/> <result course="XML 102" grade="A"/> </grades> </student></students>

A Corresponding Student Database key point of data base design: decompose general xml tree into flat data base tables

For Relational Data base, we have well-established theory and practice, but can we have the same achievement for XML ? • database XML • DDL(DataDefintionLang) XML Schema • DQL(DataQueryLang;SQL) XQuery • How should query languages like SQL be similarly generalized?

XQuery Design Requirements • Must have • at least one XML syntax and • at least one human-readable syntax • Must be declarative • Must be namespace aware • Must coordinate with XML Schema • Must support simple and complex datatypes • Must be able to combine information from multiple documents • Must be able to transform and create XML trees

The XQuery language • Developed by W3C • Recommendation. • Derived from several previous proposals: • XML-QL ,YATL ,Lorel,Quilt which all agree on the fundamental principles. XQuery relies on XPath and XML Schema datatypes. • There have been many commercial/non-commerical implementations released. • Exist : http://exist.sf.net • AltovaXML (free) • … • Two formats • XQuery : plaintext syntax • XQueryX : XML syntax.

Relationship to XPath • XQuery 1.0 is a strict superset of XPath 2.0 • Every XPath 2.0 expression is directly an XQuery 1.0 expression (a query) • The extra expressive power is the ability to • join information from different sources and • generate new XML fragments

Relationship to XSLT • XQuery and XSLT are • both domain-specific languages (DSL) for combining and transforming XML data from multiple sources • They are vastly different indesign, partly for historical reasons • XQuery is designed from scratch, • XSLT is an intellectual descendant of CSS (cascaded StyleSheet) – about how to render a document. • Technically, they may emulate each other. • XQuery Grammar

XQuery concepts • A query in XQuery is an expression that: • reads a sequence of XML nodes or atomic values • returns a sequence of XML nodes or atomic values • The principal forms of XQuery expressions are: • path expressions • element constructors • FLWOR ("flower") expressions • list expressions (for,let) • conditional expressions (where ) • order by • quantified expressions (some/all ) • datatype expressions ( xs:int(“123”) )

XQuery Modulesand Prologs • An XQuery is a main module: • Module ::= VersionDecl? ( MainModule | LibraryModule) • VersionDecl: • xquery version "1.0" encoding "UTF-8" ; • (: this is versiondecl; encoding is optional :) • a module may import other library modules. • MainModule ::= Prolog QueryBoby • LibraryModule ::= ModuleDecl Prolog • Like XPath expressions, XQuery expressions are evaluated relatively to a context • This is explicitly provided by a prolog • Settings define various parameters for the XQuery processor language, such as: declare bounndary-space (preserve | strip );

More From the Prolog Prolog ::= (: Prolog consists of two parts. :) ( ( DefaultNamespaceDecl// declare default function or element/type NSs | Setter// settings for XQuery processing | NamespaceDecl// declare prefix-URI bindings | Import// import schema or other modules )Separator// each ends with ‘;’ )* ( ( (:Second part contains variable decl, function decl and options :) VarDecl// global variable declarations | FunctionDecl// function declarations | OptionDecl // implementation-defined options declaration ) Separator// each ends with ';' )* optionDecl ::= declare option pfx:optname “aLiteral”

Namespace Declarations Format: // declare prefix-namexpace binding declare namespace prefix = ”aURI” ; Ex: declare namespace bk = ”http://www.book.org/” ; • Predeclared namespaces prefixes: • (: for xml:lang, xml:space, etc :) • declare namespace xml = "http://www.w3.org/XML/1998/namespace"; • (: for xml schema and schema instance :) • xs = "http://www.w3.org/2001/XMLSchema"; • xsi = "http://www.w3.org/2001/XMLSchema-instance"; • (: for xpath fucntion and data types ; this is the default function namespace:) • fn = "http://www.w3.org/2005/xpath-functions"; • (: for xquery fucntions :) • local="http://www.w3.org/2005/xquery-local-functions"; • only xml prefix cannot be redefined.

Setter [7] Setter ::= BoundarySpaceDecl | // preserve space b/t elements • declare boundary-space (preserve | strip); • DefaultCollationDecl | // default collation for ordering • declare default collation "aURILiteral" • BaseURIDecl | • declare base-uri "http://example.org"; • ConstructionDecl| // preserve type of copied constructs? • declare construction (strip | preserve); • OrderingModeDecl | // ordered or not for return values • declare ordering (ordered | unordered) ; • EmptyOrderDecl | //empty or NaN as least/greatest key • declare default order empty (greatest | least); • CopyNamespacesDecl // copy prefix-NS bindings • see (here. and (3.7.1.3.1.e.2.D) for details) • cf: constructed node ;copied nodes; original elements • ex: <cn>{.//book}</cn>

Default namespace declarations • Defautl namespace • Defautl element/type namespace • Default function namespace Ex: • (: can be disabled by ”” • for element (and type as well) :) • declare default element namespace ”http://a.b.c/d” ; • declare default functionnamespace “aURI”; • (: default is "http://www.w3.org/2005/xpath-functions" if not specified • or disabled by "" • So f1(.) has the same effect as fn:f1(.) :) • Unprefixed attribute names and variable names are in no namespace.

Import declarations • Import declarations • // import element/type/attribute declared in a schema • // may also declare prefix/default namespace for the target namespace • // default namespace uri can be "" for importing noNamespaceSchema • import schema • import (library) module Ex: • import schema "targetNamespaceURI" (at "schema_loc_uri1", "schema_loc_uri2" )? ; • import schema namespace prefix = "targetNamespaceURI" (at "loc1" )?; • import schema default element namespace "targetNamespaceURI" (at "loc_uri" )? ; • Ex: • // import a schema and use it as the default element/type namespace • import schema default element namespace "http://example.org/abc"; • // import a schema which has no target namespace and use it as default namespace. • import schema default element namespace "" at "http://example.org/xyz.xsd";

Module imports • Import declarations • // import function/global variables declared in an XQ library module • import (library) module// may also declare its namespace prefix • Notes: • Only variables and functions are imported; Hence in scope schema definition and statically known namespaces are not imported. • Module imports are not transitive: A imports B and B imports C do not imply A imports C. • Ex: • import module "http://book.org/ "; • // can give hints about module locations • import module "http://book.org/” (at "http://www.book.org/book.xq", "book2.xq” )? ; • // can also bind a prefix for imported module namespace uri. • import module namespace book="http://book.org/” ( at "book2.xq” )? ; • import module namespace math = "http://example.org/math-functions";

Variable and function declarations • VarDecl ::= • declare variable $QNameTypeDeclaration? ((":=" ExprSingle) | "external") • declare variable $math:pi xs:decimalopt := 3.14159 ; • declare variable $math:e xs:double := 2.71E0 • declare variable $ext:var1 external ; • FunctionDecl ::= • declare function QName ( ParamList? ) (as SequenceType)? (EnclosedExpr | external)

Ex : declare function local:summary // name ( $emps as element(employee)* ) // parameters as element(dept) * // return type { //body for $d in fn:distinct-values($emps/deptno) //a FLWOR expression let $e := $emps[deptno = $d] return <dept> <deptno>{$d}</deptno> <headcount> {fn:count($e)} </headcount> <payroll> {fn:sum($e/salary)} </payroll> </dept> }; Direct element construction!

Example • Suppose we have the file at loc "employee.xml" <employees><employee> <depno>dept2</depno><name>Wang</name><salary>100000</salary></employee> <employee> <depno>dept1</depno><name>Lee</name><salary>50000</salary></employee> <employee> <depno>dept3</depno><name>Chen</name><salary>100000</salary></employee> <employee> <depno>dept1</depno><name>Cheng</name><salary>150000</salary></employee> <employees> • The following query sho how to use the function summary xquery version "1.0" encoding "UTF-8" ; (: Definition of fun summary inserted here or import it here :) let $emps := doc("employees.xml")/employees/employee return <summary>{summary($emps)}</summary> • Result: <summary> <dept><deptno>dept2</deptno><headCount>1</headcount><payroll>100000</payroll></dept> <dept><deptno>dept1</deptno><headCount>2</headcount><payroll>200000</payroll></dept> <dept><deptno>dept3</deptno><headCount>1</headcount><payroll>100000</payroll></dept> </summary>

Xquery Conecpts • QueryBody = Expr • [31] Expr ::= ExprSingle ("," ExprSingle)* • [32] ExprSingle ::= FLWORExpr | QuantifiedExprxpath20 | TypeswitchExpr| IfExprxpath20 | OrExprxpath20 • Expressions are evaluated relative to a expression context: • namespaces • variables • functions • date and time • context item,context position, context size • …

XPath Expressions • XPath expressions are also legal XQuery expressions • same data model : sequence of items • items : nodes or atomic data • The XQuery prolog gives the required static context • namespace, function library, variable bindings • The initial context node, position, and size are undefined • Since XQuery is intended to operate on multple docuemnts. • initial context info can be obtained by starting from fn:doc()

Datatype Expressions • Same atomic values as XPath 2.0 • Also lots of primitive simple values: xs:string("XML is fun") xs:boolean("true") xs:decimal("3.1415") xs:float("6.02214199E23") xs:dateTime("1999-05-31T13:20:00-05:00") xs:time("13:20:00-05:00") xs:date("1999-05-31") xs:gYearMonth("1999-05") xs:gYear("1999") xs:hexBinary("48656c6c6f0a") xs:base64Binary("SGVsbG8K") xs:anyURI("http://www.brics.dk/ixwt/") xs:QName("rcp:recipe") • Functions for theses types can be found in fn:XXX().

XML Expressions • XQuery expressions may produce new XML nodes, which do not exist in input documents. • Expressions may denote • element, • character data, • comment, and • processing instruction nodes • Each node is created with a unique node identity • Constructors may be either • direct (called literal result element in XSLT) or • computed • Both may be nested with each other.

Direct Constructors • Uses the standard XML syntax • Ex: • The expression <foo><bar/>baz</foo> • evaluates to the given XML fragment • Note that the expression (containing two direct elements) <foo/> is <foo/> • evaluates to false • why ? ( unique identity of each node )

Namespaces in Constructors (1/3) • The following four constructions have the same effect. declare default element namespace "http://businesscard.org"; <card> <name>John Doe</name> <title>CEO, Widget Inc.</title> <email>john.doe@widget.com</email> <phone>(202) 555-1414</phone> <logo uri="widget.gif"/> </card>

Namespaces in Constructors (2/3) declare namespace b = "http://businesscard.org"; <b:card> <b:name>John Doe</b:name> <b:title>CEO, Widget Inc.</b:title> <b:email>john.doe@widget.com</b:email> <b:phone>(202) 555-1414</b:phone> <b:logo uri="widget.gif"/> </b:card>

Namespaces in Constructors (3/3) <card xmlns="http://businesscard.org"> <name>John Doe</name> <title>CEO, Widget Inc.</title> <email>john.doe@widget.com</email> <phone>(202) 555-1414</phone> <logo uri="widget.gif"/> </card> <b:card xmlns:b="http://businesscard.org"> <b:name>John Doe</b:name> <b:title>CEO, Widget Inc.</b:title> <b:email>john.doe@widget.com</b:email> <b:phone>(202) 555-1414</b:phone> <b:logo uri="widget.gif"/> </b:card>

Enclosed Expressions • XQ also allow us to embed some XQ expressions into direct elements : • Such expression is called attribuate value template in XSLT. • but can be appled to atribute value as well as element contents. <foo>1 2 3 4 5</foo> <foo>{1, 2, 3, 4, 5}</foo> <foo>{1, "2", 3, 4, 5}</foo> <foo>{1 to 5}</foo> <foo>1 {1+1}{" "}{"3"}{" "}{4 to 5}</foo> <foo bar="1 2 3 4 5"/> <foo bar="{1, 2, 3, 4, 5}"/> <foo bar="1 {2 to 4} 5"/> • ‘{‘ and '}' now have special meaning and must be escaped using { ( or {{ ) and } (or }} ).

Direct Constructors v.s Computed constructors • Direct construction in XML syntax : <card xmlns="http://businesscard.org"> <name>John Doe</name> <title>CEO, Widget Inc.</title> <email>john.doe@widget.com</email> <phone>(202) 555-1414</phone> <logo uri="widget.gif"/> </card> • Non-XML alternative syntax (Computed Constructors) • syntax • declare default element namespace http://businesscard.org" ; • element card { • <name>John Doe</name>, (: may use direct contructor :) • element title { text { "CEO, Widget Inc." } } , • element email { text { "john.doe@widget.com" } }, • element phone { text { "(202) 555-1414" } }, • element logo { • attributeuri { "widget.gif" } • }}

Computed QNames • Names of elements/attributes may need to be computed! • syntax nodeType (QName| {NameExpr})? { ContentExpr } • nodeTypes : • element,attribute,processing-instruction – need a name • document, comment, text -- no name declare default element namespace "http://businesscard.org" element { lower-case("CARD") } { element { "name" } { text { "John Doe" } }, element { "title" } { text { "CEO, Widget Inc." } }, element { "email" } { text { "john.doe@widget.com" } }, element { "phone" } { text { "(202) 555-1414" } }, element { "logo" } { attribute { "uri" } { "widget.gif" }, "aLogo" } }

Biliingual Business Cards xquery version "1.0" encoding "big5" ; declare default element namespace "uri:businesscard.org"; declare variable $lang := "zh_TW" ; element { if ($lang="zh_TW") then "名片" else "card" } { element { if ($lang="zh_TW") then "姓名" else "name" }{ "John Doe" }, element { if ($lang="zh_TW") then "頭銜" else "title" }{ "CEO, Widget Inc." }, element { "email" }{ "john.doe@widget.inc" }, element { if ($lang="zh_TW") then "電話" else "phone" } {"(202) 456-1414" }, element logo { attribute { "uri" } { "widget.gif" }} }

FLWOR Expressions • Used for general queries: • Find the names of all students which have more than one major and order them by student id. <doubles> { for $s in fn:doc("students.xml")//student let $m := $s/major where fn:count($m) ge 2 orderby $s/@id return <double> { $s/name/text() } </double> } </doubles>

The Difference Between For and Let (1/4) for $x in (1, 2, 3, 4) let $y := ("a", "b", "c") return ($x, $y) 1, a, b, c, 2, a, b, c, 3, a, b, c, 4, a, b, c

The Difference Between For and Let (2/4) let $x in (1, 2, 3, 4) for $y := ("a", "b", "c") return ($x, $y) 1, 2, 3, 4, a, 1, 2, 3, 4, b, 1, 2, 3, 4, c

The Difference Between For and Let (3/4) for $x in (1, 2, 3, 4) for $y in ("a", "b", "c") return ($x, $y) 1, a, 1, b, 1, c, 2, a, 2, b, 2, c, 3, a, 3, b, 3, c, 4, a, 4, b, 4, c

The Difference Between For and Let (4/4) let $x := (1, 2, 3, 4) let $y := ("a", "b", "c") return ($x, $y) 1, 2, 3, 4, a, b, c

Computing Joins • Find distinct namesof recipses that make use of at least one stuff in a refrigerator? declare namespace rcp = "http://www.brics.dk/ixwt/recipes"; fn:distinct-values( for $r in fn:doc("recipes.xml")//rcp:recipe, $i in $r//rcp:ingredient/@name, $s in fn:doc("frige.xml")//stuff[text()=$i] return $r/rcp:title/text() ) <fridge> <stuff>eggs</stuff> <stuff>olive oil</stuff> <stuff>ketchup</stuff> <stuff>unrecognizable moldy thing</stuff> </fridge>

Computing Joins • Find distinct namesof recipses that make use of at least one stuff in a refrigerator? • more efficient version: declare namespace rcp = "http://www.brics.dk/ixwt/recipes"; for $r in fn:doc("recipes.xml")//rcp:recipe let $names := $r//rcp:ingredient/@name let $stuffs := fn:doc("fridge.xml")//stuff/text() (: may be put at 2nd line:) where $names = $s (: general comparison :) return $r/rcp:title/text()

Inverting a Relation • From Recipe  ingredients to ingredients  recipes declare namespace rcp = "http://www.brics.dk/ixwt/recipes"; <ingredients> { for $i in distinct-values( (: for each ingredient i :) fn:doc("recipes.xml")//rcp:ingredient/@name (: find all ingredients :) ) return <ingredient name="{$i}"> { for $r in fn:doc("recipes.xml")//rcp:recipe (: for each receipe :) where $r//rcp:ingredient[@name=$i] (: which uses ingrediwent i :) return <title>$r/rcp:title/text()</title> } </ingredient> } </ingredients>

Sorting the Results declare namespace rcp = "http://www.brics.dk/ixwt/recipes"; <ingredients> { for $i in distinct-values( fn:doc("recipes.xml")//rcp:ingredient/@name ) order by $i return <ingredient name="{$i}"> { for $r in fn:doc("recipes.xml")//rcp:recipe where $r//rcp:ingredient[@name=$i] order by $r/rcp:title/text() return <title>$r/rcp:title/text()</title> } </ingredient> } </ingredients>

A More Complicated Sorting for $s in document("students.xml")//student order by fn:count($s/results/result[fn:contains(@grade,"A")]) descending, fn:count($s/major) descending, xs:integer($s/age/text()) ascending return $s/name/text()

Using Functions declare function local:grade($g as xs:string ) { if ($g="A") then 4.0 else if ($g="A-") then 3.7 else if ($g="B+") then 3.3 else if ($g="B") then 3.0 else if ($g="B-") then 2.7 else if ($g="C+") then 2.3 else if ($g="C") then 2.0 else if ($g="C-") then 1.7 else if ($g="D+") then 1.3 else if ($g="D") then 1.0 else if ($g="D-") then 0.7 else 0 }; declare function local:gpa($s as element(student) ) { fn:avg( for $g in $s/results/result/@grade return local:grade($g) ) }; <gpas> { for $s in fn:doc("students.xml")//student return <gpa id="{ $s/@id }" gpa="{local:gpa($s) }"/> } </gpas>

A Height Function • Find the height of an node tree. • can use recursion ! declare function local:height($x as node() ) { if (fn:empty($x/*)) then 0 (: an element without child element has height 0:) else fn:max(for $y in $x/* return local:height($y) )+1 } ;

A Textual Outline • intended textual outline of a recipe • unusual in that it generate plain text instead of xml output. Cailles en Sarcophages //recipe title pastry // ingredient chilled unsalted butter // sub ingredient flour salt ice water filling baked chicken marinated chicken small chickens, cut up Herbes de Provence dry white wine orange juice minced garlic truffle oil ...
