Overview of Traditional and Berkeley Fast File Systems in UNIX and Linux Environments

This document provides an in-depth exploration of file system organization within traditional UNIX and Berkeley Fast File System paradigms, starting from the foundational components like boot blocks, super blocks, and inodes. It discusses the fragmentation issues of traditional UNIX file systems, advancements with Berkeley's restructuring using cylinder groups, and introduces crucial features like the quota system, symbolic links, and file truncation in Linux. Additionally, the Virtual File System (VFS) concept is outlined, emphasizing its clean design and systematic object-oriented approach for integrating various file systems.

brenda-keith
Télécharger la présentation

Overview of Traditional and Berkeley Fast File Systems in UNIX and Linux Environments

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

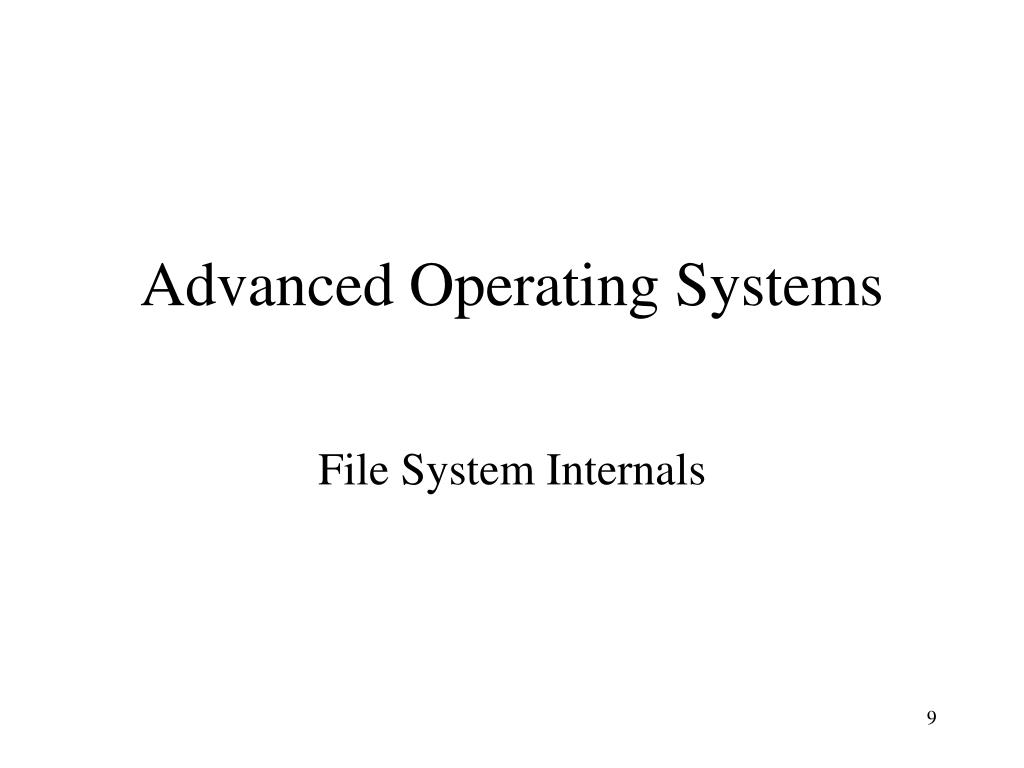

  1. Advanced Operating Systems File System Internals

  2. UNIX File System Organisation • The Traditional UNIX organisation from Ed 7 onwards has been • Boot Block, Super Block, Inodes, Data

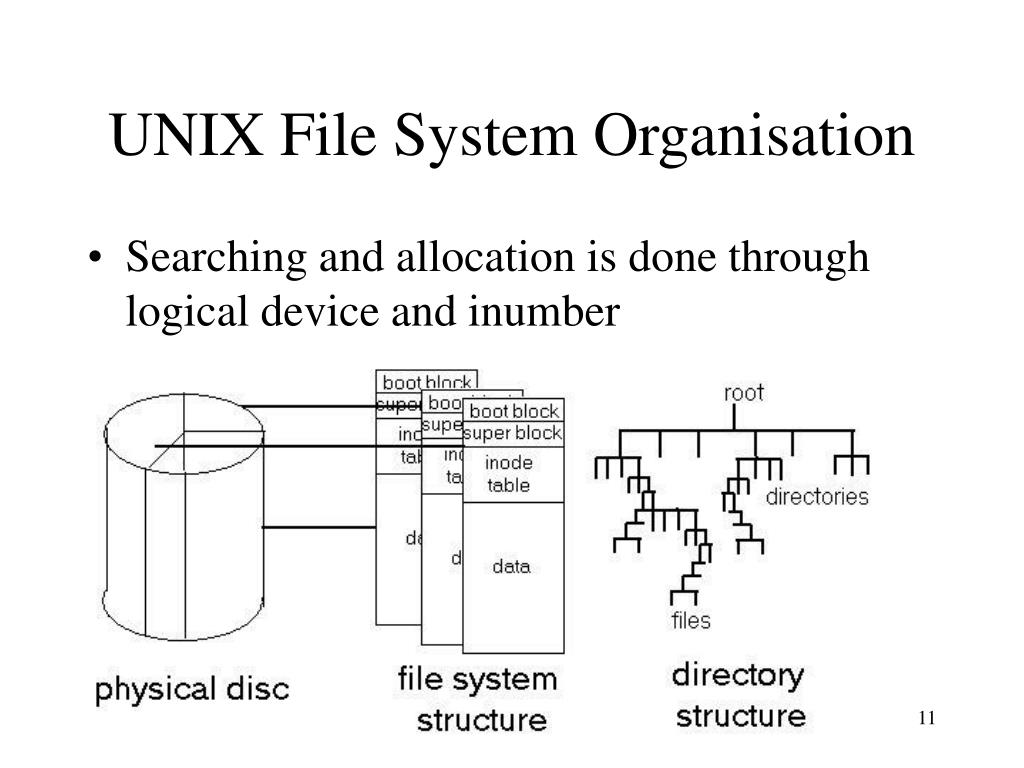

  3. UNIX File System Organisation • Searching and allocation is done through logical device and inumber

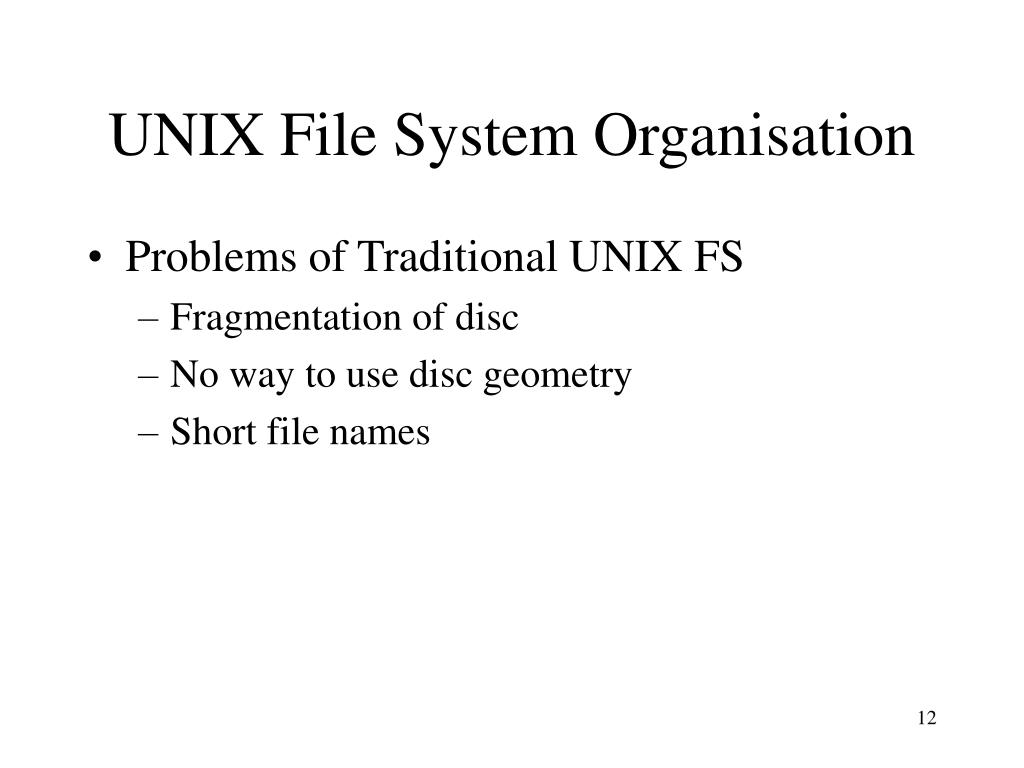

  4. UNIX File System Organisation • Problems of Traditional UNIX FS • Fragmentation of disc • No way to use disc geometry • Short file names

  5. Berkeley Fast File System • Restructured File System organisation using cylinder groups • 1 or more cylinders per group • Identical superblocks in cylinder group • Superblocks offset for each in cylinder group

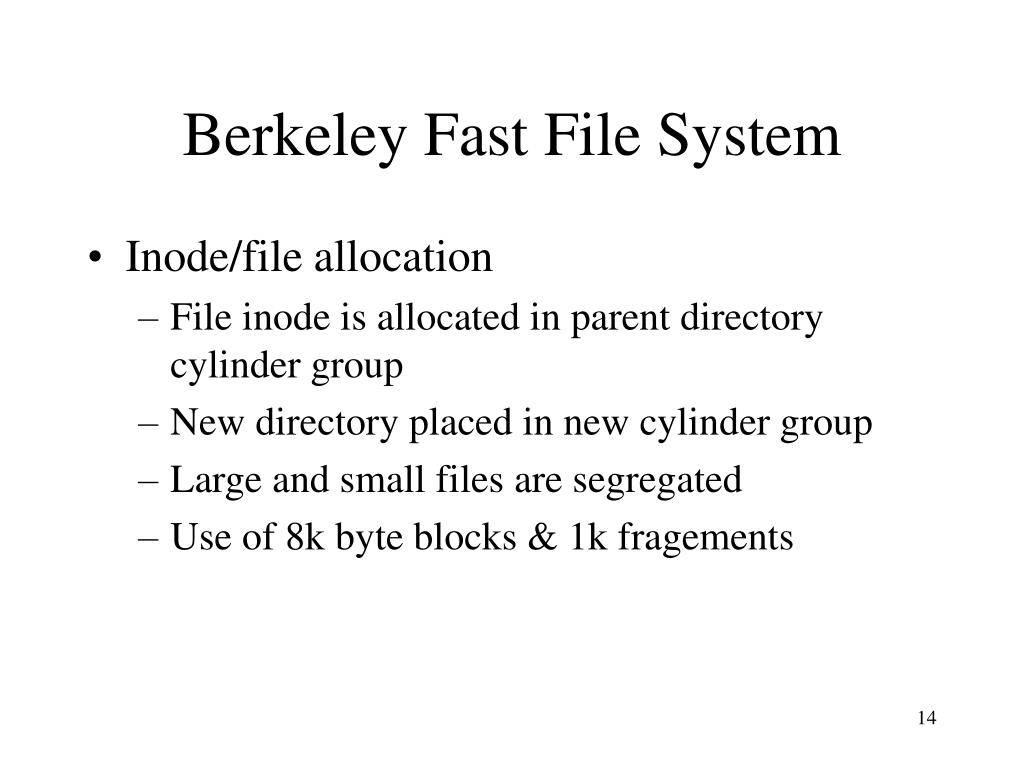

  6. Berkeley Fast File System • Inode/file allocation • File inode is allocated in parent directory cylinder group • New directory placed in new cylinder group • Large and small files are segregated • Use of 8k byte blocks & 1k fragements

  7. Berkeley Fast File System • Filename size changes • 255 character file names • Changed directory organisation • Quota system introduced • Symbolic links introduced • File truncation introduced

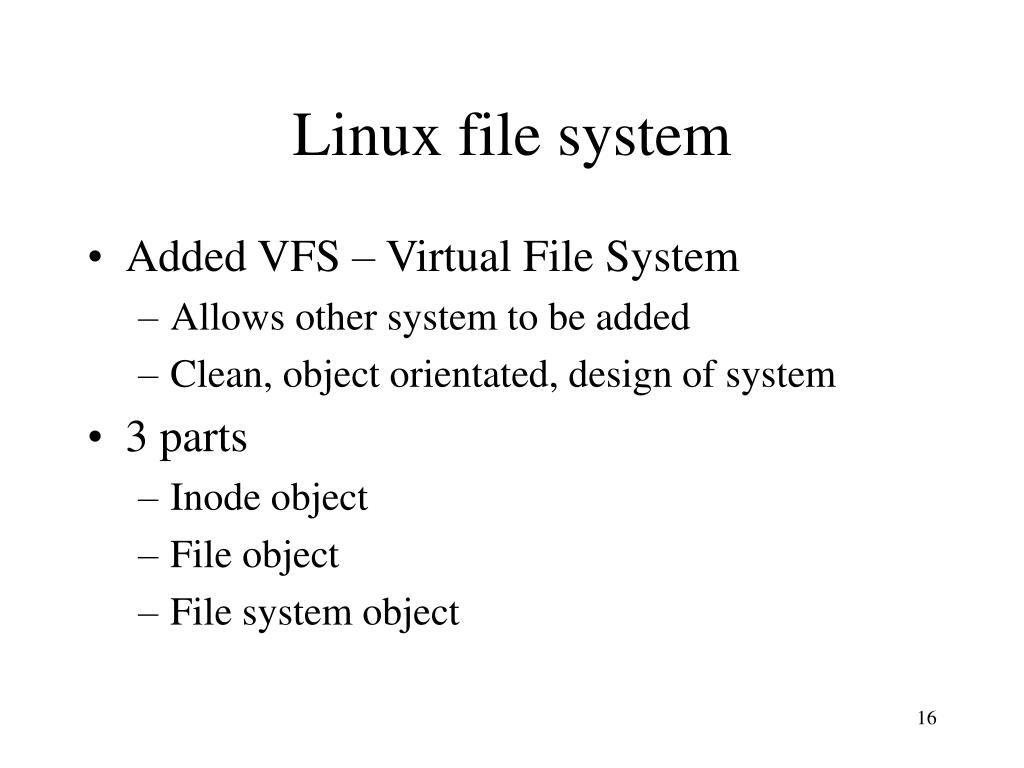

  8. Linux file system • Added VFS – Virtual File System • Allows other system to be added • Clean, object orientated, design of system • 3 parts • Inode object • File object • File system object

  9. Virtual File System

  10. Virtual File System • VFS Objects define an action for each file system • Each object has a pointer into a table of functions for each file system implementation • File system object is the hierarchy • Files found through fs-inode paring
