  1. Hybrid Intelligent Systems for Detecting Network Anomalies Lane Thames ECE 8833 Intelligent Systems

  2. Outline • Introduce Preliminary Information about computer attacks and computer networking • Present the Implementation details and test results • Discuss my future work of incorporating intelligent systems into my network security research

  3. Project Goals • Develop a hybrid system that uses Bayesian Learning in conjunction with the Self-Organizing Map • Analyze the performance of the various systems: Host-Network based features, Network only based features, Host-Network-SOM based features, and Network-SOM based features

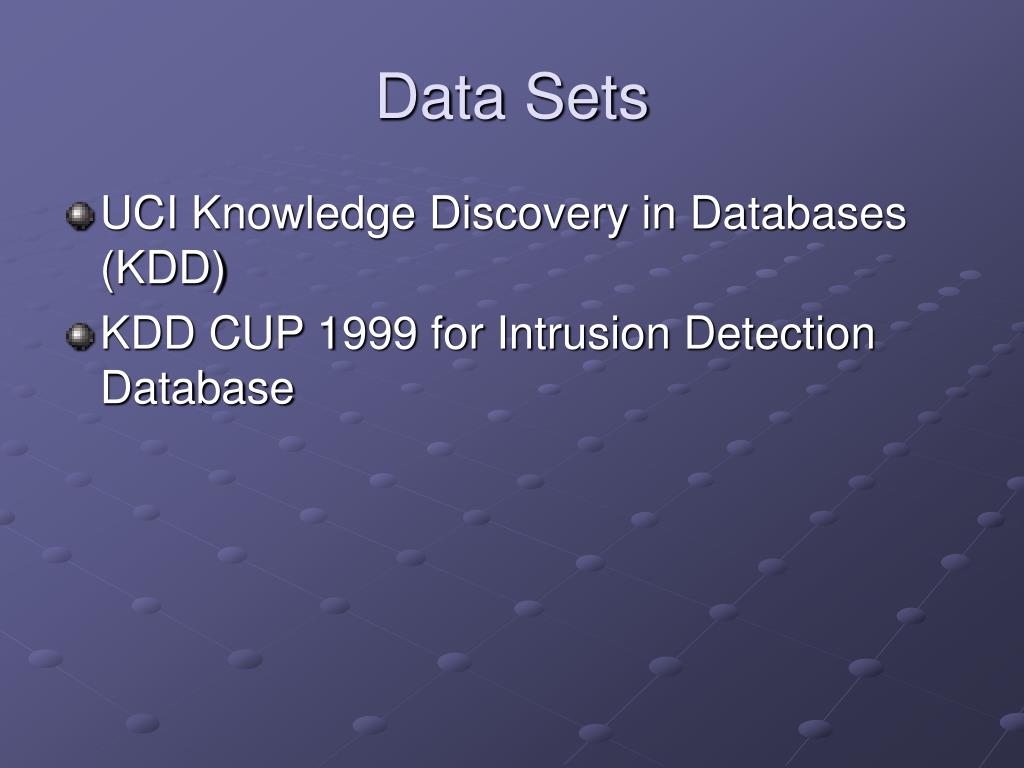

  4. Data Sets • UCI Knowledge Discovery in Databases (KDD) • KDD CUP 1999 for Intrusion Detection Database

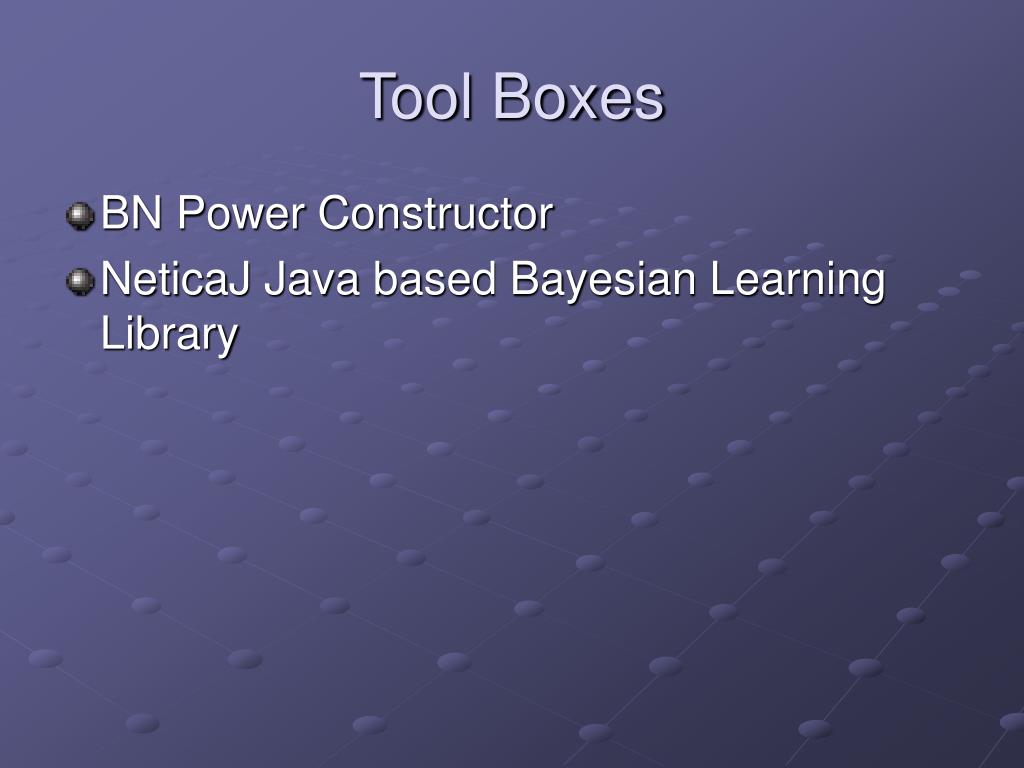

  5. Tool Boxes • BN Power Constructor • NeticaJ Java based Bayesian Learning Library

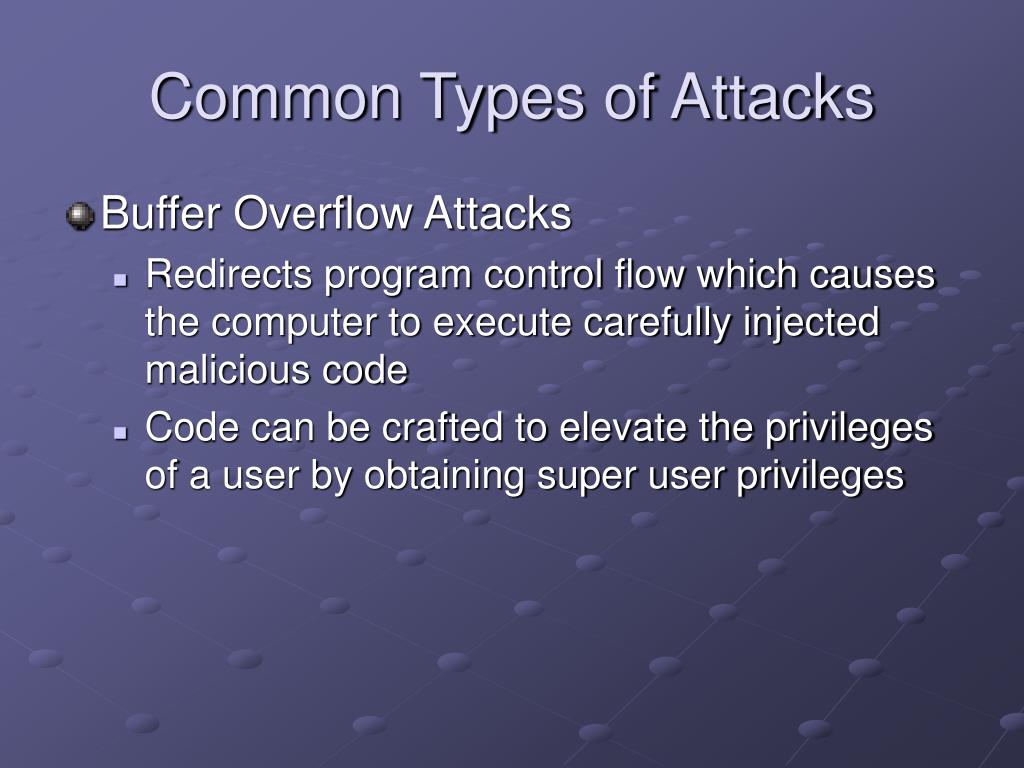

  6. Common Types of Attacks • Buffer Overflow Attacks • Redirects program control flow which causes the computer to execute carefully injected malicious code • Code can be crafted to elevate the privileges of a user by obtaining super user privileges

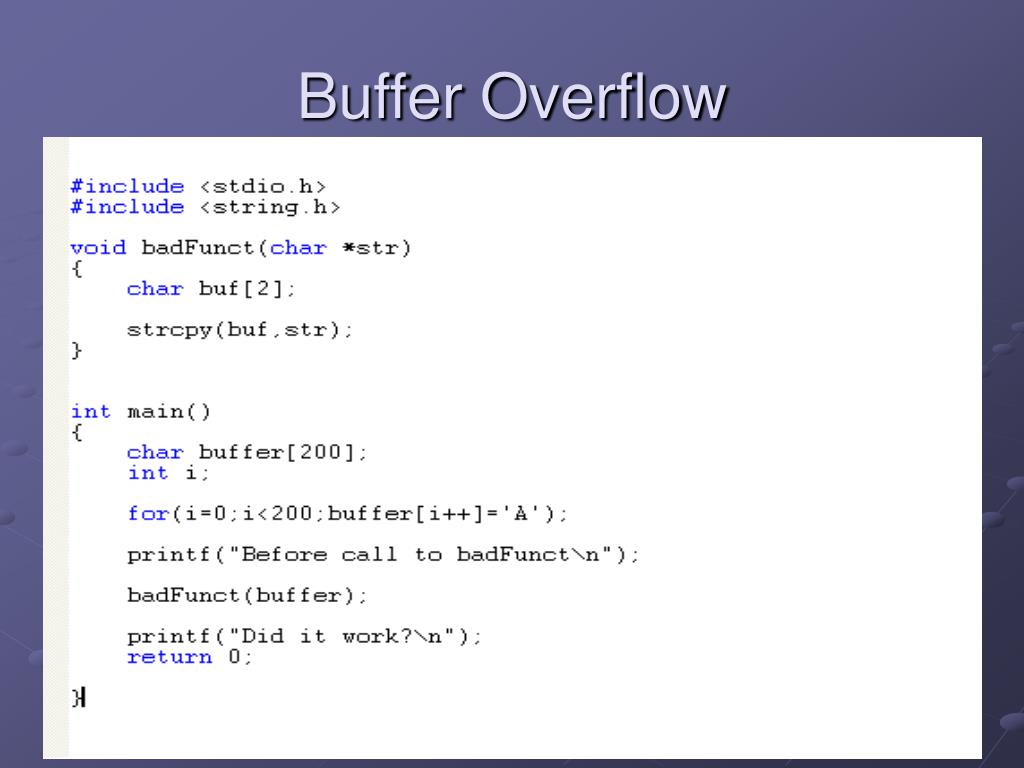

  7. Buffer Overflow

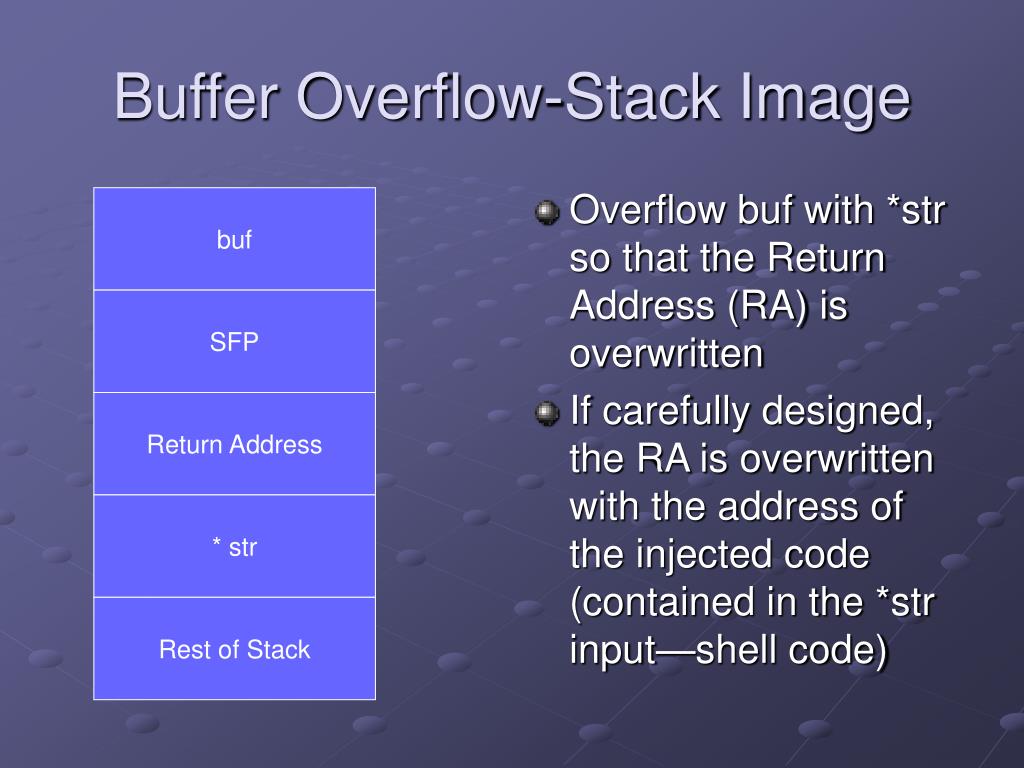

  8. Buffer Overflow-Stack Image • Overflow buf with *str so that the Return Address (RA) is overwritten • If carefully designed, the RA is overwritten with the address of the injected code (contained in the *str input—shell code) buf SFP Return Address * str Rest of Stack

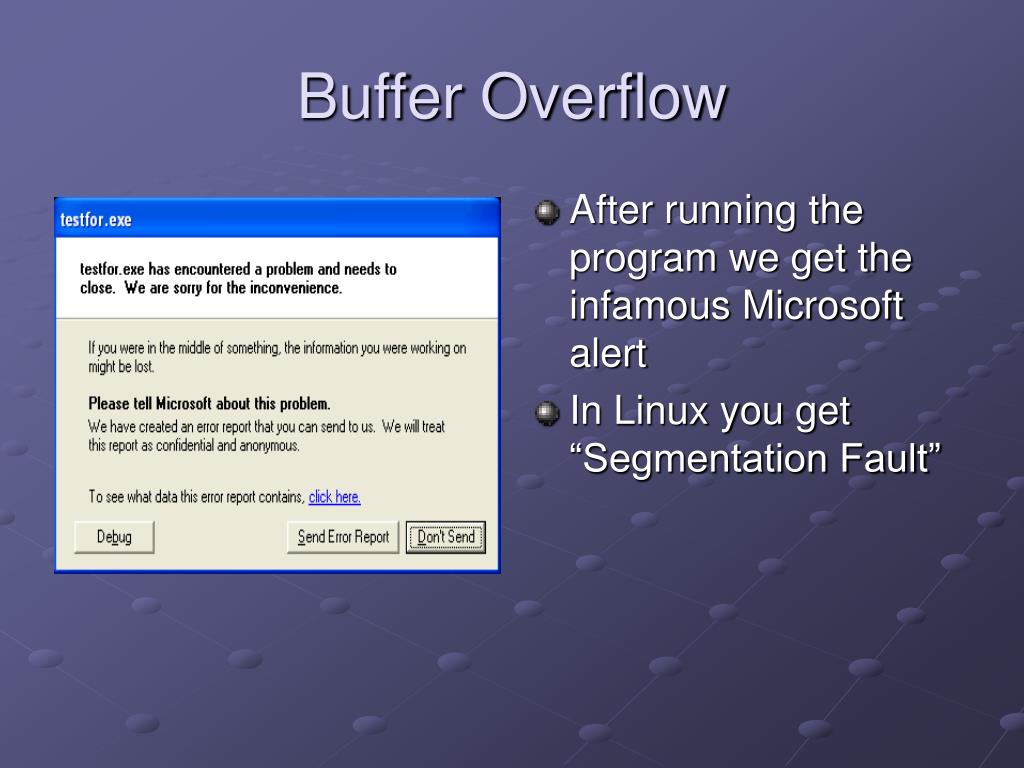

  9. Buffer Overflow • After running the program we get the infamous Microsoft alert • In Linux you get “Segmentation Fault”

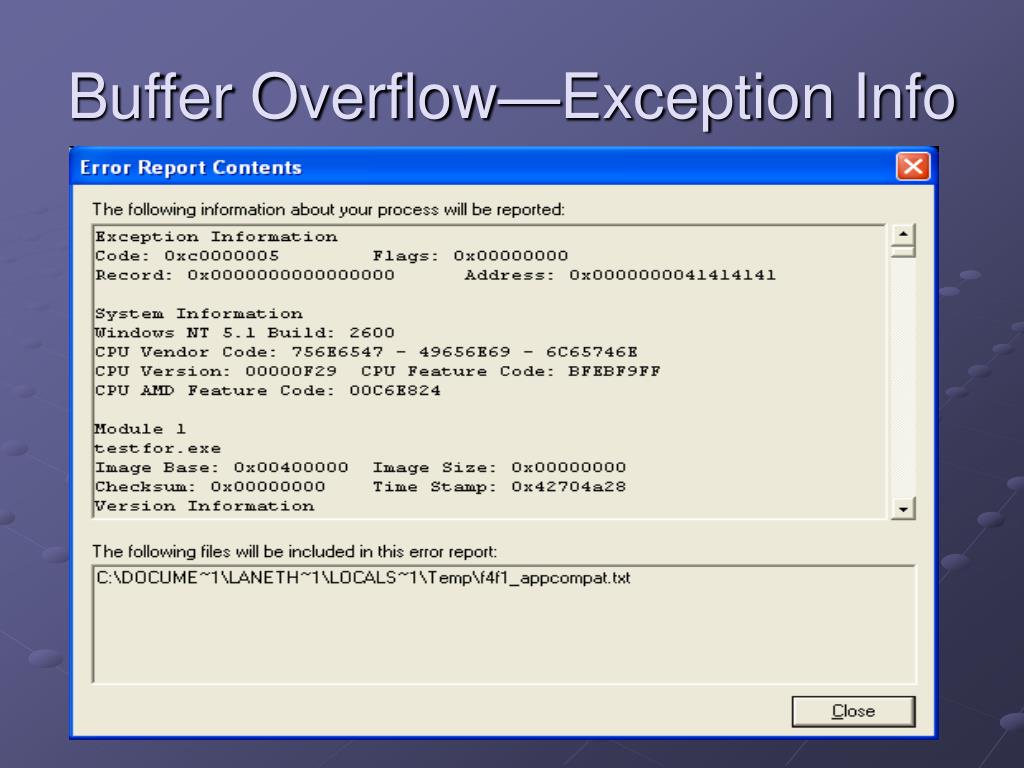

  10. Buffer Overflow—Exception Info

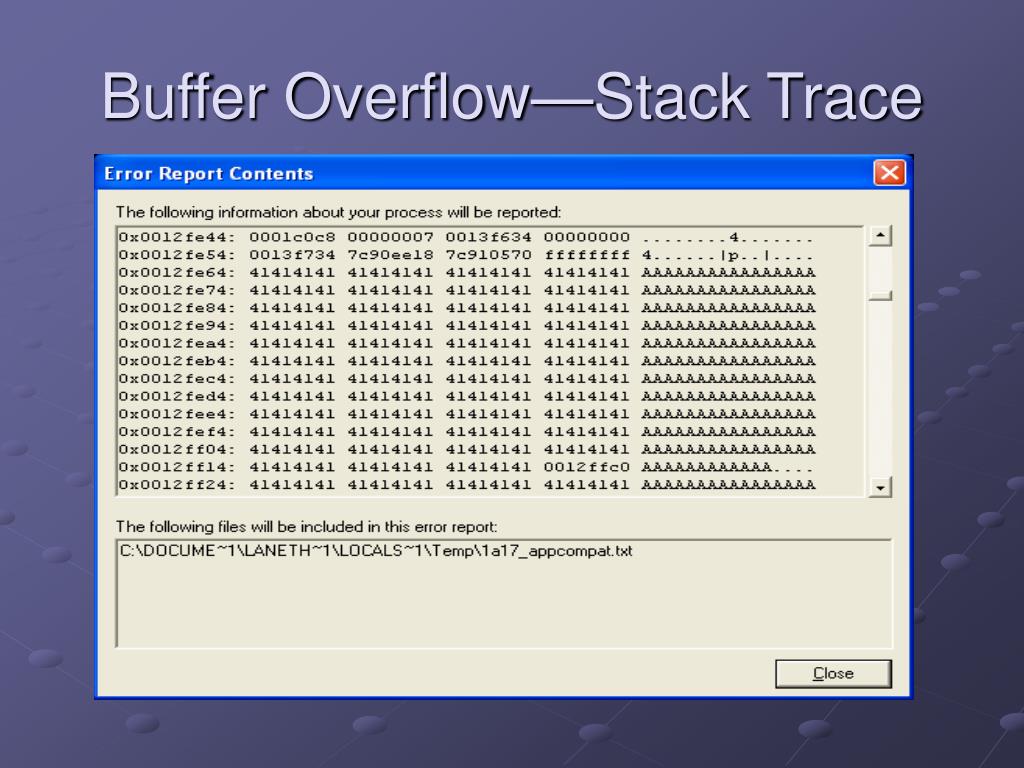

  11. Buffer Overflow—Stack Trace

  12. Common Types of Attacks • Denial of Service (DoS) • Exhaust a computer’s resources: TCP SYN flooding attack • Consume a computer’s available networking bandwidth: ICMP Smurf Attack

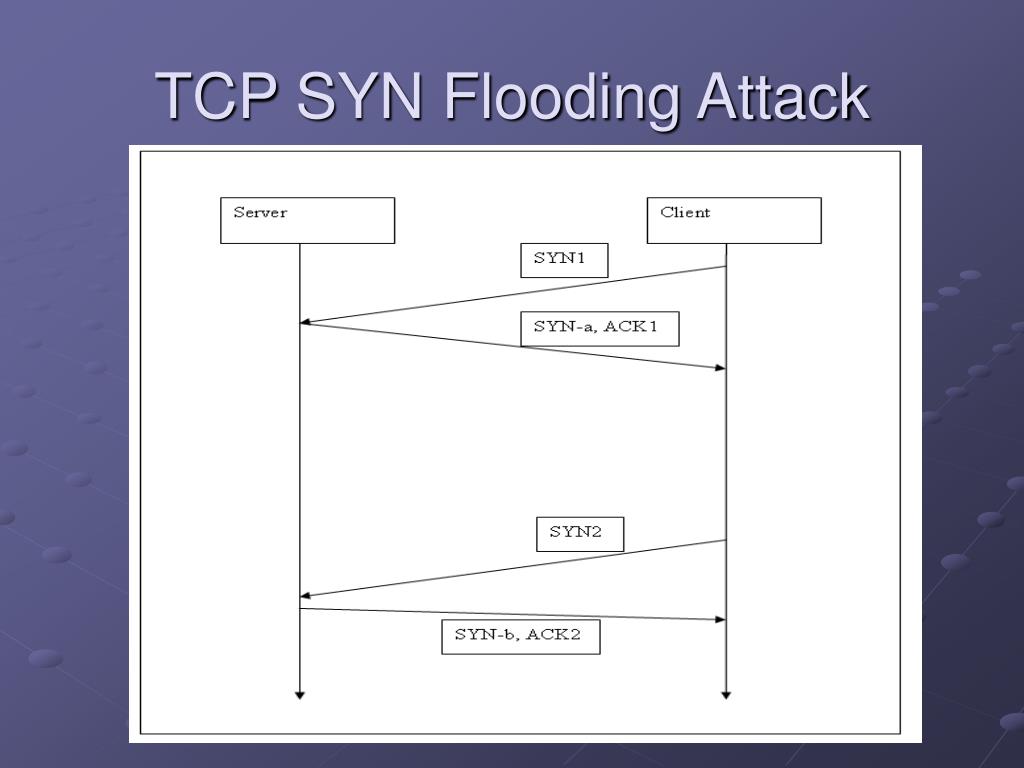

  13. TCP SYN Flooding Attack

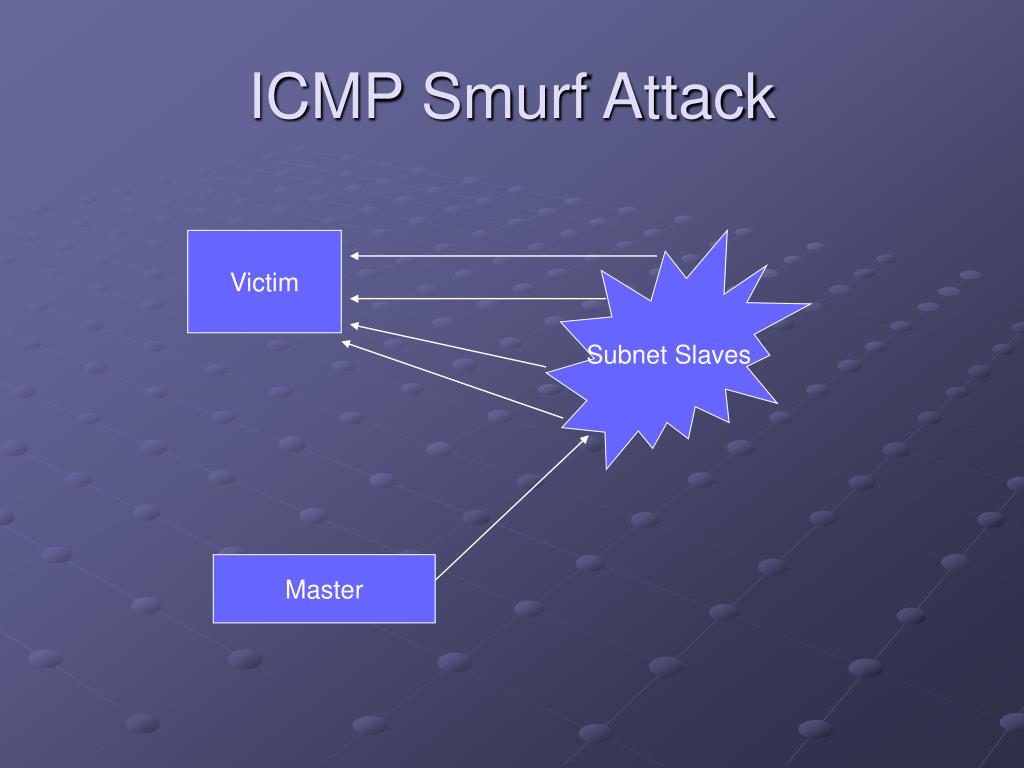

  14. ICMP Smurf Attack Victim Subnet Slaves Master

  15. TCP/IP Layered Architecture Application Layer: (HTTP, SMTP, FTP) Transport Layer: (TCP,UDP) Network Layer: (IP,ICMP,IGMP) Link Layer: (Ethernet, PPP)

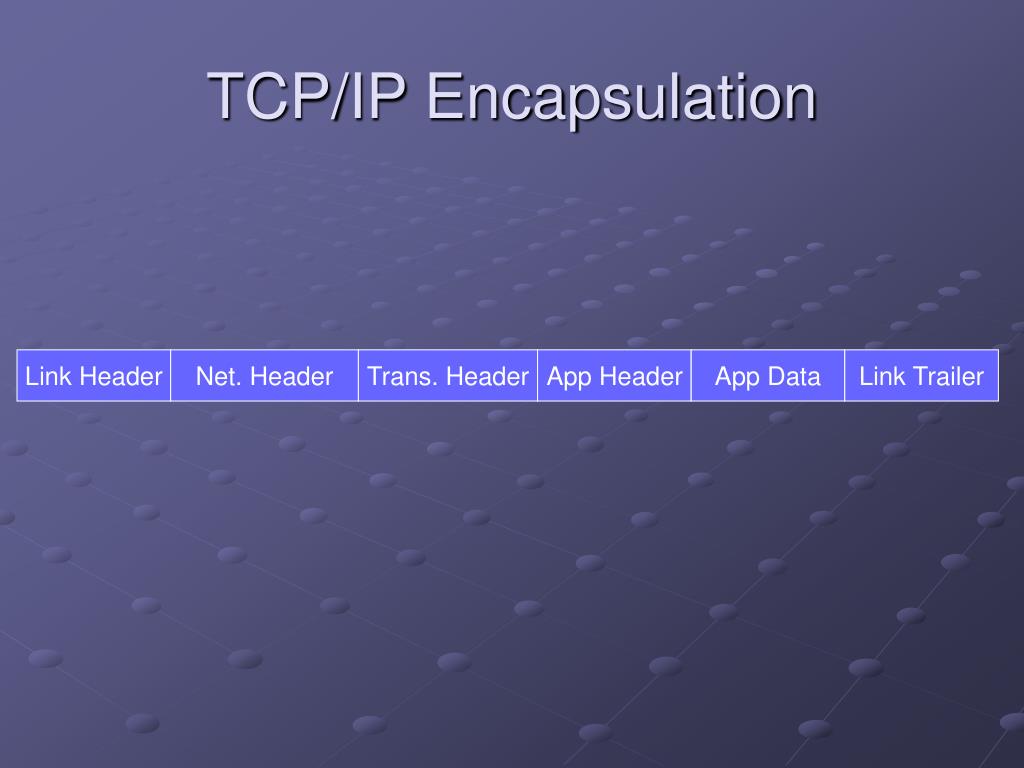

  16. TCP/IP Encapsulation Link Header Net. Header Trans. Header App Header App Data Link Trailer

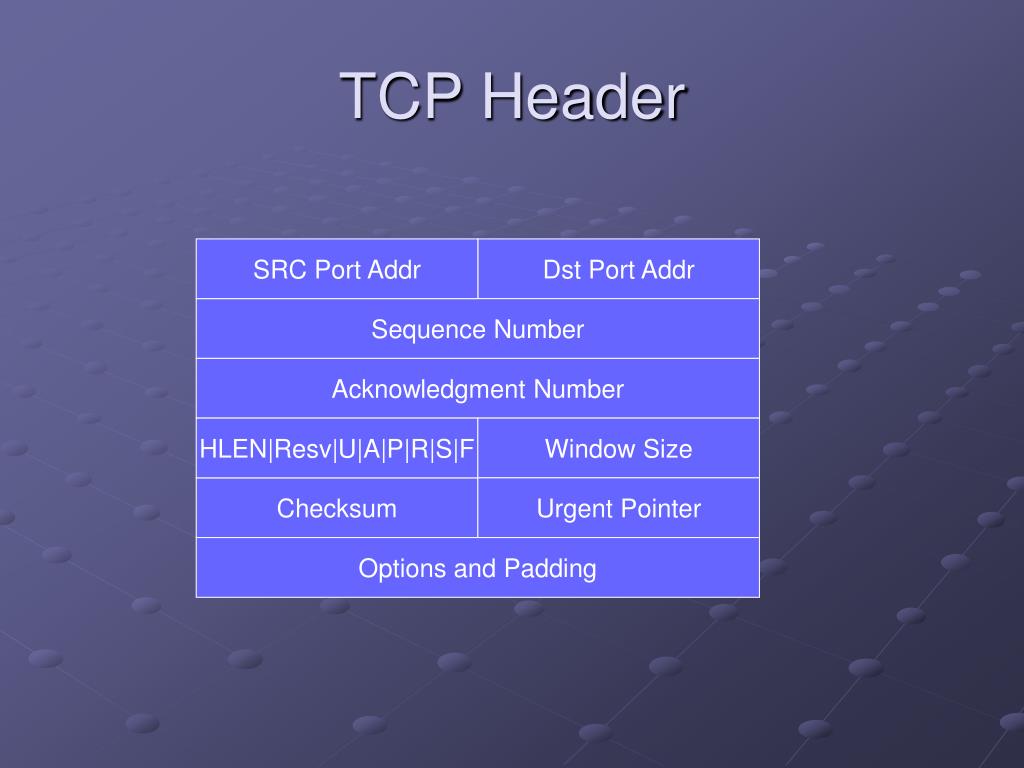

  17. TCP Header SRC Port Addr Dst Port Addr Sequence Number Acknowledgment Number HLEN|Resv|U|A|P|R|S|F Window Size Checksum Urgent Pointer Options and Padding

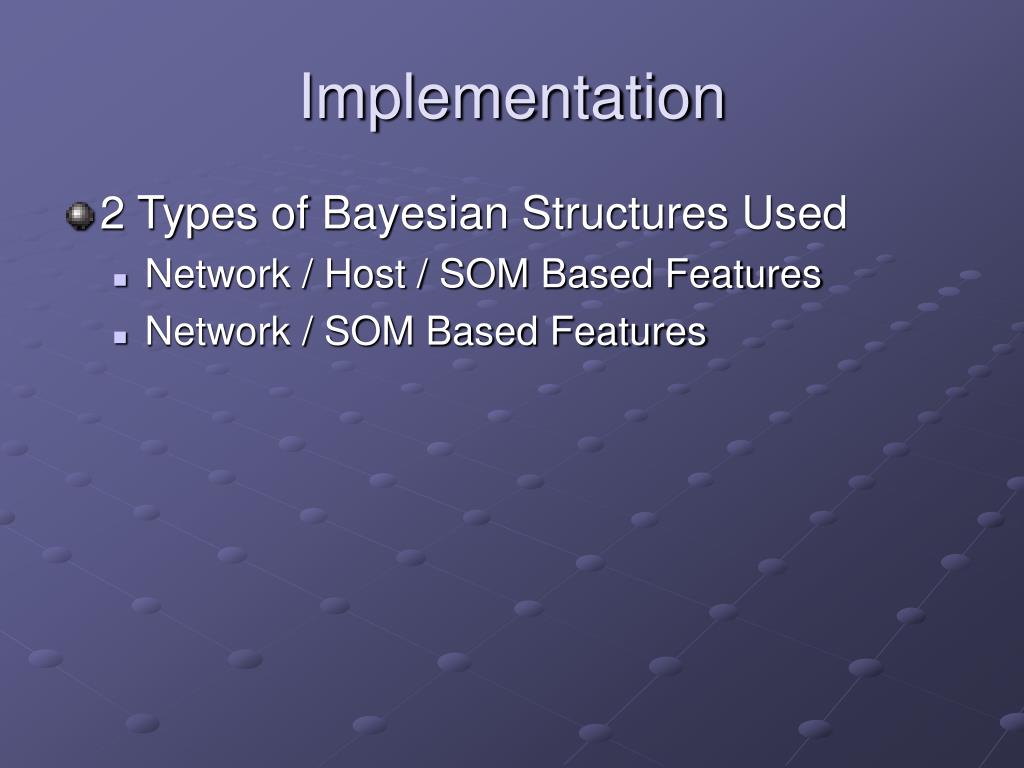

  18. Implementation • 2 Types of Bayesian Structures Used • Network / Host / SOM Based Features • Network / SOM Based Features

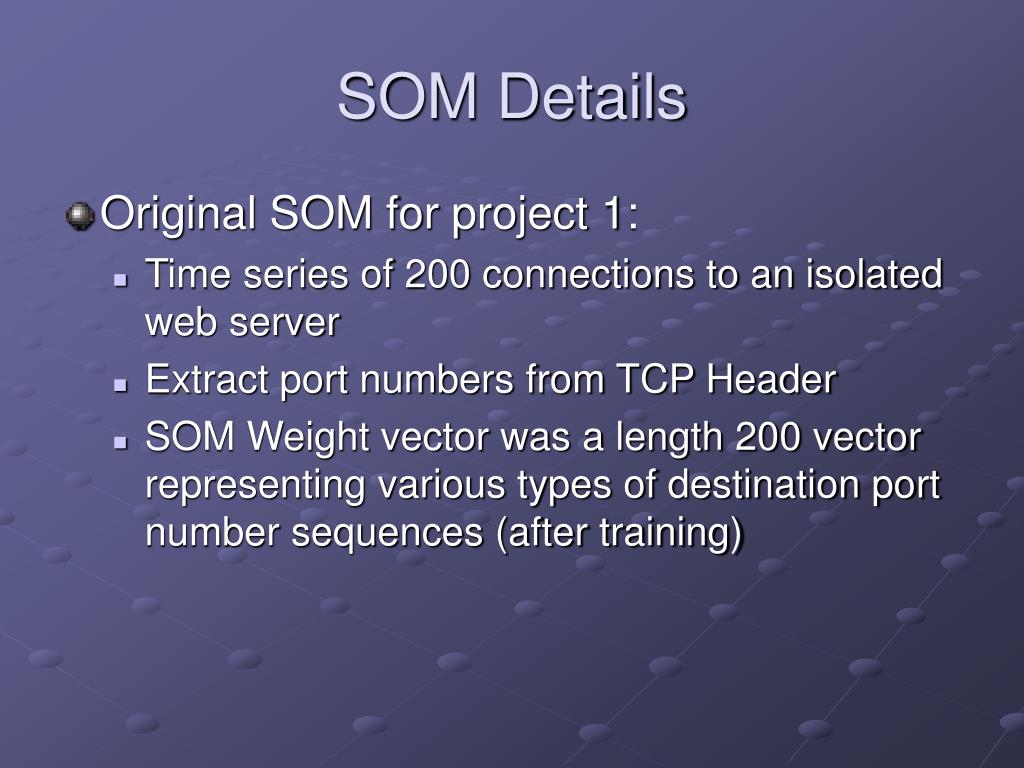

  19. SOM Details • Original SOM for project 1: • Time series of 200 connections to an isolated web server • Extract port numbers from TCP Header • SOM Weight vector was a length 200 vector representing various types of destination port number sequences (after training)

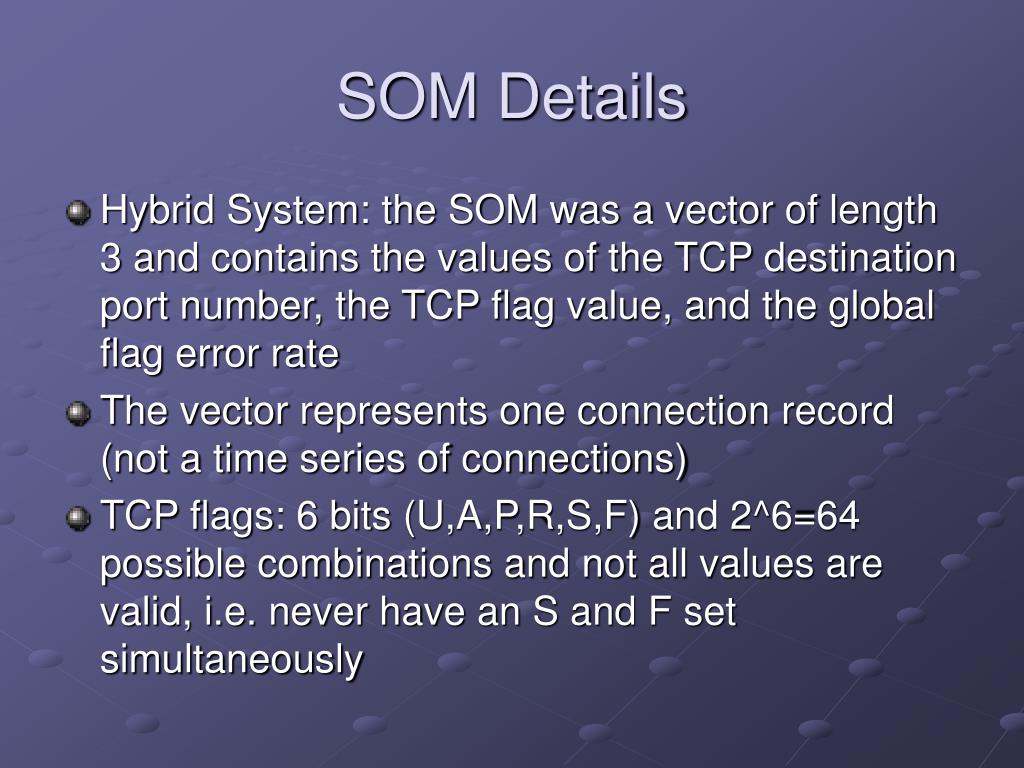

  20. SOM Details • Hybrid System: the SOM was a vector of length 3 and contains the values of the TCP destination port number, the TCP flag value, and the global flag error rate • The vector represents one connection record (not a time series of connections) • TCP flags: 6 bits (U,A,P,R,S,F) and 2^6=64 possible combinations and not all values are valid, i.e. never have an S and F set simultaneously

  21. Hybrid System Architecture Init. Train. Data Bayesian/SOM Classifier Test Data SOM Training Modified Data IDS Classification File (Test Results) Struct. Developer Struct. File Processed Data Bayesian Trainer

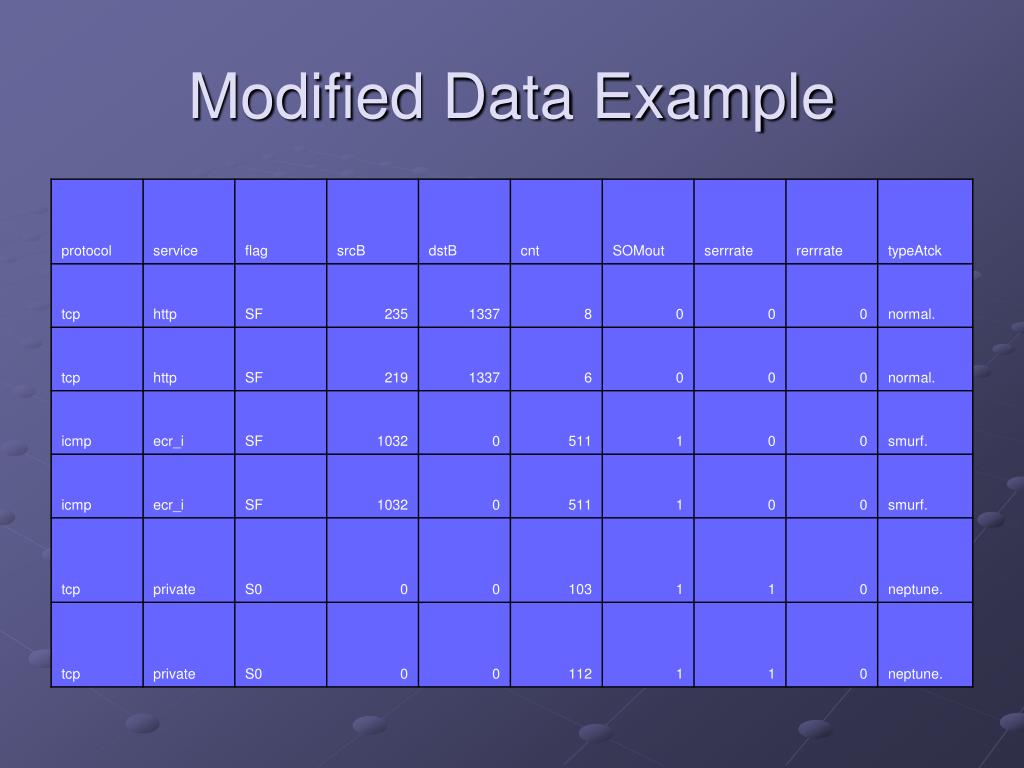

  22. Modified Data Example

  23. Host/Network/SOM Structure

  24. Host/Network/SOM Test Results • 65,505 Total Test Cases • 65,238 Correctly Classified • 99.59% Classification Accuracy

  25. Network/SOM Structure

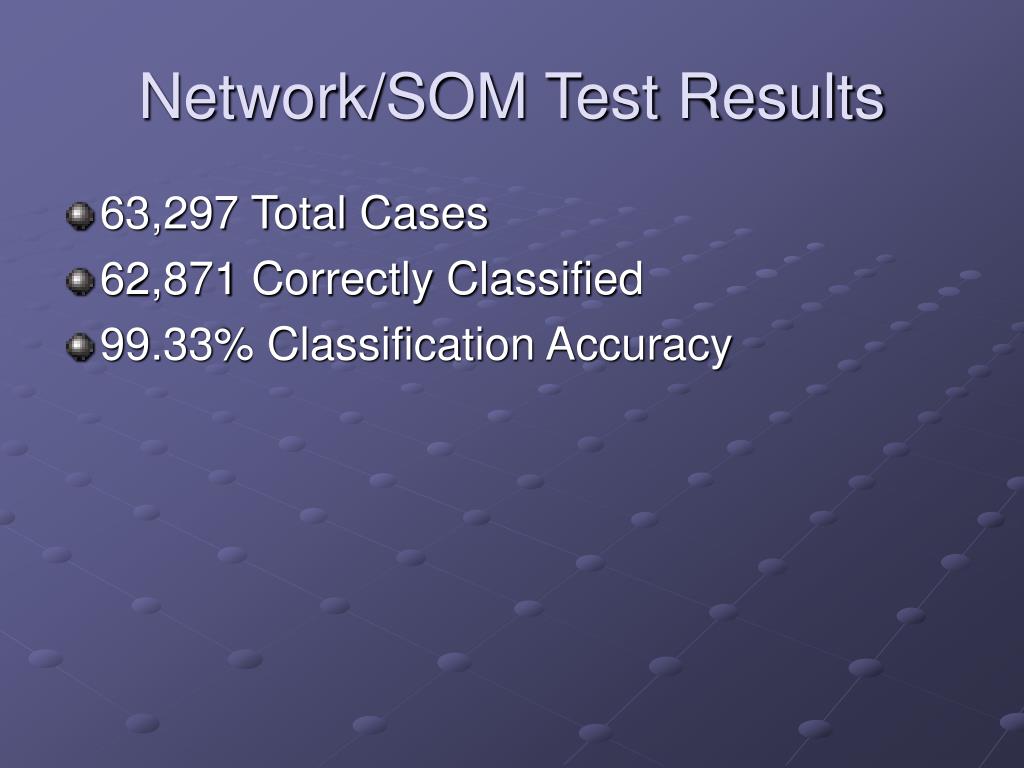

  26. Network/SOM Test Results • 63,297 Total Cases • 62,871 Correctly Classified • 99.33% Classification Accuracy

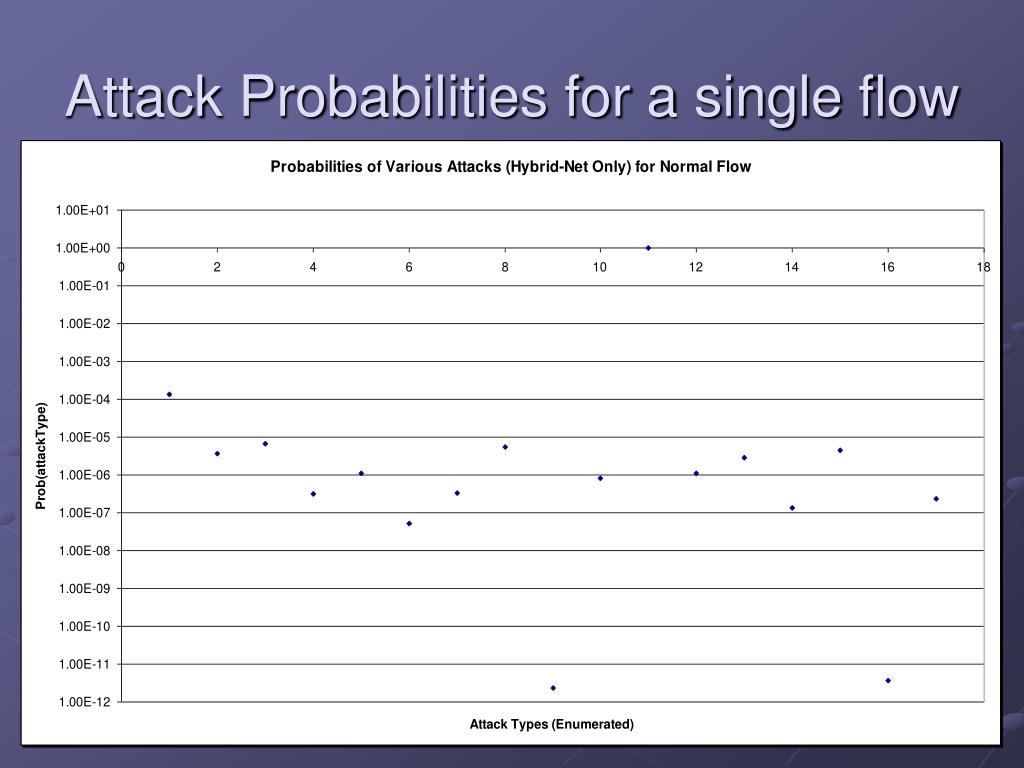

  27. Attack Probabilities for a single flow

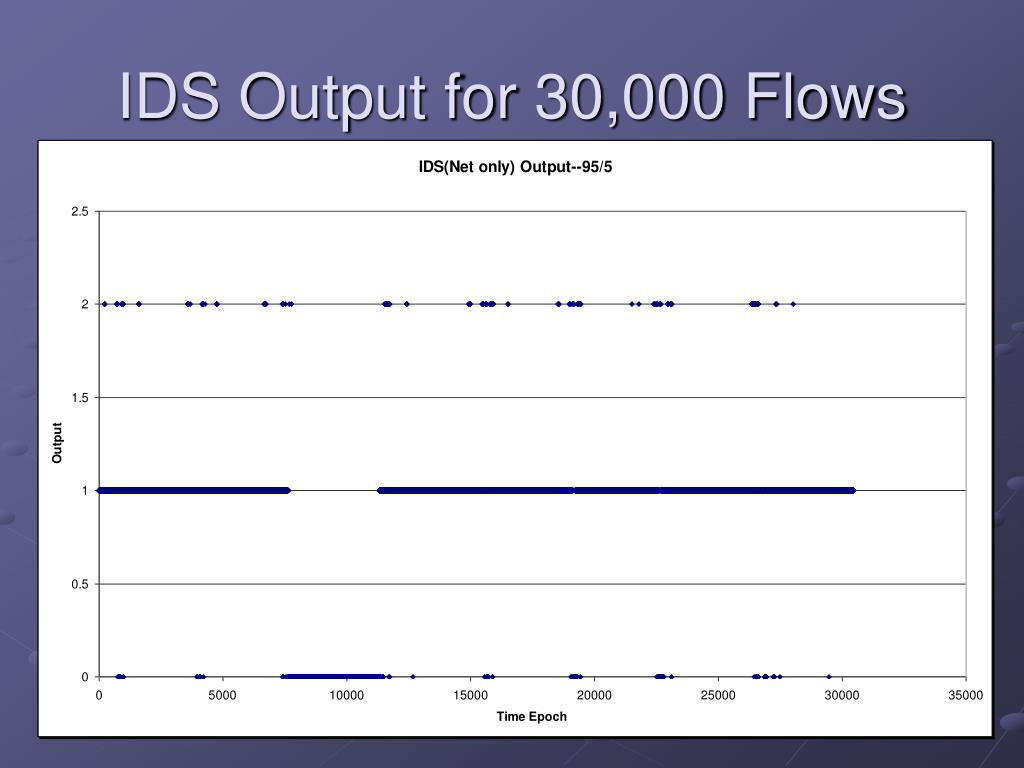

  28. IDS Output for 30,000 Flows

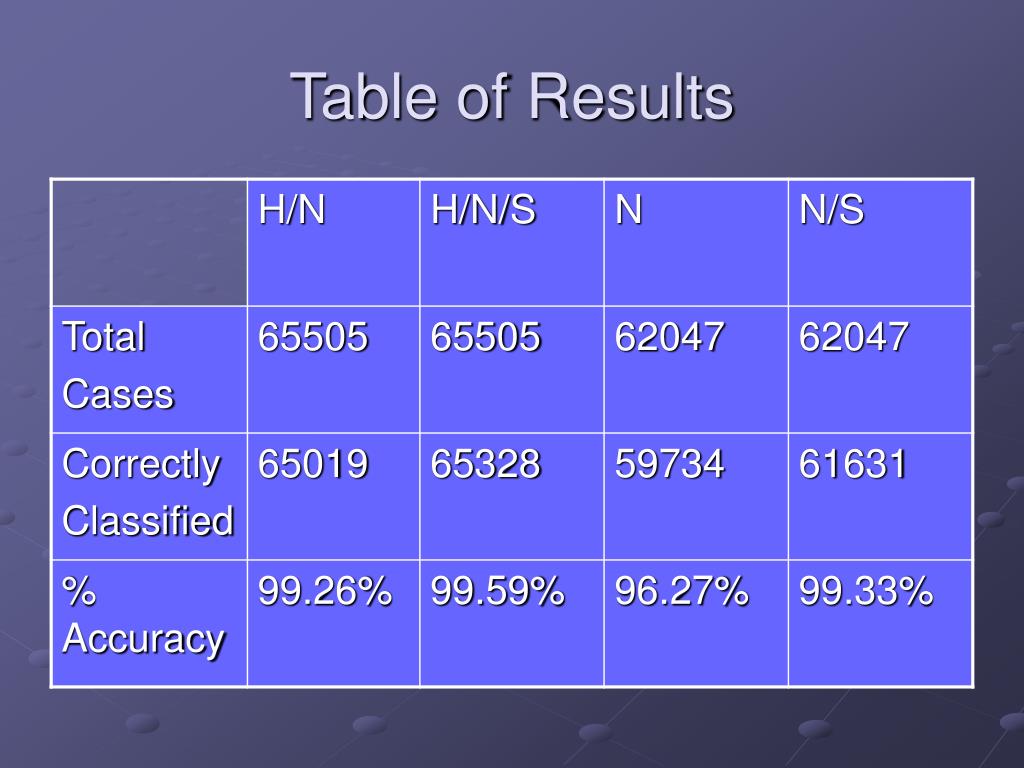

  29. Table of Results

  30. Future Work • Currently doing research in Network Security • NSF Funded project: • 3 GT Professors • 3 GT GRAs • 3 Year project

  31. Future Work • Currently Developing a “Honey Net” • Honey Net: A network consisting of computers and various networking gear that you “WANT” to be hacked!

  32. Future Work • Goal: Monitor hacker activities in order to build stronger defenses • Goal: Incorporate some of the Intelligent system concepts within the Honey Net to assist in processing the large volumes of data that will be collected (via network sniffers, traffic monitors, host-based software such as tripwire, libpcap programs, etc)
