  1. Week 9 Team 2 Kevin Mike Dave Alex

  2. TESTING! • Tested forwarding Unit • MEM stage problems • Fixed memory errors • Converted test files, ready to be put in design • Continued to use WinDLX to test • Fixed sign extender placement • Needed it in an earlier stage

  3. Testing forwarding _Main: Addi R1, R0, #16 Addi R2, R0, #20 Sub R3, R2, R1 Add R4, R3, R2 .endproc _main

  4. Forwarding

  5. Initialize values and then jump and link to part (tests jump and link) _main: Addi R1, R0, 0x1000 Addi R29, R0, 0x1000 JAL _jumploc Nop _jumploc:

  6. Jump - Trace

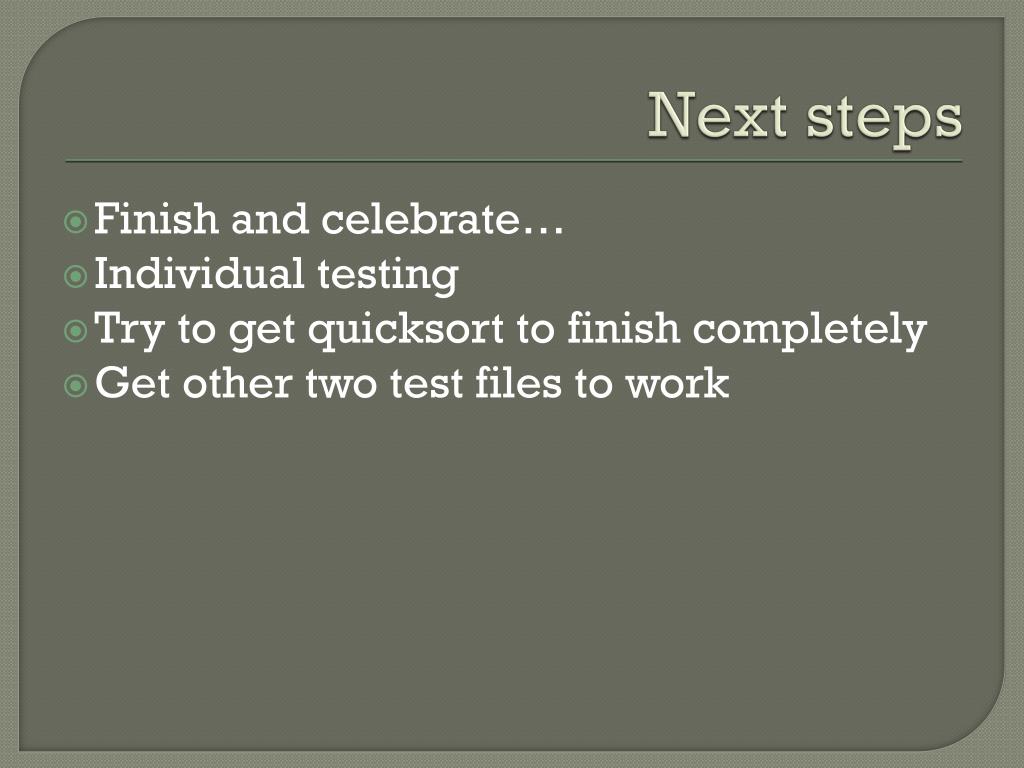

  7. Next steps Finish and celebrate… Individual testing Try to get quicksort to finish completely Get other two test files to work
