  1. Web Basics Willem VisserRW334

  2. Overview • Basic Browser and Server Interaction • Forms with actions, url encoding and handlers • Parameters • Having more than one handler • GET versus POST • Templates • Jinja2 • Validation and Escaping <thanks>Udacity CS253 is the inspiration for a lot of this content</thanks>

  3. Forms with actions <form> <input name="q"> <input type="submit"> </form> <form action = "/foo"> <input name="q"> <input type="submit"> </form> <form action = ”http://www.google.com/search"> <input name="q"> <input type="submit"> </form>

  4. Server side • How do we react to the “action”? import webapp2 class MainPage(webapp2.RequestHandler): defget(self): self.response.headers['Content-Type'] = 'text/plain' self.response.out.write('Hello, RW334 World!') app = webapp2.WSGIApplication([('/', MainPage)], debug=True) Main.py … handlers: - url: /.* script: main.app … app.yaml

  5. Server Handler (1) • Lets first add the form to our web page import webapp2 form = """ <form action = "/foo"> <input name="q"> <input type="submit"> </form> """ class MainPage(webapp2.RequestHandler): defget(self): self.response.headers['Content-Type'] = 'text/plain' self.response.out.write(form) app = webapp2.WSGIApplication([('/', MainPage)], debug=True) Will this render the form?

  6. Server Handler (2) • Default content type is HTML import webapp2 form = """ <form action = "/foo"> <input name="q"> <input type="submit"> </form> """ class MainPage(webapp2.RequestHandler): defget(self): #self.response.headers['Content-Type'] = 'text/plain' self.response.out.write(form) app = webapp2.WSGIApplication([('/', MainPage)], debug=True) Will this correctly submit?

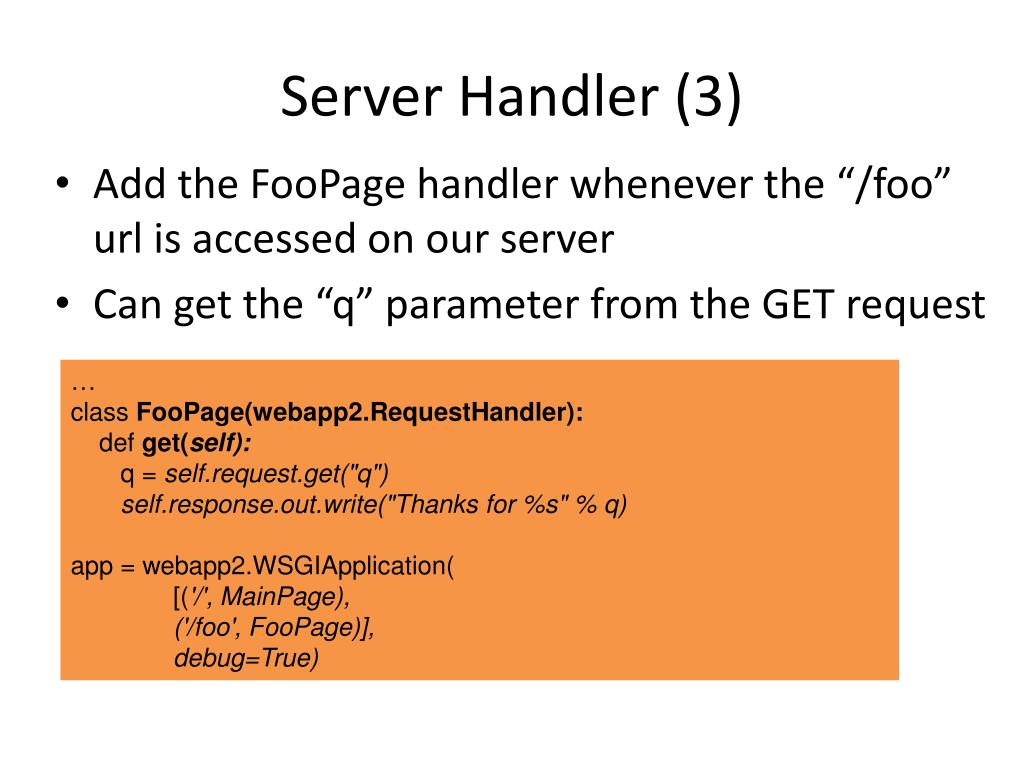

  7. Server Handler (3) • Add the FooPage handler whenever the “/foo” url is accessed on our server • Can get the “q” parameter from the GET request … class FooPage(webapp2.RequestHandler): def get(self): q = self.request.get("q") self.response.out.write("Thanks for %s" % q) app = webapp2.WSGIApplication( [('/', MainPage), ('/foo', FooPage)], debug=True)

  8. Server Handler (4) class FooPage(webapp2.RequestHandler): defget(self): self.response.headers['Content-Type'] = 'text/plain' self.response.out.write(self.request) app = webapp2.WSGIApplication([('/', MainPage), ('/foo', FooPage)], debug=True) GET /foo?q=blah HTTP/1.1 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,*/*;q=0.8 Accept-Language: en-US,en;q=0.8,af;q=0.6 Host: localhost:8080 Referer: http://localhost:8080/ User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_7_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/30.0.1599.101 Safari/537.36 X-Appengine-Country: ZZ

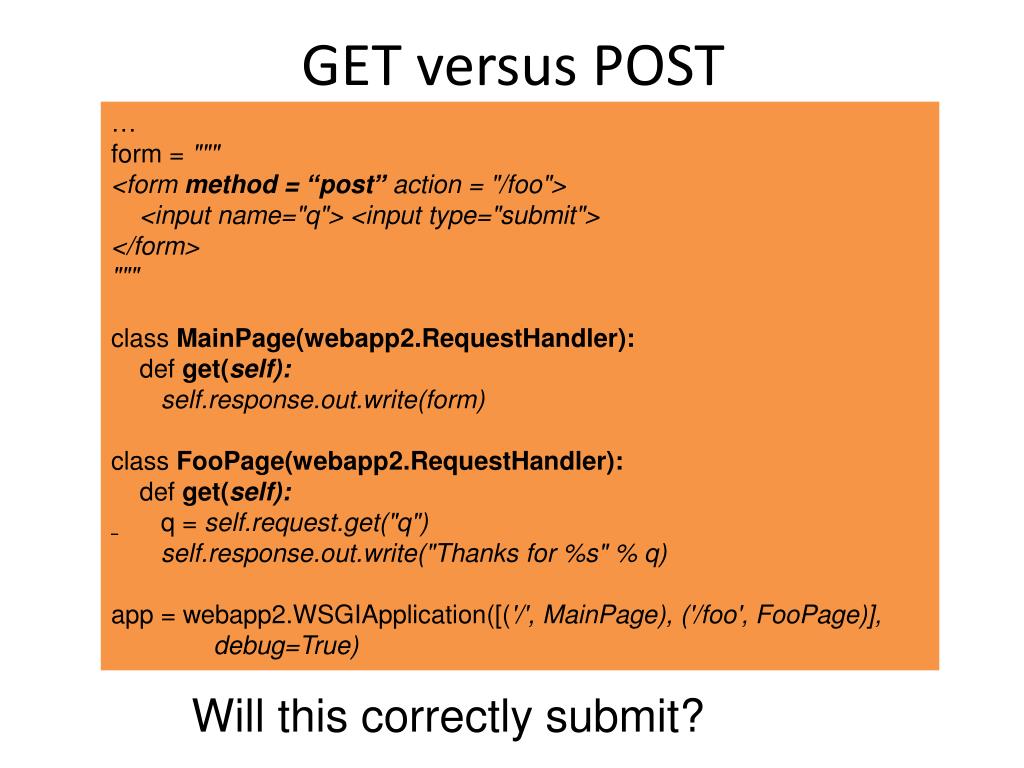

  9. GET versus POST … form = """ <form method = “post” action = "/foo"> <input name="q"> <input type="submit"> </form> """ class MainPage(webapp2.RequestHandler): def get(self): self.response.out.write(form) class FooPage(webapp2.RequestHandler): def get(self): q = self.request.get("q") self.response.out.write("Thanks for %s" % q) app = webapp2.WSGIApplication([('/', MainPage), ('/foo', FooPage)], debug=True) Will this correctly submit?

  10. GET versus POST (2) … form = """ <form method = “post” action = "/foo"> <input name="q"> <input type="submit"> </form> """ class MainPage(webapp2.RequestHandler): def get(self): self.response.out.write(form) class FooPage(webapp2.RequestHandler): def post(self): q = self.request.get("q") self.response.out.write("Thanks for %s" % q) app = webapp2.WSGIApplication([('/', MainPage), ('/foo', FooPage)], debug=True) Where did the parameter go in url?

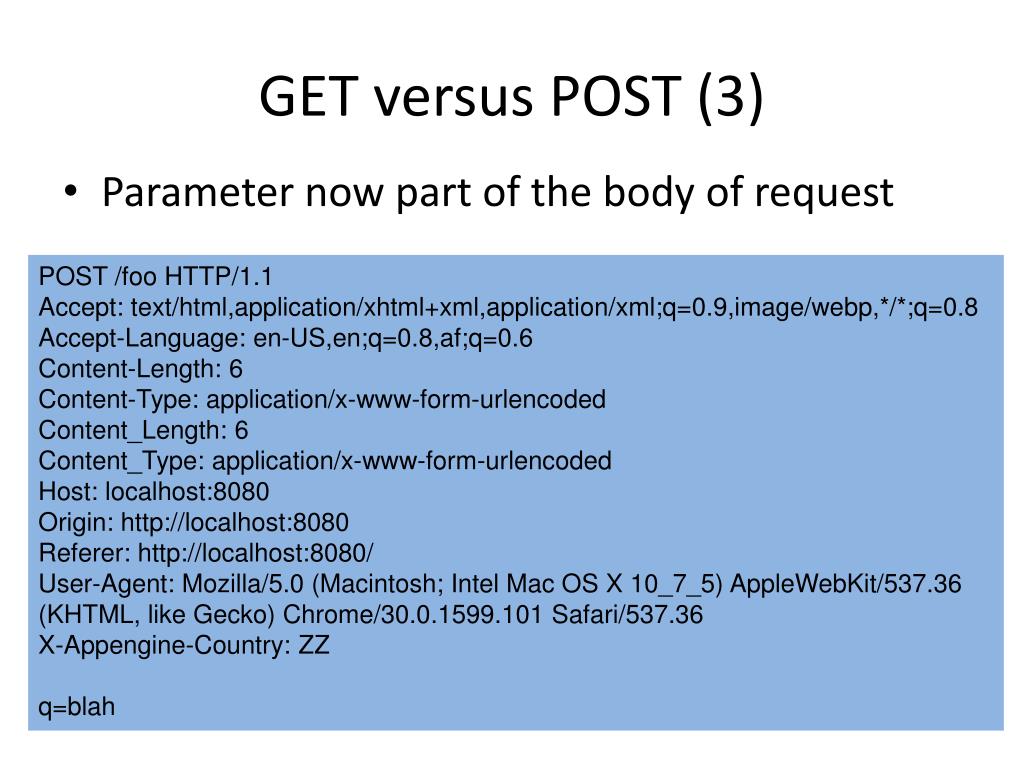

  11. GET versus POST (3) • Parameter now part of the body of request POST /foo HTTP/1.1 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,*/*;q=0.8 Accept-Language: en-US,en;q=0.8,af;q=0.6 Content-Length: 6 Content-Type: application/x-www-form-urlencoded Content_Length: 6 Content_Type: application/x-www-form-urlencoded Host: localhost:8080 Origin: http://localhost:8080 Referer: http://localhost:8080/ User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_7_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/30.0.1599.101 Safari/537.36 X-Appengine-Country: ZZ q=blah

  12. GET versus POST (4) • GET • Parameters in URL • Length restrictions • Used for fetching documents • OK to cache • Same request in succession should produce the same • Should not change the server • POST • Parameters in body • Used for updating (server) • No caching

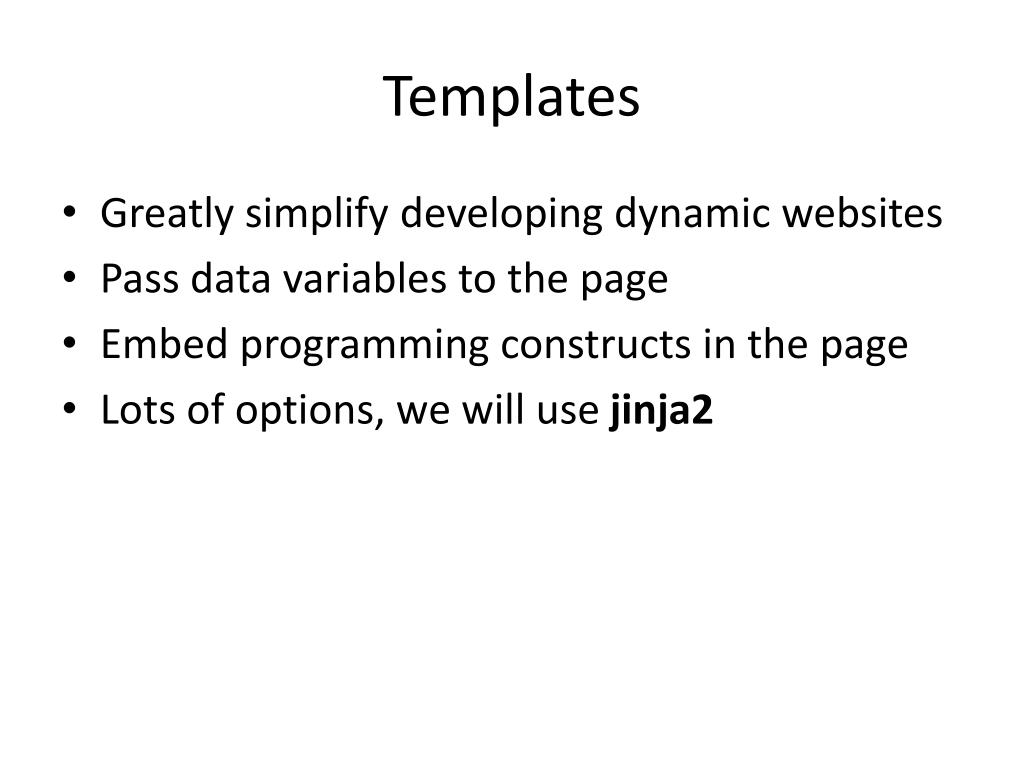

  13. Templates • Greatly simplify developing dynamic websites • Pass data variables to the page • Embed programming constructs in the page • Lots of options, we will use jinja2

  14. First create your Template <!DOCTYPE html> <html> <head> <title>I'm using Templates!</title> </head> <body> I'm {{name}}, and I {{verb}} RW334! </body> </html> base.html … libraries: - name: jinja2 version: latest … app.yaml

  15. Handler import os import webapp2 import jinja2 jinja_environment = jinja2.Environment(autoescape=True, loader=jinja2.FileSystemLoader(os.path.join(os.path.dirname(__file__), 'templates'))) class MainPage(webapp2.RequestHandler): defget(self): template_values = { 'name': 'Willem', 'verb': 'love' } template = jinja_environment.get_template('base.html') self.response.out.write(template.render(template_values)) app = webapp2.WSGIApplication([('/', MainPage)], debug=True)

  16. Loops! <!DOCTYPE html> <html> <head> <title>I'm using Templates!</title> </head> <body> I'm {{name}}, and I {{verb}} RW334! Here are a few of my favourite things about the course: <ul> {% for item in favourites %} <li>{{ item }}</li> {% endfor %} </ul> </body> </html>

  17. Handler … class MainPage(webapp2.RequestHandler): def get(self): template_values = { 'name': 'Willem', 'verb': 'love', 'favourites' : favourites } template = jinja_environment.get_template('base.html') self.response.out.write(template.render(template_values)) app = webapp2.WSGIApplication([('/', MainPage)], debug=True)

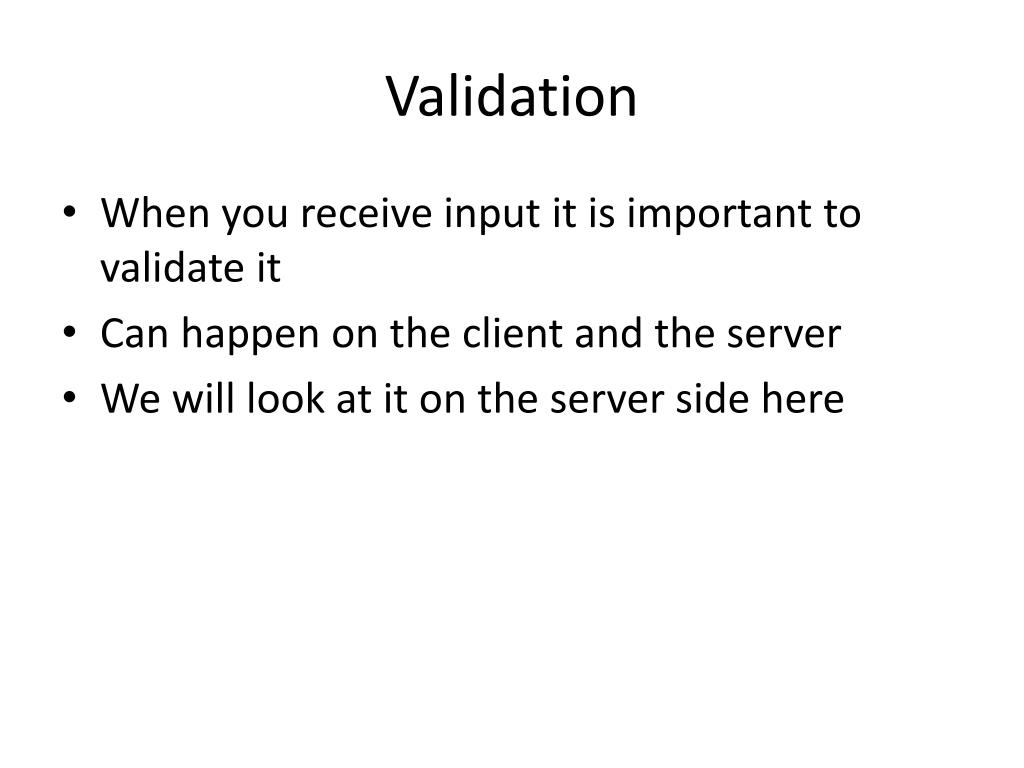

  18. Validation • When you receive input it is important to validate it • Can happen on the client and the server • We will look at it on the server side here

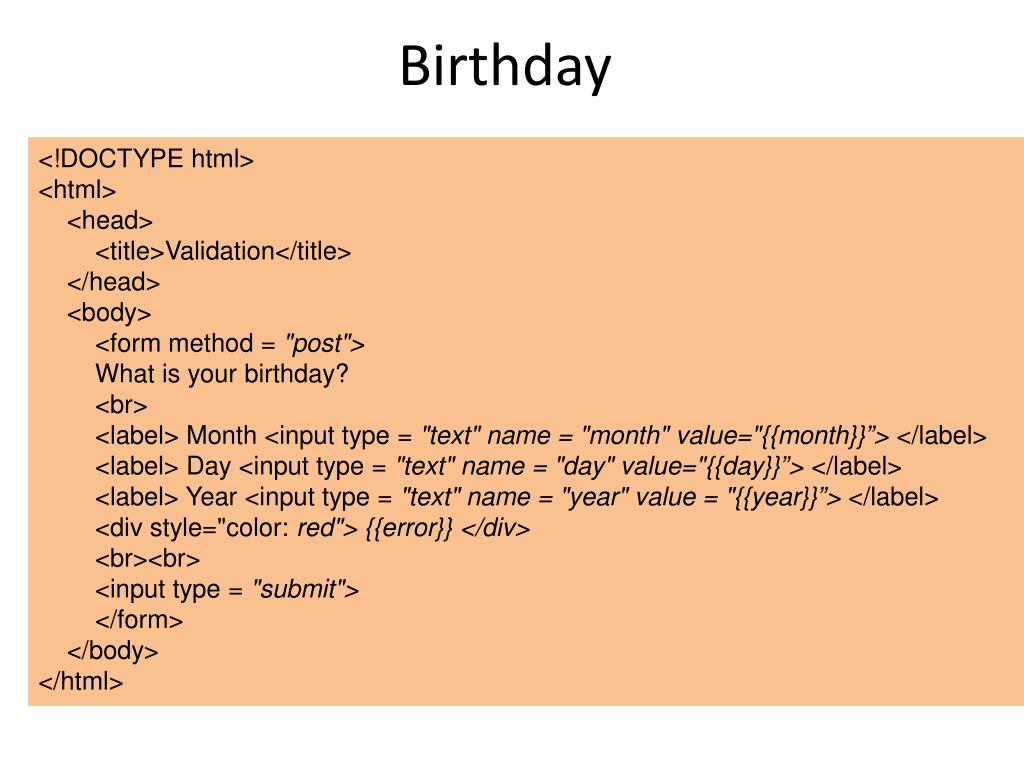

  19. Birthday <!DOCTYPE html> <html> <head> <title>Validation</title> </head> <body> <form method = "post"> What is your birthday? <br> <label> Month <input type = "text" name = "month" value="{{month}}”> </label> <label> Day <input type = "text" name = "day" value="{{day}}”> </label> <label> Year <input type = "text" name = "year" value = "{{year}}”> </label> <div style="color: red"> {{error}} </div> <br><br> <input type = "submit"> </form> </body> </html>

  20. Handler with Validation class MainPage(webapp2.RequestHandler): defdisplayform(self, error = "", month = "", day = "", year = ""): values = dict([('error', error), ('month', month), ('day', day), ('year', year)]) template = jinja_environment.get_template('validation.html') self.response.out.write(template.render(values)) def get(self): self.displayform() def post(self): user_month = self.request.get("month") user_day = self.request.get("day") user_year = self.request.get("year") month = valid_month(user_month) day = valid_day(user_day) year = valid_year(user_year) if not(month and day and year): self.displayform("Not a valid date", user_month, user_day, user_year) else: self.response.out.write("Thanks for the valid birthday")

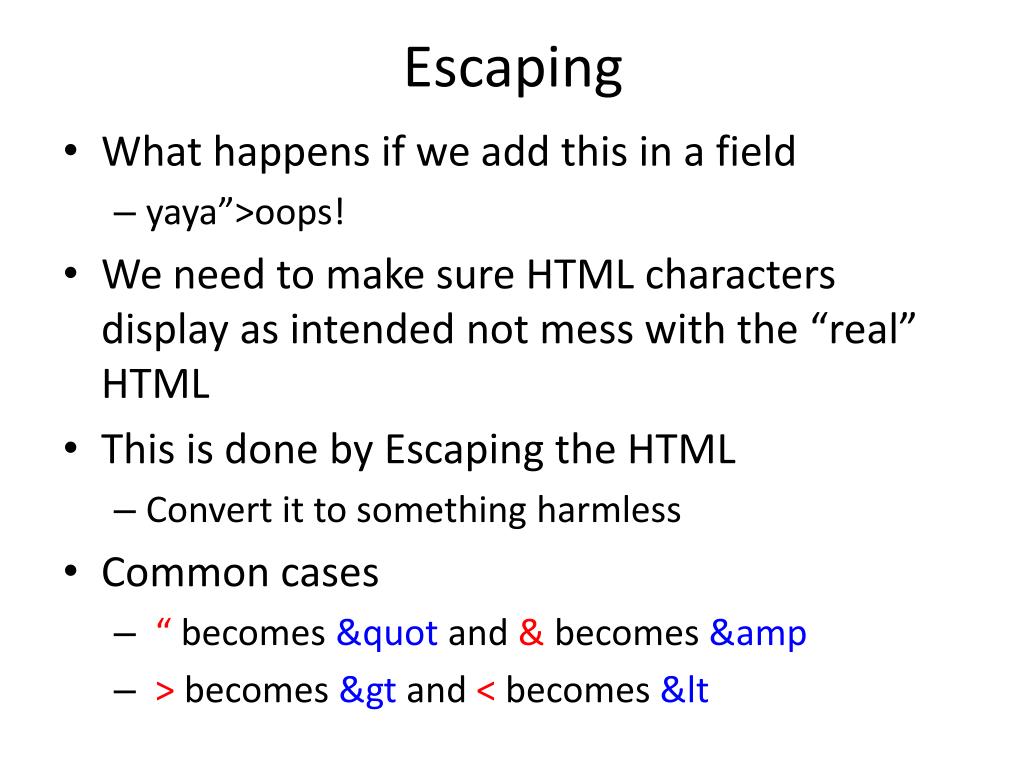

  21. Escaping • What happens if we add this in a field • yaya”>oops! • We need to make sure HTML characters display as intended not mess with the “real” HTML • This is done by Escaping the HTML • Convert it to something harmless • Common cases • “ becomes &quot and & becomes &amp • > becomes &gt and < becomes &lt

  22. Escaping Example • If we want to display this line in the browser • How do we display <html> in HTML? • By typing • How do we display &lthtml&gt in HTML?

  23. First Rule of Escaping NEVER ROLL YOUR OWN!

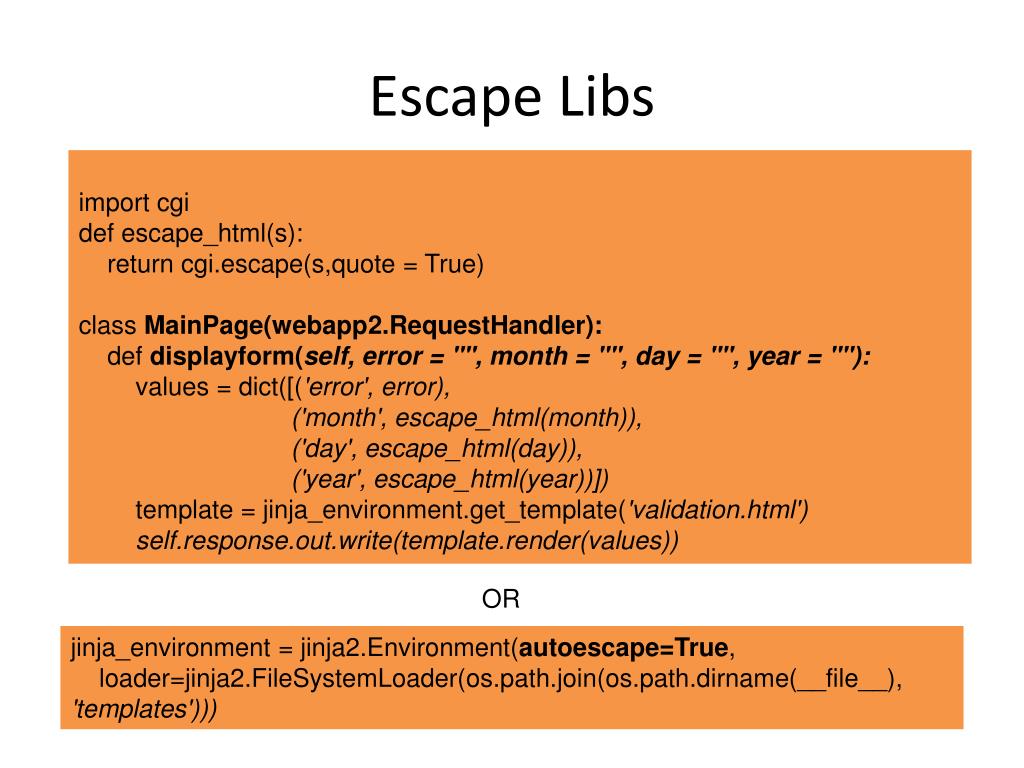

  24. Escape Libs import cgi defescape_html(s): return cgi.escape(s,quote = True) class MainPage(webapp2.RequestHandler): defdisplayform(self, error = "", month = "", day = "", year = ""): values = dict([('error', error), ('month', escape_html(month)), ('day', escape_html(day)), ('year', escape_html(year))]) template = jinja_environment.get_template('validation.html') self.response.out.write(template.render(values)) OR jinja_environment = jinja2.Environment(autoescape=True, loader=jinja2.FileSystemLoader(os.path.join(os.path.dirname(__file__), 'templates')))
