  1. APV25 noise evaluation 2005/12/07 SVD upgrade meeting S.Ono(TIT)

  2. Noise from detector capacitance Noise from leak current • APV Noise measurement peaking time: Tp=35ns~200ns • APV chip bonded to only pitchadaptor -> CD, Ileak are very small

  3. Shaping curve Tp=50ns Tp=100ns Tp=150ns Tp=200ns Fitting function:

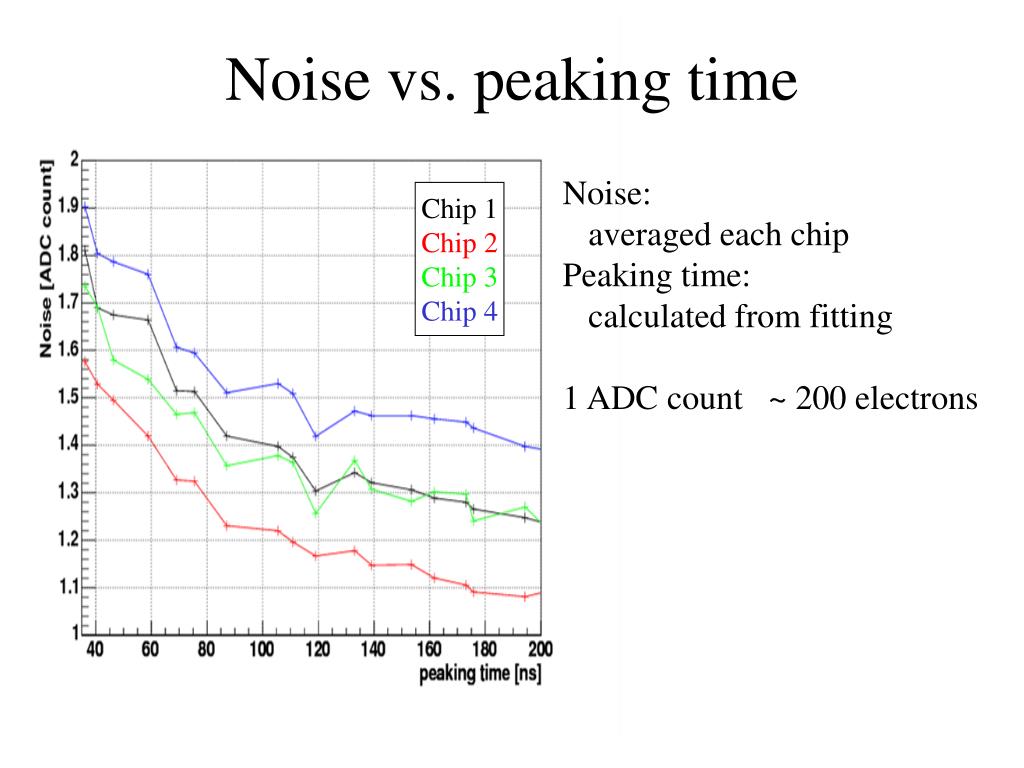

  4. Noise vs. peaking time Noise: averaged each chip Peaking time: calculated from fitting 1 ADC count ~ 200 electrons Chip 1 Chip 2 Chip 3 Chip 4

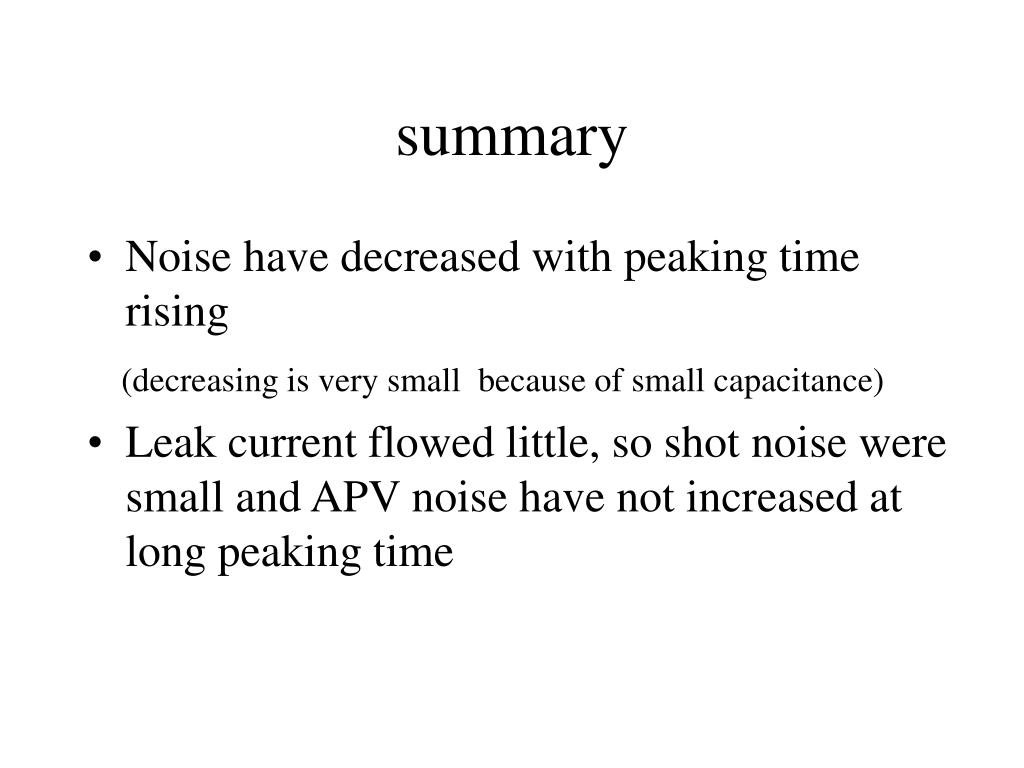

  5. summary • Noise have decreased with peaking time rising (decreasing is very small because of small capacitance) • Leak current flowed little, so shot noise were small and APV noise have not increased at long peaking time
