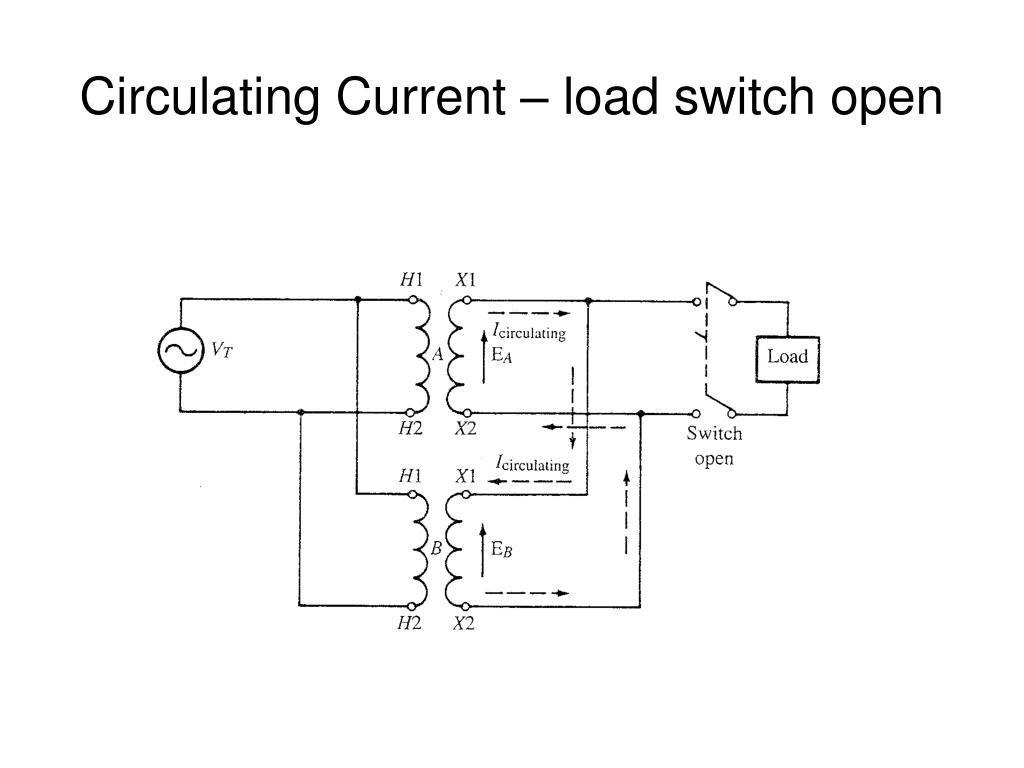

Circulating Current – load switch open

Circulating Current – load switch open. Circulating Current load switch closed. I circulating adds to the load current in one transformer and subtracts from the load current in the other transformer. At rated load, the transformer with the higher secondary voltage will be overloaded !.

brian-guy
Télécharger la présentation

Circulating Current – load switch open

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Circulating Current – load switch open

  2. Circulating Current load switch closed

  3. Icirculating adds to the load current in one transformer and subtracts from the load current in the other transformer. At rated load, the transformer with the higher secondary voltage will be overloaded!

  4. Example 3.4 • Two 100 kVA single-phase transformers A and B are to be operated in parallel. The respective no-load voltage ratios and respective impedances are obtained from the nameplates as • Transformer A • 2300 – 460 V %R = 1.36 %X = 3.50 • Transformer B • 2300 – 450 %R = 1.40 %X = 3.32

  5. Example 3.4 continued • Determine • the circulating current in the paralleled secondaries • the circulating current as a percent of the rated current in transformer A • the percent difference in secondary voltage that caused the circulating current.

  6. The rated low-side currents are

  7. The equivalent resistance and reactance of each transformer referred to the low side

  8. The impedance of the closed loop formed by the two secondaries The circulating current

  9. The circulating current as a percent of the rated current in transformer A The percent difference in secondary voltage that caused the circulating current
