Orographic Influence on Adriatic Vortex Generation

Orographic Influence on Adriatic Vortex Generation. Branka Ivančan-Picek and Vesna Jurčec Meteorological and Hydrological Service Zagreb, Croatia e-mail: picek@cirus.dhz.hr. ICAM/MAP2003, BRIG, 18 - 23 May 2003. Subject:. cyclonic vortex genesis in the wind field. Purpose:.

brigit
Télécharger la présentation

Orographic Influence on Adriatic Vortex Generation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Orographic Influence on Adriatic Vortex Generation Branka Ivančan-Picek and Vesna Jurčec Meteorological and Hydrological Service Zagreb, Croatia e-mail: picek@cirus.dhz.hr ICAM/MAP2003, BRIG, 18 - 23 May 2003

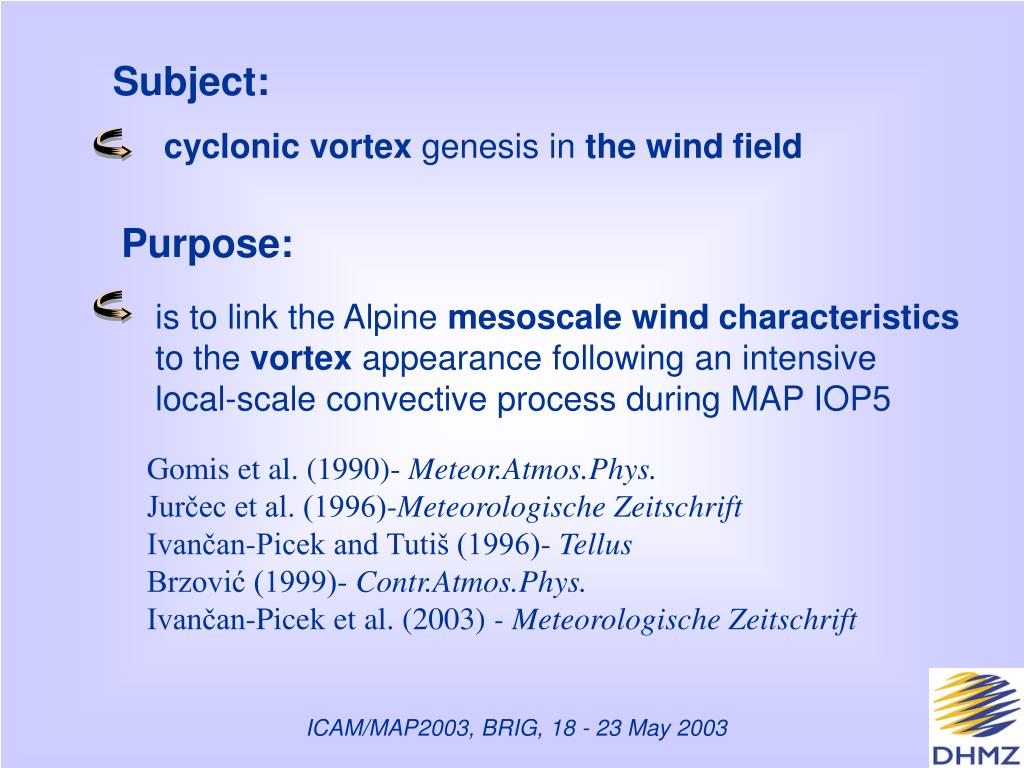

  2. Subject: cyclonic vortex genesis in thewind field Purpose: is to link the Alpine mesoscale wind characteristics to the vortex appearance following an intensive local-scale convective process during MAP IOP5 Gomis et al. (1990)- Meteor.Atmos.Phys. Jurčec et al. (1996)-Meteorologische Zeitschrift Ivančan-Picek and Tutiš (1996)- Tellus Brzović (1999)- Contr.Atmos.Phys. Ivančan-Picek et al. (2003) - Meteorologische Zeitschrift ICAM/MAP2003, BRIG, 18 - 23 May 2003

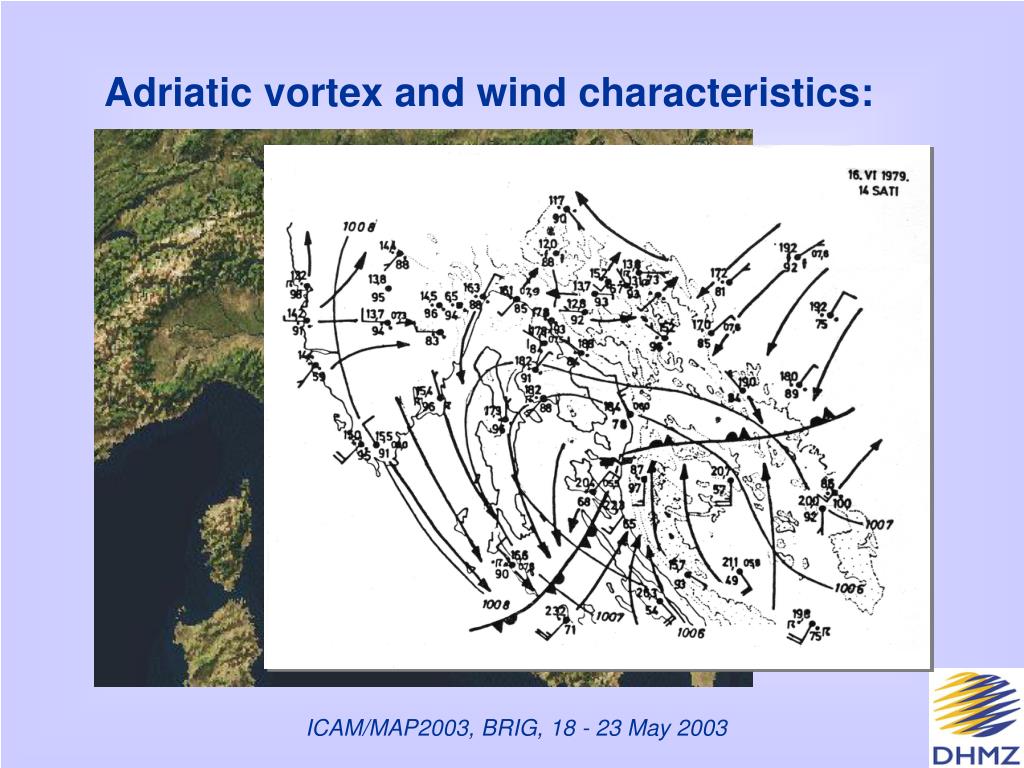

  3. Adriatic vortex and wind characteristics: BURA 200 km JUGO ICAM/MAP2003, BRIG, 18 - 23 May 2003

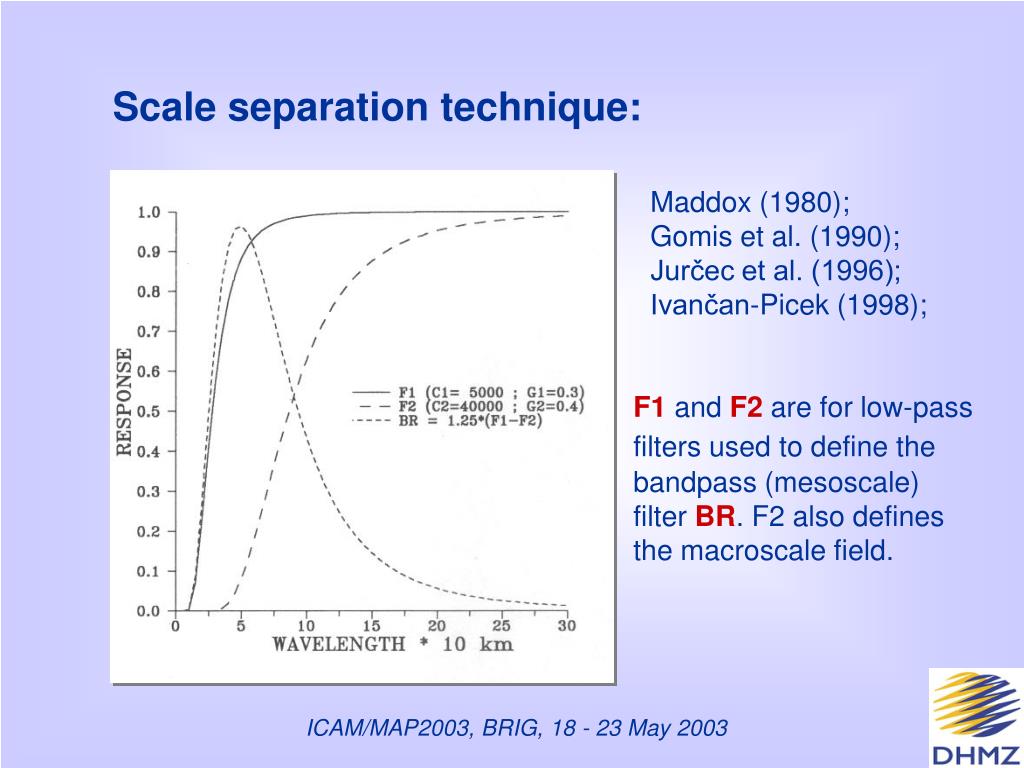

  4. Scale separation technique: Maddox (1980); Gomis et al. (1990); Jurčec et al. (1996); Ivančan-Picek (1998); F1 and F2 are for low-pass filters usedto define the bandpass (mesoscale) filter BR. F2 also defines the macroscale field. ICAM/MAP2003, BRIG, 18 - 23 May 2003

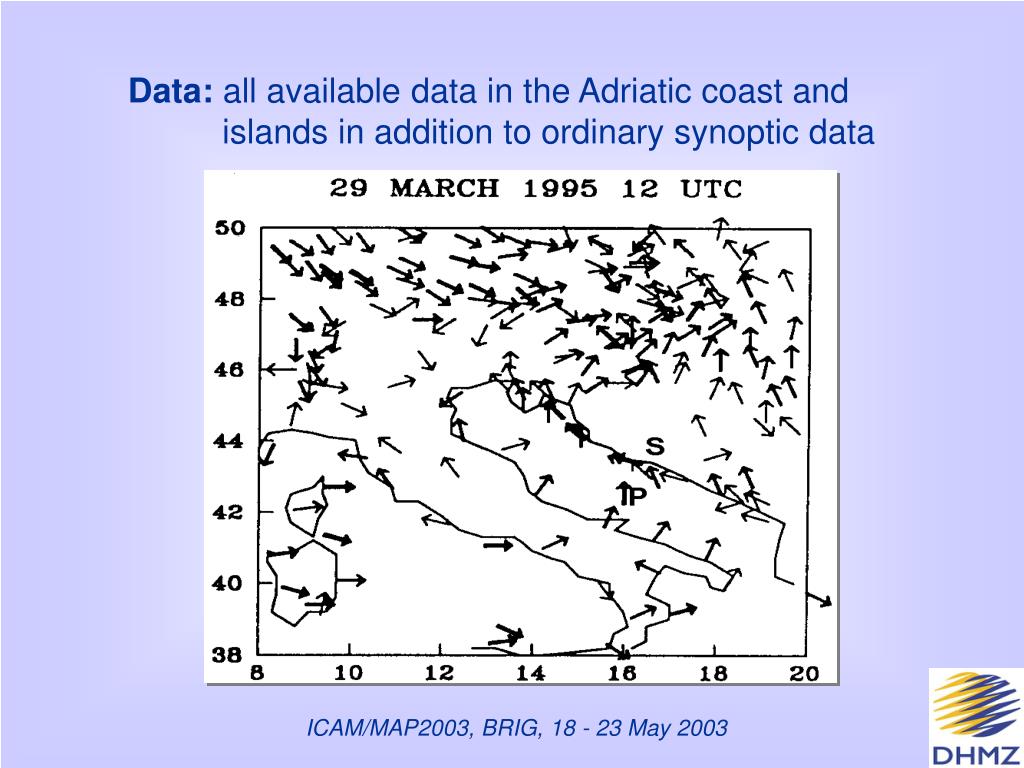

  5. Data: all available data in the Adriatic coast and islands in addition to ordinary synoptic data ICAM/MAP2003, BRIG, 18 - 23 May 2003

  6. ICAM/MAP2003, BRIG, 18 - 23 May 2003

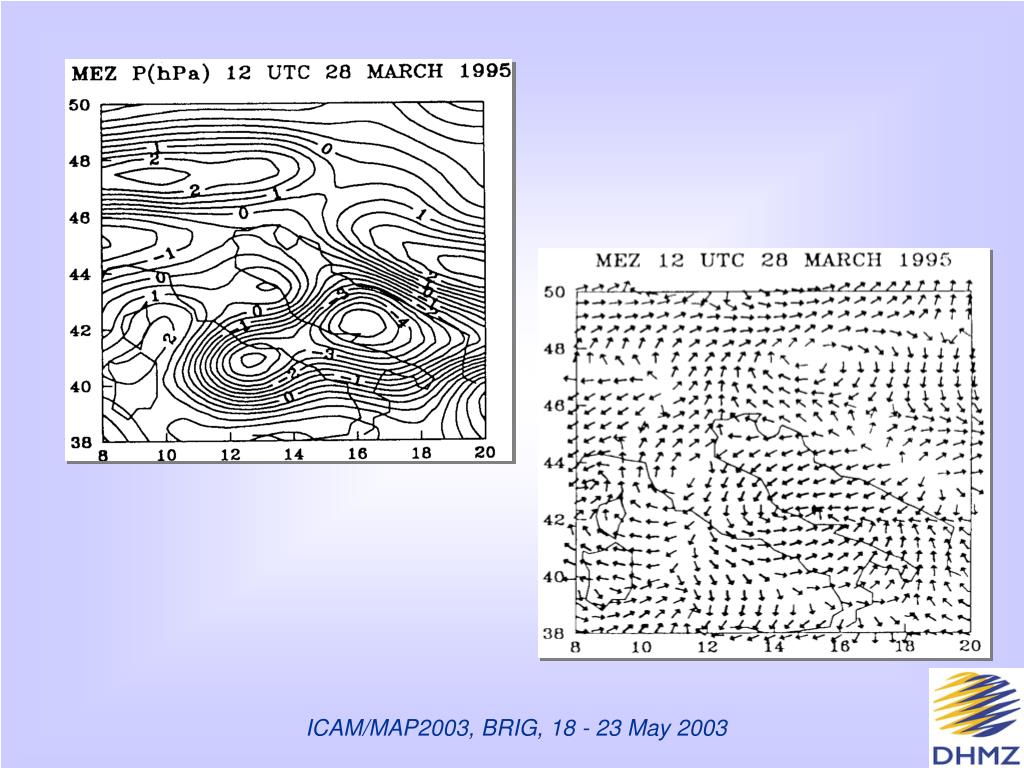

  7. ICAM/MAP2003, BRIG, 18 - 23 May 2003

  8. Focus: On the identification of mesoscale vortices in the high-resolution ALADIN model wind field MAP IOP5 ICAM/MAP2003, BRIG, 18 - 23 May 2003

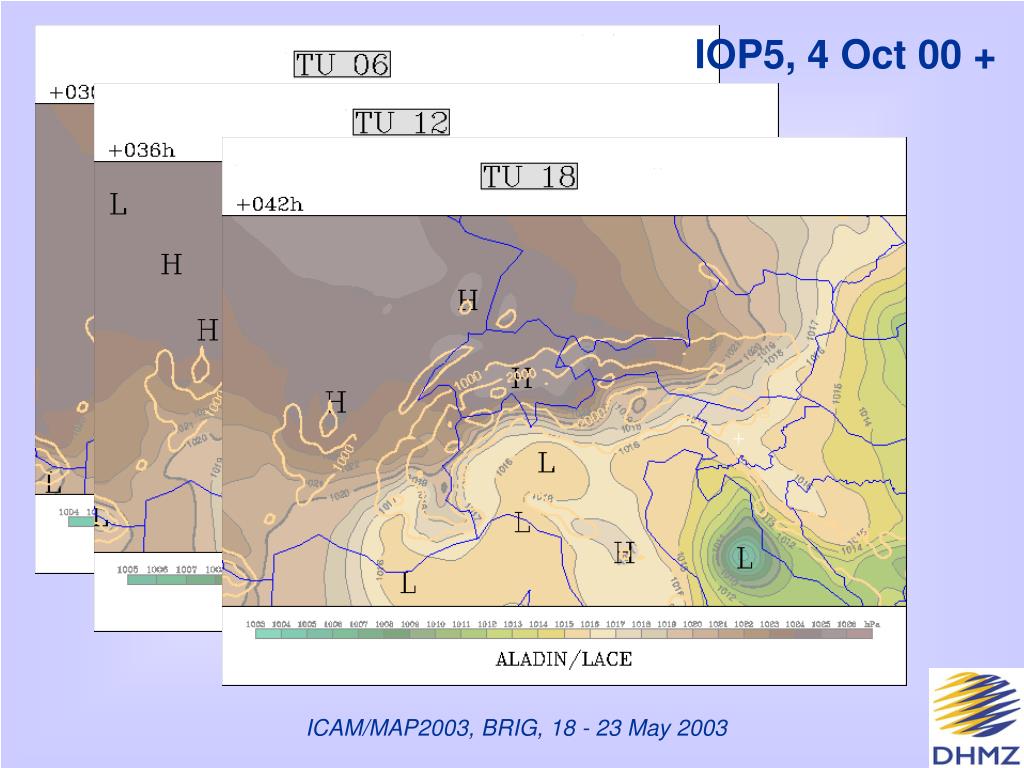

  9. IOP5, 4 Oct 00 + ICAM/MAP2003, BRIG, 18 - 23 May 2003

  10. IOP5, 4 Oct 00 + ICAM/MAP2003, BRIG, 18 - 23 May 2003

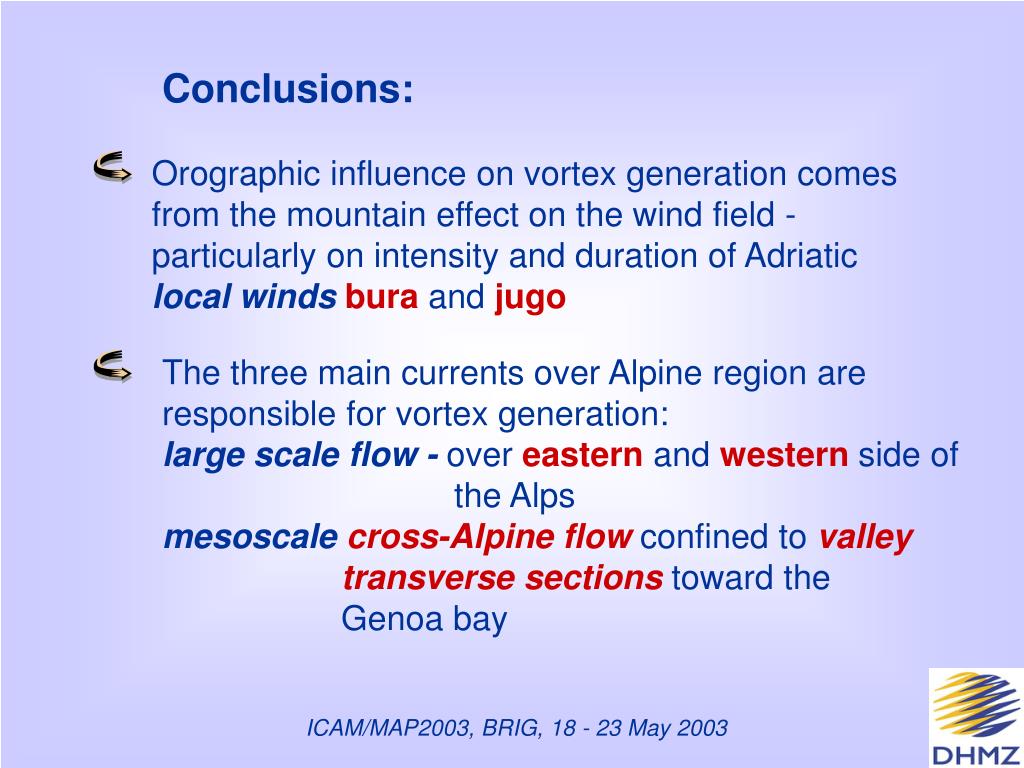

  11. Conclusions: Orographic influence on vortex generation comes from the mountain effect on the wind field - particularly on intensity and duration of Adriatic local windsbura and jugo The three main currents over Alpine region are responsible for vortex generation: large scale flow - over eastern and western side of the Alps mesoscale cross-Alpine flow confined to valley transverse sections toward the Genoa bay ICAM/MAP2003, BRIG, 18 - 23 May 2003
