  1. Product Overview BXR-48000 Switch Router

  2. Objectives • Explain the hardware configuration of the BXR-48000 • Identify the hardware components and their location in the BXR-48000

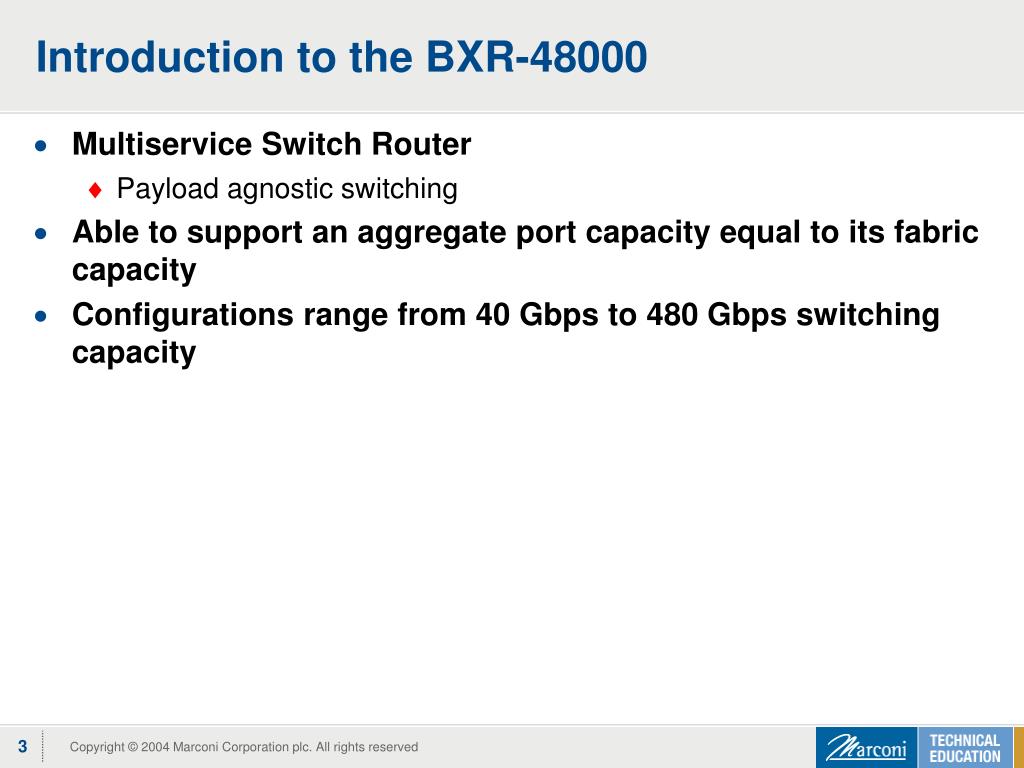

  3. Introduction to the BXR-48000 • Multiservice Switch Router • Payload agnostic switching • Able to support an aggregate port capacity equal to its fabric capacity • Configurations range from 40 Gbps to 480 Gbps switching capacity

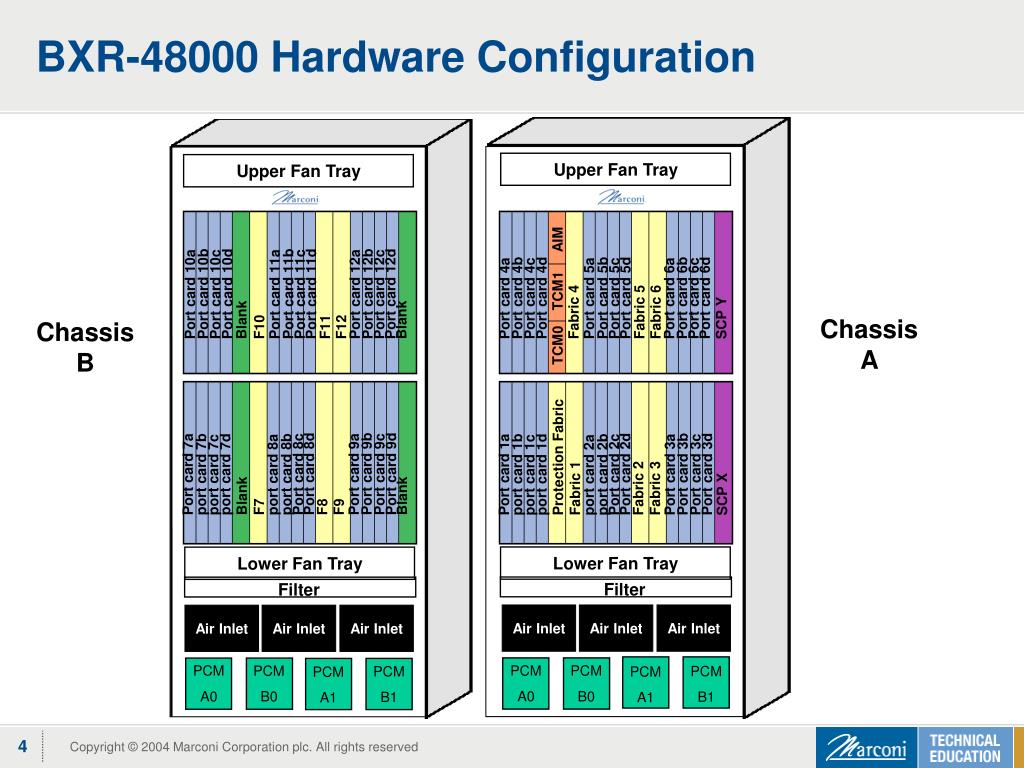

  4. Air Inlet Air Inlet Air Inlet Air Inlet Air Inlet Air Inlet BXR-48000 Hardware Configuration Upper Fan Tray Upper Fan Tray Port card 10a Port card 10b Port card 10c Port card 10d Blank F10 Port card 11a Port card 11b Port card 11c Port card 11d F11 F12 Port card 12a Port card 12b Port card 12c Port card 12d Blank Port card 4a Port card 4b Port card 4c Port card 4d Fabric 4 Port card 5a Port card 5b Port card 5c Port card 5d Fabric 5 Fabric 6 Port card 6a Port card 6b Port card 6c Port card 6d SCP Y TCM0 TCM1 AIM Chassis A Chassis B Port card 1a port card 1b port card 1c port card 1d Protection Fabric Fabric 1 port card 2a port card 2b Port card 2c Port card 2d Fabric 2 Fabric 3 Port card 3a Port card 3b Port card 3c Port card 3d SCP X Port card 7a port card 7b port card 7c port card 7d Blank F7 port card 8a port card 8b Port card 8c Port card 8d F8 F9 Port card 9a Port card 9b Port card 9c Port card 9d Blank Lower Fan Tray Lower Fan Tray Filter Filter PCM A0 PCM A0 PCM B0 PCM B0 PCM B1 PCM B1 PCM A1 PCM A1

  5. Port Layout – Fabric 6 Example Port Numbers 1 8 16 1 2 3 4 Fabric 6 SCP Y Ports for Fabric 6 are identified as 6A1, 6B16, etc. 6B16 C D B Slots A

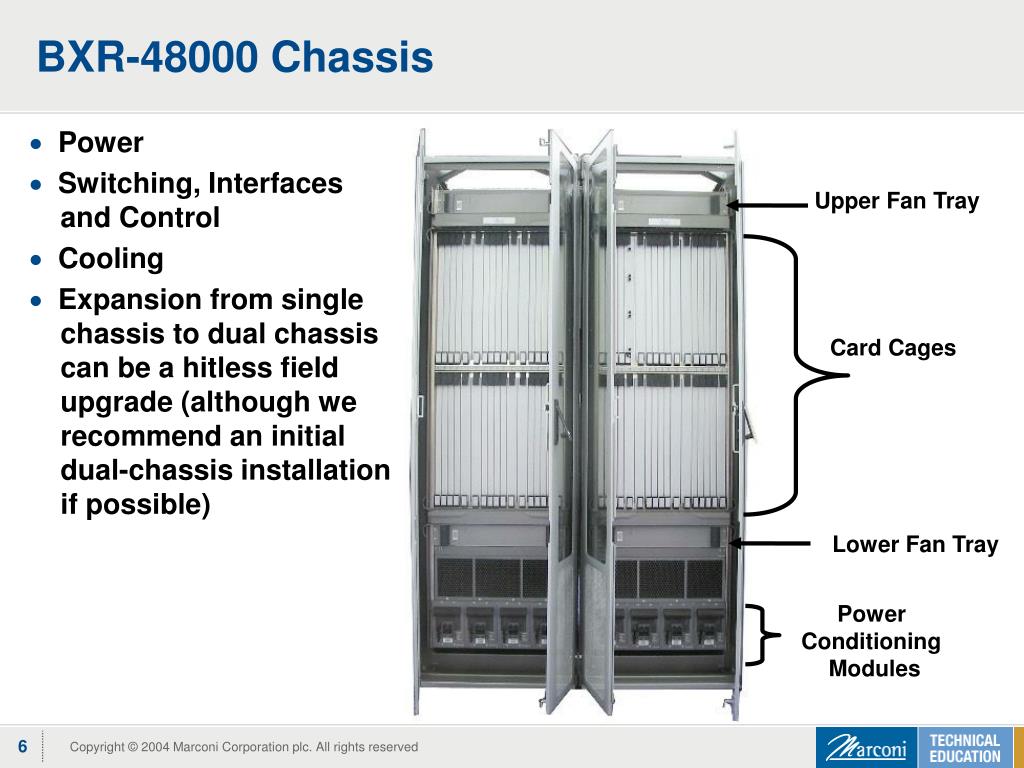

  6. BXR-48000 Chassis • Power • Switching, Interfaces and Control • Cooling • Expansion from single chassis to dual chassis can be a hitless field upgrade (although we recommend an initial dual-chassis installation if possible) Upper Fan Tray Card Cages Lower Fan Tray Power Conditioning Modules

  7. + Serial Port Ethernet Port Display NEXT Button SELECT Button NMI Button Reset Button System LEDs BXR-48000 SCP Y X

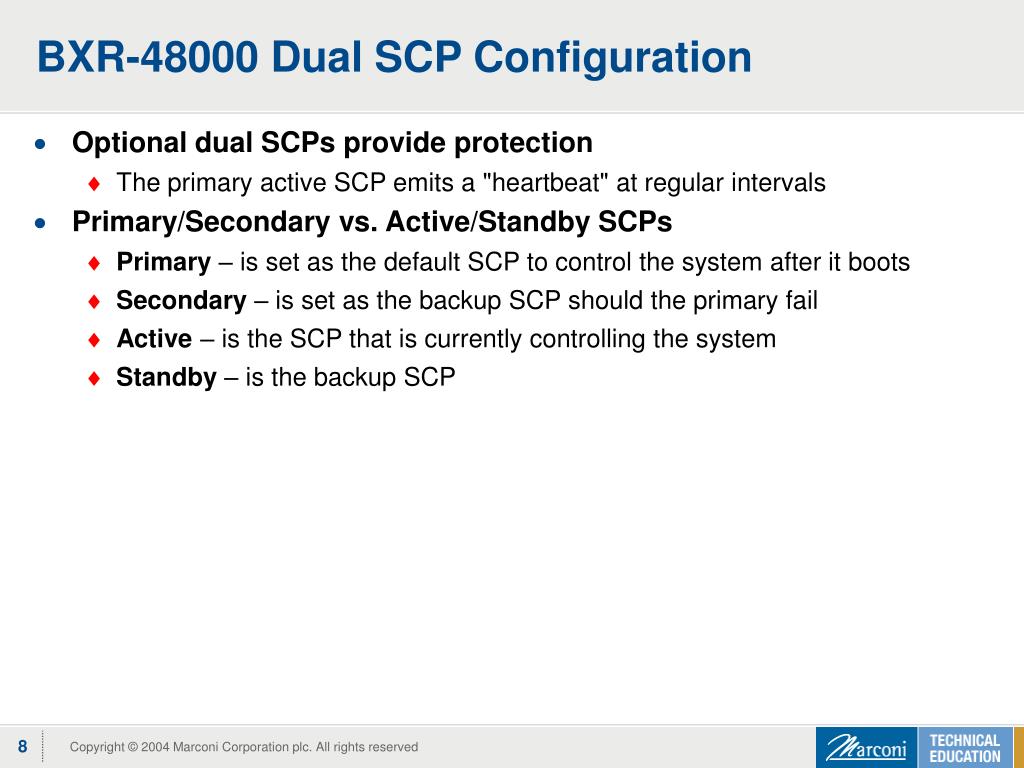

  8. BXR-48000 Dual SCP Configuration • Optional dual SCPs provide protection • The primary active SCP emits a "heartbeat" at regular intervals • Primary/Secondary vs. Active/Standby SCPs • Primary – is set as the default SCP to control the system after it boots • Secondary – is set as the backup SCP should the primary fail • Active – is the SCP that is currently controlling the system • Standby – is the backup SCP

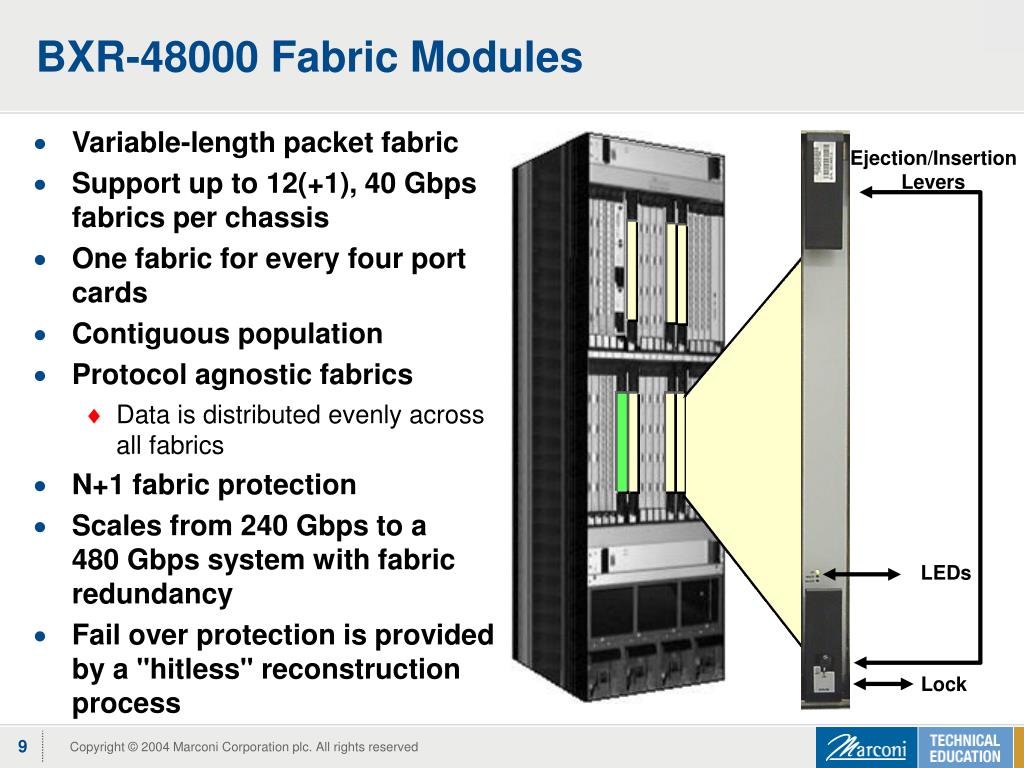

  9. + Ejection/Insertion Levers LEDs Lock BXR-48000 Fabric Modules • Variable-length packet fabric • Support up to 12(+1), 40 Gbps fabrics per chassis • One fabric for every four port cards • Contiguous population • Protocol agnostic fabrics • Data is distributed evenly across all fabrics • N+1 fabric protection • Scales from 240 Gbps to a 480 Gbps system with fabric redundancy • Fail over protection is provided by a "hitless" reconstruction process

  10. + BXR-48000 Port Cards • Input/Output Modules • Each port card supports up to 10 Gbps of full-duplex capacity • Three types: • ATM • IP-Aware (IPA) ATM • Packet over SONET (POS) OC-3c OC-12c LEDs OC-48c

  11. ATM Port Cards • Cell-based interfaces capable of normal ATM functions • PVC, SVC, SPVC • Traffic management, per-VC queuing, scheduling • ILMI, PNNI routing • ATM port card hardware • 16 port OC-3c/STM-1 in multimode and single mode • 16 port OC-12c/STM-4* in multimode and single mode • 4 port OC-48c/STM-16 in single mode • 1 port OC-192c/STM-64 in single mode * Each port configurable as OC-12c/STM-4 or OC-3c/STM-1 Ejection/Insertion Levers (with locks)

  12. IP-Aware (IPA) ATM Port Cards • An IP-aware ATM interface has ATM capabilities plus capabilities in an IP/MPLS network: • Hop-by-hop routing when there is no LSP for the destination • Can originate or terminate an LSP, encapsulating/decapsulating packets using RFC 1483/2684 (bridged/routed PVCs) • Support for ATM and MPLS control planes on the same port • Pseudo Wire Emulation Edge-to-Edge (PWE3) • Provider Edge (PE) capability • A topology change can make a transit LSR become an LER, the IPA card performs both roles. • Ingress and egress to the MPLS network require IP look-ups • A network failure could cause a transit LSR to unexpectedly become an LER that cannot perform IP lookups

  13. IPA ATM Port Card Hardware • Port card types, listed by interface: • 8 port OC-3c/STM-1 in multimode and single mode • 8 port OC-12c/STM-4* in multimode and single mode • 2 port OC-48c/STM-16 in single mode * Each port configurable as OC-12c/STM-4 or OC-3c/STM-1

  14. Packet over SONET (POS) Port Cards • SONET-based IP interfaces allow direct connection of IP devices • OC-12c and OC-48c POS port cards can be trunks for aggregated IP traffic • Hop-by-hop routing supported • Can originate or terminate an LSP • Provider Edge (PE) functionality • Multiservice capability over MPLS with PWE3 toward the network core

  15. POS Port Card Hardware • Port card types, listed by interface: • 12 port OC-3c/STM-1 in multimode and single mode • 12 port OC-12c/STM-4* in multimode and single mode • 4 port OC-48c/STM-16 in single mode * Each port configurable as OC-12c/STM-4 or OC-3c/STM-1

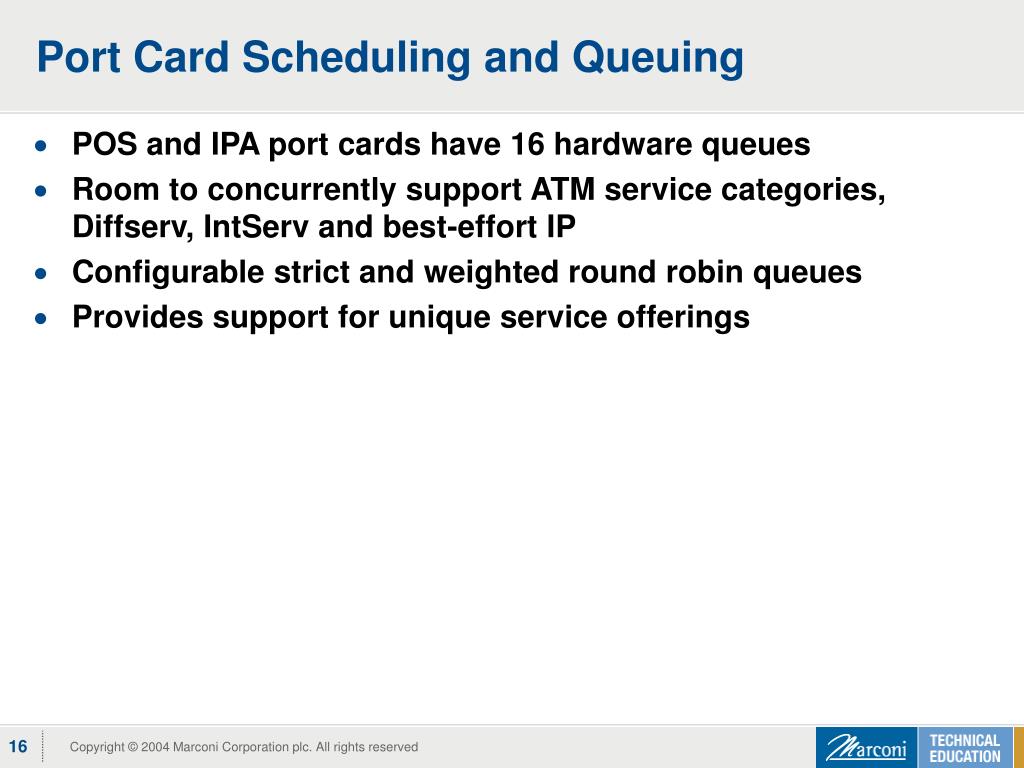

  16. Port Card Scheduling and Queuing • POS and IPA port cards have 16 hardware queues • Room to concurrently support ATM service categories, Diffserv, IntServ and best-effort IP • Configurable strict and weighted round robin queues • Provides support for unique service offerings

  17. + TCM Card Carrier BXR-48000 Card Carrier/TCM • The card carrier supports: • TCM and AIM • The TCM(s) are optionally redundant • The TCM provides system synchronization and manages the timing sources: • Primary and secondary line timing sources • Redundant BITS sources • Internal Stratum 3E clock • TCM(s) are located on chassis A only

  18. + AIM Card Carrier BXR-48000 Card Carrier/AIM • Supports five alarm relays • Has six LEDs which are: • LED1 - OK (green) • LED2 - Critical Alarm (blinking red) • LED3 - Major Alarm (red) • LED4 - Minor Alarm (amber) • LED5 - Unused • LED6 - Unused • Located on chassis A only

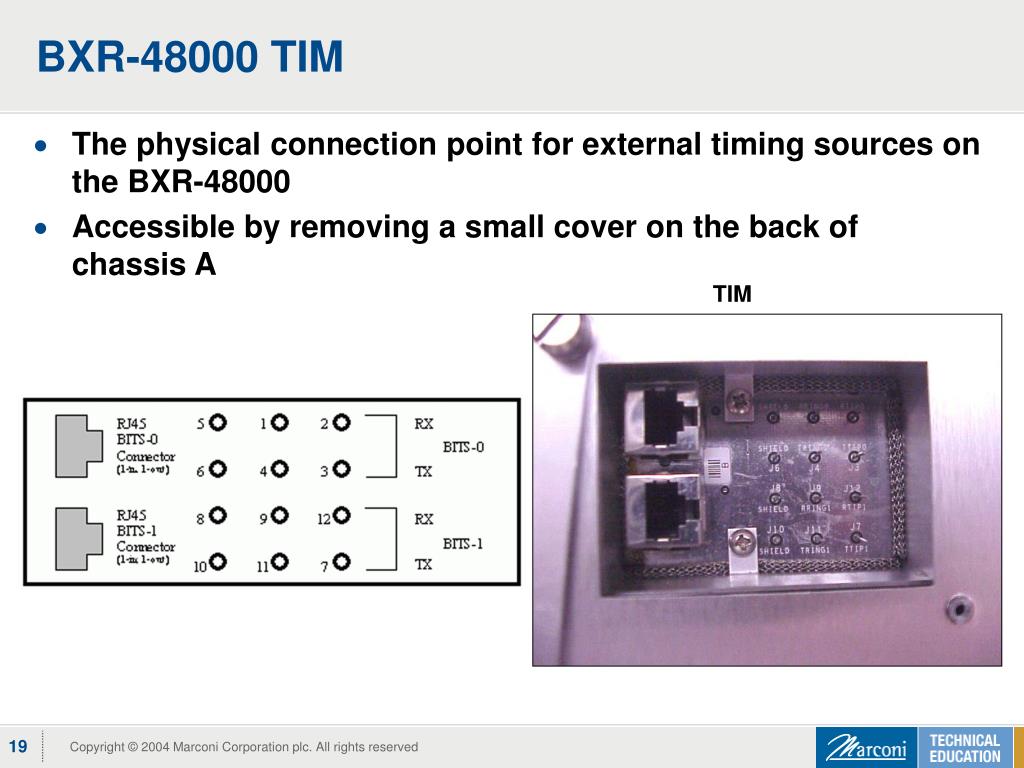

  19. BXR-48000 TIM • The physical connection point for external timing sources on the BXR-48000 • Accessible by removing a small cover on the back of chassis A TIM

  20. + PCM BXR-48000 PCMs • Requires –48v DC power • 2(+2) redundancy per chassis • PCMs provide: • EMI filtering • Short-term energy storage • Reverse feed polarity protection • Reverse discharge protection • Surge suppression • Under voltage trip PCM B1 PCM A1 PCM B0 PCM A0

  21. + Fan Trays BXR-48000 System Cooling Air Exhaust Protective Screen • Two removable fan trays with four fans in each tray • If a single fan fails, the remaining seven fans increase speed to compensate for the loss • Filter and protective screen keeps debris from the chassis Filter Air inlet

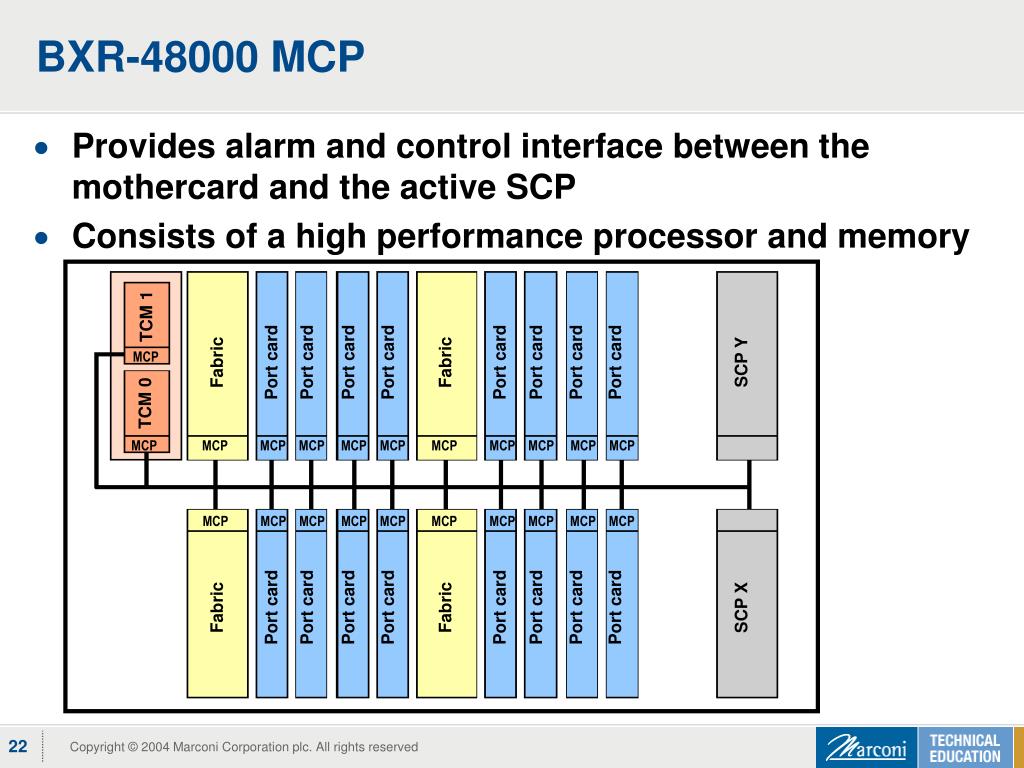

  22. Fabric Port card Port card Port card Port card Fabric Port card Port card Port card Port card SCP Y TCM 1 MCP Fabric Port card Port card Port card Port card Fabric Port card Port card Port card Port card SCP X TCM 0 MCP MCP MCP MCP MCP MCP MCP MCP MCP MCP MCP MCP MCP MCP MCP MCP MCP MCP MCP MCP MCP BXR-48000 MCP • Provides alarm and control interface between the mothercard and the active SCP • Consists of a high performance processor and memory

  23. BXR-48000 Cable Management System • Two cable management systems per chassis located: • Above the upper card cage • Below the lower card cage • Organize and protect fiber cables in the chassis Protective Doors Cable Management Cable Management

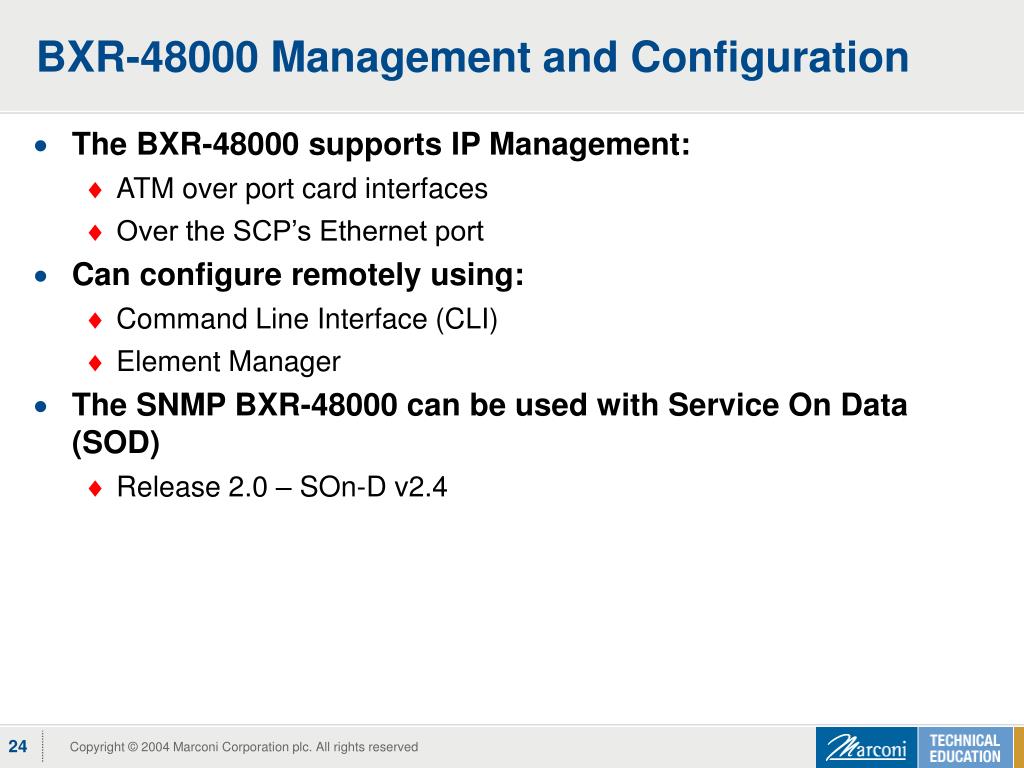

  24. BXR-48000 Management and Configuration • The BXR-48000 supports IP Management: • ATM over port card interfaces • Over the SCP’s Ethernet port • Can configure remotely using: • Command Line Interface (CLI) • Element Manager • The SNMP BXR-48000 can be used with Service On Data (SOD) • Release 2.0 – SOn-D v2.4

  25. Summary • Explained the hardware configuration of the BXR-48000 • Identified the hardware components and their location in the BXR-48000
