How Incremental Encoders Can Be A Beneficial Solution

1. How Incremental Encoders Can Be A Beneficial Solution If you are an industry or engineering professional looking for a solution that can provide you with accurate feedback, then you are in the right place. Incremental encoders can give you valuable data based on real-time measurements. All applications, from heavy-duty to light and servo, make use of this encoder. They can also offer you insight into distance using linear or rotary output signals. In this blog, we will discuss incremental encoders and their benefits. What is An Incremental Encoder? It works by converting the position or angular motion of a shaft. The encoded data can be translated into analog or digital code to recognize the motion or position. The primary purpose of incremental encoders is to position and adjust motor speed in feedback-based applications such as industrial or light/servo. It alters the shaft's angular stance, then converts it into a pulse or a digital signal. It also uses an optical disk in this process. Finally, every revolution generates pulses, and every pulse increments the previously defined resolution. What are the Types of Incremental Encoders? Although all incremental encoders are designed to produce information about the direction and rotational angle, there are still two main types. These are: Rotary Encoder

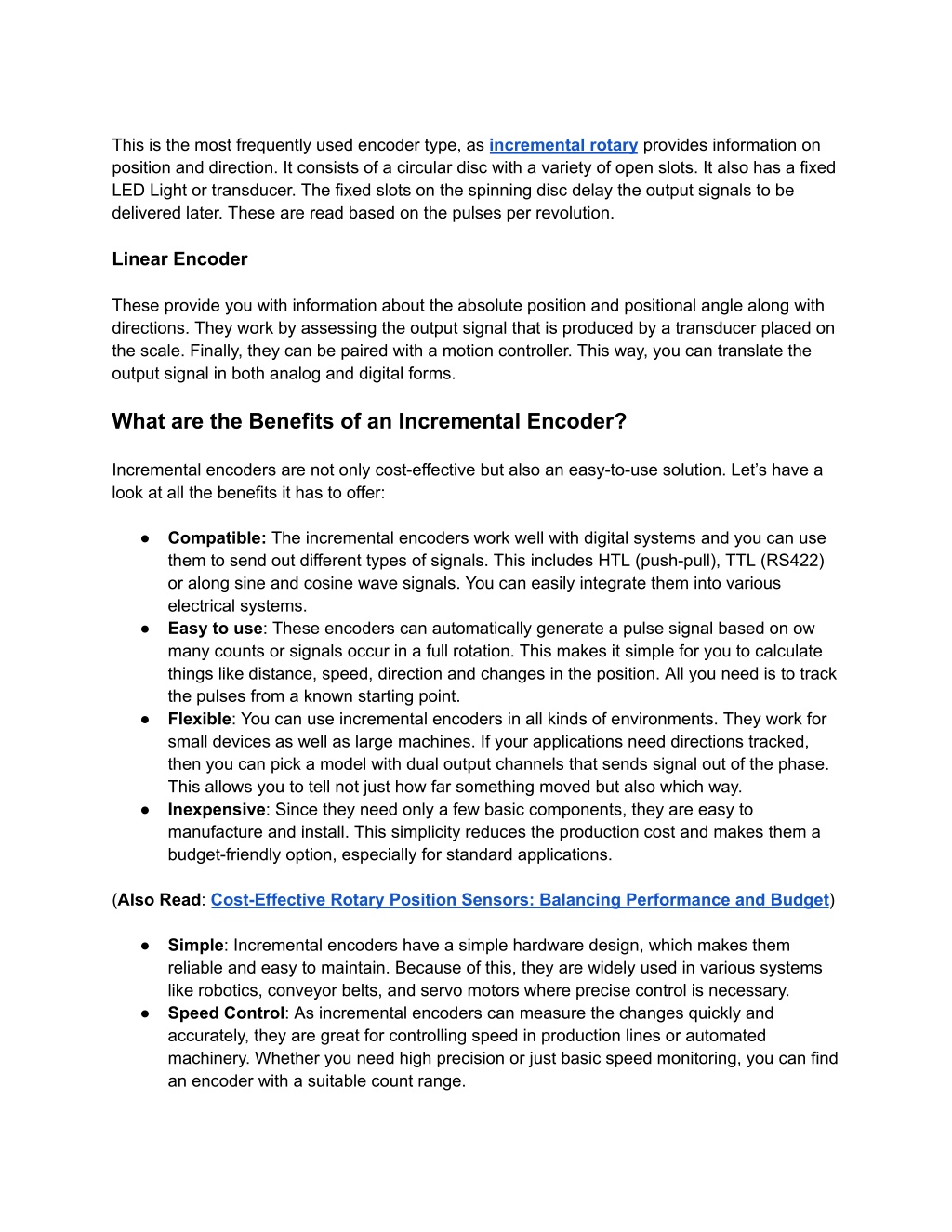

2. This is the most frequently used encoder type, as incremental rotary provides information on position and direction. It consists of a circular disc with a variety of open slots. It also has a fixed LED Light or transducer. The fixed slots on the spinning disc delay the output signals to be delivered later. These are read based on the pulses per revolution. Linear Encoder These provide you with information about the absolute position and positional angle along with directions. They work by assessing the output signal that is produced by a transducer placed on the scale. Finally, they can be paired with a motion controller. This way, you can translate the output signal in both analog and digital forms. What are the Benefits of an Incremental Encoder? Incremental encoders are not only cost-effective but also an easy-to-use solution. Let’s have a look at all the benefits it has to offer: ● Compatible: The incremental encoders work well with digital systems and you can use them to send out different types of signals. This includes HTL (push-pull), TTL (RS422) or along sine and cosine wave signals. You can easily integrate them into various electrical systems. ● Easy to use: These encoders can automatically generate a pulse signal based on ow many counts or signals occur in a full rotation. This makes it simple for you to calculate things like distance, speed, direction and changes in the position. All you need is to track the pulses from a known starting point. ● Flexible: You can use incremental encoders in all kinds of environments. They work for small devices as well as large machines. If your applications need directions tracked, then you can pick a model with dual output channels that sends signal out of the phase. This allows you to tell not just how far something moved but also which way. ● Inexpensive: Since they need only a few basic components, they are easy to manufacture and install. This simplicity reduces the production cost and makes them a budget-friendly option, especially for standard applications. (Also Read: Cost-Effective Rotary Position Sensors: Balancing Performance and Budget) ● Simple: Incremental encoders have a simple hardware design, which makes them reliable and easy to maintain. Because of this, they are widely used in various systems like robotics, conveyor belts, and servo motors where precise control is necessary. ● Speed Control: As incremental encoders can measure the changes quickly and accurately, they are great for controlling speed in production lines or automated machinery. Whether you need high precision or just basic speed monitoring, you can find an encoder with a suitable count range.

3. Bottom Line There are endless types of encoders from optical to electromagnetic and absolute encoders which can fulfill all kinds of industrial or engineering needs. You can pick from this wide selection to use in servo settings or DC motors to get true information on position and direction. For any queries related to encoders for an assembly line, feel free to contact us at brt@briterencoder.com.
