Section 2.7 – A Preview of Transformations

Section 2.7 – A Preview of Transformations. Objective: Identify the transformation(s) from one function to another Standard: 2.8.11.Q. Represent functional relationships in tables, charts, and graphs. Parent Functions. Quadratic Function f(x) = x 2 Absolute Value Function f(x) = lxl

brittany-perez
Télécharger la présentation

Section 2.7 – A Preview of Transformations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Section 2.7 – A Preview of Transformations • Objective: • Identify the transformation(s) from one function to another • Standard: • 2.8.11.Q. Represent functional relationships in tables, charts, and graphs

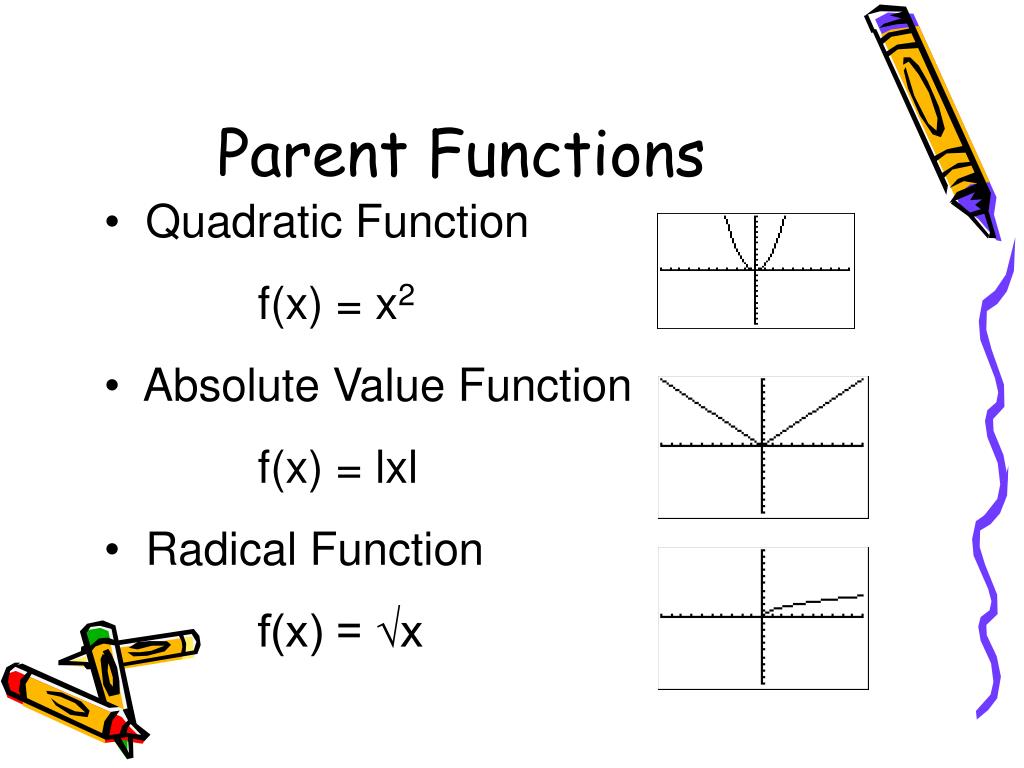

  2. Parent Functions • Quadratic Function • f(x) = x2 • Absolute Value Function • f(x) = lxl • Radical Function • f(x) = √x

  3. Vertical Translations • Consider the Quadratic parent function • How can we move this graph 2 spaces up? • How about 4 spaces down?

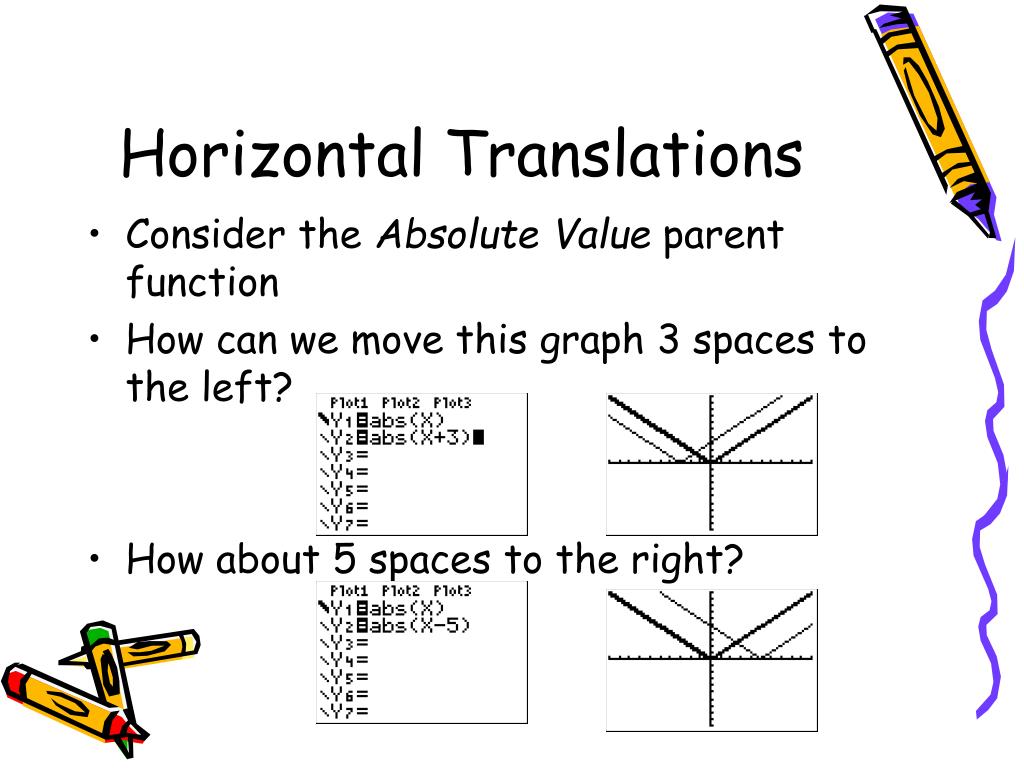

  4. Horizontal Translations • Consider the Absolute Value parent function • How can we move this graph 3 spaces to the left? • How about 5 spaces to the right?

  5. Vertical Stretch and Compression • Consider the Radical parent function • How can we vertically stretch this graph by a factor of 4? • How can we vertically compress this graph by a factor of ½ ?

  6. Horizontal Stretch and Compression • Lets consider the Quadratic parent function. • How can we horizontally stretch this graph by a factor of 4? • How can we horizontally compress this graph by a factor of ⅓?

  7. Reflections • Let’s consider the Radical parent function • How can we Vertically Reflect (across the x-axis) this graph? • How can we Horizontally Reflect (across the y-axis) this graph?

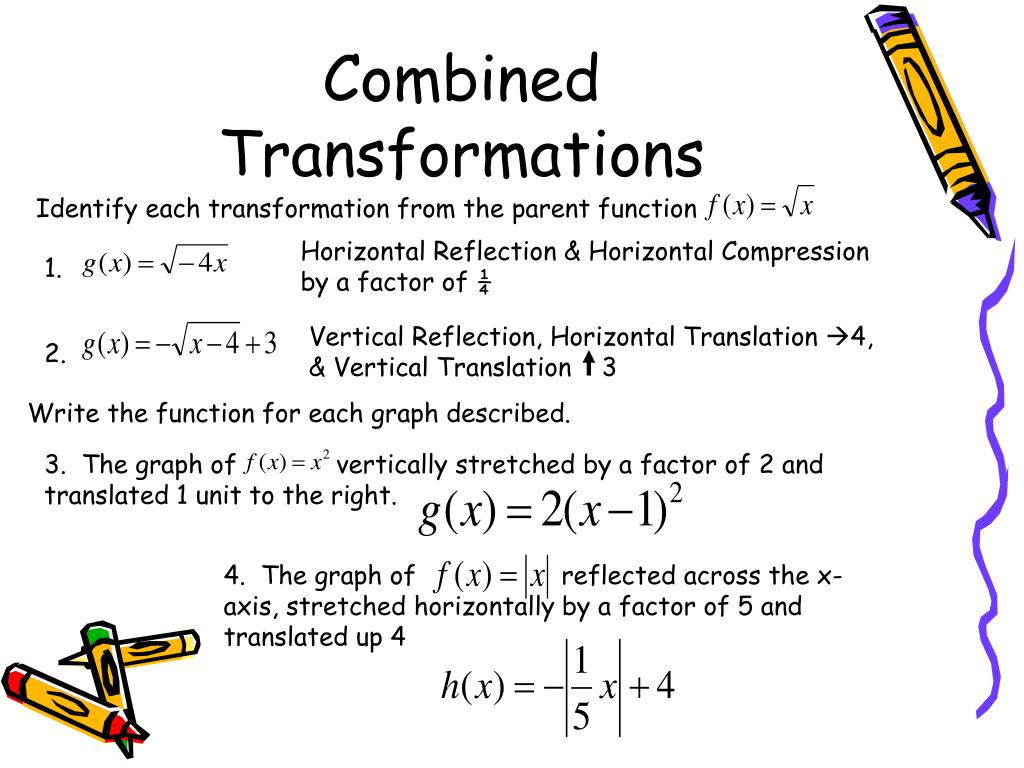

  8. Identify each transformation from the parent function 1. Vertical Reflection, Horizontal Translation 4, & Vertical Translation 3 2. 3. The graph of vertically stretched by a factor of 2 and translated 1 unit to the right. 4. The graph of reflected across the x-axis, stretched horizontally by a factor of 5 and translated up 4 Combined Transformations Horizontal Reflection & Horizontal Compression by a factor of ¼ Write the function for each graph described.

  9. Summary

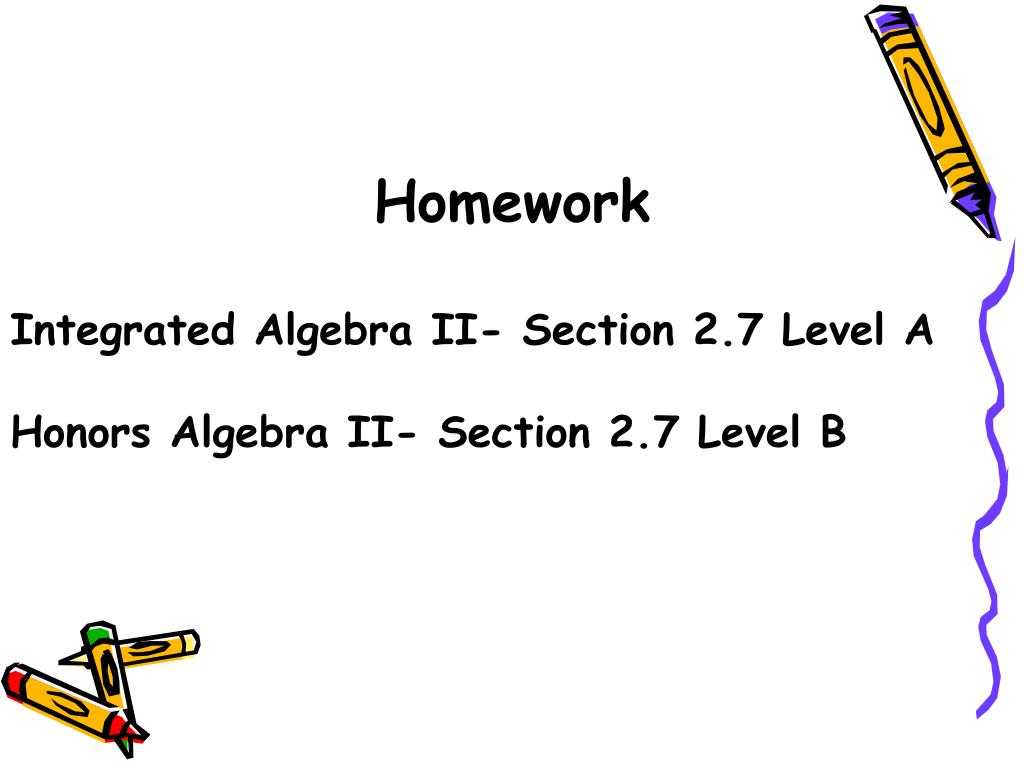

  10. Homework Integrated Algebra II- Section 2.7 Level A Honors Algebra II- Section 2.7 Level B
