Visual Descent Point (VDP) Timing Method. FAF. seconds from FAF to MAP. MAP. -. seconds from FAF to VDP. VDP. =. seconds from VDP to MAP. Visual Descent Point (VDP) Height Above Touchdown (HAT) Method. FAF. 1600 MSL. MAP. VDP. MDA 600 MSL. HAT = 1600 - 200 = 1400

brock-holder
Télécharger la présentation

seconds from FAF to MAP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Visual Descent Point (VDP) Timing Method FAF seconds from FAF to MAP MAP - seconds from FAF to VDP VDP = seconds from VDP to MAP

  2. Visual Descent Point (VDP) Height Above Touchdown (HAT) Method FAF 1600 MSL MAP VDP MDA 600 MSL HAT = 1600 - 200 = 1400 1400/300 = 4.67 NM TDZE 200 MSL 300 feet per NM

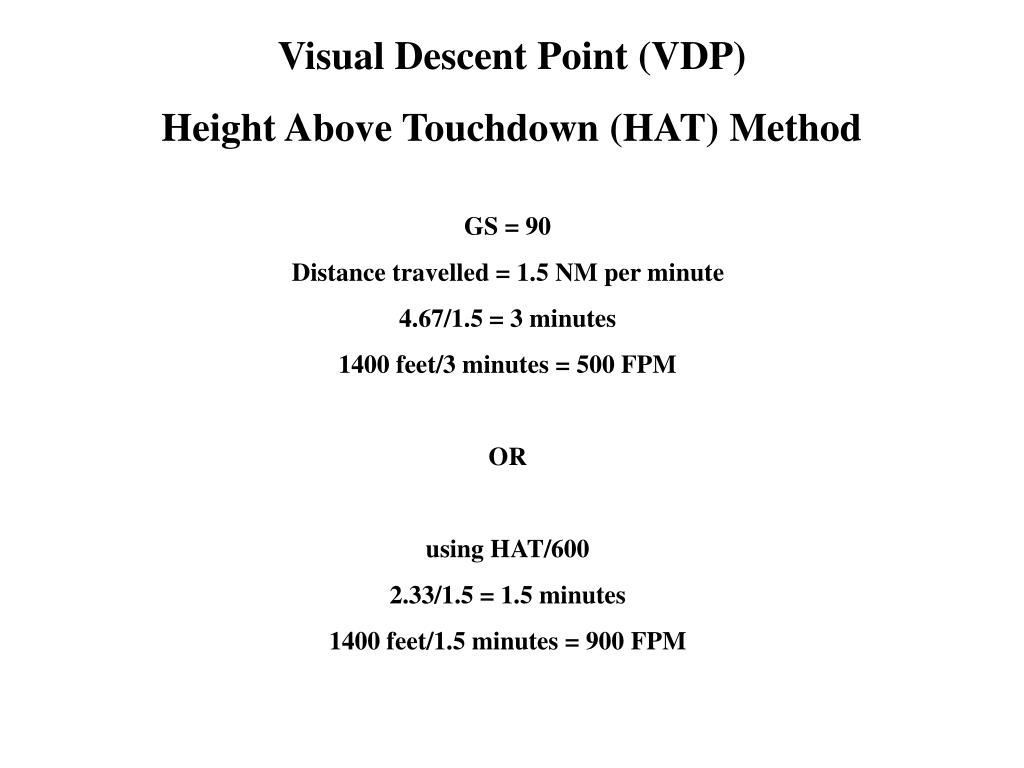

  3. Visual Descent Point (VDP) Height Above Touchdown (HAT) Method GS = 90 Distance travelled = 1.5 NM per minute 4.67/1.5 = 3 minutes 1400 feet/3 minutes = 500 FPM OR using HAT/600 2.33/1.5 = 1.5 minutes 1400 feet/1.5 minutes = 900 FPM
