  1. Sockets Programming in UNIX References: Internetworking with TCP/IP Vol III - BSD version UNIX Network Programming - W. Richard Stevens CS490D (cotter)

  2. Sockets Programming in UNIX • UNIX Socket API functions • Example TCP / UDP Clients • Example TCP / UDP Servers CS423 (cotter)

  3. Basic Socket FunctionsServer(UNIX) • Create a socket of a particular type • retcode = socket (family, type, protocol ) • s = socket (PF_INET, SOCK_STREAM, 0) • returns socket number or -1 on error • Bind that socket to a specific port • retcode = bind (socket, localaddr, addrlen ) • n = bind (s, (struct sockaddr *)myaddr, sizeof(myaddr)) • returns 0 on success, -1 on fail CS423 (cotter)

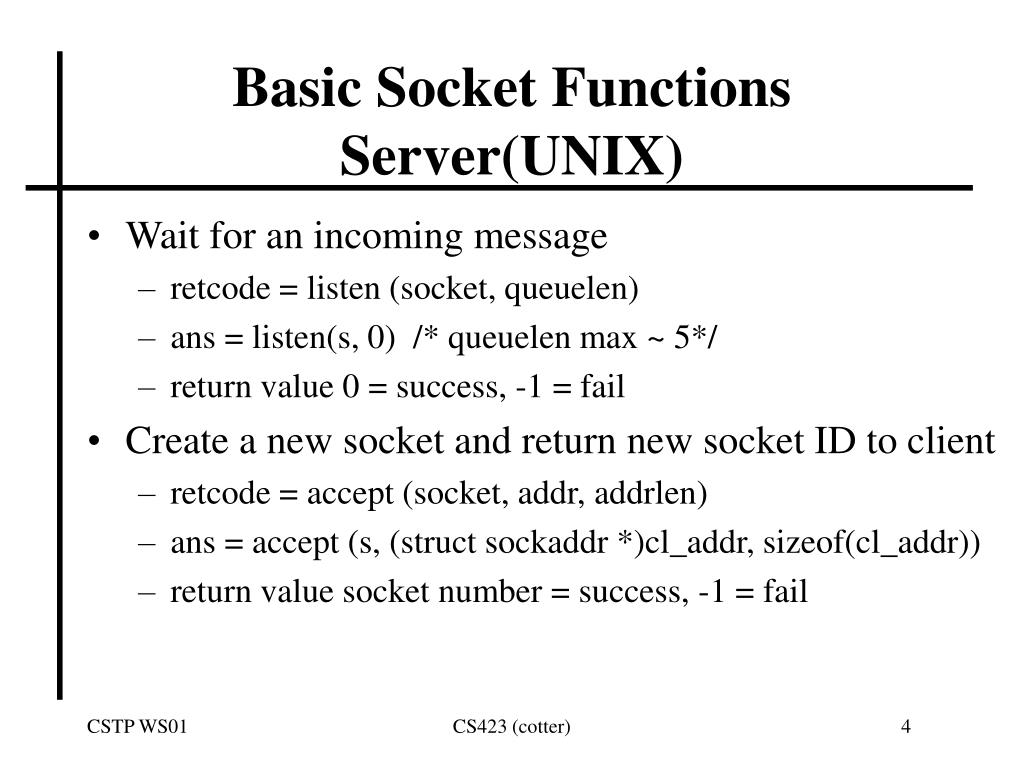

  4. Basic Socket FunctionsServer(UNIX) • Wait for an incoming message • retcode = listen (socket, queuelen) • ans = listen(s, 0) /* queuelen max ~ 5*/ • return value 0 = success, -1 = fail • Create a new socket and return new socket ID to client • retcode = accept (socket, addr, addrlen) • ans = accept (s, (struct sockaddr *)cl_addr, sizeof(cl_addr)) • return value socket number = success, -1 = fail CS423 (cotter)

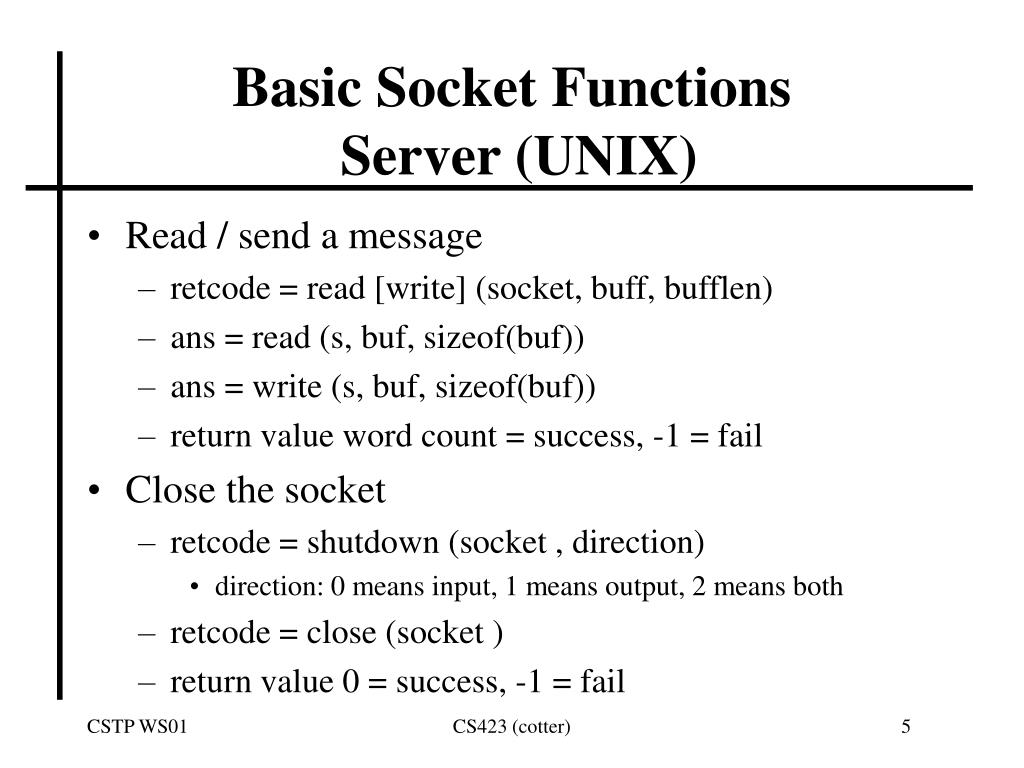

  5. Basic Socket Functions Server (UNIX) • Read / send a message • retcode = read [write] (socket, buff, bufflen) • ans = read (s, buf, sizeof(buf)) • ans = write (s, buf, sizeof(buf)) • return value word count = success, -1 = fail • Close the socket • retcode = shutdown (socket , direction) • direction: 0 means input, 1 means output, 2 means both • retcode = close (socket ) • return value 0 = success, -1 = fail CS423 (cotter)

  6. Basic Socket FunctionsClient (UNIX) • Create a socket of a particular type • Socket ( ) • Establish a connection to a remote Port/Socket • retcode = connect (socket, addr, addrlen) • ans = connect (s, (struct sockaddr *)&svr, sizeof(svr)) • return value 0 = success, -1 = fail • Send and receive messages to/from remote socket • Read ( ) / Write ( ) • Close the socket • Close ( ) CS423 (cotter)

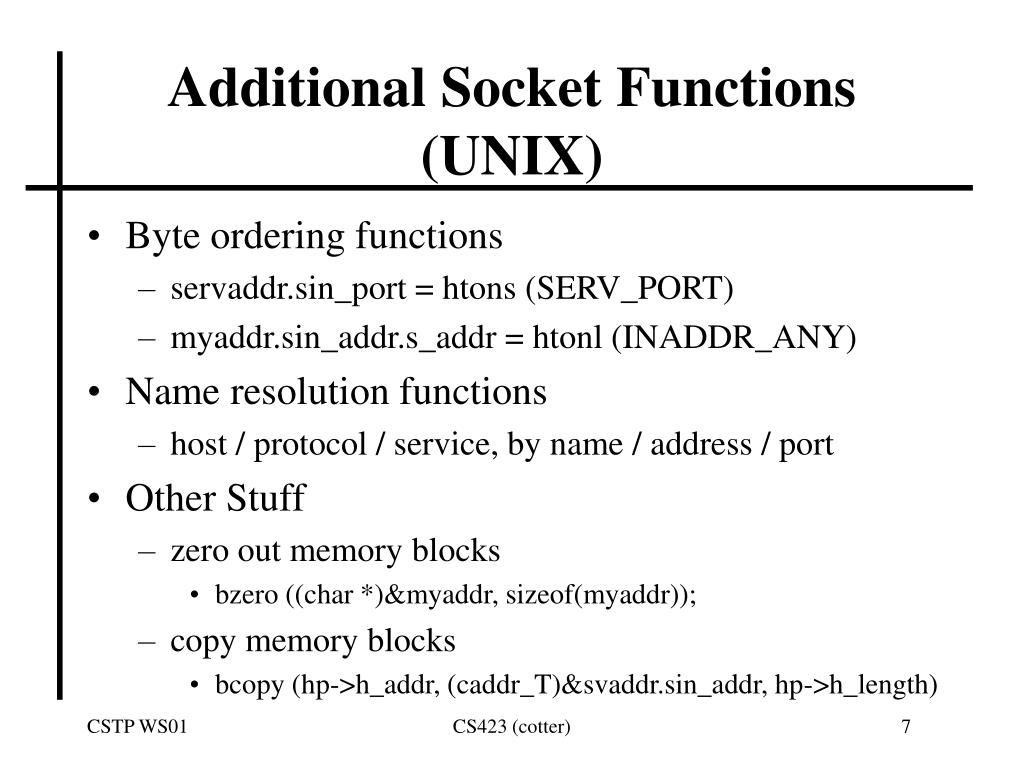

  7. Additional Socket Functions(UNIX) • Byte ordering functions • servaddr.sin_port = htons (SERV_PORT) • myaddr.sin_addr.s_addr = htonl (INADDR_ANY) • Name resolution functions • host / protocol / service, by name / address / port • Other Stuff • zero out memory blocks • bzero ((char *)&myaddr, sizeof(myaddr)); • copy memory blocks • bcopy (hp->h_addr, (caddr_T)&svaddr.sin_addr, hp->h_length) CS423 (cotter)

  8. Example UNIX Client • Develop a set of procedures that can be used by other programs to implement client / server. int connectTCP (host, service) int connectsock(host, service, “tcp”) [identify service, host, port] [get a socket] [connect to service / host / port] [return socket number] CS423 (cotter)

  9. Example UNIX ClientconnectTCP.c int connectTCP (char *host, char *service) { return connectsock (host, service, “tcp”); } CS423 (cotter)

  10. Example UNIX Clientconnectsock.c #include <sys/types.h>, <sys/socket.h>, <netinet/in.h>,<netdb.h> int connectsock (char *host, char *service, char *protocol) { struct hostent *phe; struct servent *pse; struct protoent *ppe; struct sockaddr_in sin; int s, type; CS423 (cotter)

  11. Example UNIX Clientconnectsock.c bzero ((char *)&sin, sizeof (sin)); sin.sin_family = AF_INET; if (pse = getservbyname (service, protocol) ) sin.sin_port = pse ->s_port; else if ( (sin.sin_port = htons((u_short)atoi(service))) == 0) error_exit (“can’t get %s service\n”, service); if (phe = gethostbyname (host) ) bcopy(phe->h_addr, (char *)&sin.sin_addr, phe->h_length); else if ((sin.sin_addr.s_addr = inet_addr(host)) == INADDR_NONE) error_exit (“can’t get %s host\n”, host); CS423 (cotter)

  12. Example UNIX Clientconnectsock.c if ( (ppe = getprotobyname (protocol) == 0) error_exit (“can’t get %s host\n”, host); if (strcmp (protocol, “tcp”) == 0) type = SOCK_STREAM; else type = SOCK_DGRAM; if (s = socket (PF_INET, type, ppe->p_proto)) < 0) error_exit (“Can’t create a socket\n”); if (connect (s, (struct sockaddr *)&sin, sizeof(sin)) < 0) error_exit (“can’t connect to remote socket\n”); return s; } CS423 (cotter)

  13. Example UNIX ClientTCPecho.c #include <stdio.h> #define LINELEN 128 int main (argc, argv) { host = argv[1]; service = argv[2]; TCPecho (host, service); exit (0); } CS423 (cotter)

  14. Example UNIX ClientTCPecho.c int TCPecho (char *host, char *service) { char buf[LINELEN+1]; int s, n, outchars, inchars; s = connectTCP (host, service); while (fgets (buf, sizeof(buf), stdin)) { buf[LINELEN] = ‘\0’; outchars = strlen(buf); (void) write (s, buf, outchars); CS423 (cotter)

  15. Example UNIX ClientTCPecho.c for (inchars = 0; inchars < outchars; inchars +=n) { n = read (s, &buf[inchars], outchars - inchars); if (n < 0) error_exit(“socket read failed\n”); } fputs (buf, stdout); } } CS423 (cotter)

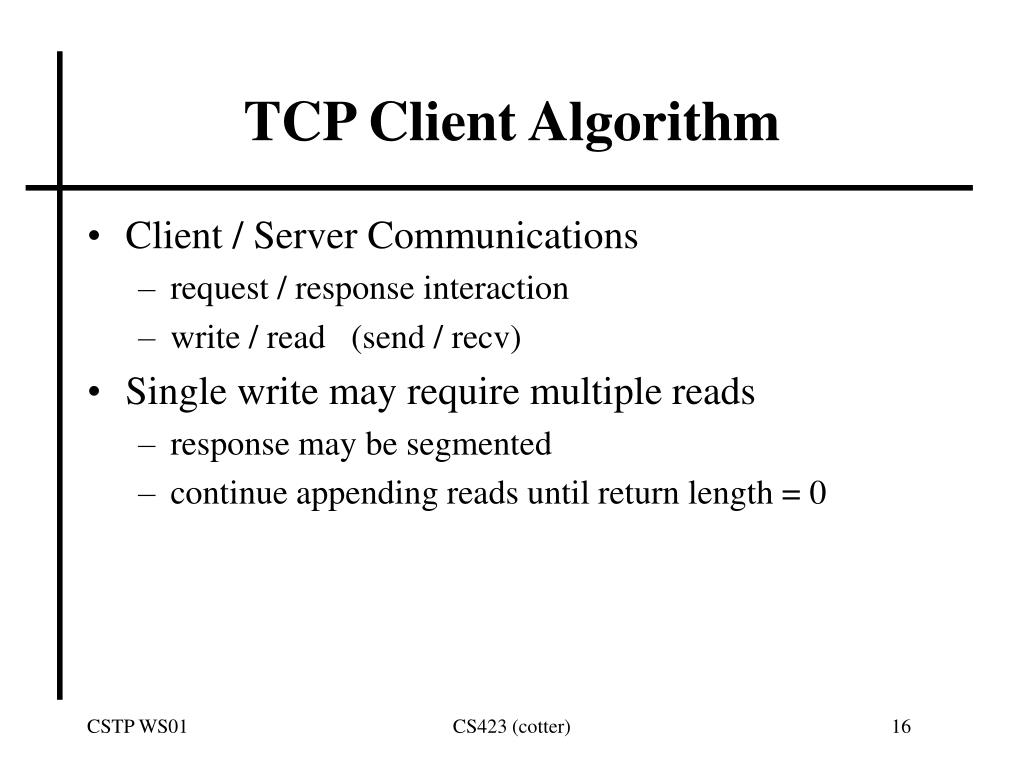

  16. TCP Client Algorithm • Client / Server Communications • request / response interaction • write / read (send / recv) • Single write may require multiple reads • response may be segmented • continue appending reads until return length = 0 CS423 (cotter)

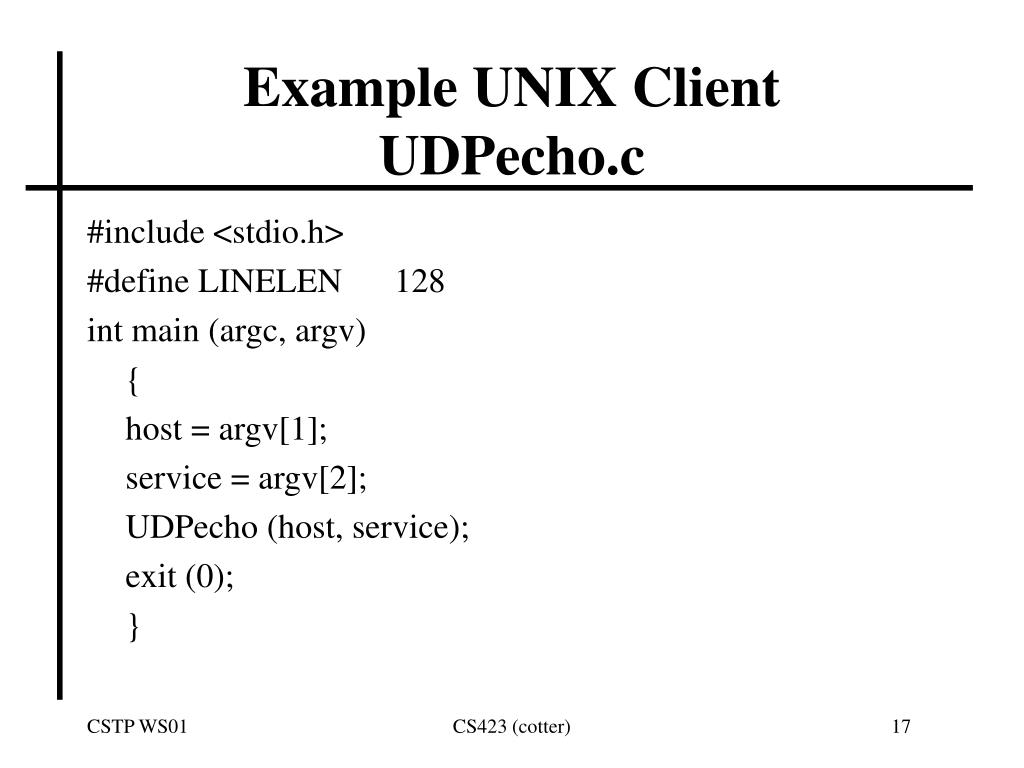

  17. Example UNIX ClientUDPecho.c #include <stdio.h> #define LINELEN 128 int main (argc, argv) { host = argv[1]; service = argv[2]; UDPecho (host, service); exit (0); } CS423 (cotter)

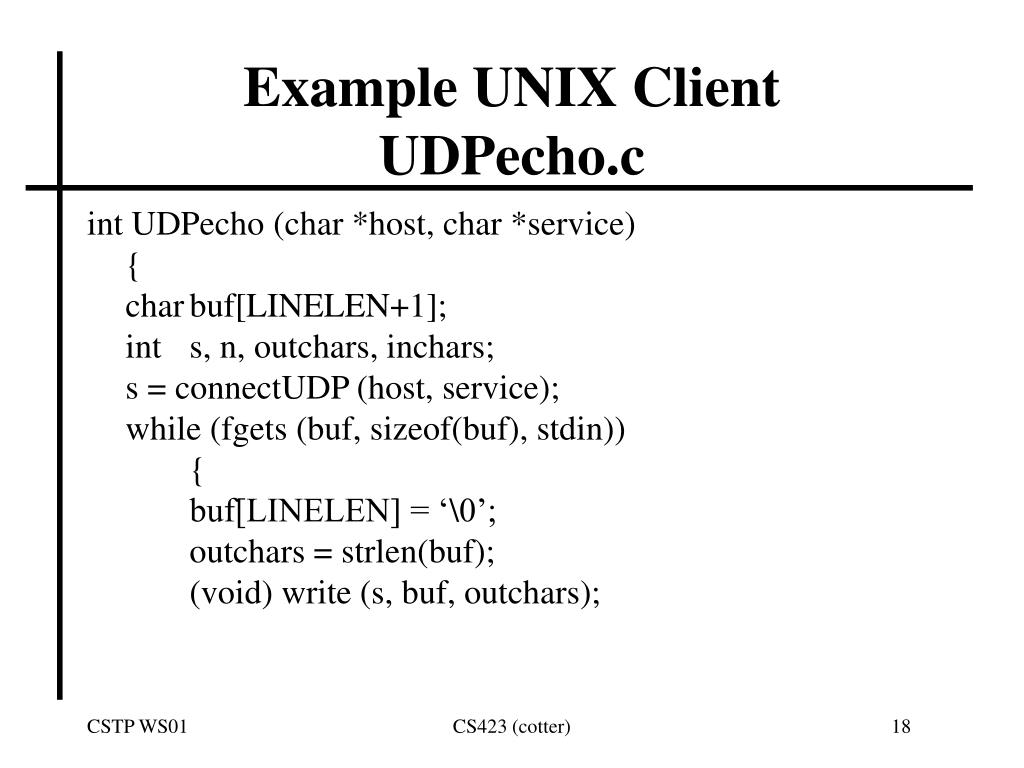

  18. Example UNIX ClientUDPecho.c int UDPecho (char *host, char *service) { char buf[LINELEN+1]; int s, n, outchars, inchars; s = connectUDP (host, service); while (fgets (buf, sizeof(buf), stdin)) { buf[LINELEN] = ‘\0’; outchars = strlen(buf); (void) write (s, buf, outchars); CS423 (cotter)

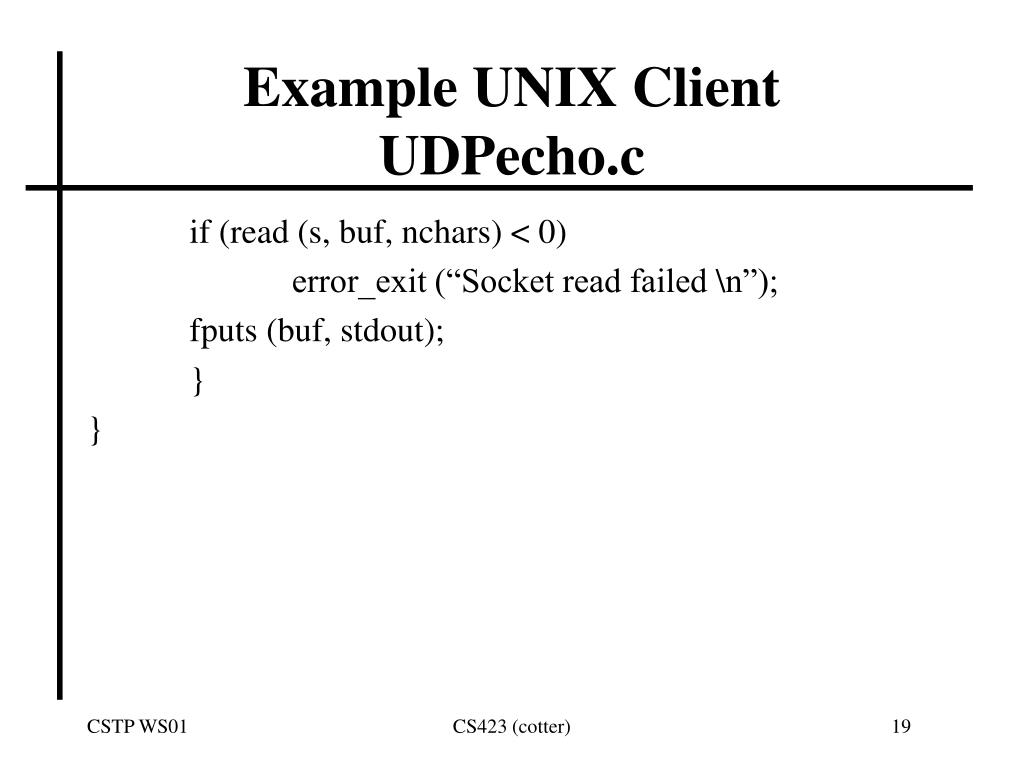

  19. Example UNIX ClientUDPecho.c if (read (s, buf, nchars) < 0) error_exit (“Socket read failed \n”); fputs (buf, stdout); } } CS423 (cotter)

  20. Iterative Connectionless ServersTIME Server /* UDPtimed.c - main */ #include <sys/types.h> #include <sys/socket.h> #include <netinet/in.h> #include <stdio.h> #include <time.h> #include <string.h> extern int errno; int passiveUDP(const char *service); int errexit(const char *format, ...); #define UNIXEPOCH 2208988800 /* UNIX epoch, in UCT secs*/ CS423 (cotter)

  21. Iterative Connectionless ServersTIME Server int main(int argc, char *argv[]) { struct sockaddr_in fsin; /* the from address of a client */ char *service = "time"; /* service name or port number */ char buf[1]; /* "input" buffer; any size > 0 */ int sock; /* server socket */ time_t now; /* current time */ int alen; /* from-address length */ switch (argc) { case 1: break; case 2: service = argv[1]; break; default: errexit("usage: UDPtimed [port]\n"); } CS423 (cotter)

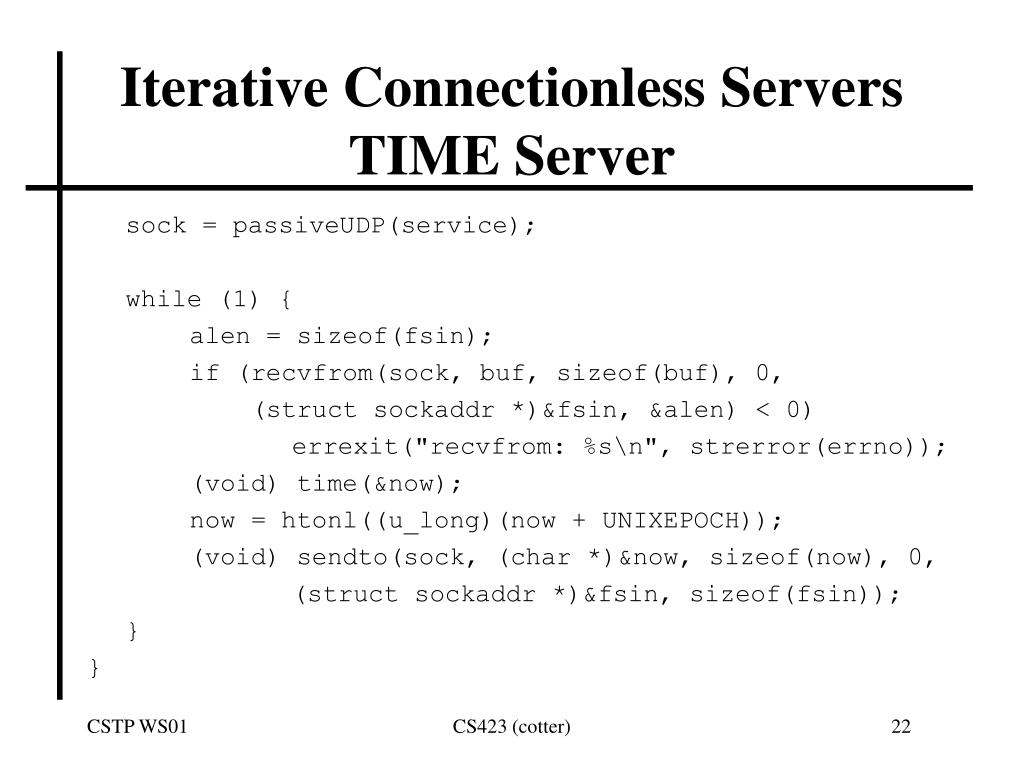

  22. Iterative Connectionless ServersTIME Server sock = passiveUDP(service); while (1) { alen = sizeof(fsin); if (recvfrom(sock, buf, sizeof(buf), 0, (struct sockaddr *)&fsin, &alen) < 0) errexit("recvfrom: %s\n", strerror(errno)); (void) time(&now); now = htonl((u_long)(now + UNIXEPOCH)); (void) sendto(sock, (char *)&now, sizeof(now), 0, (struct sockaddr *)&fsin, sizeof(fsin)); } } CS423 (cotter)

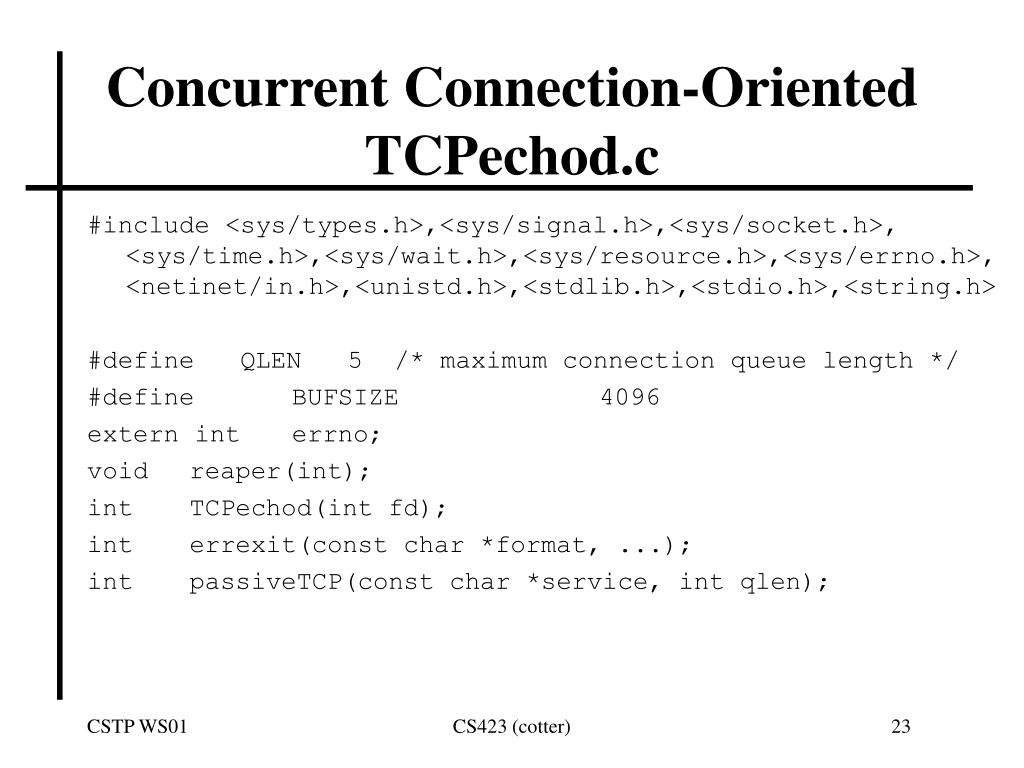

  23. Concurrent Connection-OrientedTCPechod.c #include <sys/types.h>,<sys/signal.h>,<sys/socket.h>, <sys/time.h>,<sys/wait.h>,<sys/resource.h>,<sys/errno.h>, <netinet/in.h>,<unistd.h>,<stdlib.h>,<stdio.h>,<string.h> #define QLEN 5 /* maximum connection queue length */ #define BUFSIZE 4096 extern int errno; void reaper(int); int TCPechod(int fd); int errexit(const char *format, ...); int passiveTCP(const char *service, int qlen); CS423 (cotter)

  24. Concurrent Connection-OrientedTCPechod.c int main(int argc, char *argv[ ]) { char *service = "echo"; /* service name or port number*/ struct sockaddr_in fsin; /* the address of a client */ int alen; /* length of client's address*/ int msock; /* master server socket */ int ssock; /* slave server socket */ switch (argc) { case 1: break; case 2: service = argv[1]; break; default: errexit("usage: TCPechod [port]\n"); } CS423 (cotter)

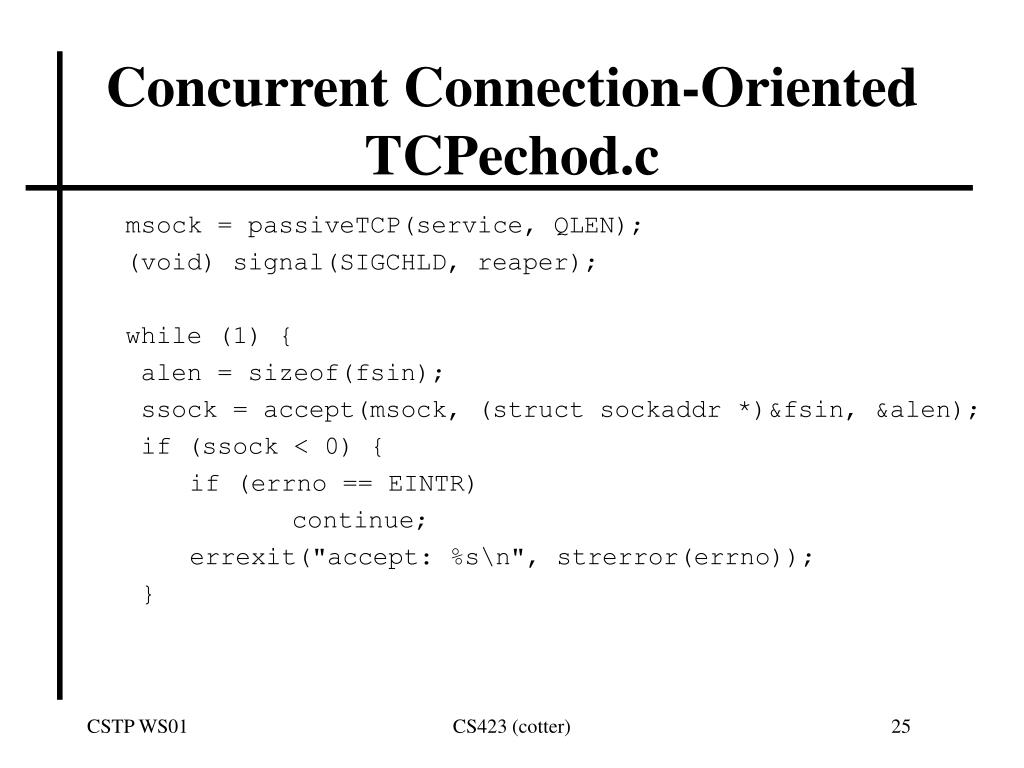

  25. Concurrent Connection-OrientedTCPechod.c msock = passiveTCP(service, QLEN); (void) signal(SIGCHLD, reaper); while (1) { alen = sizeof(fsin); ssock = accept(msock, (struct sockaddr *)&fsin, &alen); if (ssock < 0) { if (errno == EINTR) continue; errexit("accept: %s\n", strerror(errno)); } CS423 (cotter)

  26. Concurrent Connection-OrientedTCPechod.c switch (fork()) { case 0: /* child */ (void) close(msock); exit(TCPechod(ssock)); default: /* parent */ (void) close(ssock); break; case -1: errexit("fork: %s\n", strerror(errno)); } } } CS423 (cotter)

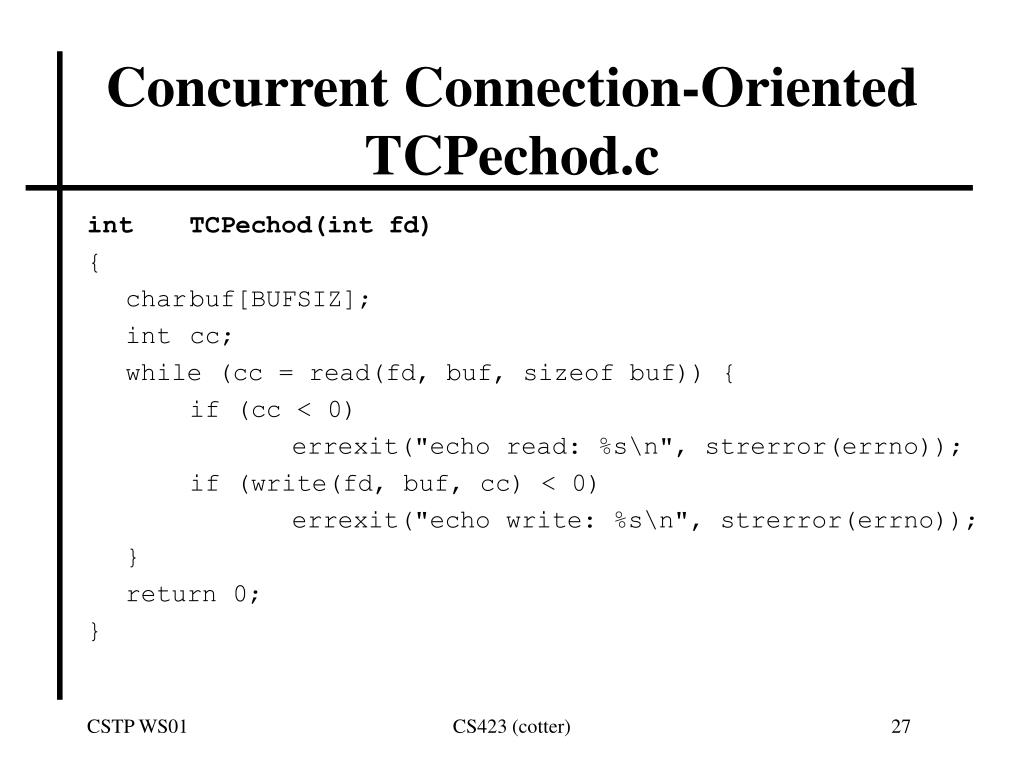

  27. Concurrent Connection-OrientedTCPechod.c int TCPechod(int fd) { char buf[BUFSIZ]; int cc; while (cc = read(fd, buf, sizeof buf)) { if (cc < 0) errexit("echo read: %s\n", strerror(errno)); if (write(fd, buf, cc) < 0) errexit("echo write: %s\n", strerror(errno)); } return 0; } CS423 (cotter)

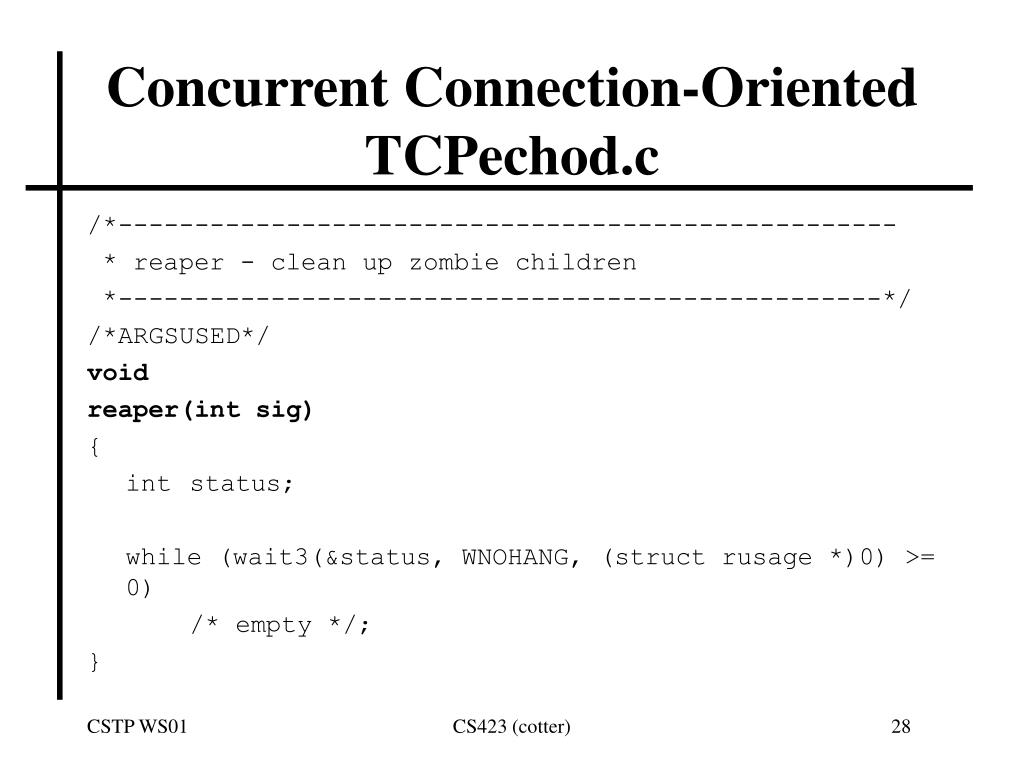

  28. Concurrent Connection-OrientedTCPechod.c /*--------------------------------------------------- * reaper - clean up zombie children *--------------------------------------------------*/ /*ARGSUSED*/ void reaper(int sig) { int status; while (wait3(&status, WNOHANG, (struct rusage *)0) >= 0) /* empty */; } CS423 (cotter)
