  1. András Szilágyi Institute of Enzymology, Hungarian Academy of Sciences Interactive animations of electromagnetic waves

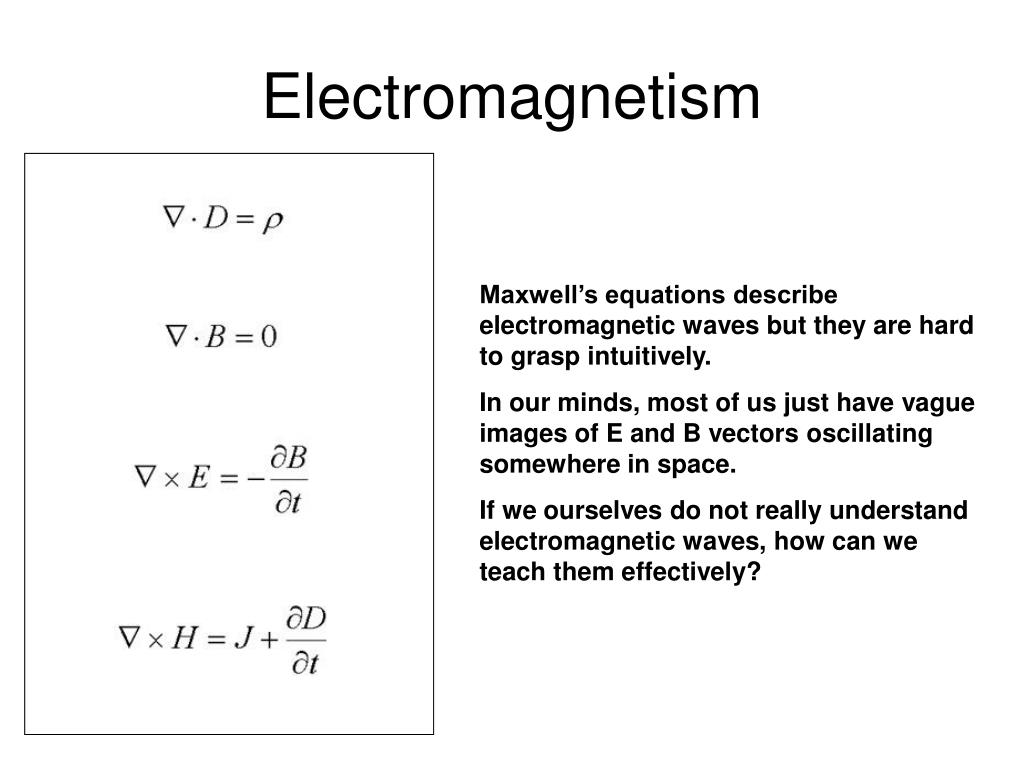

  2. Electromagnetism Maxwell’s equations describe electromagnetic waves but they are hard to grasp intuitively. In our minds, most of us just have vague images of E and B vectors oscillating somewhere in space. If we ourselves do not really understand electromagnetic waves, how can we teach them effectively?

  3. Teaching circular dichroism? Important method in biological spectroscopy. CD spectra tell us a great deal of information about the structure of proteins. Textbook figures on circular dichroism do not really help understand what is happening

  4. Animation makes it clear GNUPLOT: equation plotting program Vertically (y axis) polarized wave having an amplitude A, a wavelength of and an angular velocity (frequency * 2) of , propagating along the x axis.

  5. Plane-polarized light Vertical Horizontal

  6. Circularly polarized light Right circular Left circular

  7. Interaction of light and matter: Absorption Material with an extinction coefficient The light gets weaker (its amplitude drops) In Out

  8. Interaction of light and matter: Refraction Material with an index of refractionn The light slows down inside the material, therefore its wavelength becomes shorter and its phase gets shifted In Out

  9. Circular dichroism Material having different extinction coefficients for right and left circularly polarized lights: R and L Plane-polarized light becomes elliptically polar In Out

  10. Circular bi-refringence Material having different refraction indices for right and left circularly polarized lights: nR and nL The plane of polarization of plane-polarized light gets rotated In Out

  11. Circular dichroism AND bi-refringence Material having different extincion coefficients AND refraction indices for right and left circularly polarized lights: R and L AND nR and nL Plane polarized light gets elliptically polar, with the great axis of the ellipse being rotated relative to the original plane of polarization In Out

  12. Web Tutorial http://www.enzim.hu/~szia/cddemo/edemo0.htm • I. Basic concepts: Electromagnetic waves and types of polarization • Plane-polarized wave: Horizontal • Plane-polarized wave: Vertical • Superposition of plane-polarized waves: Horizontal + Vertical  45º Plane • Superposition of plane-polarized waves: Horizontal + Vertical  Right circular • Superposition of plane-polarized waves: Horizontal + Vertical  Left circular • Circularly polarized waves: Right and Left • Superposition of circularly polarized waves: Right + Left circular  Plane! • II. Interaction of light and matter • Plane-polarized wave: Absorption • Circularly polarized wave: Absorption • Plane-polarized wave: Refraction • Circularly polarized wave: Refraction • Circular dichroism • Circular birefringence • Circular dichroism AND birefringence

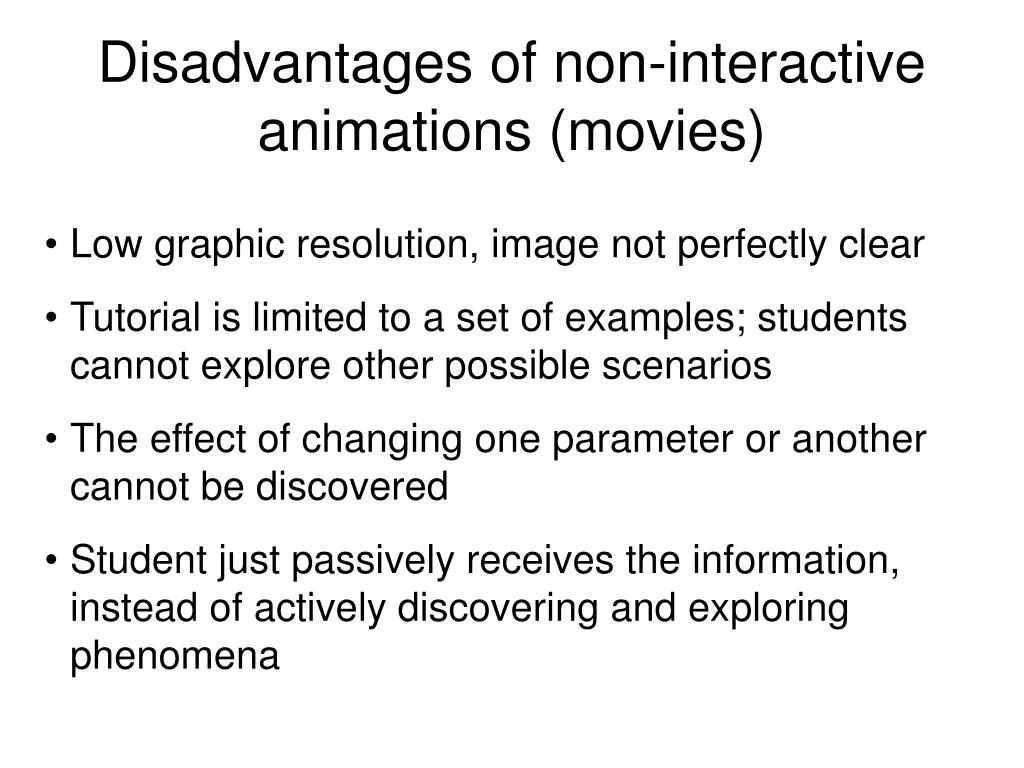

  13. Disadvantages of non-interactive animations (movies) • Low graphic resolution, image not perfectly clear • Tutorial is limited to a set of examples; students cannot explore other possible scenarios • The effect of changing one parameter or another cannot be discovered • Student just passively receives the information, instead of actively discovering and exploring phenomena

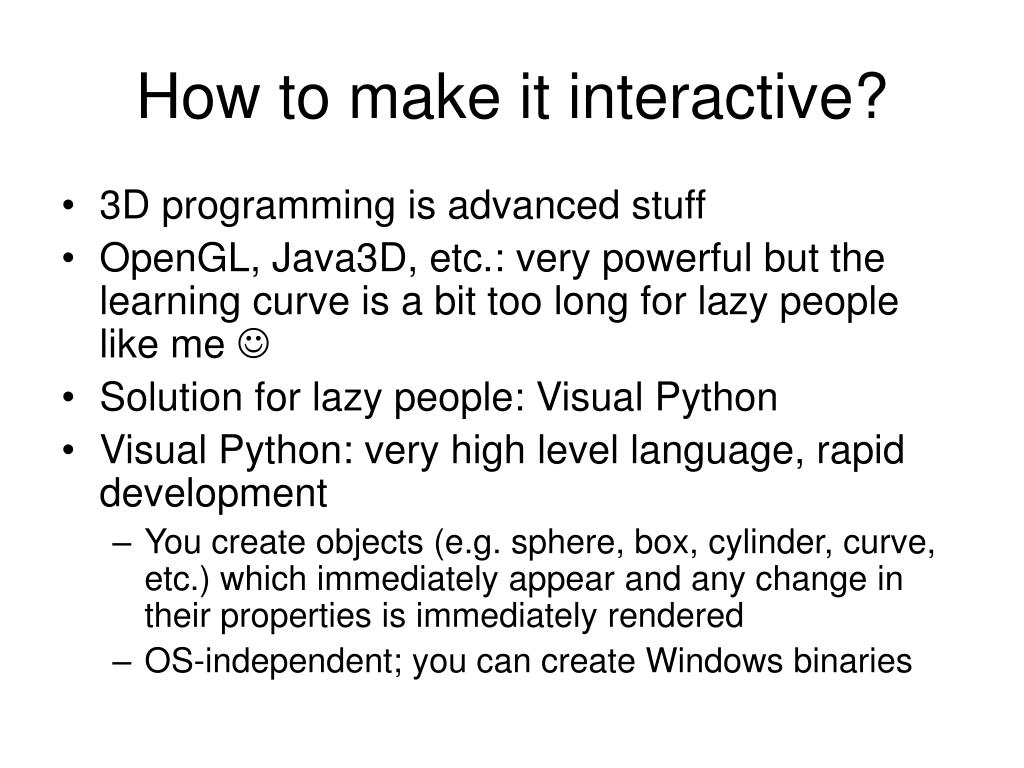

  14. How to make it interactive? • 3D programming is advanced stuff • OpenGL, Java3D, etc.: very powerful but the learning curve is a bit too long for lazy people like me  • Solution for lazy people: Visual Python • Visual Python: very high level language, rapid development • You create objects (e.g. sphere, box, cylinder, curve, etc.) which immediately appear and any change in their properties is immediately rendered • OS-independent; you can create Windows binaries

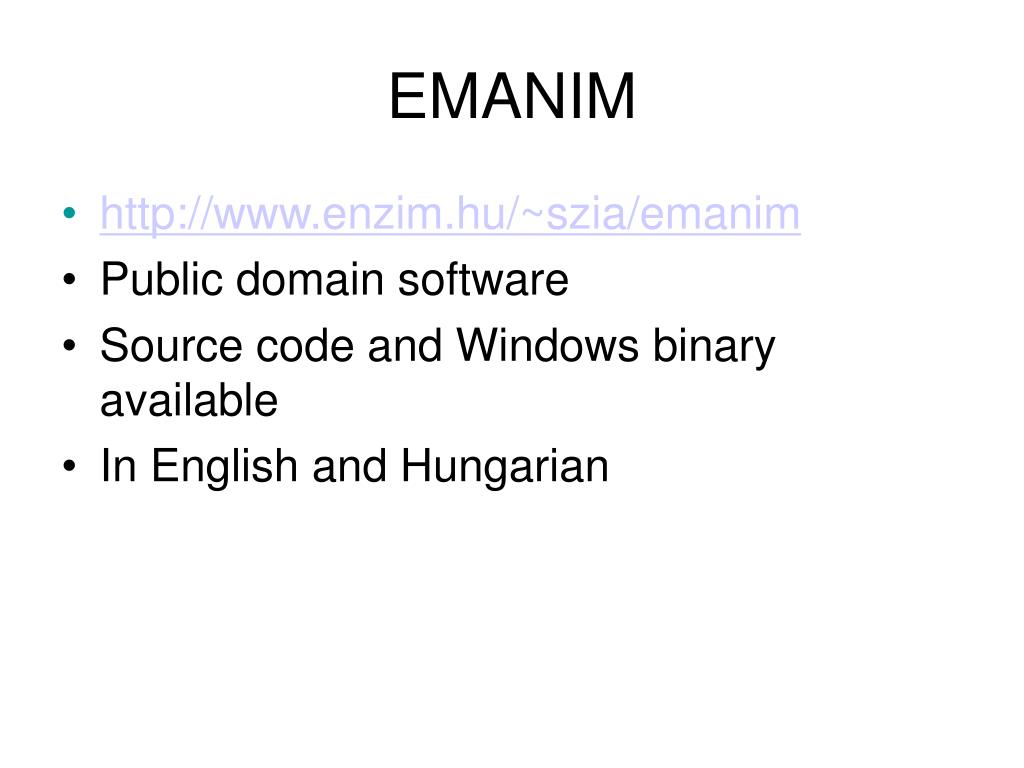

  15. EMANIM • http://www.enzim.hu/~szia/emanim • Public domain software • Source code and Windows binary available • In English and Hungarian

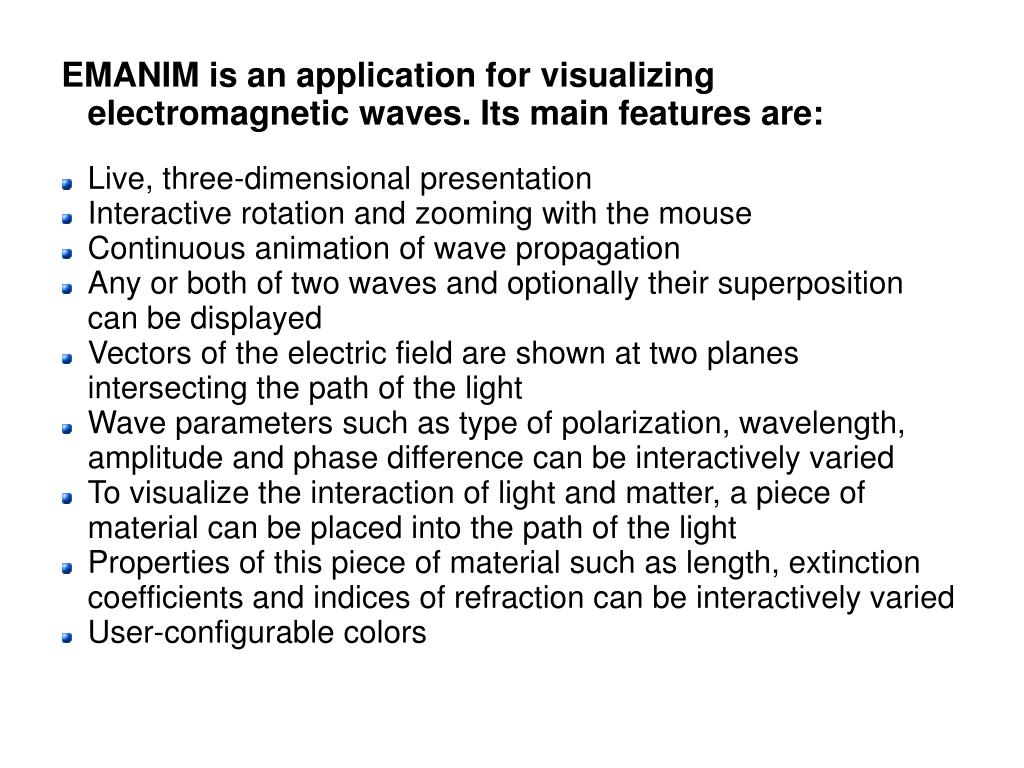

  16. EMANIM is an application for visualizing electromagnetic waves. Its main features are: Live, three-dimensional presentation Interactive rotation and zooming with the mouse Continuous animation of wave propagation Any or both of two waves and optionally their superposition can be displayed Vectors of the electric field are shown at two planes intersecting the path of the light Wave parameters such as type of polarization, wavelength, amplitude and phase difference can be interactively varied To visualize the interaction of light and matter, a piece of material can be placed into the path of the light Properties of this piece of material such as length, extinction coefficients and indices of refraction can be interactively varied User-configurable colors

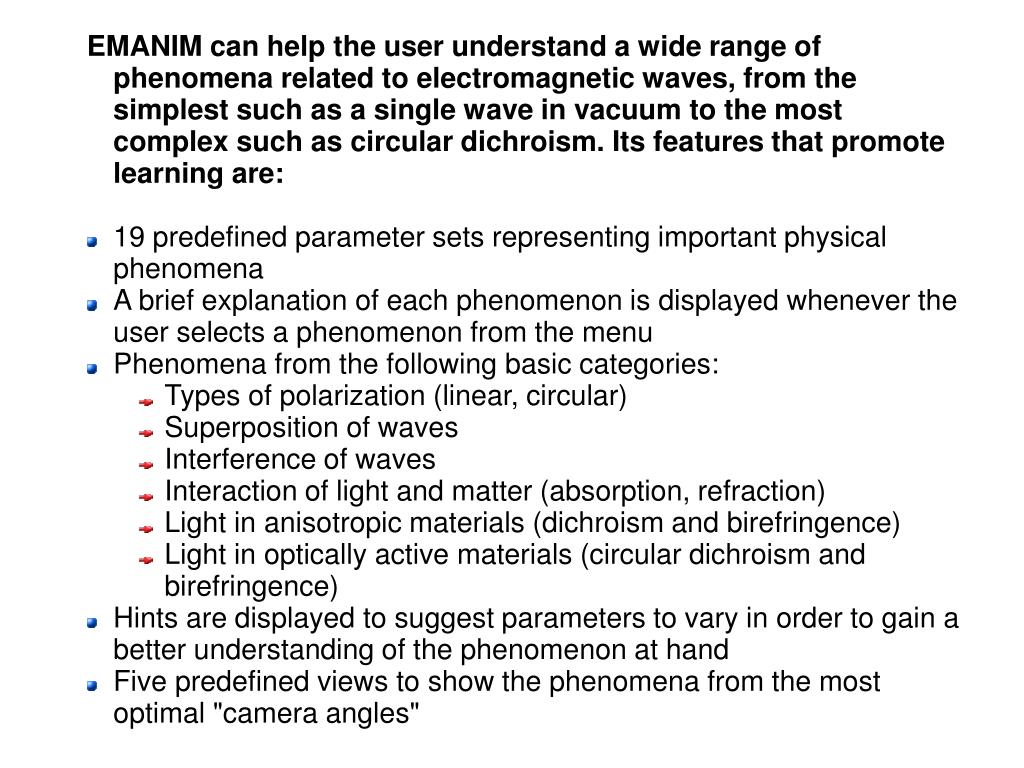

  17. EMANIM can help the user understand a wide range of phenomena related to electromagnetic waves, from the simplest such as a single wave in vacuum to the most complex such as circular dichroism. Its features that promote learning are: • 19 predefined parameter sets representing important physical phenomena • A brief explanation of each phenomenon is displayed whenever the user selects a phenomenon from the menu • Phenomena from the following basic categories: • Types of polarization (linear, circular) • Superposition of waves • Interference of waves • Interaction of light and matter (absorption, refraction) • Light in anisotropic materials (dichroism and birefringence) • Light in optically active materials (circular dichroism and birefringence) • Hints are displayed to suggest parameters to vary in order to gain a better understanding of the phenomenon at hand • Five predefined views to show the phenomena from the most optimal "camera angles"

  18. Disadvantages of Visual Python • Only a limited set of available objects • Limited widget set, another GUI package is needed for more complex GUIs (EMANIM uses Tk) • No way to suspend the rendering process, therefore some jerkiness is seen in the animations

  19. Feedback • Web: hundreds of views of the website per day • Dozens of e-mails with positive feedback, many of them from teachers who use the tutorial for their classes • EMANIM has been distributed on various CD-ROMs: • A CD distributed to physics teachers in the UK • A CD included with a textbook for the training wireless network administrators • ComputerBild Italia, a computer magazine
