  1. Database Technology Session II 10:15 - 11:00 Dr S Sudarshan & Dr D B Phatak IIT Bombay

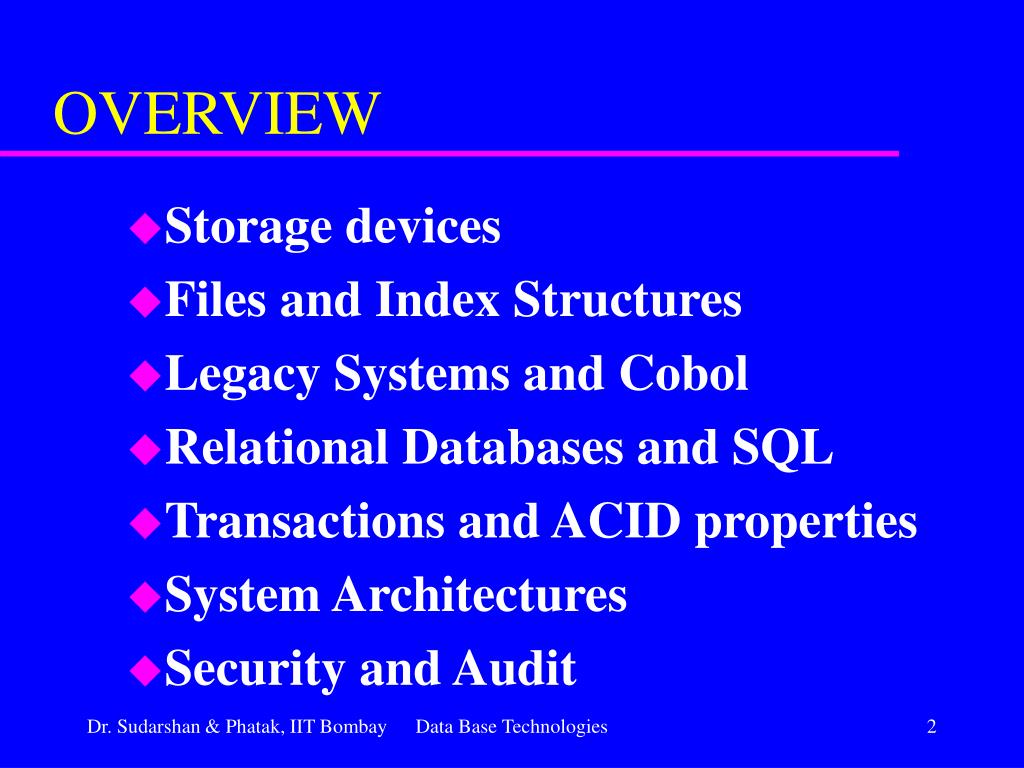

  2. OVERVIEW • Storage devices • Files and Index Structures • Legacy Systems and Cobol • Relational Databases and SQL • Transactions and ACID properties • System Architectures • Security and Audit Data Base Technologies

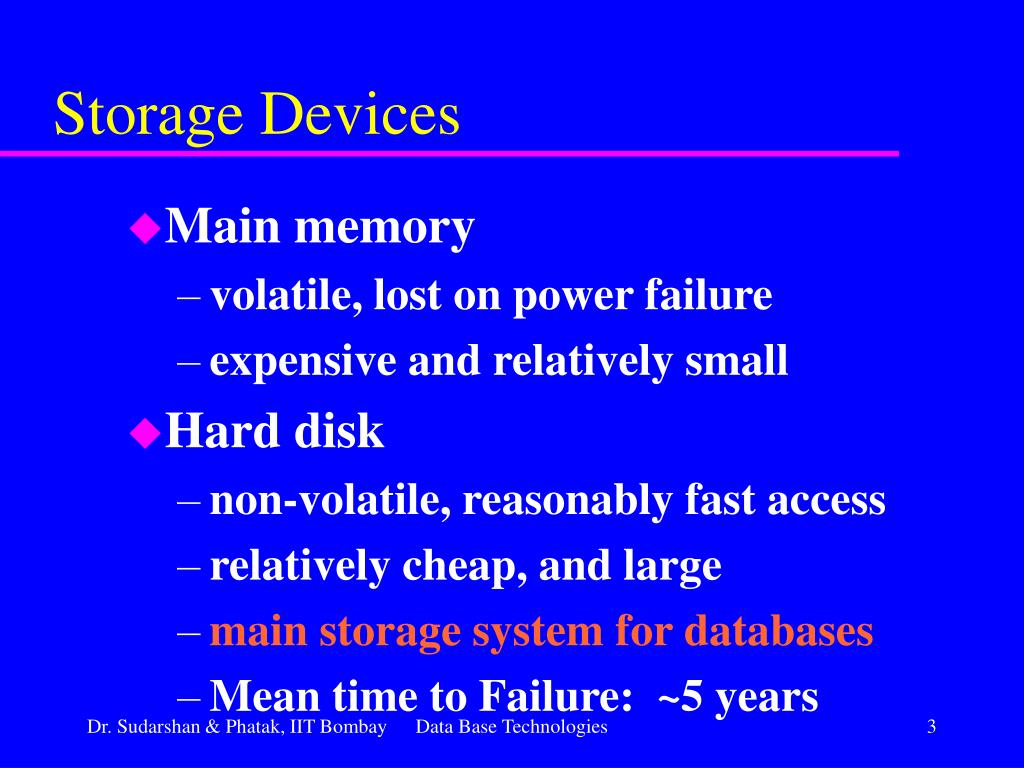

  3. Storage Devices • Main memory • volatile, lost on power failure • expensive and relatively small • Hard disk • non-volatile, reasonably fast access • relatively cheap, and large • main storage system for databases • Mean time to Failure: ~5 years Data Base Technologies

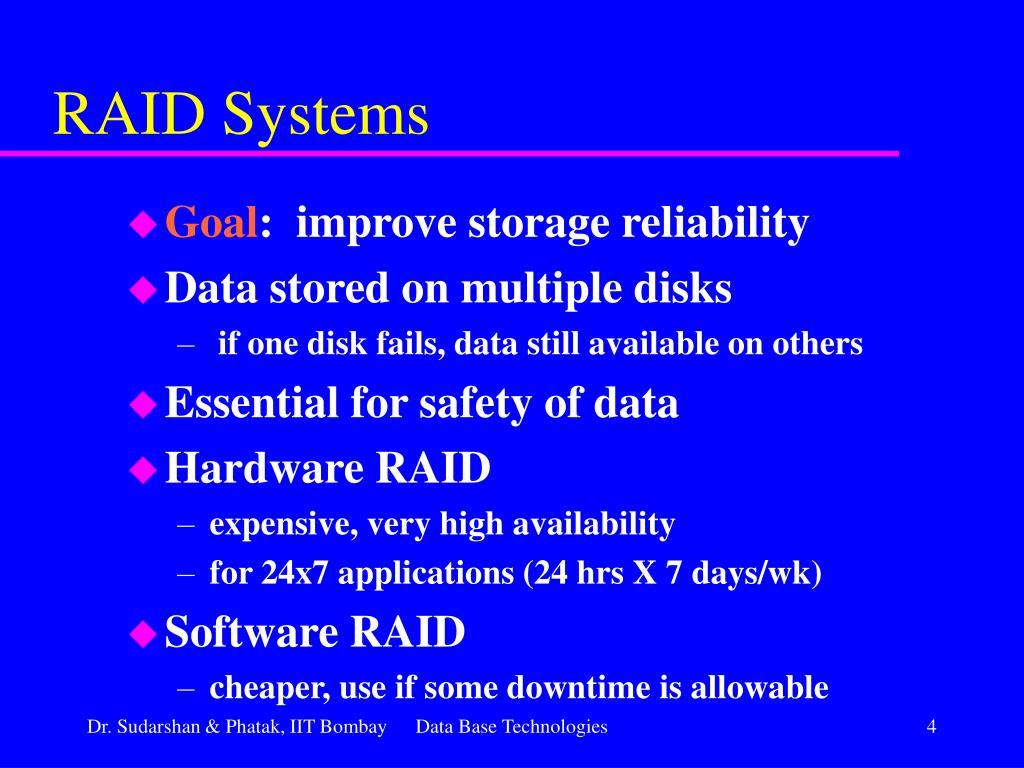

  4. RAID Systems • Goal: improve storage reliability • Data stored on multiple disks • if one disk fails, data still available on others • Essential for safety of data • Hardware RAID • expensive, very high availability • for 24x7 applications (24 hrs X 7 days/wk) • Software RAID • cheaper, use if some downtime is allowable Data Base Technologies

  5. Storing Data on Disks • Byte: unit of information • one character • File: • sequence of bytes • File system: • stores multiple files • organizes files into directories/folders Data Base Technologies

  6. File Structure • Information stored within large files • Sequential files • sorted on a key (e.g., account number) • Index needed for efficient access • e.g. find information of account 2345 • similar to library card catalogs Data Base Technologies

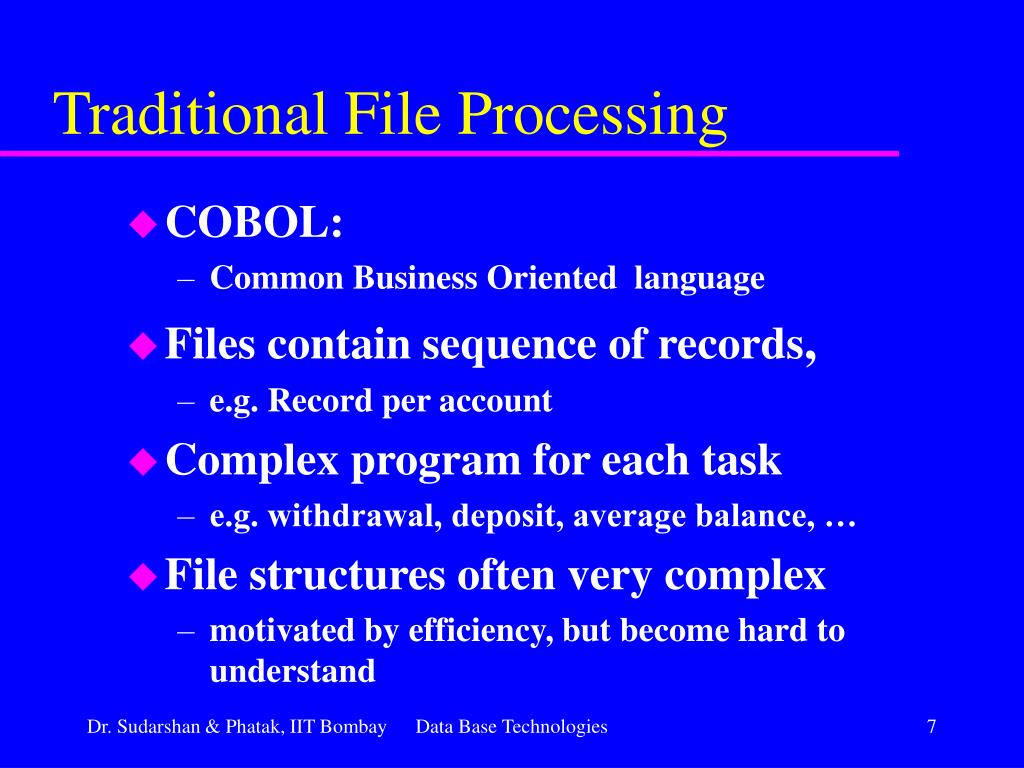

  7. Traditional File Processing • COBOL: • Common Business Oriented language • Files contain sequence of records, • e.g. Record per account • Complex program for each task • e.g. withdrawal, deposit, average balance, … • File structures often very complex • motivated by efficiency, but become hard to understand Data Base Technologies

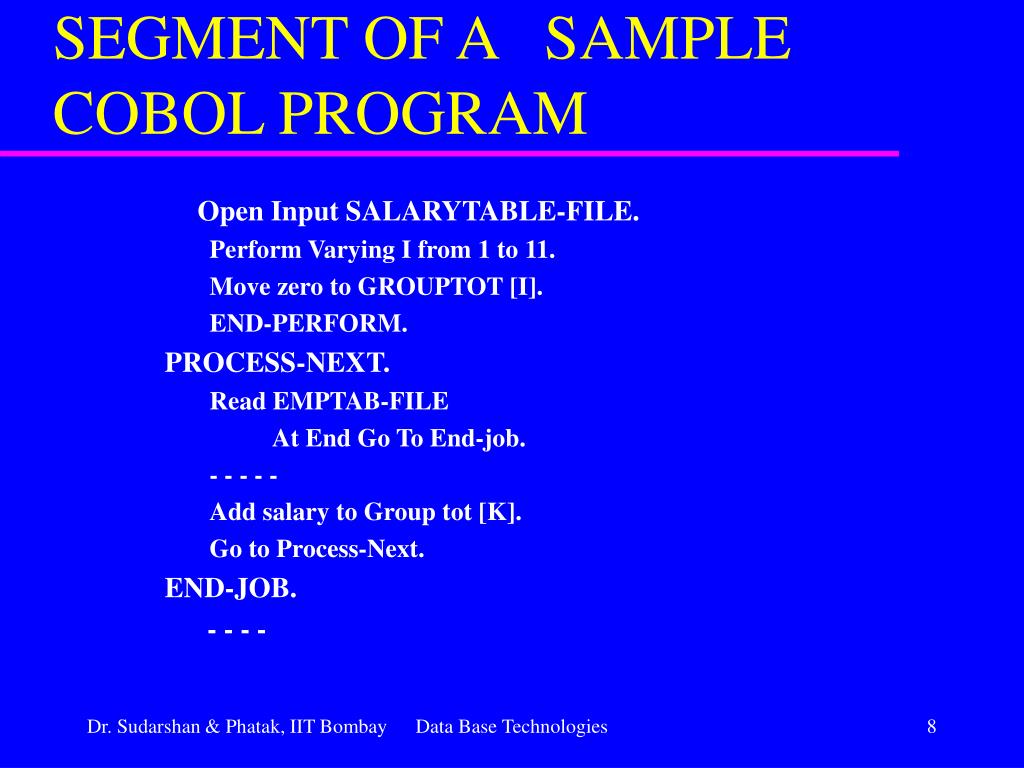

  8. SEGMENT OF A SAMPLE COBOL PROGRAM Open Input SALARYTABLE-FILE. • Perform Varying I from 1 to 11. • Move zero to GROUPTOT [I]. • END-PERFORM. • PROCESS-NEXT. • Read EMPTAB-FILE • At End Go To End-job. • - - - - - • Add salary to Group tot [K]. • Go to Process-Next. • END-JOB. • - - - - Data Base Technologies

  9. PROGRAMMING PARADIGMS • 4 GL: What to do • Set processing • 3 GL: How to do (Algorithm) • Record by Record Processing • 2 GL: Algorithm at the lowest level • Details of Individual Operations Data Base Technologies

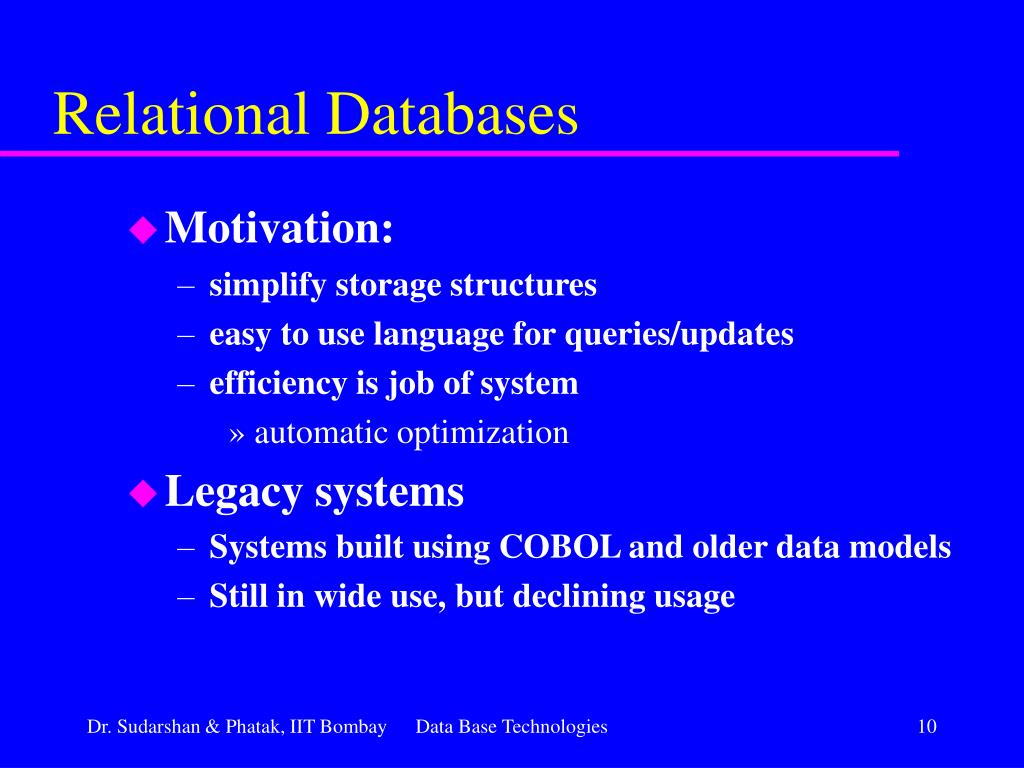

  10. Relational Databases • Motivation: • simplify storage structures • easy to use language for queries/updates • efficiency is job of system • automatic optimization • Legacy systems • Systems built using COBOL and older data models • Still in wide use, but declining usage Data Base Technologies

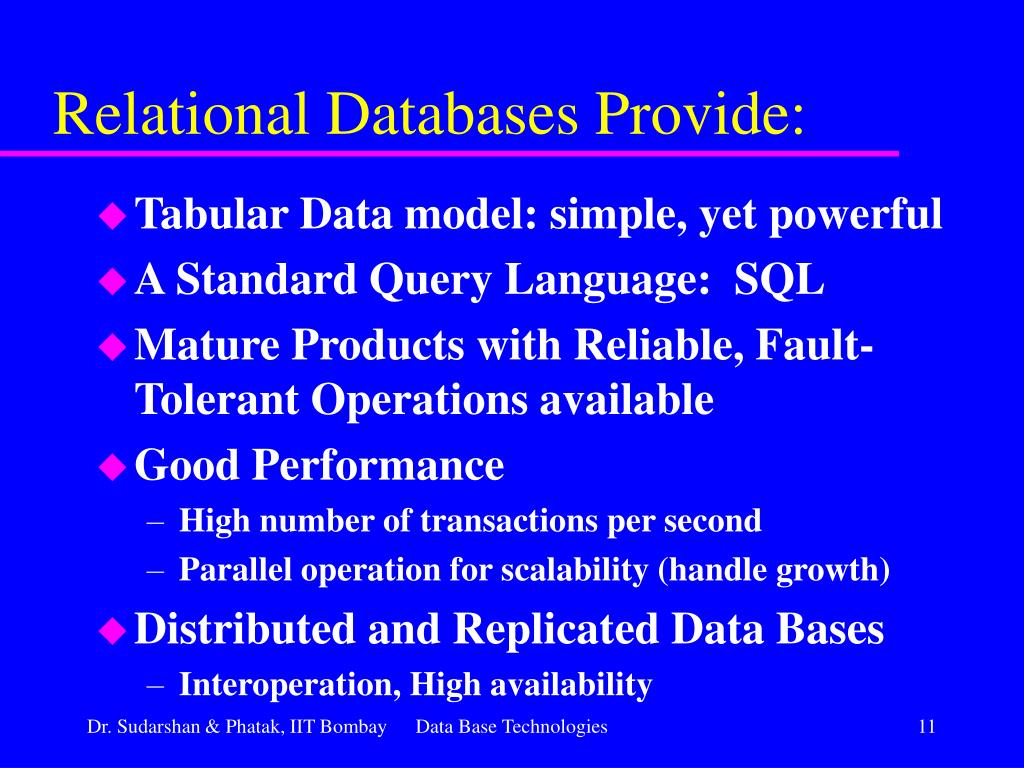

  11. Relational Databases Provide: • Tabular Data model: simple, yet powerful • A Standard Query Language: SQL • Mature Products with Reliable, Fault-Tolerant Operations available • Good Performance • High number of transactions per second • Parallel operation for scalability (handle growth) • Distributed and Replicated Data Bases • Interoperation, High availability Data Base Technologies

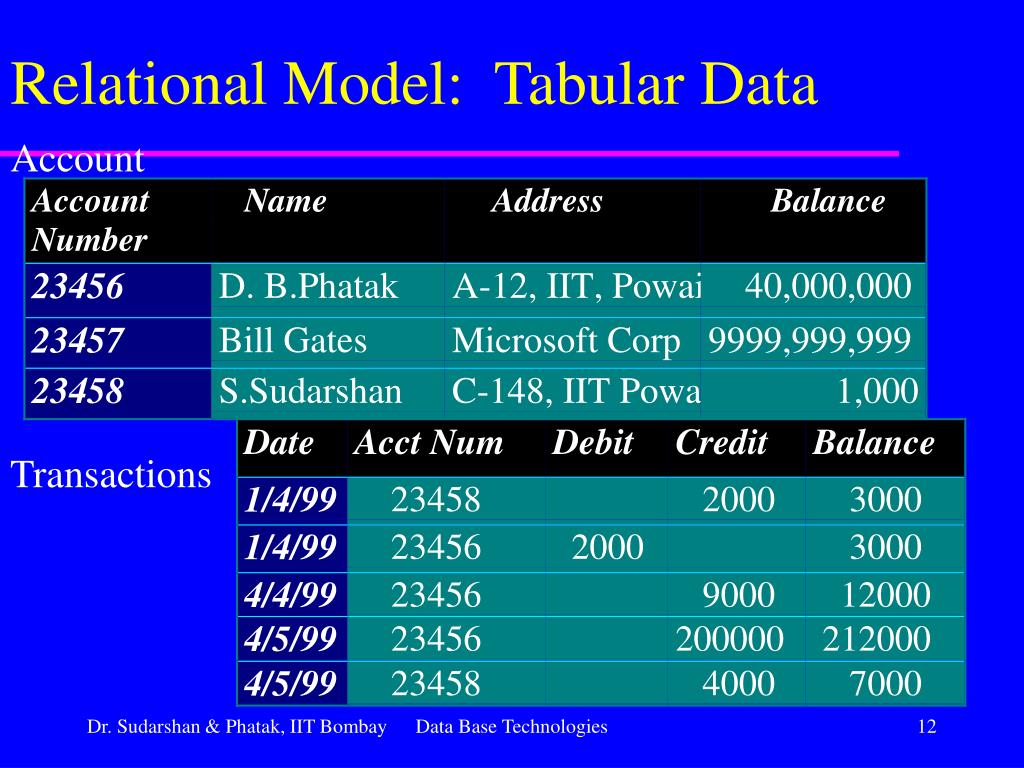

  12. Relational Model: Tabular Data Account Transactions Data Base Technologies

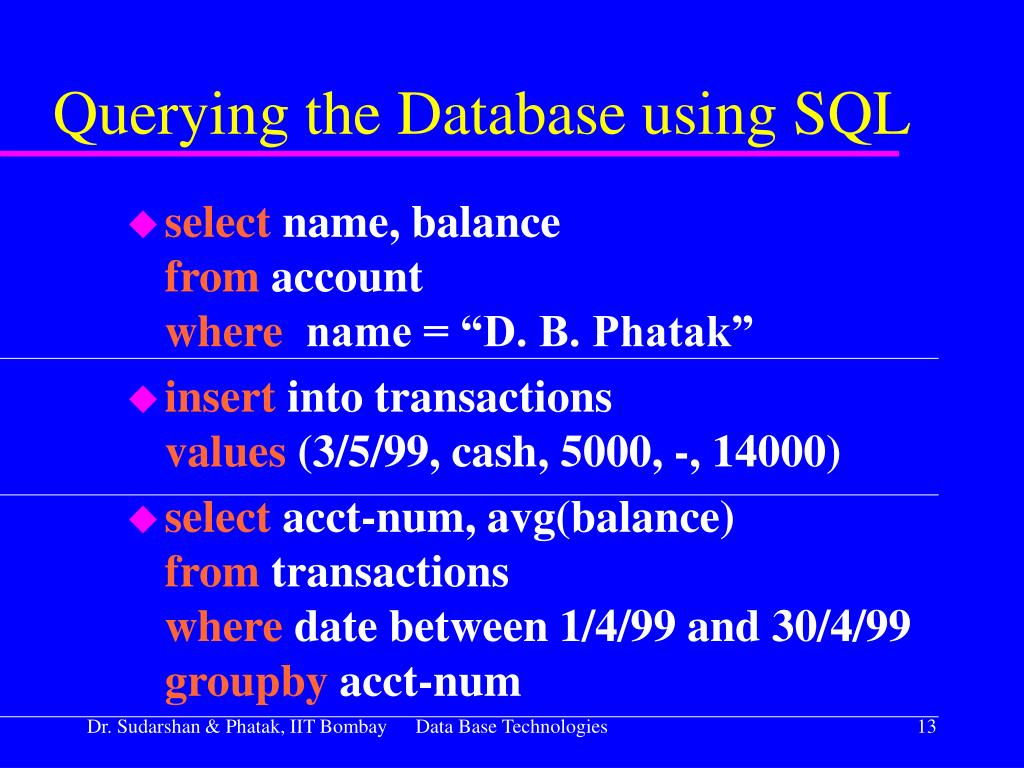

  13. Querying the Database using SQL • select name, balancefrom accountwhere name = “D. B. Phatak” • insert into transactions values (3/5/99, cash, 5000, -, 14000) • select acct-num, avg(balance)from transactionswhere date between 1/4/99 and 30/4/99groupby acct-num Data Base Technologies

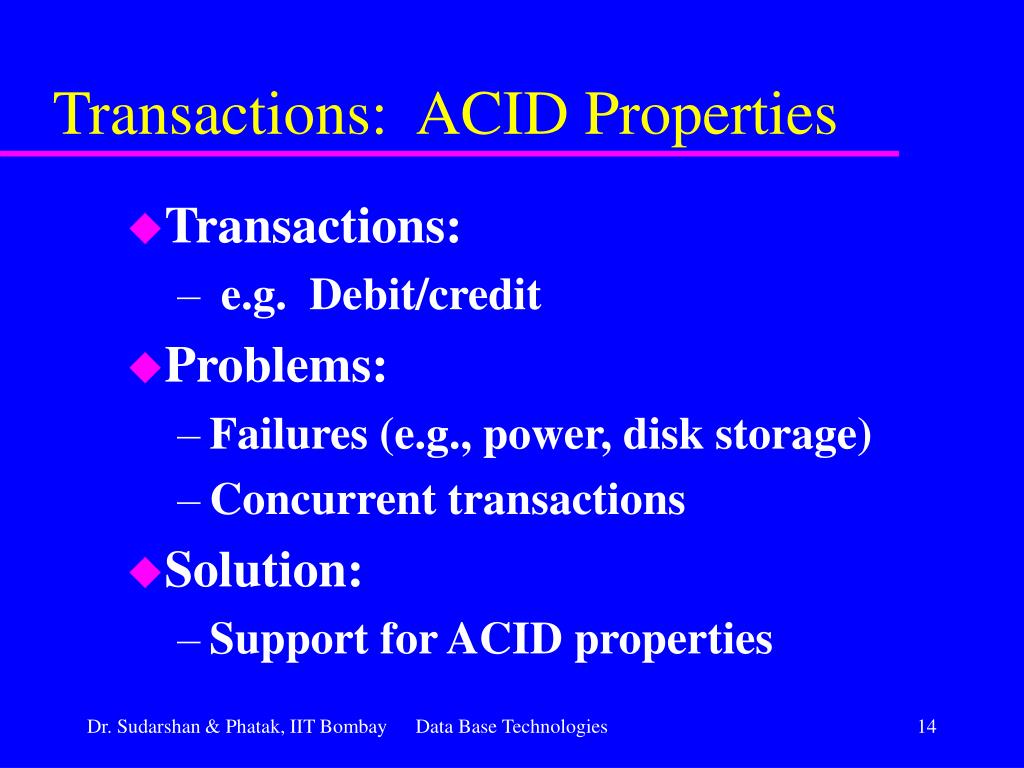

  14. Transactions: ACID Properties • Transactions: • e.g. Debit/credit • Problems: • Failures (e.g., power, disk storage) • Concurrent transactions • Solution: • Support for ACID properties Data Base Technologies

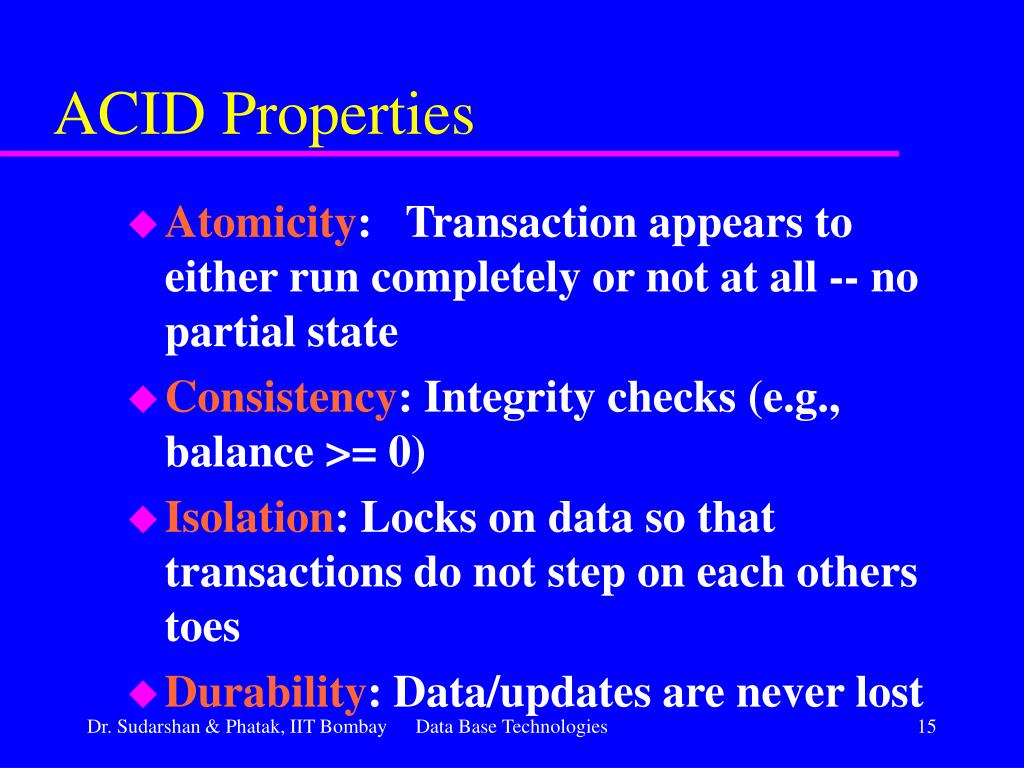

  15. ACID Properties • Atomicity: Transaction appears to either run completely or not at all -- no partial state • Consistency: Integrity checks (e.g., balance >= 0) • Isolation: Locks on data so that transactions do not step on each others toes • Durability: Data/updates are never lost Data Base Technologies

  16. Database Application Classes • OLTP: Online Transaction Processing • supports many small transactions • Decision Support • Summaries/aggregates • OLAP: Online Analytical Processing Data Base Technologies

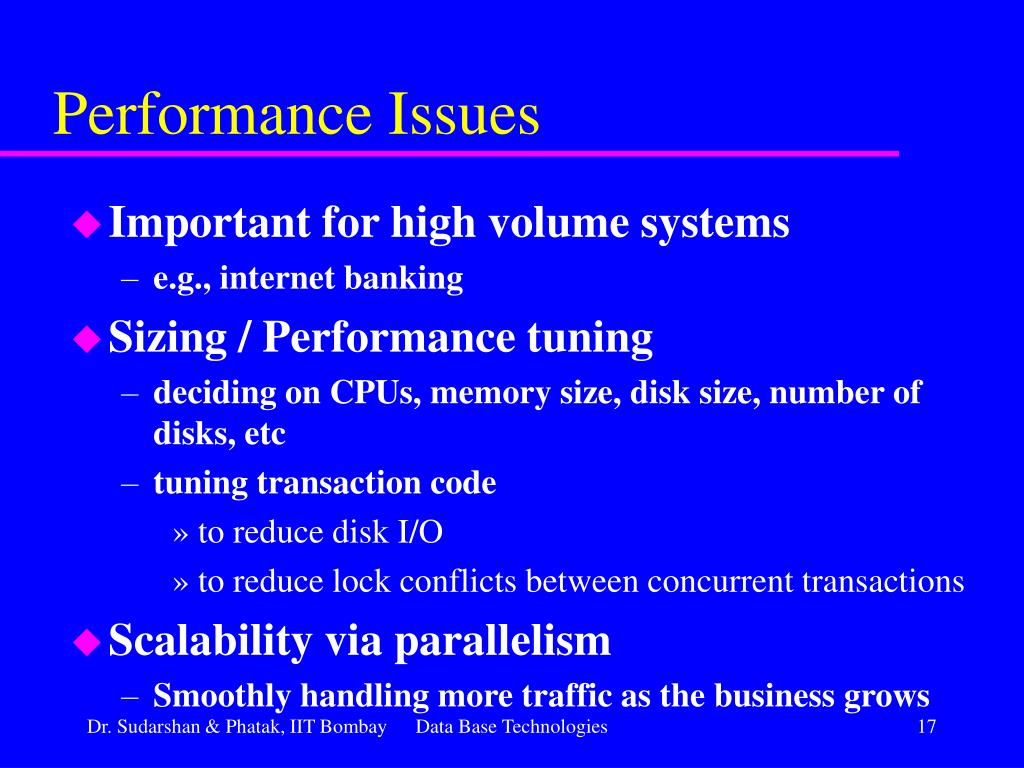

  17. Performance Issues • Important for high volume systems • e.g., internet banking • Sizing / Performance tuning • deciding on CPUs, memory size, disk size, number of disks, etc • tuning transaction code • to reduce disk I/O • to reduce lock conflicts between concurrent transactions • Scalability via parallelism • Smoothly handling more traffic as the business grows Data Base Technologies

  18. Access Security • Authentication • Identifying who a person is • Passwords • widely used, but quite insecure • Smart cards, biometrics, etc • More on this later • Access privileges • who is allowed to do what • Audit trail • Trace back what happened Data Base Technologies

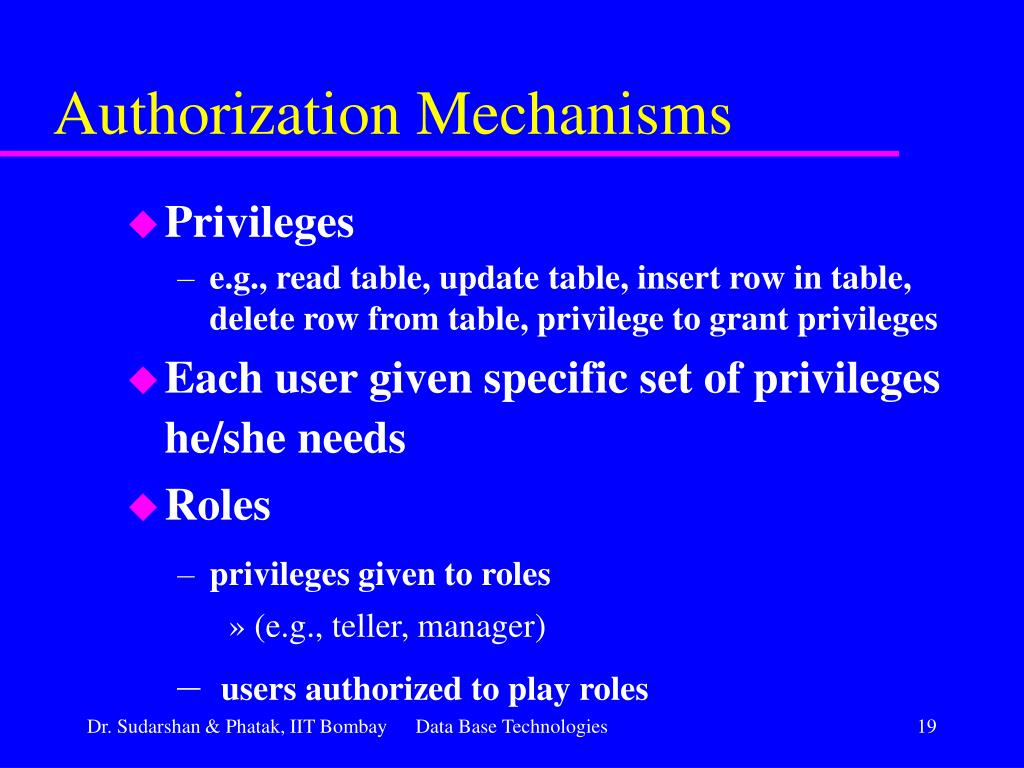

  19. Authorization Mechanisms • Privileges • e.g., read table, update table, insert row in table, delete row from table, privilege to grant privileges • Each user given specific set of privileges he/she needs • Roles • privileges given to roles • (e.g., teller, manager) • users authorized to play roles Data Base Technologies

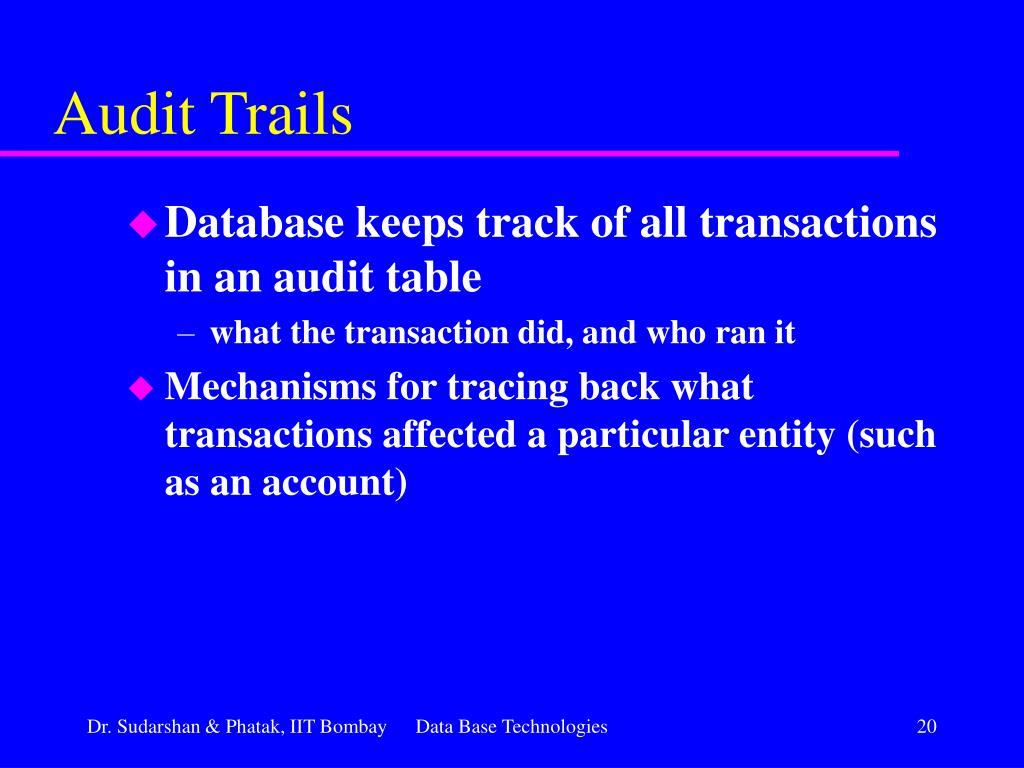

  20. Audit Trails • Database keeps track of all transactions in an audit table • what the transaction did, and who ran it • Mechanisms for tracing back what transactions affected a particular entity (such as an account) Data Base Technologies

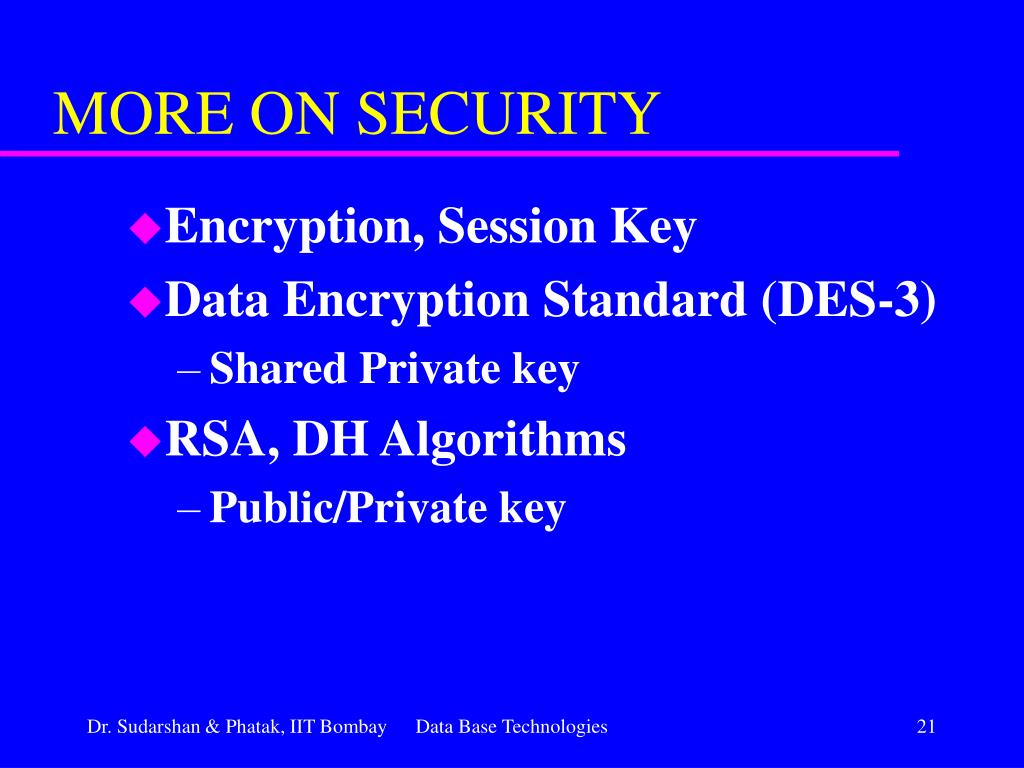

  21. MORE ON SECURITY • Encryption, Session Key • Data Encryption Standard (DES-3) • Shared Private key • RSA, DH Algorithms • Public/Private key Data Base Technologies

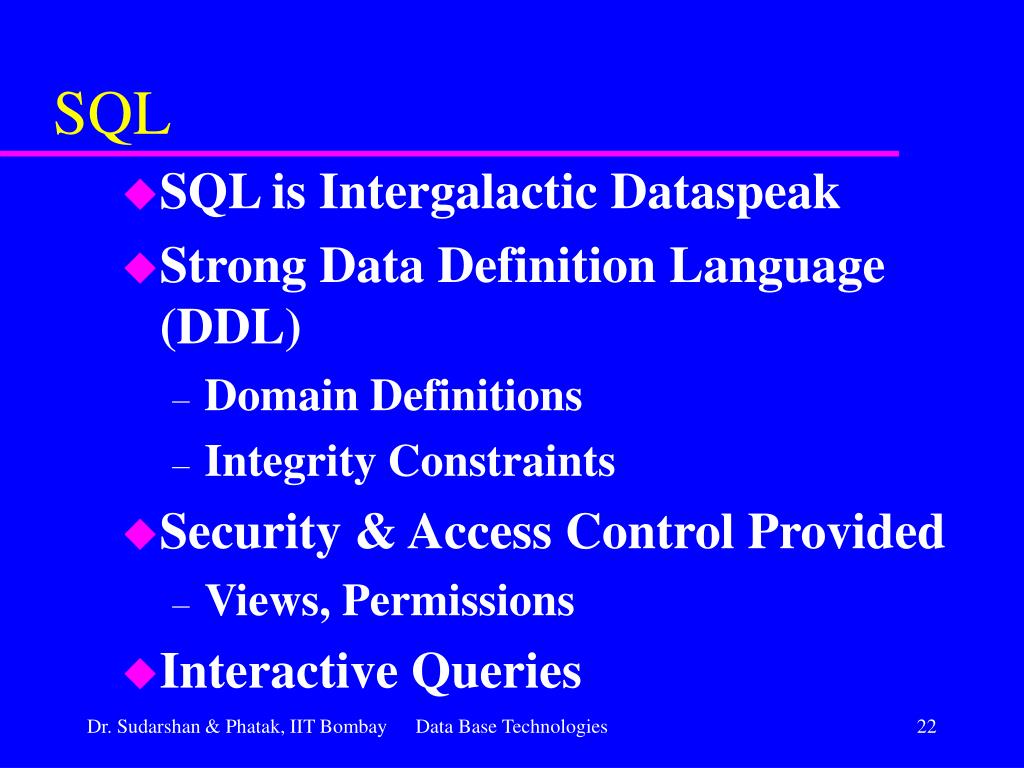

  22. SQL • SQL is Intergalactic Dataspeak • Strong Data Definition Language (DDL) • Domain Definitions • Integrity Constraints • Security & Access Control Provided • Views, Permissions • Interactive Queries Data Base Technologies

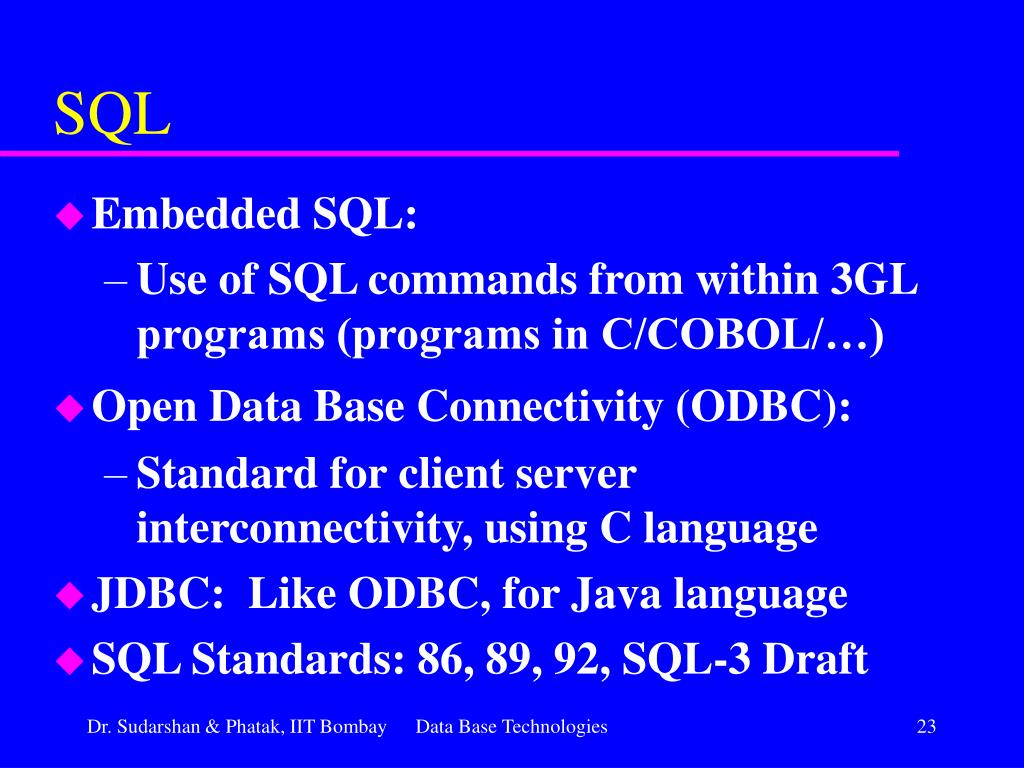

  23. SQL • Embedded SQL: • Use of SQL commands from within 3GL programs (programs in C/COBOL/…) • Open Data Base Connectivity (ODBC): • Standard for client server interconnectivity, using C language • JDBC: Like ODBC, for Java language • SQL Standards: 86, 89, 92, SQL-3 Draft Data Base Technologies

  24. SQL • No Standards for User Interface • Screens (Forms & Menus) • Reports • Special Tools Available • Native to Product • Independent Vendors Data Base Technologies 24

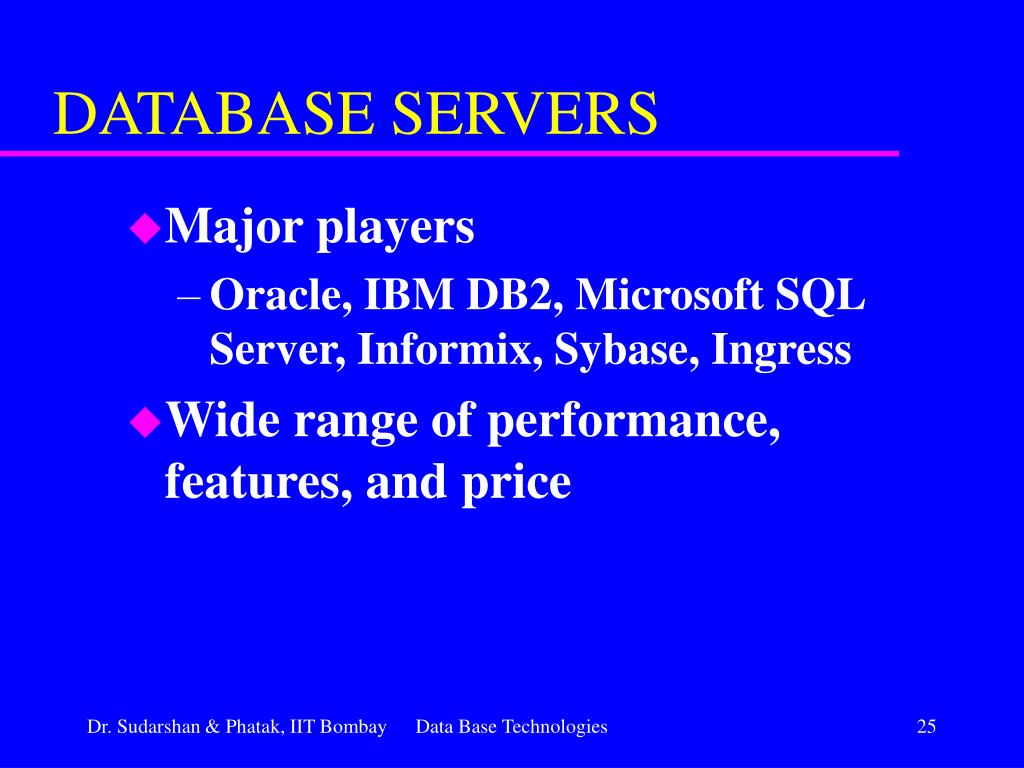

  25. DATABASE SERVERS • Major players • Oracle, IBM DB2, Microsoft SQL Server, Informix, Sybase, Ingress • Wide range of performance, features, and price Data Base Technologies

  26. Database Architectures • Centralized • Dumb terminals connected to single server • Client Server • Smarter client machines connect to server • Main work still done at server • Parallel Servers • Work divided between multiple CPUs • Distributed • Multiple independent databases in cooperation Data Base Technologies

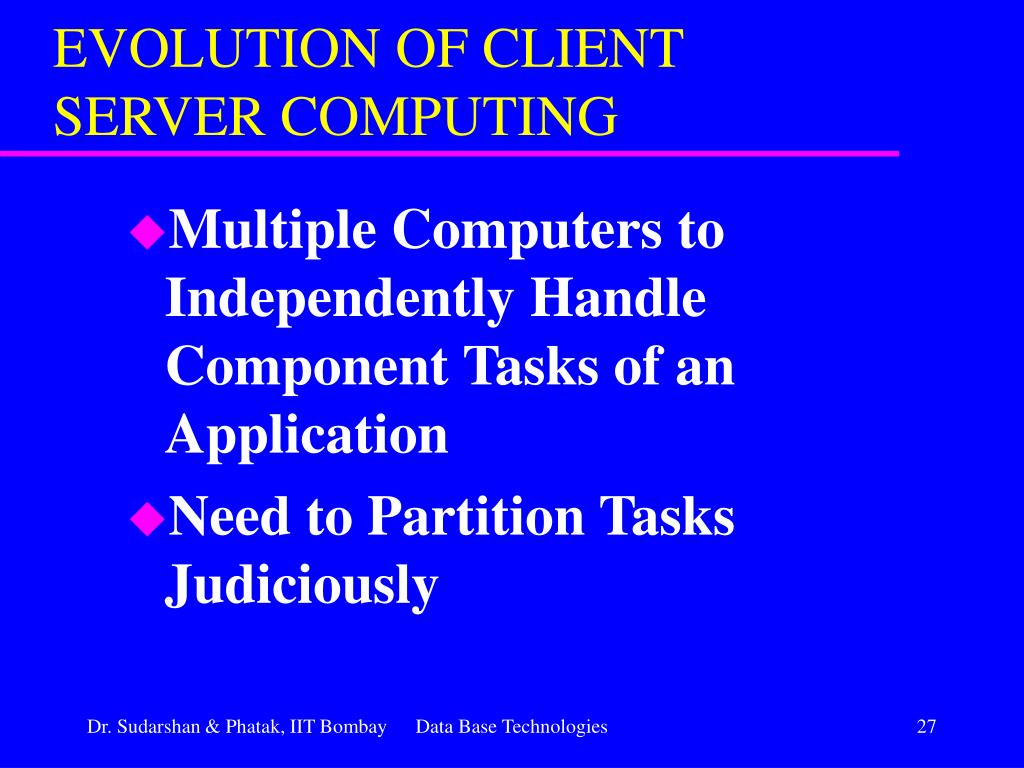

  27. EVOLUTION OF CLIENT SERVER COMPUTING • Multiple Computers to Independently Handle Component Tasks of an Application • Need to Partition Tasks Judiciously Data Base Technologies

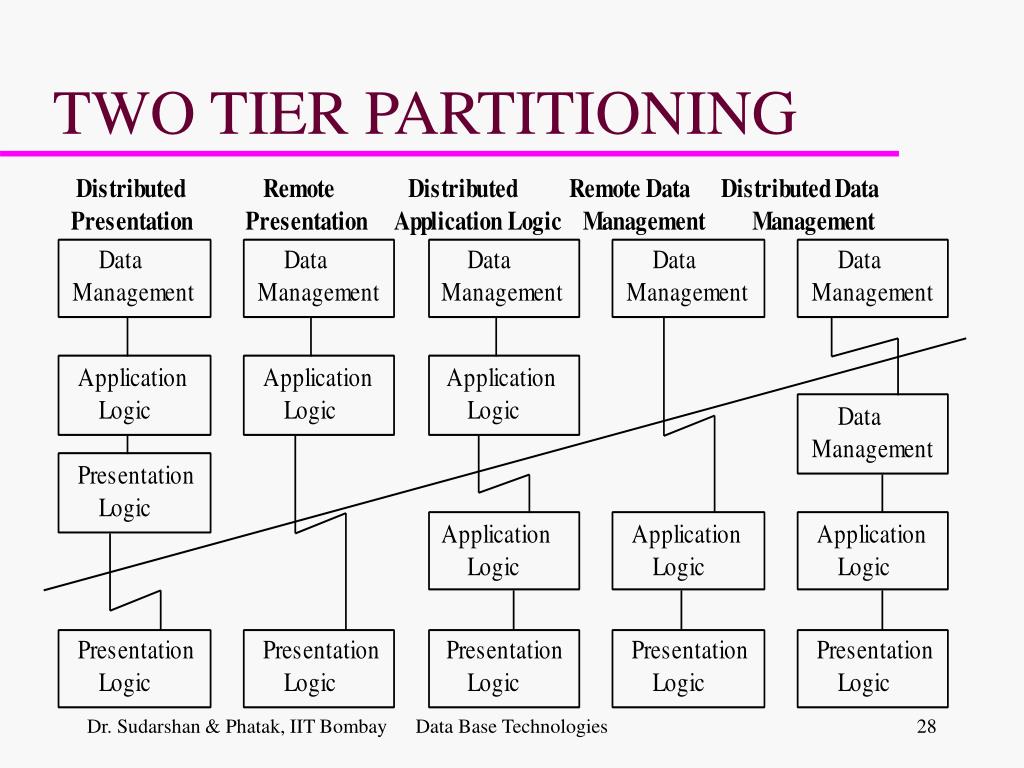

  28. TWO TIER PARTITIONING Data Base Technologies

  29. CLIENT - SERVER TERMINOLOGY • Service: Provided by the Server • Each Client Is a Consumer • Shared Resources : Managed by Server • Client : Initiator of a Request Data Base Technologies

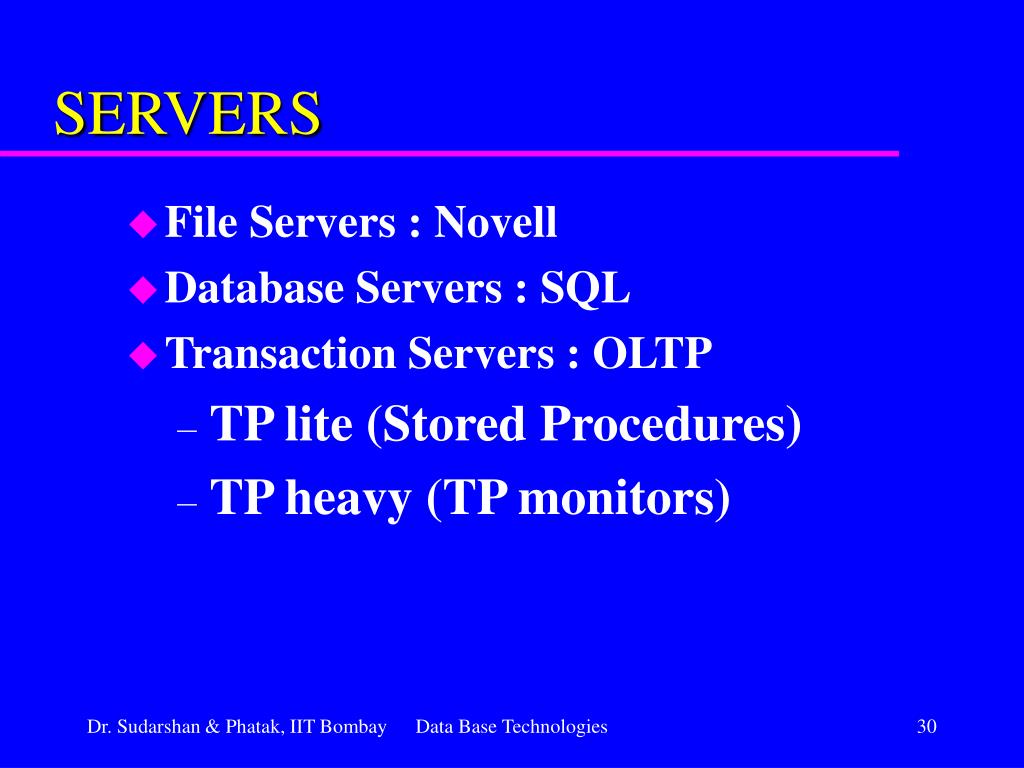

  30. SERVERS • File Servers : Novell • Database Servers : SQL • Transaction Servers : OLTP • TP lite (Stored Procedures) • TP heavy (TP monitors) Data Base Technologies

  31. SERVER FUNCTIONS • Wait for Requests • Handle Concurrent Transactions • Take care of VIP requests • Assign priorities • Authentication, Authorisation • Audit trails Data Base Technologies

  32. CLIENT FUNCTIONS • Typically Processes Running on Front-end Machine (PC) • Provide User Interface • Support Graphics, Multimedia Data Base Technologies

  33. THREE TIER C/S • Tier One : Client • Tier Two : Application Server • Tier Three: Database Server Data Base Technologies

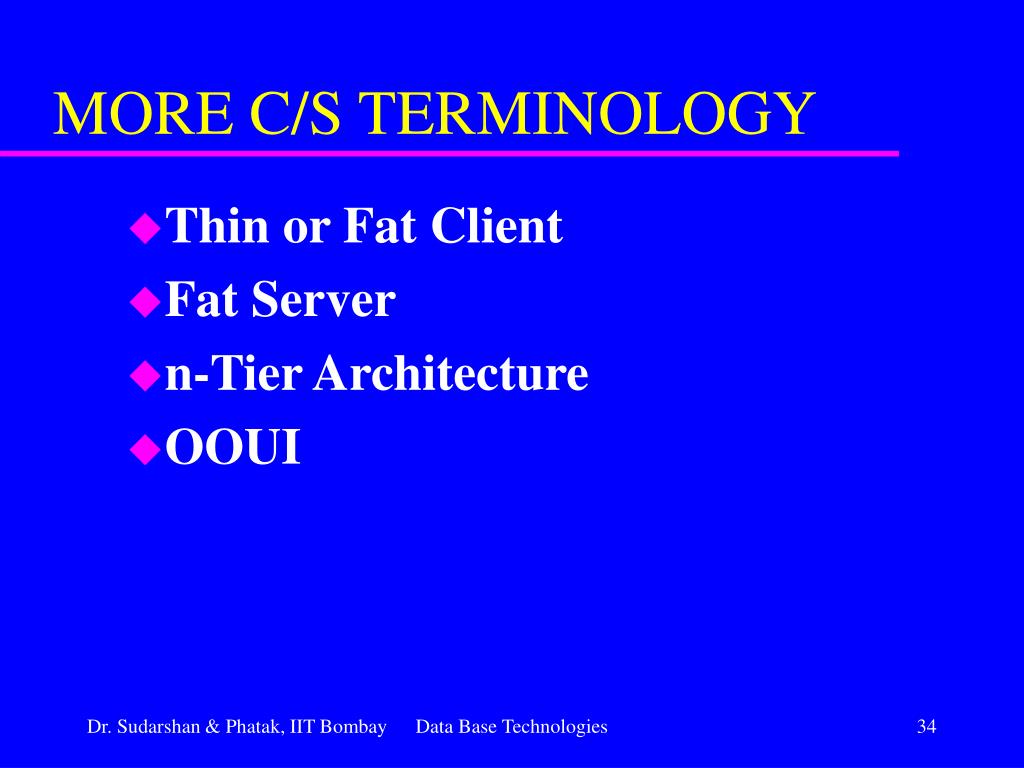

  34. MORE C/S TERMINOLOGY • Thin or Fat Client • Fat Server • n-Tier Architecture • OOUI Data Base Technologies
