  1. Automated NOvA Fly Cutting Machine Jonas F., Lukas G., Balazs M., Jonas S., Christian W.

  2. Contents • Introduction and costumer requirements • Solution finding • NFCM Project • Results • Conclusions • Questions

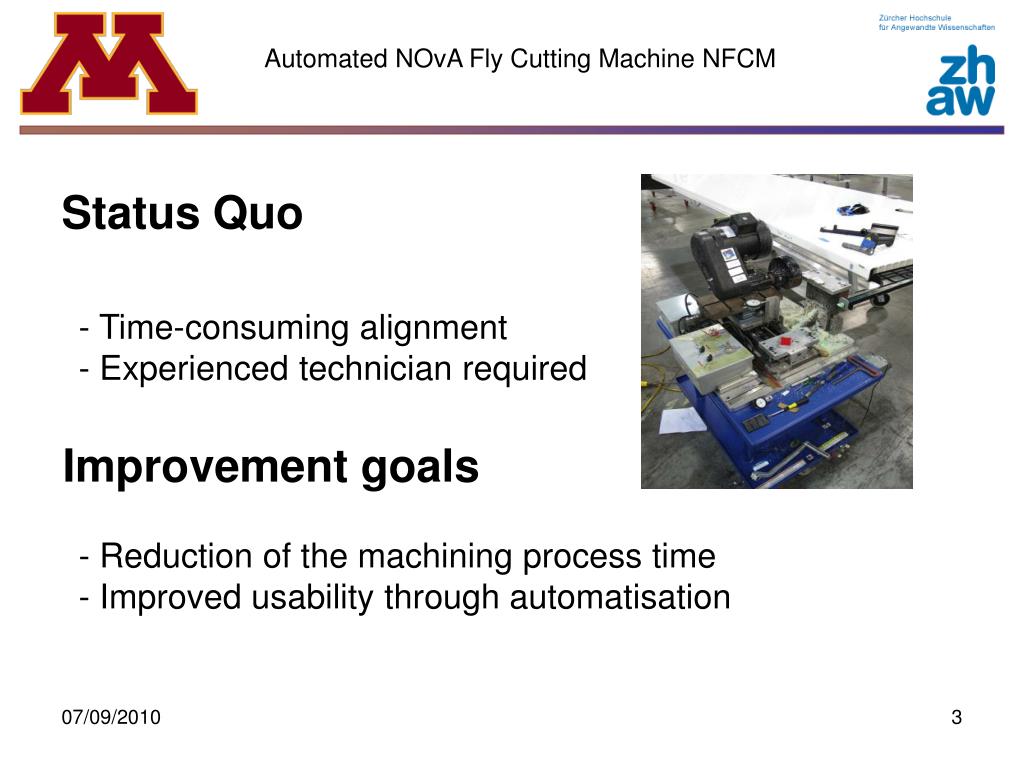

  3. Status Quo • Time-consuming alignment • Experienced technician required Improvement goals • Reduction of the machining process time • Improved usability through automatisation

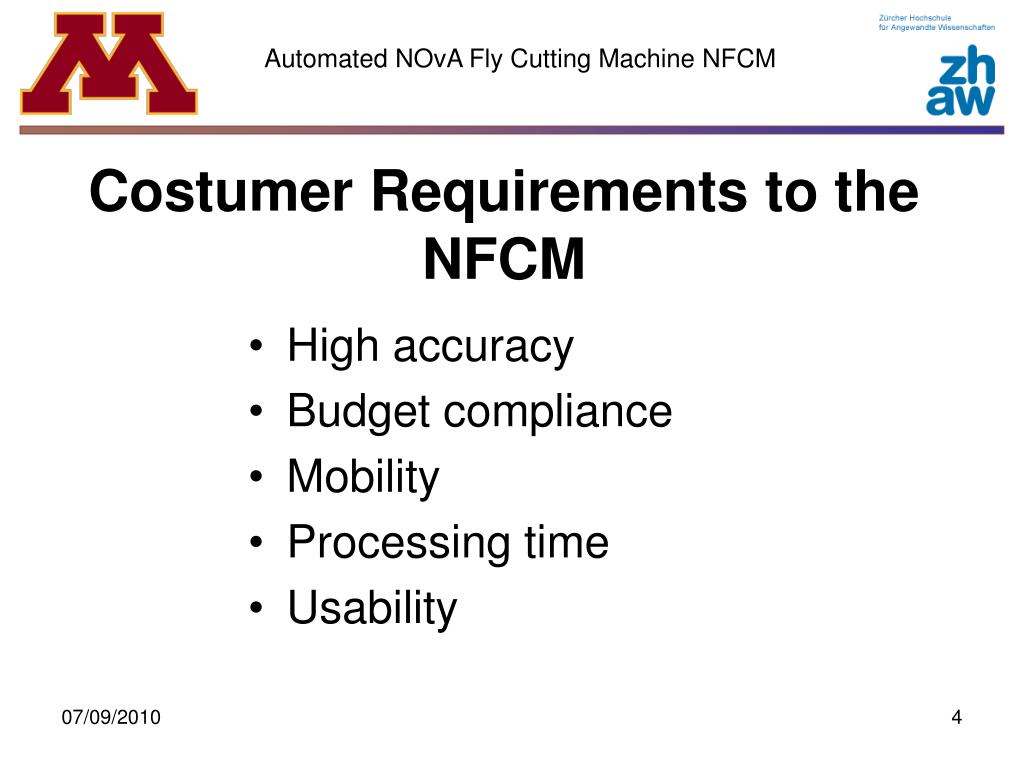

  4. Costumer Requirements to the NFCM • High accuracy • Budget compliance • Mobility • Processing time • Usability

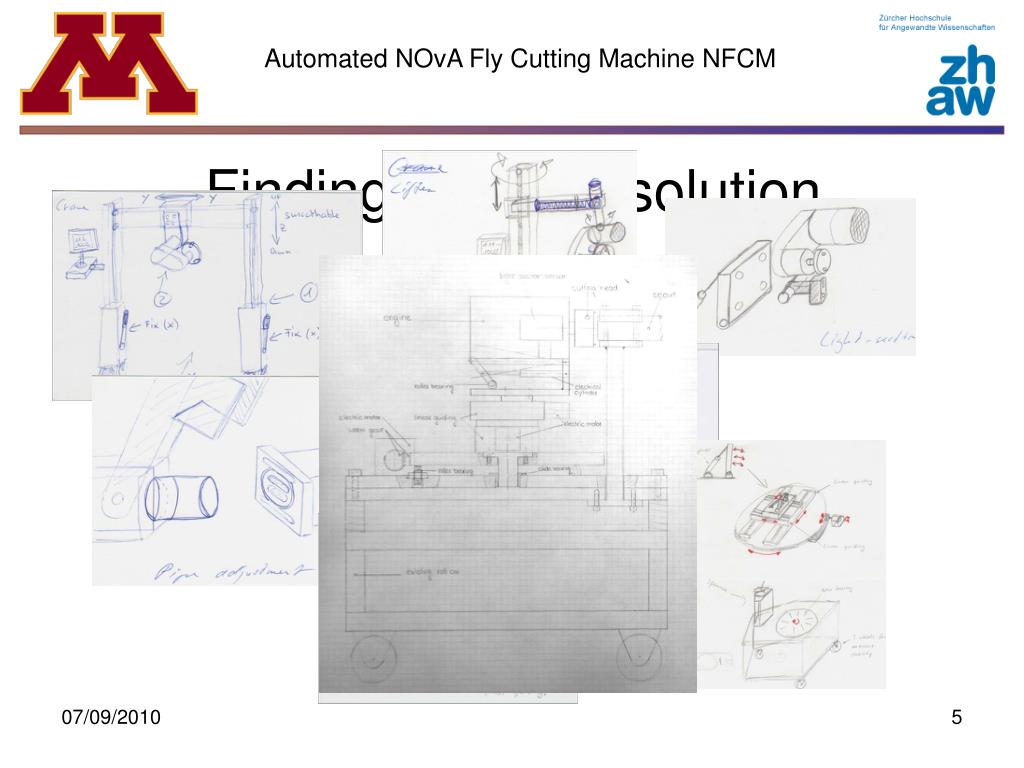

  5. Finding the best solution

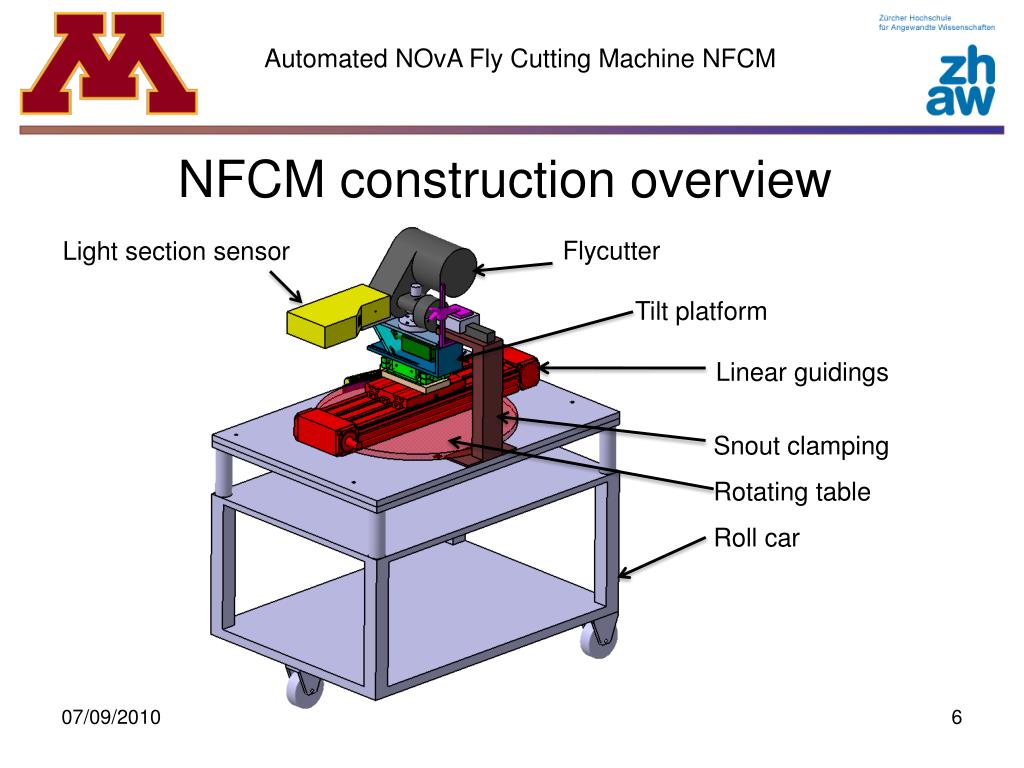

  6. NFCM construction overview Flycutter Light section sensor Tilt platform Linear guidings Snout clamping Rotating table Roll car

  7. Light section sensor • Emitting laser beam • Reflected by object • Caught by camera • Processing of profile Fig: www.ia.omron.com

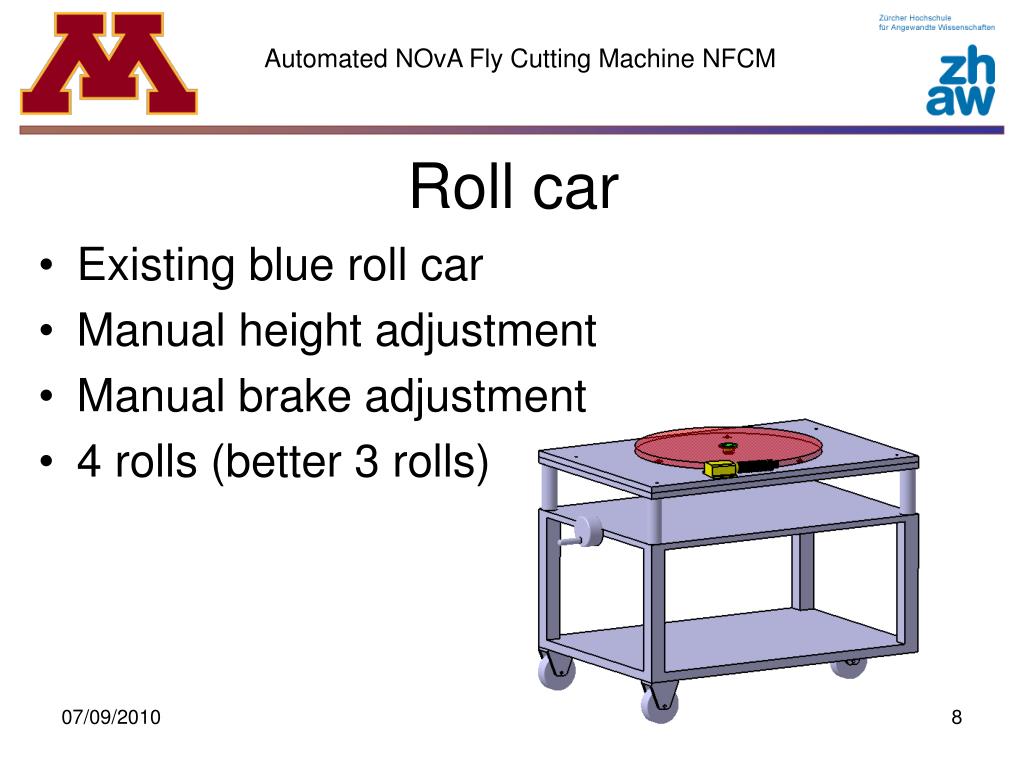

  8. Roll car • Existing blue roll car • Manual height adjustment • Manual brake adjustment • 4 rolls (better 3 rolls)

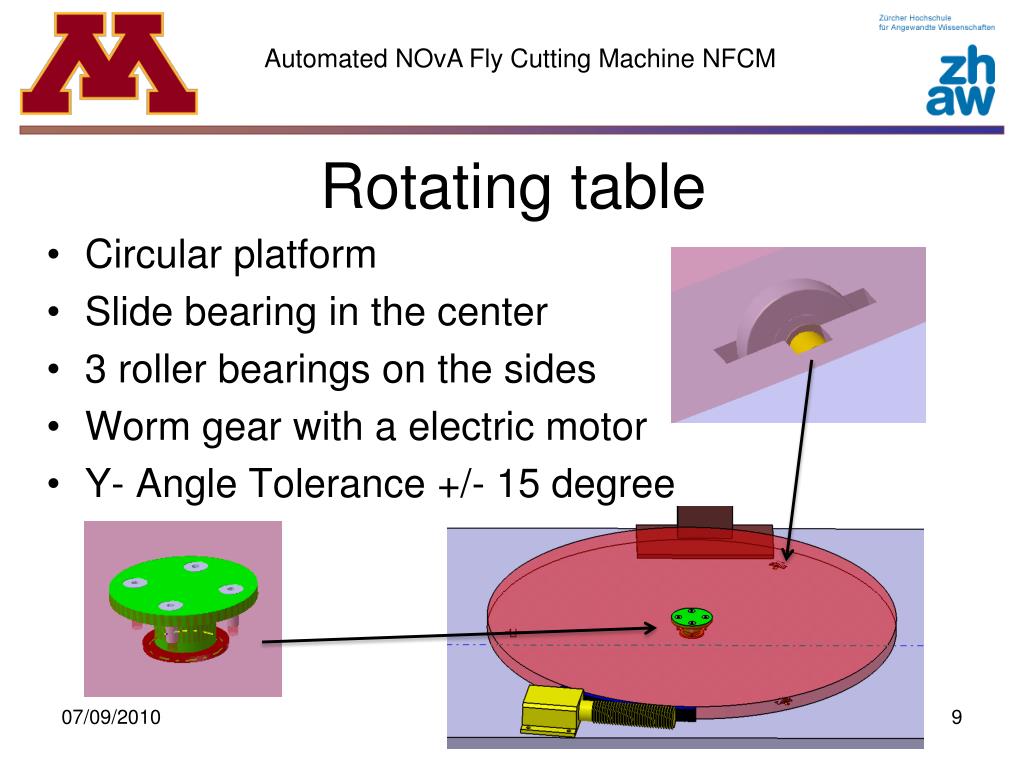

  9. Rotating table • Circular platform • Slide bearing in the center • 3 roller bearings on the sides • Worm gear with a electric motor • Y- Angle Tolerance +/- 15 degree

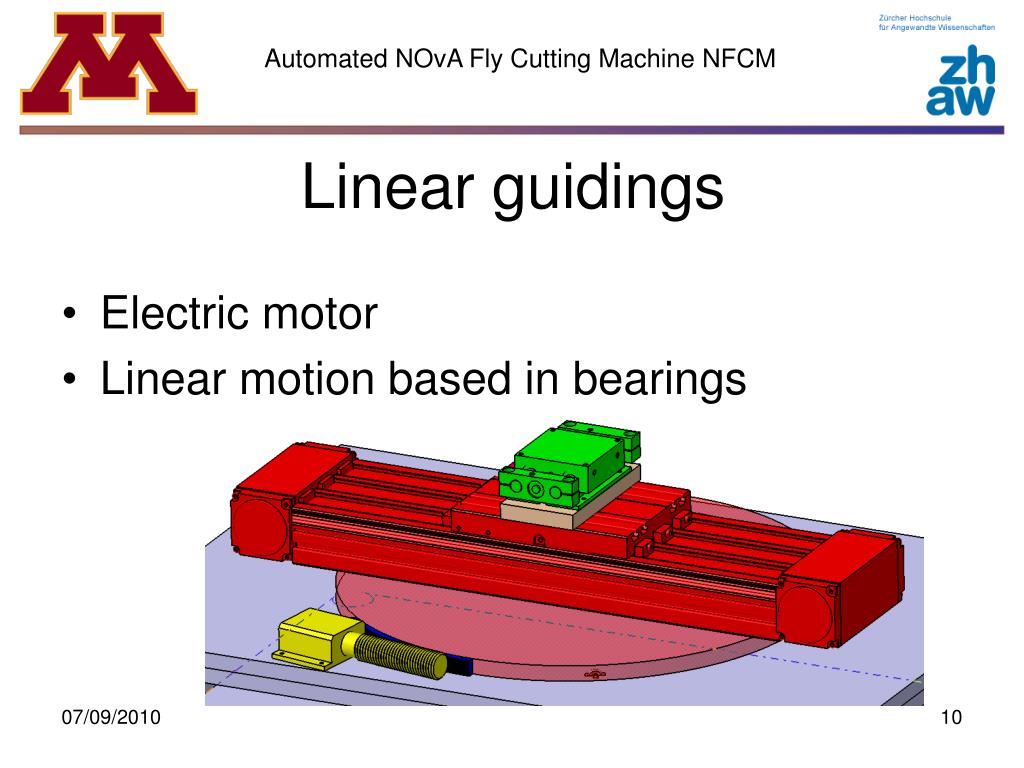

  10. Linear guidings • Electric motor • Linear motion based in bearings

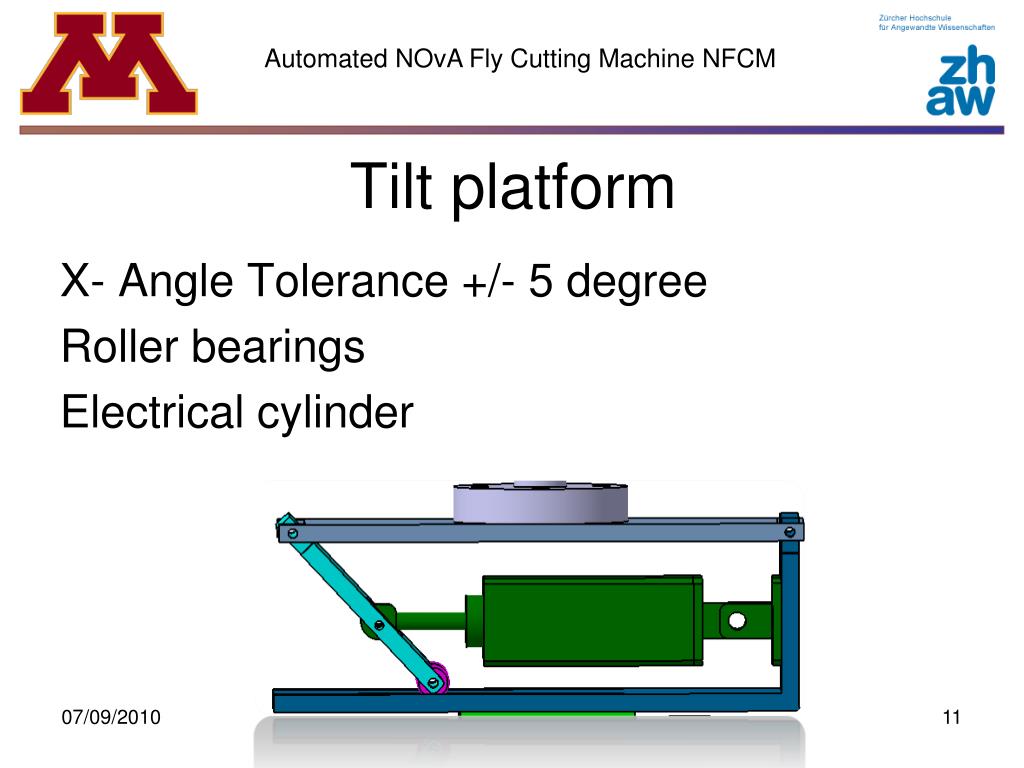

  11. Tilt platform X- Angle Tolerance +/- 5 degree Roller bearings Electrical cylinder

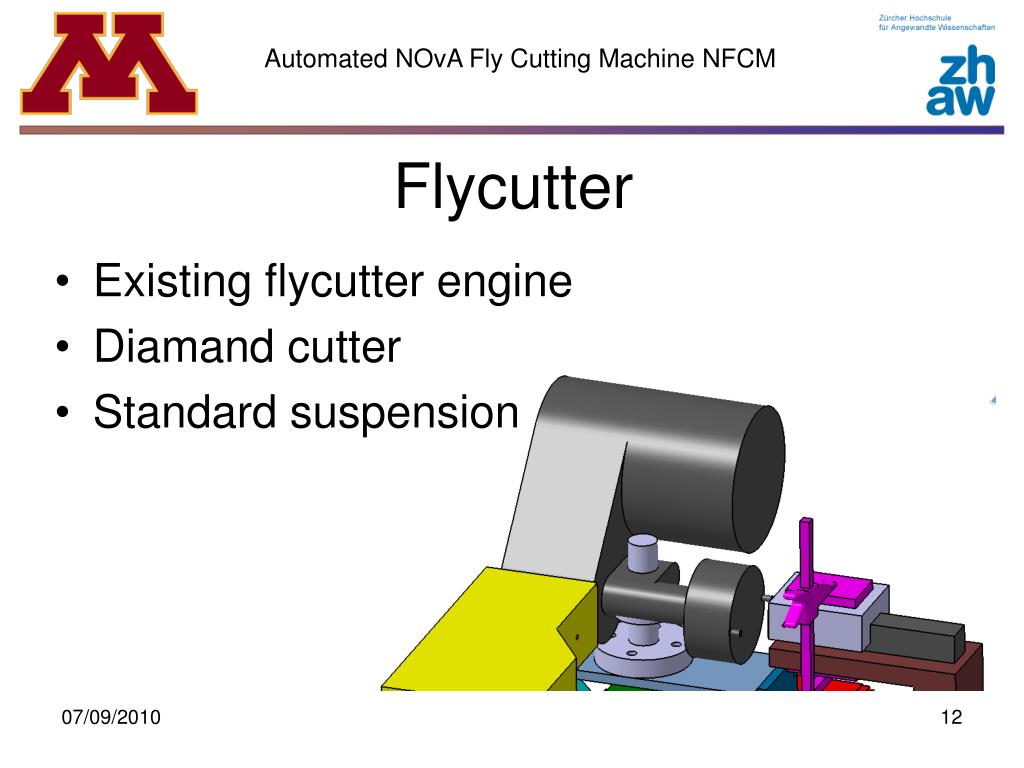

  12. Flycutter • Existing flycutter engine • Diamand cutter • Standard suspension

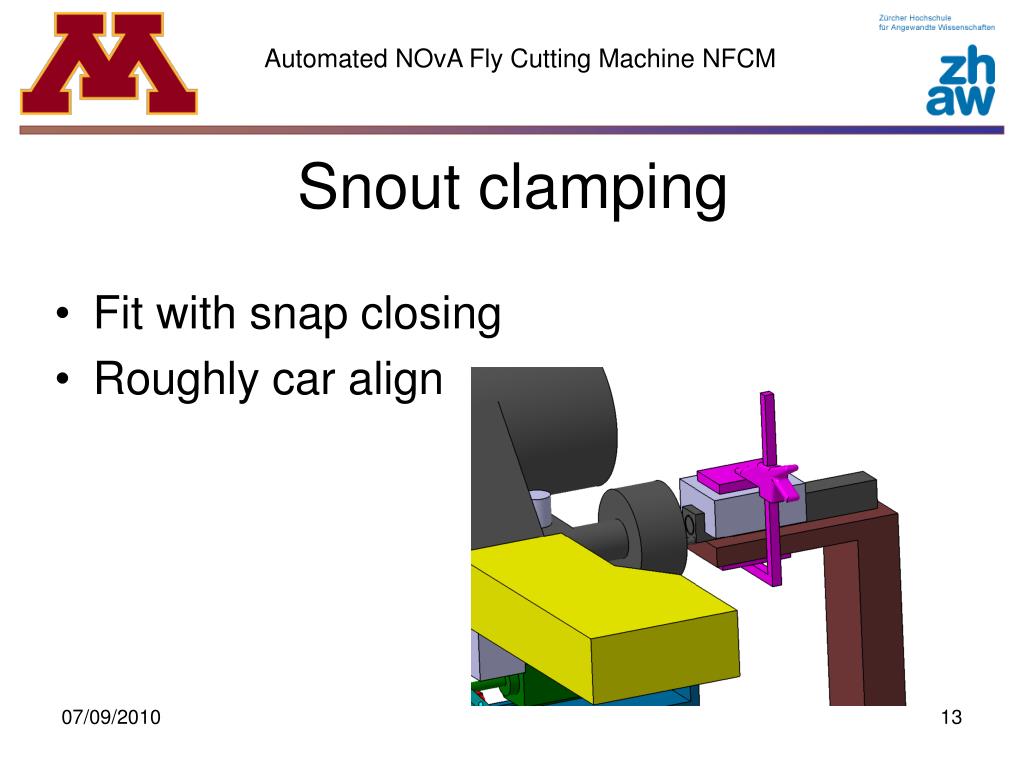

  13. Snout clamping • Fit with snap closing • Roughly car align

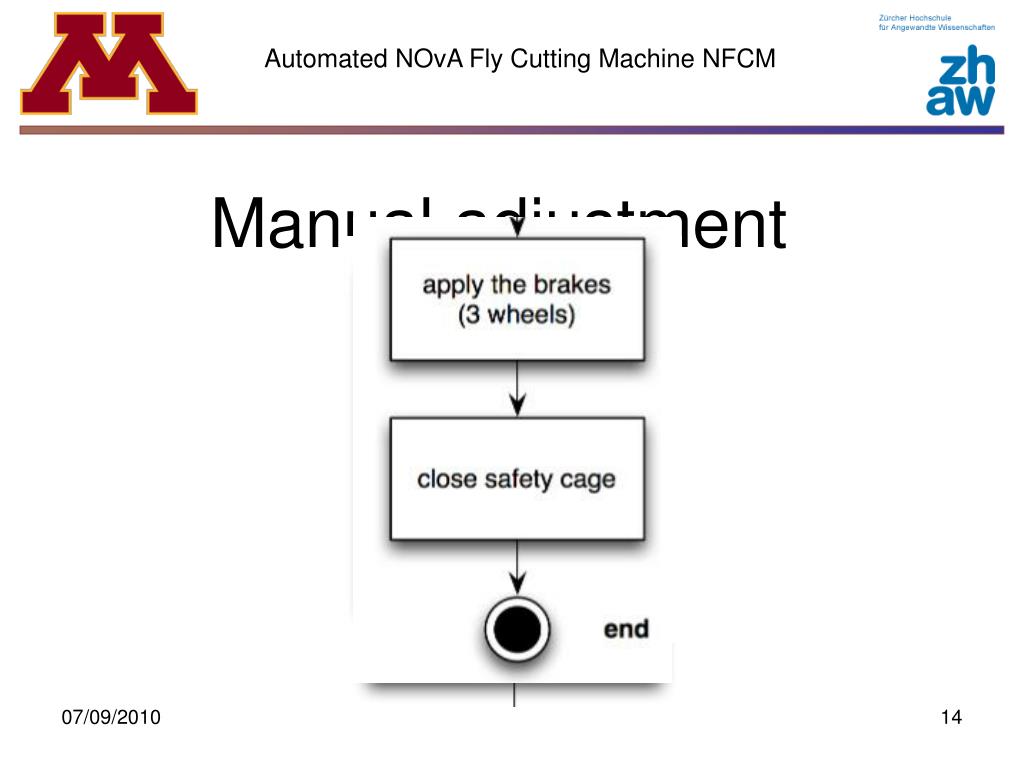

  14. Manual adjustment

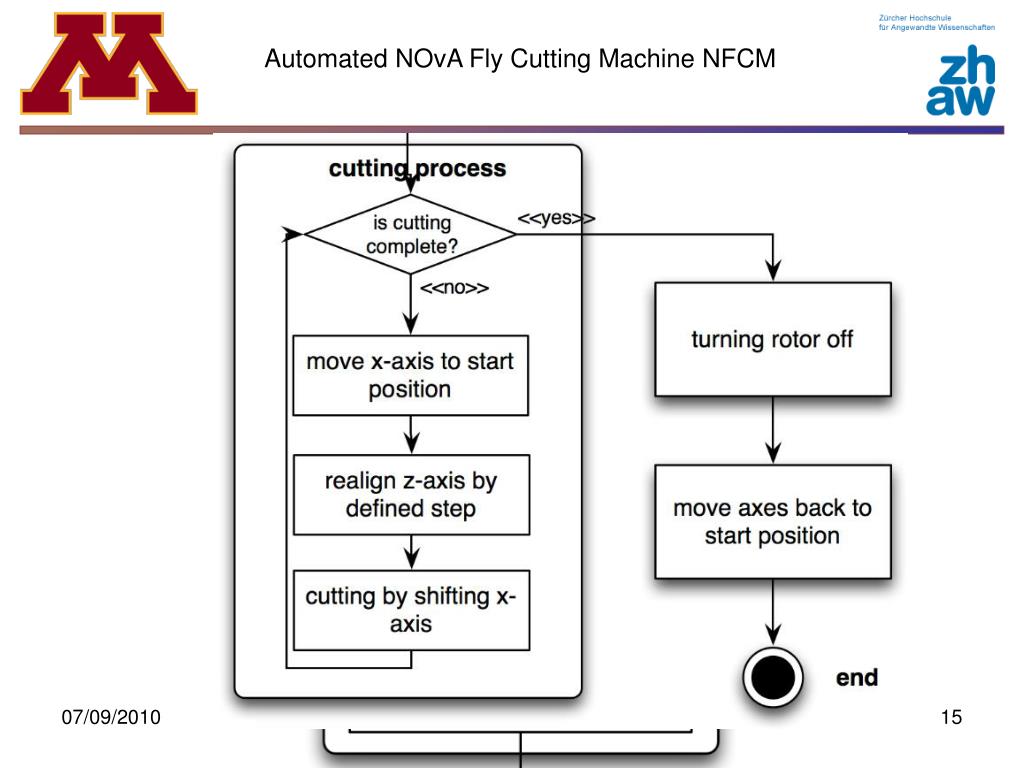

  15. Working process

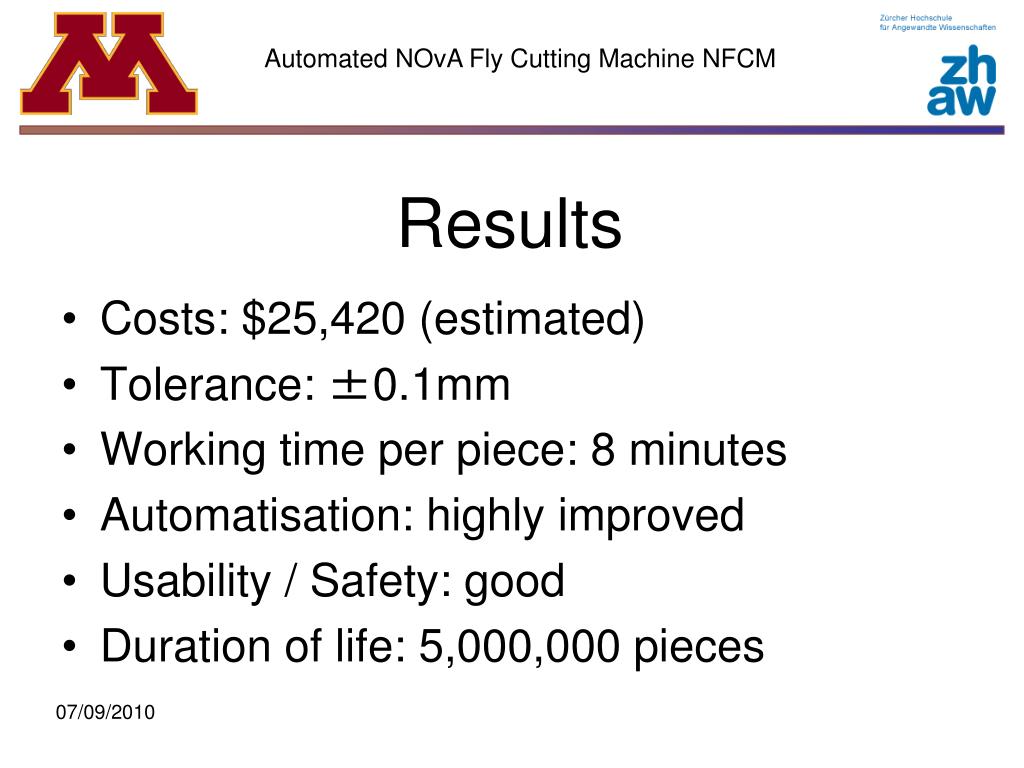

  16. Costs: $25,420 (estimated) • Tolerance: ±0.1mm • Working time per piece: 8 minutes • Automatisation: highly improved • Usability / Safety: good • Duration of life: 5,000,000 pieces Results 07/09/2010

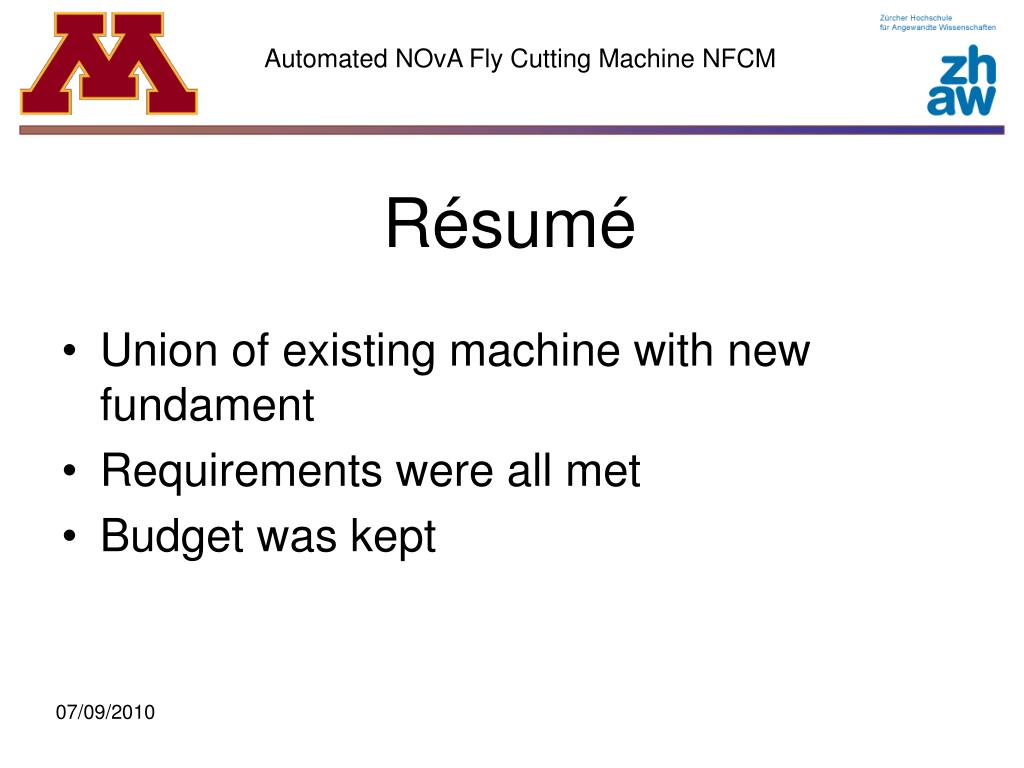

  17. Union of existing machine with new fundament • Requirements were all met • Budget was kept Résumé 07/09/2010

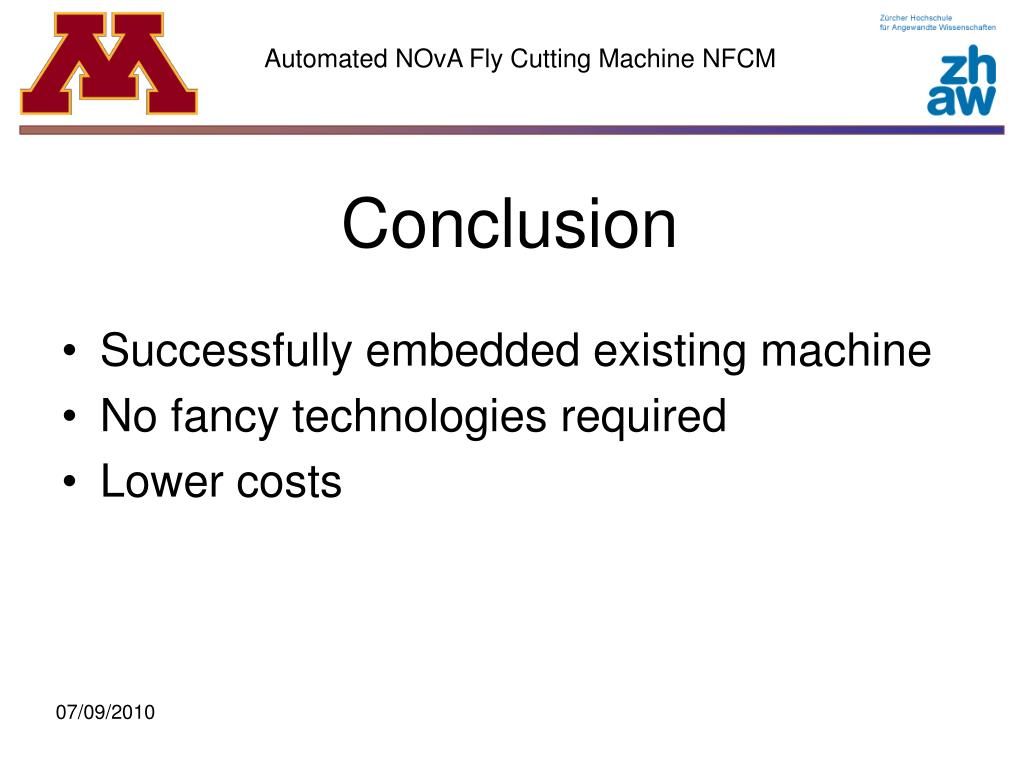

  18. Successfully embedded existing machine • No fancy technologies required • Lower costs Conclusion 07/09/2010
