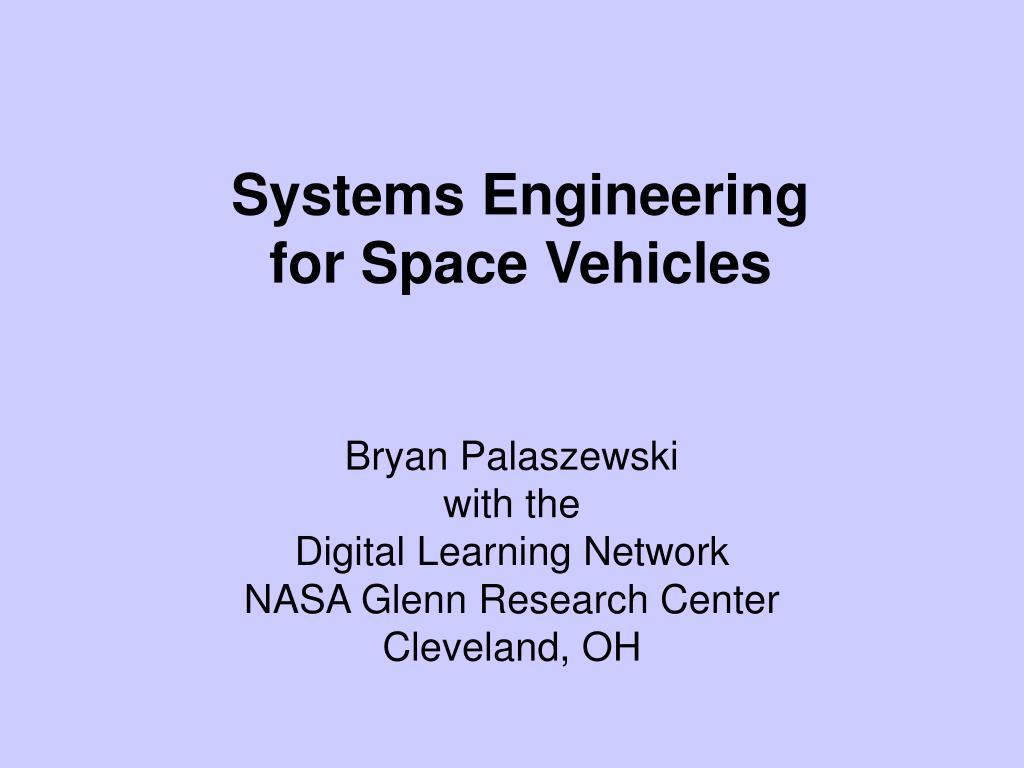

  1. Systems Engineering for Space Vehicles Bryan Palaszewski with the Digital Learning Network NASA Glenn Research Center Cleveland, OH

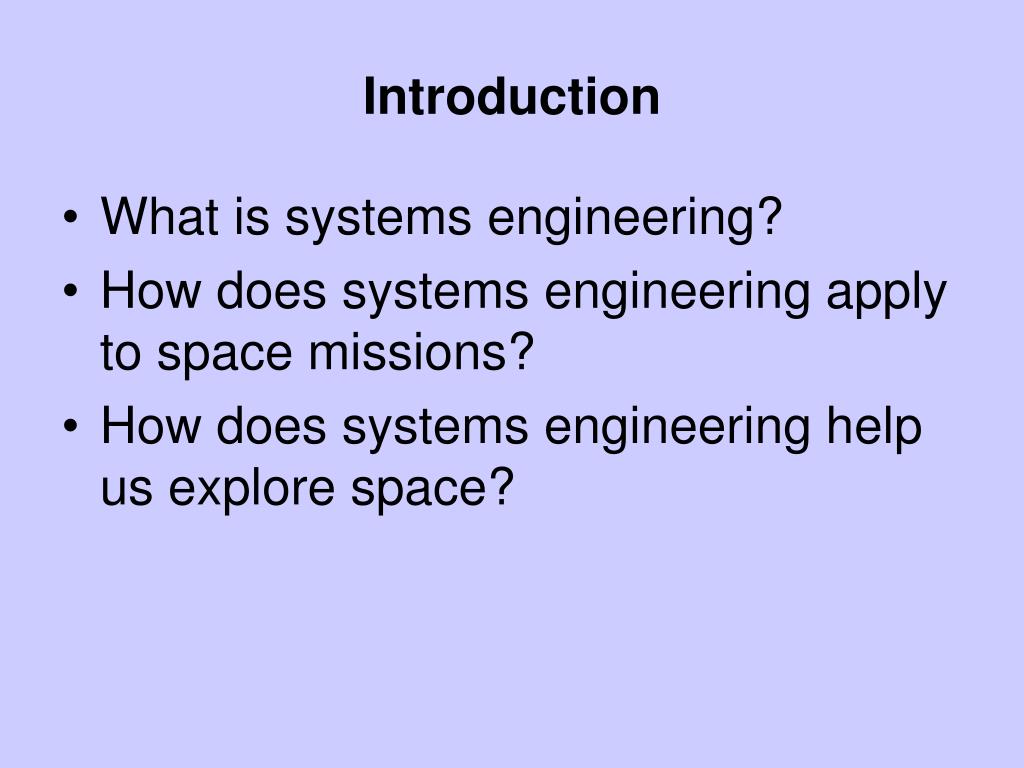

  2. Introduction • What is systems engineering? • How does systems engineering apply to space missions? • How does systems engineering help us explore space?

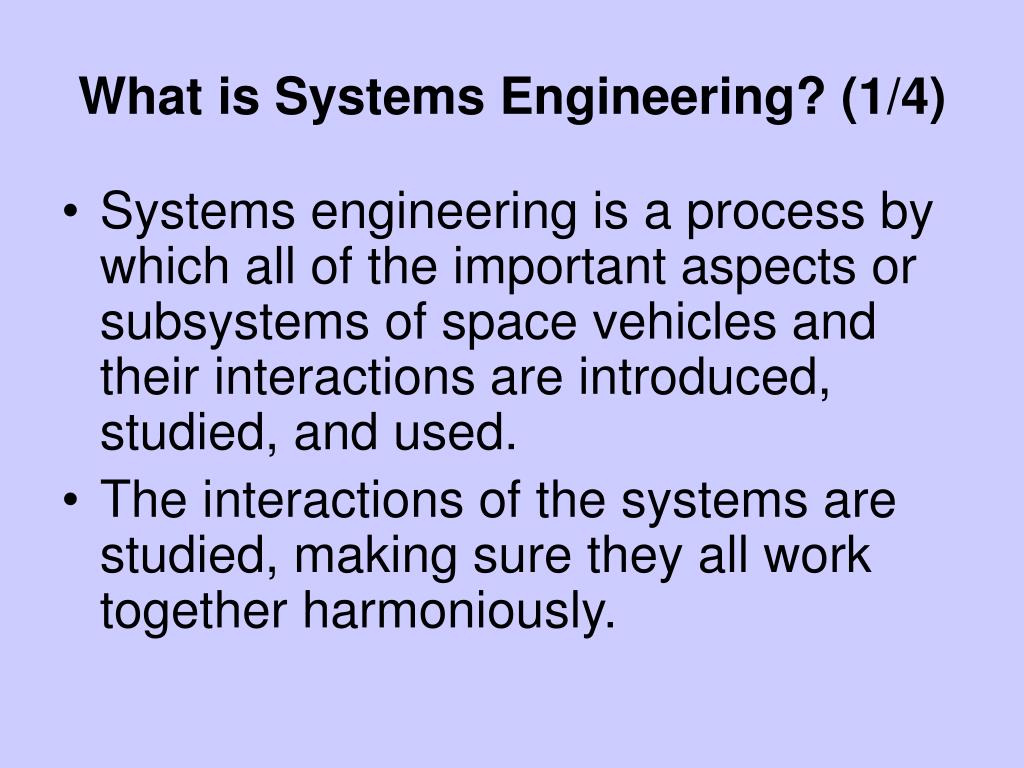

  3. What is Systems Engineering? (1/4) • Systems engineering is a process by which all of the important aspects or subsystems of space vehicles and their interactions are introduced, studied, and used. • The interactions of the systems are studied, making sure they all work together harmoniously.

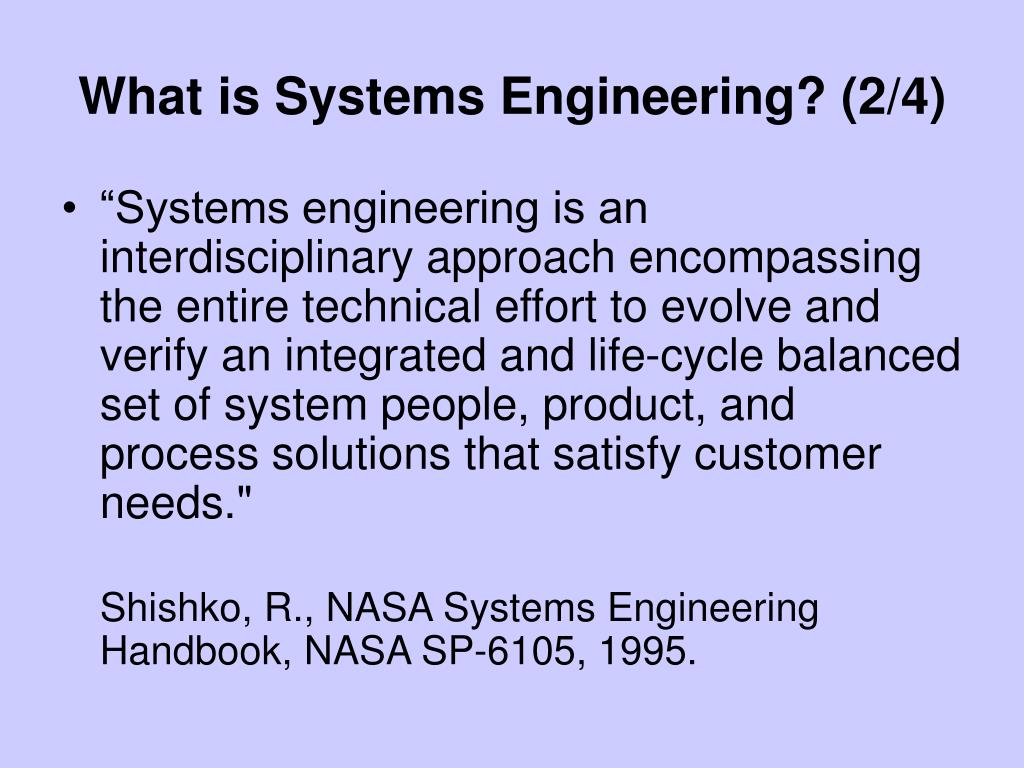

  4. What is Systems Engineering? (2/4) • “Systems engineering is an interdisciplinary approach encompassing the entire technical effort to evolve and verify an integrated and life-cycle balanced set of system people, product, and process solutions that satisfy customer needs." Shishko, R., NASA Systems Engineering Handbook, NASA SP-6105, 1995.

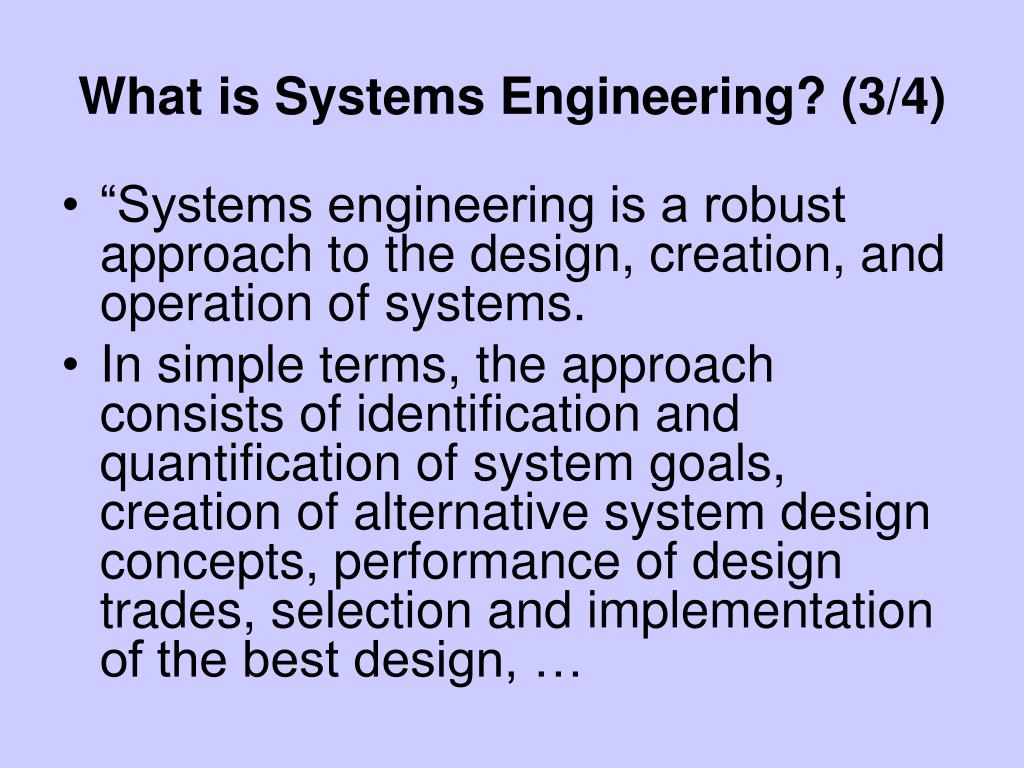

  5. What is Systems Engineering? (3/4) • “Systems engineering is a robust approach to the design, creation, and operation of systems. • In simple terms, the approach consists of identification and quantification of system goals, creation of alternative system design concepts, performance of design trades, selection and implementation of the best design, …

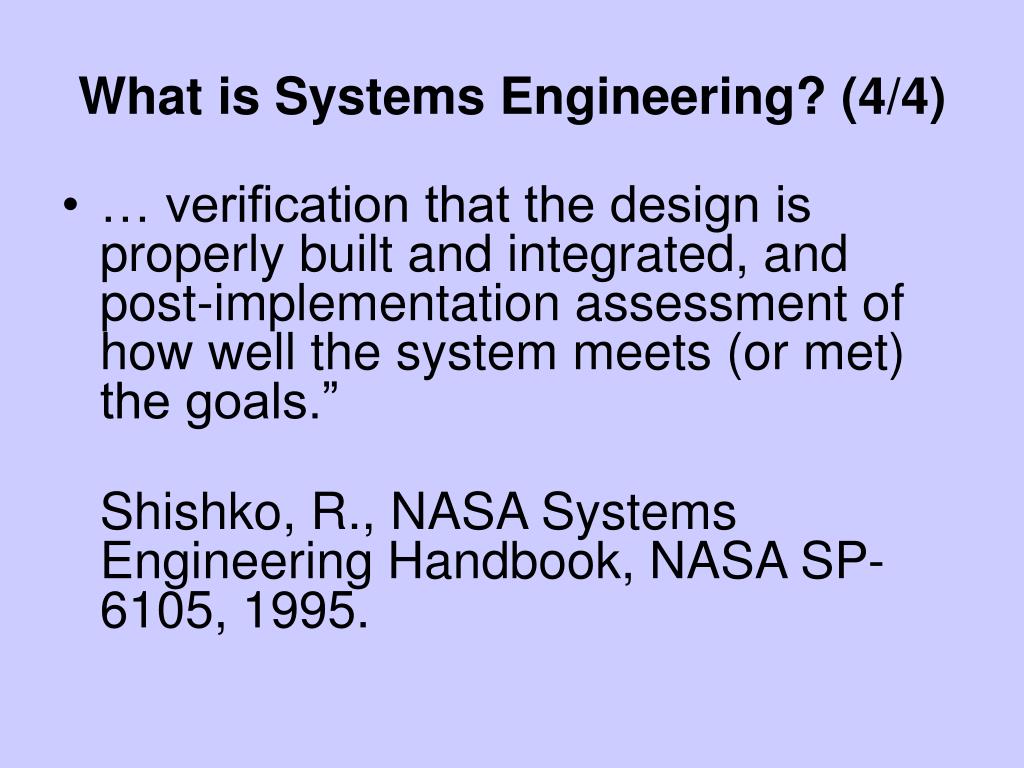

  6. What is Systems Engineering? (4/4) • … verification that the design is properly built and integrated, and post-implementation assessment of how well the system meets (or met) the goals.” Shishko, R., NASA Systems Engineering Handbook, NASA SP-6105, 1995.

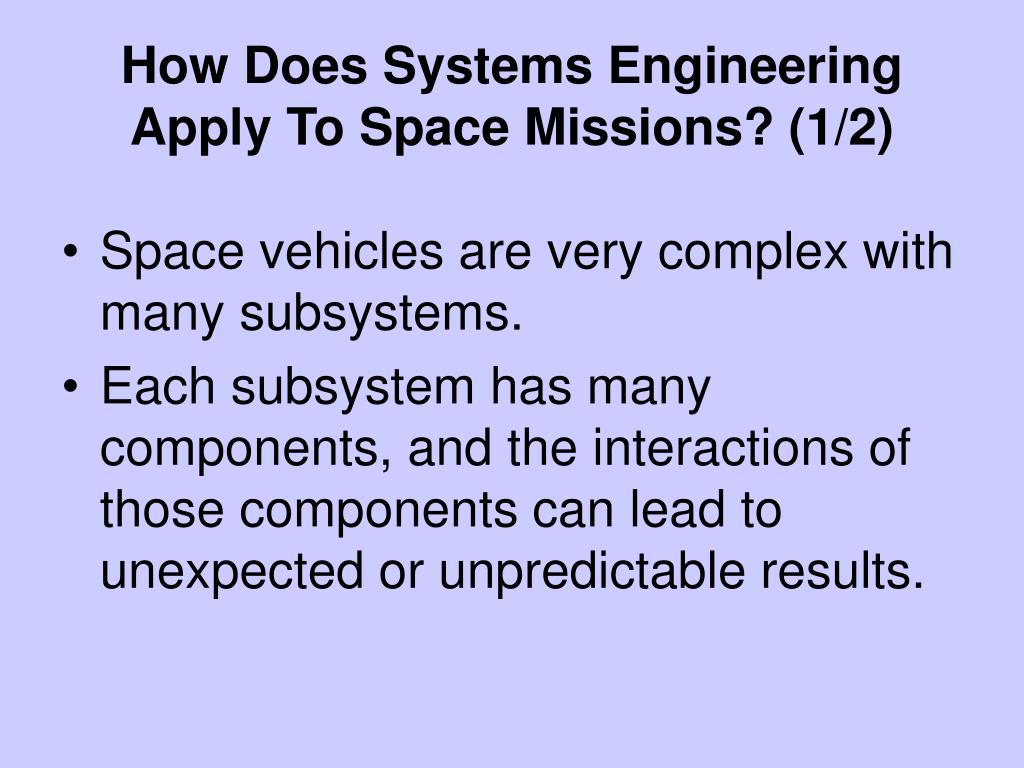

  7. How Does Systems Engineering Apply To Space Missions? (1/2) • Space vehicles are very complex with many subsystems. • Each subsystem has many components, and the interactions of those components can lead to unexpected or unpredictable results.

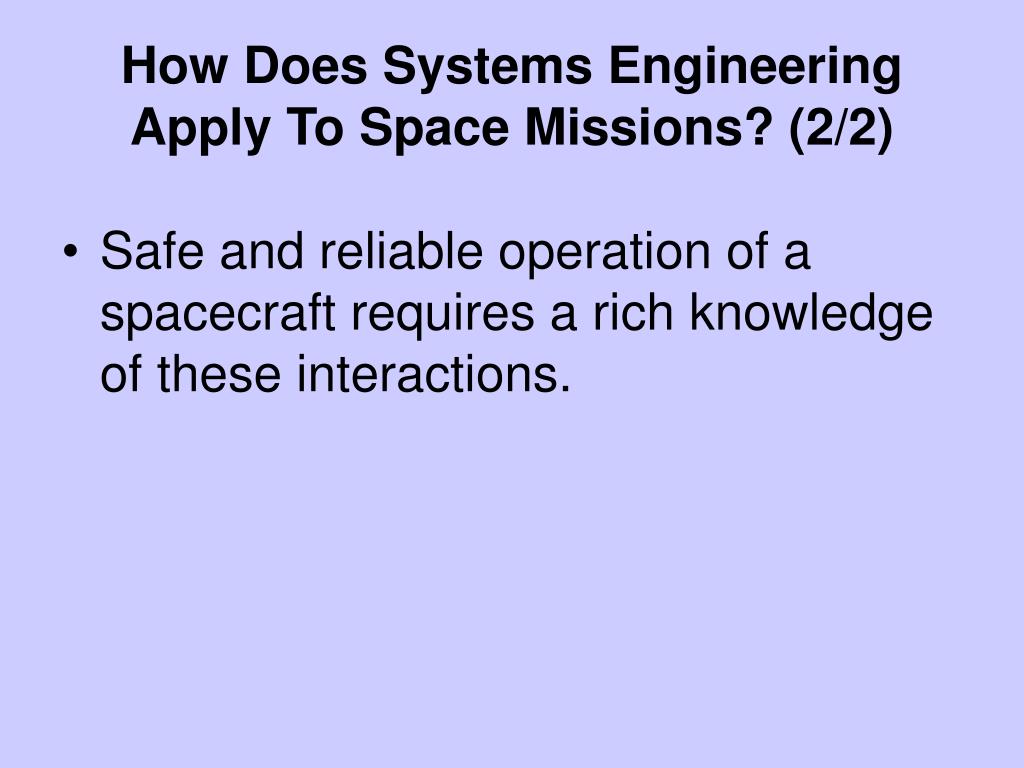

  8. How Does Systems Engineering Apply To Space Missions? (2/2) • Safe and reliable operation of a spacecraft requires a rich knowledge of these interactions.

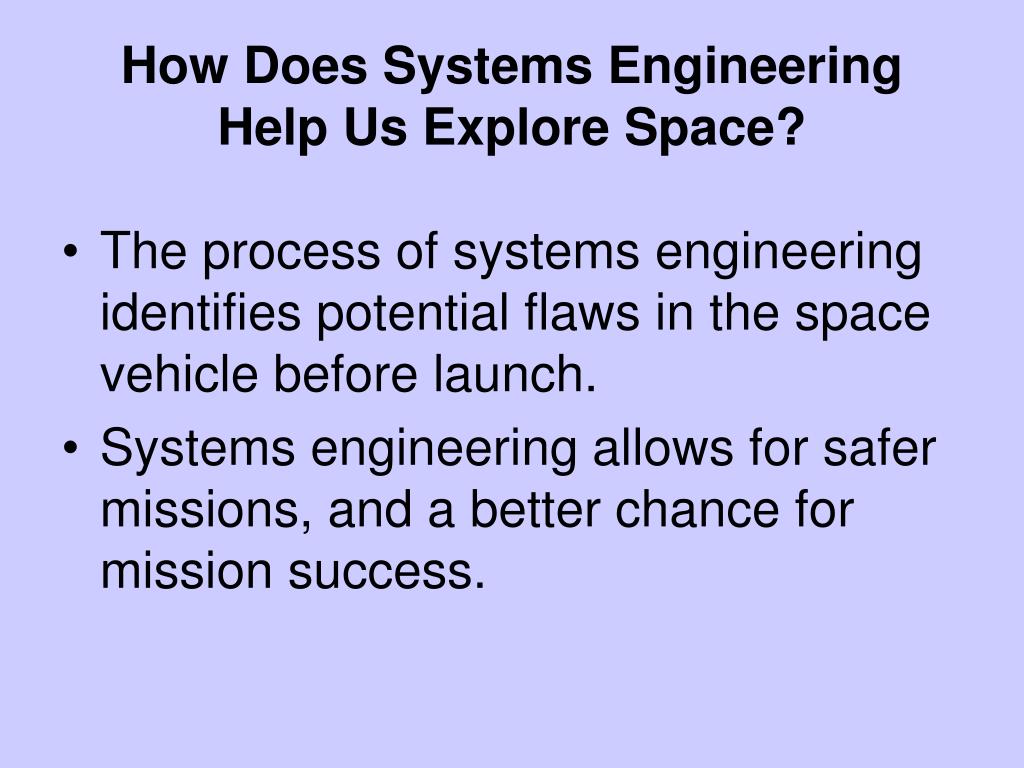

  9. How Does Systems Engineering Help Us Explore Space? • The process of systems engineering identifies potential flaws in the space vehicle before launch. • Systems engineering allows for safer missions, and a better chance for mission success.

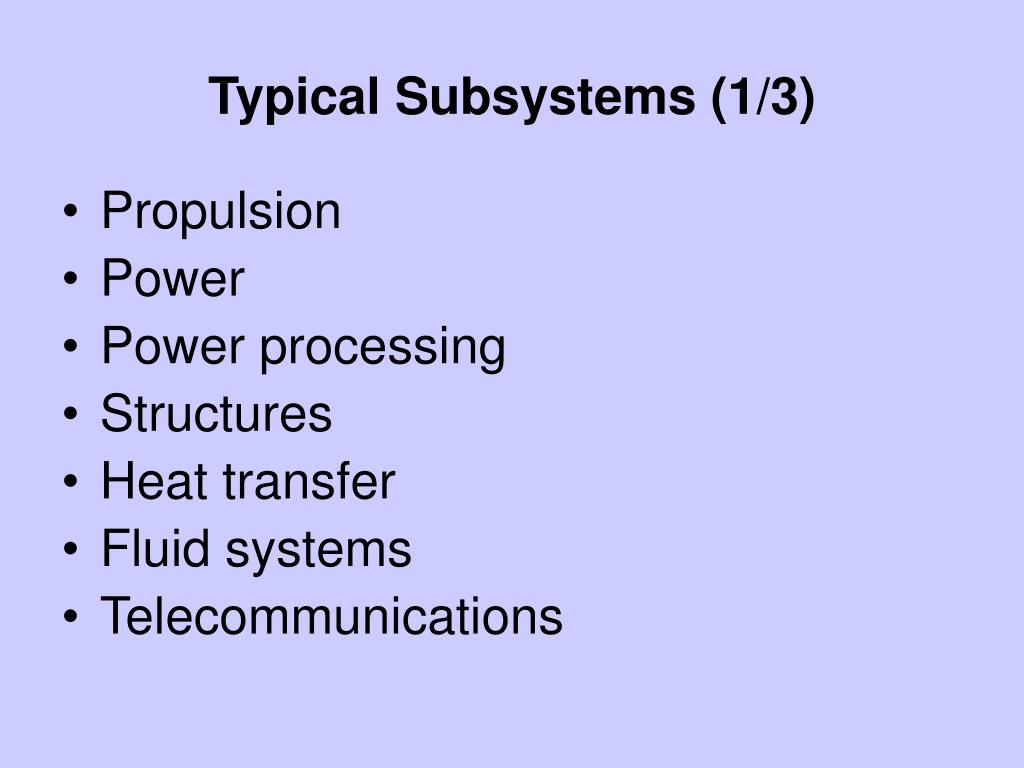

  10. Typical Subsystems (1/3) • Propulsion • Power • Power processing • Structures • Heat transfer • Fluid systems • Telecommunications

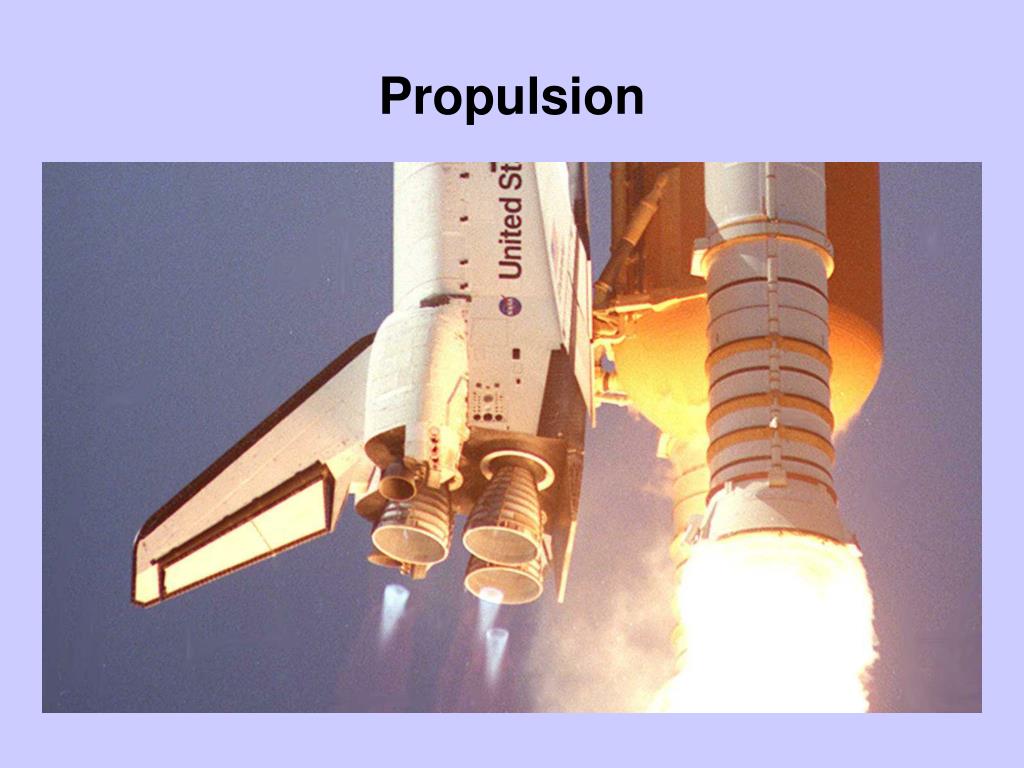

  11. Propulsion

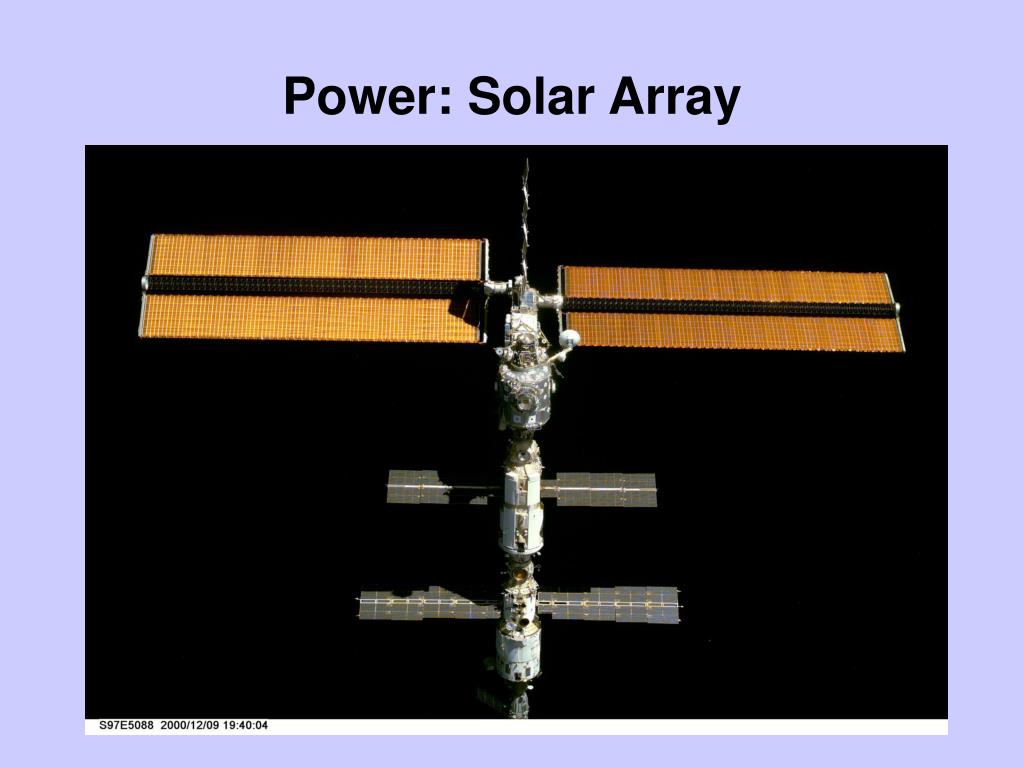

  12. Power: Solar Array

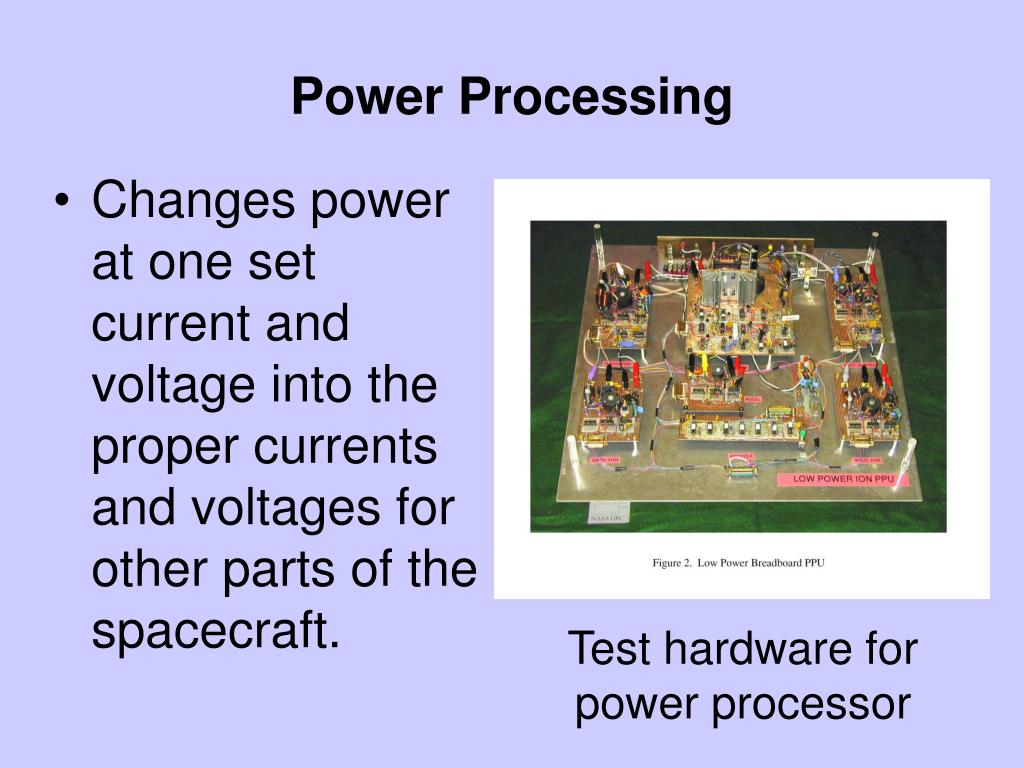

  13. Power Processing • Changes power at one set current and voltage into the proper currents and voltages for other parts of the spacecraft. Test hardware for power processor

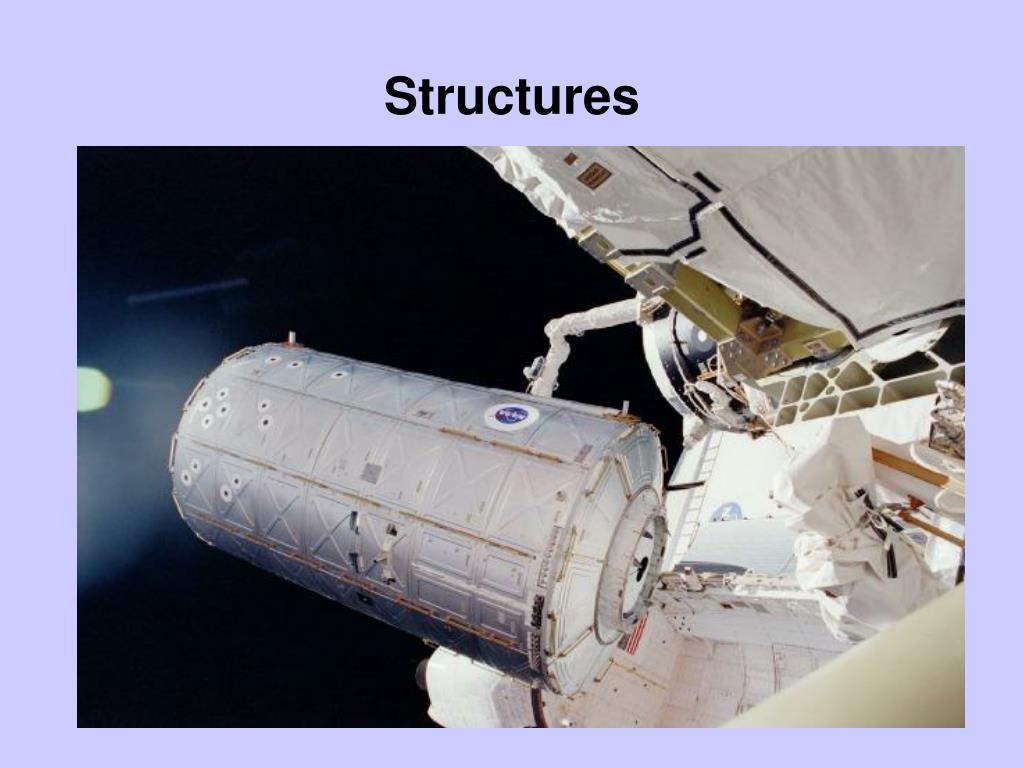

  14. Structures

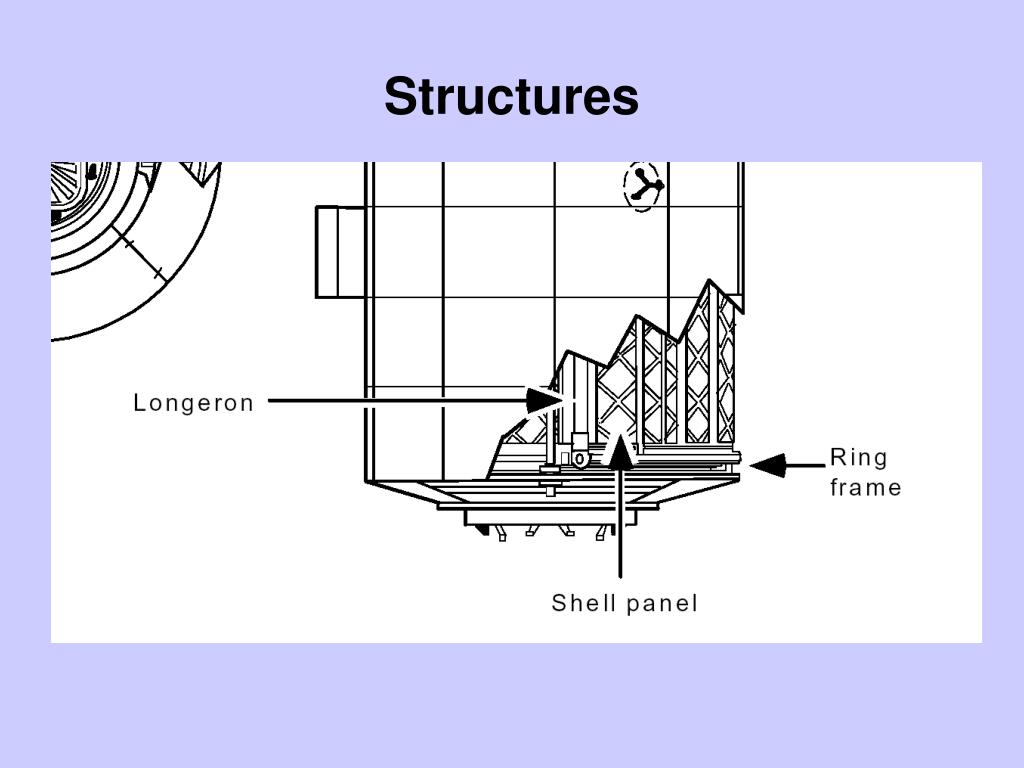

  15. Structures

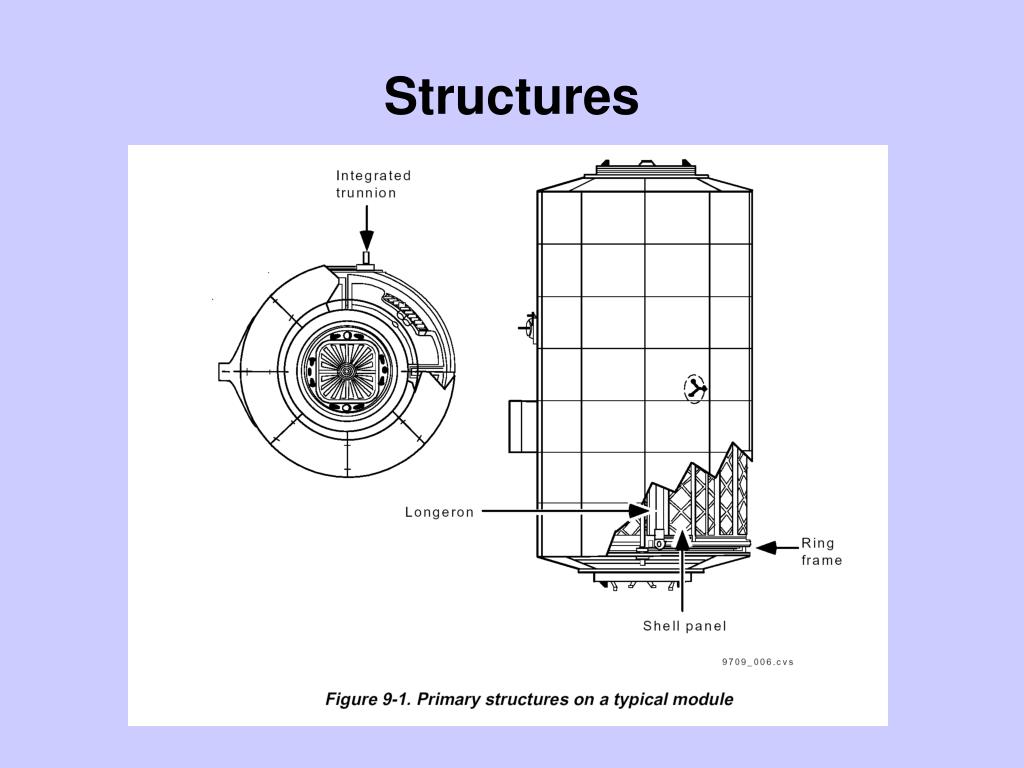

  16. Structures

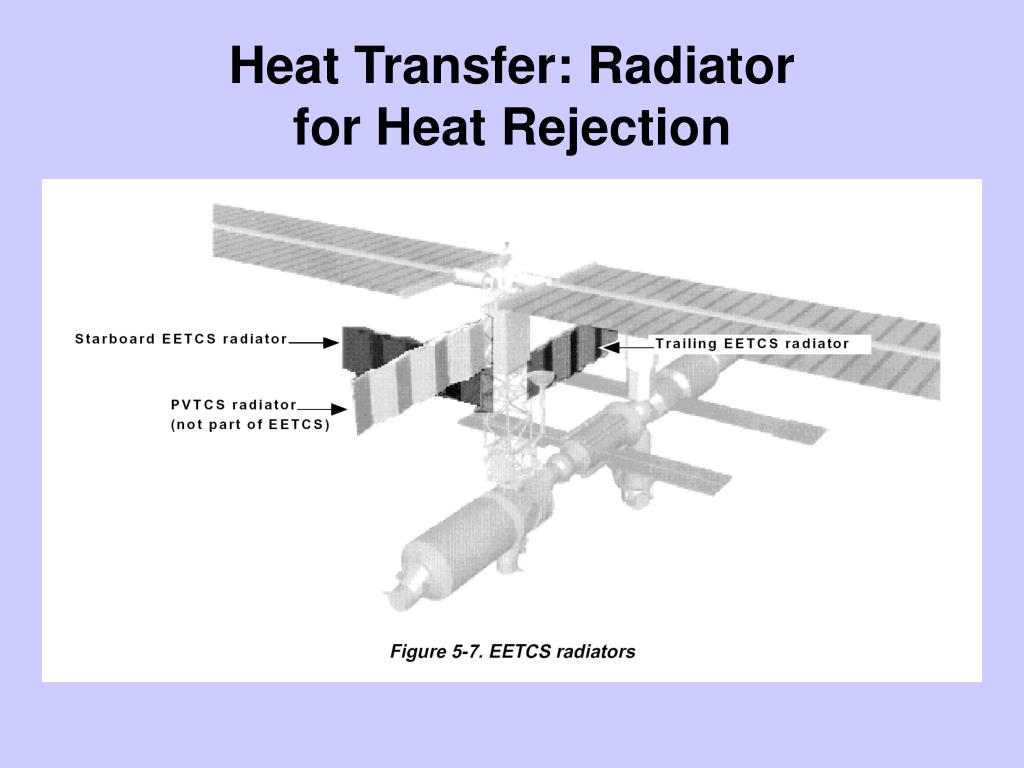

  17. Heat Transfer: Radiator for Heat Rejection

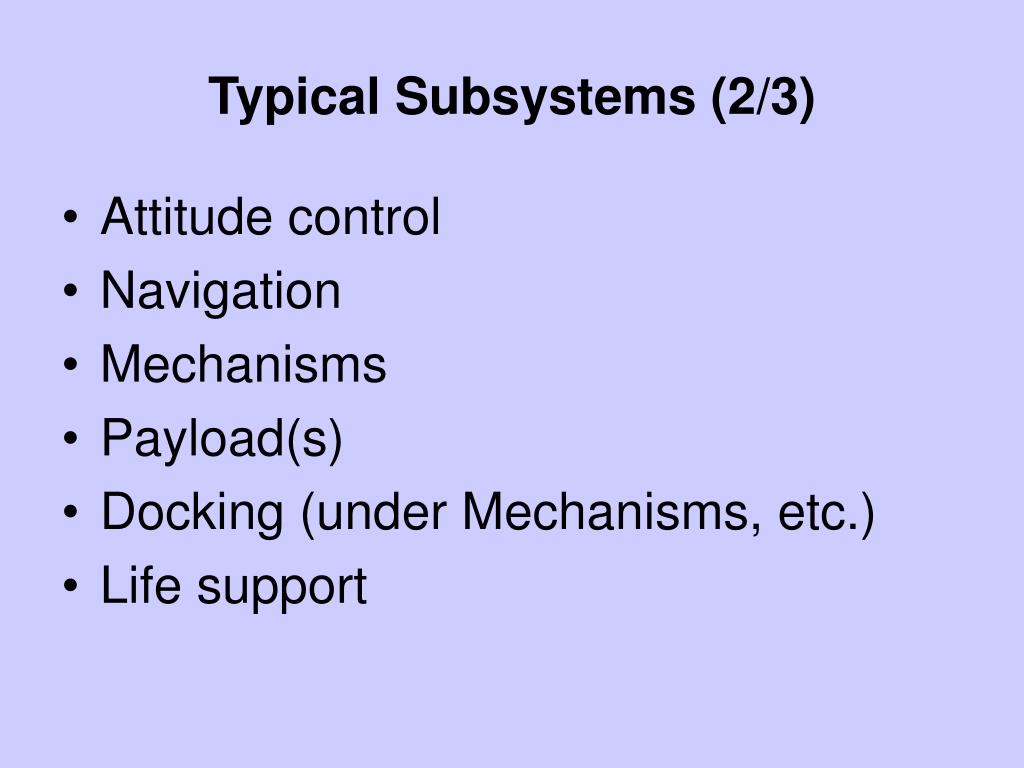

  18. Typical Subsystems (2/3) • Attitude control • Navigation • Mechanisms • Payload(s) • Docking (under Mechanisms, etc.) • Life support

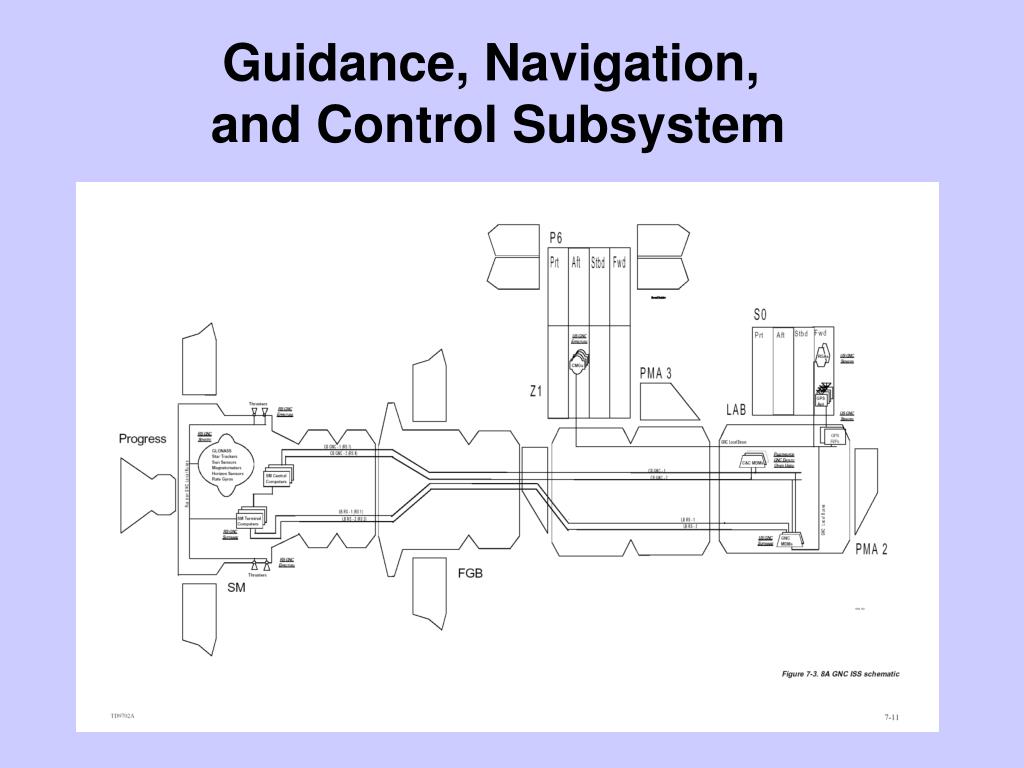

  19. Guidance, Navigation, and Control Subsystem

  20. Environmental Control and Life Support Subsystem

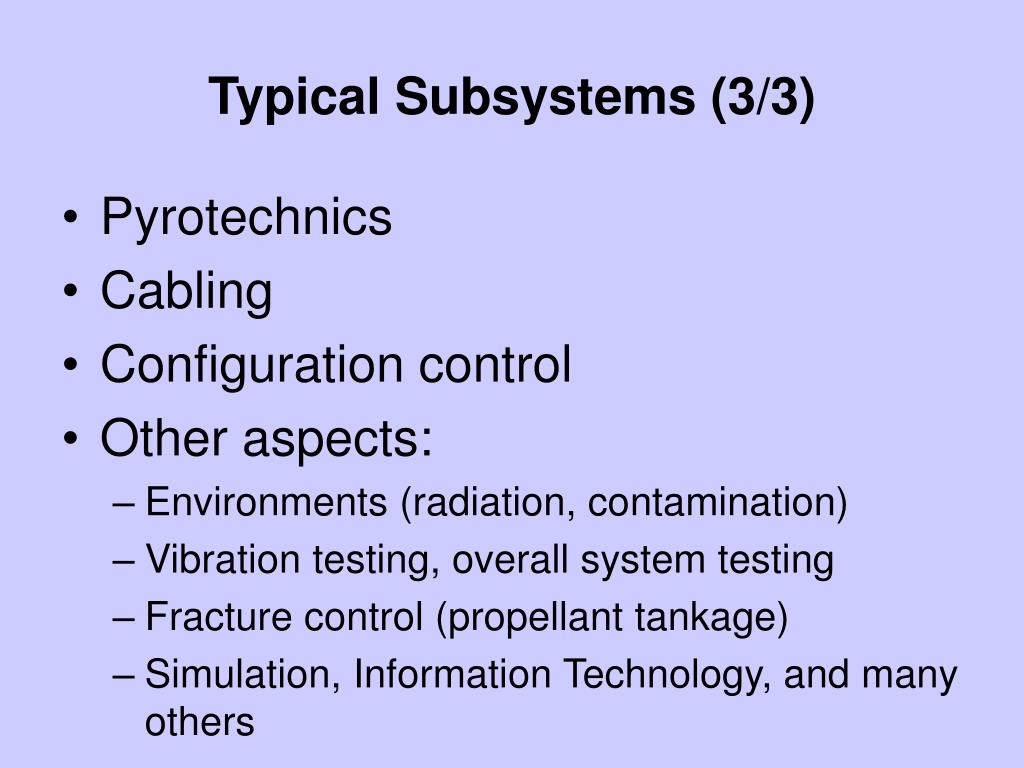

  21. Typical Subsystems (3/3) • Pyrotechnics • Cabling • Configuration control • Other aspects: • Environments (radiation, contamination) • Vibration testing, overall system testing • Fracture control (propellant tankage) • Simulation, Information Technology, and many others

  22. Layout of Nuclear Electric Propulsion (NEP) Vehicle
