3.2 Properties of Parallel Lines

3.2 Properties of Parallel Lines. Corresponding Angles Postulate – Postulate 3.1 If a transversal intersects two parallel lines, then corresponding angles are CONGRUENT!!. Identifying Congruent Angles. Which angles measure 55? How do you know?

bruno
Télécharger la présentation

3.2 Properties of Parallel Lines

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 3.2 Properties of Parallel Lines • Corresponding Angles Postulate – Postulate 3.1 • If a transversal intersects two parallel lines, then corresponding angles are CONGRUENT!!

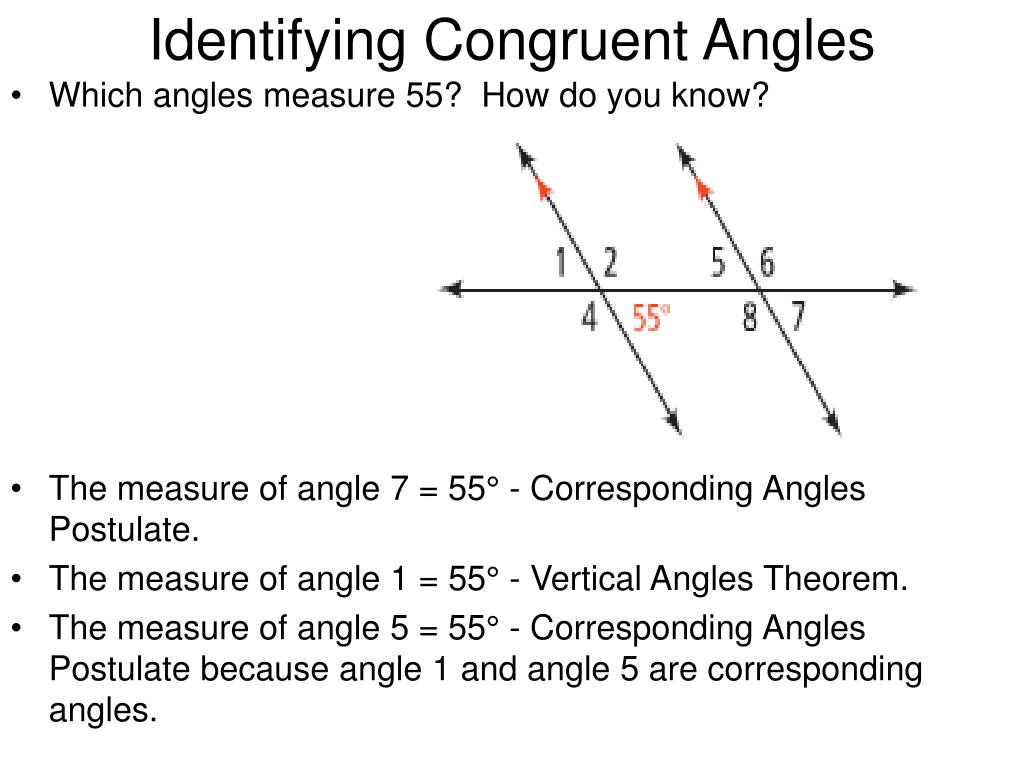

  2. Identifying Congruent Angles • Which angles measure 55? How do you know? • The measure of angle 7 = 55° - Corresponding Angles Postulate. • The measure of angle 1 = 55° - Vertical Angles Theorem. • The measure of angle 5 = 55° - Corresponding Angles Postulate because angle 1 and angle 5 are corresponding angles.

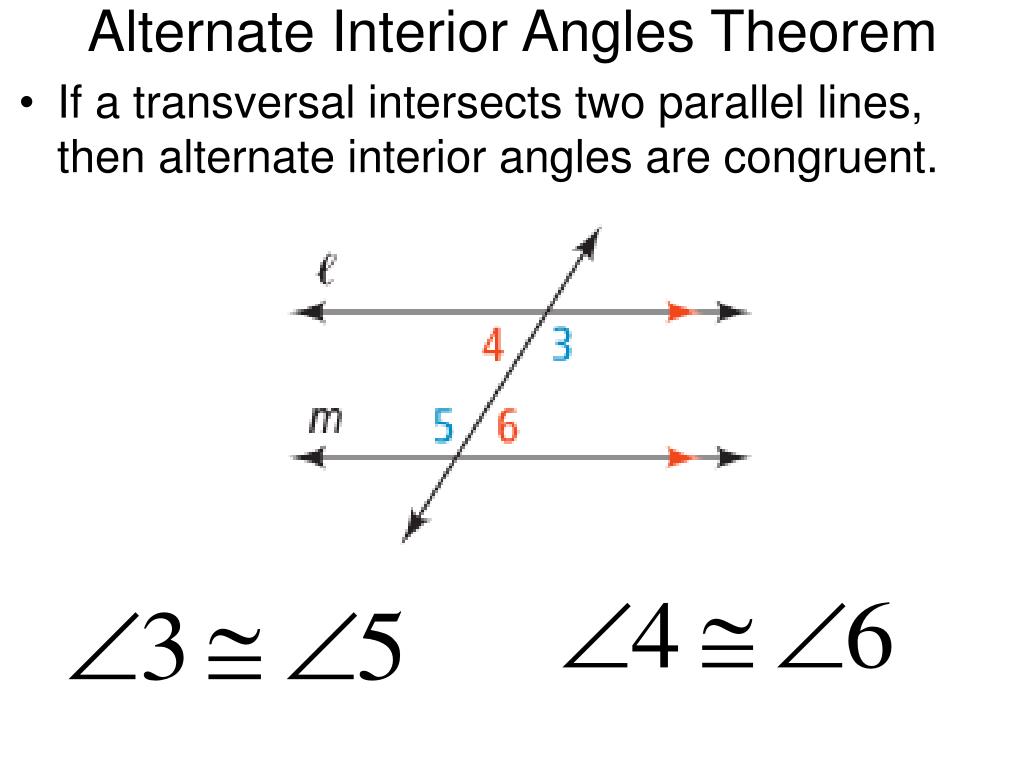

  3. Alternate Interior Angles Theorem • If a transversal intersects two parallel lines, then alternate interior angles are congruent.

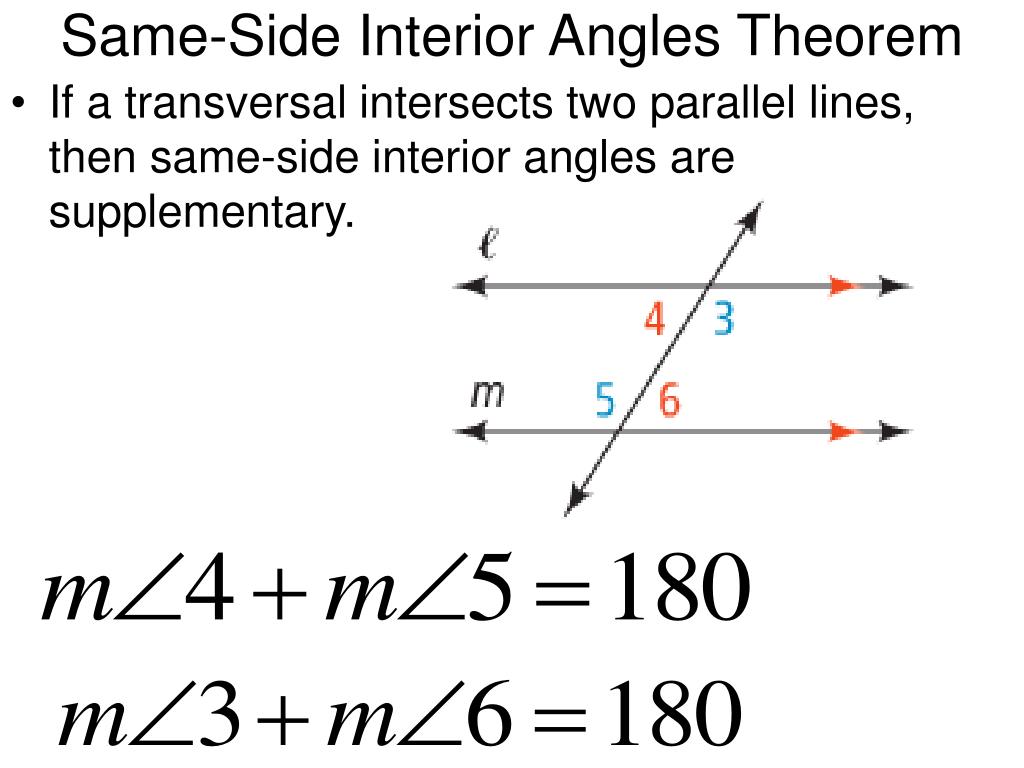

  4. Same-Side Interior Angles Theorem • If a transversal intersects two parallel lines, then same-side interior angles are supplementary.

  5. Alternate Exterior Angles Theorem • If a transversal intersects two parallel lines, then alternate exterior angles are congruent.

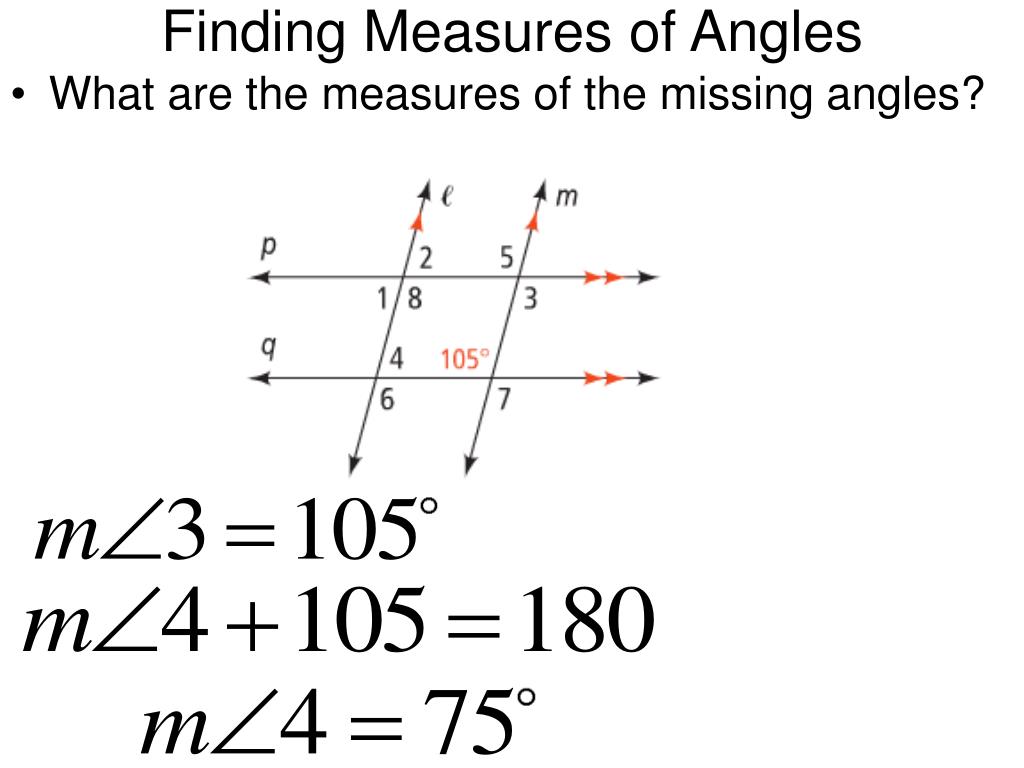

  6. Finding Measures of Angles • What are the measures of the missing angles?

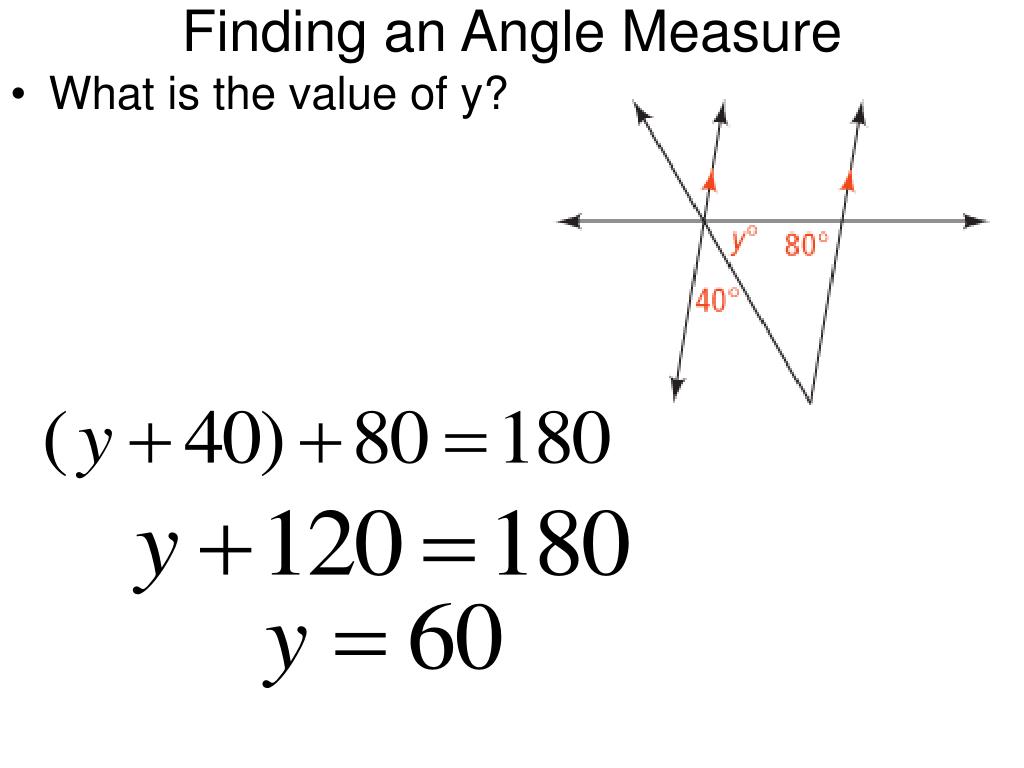

  7. Finding an Angle Measure • What is the value of y?

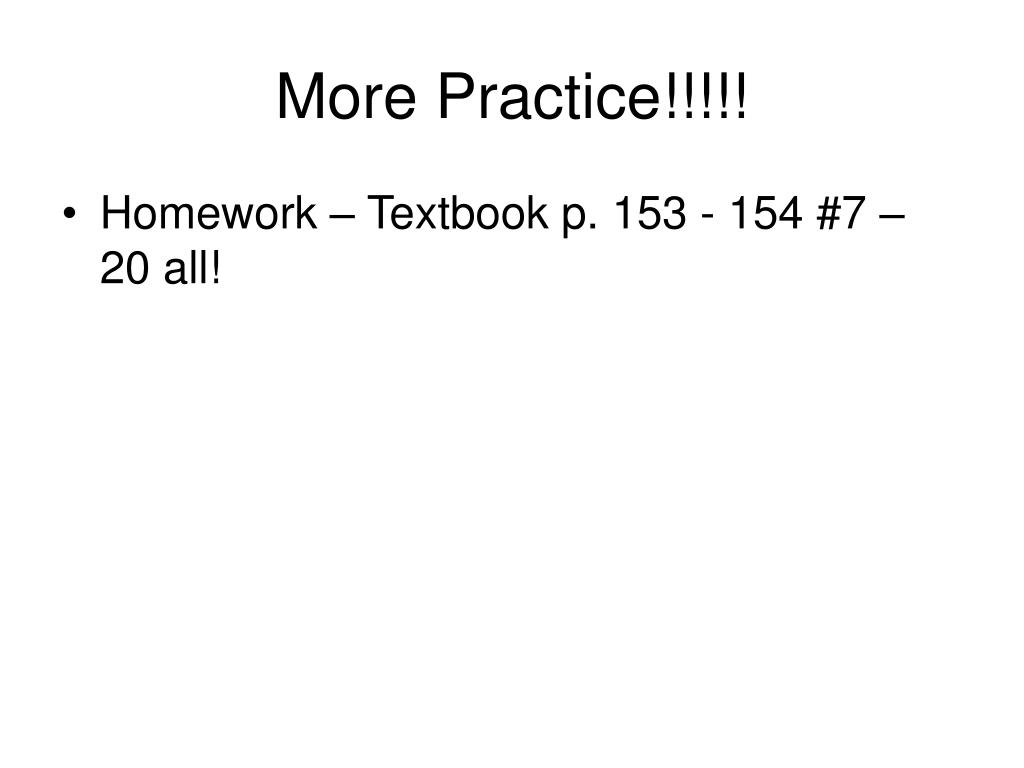

  8. More Practice!!!!! • Homework – Textbook p. 153 - 154 #7 – 20 all!
