  1. Semantic WikiPathways Andra Waagmeester

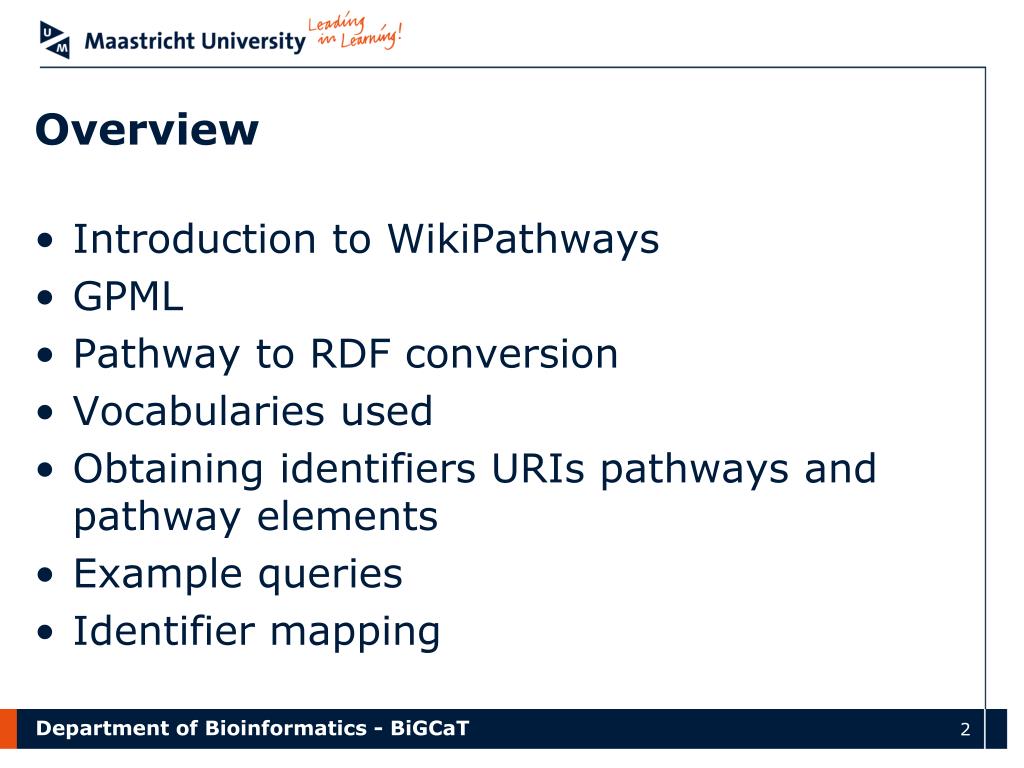

  2. Overview • Introduction to WikiPathways • GPML • Pathway to RDF conversion • Vocabularies used • Obtaining identifiers URIs pathways and pathway elements • Example queries • Identifier mapping

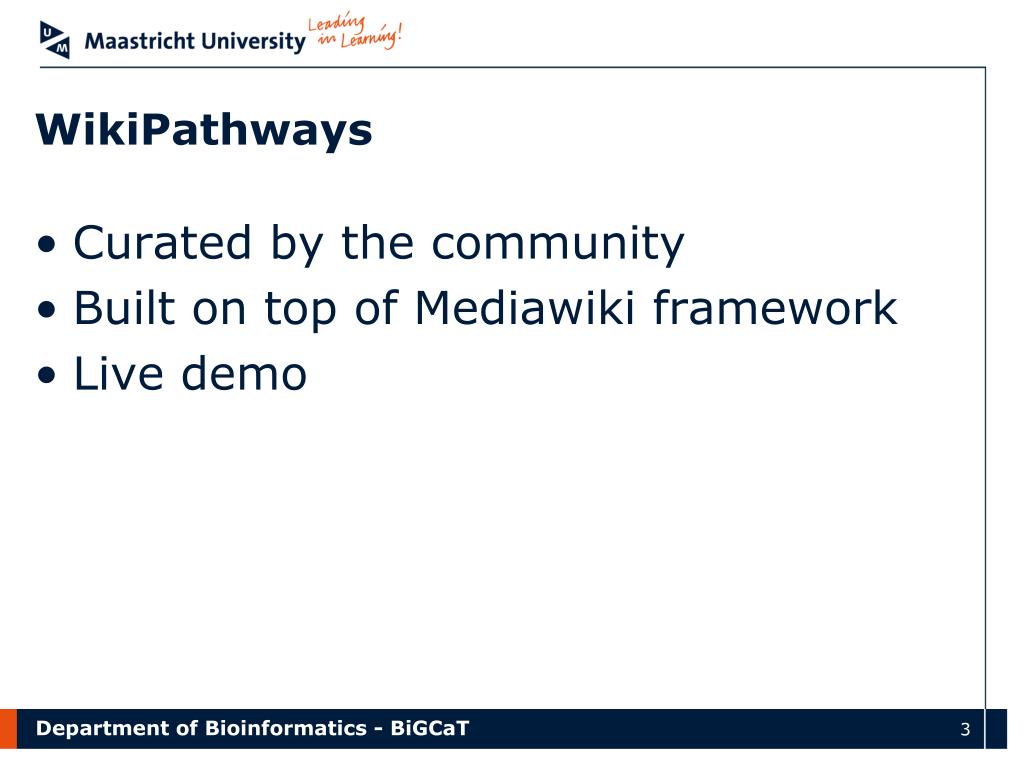

  3. WikiPathways • Curated by the community • Built on top of Mediawiki framework • Live demo

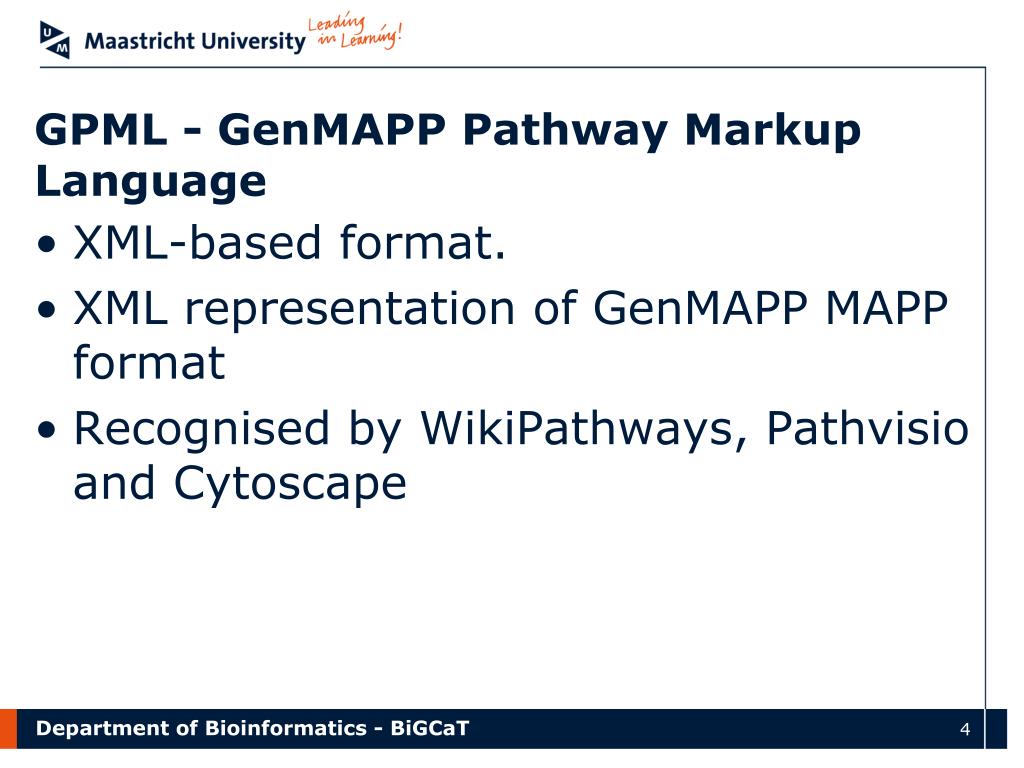

  4. GPML - GenMAPP Pathway Markup Language • XML-based format. • XML representation of GenMAPP MAPP format • Recognised by WikiPathways, Pathvisio and Cytoscape

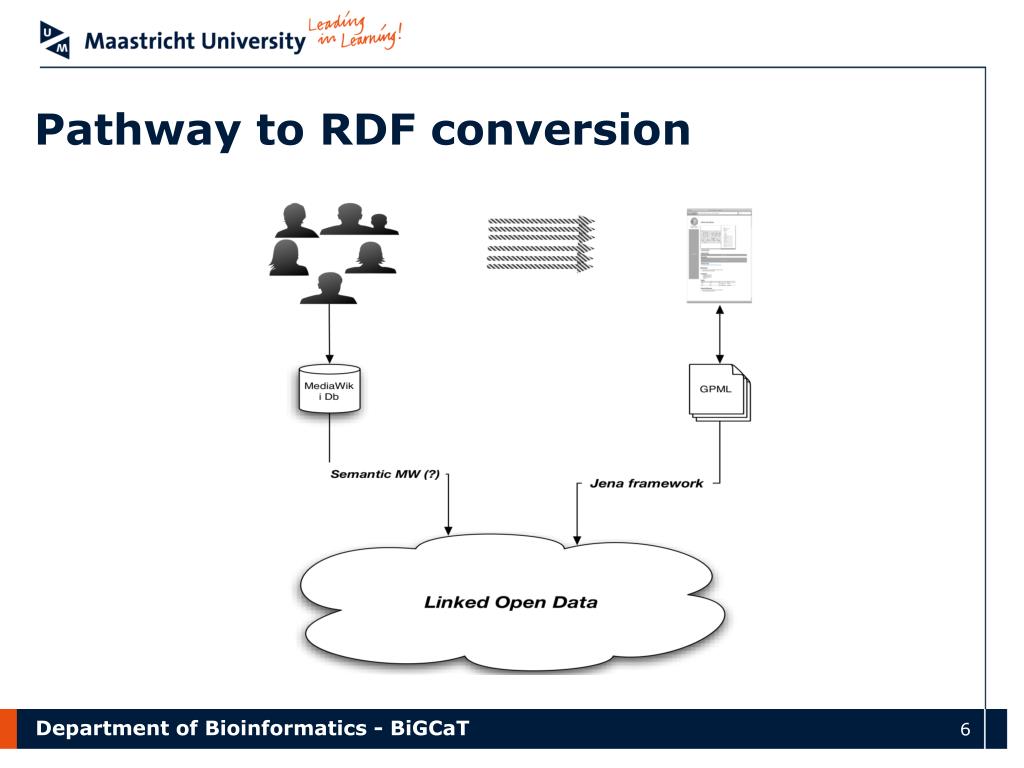

  5. Pathway to RDF conversion

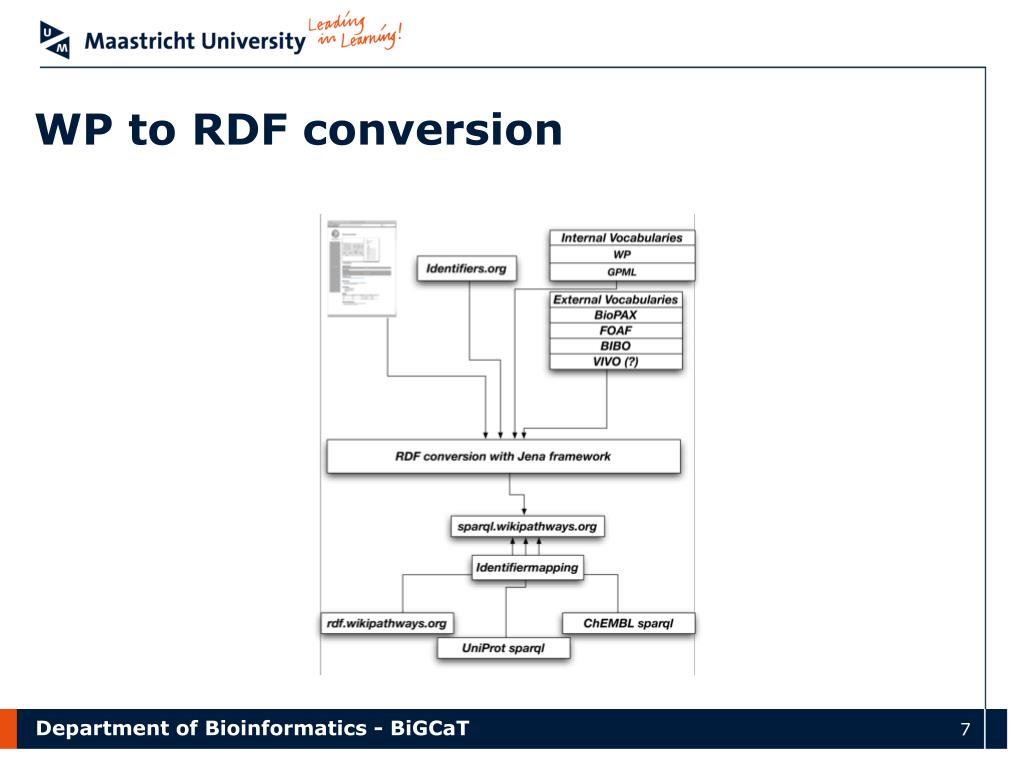

  6. WP to RDF conversion

  7. Vocabularies used • Internal (vocabularies.wikipathways.org) • GPML • WP • External • Biopax3 • Bibo • Foaf • tbd

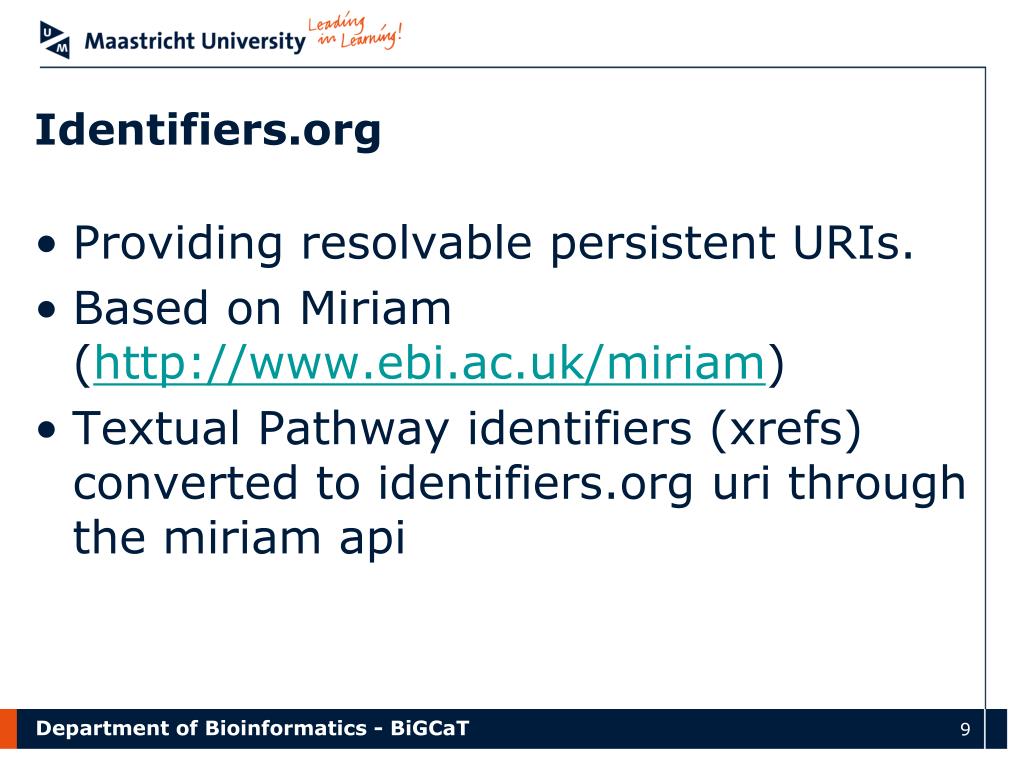

  8. Identifiers.org • Providing resolvable persistent URIs. • Based on Miriam (http://www.ebi.ac.uk/miriam) • Textual Pathway identifiers (xrefs) converted to identifiers.org uri through the miriam api

  9. Example query (1) List pathways and their species SELECT DISTINCT ?organism ?label WHERE { ?concept wp:organism ?organism . ?organism rdfs:label ?label . } http://sparqlbin.com/#4f91f23a032a87cc46c5a526a6da673a

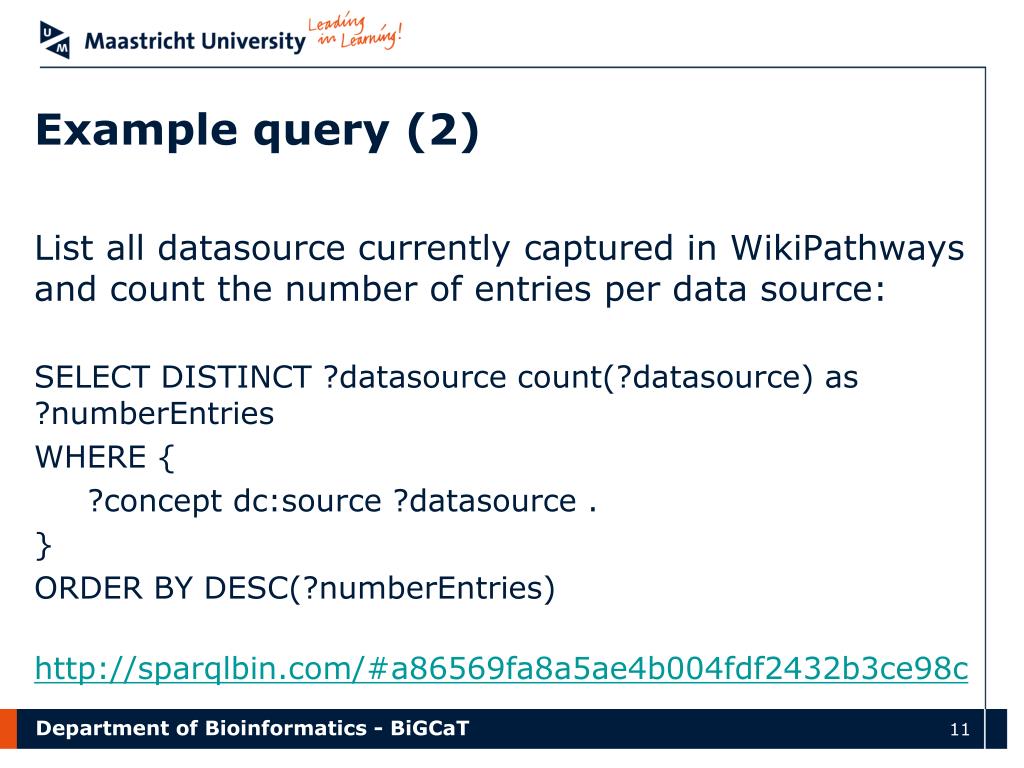

  10. Example query (2) List all datasource currently captured in WikiPathways and count the number of entries per data source: SELECT DISTINCT ?datasource count(?datasource) as ?numberEntries WHERE { ?concept dc:source ?datasource . } ORDER BY DESC(?numberEntries) http://sparqlbin.com/#a86569fa8a5ae4b004fdf2432b3ce98c

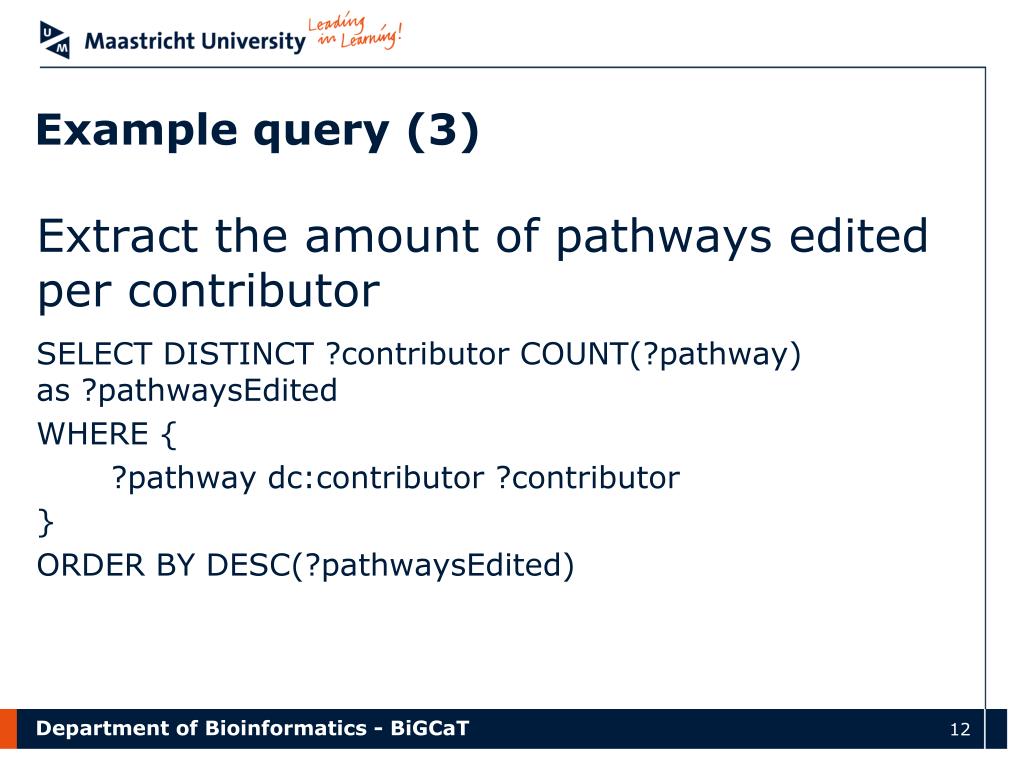

  11. Example query (3) Extract the amount of pathways edited per contributor SELECT DISTINCT ?contributor COUNT(?pathway) as ?pathwaysEdited WHERE {  ?pathway dc:contributor ?contributor } ORDER BY DESC(?pathwaysEdited)

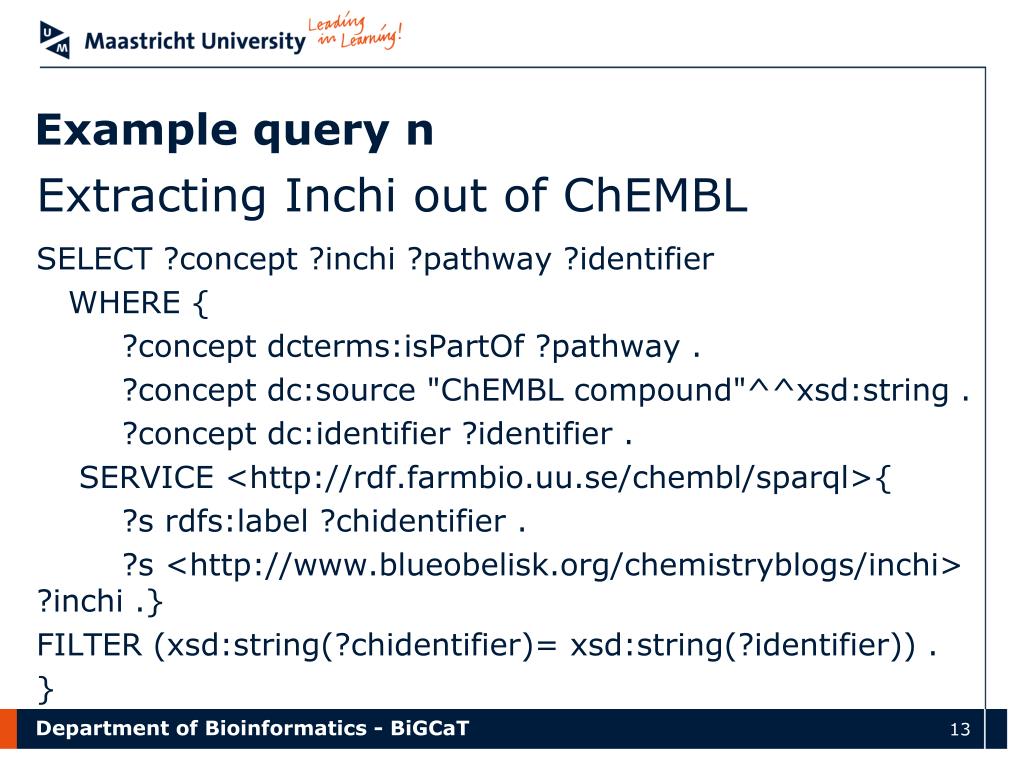

  12. Example query n Extracting Inchi out of ChEMBL SELECT ?concept ?inchi ?pathway ?identifier WHERE { ?concept dcterms:isPartOf ?pathway . ?concept dc:source "ChEMBL compound"^^xsd:string . ?concept dc:identifier ?identifier . SERVICE <http://rdf.farmbio.uu.se/chembl/sparql>{ ?s rdfs:label ?chidentifier . ?s <http://www.blueobelisk.org/chemistryblogs/inchi> ?inchi .} FILTER (xsd:string(?chidentifier)= xsd:string(?identifier)) . }

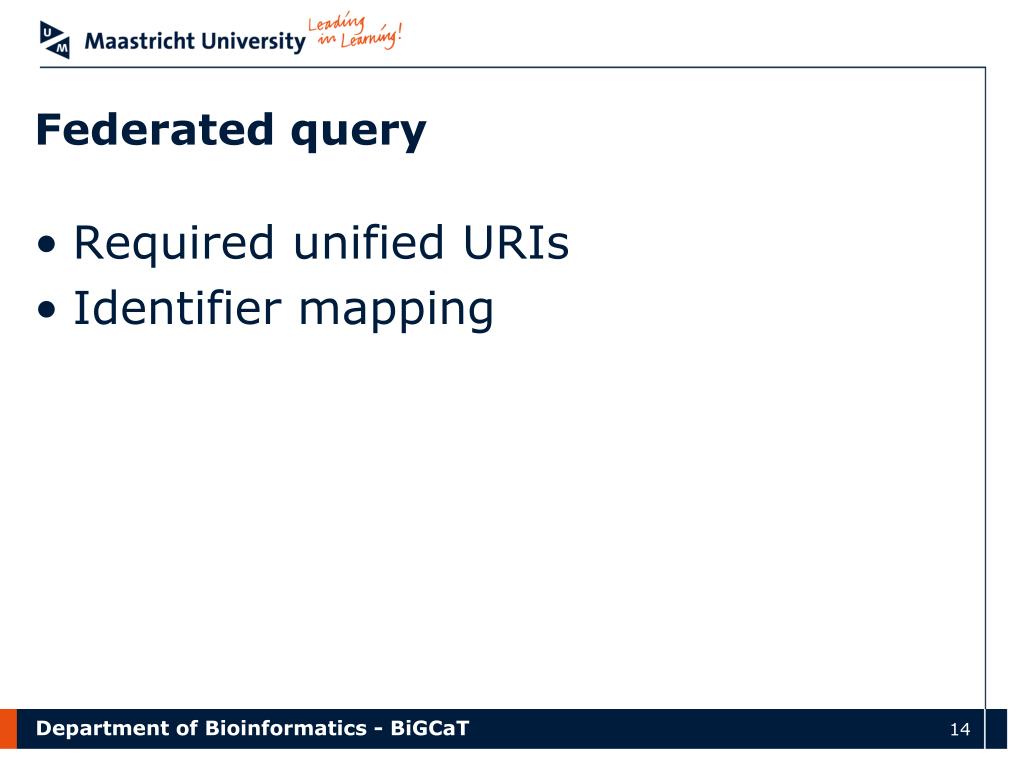

  13. Federated query • Required unified URIs • Identifier mapping

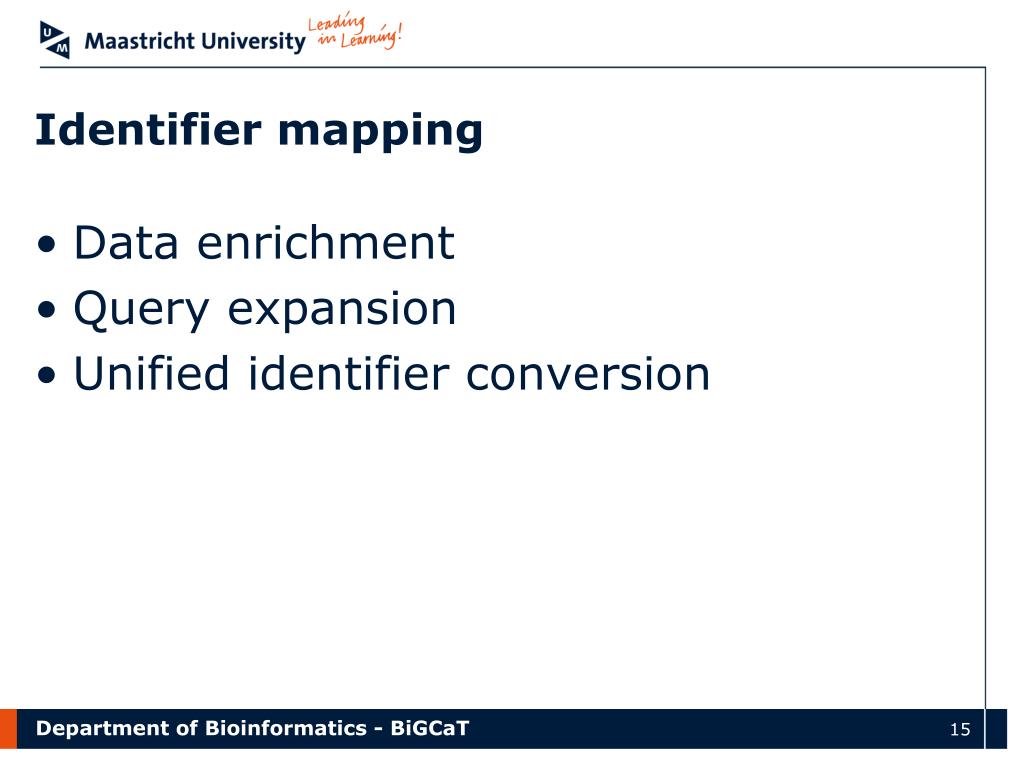

  14. Identifier mapping • Data enrichment • Query expansion • Unified identifier conversion

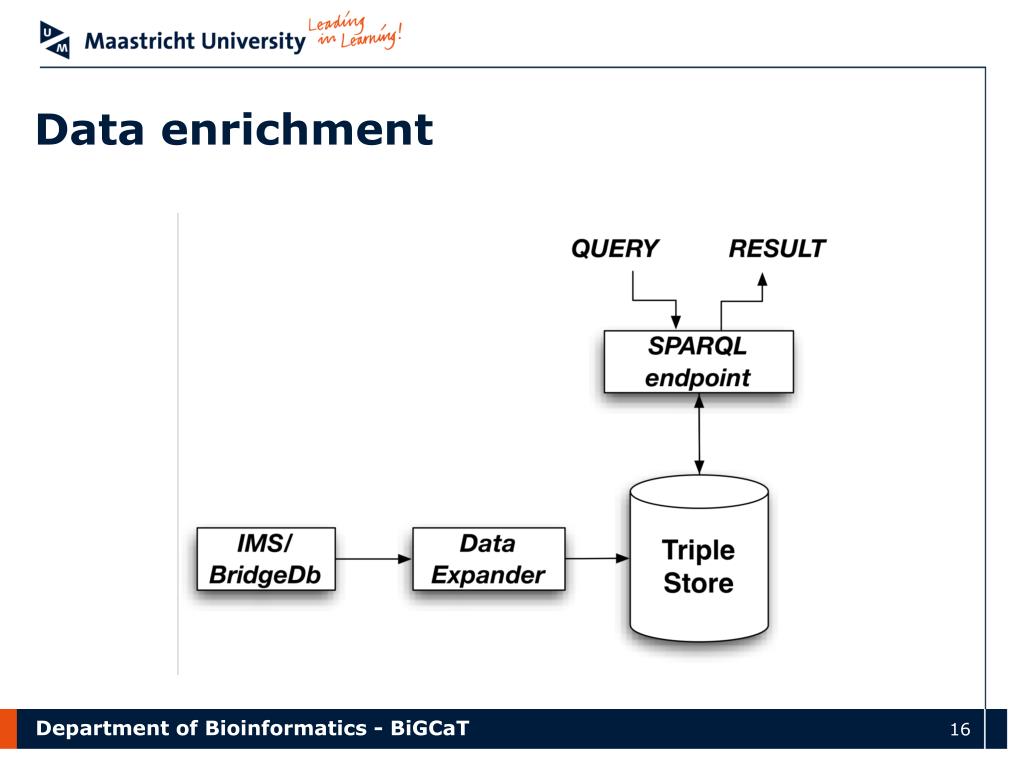

  15. Data enrichment

  16. Unified Identifiers

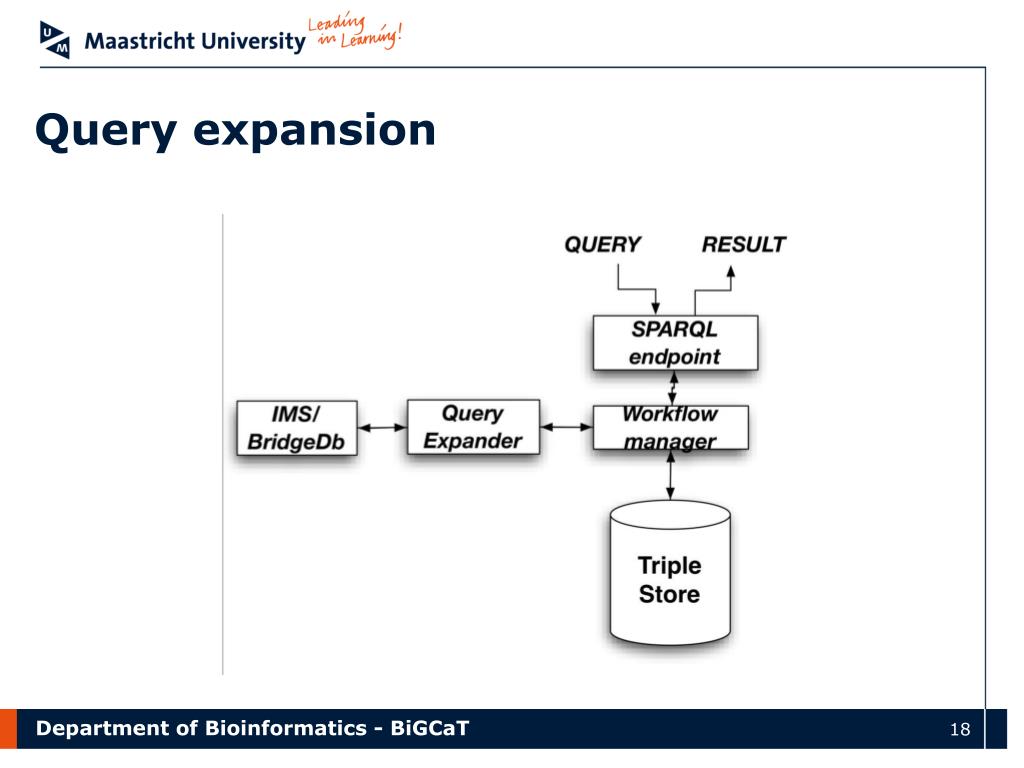

  17. Query expansion

  18. Acknowledgements • the Innovative Medicines Initiative Joint (n°115191, FP7/2007-2013) • The NIH National Institute for General Medical Sciences (R01-GM100039)

  19. Acknowledgement Gladstone Institute • Alex Pico Maastricht University • Martina Kutmon • EgonWillighagen • Chris Evelo Manchester University • Alasdair Gray • Christian BreninkMeijer

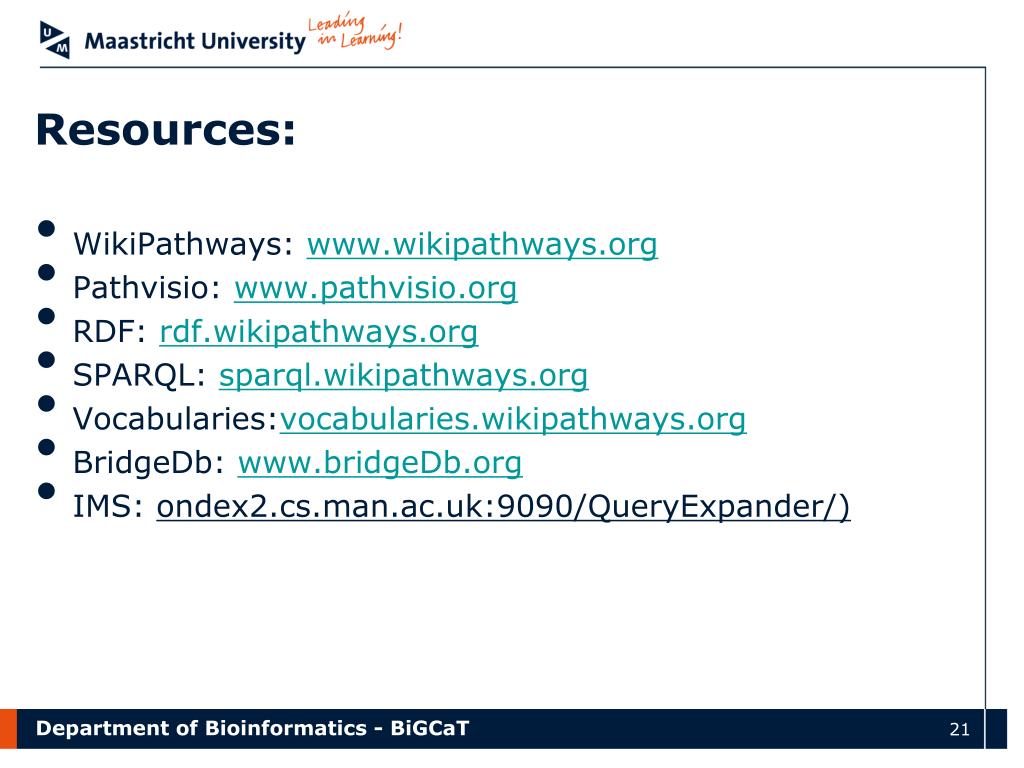

  20. Resources: • WikiPathways: www.wikipathways.org • Pathvisio: www.pathvisio.org • RDF: rdf.wikipathways.org • SPARQL: sparql.wikipathways.org • Vocabularies:vocabularies.wikipathways.org • BridgeDb: www.bridgeDb.org • IMS: ondex2.cs.man.ac.uk:9090/QueryExpander/)
