Creating Tieback Anchors for Commercial Retaining Structures

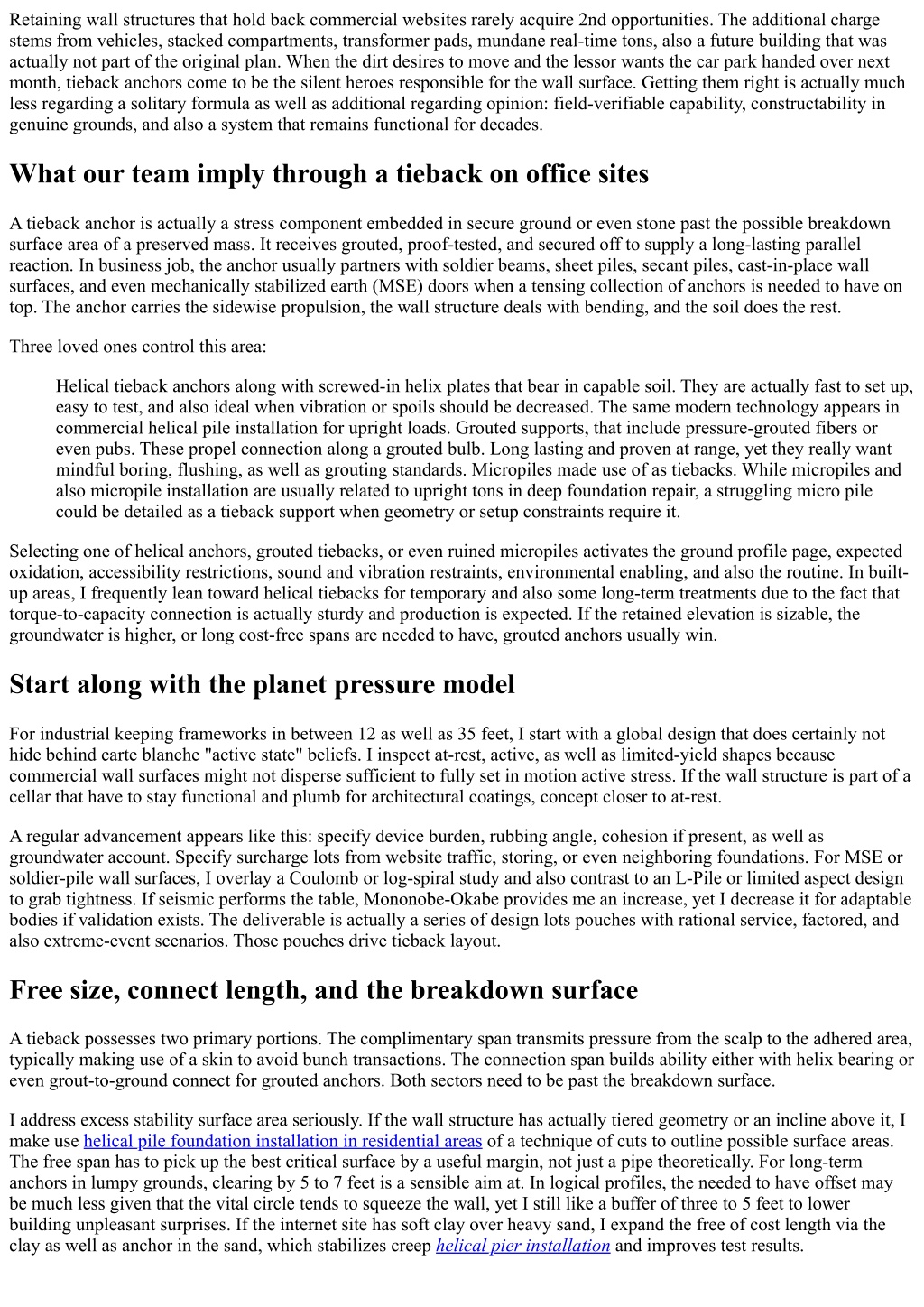

1. Retaining wall structures that hold back commercial websites rarely acquire 2nd opportunities. The additional charge stems from vehicles, stacked compartments, transformer pads, mundane real-time tons, also a future building that was actually not part of the original plan. When the dirt desires to move and the lessor wants the car park handed over next month, tieback anchors come to be the silent heroes responsible for the wall surface. Getting them right is actually much less regarding a solitary formula as well as additional regarding opinion: field-verifiable capability, constructability in genuine grounds, and also a system that remains functional for decades. What our team imply through a tieback on office sites A tieback anchor is actually a stress component embedded in secure ground or even stone past the possible breakdown surface area of a preserved mass. It receives grouted, proof-tested, and secured off to supply a long-lasting parallel reaction. In business job, the anchor usually partners with soldier beams, sheet piles, secant piles, cast-in-place wall surfaces, and even mechanically stabilized earth (MSE) doors when a tensing collection of anchors is needed to have on top. The anchor carries the sidewise propulsion, the wall structure deals with bending, and the soil does the rest. Three loved ones control this area: Helical tieback anchors along with screwed-in helix plates that bear in capable soil. They are actually fast to set up, easy to test, and also ideal when vibration or spoils should be decreased. The same modern technology appears in commercial helical pile installation for upright loads. Grouted supports, that include pressure-grouted fibers or even pubs. These propel connection along a grouted bulb. Long lasting and proven at range, yet they really want mindful boring, flushing, as well as grouting standards. Micropiles made use of as tiebacks. While micropiles and also micropile installation are usually related to upright tons in deep foundation repair, a struggling micro pile could be detailed as a tieback support when geometry or setup constraints require it. Selecting one of helical anchors, grouted tiebacks, or even ruined micropiles activates the ground profile page, expected oxidation, accessibility restrictions, sound and vibration restraints, environmental enabling, and also the routine. In built- up areas, I frequently lean toward helical tiebacks for temporary and also some long-term treatments due to the fact that torque-to-capacity connection is actually sturdy and production is expected. If the retained elevation is sizable, the groundwater is higher, or long cost-free spans are needed to have, grouted anchors usually win. Start along with the planet pressure model For industrial keeping frameworks in between 12 as well as 35 feet, I start with a global design that does certainly not hide behind carte blanche "active state" beliefs. I inspect at-rest, active, as well as limited-yield shapes because commercial wall surfaces might not disperse sufficient to fully set in motion active stress. If the wall structure is part of a cellar that have to stay functional and plumb for architectural coatings, concept closer to at-rest. A regular advancement appears like this: specify device burden, rubbing angle, cohesion if present, as well as groundwater account. Specify surcharge lots from website traffic, storing, or even neighboring foundations. For MSE or soldier-pile wall surfaces, I overlay a Coulomb or log-spiral study and also contrast to an L-Pile or limited aspect design to grab tightness. If seismic performs the table, Mononobe-Okabe provides me an increase, yet I decrease it for adaptable bodies if validation exists. The deliverable is actually a series of design lots pouches with rational service, factored, and also extreme-event scenarios. Those pouches drive tieback layout. Free size, connect length, and the breakdown surface A tieback possesses two primary portions. The complimentary span transmits pressure from the scalp to the adhered area, typically making use of a skin to avoid bunch transactions. The connection span builds ability either with helix bearing or even grout-to-ground connect for grouted anchors. Both sectors need to be past the breakdown surface. I address excess stability surface area seriously. If the wall structure has actually tiered geometry or an incline above it, I make use helical pile foundation installation in residential areas of a technique of cuts to outline possible surface areas. The free span has to pick up the best critical surface by a useful margin, not just a pipe theoretically. For long-term anchors in lumpy grounds, clearing by 5 to 7 feet is a sensible aim at. In logical profiles, the needed to have offset may be much less given that the vital circle tends to squeeze the wall, yet I still like a buffer of three to 5 feet to lower building unpleasant surprises. If the internet site has soft clay over heavy sand, I expand the free of cost length via the clay as well as anchor in the sand, which stabilizes creep helical pier installation and improves test results.

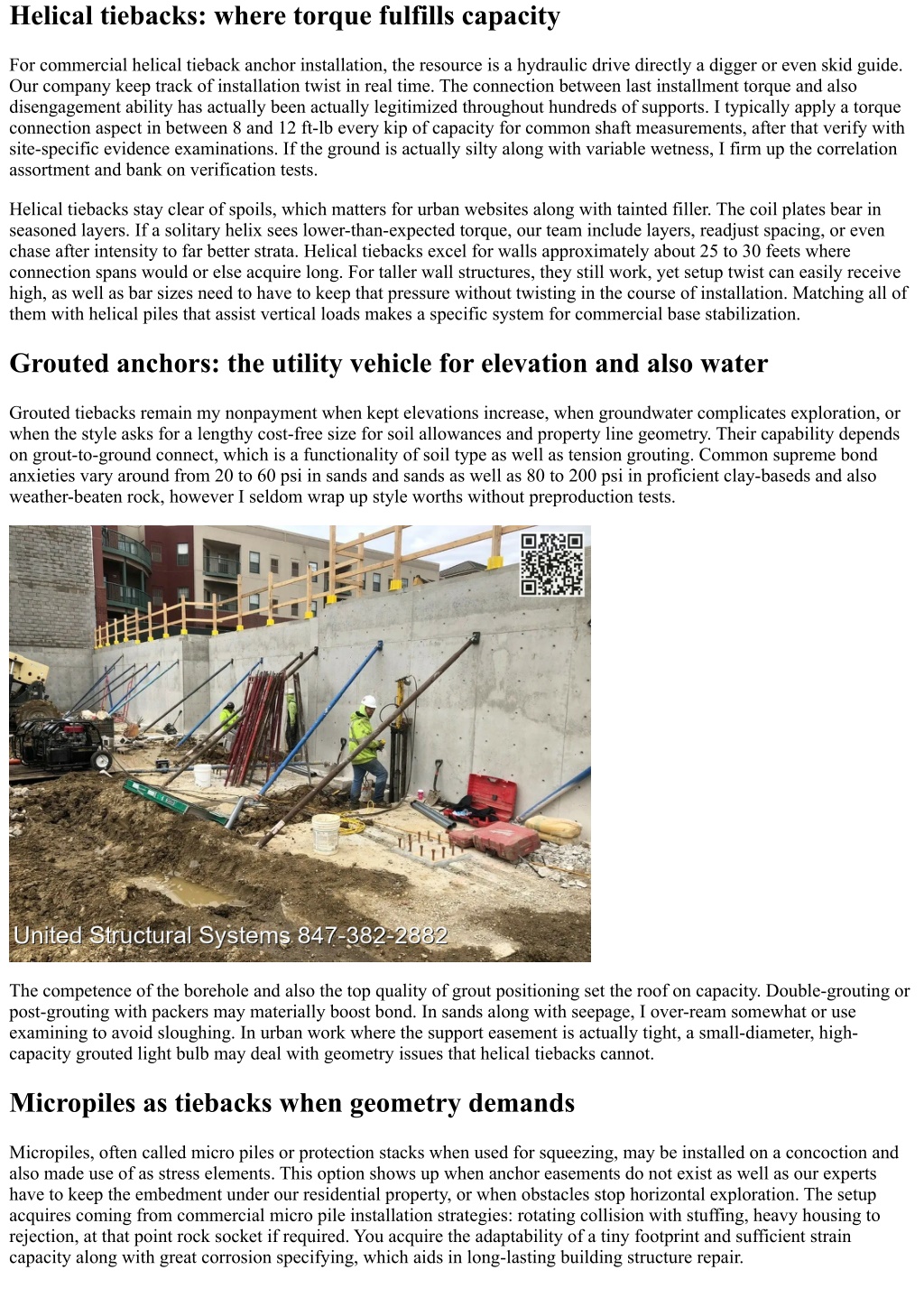

2. Helical tiebacks: where torque fulfills capacity For commercial helical tieback anchor installation, the resource is a hydraulic drive directly a digger or even skid guide. Our company keep track of installation twist in real time. The connection between last installment torque and also disengagement ability has actually been actually legitimized throughout hundreds of supports. I typically apply a torque connection aspect in between 8 and 12 ft-lb every kip of capacity for common shaft measurements, after that verify with site-specific evidence examinations. If the ground is actually silty along with variable wetness, I firm up the correlation assortment and bank on verification tests. Helical tiebacks stay clear of spoils, which matters for urban websites along with tainted filler. The coil plates bear in seasoned layers. If a solitary helix sees lower-than-expected torque, our team include layers, readjust spacing, or even chase after intensity to far better strata. Helical tiebacks excel for walls approximately about 25 to 30 feets where connection spans would or else acquire long. For taller wall structures, they still work, yet setup twist can easily receive high, as well as bar sizes need to have to keep that pressure without twisting in the course of installation. Matching all of them with helical piles that assist vertical loads makes a specific system for commercial base stabilization. Grouted anchors: the utility vehicle for elevation and also water Grouted tiebacks remain my nonpayment when kept elevations increase, when groundwater complicates exploration, or when the style asks for a lengthy cost-free size for soil allowances and property line geometry. Their capability depends on grout-to-ground connect, which is a functionality of soil type as well as tension grouting. Common supreme bond anxieties vary around from 20 to 60 psi in sands and sands as well as 80 to 200 psi in proficient clay-baseds and also weather-beaten rock, however I seldom wrap up style worths without preproduction tests. The competence of the borehole and also the top quality of grout positioning set the roof on capacity. Double-grouting or post-grouting with packers may materially boost bond. In sands along with seepage, I over-ream somewhat or use examining to avoid sloughing. In urban work where the support easement is actually tight, a small-diameter, high- capacity grouted light bulb may deal with geometry issues that helical tiebacks cannot. Micropiles as tiebacks when geometry demands Micropiles, often called micro piles or protection stacks when used for squeezing, may be installed on a concoction and also made use of as stress elements. This option shows up when anchor easements do not exist as well as our experts have to keep the embedment under our residential property, or when obstacles stop horizontal exploration. The setup acquires coming from commercial micro pile installation strategies: rotating collision with stuffing, heavy housing to rejection, at that point rock socket if required. You acquire the adaptability of a tiny footprint and sufficient strain capacity along with great corrosion specifying, which aids in long-lasting building structure repair.

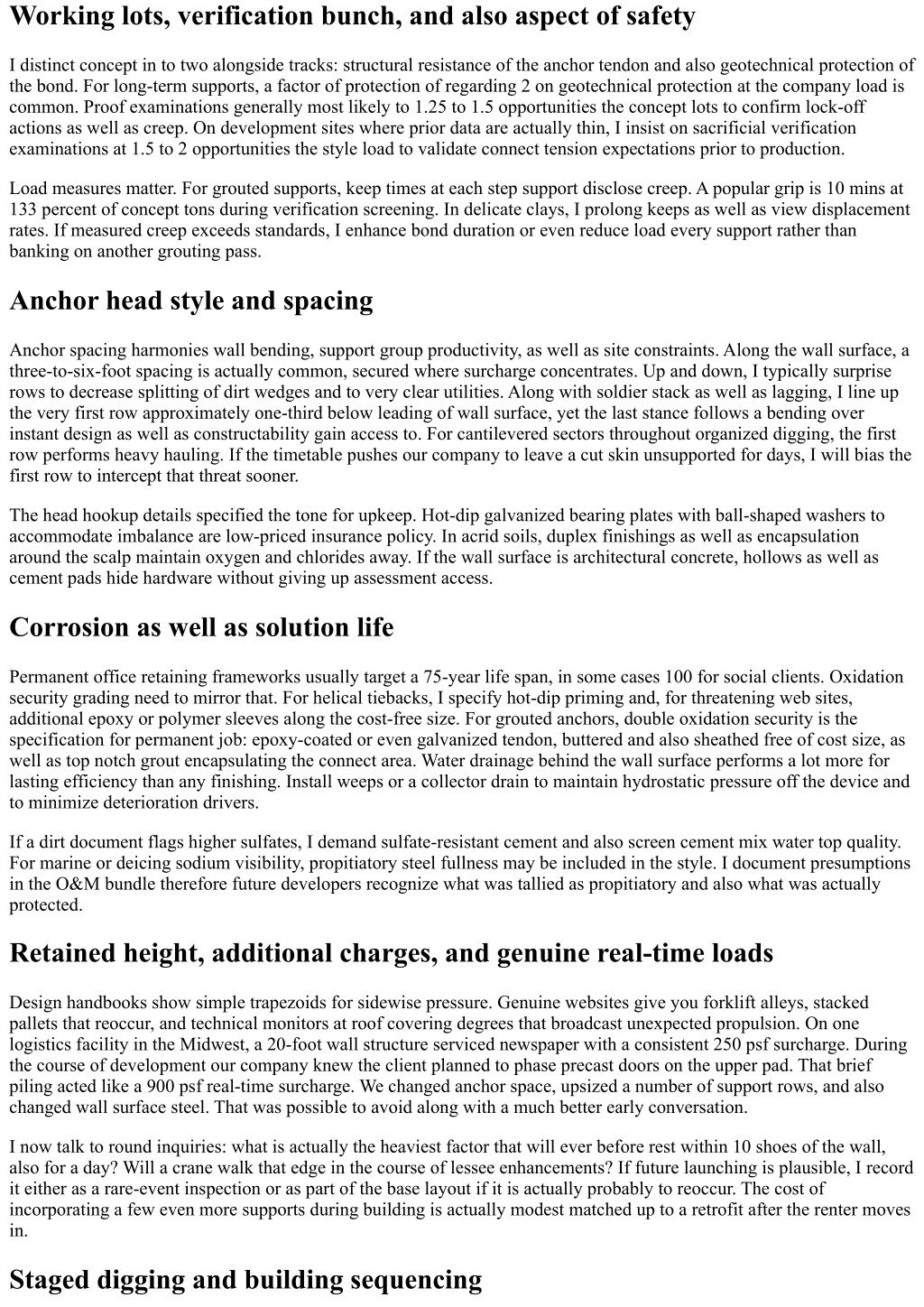

3. Working lots, verification bunch, and also aspect of safety I distinct concept in to two alongside tracks: structural resistance of the anchor tendon and also geotechnical protection of the bond. For long-term supports, a factor of protection of regarding 2 on geotechnical protection at the company load is common. Proof examinations generally most likely to 1.25 to 1.5 opportunities the concept lots to confirm lock-off actions as well as creep. On development sites where prior data are actually thin, I insist on sacrificial verification examinations at 1.5 to 2 opportunities the style load to validate connect tension expectations prior to production. Load measures matter. For grouted supports, keep times at each step support disclose creep. A popular grip is 10 mins at 133 percent of concept tons during verification screening. In delicate clays, I prolong keeps as well as view displacement rates. If measured creep exceeds standards, I enhance bond duration or even reduce load every support rather than banking on another grouting pass. Anchor head style and spacing Anchor spacing harmonies wall bending, support group productivity, as well as site constraints. Along the wall surface, a three-to-six-foot spacing is actually common, secured where surcharge concentrates. Up and down, I typically surprise rows to decrease splitting of dirt wedges and to very clear utilities. Along with soldier stack as well as lagging, I line up the very first row approximately one-third below leading of wall surface, yet the last stance follows a bending over instant design as well as constructability gain access to. For cantilevered sectors throughout organized digging, the first row performs heavy hauling. If the timetable pushes our company to leave a cut skin unsupported for days, I will bias the first row to intercept that threat sooner. The head hookup details specified the tone for upkeep. Hot-dip galvanized bearing plates with ball-shaped washers to accommodate imbalance are low-priced insurance policy. In acrid soils, duplex finishings as well as encapsulation around the scalp maintain oxygen and chlorides away. If the wall surface is architectural concrete, hollows as well as cement pads hide hardware without giving up assessment access. Corrosion as well as solution life Permanent office retaining frameworks usually target a 75-year life span, in some cases 100 for social clients. Oxidation security grading need to mirror that. For helical tiebacks, I specify hot-dip priming and, for threatening web sites, additional epoxy or polymer sleeves along the cost-free size. For grouted anchors, double oxidation security is the specification for permanent job: epoxy-coated or even galvanized tendon, buttered and also sheathed free of cost size, as well as top notch grout encapsulating the connect area. Water drainage behind the wall surface performs a lot more for lasting efficiency than any finishing. Install weeps or a collector drain to maintain hydrostatic pressure off the device and to minimize deterioration drivers. If a dirt document flags higher sulfates, I demand sulfate-resistant cement and also screen cement mix water top quality. For marine or deicing sodium visibility, propitiatory steel fullness may be included in the style. I document presumptions in the O&M bundle therefore future developers recognize what was tallied as propitiatory and also what was actually protected. Retained height, additional charges, and genuine real-time loads Design handbooks show simple trapezoids for sidewise pressure. Genuine websites give you forklift alleys, stacked pallets that reoccur, and technical monitors at roof covering degrees that broadcast unexpected propulsion. On one logistics facility in the Midwest, a 20-foot wall structure serviced newspaper with a consistent 250 psf surcharge. During the course of development our company knew the client planned to phase precast doors on the upper pad. That brief piling acted like a 900 psf real-time surcharge. We changed anchor space, upsized a number of support rows, and also changed wall surface steel. That was possible to avoid along with a much better early conversation. I now talk to round inquiries: what is actually the heaviest factor that will ever before rest within 10 shoes of the wall, also for a day? Will a crane walk that edge in the course of lessee enhancements? If future launching is plausible, I record it either as a rare-event inspection or as part of the base layout if it is actually probably to reoccur. The cost of incorporating a few even more supports during building is actually modest matched up to a retrofit after the renter moves in. Staged digging and building sequencing

4. Tieback supports carry out certainly not reside in solitude. They use while earth techniques and also shoring stands in brief states. If you are handling a slice with soldier stacks and lagging, the series controls motion. Excavate in lifts of three to five feets, set up lagging, practice as well as set up the first tieback row, proof test, latch off, at that point relocate to the following airlift. Carry out certainly not chase development through getting pair of lifts ahead of an examination course unless you enjoy correcting the alignment of bowed piles. For grouted anchors, cement should cure prior to full lock-off. If the schedule is actually strict, coordinate a much higher early-strength mix as well as a reasonable proof-test calendar. In winter months, provide warmth as well as hoarding for grout lines and also scalp testing. For helical tiebacks, creation can easily surge, which lures contractors to outpace the inspection staff. Mark a lookout to phone torque and also log intensity directly. Photos and torque logs conserve debates later. Testing philosophy that always keeps jobs honest Reliance on estimates without screening is actually a wager against variability. I set up 3 levels of verification: Preproduction sacrificial lots exams to verify design connect tension or even twist correlations, one examination for each crucial ground stratum. If the web site has pair of distinct bearing areas, I test both. Proof tests on a fraction of manufacturing anchors, generally 100 percent for the 1st row and 10 to 20 per-cent thereafter, changed based on performance. Performance monitoring of the wall throughout construction, with survey scores or inclinometers for taller wall surfaces or where nearby buildings are sensitive. Creep requirements need to be actually very clear in the specs. A regular approval is lower than 0.04 inches in the ultimate one-minute hold in the course of proof testing at 133 per-cent of layout bunch, but I readjust through task. If a helical tieback reveals a reasonable up creep trend however passes complete activity, I cross-check the soil level as well as look at including one more coil or even chasing after a denser coating rather than accepting low performance. Property lines, utilities, as well as legal easements Anchors cross home lines unless you think about them. Legal representatives enter into the style if the anchor bulb trespasses. On thick sites, I first map energy passages, hurricane lines, as well as easement constraints. If the tiebacks should remain on our side, damaged micropiles or even quick adhered zones with higher tension grouting help. When the easement allows crossing, I always keep a minimum allowance to existing utilities and clearly document as-built azimuth as well as look for potential diggings. Cement coring sleeves at utility crossings add a level of security when the wall structure acquires future penetrations. Serviceability: always keeping walls directly and also lessees happy Even when stamina checks crystal clear, service controls just how the wall structure believes. Residents notice a top-of- wall curvature of half an in on a 20-foot wall if it helps make handrails totter. Restricting curvatures to approximately 0.5 to 0.75 ins at the top often maintains wall surfaces creatively accurate. Tiebacks that are also couple of and excessively loaded develop a sawtooth curvature design between piles. Even more anchors at lower tons refine the deflection arc and also lessen flexing in walers or even soldier beams. That may seem like overkill in a spread sheet, however it pays for itself in calmer surfaces and fewer guarantee calls. Choosing in between helical, grouted, and also combination systems No solitary support style resolves every industrial maintaining issue. I use an easy mental matrix that represents ground, get access to, timetable, and performance: Clean sands or even stiff sands along with minimal groundwater as well as tight job home windows favor helical tieback anchor setup. You acquire prompt capability confirmation via torque, low spoils, and quiet operations. Mixed fills, high groundwater, or long cost-free durations drive me toward grouted supports. Tension grouting locates voids and develops durable connection areas responsible for the breakdown surface. Sites without any support easements, heavy obstructions, or even extreme geometry in some cases ask for battered micropiles as tiebacks or even a crossbreed: helical tiebacks in one region, grouted anchors where reach as well as bond are actually critical. Commercial resistance pile installation as well as commercial helical pile installation come up in the very same breath when the wall structure likewise needs to have upright help at a quality shaft or when deriving becomes part of the

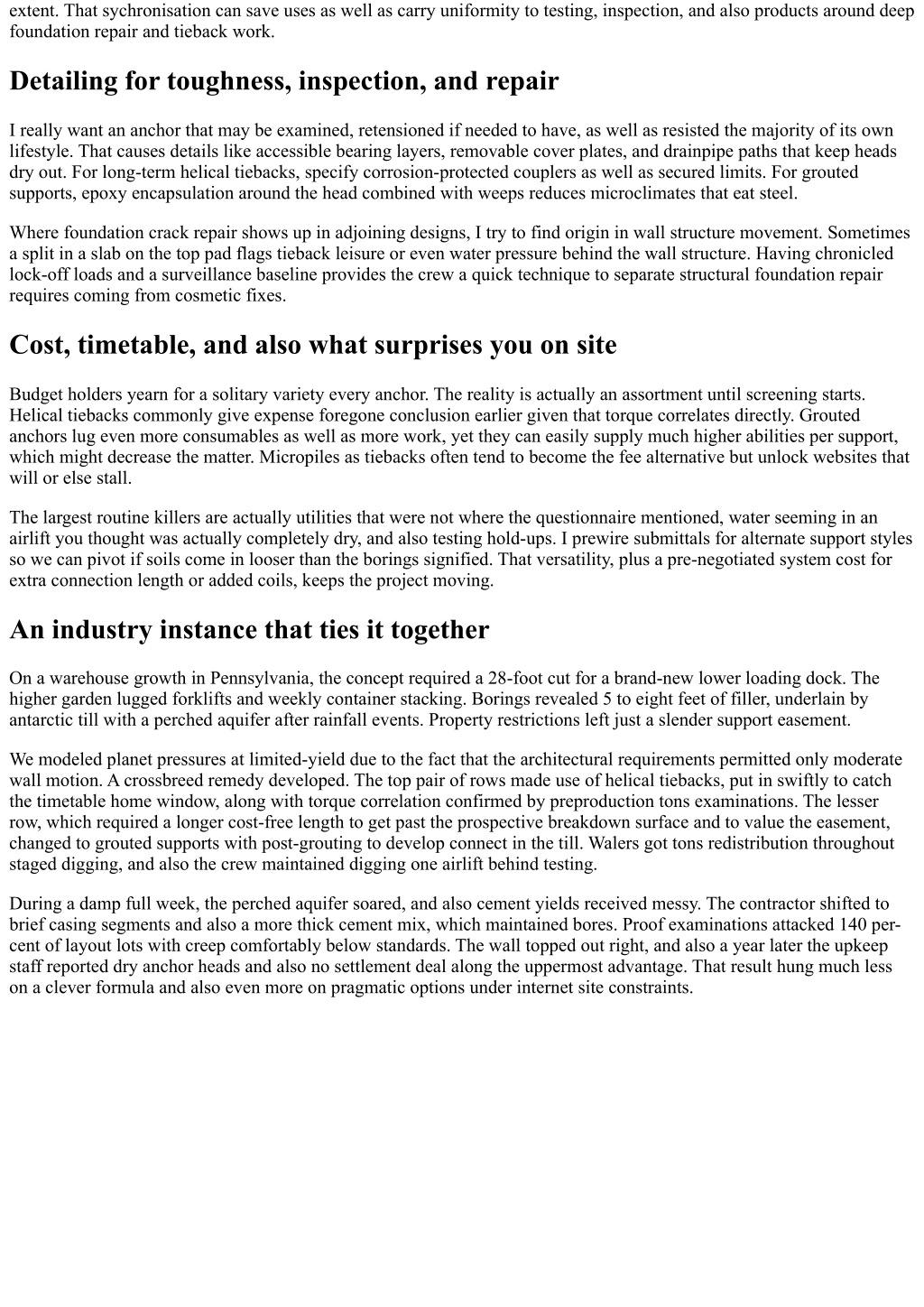

5. extent. That sychronisation can save uses as well as carry uniformity to testing, inspection, and also products around deep foundation repair and tieback work. Detailing for toughness, inspection, and repair I really want an anchor that may be examined, retensioned if needed to have, as well as resisted the majority of its own lifestyle. That causes details like accessible bearing layers, removable cover plates, and drainpipe paths that keep heads dry out. For long-term helical tiebacks, specify corrosion-protected couplers as well as secured limits. For grouted supports, epoxy encapsulation around the head combined with weeps reduces microclimates that eat steel. Where foundation crack repair shows up in adjoining designs, I try to find origin in wall structure movement. Sometimes a split in a slab on the top pad flags tieback leisure or even water pressure behind the wall structure. Having chronicled lock-off loads and a surveillance baseline provides the crew a quick technique to separate structural foundation repair requires coming from cosmetic fixes. Cost, timetable, and also what surprises you on site Budget holders yearn for a solitary variety every anchor. The reality is actually an assortment until screening starts. Helical tiebacks commonly give expense foregone conclusion earlier given that torque correlates directly. Grouted anchors lug even more consumables as well as more work, yet they can easily supply much higher abilities per support, which might decrease the matter. Micropiles as tiebacks often tend to become the fee alternative but unlock websites that will or else stall. The largest routine killers are actually utilities that were not where the questionnaire mentioned, water seeming in an airlift you thought was actually completely dry, and also testing hold-ups. I prewire submittals for alternate support styles so we can pivot if soils come in looser than the borings signified. That versatility, plus a pre-negotiated system cost for extra connection length or added coils, keeps the project moving. An industry instance that ties it together On a warehouse growth in Pennsylvania, the concept required a 28-foot cut for a brand-new lower loading dock. The higher garden lugged forklifts and weekly container stacking. Borings revealed 5 to eight feet of filler, underlain by antarctic till with a perched aquifer after rainfall events. Property restrictions left just a slender support easement. We modeled planet pressures at limited-yield due to the fact that the architectural requirements permitted only moderate wall motion. A crossbreed remedy developed. The top pair of rows made use of helical tiebacks, put in swiftly to catch the timetable home window, along with torque correlation confirmed by preproduction tons examinations. The lesser row, which required a longer cost-free length to get past the prospective breakdown surface and to value the easement, changed to grouted supports with post-grouting to develop connect in the till. Walers got tons redistribution throughout staged digging, and also the crew maintained digging one airlift behind testing. During a damp full week, the perched aquifer soared, and also cement yields received messy. The contractor shifted to brief casing segments and also a more thick cement mix, which maintained bores. Proof examinations attacked 140 per- cent of layout lots with creep comfortably below standards. The wall topped out right, and also a year later the upkeep staff reported dry anchor heads and also no settlement deal along the uppermost advantage. That result hung much less on a clever formula and also even more on pragmatic options under internet site constraints.

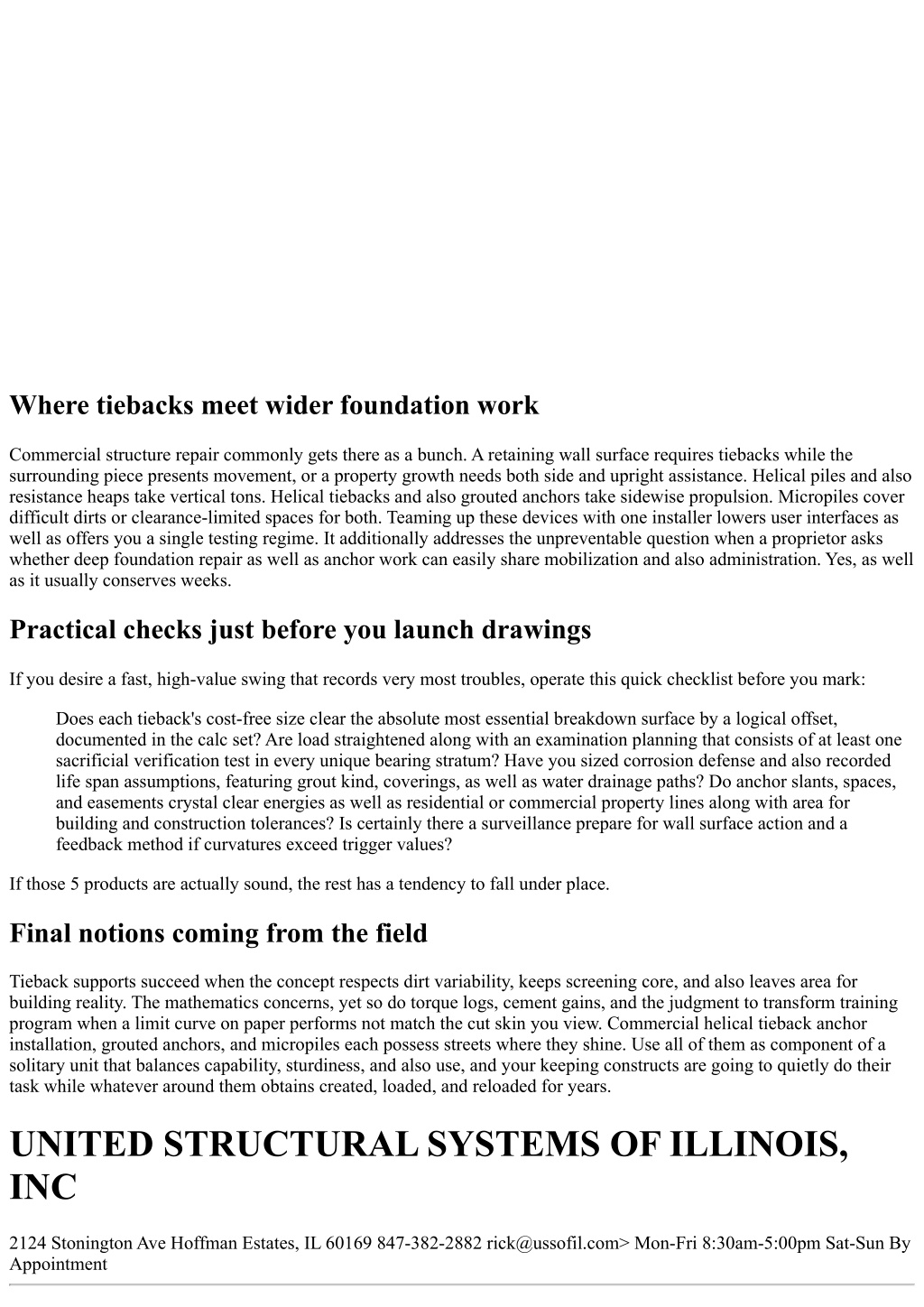

6. Where tiebacks meet wider foundation work Commercial structure repair commonly gets there as a bunch. A retaining wall surface requires tiebacks while the surrounding piece presents movement, or a property growth needs both side and upright assistance. Helical piles and also resistance heaps take vertical tons. Helical tiebacks and also grouted anchors take sidewise propulsion. Micropiles cover difficult dirts or clearance-limited spaces for both. Teaming up these devices with one installer lowers user interfaces as well as offers you a single testing regime. It additionally addresses the unpreventable question when a proprietor asks whether deep foundation repair as well as anchor work can easily share mobilization and also administration. Yes, as well as it usually conserves weeks. Practical checks just before you launch drawings If you desire a fast, high-value swing that records very most troubles, operate this quick checklist before you mark: Does each tieback's cost-free size clear the absolute most essential breakdown surface by a logical offset, documented in the calc set? Are load straightened along with an examination planning that consists of at least one sacrificial verification test in every unique bearing stratum? Have you sized corrosion defense and also recorded life span assumptions, featuring grout kind, coverings, as well as water drainage paths? Do anchor slants, spaces, and easements crystal clear energies as well as residential or commercial property lines along with area for building and construction tolerances? Is certainly there a surveillance prepare for wall surface action and a feedback method if curvatures exceed trigger values? If those 5 products are actually sound, the rest has a tendency to fall under place. Final notions coming from the field Tieback supports succeed when the concept respects dirt variability, keeps screening core, and also leaves area for building reality. The mathematics concerns, yet so do torque logs, cement gains, and the judgment to transform training program when a limit curve on paper performs not match the cut skin you view. Commercial helical tieback anchor installation, grouted anchors, and micropiles each possess streets where they shine. Use all of them as component of a solitary unit that balances capability, sturdiness, and also use, and your keeping constructs are going to quietly do their task while whatever around them obtains created, loaded, and reloaded for years. UNITED STRUCTURAL SYSTEMS OF ILLINOIS, INC 2124 Stonington Ave Hoffman Estates, IL 60169 847-382-2882 rick@ussofil.com> Mon-Fri 8:30am-5:00pm Sat-Sun By Appointment
