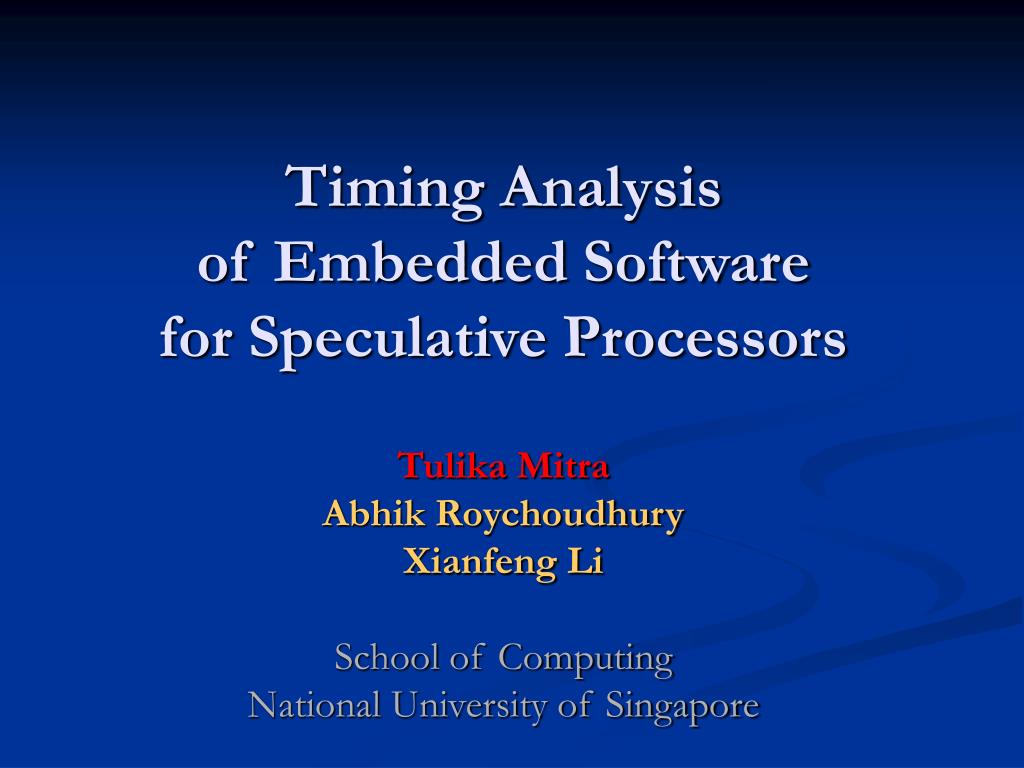

  1. Timing Analysis of Embedded Software for Speculative Processors Tulika Mitra Abhik Roychoudhury Xianfeng Li School of Computing National University of Singapore

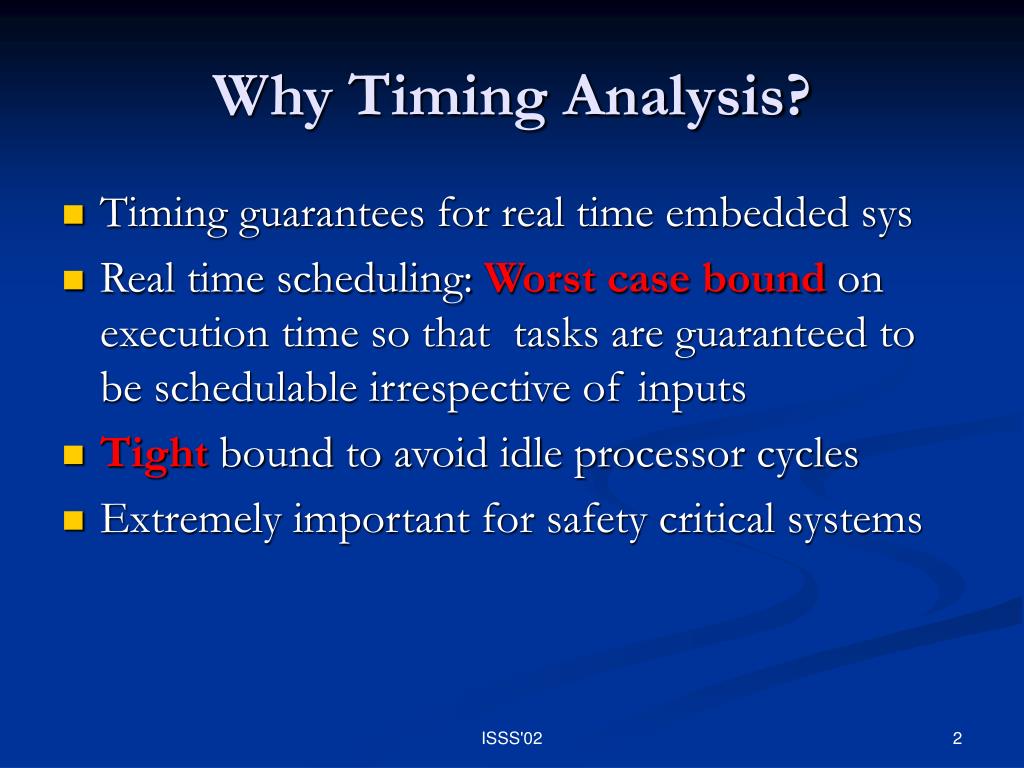

  2. Why Timing Analysis? • Timing guarantees for real time embedded sys • Real time scheduling: Worst case bound on execution time so that tasks are guaranteed to be schedulable irrespective of inputs • Tight bound to avoid idle processor cycles • Extremely important for safety critical systems ISSS'02

  3. Worst Case Execution Time (WCET) • Given a program and a micro-architecture, estimate the maximum execution time of the program on the micro-architecture for all possible inputs • Program path analysis [Shaw’89, Healy’98,..] • All possible paths in control flow graph are not feasible • Micro-architectural modeling • Dynamically variable instruction execution time due to • Cache, Pipeline [Li’99, Theiling’00, Schneider’99,..] • Speculative execution (branch prediction) ISSS'02

  4. Speculative Execution • No Speculative Execution • Misprediction • Correct prediction b N T S Misprediction penalty ISSS'02

  5. Impact of Speculative Execution Example: Insertion sort of 100 elements Worst case path without speculation for input <100, 99, ..., 2, 1> Worst case path with speculation for input<99, 100, ..., 2, 1> Branch misprediction penalty can alter worst case execution path ISSS'02

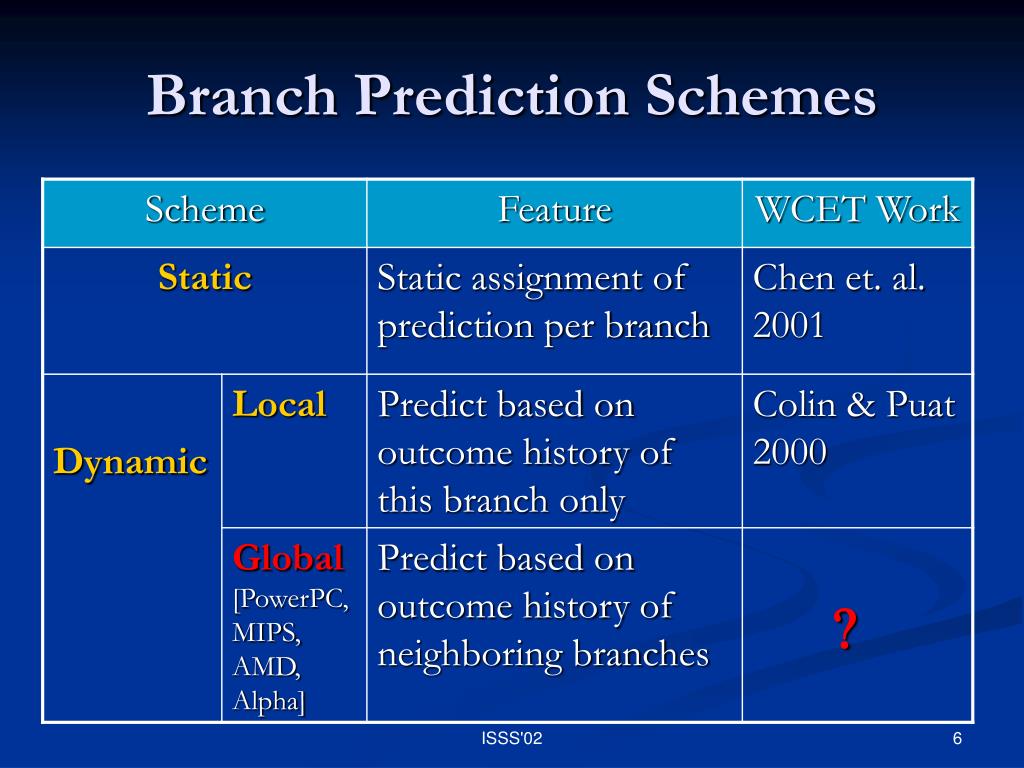

  6. Branch Prediction Schemes ISSS'02

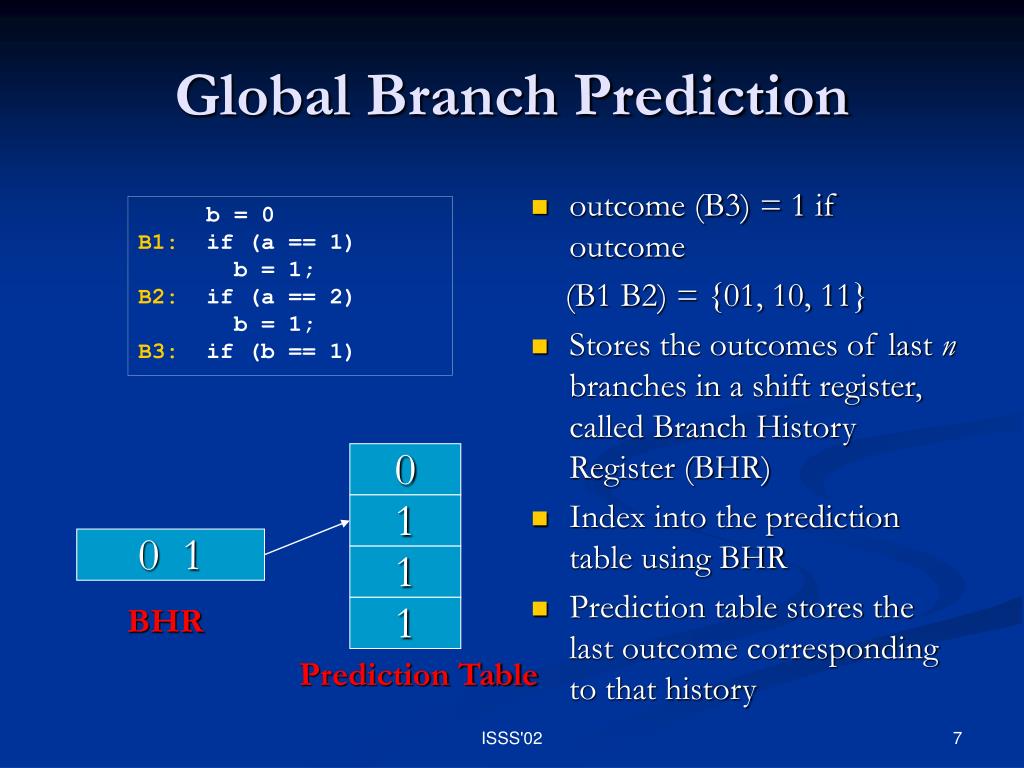

  7. Global Branch Prediction • outcome (B3) = 1 if outcome (B1 B2) = {01, 10, 11} • Stores the outcomes of last n branches in a shift register, called Branch History Register (BHR) • Index into the prediction table using BHR • Prediction table stores the last outcome corresponding to that history b = 0 B1: if (a == 1) b = 1; B2: if (a == 2) b = 1; B3: if (b == 1) 0 1 0 1 BHR 1 1 Prediction Table ISSS'02

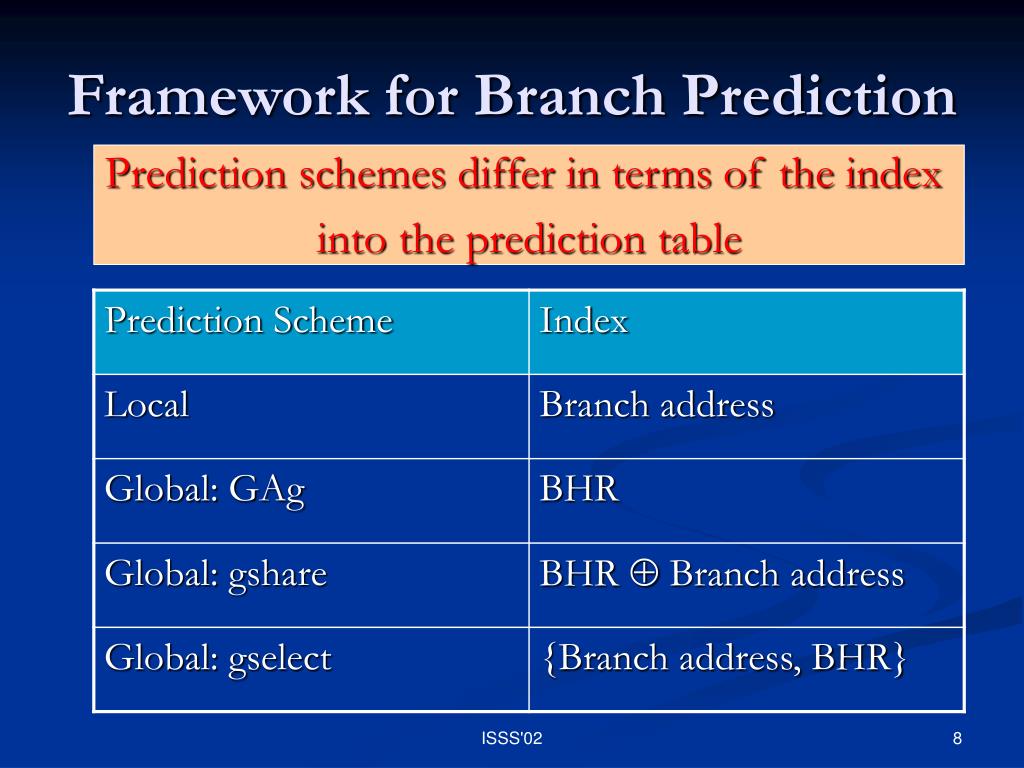

  8. Framework for Branch Prediction Prediction schemes differ in terms of the index into the prediction table ISSS'02

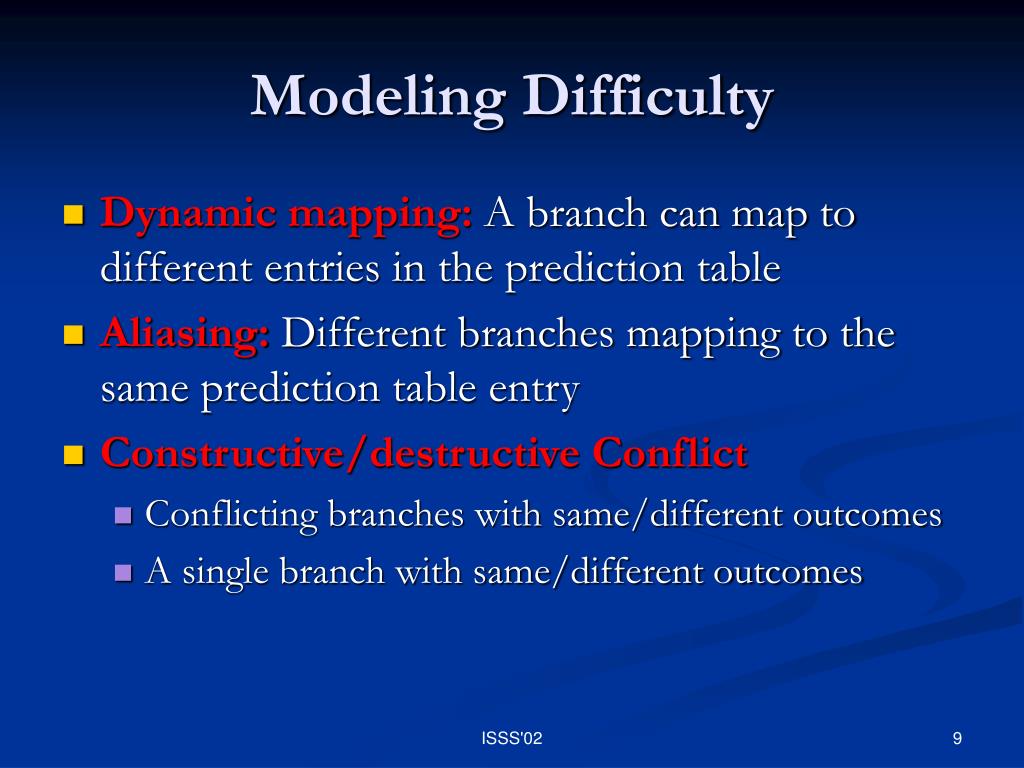

  9. Modeling Difficulty • Dynamic mapping: A branch can map to different entries in the prediction table • Aliasing: Different branches mapping to the same prediction table entry • Constructive/destructive Conflict • Conflicting branches with same/different outcomes • A single branch with same/different outcomes ISSS'02

  10. Our Technique: ILP Formulation • Obtain linear constraints on total misprediction count for all possible inputs • Input: Control Flow Graph of the program • Objective function: WCET =  costB  countB + penalty  mispredictionB ISSS'02

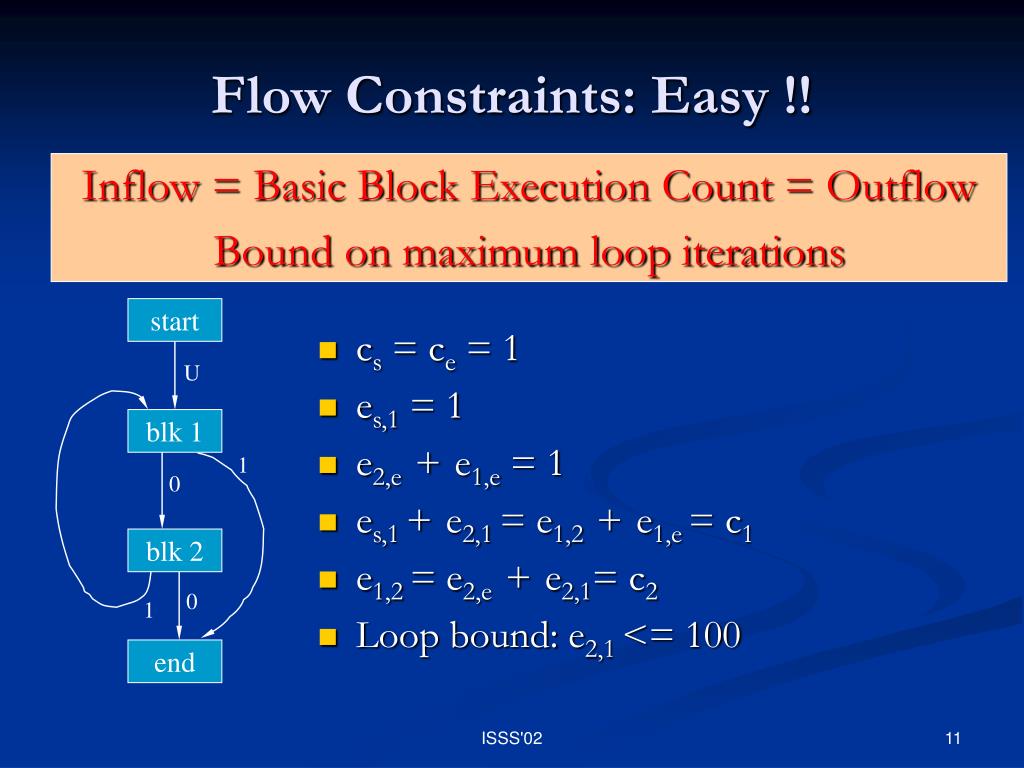

  11. Flow Constraints: Easy !! Inflow = Basic Block Execution Count = Outflow Bound on maximum loop iterations • cs = ce = 1 • es,1 = 1 • e2,e +e1,e = 1 • es,1 +e2,1 = e1,2 +e1,e = c1 • e1,2 = e2,e +e2,1= c2 • Loop bound: e2,1 <= 100 start U blk 1 1 0 blk 2 0 1 end ISSS'02

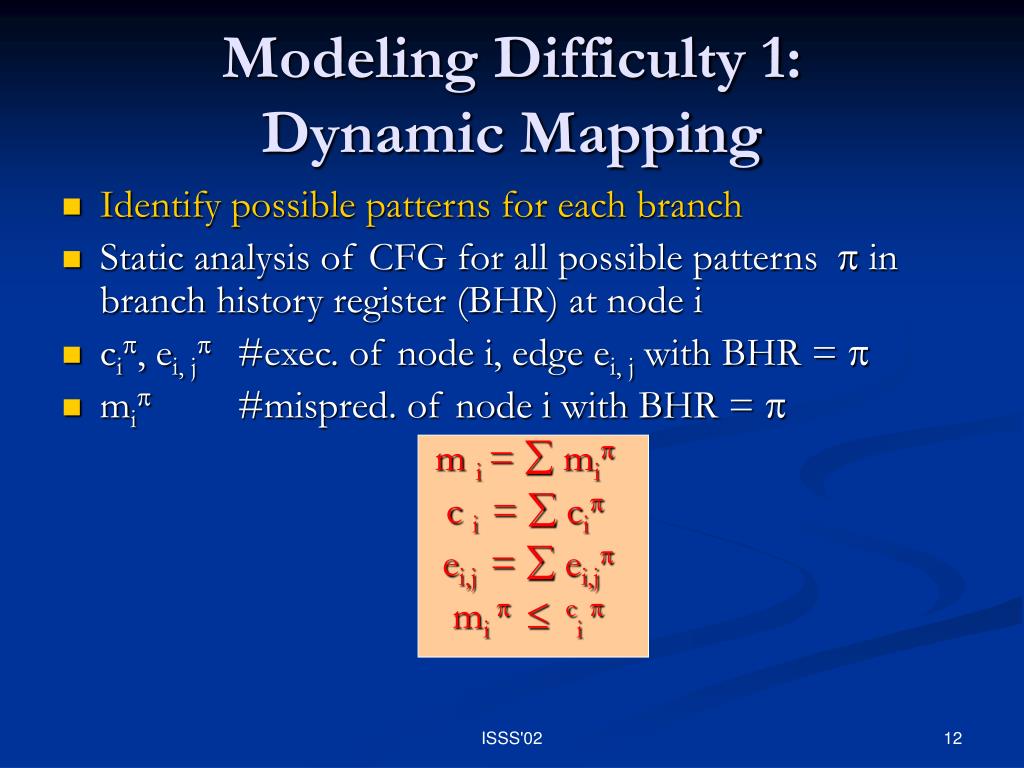

  12. Modeling Difficulty 1: Dynamic Mapping • Identify possible patterns for each branch • Static analysis of CFG for all possible patterns  in branch history register (BHR) at node i • ci, ei, j #exec. of node i, edge ei, j with BHR =  • mi #mispred. of node i with BHR =  m i =  mi c i =  ci ei,j =  ei,j mi   ci  ISSS'02

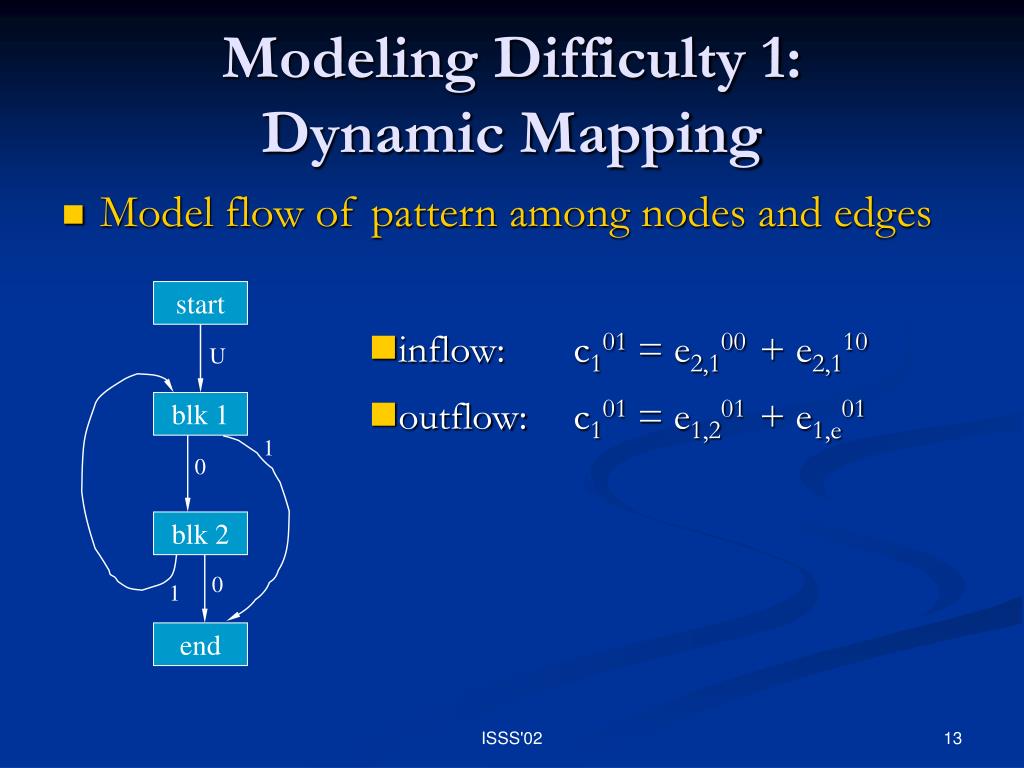

  13. Modeling Difficulty 1: Dynamic Mapping • Model flow of pattern among nodes and edges start • inflow: c101 = e2,100 + e2,110 • outflow: c101 = e1,201 + e1,e01 U blk 1 1 0 blk 2 0 1 end ISSS'02

  14. Modeling Difficulty 2: Aliasing • Variable pij: Number of times •  occurs at node i followed by another occurrence at j •  does not appear in the intermediate nodes i i j j ISSS'02

  15. Modeling Difficulty 2: Aliasing s ps  3 3 p3  6 p3  8 p8  3 6 8 p6  8 p6  e ∑jpji = ∑jpij = ci e ISSS'02

  16. Modeling Difficulty 3: Conflict ∑jp,0ji • Case 1: Branch of block i with  is taken • Misprediction less than its total outflow under history  & outcome of branch i taken  ∑jp,1ij • Misprediction less than its total inflow under history  & last outcome non-taken  ∑jp,0ji • Case 2: Branch of block i with  is non-taken 1 0 i 0 1 • ∑jp,1ij ISSS'02

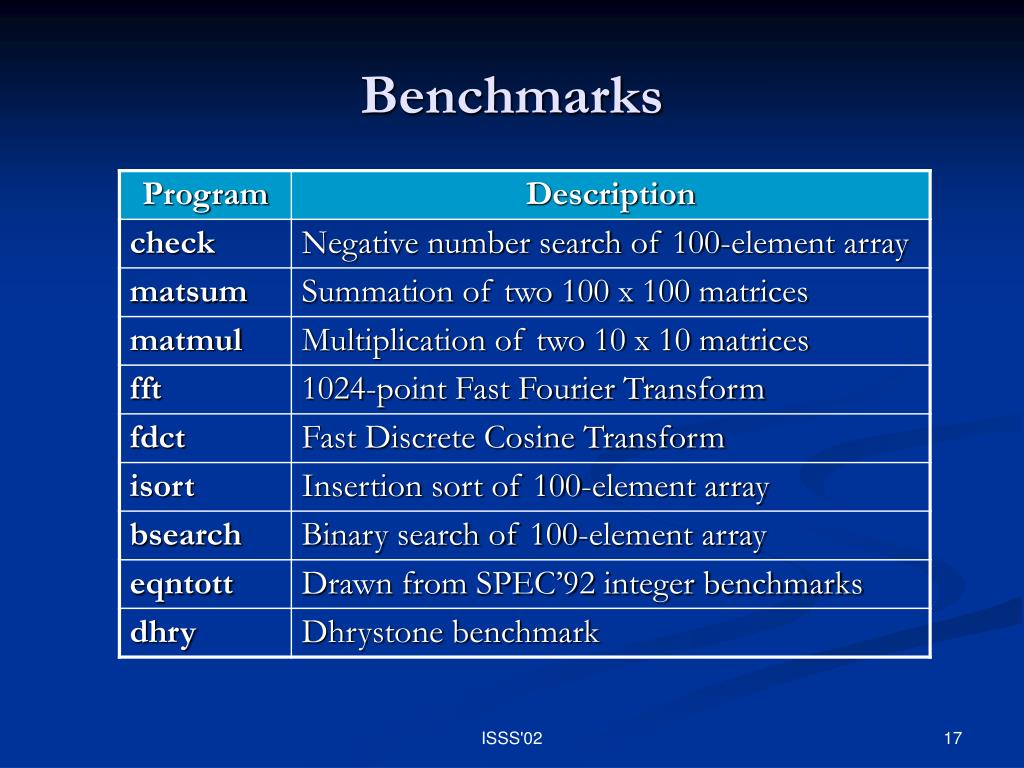

  17. Benchmarks ISSS'02

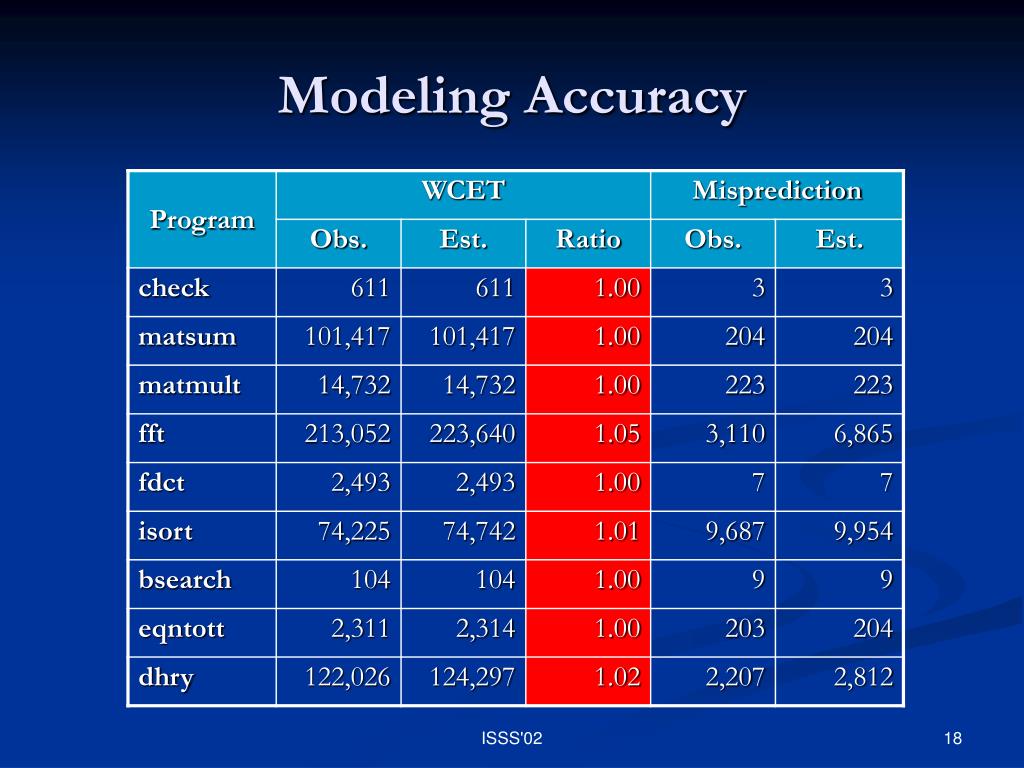

  18. Modeling Accuracy ISSS'02

  19. Summary • Modeling dynamic control speculation for timing analysis of embedded code • Unified parameterized framework that can be instantiated for various prediction schemes • Tight execution time bound for benchmark programs under various prediction schemes and prediction table sizes ISSS'02
