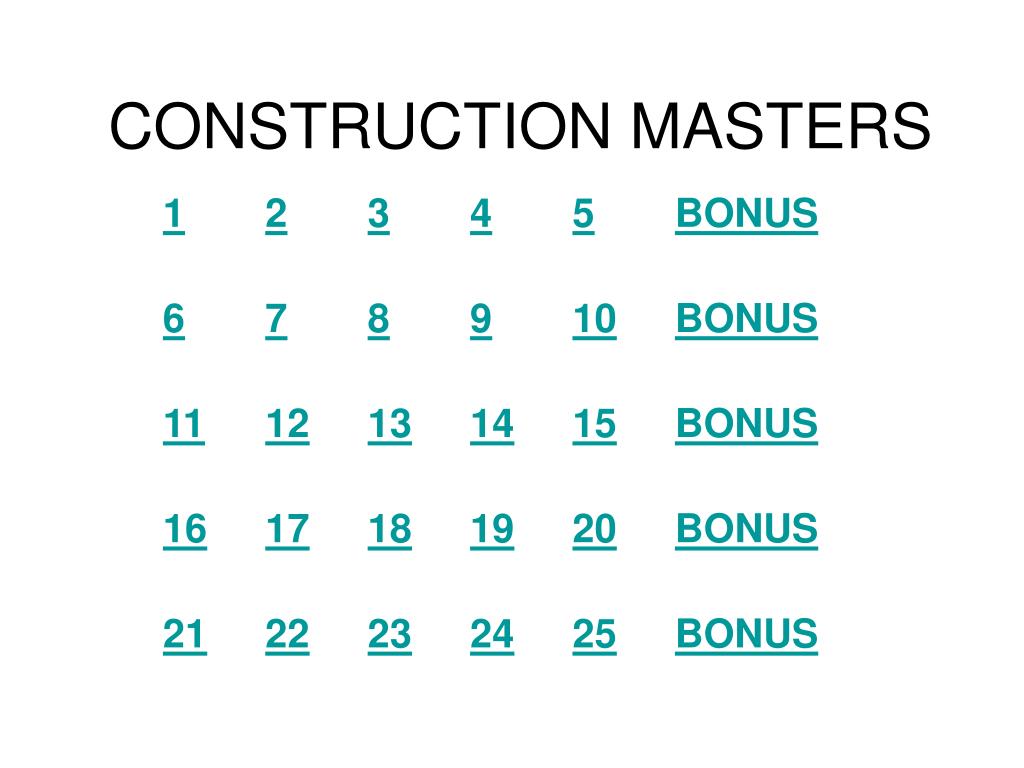

  1. CONSTRUCTION MASTERS 12345BONUS 678910BONUS 1112131415BONUS 1617181920BONUS 2122232425BONUS

  2. The date that the drawing was checked or issued for construction is placed in the _____. a. title block b. legend c. border d. key notes ABCD

  3. If symbols were not used on a drawing, workers would not be able to tell _____.a. the distance between walls b. location of the center of columnsc. detailed information about partsd. what material is required ABCD

  4. The definitions of any symbols or special marks used in a drawing are found in the _____. a. scale b. isometric drawing c. legend d. title block ABCD

  5. Lines drawn to indicate land boundaries on a drawing are called _____. a. hidden lines b. section lines c. centerlines d. property lines ABCD

  6. The exact location of a column on a drawing is shown by a(n) _____. a. object line b. cut line c. centerline d. break line ABCD

  7. A number or letter, usually with a leader and arrowhead, used to identify a specific object is a _____. a. cut line b. keynote c. gridline d. revision ABCD

  8. A building's roof framing plan is shown on the _____. a. structural plans b. mechanical plans c. architectural plans d. detail plans ABCD

  9. The layout and dimensions of rooms, stairwells, doors, and mechanical equipment are shown on the _____. a. floor plans b. detail drawings c. mechanical plans d. cross sectional plans ABCD

  10. Specifications and locations of heating and cooling equipment and grilles and registers are shown on _____ plans. a. architectural b. plumbing c. mechanical d. structural ABCD

  11. The _____ shows the height of the side of a building. a. plan view b. elevation drawing c. detail drawing d. section drawing ABCD

  12. Tables that list the sizes and other types of information about doors and windows are found in the _____. a. detail drawings b. legend c. title block d. finish schedules ABCD

  13. Structural plans include _____.a. notes about materials needed and building requirementsb. notes about drainage and land usec. the schedule for finishing all surfacesd. the location of the electric meter and distribution panel ABCD

  14. If the scale on an architectural plan is 1" = 10¨-0", then every _____.a. 1 inch on the plan equals 1/10 of a footb. 1 inch on the plan equals 10 feet, 0 inchesc. 10 feet on the plan equals 1 foot, 0 inchesd. 10 feet on the plan equals 1/10 of an inch ABCD

  15. Engineer's scales are used for _____.a. measuring areas too small to be measured by an architectural scaleb. locating structural beams and other load-bearing surfacesc. plotting and working with survey and site plansd. taking metric measurements ABCD

  16. NTS on architectural drawings means _____. a. no template here b. not to size c. no trusses here d. not to scale ABCD

  17. What are plans called that have to do with construction in or on the earth? a. civil b. architectural c. structural d. specification ABCD

  18. To clarify any discrepancies in the plans, which of these should you use? a. Index b. legend c. HVAC d. RFI ABCD

  19. Where is information about the structure or assembly provided in a on a set of plans? a. legend b. border c. title box d. drawing area ABCD

  20. Which of these is the project is identified by? a. sheet title b. company logo c. scale d. drawing number ABCD

  21. Which of these scales are used when developing site plans? a. architect’s b. NTS c. engineers d. metric ABCD

  22. This form of an architect’s scale is commonly used because it contains a variety of scales a. straight edge b. oval c. right angle d. triangular ABCD

  23. What are the lines commonly used on a blueprint called? a. collection b. directory c. alphabet d. language ABCD

  24. What do dimension lines end with? A. circles b. squares c. X d. arrows ABCD

  25. Where should the symbols used on a set of blueprints should be located? a. title sheet b. title block c. legend d. scale ABCD

  26. A keynote is a number or letter that is often used instead of symbols and usually appears in _______. A. block letters b. a square or circle c. upper right corner d. upper left corner ABCD

  27. BONUS 2 A grid divides an area into small parts called _______. a. squares b. regions c. bays d. pockets ABCD

  28. BONUS 4 On a grid, the _____ are normally across the top and the ____ are across the side. a. keynotes; numbers b. number; keynotes c. numbers; letters d. letters; numbers ABCD

  29. BONUS 5 Which of the following letters does the gridline system omit? a. U, V, W b. M, N, H c. I, J, T d. I, O, Q ABCD

  30. BONUS 3 The dimension is a measurement written as a __________. a. keynote b. number c. letter d. symbol ABCD

  31. BONUS 1 On a blueprint, a dimension is located ______ the dimension line. a. above b. below c. near the middle of d. at the end of ABCD
