  1. SCCM Training This Presentation Covers Training Modules for SCCM 2012 .

  2. Topics To be Discussed – General • Manage Sites • Manage collections • Monitor site health • Configure software updates • Manage site communications • Manage boundary groups • Manage role-based security

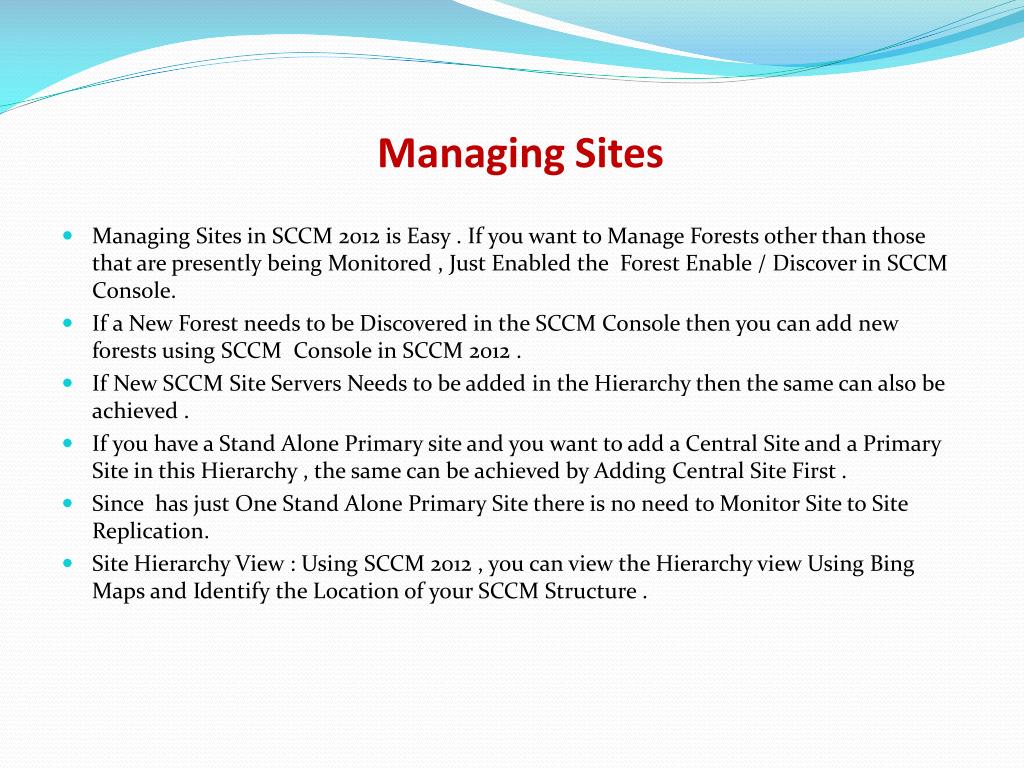

  3. Managing Sites • Managing Sites in SCCM 2012 is Easy . If you want to Manage Forests other than those that are presently being Monitored , Just Enabled the Forest Enable / Discover in SCCM Console. • If a New Forest needs to be Discovered in the SCCM Console then you can add new forests using SCCM Console in SCCM 2012 . • If New SCCM Site Servers Needs to be added in the Hierarchy then the same can also be achieved . • If you have a Stand Alone Primary site and you want to add a Central Site and a Primary Site in this Hierarchy , the same can be achieved by Adding Central Site First . • Since has just One Stand Alone Primary Site there is no need to Monitor Site to Site Replication. • Site Hierarchy View : Using SCCM 2012 , you can view the Hierarchy view Using Bing Maps and Identify the Location of your SCCM Structure .

  4. Manage collections • Direct Rule : Members can be added Directly • Query : Members can be added using Query • Include : Members can be other collection • Exclude : Members can be excluded.

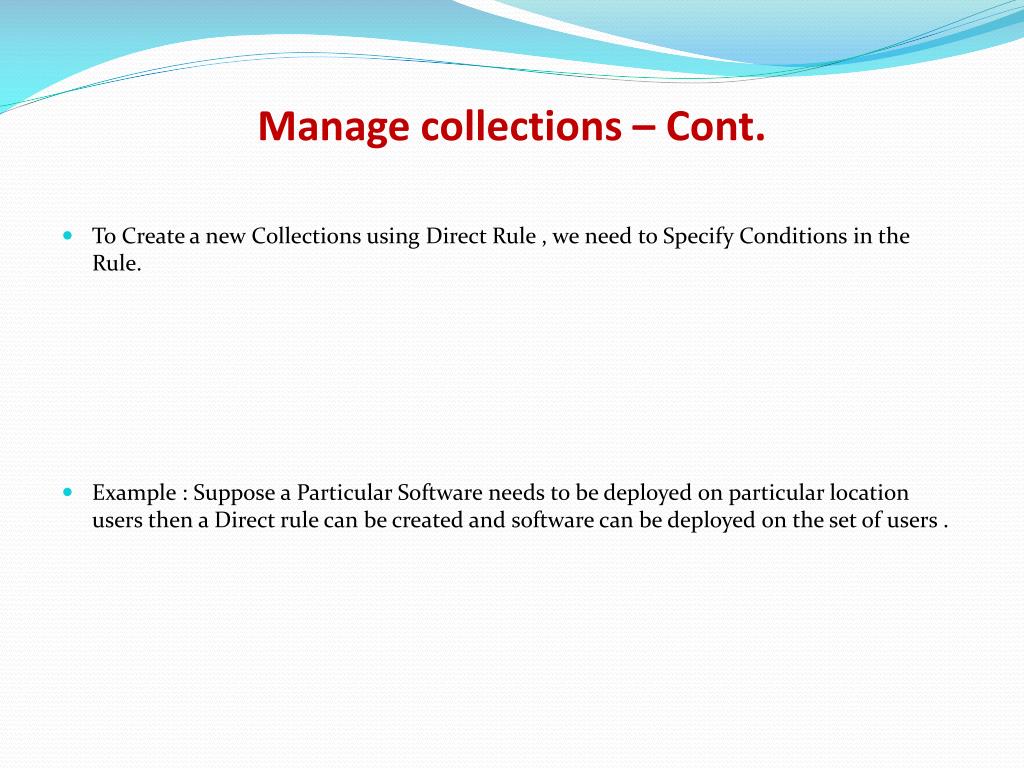

  5. Manage collections – Cont. • To Create a new Collections using Direct Rule , we need to Specify Conditions in the Rule. • Example : Suppose a Particular Software needs to be deployed on particular location users then a Direct rule can be created and software can be deployed on the set of users .

  6. Monitor site health • SCCM Site Health can be Monitors Using SCCM Console by Navigating to : Monitoring > Site Status and Monitoring > Component Status

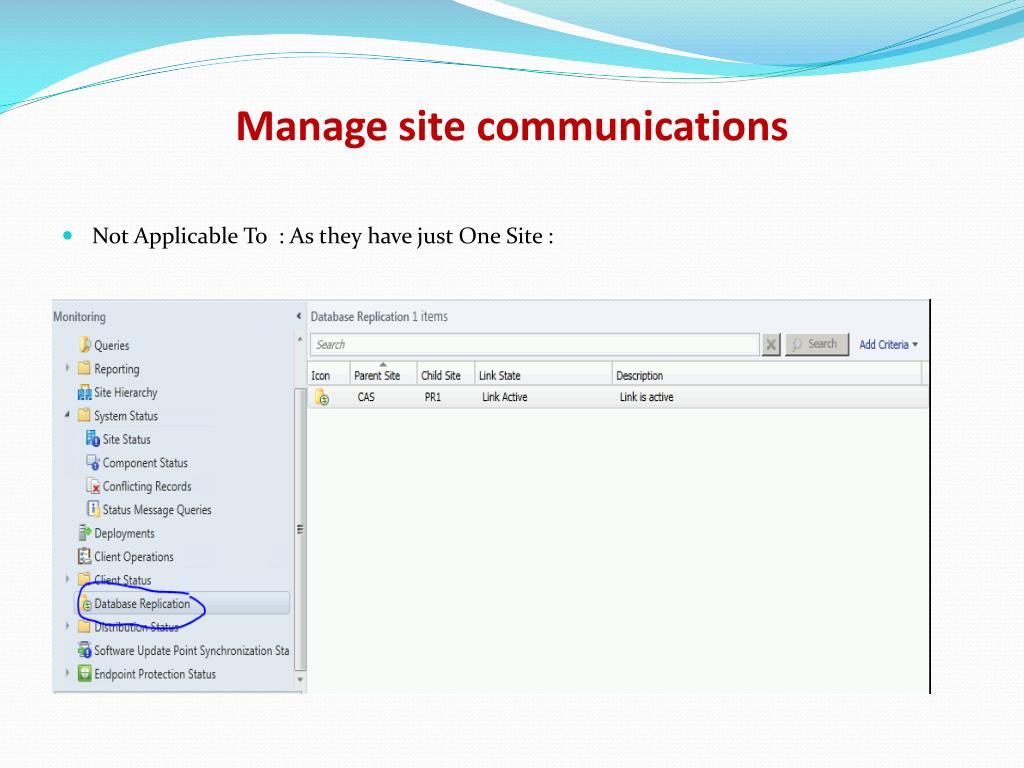

  7. Manage site communications • Not Applicable To : As they have just One Site :

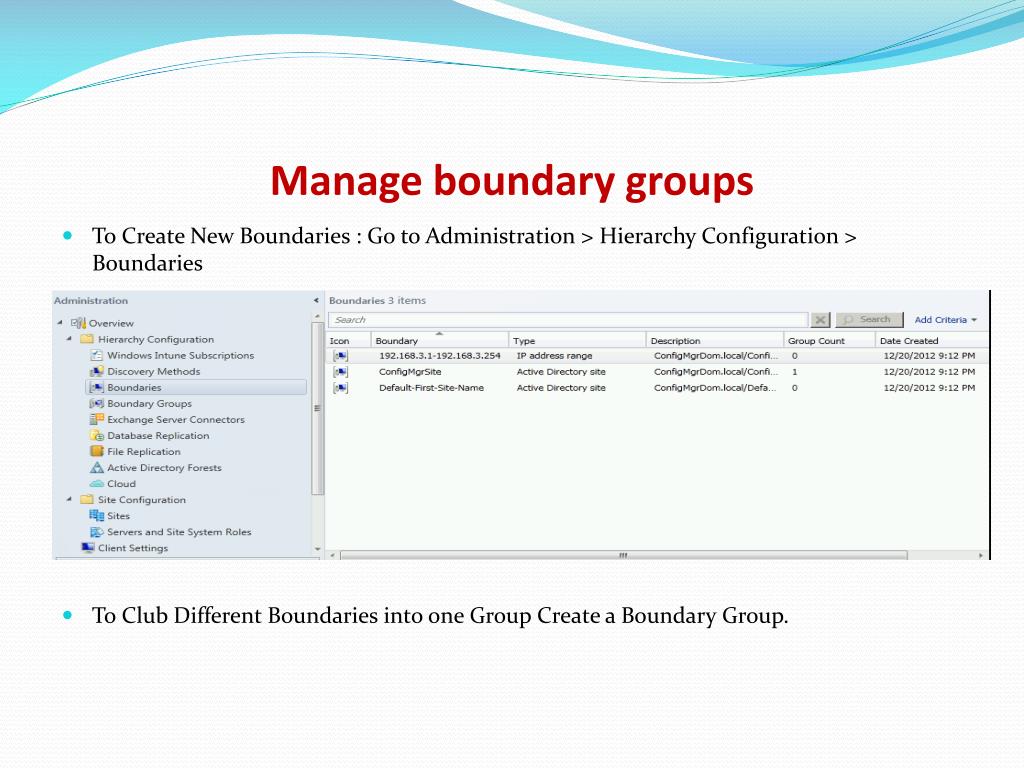

  8. Manage boundary groups • To Create New Boundaries : Go to Administration > Hierarchy Configuration > Boundaries • To Club Different Boundaries into one Group Create a Boundary Group.

  9. Manage boundary groups- Cont. • Create New Boundary groups to club Boundaries

  10. Manage role-based security • RBAC is a new Feature in SCCM 2012 . • RBAC is Used to Divide the set of Duties in SCCM . • RBAC is Used to create new Roles in SCCM • To Create a New Role : Go to Administration > Security > Security Roles > Copy Rule

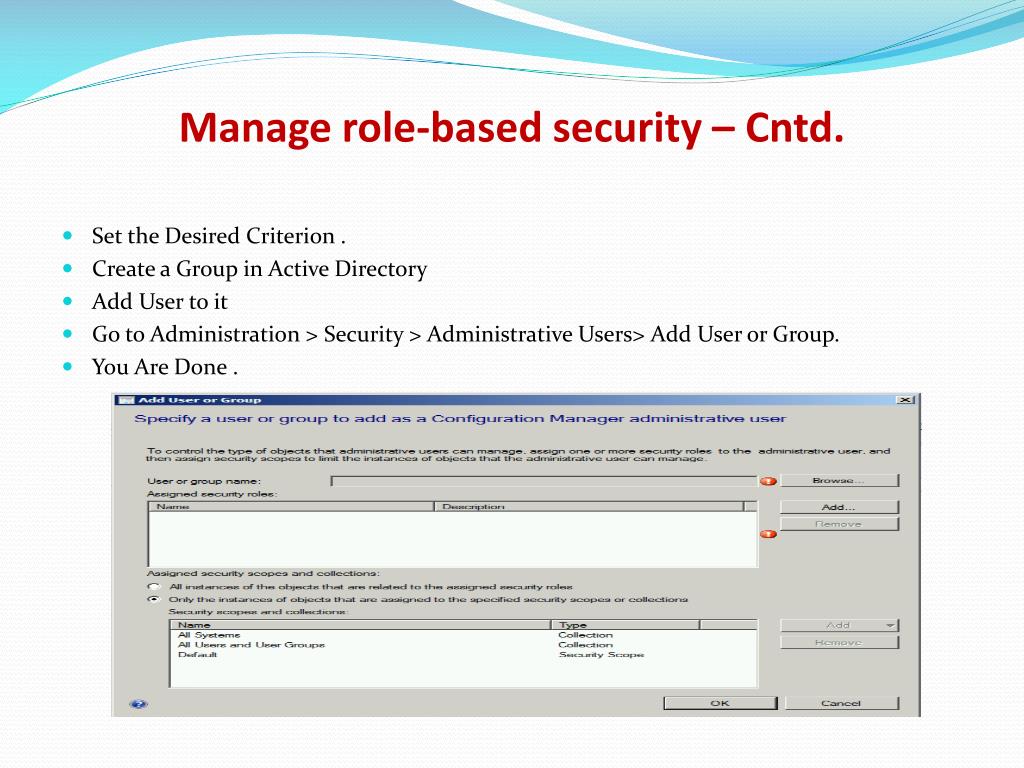

  11. Manage role-based security – Cntd. • Set the Desired Criterion . • Create a Group in Active Directory • Add User to it • Go to Administration > Security > Administrative Users> Add User or Group. • You Are Done .

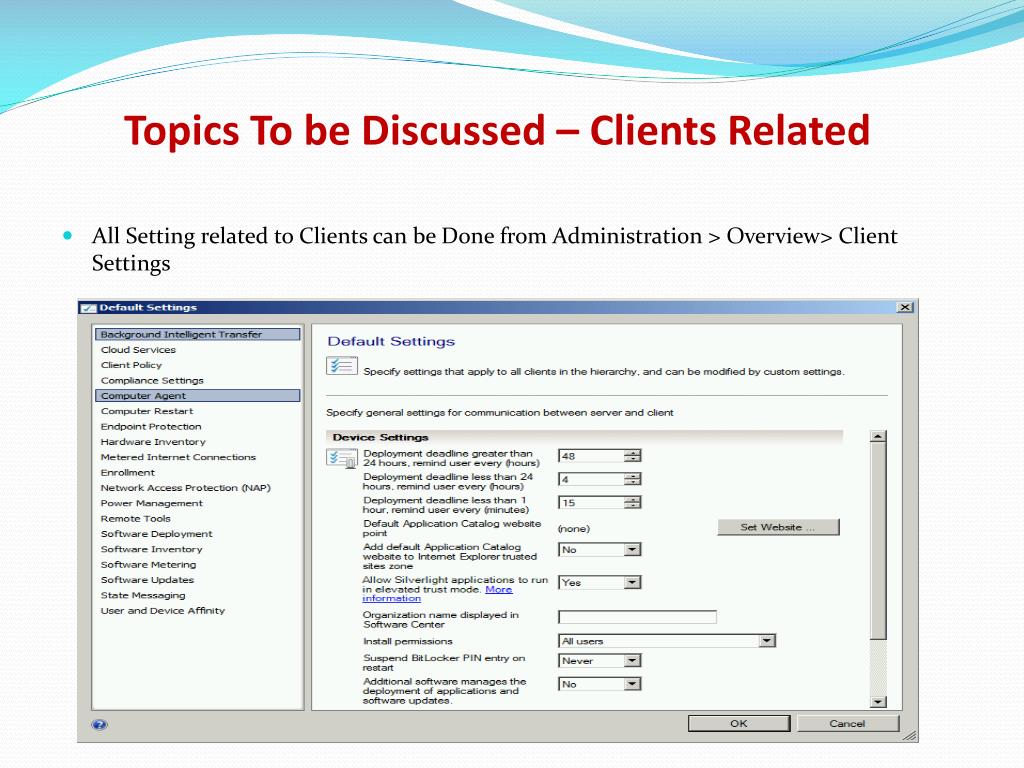

  12. Topics To be Discussed – Clients Related • All Setting related to Clients can be Done from Administration > Overview> Client Settings

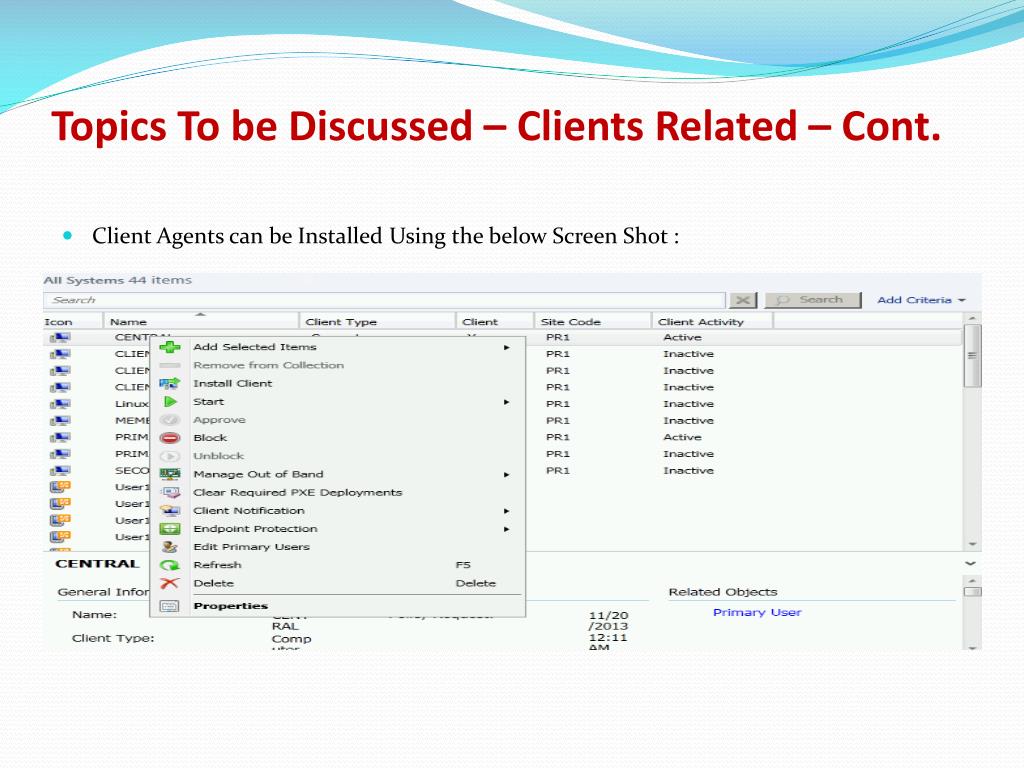

  13. Topics To be Discussed – Clients Related – Cont. • Client Agents can be Installed Using the below Screen Shot :

  14. Client Installation Tracking • CCM.log – Server Side • CCMSETUP.log – Client Side • Client.msi.log – Client Side

  15. Topics To be Discussed – Inventory • To Collect Hardware and Software Inventory Related Data from Client Machines Inventory has to enabled in SCCM Console :

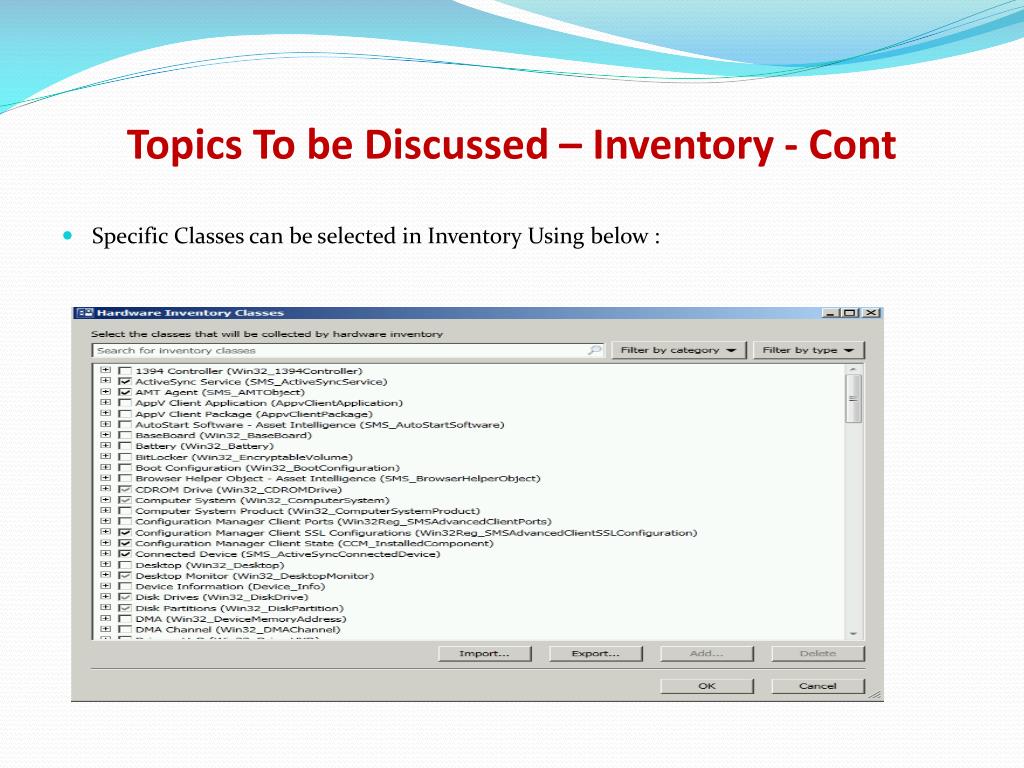

  16. Topics To be Discussed – Inventory - Cont • Specific Classes can be selected in Inventory Using below :

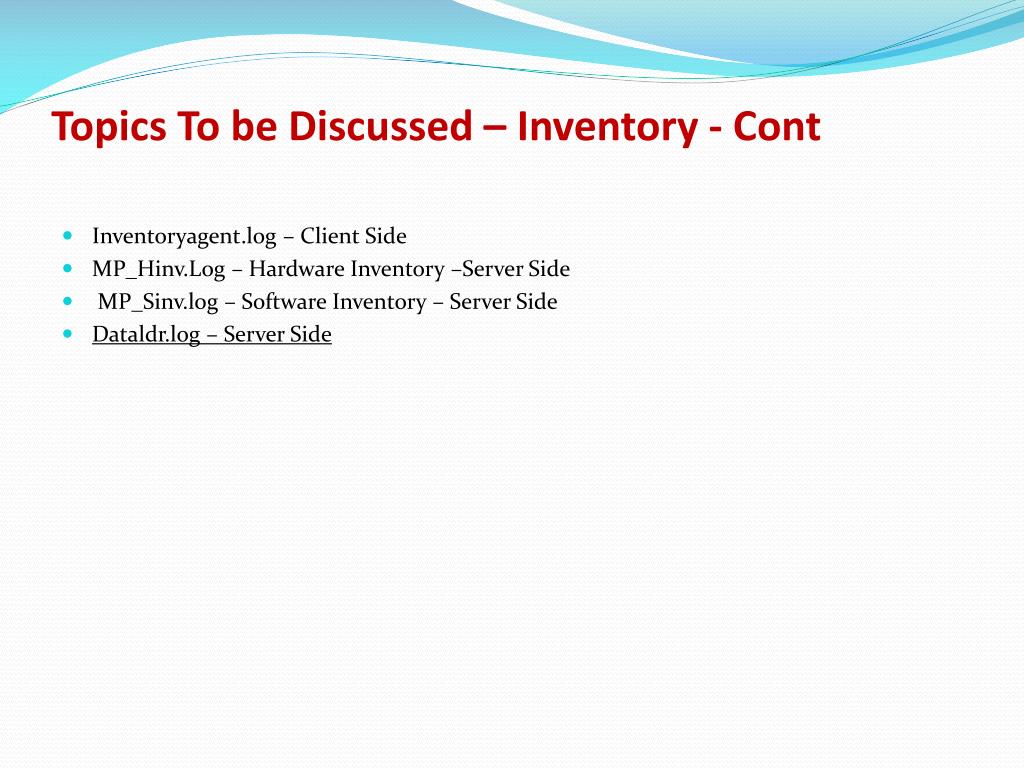

  17. Topics To be Discussed – Inventory - Cont • Inventoryagent.log – Client Side • MP_Hinv.Log – Hardware Inventory –Server Side • MP_Sinv.log – Software Inventory – Server Side • Dataldr.log – Server Side

  18. Deploy Applications and Software Updates • Applications Vs. Packages in SCCM 2012 • Why Use Applications • Create an Application :

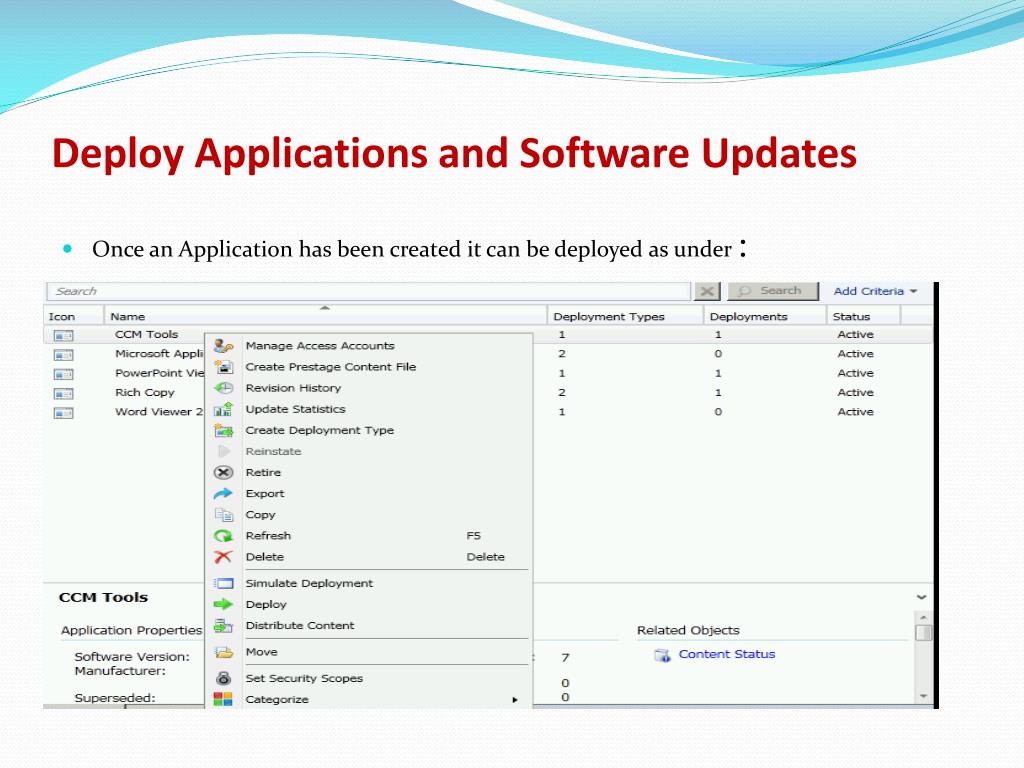

  19. Deploy Applications and Software Updates • Once an Application has been created it can be deployed as under :

  20. Tracking Application Deployment • Track

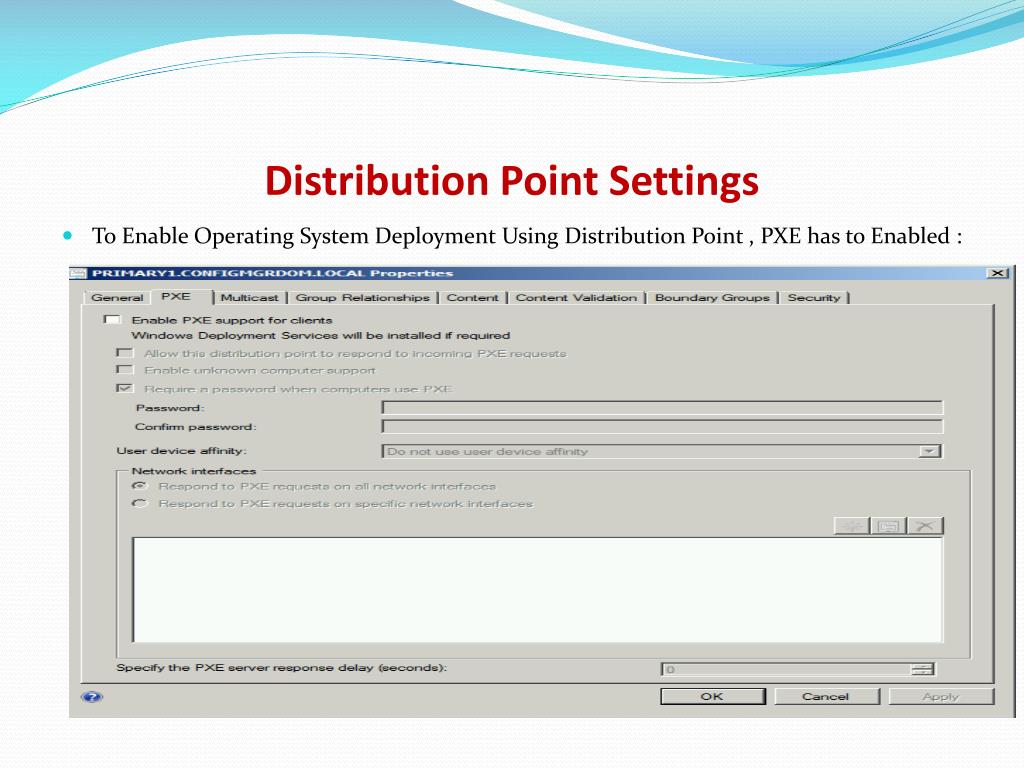

  21. Distribution Point Settings • To Enable Operating System Deployment Using Distribution Point , PXE has to Enabled :

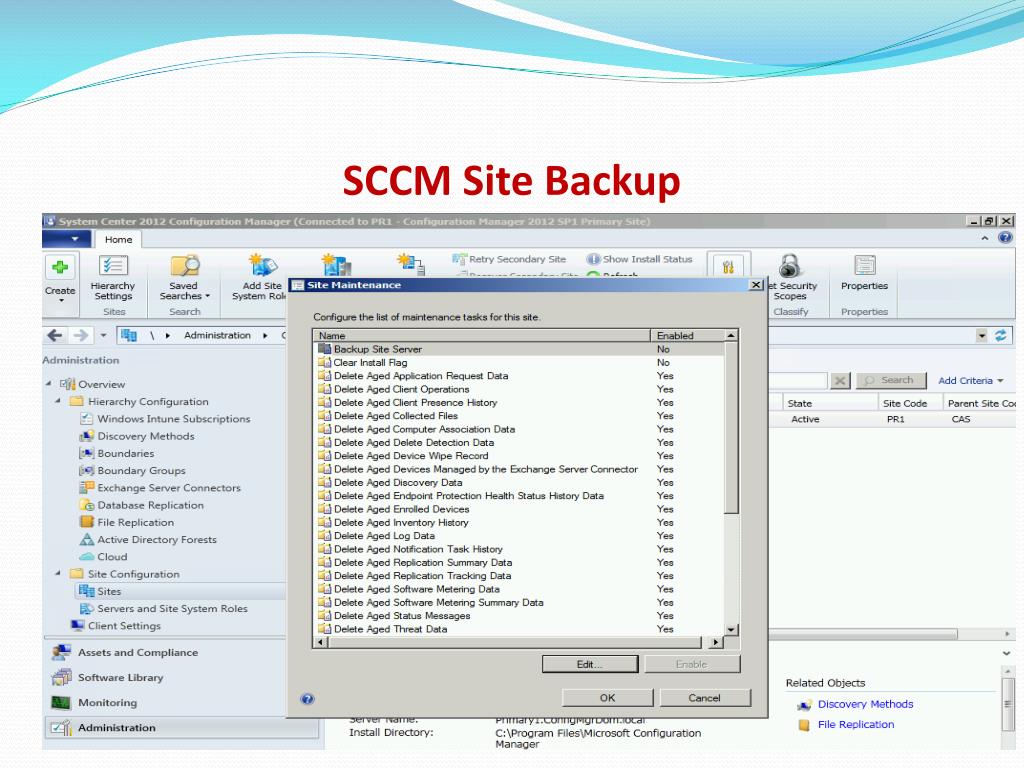

  22. SCCM Site Backup
