Phosphorus Index Based Management

Phosphorus Index Based Management. Douglas Beegle Dept. of Crop and Soil Sciences, Penn State University dbb@psu.edu http://panutrientmgmt.cas.psu.edu. SUMBER: aesl.ces.uga.edu/ MidAtlantic /2010/P%20Index-%20Doug%20Beegle. ppt ‎. Animals. Feed. Crops. Soil. P 2 O 5. P 2 O 5.

burt
Télécharger la présentation

Phosphorus Index Based Management

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Phosphorus Index Based Management Douglas Beegle Dept. of Crop and Soil Sciences, Penn State University dbb@psu.edu http://panutrientmgmt.cas.psu.edu SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

  2. Animals Feed Crops Soil P2O5 P2O5 K2O K2O Why do we need a P Index?Why not just agronomic recommendations? ¼ Nitrogen Based Corn/Dairy Manure Nutrient flows in modern ag ¾ ? N P Index Manure P Index Phosphorus Based Corn/Dairy Manure Eutrophication Regional P Balance N Field P Balance SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

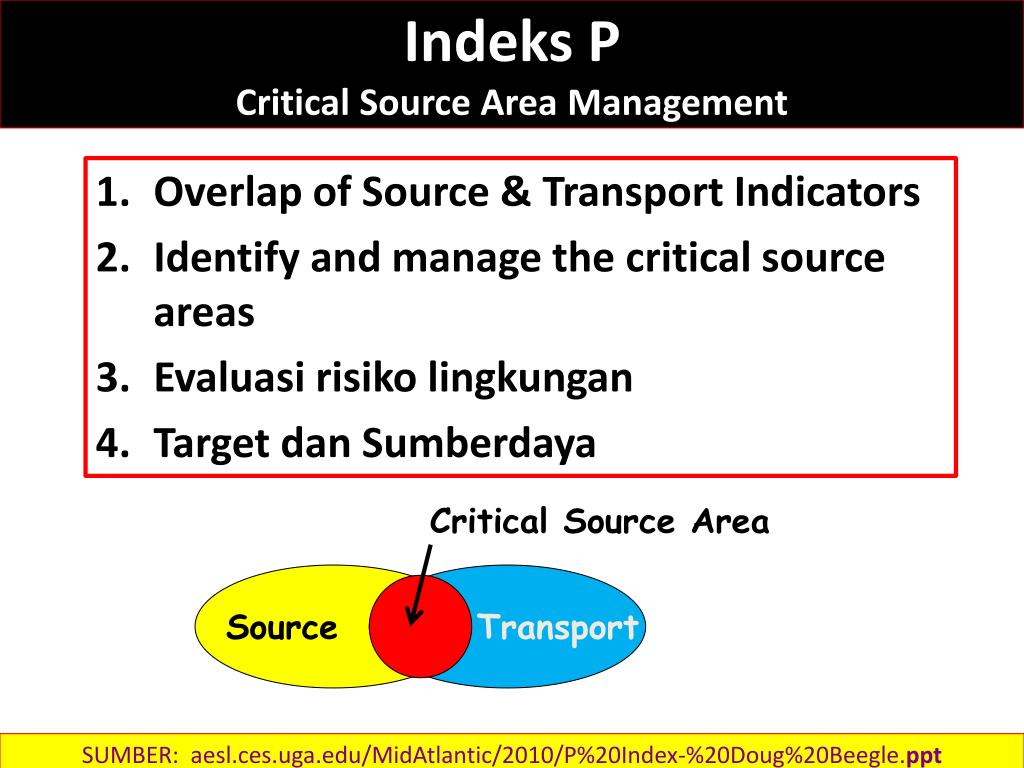

  3. Indeks P Critical Source Area Management • Overlap of Source & Transport Indicators • Identify and manage the critical source areas • Evaluasirisikolingkungan • Target danSumberdaya Critical Source Area Source Transport SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

  4. N P K MengelolaPencemaran Phosphorus Transport Sources Runoff Erosion Leaching Tile flow Subsurface flow Water Body Hydrology SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

  5. 2.4 1.6 0.8 0 400 600 800 200 0 Uji Tanah vs. Kehilangan P P loss, lb P2O5/A P Threshold Crop P Optimum No recent P inputs R2=0.80 Mehlich-3 soil P, mg/kg Sharpley, USDA-ARS SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

  6. 2.4 1.6 0.8 0 400 600 800 200 0 Uji Tanah vs. Kehilangan P (denganpupuk P) For all data points R2=0.40 P loss, lb P2O5/A 75 kg P/ha TSP 112 kg P/ha swine slurry 150 kg P/ha poultry manure Soil Only R2=0.80 Mehlich-3 soil P, mg/kg Sharpley, USDA-ARS SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

  7. Indeks P • P Source Site Characteristics • Environmental Soil Test P • Same soil test different interpretation • Sampling Questions? • P Saturation? • P Fertilizer • Rate and Appl. Method • Organic P • Rate and Appl. Method • P Source Coefficient (PSC) • Direct availability of manure P to runoff • Based on WEP in manure SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

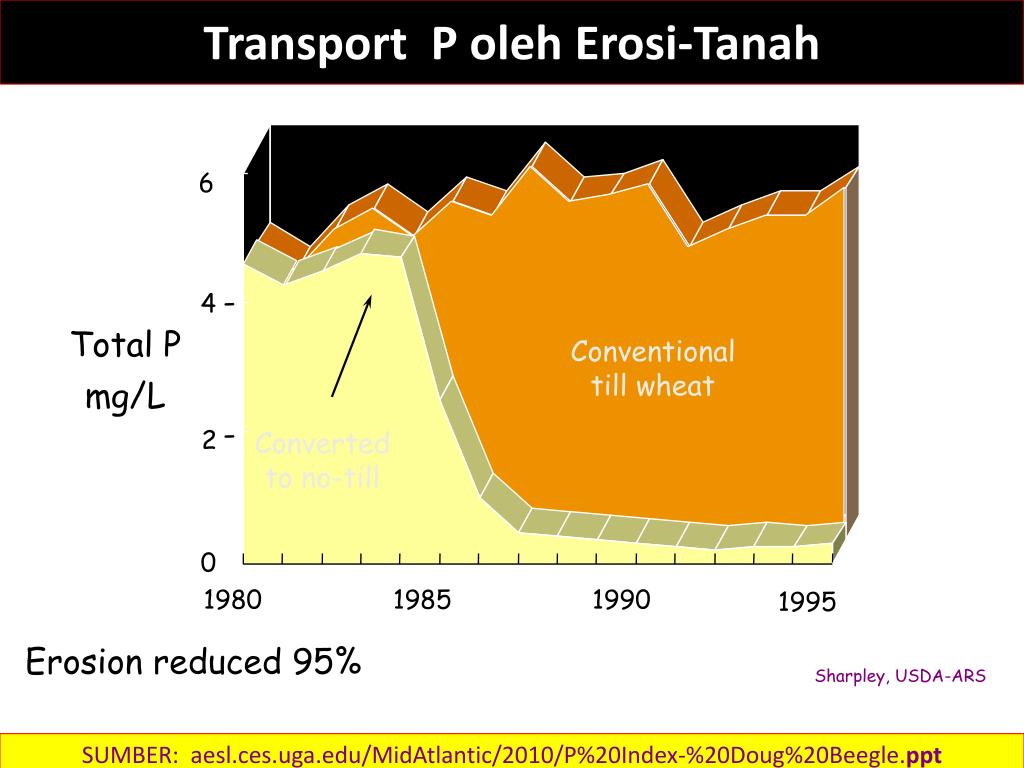

  8. 6 - 4 Total P mg/L Conventional till wheat - 2 Converted to no-till 0 1980 1985 1990 1995 Erosion reduced 95% Sharpley, USDA-ARS Transport P olehErosi-Tanah SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

  9. Zone Interaksidengan Runoff Mehlich 1 P (mg/kg) • Location of applied P • Interaction with runoff • P on surface • Soil test at surface • High P Saturation at surface Psat = P / Al + FeOxalate extr. or Mehlich 3 extr. 0 100 200 300 400 500 600 0 20 40 Depth (cm) Zone of interaction with runoff Plow depth 60 80 Data from Mozaffari and Sims, 1994 100 SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

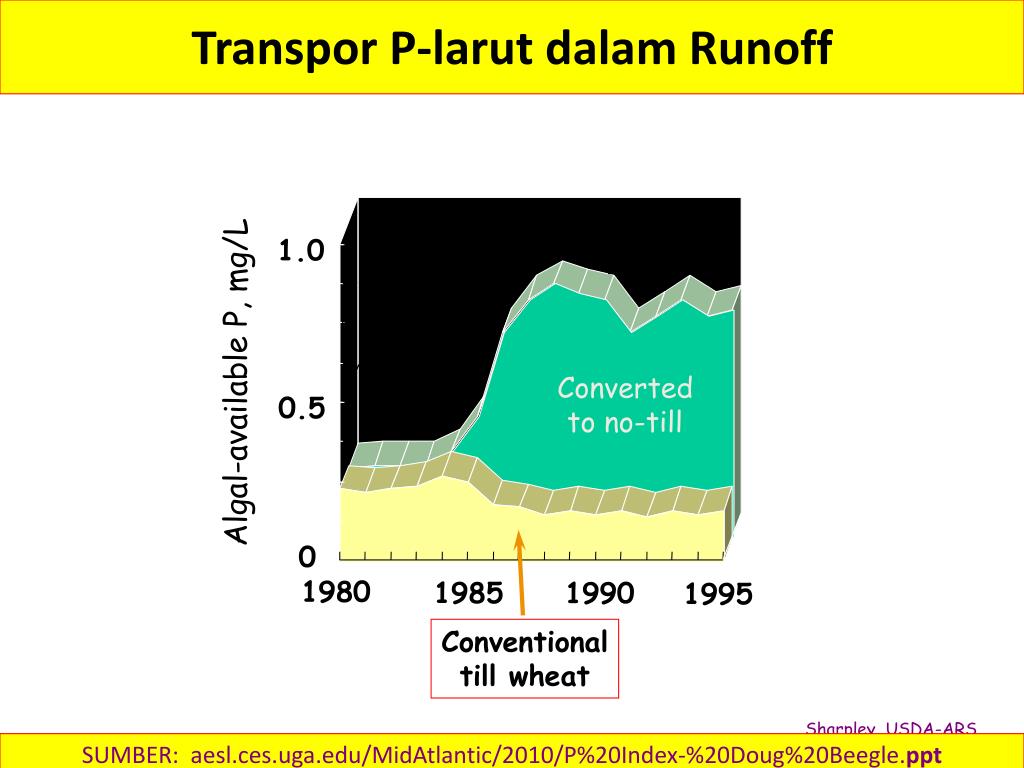

  10. 1980 1985 1990 1995 Transpor P-larutdalam Runoff 1.0 Algal-available P, mg/L Converted to no-till 0.5 0 Conventional till wheat Sharpley, USDA-ARS SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

  11. Kehilangan P Larutolehaliranbawahpermukaan Kehilangan P inisangattergantungpadasifat-sifattanah: • Hidrologi • Piston flow • Macro pores • Teksturtanah • Kimia tanah(Fe, Al, Ca) • P loading/saturation • Drainage Buatan. Data from: Bolton et al., 1970 Culley and Bolton, 1983 SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

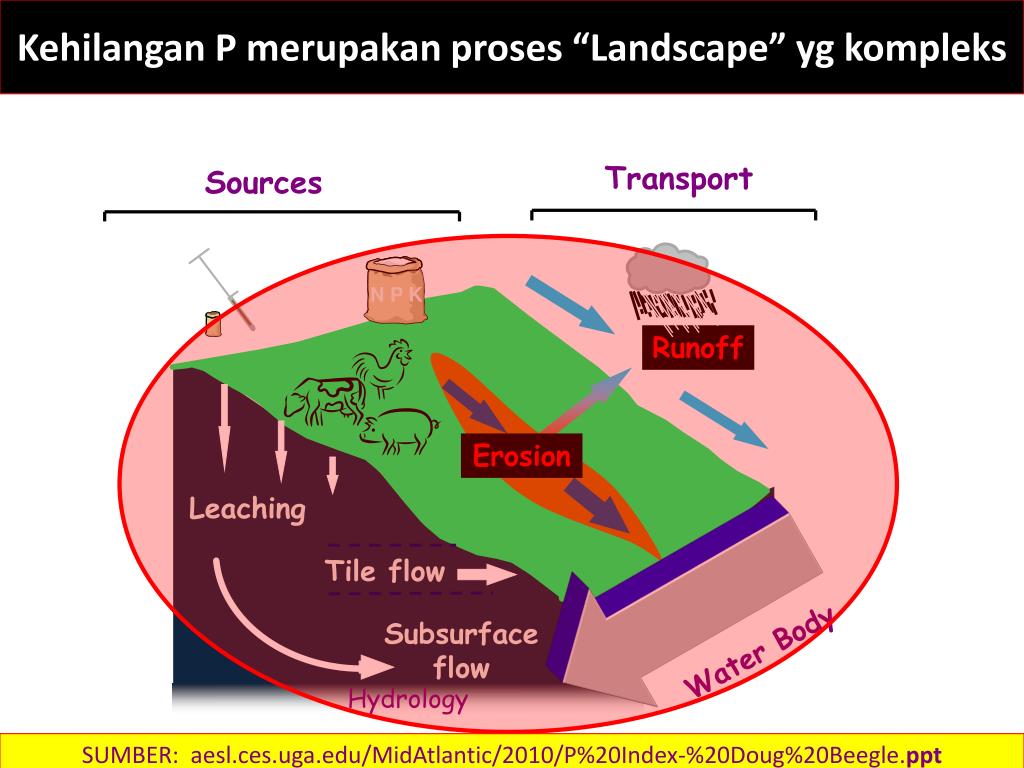

  12. N P K Kehilangan P merupakanproses “Landscape” ygkompleks Transport Sources Runoff Erosion Leaching Tile flow Subsurface flow Water Body Hydrology SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

  13. Indeks P = Phosphorus Index P Transport Site Characteristics • Erosi Tanah • Kelas Runoff • Potential Pencucian • Drainage bawah-permukaan • Contributing Distance • Modified Connectivity SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

  14. PA Phosphorus Index v 2.0 SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

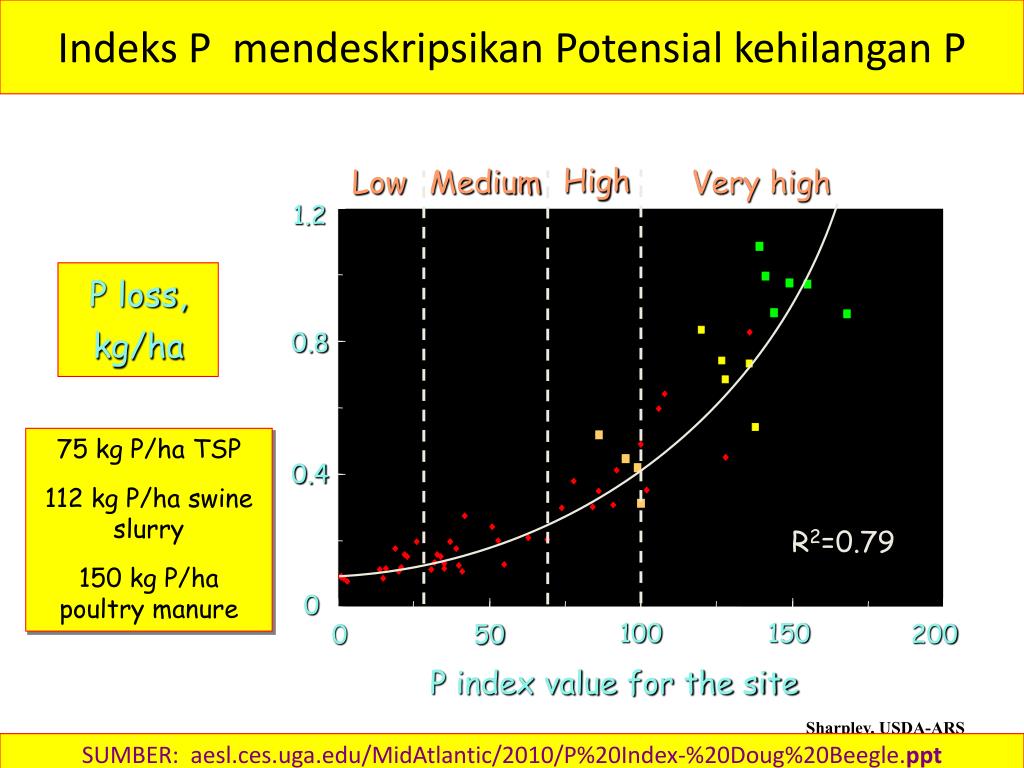

  15. 1.2 0.8 0.4 0 100 150 200 50 0 Indeks P mendeskripsikanPotensialkehilanganP High Low Medium Very high P loss, kg/ha 75 kg P/ha TSP 112 kg P/ha swine slurry 150 kg P/ha poultry manure R2=0.79 P index value for the site Sharpley, USDA-ARS SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

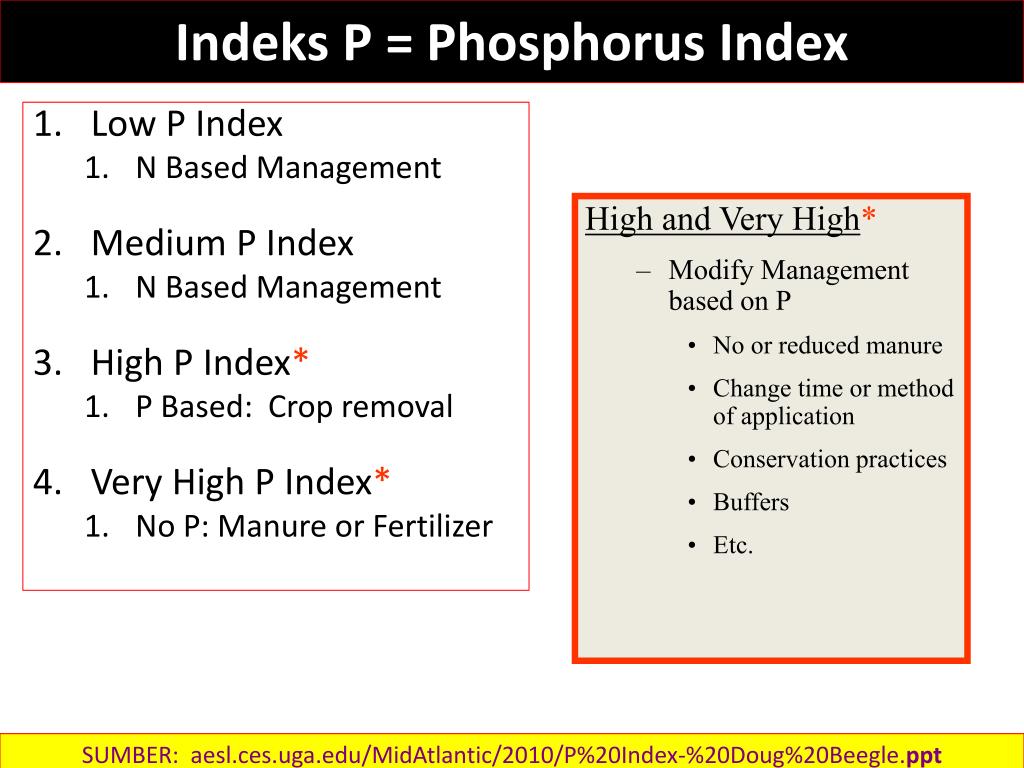

  16. Indeks P = Phosphorus Index • Low P Index • N Based Management • Medium P Index • N Based Management • High P Index* • P Based: Crop removal • Very High P Index* • No P: Manure or Fertilizer • High and Very High* • Modify Management based on P • No or reduced manure • Change time or method of application • Conservation practices • Buffers • Etc. SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

  17. P2O5 P2O5 K2O K2O RencanaManajemen Hara P • Develop N based plan • Usually means excess P will be applied • Use P Index to evaluate the N based plan • Is the risk of P loss acceptable • Acceptable risk • Apply @ N rate, excess P • Unacceptable Risk • Modify N based plan, where necessary, to address P loss risk Nitrogen Based Corn/Dairy Manure or N Phosphorus Based Corn/Dairy Manure or N NONE SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

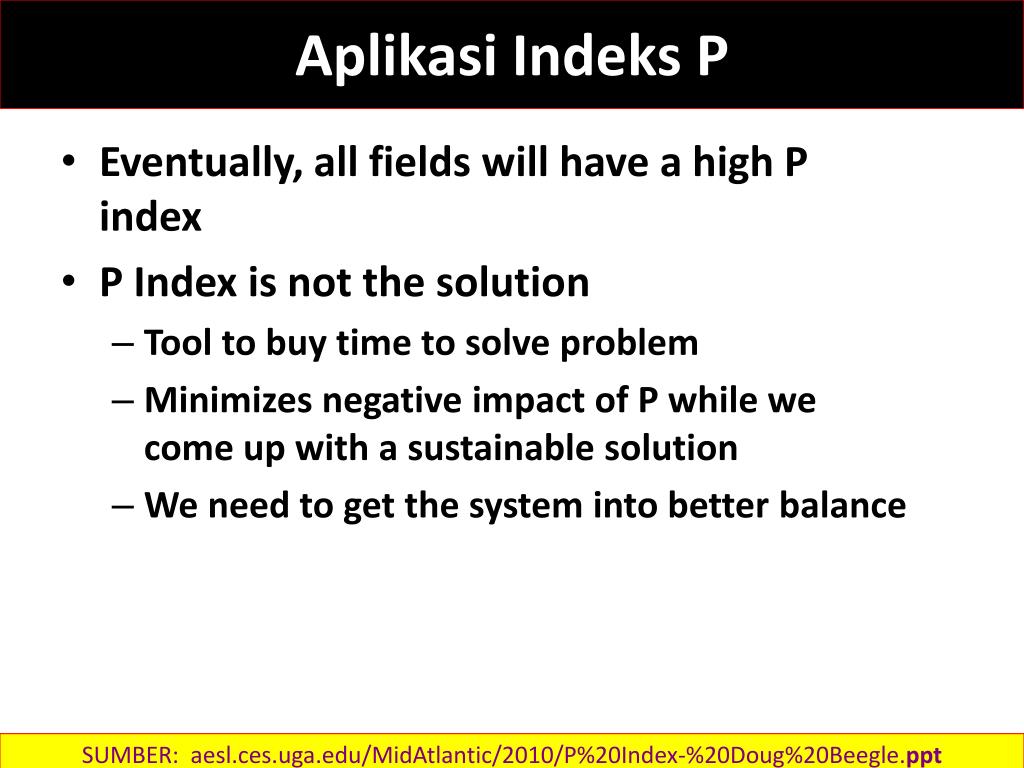

  18. AplikasiIndeks P • Eventually, all fields will have a high P index • P Index is not the solution • Tool to buy time to solve problem • Minimizes negative impact of P while we come up with a sustainable solution • We need to get the system into better balance SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎

  19. NRCS/EPA P Index Issues • Proposed change in NRCS 590 Std. • P soil test only – No more P Index • Easy to regulate • Very strict limits • Not supported by the science - Source/Transport • Unrealistic for animal agriculture to comply with in short term • Better soil P balance is a good long term goal • Withdrawn, under further review SUMBER: aesl.ces.uga.edu/MidAtlantic/2010/P%20Index-%20Doug%20Beegle.ppt‎
