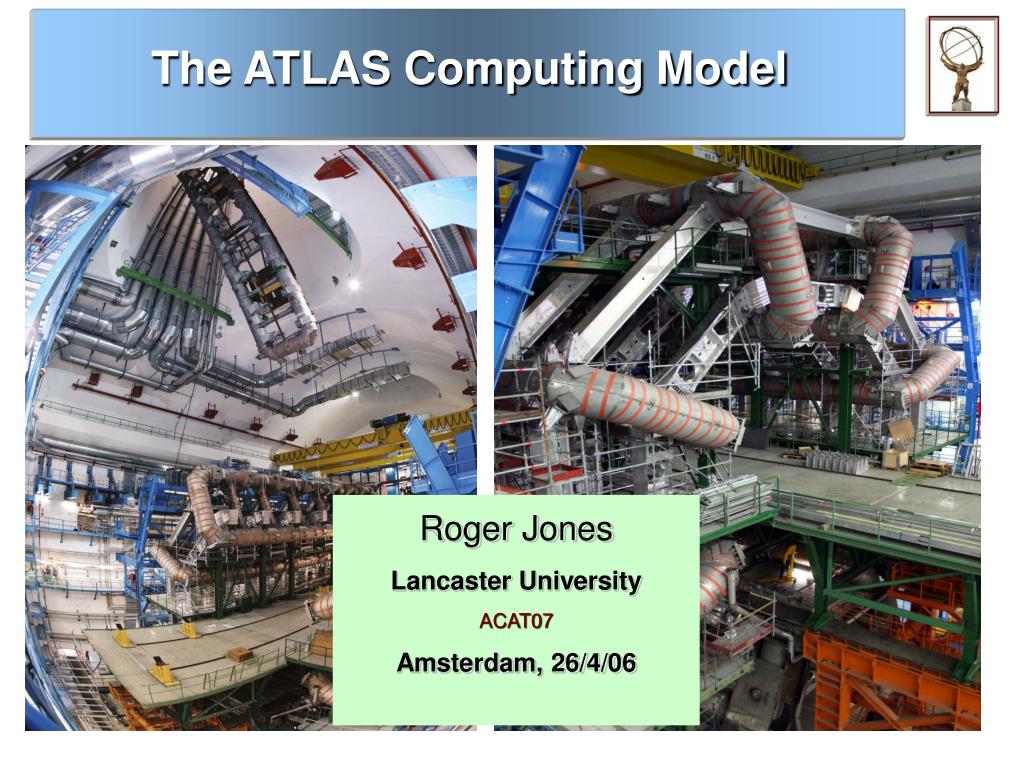

  1. The ATLAS Computing Model Roger Jones Lancaster University ACAT07 Amsterdam, 26/4/06

  2. LHC data LHC will produce 40 million collisions per second per experiment After filtering, ~100 collisions per second will be of interest A Megabyte of data digitised for each collision = recording rate of 0.1 Gigabytes/sec 1010 collisions recorded each year = 10 Petabytes/year of data RWL Jones 26 April 2007 ACAT07, Amsterdam

  3. Heavy Ions SUSY Top quark Exotics Higgs Standard Model Computing for ATLAS B Physics RWL Jones 26 April 2007 ACAT07, Amsterdam

  4. ATLAS Requirements start 2008, 2010 • Note the high ratio of disk to cpu in the Tier 2s • Not yet realised • May require adjustments RWL Jones 26 April 2007 ACAT07, Amsterdam

  5. Lab m Uni x USA Brookhaven Lancs UK Taipei ASCC Lab a France Tier 1 Physics Department Uni n CERN Tier2 ……… Italy Desktop Lab b Germany NL Lab c  Uni y Uni b  LondonGrid SouthGrid NorthGrid ScotGrid  The Grid Model with Tiers The LHC Computing Facility RWL Jones 26 April 2007 ACAT07, Amsterdam

  6. Roles at CERN • Tier-0: • Prompt first pass processing on express/calibration & physics streams with old calibrations - calibration, monitoring • Calibrations tasks on prompt data • 24-48 hours later, process full physics data streams with reasonable calibrations • Implies large data movement from T0 →T1s • CERN Analysis Facility • Access to ESD and RAW/calibration data on demand • Essential for early calibration • Detector optimisation/algorithmic development RWL Jones 26 April 2007 ACAT07, Amsterdam

  7. Roles Away from CERN • Tier-1: • Reprocess 1-2 months after arrival with better calibrations • Reprocess all resident RAW at year end with improved calibration and software • Implies large data movement from T1↔T1 and T1 → T2 • ~30 Tier 2 Centers distributed worldwide Monte Carlo Simulation, producing ESD, AOD, ESD, AOD  Tier 1 centers • On demand user physics analysis of shared datasets • Limited access to ESD and RAW data sets • Simulation (some at Tier 1s in early years) • Implies ESD, AOD, ESD, AOD  Tier 1 centers • Tier 3 Centers distributed worldwide • Physics analysis • Data private and local - summary datasets RWL Jones 26 April 2007 ACAT07, Amsterdam

  8. Evolution There is a growing Tier 2 capacity shortfall with time We need to be careful to avoid wasted event copies RWL Jones 26 April 2007 ACAT07, Amsterdam

  9. General Comments • The Tier 1s and Tier 2s are collective - if the data is on disk, you (@ a T2) or your group (@ a T1) can run on it • For any substantial data access, jobs go to the data • Users initially thought data goes to the job! Cannot be sustained • Better for network better for job efficiency • Data for Tier 3s should be pulled from Tier 2s using ATLAS tools • Tier 3s need to ensure adequate networking • We need to monitor (and potentially control) traffic RWL Jones 26 April 2007 ACAT07, Amsterdam

  10. Analysis computing model Analysis model broken into two components • @ Tier 1: Scheduled central production of augmented AOD, tuples & TAG collections from ESD • Derived files moved to other T1s and to T2s • @ Tier 2: On-demand user analysis of augmented AOD streams, tuples, new selections etc and individual user simulation and CPU-bound tasks matching the official MC production • Modest job traffic between T2s • Tier 2 files are not private, but may be for small sub-groups in physics/detector groups • Limited individual space, copy to Tier3s RWL Jones 26 April 2007 ACAT07, Amsterdam

  11. Group Analysis • Group analysis will produce • Deep copies of subsets • Dataset definitions • TAG selections • Characterised by access to full ESD and sometimes RAW • This is resource intensive • Must be a scheduled activity • Can back-navigate from AOD to ESD at same site • Can harvest small samples of ESD (and some RAW) to be sent to Tier 2s • Must be agreed by physics and detector groups • Big Trains etc • Efficiency and scheduling gains access. Some form of co-ordination is needed • If analyses are blocked into a ‘big train’; • Each wagon (group) has a wagon master )production manager • Must ensure will not derail the train • Train must run often enough (every ~2 weeks) • Trains can also harvest ESD and RAW samples for Tier 2s (but we should try to anticipate and place these subsets) RWL Jones 26 April 2007 ACAT07, Amsterdam

  12. Group Analysis @ Tier 1 • Profile of per user resource assumed for all working groups • 1000 passes through 1/10th of ESD sample (most will be on sub-streams) or 100 passes through the full ESD RWL Jones 26 April 2007 ACAT07, Amsterdam

  13. T1 Data • Tier 1 cloud (10 sites of very different size) contains: • 10% of RAW on disk, the rest on tape • 2 full copies of current ESD on disk an 1 copy of previous • A full AOD/TAG at each Tier 1 • A full set of group DPD • Access is scheduled, through groups RWL Jones 26 April 2007 ACAT07, Amsterdam

  14. On-demand Analysis • Restricted Tier 2s and CAF • Can specialise some Tier 2s for some groups • ALL Tier 2s are for ATLAS-wide usage • Most ATLAS Tier 2 data should be ‘placed’ with lifetime ~ months • Job must go to the data • Tier 2 bandwidth is vastly lower, job efficiency higher • Back navigation requires AOD/ESD to be co-located • Role and group based quotas are essential • Quotas to be determined per group not per user • User files can be garbage collected - effectively ~SCR$MONTH • Data Selection • Over small samples with Tier-2 file-based TAG and AMI dataset selector • TAG queries over larger samples by batch job to database TAG at Tier-0 and maybe others - see later • What data? • Group-derived formats • Subsets of ESD and RAW • Pre-selected or selected via a Big Train run by working group • No back-navigation between sites, formats should be co-located RWL Jones 26 April 2007 ACAT07, Amsterdam

  15. T2 Disk • Tier 2 cloud (~30 sites of very, very different size) contains: • There is some ESD and RAW • In 2007: 10% of RAW and 30% of ESD in Tier 2 cloud • In 2008: 30% of RAW and 150% of ESD in Tier 2 cloud • In 2009 and after: 10% of RAW and 30% of ESD in Tier 2 cloud • Additional access to ESD and RAW in CAF • 1/18 RAW and 10% ESD • 10 copies of full AOD on disk • A full set of official group DPD • Lots of small group DPD and user data • Access is ‘on demand’ RWL Jones 26 April 2007 ACAT07, Amsterdam

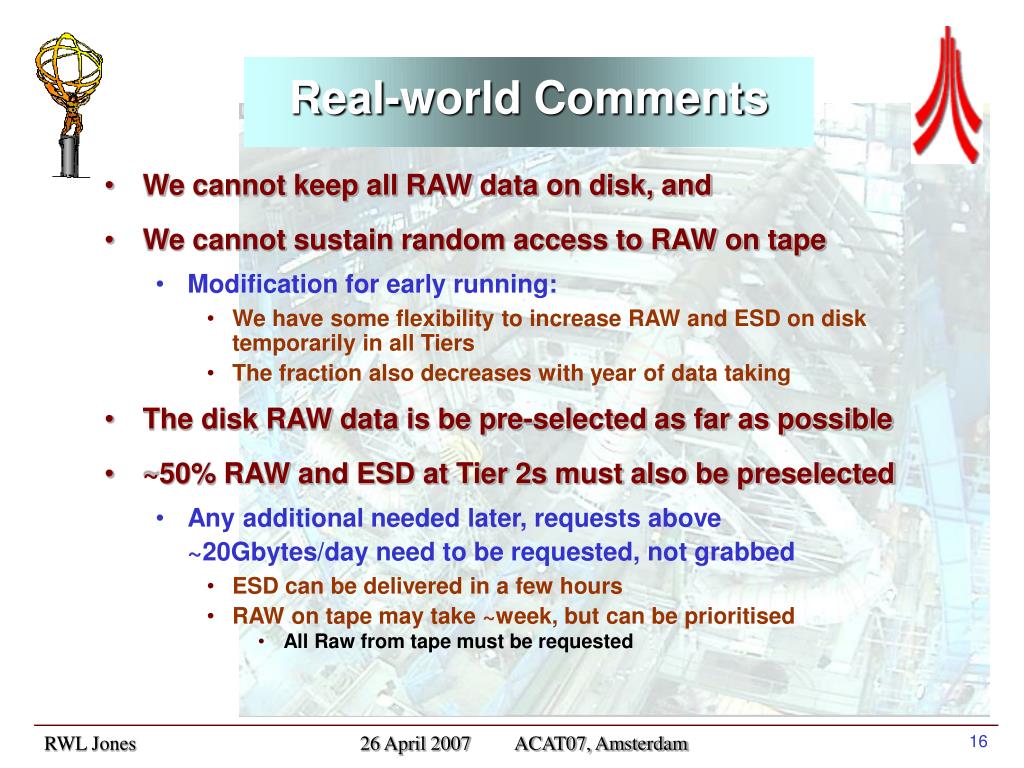

  16. Real-world Comments • We cannot keep all RAW data on disk, and • We cannot sustain random access to RAW on tape • Modification for early running: • We have some flexibility to increase RAW and ESD on disk temporarily in all Tiers • The fraction also decreases with year of data taking • The disk RAW data is be pre-selected as far as possible • ~50% RAW and ESD at Tier 2s must also be preselected • Any additional needed later, requests above ~20Gbytes/day need to be requested, not grabbed • ESD can be delivered in a few hours • RAW on tape may take ~week, but can be prioritised • All Raw from tape must be requested RWL Jones 26 April 2007 ACAT07, Amsterdam

  17. User Analysis @ Tier 2 • Profile of per user resource assumed with time for 700 active users • Assume in 2007/2008, much of work done through group (to get data in shape for other work) • 25 passes through user sample RWL Jones 26 April 2007 ACAT07, Amsterdam

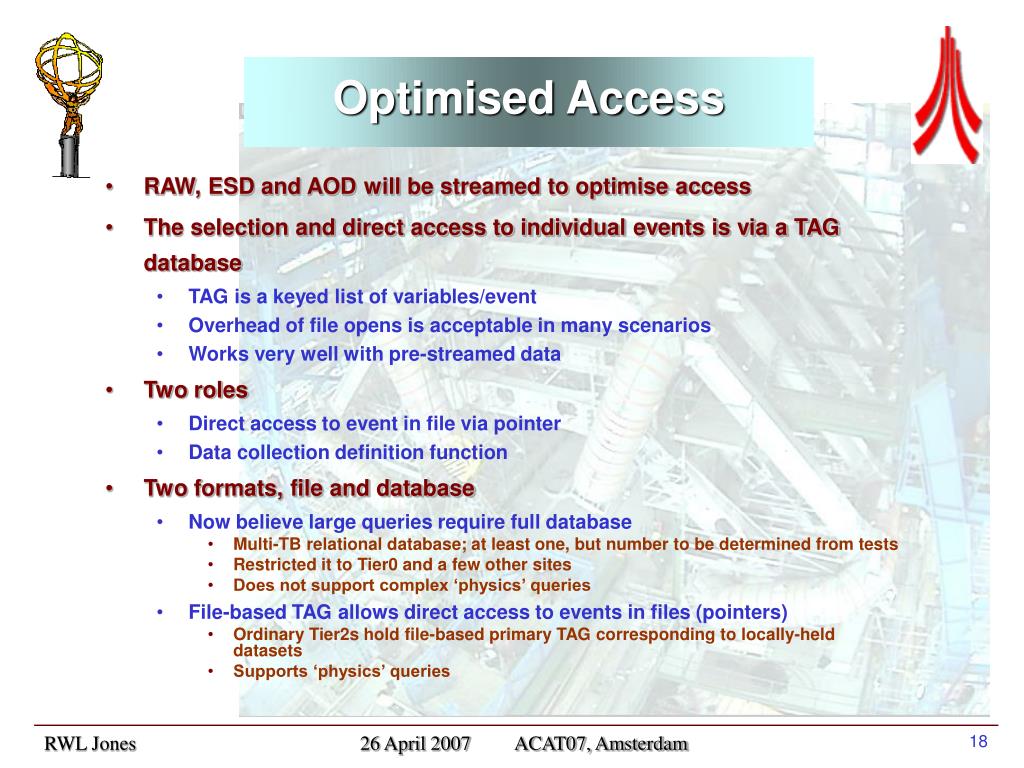

  18. Optimised Access • RAW, ESD and AOD will be streamed to optimise access • The selection and direct access to individual events is via a TAG database • TAG is a keyed list of variables/event • Overhead of file opens is acceptable in many scenarios • Works very well with pre-streamed data • Two roles • Direct access to event in file via pointer • Data collection definition function • Two formats, file and database • Now believe large queries require full database • Multi-TB relational database; at least one, but number to be determined from tests • Restricted it to Tier0 and a few other sites • Does not support complex ‘physics’ queries • File-based TAG allows direct access to events in files (pointers) • Ordinary Tier2s hold file-based primary TAG corresponding to locally-held datasets • Supports ‘physics’ queries RWL Jones 26 April 2007 ACAT07, Amsterdam

  19. Are You Local? • The Grid must avoid central points of congestion • Present coherent local interfaces, but reduce global state • This also applies to contacts with sites • ‘Users’ / ‘experiments’ must work with sites directly • This requires real effort from the local experiment group • We should do human communication with the fewest ‘hops’, not up and down a chain • NB: also applies to ‘strategic’ discussions and resource planning RWL Jones 26 April 2007 ACAT07, Amsterdam

  20. …Ask what you can do for the Grid! LHC computing is a team sport • But which one? • A horrendous cliché, but the key to our success! • We are all working towards the same goal… Thanks to Dave Newbold! RWL Jones 26 April 2007 ACAT07, Amsterdam

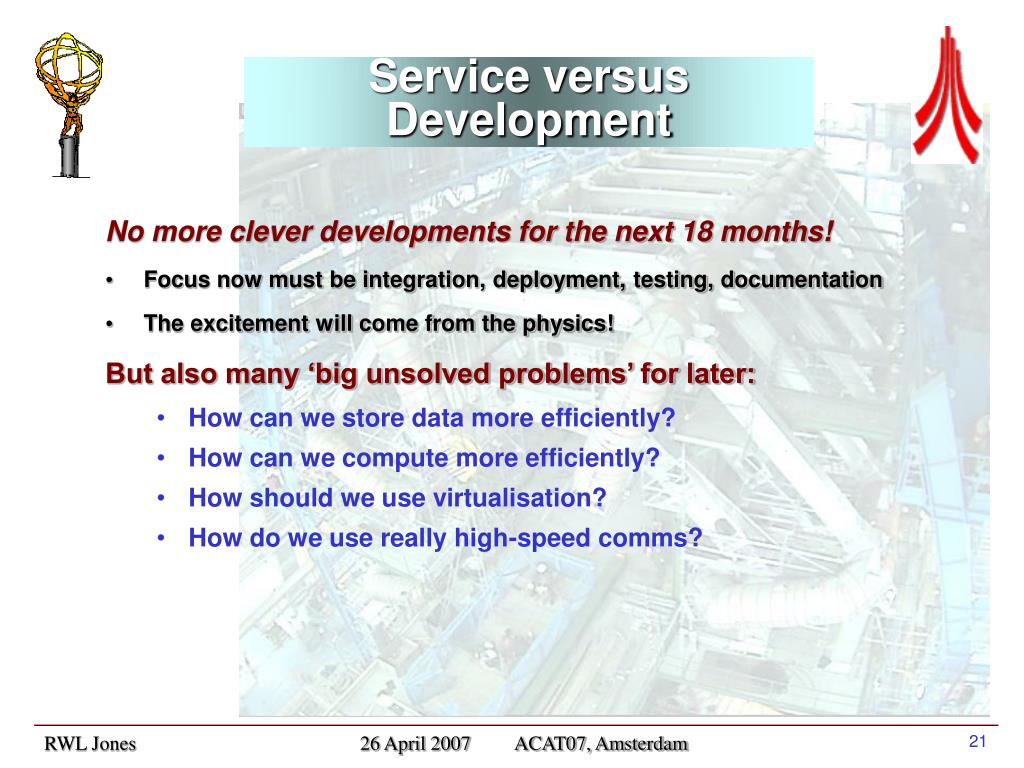

  21. Service versus Development No more clever developments for the next 18 months! • Focus now must be integration, deployment, testing, documentation • The excitement will come from the physics! But also many ‘big unsolved problems’ for later: • How can we store data more efficiently? • How can we compute more efficiently? • How should we use virtualisation? • How do we use really high-speed comms? RWL Jones 26 April 2007 ACAT07, Amsterdam

  22. Summary • We have come a long way • Grids are not an option, they are a necessity • Scheduled production is largely solved • Chaotic analysis, data management & serving many users are the mountains we are climbing now • Users are important to getting everything working • ‘No Pain, No Gain!’ RWL Jones 26 April 2007 ACAT07, Amsterdam

  23. GANGA – Single front-end, Multiple back-ends • Three Interfaces: • GUI, Python Command Line Interface (c.f. pAthena), Python scripts • GUI aids job preparation • Job splitting and merging works • Plug-ins allow definition of applications • E.G.: Athena and Gaudi, AthenaMC, generic executable, root • And back-ends • Currently: Fork, LSF, PBS, Condor, LCG/gLite, DIAL, DIRAC & PANDA AthenaMC RWL Jones 26 April 2007 ACAT07, Amsterdam

  24. Common Project: GANGA • GANGA User Interface to Grid for ATLAS and LHCb experiments • Configures and submits applications to the Grid. • Tailored for programmes in experiments Gaudi/Athena software framework but easily adapted for others (e.g. BaBar experiment) • Typical applications are private simulation and reconstruction jobs, analysis packages for event selection and physics analysis of distributed data RWL Jones 26 April 2007 ACAT07, Amsterdam
