Impulse, Momentum and Collisions

Impulse, Momentum and Collisions. AP Physics B. IMPULSE AND MOMENTUM The impulse F  t is a vector quantity equal in magnitude to the product of the force and the time interval in which it acts. Its direction is the same as that of the force. F  t Units: newton.second (N.s).

caesar-ashley
Télécharger la présentation

Impulse, Momentum and Collisions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Impulse, Momentum and Collisions AP Physics B

  2. IMPULSE AND MOMENTUM The impulse F t is a vector quantity equal in magnitude to the product of the force and the time interval in which it acts. Its direction is the same as that of the force. F tUnits: newton.second (N.s) The momentum p of a particle is a vector quantity equal in magnitude to the product of its mass m and its velocity v. p = m v Units: (kg.m/s)

  3. 7. A 3 N baseball moving toward the batter with a velocity of 15 m/s is struck with a bat which causes it to move in a reversed direction with a velocity of 30 m/s. Find the impulse and the average force exerted on the ball if the bat is in contact with the ball for 0.01 s. Fg = 3 N v0 = - 15 m/s vf = 30 m/s t = 0.01 s

  4. m = 0.31 kg v0 = - 15 m/s vf = 30 m/s t = 0.01 s FΔt = mΔv =m(vf - v0) =0.31(30-(-15)) = 13.95 Ns = 1395 N

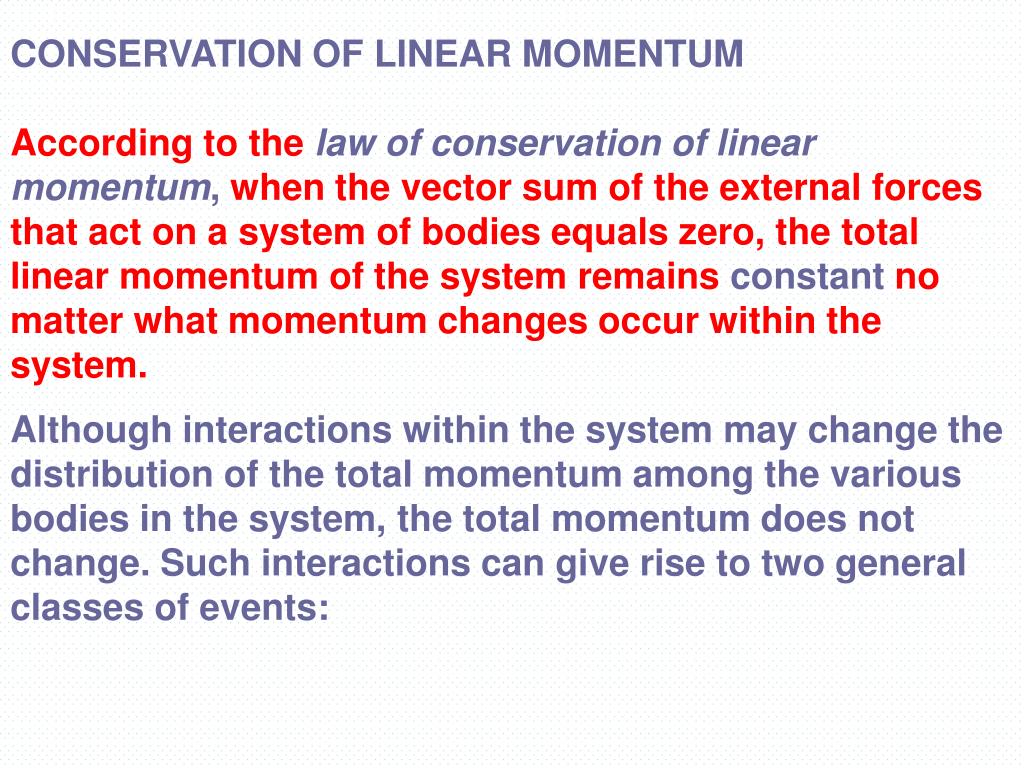

  5. CONSERVATION OF LINEAR MOMENTUM According to the law of conservation of linear momentum, when the vector sum of the external forces that act on a system of bodies equals zero, the total linear momentum of the system remains constant no matter what momentum changes occur within the system. Although interactions within the system may change the distribution of the total momentum among the various bodies in the system, the total momentum does not change. Such interactions can give rise to two general classes of events:

  6. a. explosions, in which an original single body flies apart into separate bodies

  7. b. collisions, in which two or more bodies collide and either stick together or moveapart, in each case with a redistribution of the original linear momentum.

  8. For two objects interacting with one another, the conservation of momentum can be expressed as: v1and v2are initial velocities, and are final velocities

  9. ELASTIC AND INELASTIC COLLISIONS If the Kinetic energyremains constant in a collision, the collision is said to be completely elastic. If the colliding bodies stick together and move off as a unit afterward, the collision is said to be completely inelastic.In inelastic collisions only the momentum is conserved.

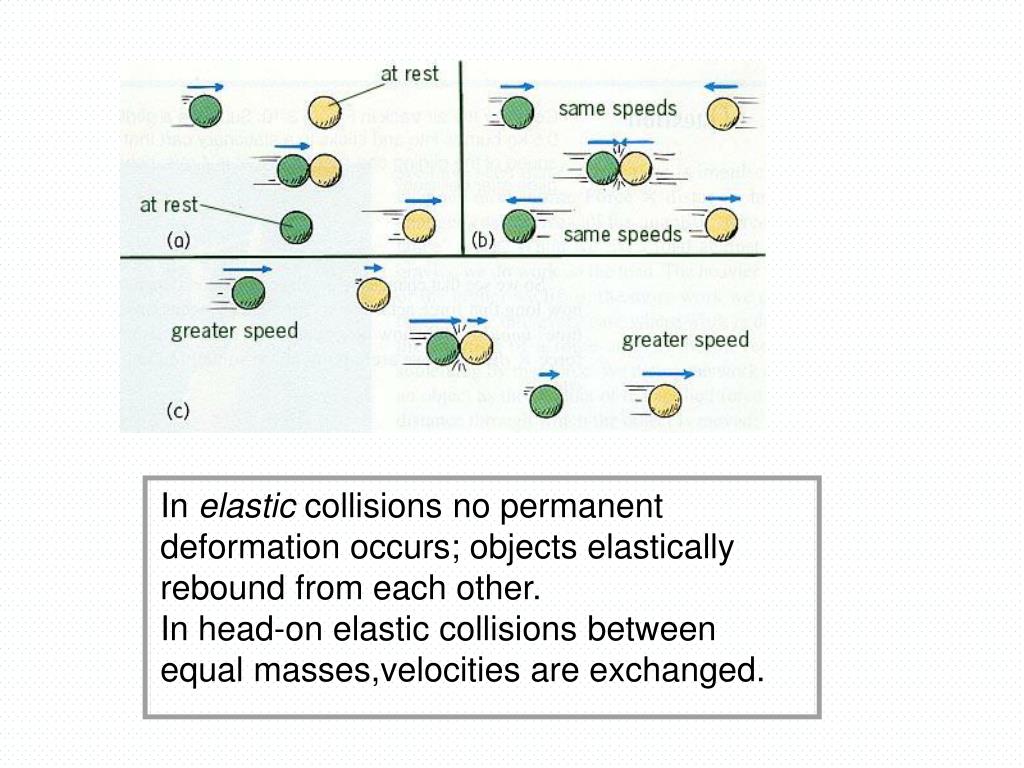

  10. In elastic collisions no permanentdeformation occurs; objects elasticallyrebound from each other.In head-on elastic collisions betweenequal masses,velocities are exchanged.

  11. Inelastic collisions are characterized by objects sticking together and permanent deformation.

  12. 8.A 12-g bullet is fired into a 2-kg block of wood suspended from a cord. The impact of the bullet causes the block to swing 10-cm above its original level. Find the velocity of the bullet as it strikes the block. m1 = 0.012 g m2= 2 kg h = 0.1 m KE0 = PEf m1v1= ( m1+m2 )v'

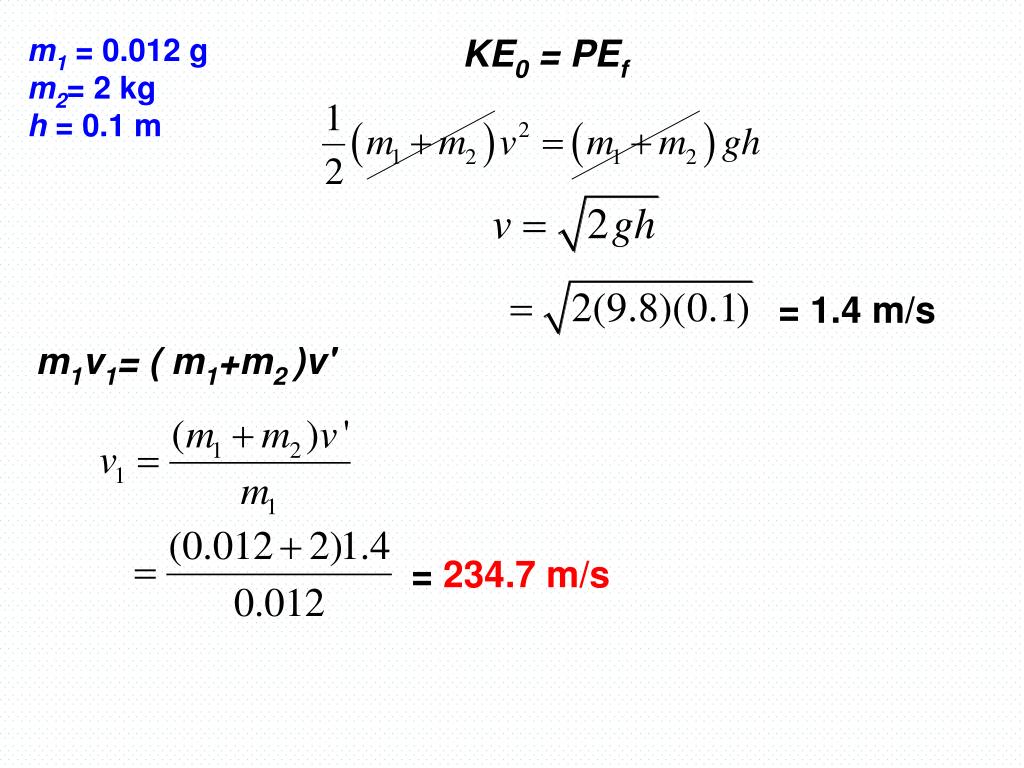

  13. m1 = 0.012 g m2= 2 kg h = 0.1 m KE0 = PEf = 1.4 m/s m1v1= ( m1+m2 )v' = 234.7 m/s
