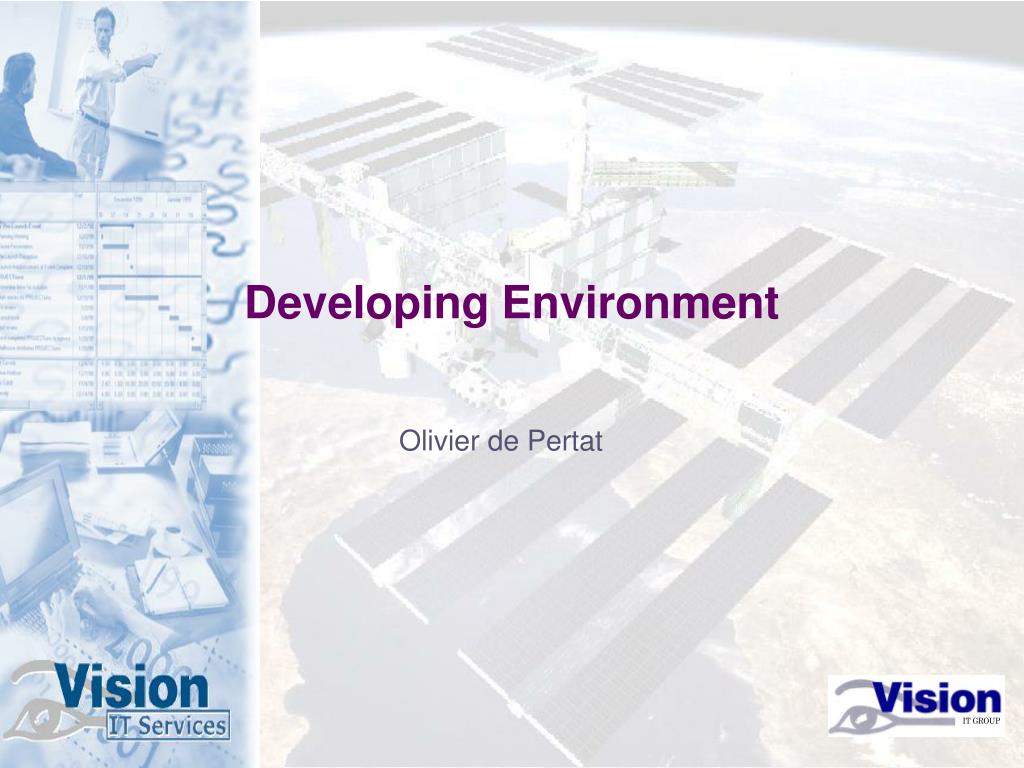

  1. Developing Environment Olivier de Pertat

  2. Developing In Java • Text Editors • Java Compilers • Building Tools • Setting Your Environment • Logging Capabilities • Unit Testing

  3. Java Compilers • Latest Java Version : 1.5 • Latest J2EE Version : 1.4 (1.5 is comming) • Many Providers : • SUN : Solaris, Win32, Linux x86 • IBM : AIX, Linux x86, Win32, Solaris, HP-UX, OS/390, z/Linux… • BEA : Linux iA64, Win32 • HP : HP-UX • Non Compliant JVM : • Microsoft J++ & Many old JVM • Warning : • For JAKARTA products on Linux Operating Systems it might be useful to use IBM JDK’s. • Old Microsoft JVM are not completely Java Compliant.

  4. Building Tool : ANT • Command Line not suited to projects. • ANT : • Managed by XML File (build.xml). • Tag based Architecture. • Fully written in Java. • Runs on every OS that supports Java. • Extensible Application by development. • Not limitations like : Makefile, nmake, jam… • Developed by Jakarta from Apache Group. • An Industry Standard : • Used in IDE for Java Compilation : JBuilder, Jext, Emacs, JDE, NetBeans, JEdit, Eclipse, Visual Age For Java, WSAD • AS : WebLogic (deployment handled by ANT)

  5. ANT (1) • Tag Structure : • Main tag : Project • One “project” tag by build file. • Specifies the default task to perform. • Specifies the working directory. • Default file : Build.xml <project name="j2ee-lesson" default="sys-about" basedir="."> <target name="sys-about"> <echo>Hello World ! </echo> </target> </project> • Command line : • ant <target>

  6. ANT (2) • Variable declaration : <project name="j2ee-lesson" default="sys-about" basedir="."> <!--System variables --> <propertyenvironment="myenv" /> <propertyname=" PATH“ value="${myenv.PATH}" /> <propertyname="SQL_FILE" value="test.tmp.sql" /> • Java Compilation : <target name="j2ee-mk-class" depends=""> <buildnumber/> <echo>Compiling Java Source</echo> <javacsrcdir="${src}" debug="yes“destdir="${build}“classpath="${PROJECT_CLASSPATH}"/> </target>

  7. ANT (3) • Java Execution : <target name="run-MyHello" depends="j2ee-mk-class"> <java classname="mytest.MyHello" fork="yes"> <jvmargvalue="${RUN_OPTION_1}" /> <classpath> <pathelementpath="${PROJECT_RUN_CLASSPATH}"/> </classpath> </java> </target> • File Manipulation : • Create Directory : <mkdirdir="${build}" /> • Delete files & directories : <deletedir="${build}" /> • Copy, Move files & directories • Compression : gzip, zip, jar, bzip2, tar • Security : chmod • Others : checksum, basename, concat, touch

  8. ANT (4) • System Tasks Execution : <exec executable="j2ee.bat"> <envkey="CLASSPATH" value="${J2EE_CLASSPATH}" /> <argline="-verbose" /> </exec> • Network Services : • Mailing : mail • FTP : File transfer • RCS & CVS Management : cvs…

  9. ANT (5) • SQL Commands (JDBC Way) : <target name="sys-OracleSQL" depends=""> <sqldriver="${ORACLE_DRIVER}" url="${ORACLE_URL}" userid="${ORACLE_USER}" password="${ORACLE_PASSWORD}" classpath="${ORACLE_CLASSPATH}" src="${SQL_SCRIPT}" print="true" /> </target> • SQL Commands (SQL*Plus Way) : <propertyname="DB_EXEC_ARGS" value="${ORACLE_USER}/${ORACLE_PASSWORD}@${ORACLE_NAME} @${SQL_SCRIPT}" /> <echo file="${SQL_SCRIPT}" append="true">exit;</echo> <echo>${DB_EXEC_ARGS}</echo> <exec dir="." executable="${ORACLE_SQLCMD}"> <argline="${DB_EXEC_ARGS}" /> </exec>

  10. Logging Capabilities • Traces are needed : • Development • Debugging • Production & problem tracking • System.out : is limited and not persistent (#define) • Logging APIs: • Jakarta’s Log4J: Production reference • Most used in projects • Powerful • JDK 1.4 logging APIs (JSR-47): • Standard Java API since 1.4 VMs • Sun’s reference • Jakarta Common Logging (JCL): • Wrapper API for : Log4J, JDK 1.4, Avalon LogKit, Pre 1.4 JDKs, • Common functionalities present but not specifics

  11. Log4J • LOG4J : • Developed JAKARTA (Apache Group) • Logging system dynamically & statically configurable • high-performance Java API • Defined levels : • FATAL : logger.fatal(“string”) • ERROR : logger.error(“string”) • WARNING : logger.warn(“string”) • INFO : logger.info(“string”); • DEBUG : logger.debug(“string”)

  12. LOG4J (2) • Import needed : org.apache.log4j.*; • Sample In Java : static Logger logger = Logger.getLogger(mytest.MyLoggedHello.class.getName()); public MyLoggedHello() { logger.fatal("FATAL : Constructor called !"); logger.error("ERROR : Constructor called !"); logger.warn( "WARN : Constructor called !"); logger.info( "INFO : Constructor called !"); logger.debug("DEBUG : Constructor called !"); }

  13. LOG4J (3) • File configuration : Log4J.properties (Console) log4j.rootCategory=DEBUG, A1 log4j.appender.A1=org.apache.log4j.ConsoleAppender log4j.appender.A1.layout=org.apache.log4j.PatternLayout • File configuration : Log4J.properties (File) log4j.rootCategory=INFO,R log4j.appender.R=org.apache.log4j.RollingFileAppender log4j.appender.R.File=wstools-debug.log log4j.appender.R.MaxFileSize=100KB log4j.appender.R.MaxBackupIndex=1 log4j.appender.R.layout=org.apache.log4j.PatternLayout log4j.appender.R.layout.ConversionPattern=%5p [%t] (%F:%L) - %m%n • JVM Arguments : java -Dlog4j.configuration=file:/Log4J.properties MyProgam

  14. JDK Logging • Sun’s Flogging Framework • Logger / LogManager Architecture • Package: java.util.logging. • Levels are: • Level.SEVERE • Level.WARNING • Level.INFO • Level.CONFIG • Level.FINE • Level.FINER • Level.FINEST

  15. JDK Logging (2) • Handlers: • StreamHandlers • Console Handlers • File Handler • SocketHandler • MemoryHandler • Formatters: • SimpleFormatter: simple chars output • XMLFormatter: XML File format output • JVM Parameter: • java -Djava.util.logging.config.file=monLogging.properties

  16. Unit Testing : JUnit • Unit Testing : • Non-regression tests • Improve quality • Speed-up code writing • JUnit : • Developed JAKARTA • Command-Line or Graphical. • Simple Java API. • Package : junit.framework

  17. JUnit (2) • JUnit Java Sample :

  18. JUnit (3) • Running JUnit (Command Line) : public static void main(String [] args) { junit.textui.TestRunner.run(suite()); } • Running JUnit (Graphical) : java junit.swingui.TestRunner mytest.CheckMyHello

  19. JUnit (4) • Using Standard Output : public void testItSays() { String lineSeparator = System.getProperty("line.separator"); ByteArrayOutputStream out4debug = new ByteArrayOutputStream(); PrintStream out_new = new PrintStream(out4debug); PrintStream out_bkp = System.out; MyHello objectTested = null; String outputExcepted = "Hello Object Built !" + lineSeparator; System.setOut(out_new); objectTested = new MyHello(); System.setOut(out_bkp); assertTrue((out4debug.toString()).equals(outputExcepted)); }

  20. ODP’s JavaBox (1) • Tool Box packaged for Java programming: Everything is included! Nothing more is needed. • Java Standard Edition 1.4.2 (J2SE) • Java Entreprise Edition 1.4: • SUN Application Server: • Tools, libs… • 2 Database Engine: • PointBase Server • HSQL DB • Java Text Editor: JExt (Color highlight) • ANT: asant • Some useful utilities: • Custom Windows Shell • UNIX Basic utilities: tail, zip, md5sum.. • Why? • Simple. • No complex to understand IDE to learn. • Easy to install at work, at home… No special authorizations are needed to install it. Even in a cyber coffee as a guest user it works! • Can be used for large projects.

  21. ODP’s JavaBox (2) • Installation: • Unzip the archive to anywhere you want. • Run the SHELL named “JavaShell.cmd”. It automatically detects whether or not installation has been processed. • Installation process is run once. • Installation is fast but can be slow down by Antivirus software

  22. ODP’s JavaBox (3) • A virtual J: drive is mapped to your installation Directory. • Every source file should be placed in J:\src • To write your first program you should: • Launch a JavaShell • Launch JExt (thro ugh the shortcut placed in J:\bin) • Write your program • Save it to J:\src directory • Compile it by typing in the JavaShell: • Run it by typing in the JavaShell • Enjoy! J:\>asant make J:\>java MyFirstProgram
