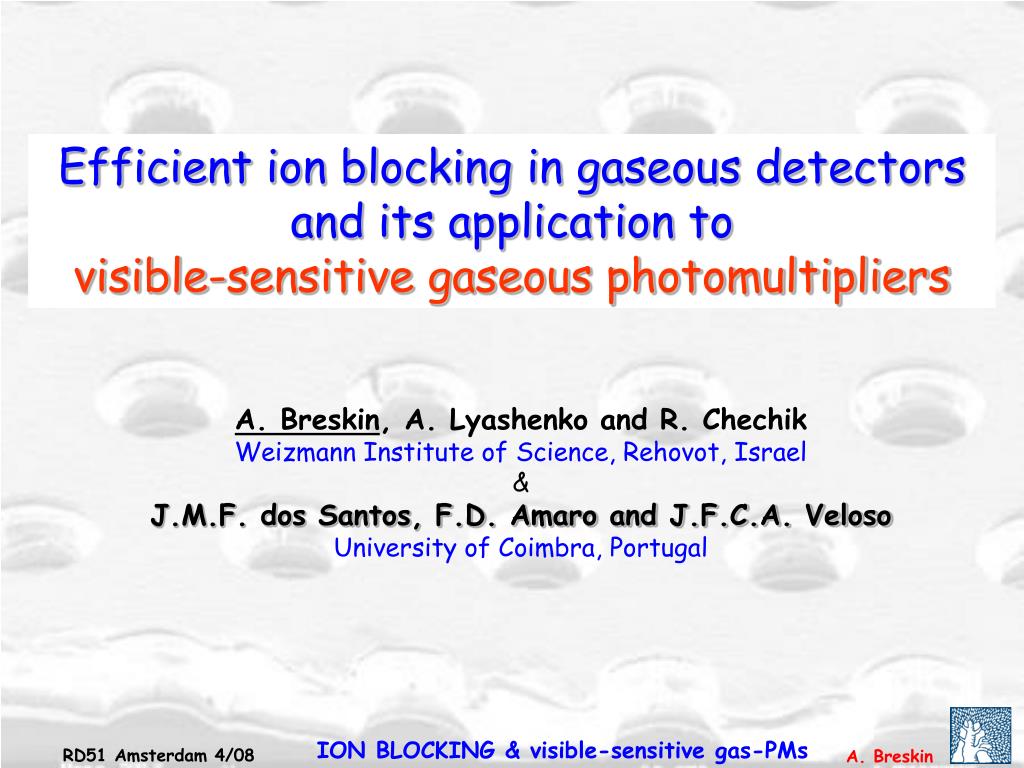

Efficient ion blocking in gaseous detectors and its application to visible-sensitive gaseous photomultipliers. A. Breskin , A. Lyashenko and R. Chechik Weizmann Institute of Science, Rehovot, Israel & J.M.F. dos Santos, F.D. Amaro and J.F.C.A. Veloso University of Coimbra, Portugal.

caia
Télécharger la présentation

Efficient ion blocking in gaseous detectors and its application to

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Efficient ion blocking in gaseous detectors and its application to visible-sensitive gaseous photomultipliers A. Breskin, A. Lyashenko and R. Chechik Weizmann Institute of Science, Rehovot, Israel & J.M.F. dos Santos, F.D. Amaro and J.F.C.A. Veloso University of Coimbra, Portugal

  2. Secondary effects in gaseous detectors Time Projection Chamber (TPC) Gaseous Photo-Multiplier (GPM) Ions   secondary e emission ion feedback pulses gain & performance limitations Ions  dynamic track distortions

  3. IBF: Ion Back-Flow Fraction IBF: The fraction of avalanche-generated ions back-flowing to the drift region or to the photocathode Major efforts to limit ion backflow 1. GATING operation in “gated-mode”  deadtime, trigger 2. NEW e- - MULTIPLIERS operation in DC mode (cascaded-GEM*, MICROMEGAS…&:OTHERS)  Challenge:BLOCK IONS WITHOUT AFFECTING ELECTRON COLLECTION *GEM: Gas Electron Multiplier - Sauli, NIM A 386, (1997) 531.

  4. Visible-sensitive gaseous photomultipliers: Ion-feedback development geff : ion feedback coeff. if - stable operation of visible sensitive GPM Ar/CH4 (95/5),γeff+~0.03, Gain ~ 105 => IBF < 3.3*10-4 Visibile-sensitive gas photomultiplier review: M. Balcerzyk et al., IEEE Trans. Nucl. Sci. Vol. 50 no. 4 (2003) 847

  5. IBF in cascaded GEM GPMs (high Edrift) High Edrift (>0.5 kV/cm)needed to efficiently extract photoelectrons Bachman et al. NIMA438(1999)376 5% @ 0.5kV/cm, Gain ~105 Breskin et al. NIM A478(2002)2252-5%@ 0.5kV/cm, Gain ~105 Bondar et al. NIM A496(2003)3253% @ 0.5kV/cm, Gain ~ 105 Need another factor of 100!!!

  6. The Microhole & Strip plate (MHSP) hv photocathode E drift VA-C VC-T A C E trans cathode mesh Two multiplication stages on a single, double-sided, foil R&D: Weizmann/Coimbra ~80% of avalanche ions are trapped by cathode strips and plane Veloso et al. Rev. Sci. Inst. A 71 (2000) 237.

  7. The benefit of MHSP in a cascade 3GEMs+MHSP 4GEMs IBF: 20% @ Gain > 105 IBF: 3% @ Gain > 105 7 times lower than with cascaded GEMs Maia et al. IEEE NS49 (2002) Maia et al. NIM A504(2003)364 Mörmann et al. NIM A516 (2004) 315

  8. Reverse-biased MHSP (R-MHSP) concept Ions are trapped by negatively biased cathode strips R-MHSP Flipped-R-MHSP Can trap only ions from successive stages Can trap its own ions Roth, NIM A535 (2004) 330 Breskin et al. NIM A553 (2005) 46 Veloso et al. NIM A548 (2005) 375 Lyashenko et al., JINST (2006) 1 P10004 Lyashenko et al., JINST (2007) 2 P08004

  9. BETTER ION BLOCKING: “COMPOSITE” CASCADED MULTIPLIERS: 1st R-MHSP or F-R-MHSP: ion defocusing (no gain!) Mid GEMs:gain Last MHSP: extra gain & ion blocking R-MHSP/GEM/MHSP F-R-MHSP/GEM/MHSP

  10. IBF in “composite” micro-hole multipliers IBF measured with 100% e-collection efficiency Gas PMT conditions (high drift field) TPC conditions (low drift field) IBF=1.5*10-4 @ Gain=104 IBF=3*10-4 @Gain=105 IBF is100 times lower than with 3GEMs Lyashenko et al., JINST (2007)2 P08004

  11. New ideas for ion blocking R&D in course @WEIZMANN/COIMBRA )  NEW!“COBRA”: GEM-LIKE PATTERNED ION-SUPPRESSING ELECTRODES (R. d’Oliveira, CERN)

  12. IBF suppression with “Cobra” IBF=2.7*10-5 Gain=104 IBF=3*10-6 Gain=105 IBF 1000 times lower than with GEMs, best results ever achieved Though, presently at the expense of electron collection (~20%)

  13. IBF reduction summary * Reflective PC **Gated mode

  14. Visible-sensitive GPM Test detector setup UHV compatible materials Sealed detector Bi-alkali PC Base plate made in Novosibirsk

  15. Gmeas G Visible-sensitive GPM: Gain Divergence K-Cs-Sb, Na-K-Sb, Cs-Sb : Current deviates from exponential Max Gain ~ few 100, IBF~10% D. Mörmann et al.,NIM A 504 (2003) 93

  16. Gated operation of visible-sensitive GPM Ion gating electrode Gain~106 GATED MULTI-GEM GAIN: ~100 in DC mode (ion feedback limit),IBF~10% ~106 in ion-gatingmode; IBF~10-4 A.Breskin et al. NIM A553 (2005) 46-52

  17. Flipped Cobra + 2GEMs K-Cs-Sb K-Cs-Sb Gain~105 CsI DC Gain limit~100 in cascaded GEMs DC operation of visible-sensitive GPM Gain >105 in DC mode  single photon sensitivity But: e- collection efficiency ~ 20%

  18. DC operation of F-R-MHSP/GEM/MHSP with K-Cs-Sb photocathode Gain ~105 at full photoelectron collection efficiency First evidence of DC high gain operation of visible-sensitive GPM

  19. Summary Cascaded Patterned Hole Multipliers (PHM)  significant improvement in ion blocking in gaseous detectors of importance in: Tracking detectors (TPC) & Gaseous Photomultipliers with MHSP/GEM-based CASCADED MULTIPLIERS • 100 times lower IBF than with cascaded GEMs with full efficiency for collecting primary electrons! • Gain >105 reached with visible-sensitive K-Cs-Sb PC with Cobra/GEM-based CASCADED MULTIPLIERS • 1000 times lower IBF than with cascaded GEMs • with so-far low e- collection efficiency • Gain >105 reached with visible-sensitive K-Cs-Sb PC First evidence of high-gain DC operation of visible-sensitive GPM Further work: • Optimization of COBRA • Double-sided patterned hole-multipliers

  20. K-Cs-Sb stability in gas
