Grasshopper Dissection

Grasshopper Dissection. Arthropods. Arthropods make up the largest phylum of animals in the animal kingdom. Arthropod means “jointed foot”. All arthropods have jointed appendages . Arthropods also have segmented bodies and an external covering called an exoskeleton . . Insects.

cain
Télécharger la présentation

Grasshopper Dissection

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Grasshopper Dissection

  2. Arthropods Arthropods make up the largest phylum of animals in the animal kingdom. Arthropod means “jointed foot”. All arthropods have jointedappendages. Arthropods also have segmentedbodies and an external covering called an exoskeleton.

  3. Insects Insects are one type of arthropod. Insects have three bodyregions: a head, a thorax, and an abdomen. Antennae Compound Eyes Six Legs All insects also have six legs, one or two pairs of wings, one pair of antennae, and a pair of compound eyes.

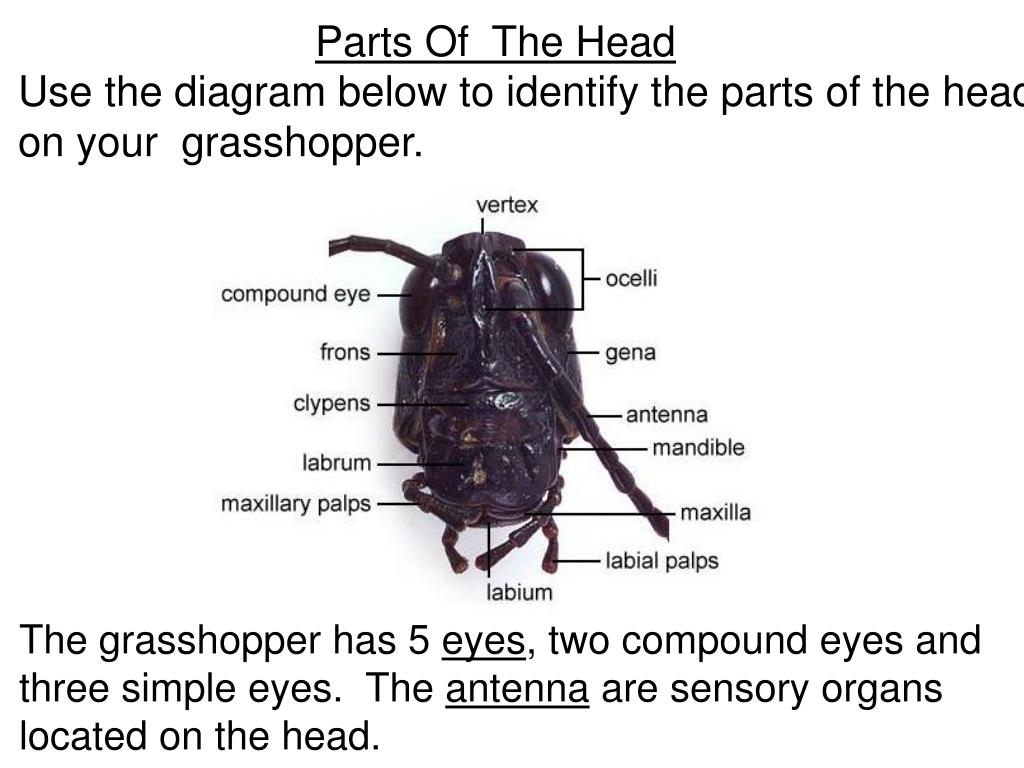

  4. Parts Of The Head Use the diagram below to identify the parts of the head on your grasshopper. The grasshopper has 5 eyes, two compound eyes and three simple eyes. The antenna are sensory organs located on the head.

  5. Mouth Parts Use the diagram below to identify the mouth parts on your grasshopper. As you identify each part, try and remove it with your tweezers.

  6. The labrum is used to hold food. The mandibles are Teeth used to chew food. The maxilla are used to chew and taste food. The labium is used to hold food while it isbeing chewed. Now use the diagram below to locate the externalstructures on your grasshopper.

  7. A grasshopper’s eardrum, or tympanum, is located below the second pair of wings on each side of the thorax. Locate the tympanum on your grasshopper using the picture below. The tympanum is used for hearing. tympanum Like all insects, grasshoppers have six legs. The front pair are used for walking, climbing, and holding food. The middle legs are also used for walking and climbing. The hind legs are used for jumping.

  8. Grasshoppers breath through tiny holes in their abdomen called spiracles. Try and find these tiny holes along each side of the abdomen. close up of one spiracle

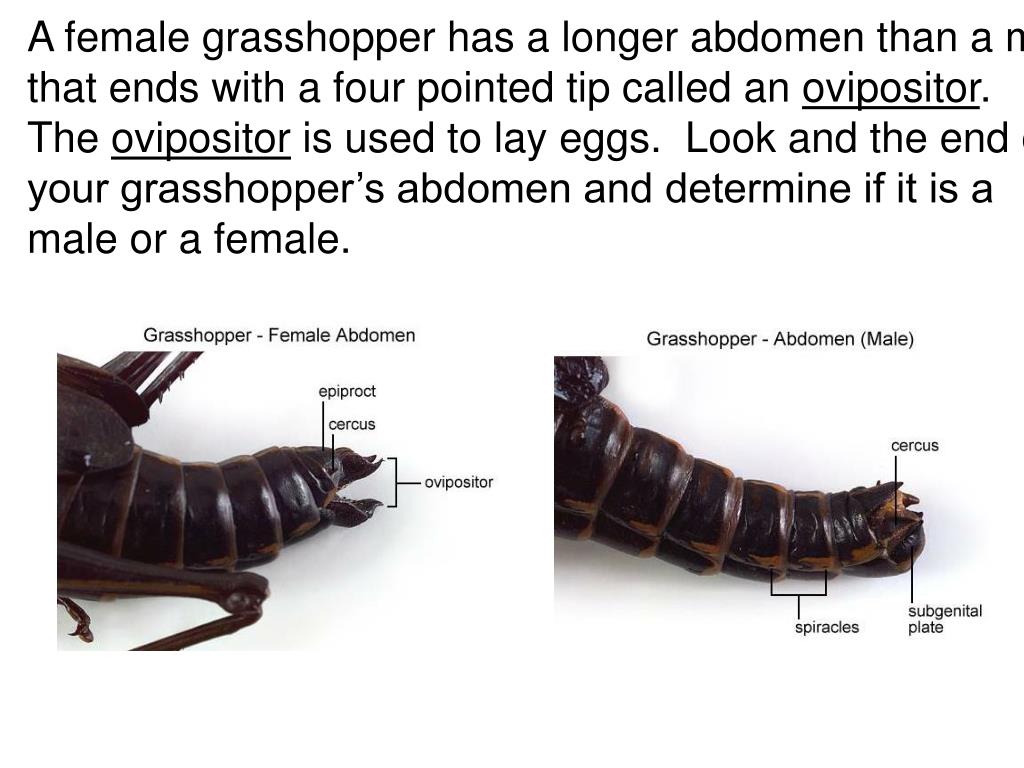

  9. A female grasshopper has a longer abdomen than a male that ends with a four pointed tip called an ovipositor. The ovipositor is used to lay eggs. Look and the end of your grasshopper’s abdomen and determine if it is a male or a female.

  10. Internal Structure Using your scissors, remove the three left legs. Next, snip the end off the abdomen and insert the tip of your scissors under the top surface of the abdomen. Cut straight up the middle of the abdomen all the way to the head. Only cut as deep as the exoskeleton or you will cut through the organs. Next, cut the same way up the bottom surface of the abdomen to the mouth. Remove half of the exoskeleton and pin it open as shown on the next slide. Locate all the organs shown on the next slide. start cutting here stop cutting here

  11. heart (ovary) brain anus esophagus rectum gizzard The esophagus is used to swallow food. The crop, gizzard, gastricceca, stomach, largeintestine, and smallintestine are digestive organs. The rectum stores waste and the anus removes wastes from the body. The malpighantub- ules collect waste from the blood. In the female grasshop-per the ovaries produce eggs. The testes produce sperm in the male grasshopper.

  12. Throw the grasshopper away, wipe your dissecting tools off, wipe your tray out, and wash your hands with soap and water. Answer the following questions on a sheet of paper. Questions & Conclusions 1. What is the largest phylum in the animal kingdom? 2. What does “arthropod” mean? 3. List three characteristics that all arthropods have. 4. What three body regions do all insects have? 5. Name four other characteristics that all insects have. 6. How may eyes does a grasshopper have? 7. What are the antenna used for? 8. How may different mouth parts does a grasshopper have? *more questions on next slide

  13. 9. Describe the function of the following mouth parts: a. labrum- b. mandibles- c. maxilla- d. labium- 10. What is the tympanum? 11. Where is it located? 12. How many legs does a grasshopper have? 13. Describe the function of the legs: a. front legs- b. middle legs- c. back legs- 14. What are the spiracles used for and where are they located? *more questions on next slide

  14. 15. What is the function on the ovipositor? 16. Was your grasshopper a male or a female? 17. Describe the function of the following organs: a. esophagus- b. rectum- c. anus- d. malpighan tubules- e. ovaries- f. testes- 18. Name the six digestive organs in a grasshopper: 19. Why is a grasshopper classified as an invertebrate? 20. How is a grasshopper’s skeleton different from yours? 21. List the animals we have dissected so far from least complex to most complex:
