體驗 “ Any time, Any place, on any device” 的知識經濟時代

1. 體驗 “Any time, Any place, on any device”的知識經濟時代 陳國豪 蔡有為 產品規劃經理 測試工程師 研究開發處 台灣微軟

2. We get to learn how the technology really works, not how it should work based on PowerPoint slides.

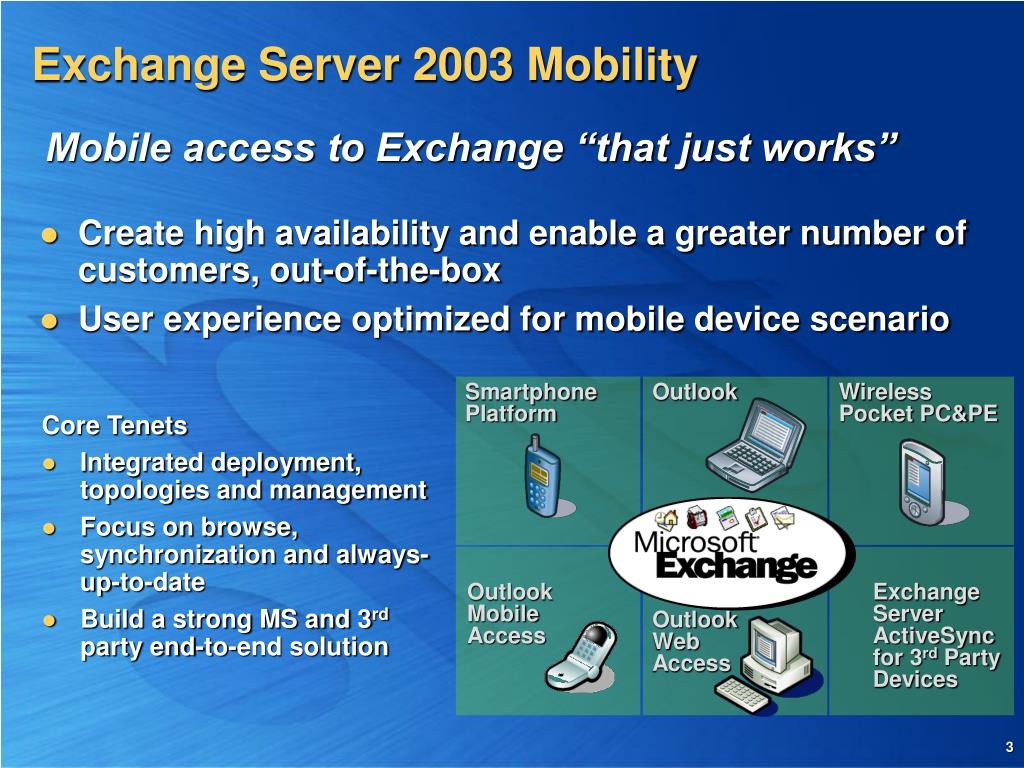

3. Exchange Server 2003 Mobility Mobile access to Exchange “that just works” • Create high availability and enable a greater number of customers, out-of-the-box • User experience optimized for mobile device scenario Smartphone Platform Outlook Wireless Pocket PC&PE Core Tenets • Integrated deployment, topologies and management • Focus on browse, synchronization and always-up-to-date • Build a strong MS and 3rd party end-to-end solution Outlook Mobile Access Exchange Server ActiveSync for 3rd Party Devices Outlook Web Access

4. Mobile Features in Exchange 2003 Communicate when and where you need it ….

5. Perimeter Network (DMZ) ISA Firewall Firewall Native Mobile Capabilities Outlook Clients(RPC/HTTP) Exchange Server Always-Up-To-Date ES03 Back-End Servers ES03 Front-End OWA Clients(HTTP / HTML) Wireless Network Pocket PC, PE, Smartphone, 3rd Party Sync (HTTP / HTML) Radius (IAS) Server Windows 2K or 2003 AD / GC Server Outlook Mobile Access WAP 2.0, iMode(xHTML, cHTML) • Invest in mobile device scenarios over wireless networks • Mobile Laptop Synchronization • Mobile Internet Browser (Standard and Micro browser) • Smart Device Synchronization (preferably always-up-to-date)

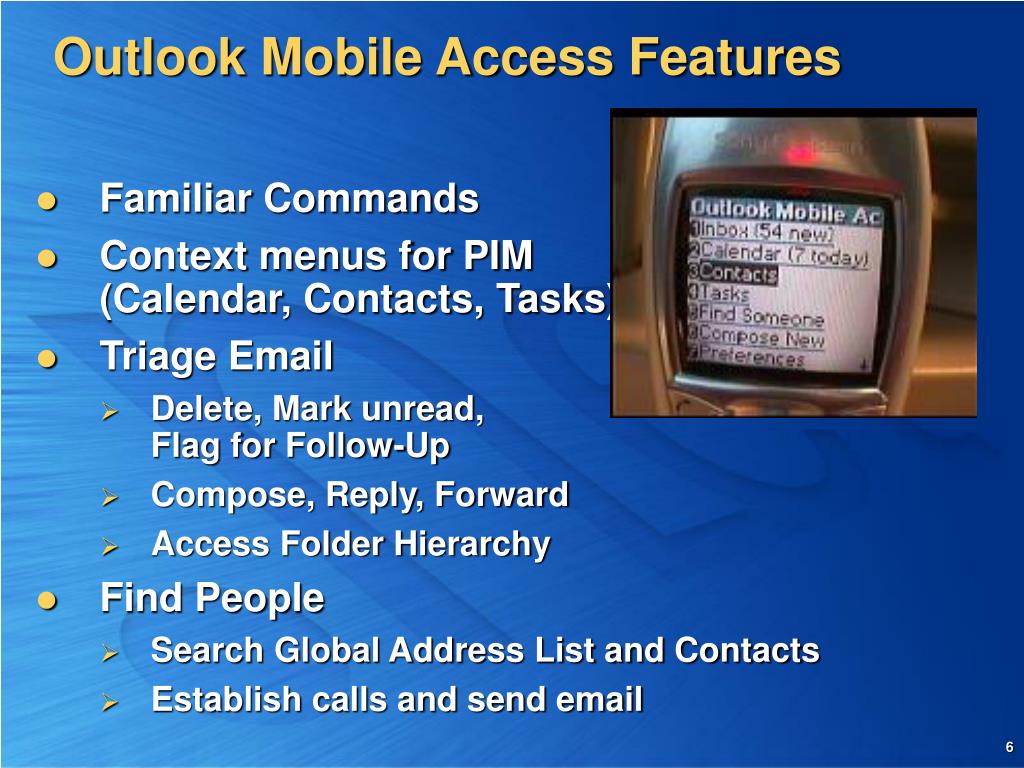

6. Outlook Mobile Access Features • Familiar Commands • Context menus for PIM (Calendar, Contacts, Tasks) • Triage Email • Delete, Mark unread, Flag for Follow-Up • Compose, Reply, Forward • Access Folder Hierarchy • Find People • Search Global Address List and Contacts • Establish calls and send email

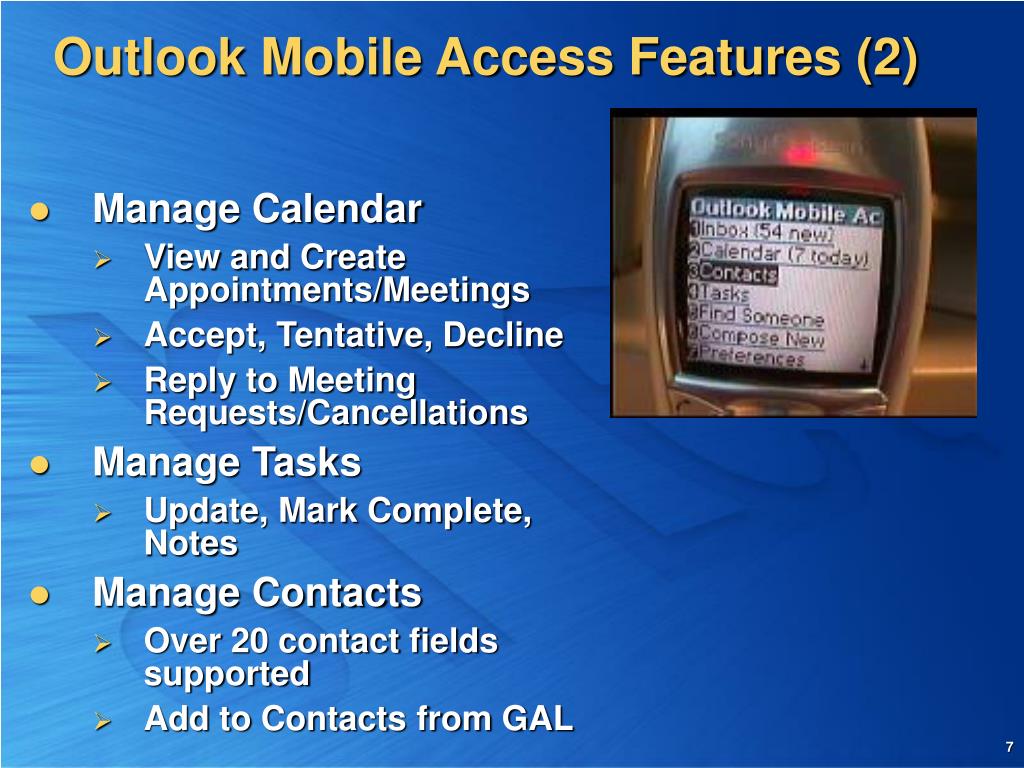

7. Outlook Mobile Access Features (2) • Manage Calendar • View and Create Appointments/Meetings • Accept, Tentative, Decline • Reply to Meeting Requests/Cancellations • Manage Tasks • Update, Mark Complete, Notes • Manage Contacts • Over 20 contact fields supported • Add to Contacts from GAL

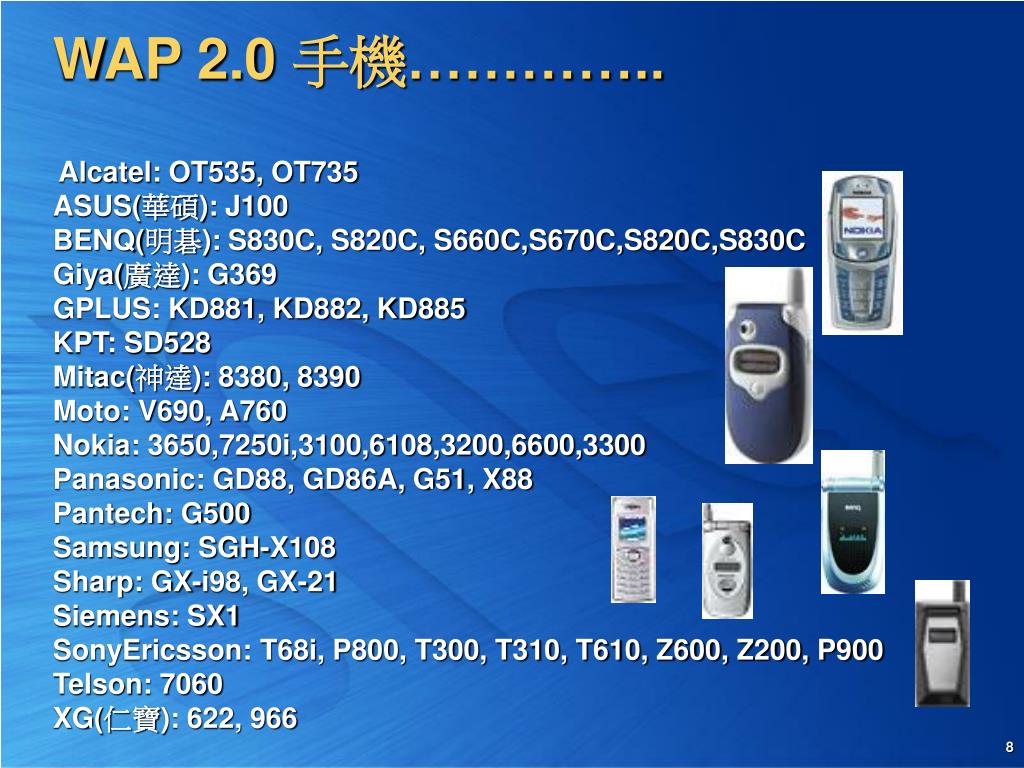

8. WAP 2.0 手機………….. Alcatel: OT535, OT735 ASUS(華碩): J100 BENQ(明碁): S830C, S820C, S660C,S670C,S820C,S830C Giya(廣達): G369 GPLUS: KD881, KD882, KD885 KPT: SD528 Mitac(神達): 8380, 8390 Moto: V690, A760 Nokia: 3650,7250i,3100,6108,3200,6600,3300 Panasonic: GD88, GD86A, G51, X88 Pantech: G500 Samsung: SGH-X108 Sharp: GX-i98, GX-21 Siemens: SX1 SonyEricsson: T68i, P800, T300, T310, T610, Z600, Z200, P900 Telson: 7060 XG(仁寶): 622, 966

9. Wireless Network Microsoft Smart Devices • Pocket PC - Using a network device (wired or wireless) • Sync: Exchange ActiveSync (using Pocket PC 2002) • Browse: Outlook Mobile Access (HTML/HTTP over SSL) • Pocket PC Phone Edition and Smartphone - Using built in radio • Optimized schedule sync for peak and off peak times • Always-Up-To-Date Sync (AUTD) • Browse: Outlook Mobile Access (HTML/HTTP over SSL)

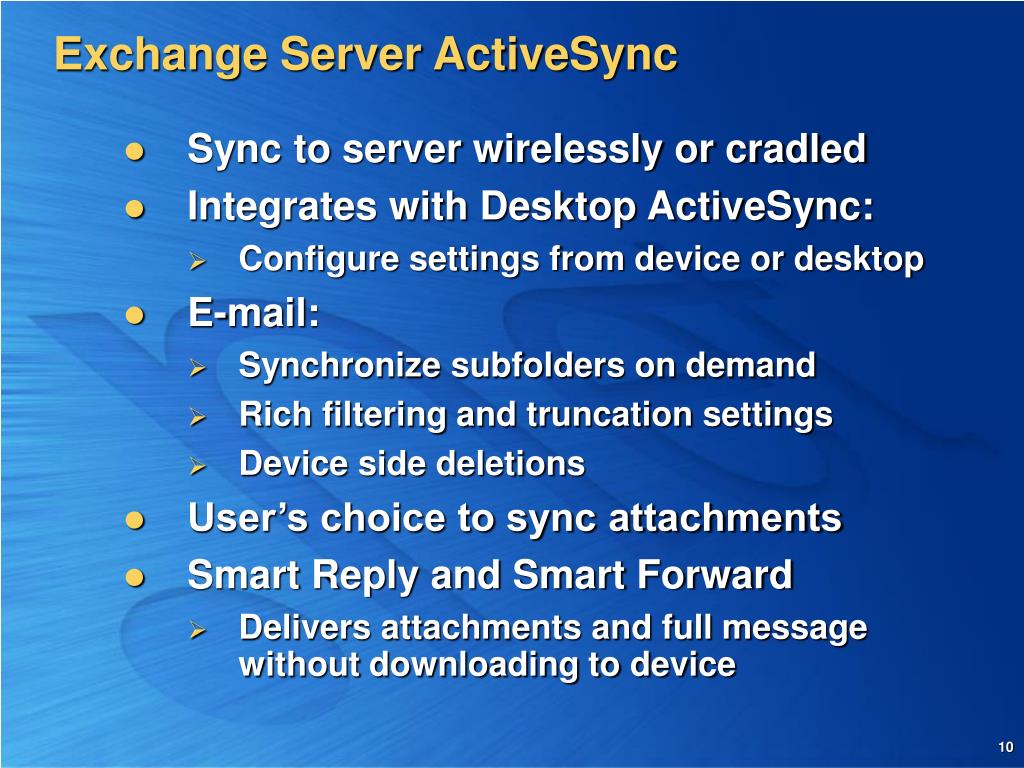

10. Exchange Server ActiveSync • Sync to server wirelessly or cradled • Integrates with Desktop ActiveSync: • Configure settings from device or desktop • E-mail: • Synchronize subfolders on demand • Rich filtering and truncation settings • Device side deletions • User’s choice to sync attachments • Smart Reply and Smart Forward • Delivers attachments and full message without downloading to device

11. GPRS fees example • 1 message 20K=about 10000 words • 1 Month = 400 messages = 8M • Plan C • 600 +25 * 8 = 800 • NTD$800 >>>> 8Mbytes >>> 400 messages

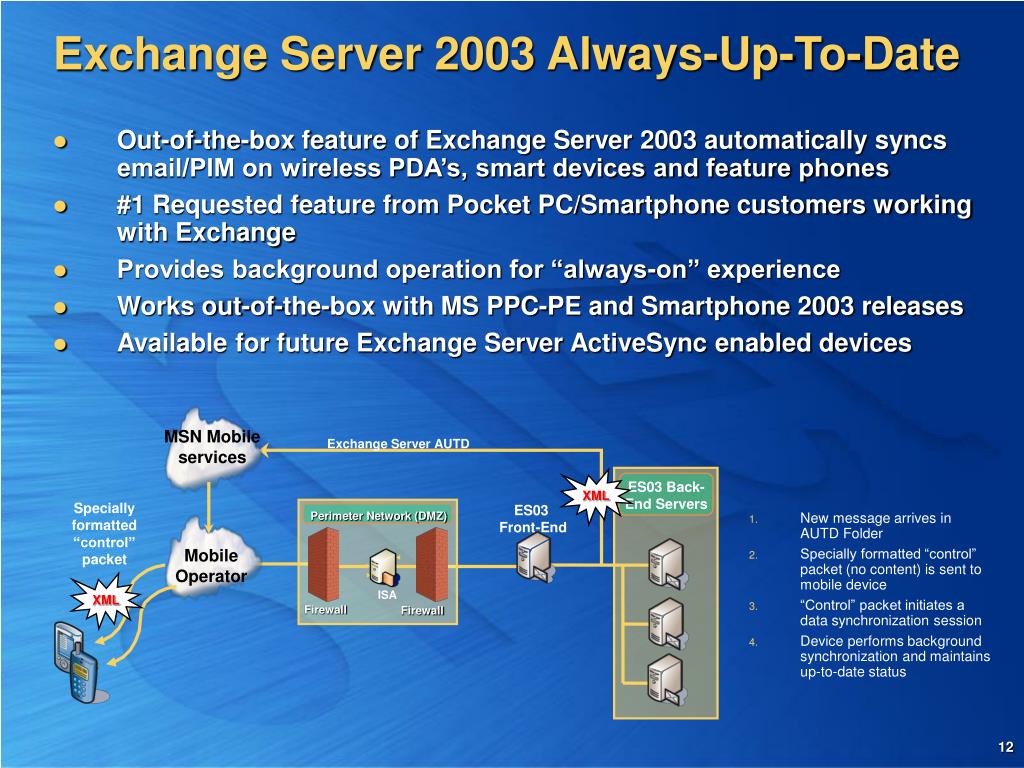

12. MSN Mobile services Exchange Server 2003 Always-Up-To-Date • Out-of-the-box feature of Exchange Server 2003 automatically syncs email/PIM on wireless PDA’s, smart devices and feature phones • #1 Requested feature from Pocket PC/Smartphone customers working with Exchange • Provides background operation for “always-on” experience • Works out-of-the-box with MS PPC-PE and Smartphone 2003 releases • Available for future Exchange Server ActiveSync enabled devices Exchange Server AUTD XML ES03 Back-End Servers Specially formatted “control” packet ES03 Front-End Perimeter Network (DMZ) New message arrives in AUTD Folder Specially formatted “control” packet (no content) is sent to mobile device “Control” packet initiates a data synchronization session Device performs background synchronization and maintains up-to-date status Mobile Operator XML ISA Firewall Firewall

13. Outlook Web Access Efficient access to personal business information……

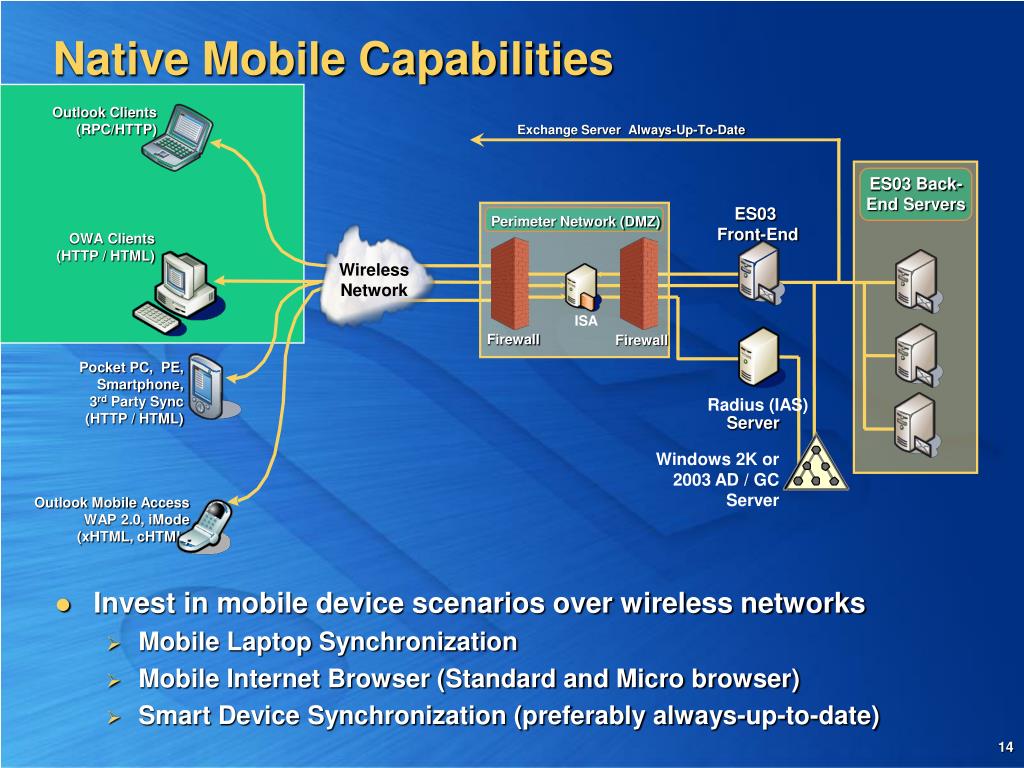

14. Perimeter Network (DMZ) ISA Firewall Firewall Native Mobile Capabilities Outlook Clients(RPC/HTTP) Exchange Server Always-Up-To-Date ES03 Back-End Servers ES03 Front-End OWA Clients(HTTP / HTML) Wireless Network Pocket PC, PE, Smartphone, 3rd Party Sync (HTTP / HTML) Radius (IAS) Server Windows 2K or 2003 AD / GC Server Outlook Mobile Access WAP 2.0, iMode(xHTML, cHTML) • Invest in mobile device scenarios over wireless networks • Mobile Laptop Synchronization • Mobile Internet Browser (Standard and Micro browser) • Smart Device Synchronization (preferably always-up-to-date)

15. Outlook Web Access 2003 • Premium and Basic Client Choice • Color Coded Quick flag support • Viewing the Outlook search folders • Preview pane on right side and two line view • Spellcheck (6 languages for RTM - Eng, Fre, Span, Germ, Ital, Kor) • Task support (all features except delegation) • Manage and create server side rules • Sort and type-down • Up to 100 messages/page in message list

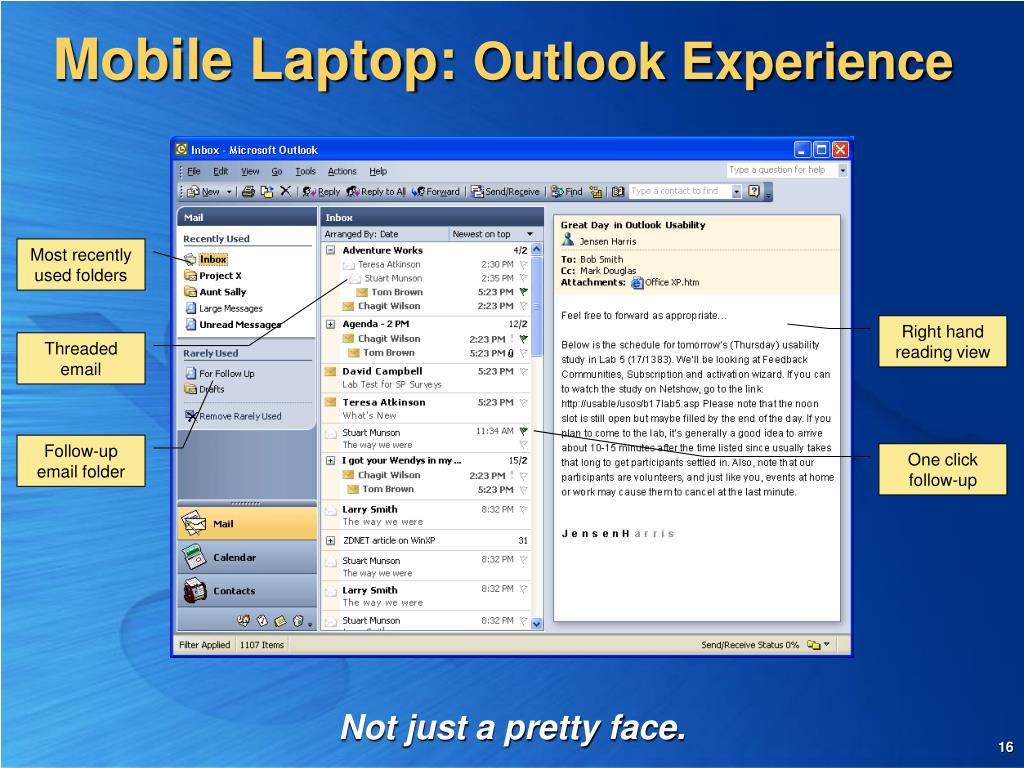

16. Mobile Laptop: Outlook Experience Most recently used folders Right hand reading view Threaded email Follow-up email folder One click follow-up Not just a pretty face.

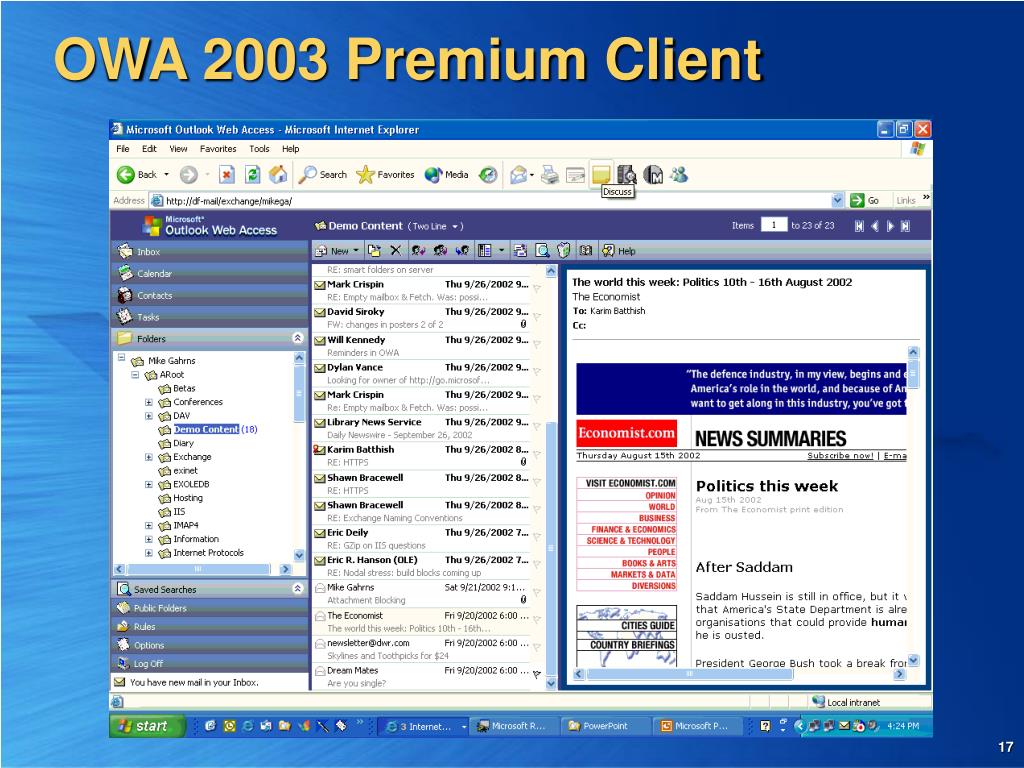

17. OWA 2003 Premium Client

19. OWA Bandwidth Reduction

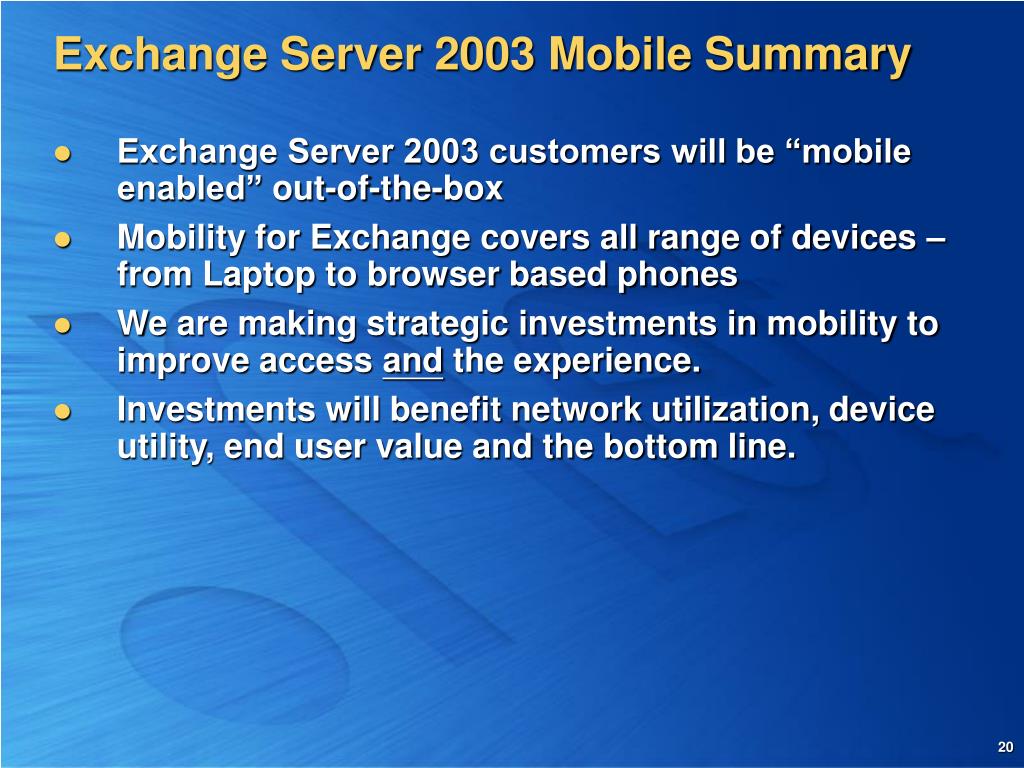

20. Exchange Server 2003 Mobile Summary • Exchange Server 2003 customers will be “mobile enabled” out-of-the-box • Mobility for Exchange covers all range of devices – from Laptop to browser based phones • We are making strategic investments in mobility to improve access and the experience. • Investments will benefit network utilization, device utility, end user value and the bottom line.
