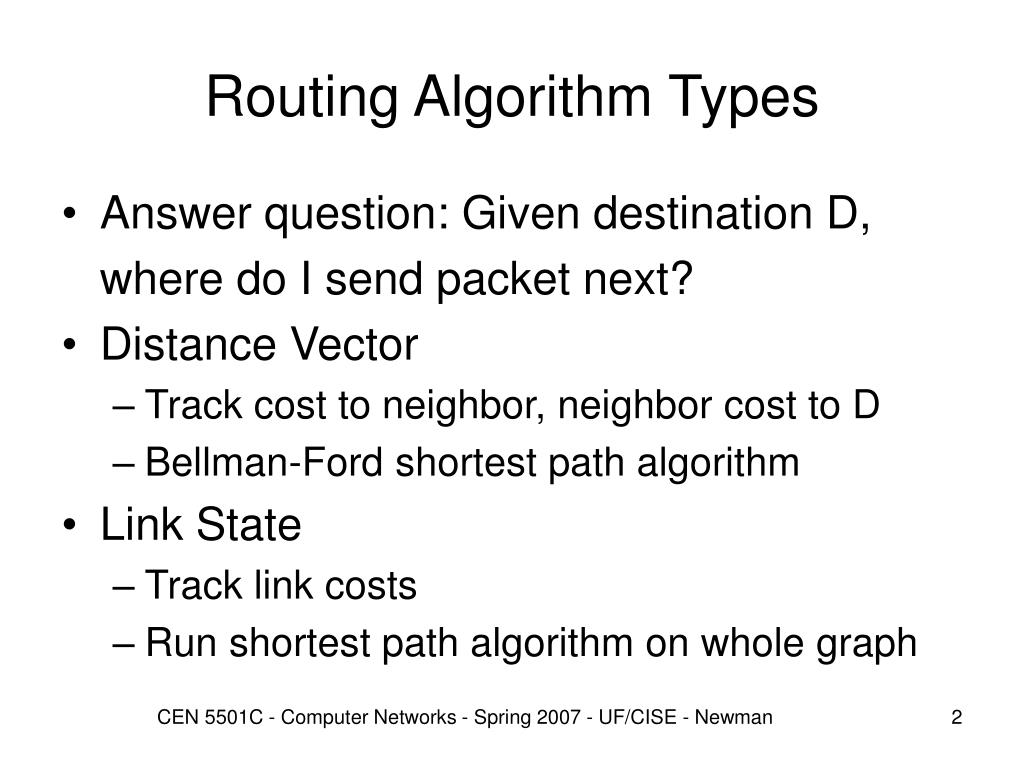

Computer Networks. Chapter 12 – Routing Algorithm Concepts. Routing Algorithm Types. Answer question: Given destination D, where do I send packet next? Distance Vector Track cost to neighbor, neighbor cost to D Bellman-Ford shortest path algorithm Link State Track link costs

Télécharger la présentation

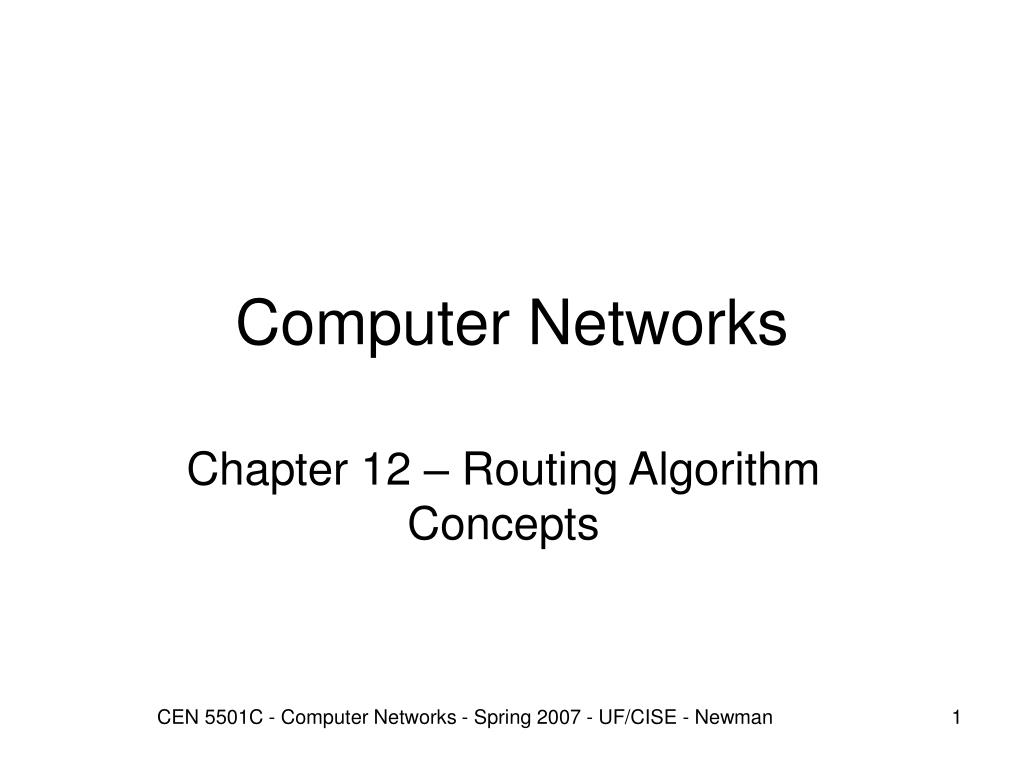

## Computer Networks

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

**Computer Networks**Chapter 12 – Routing Algorithm Concepts CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**Routing Algorithm Types**• Answer question: Given destination D, where do I send packet next? • Distance Vector • Track cost to neighbor, neighbor cost to D • Bellman-Ford shortest path algorithm • Link State • Track link costs • Run shortest path algorithm on whole graph CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**Distance Vector**• Each router has its own ID and link costs • Initial DV: dist(self)=0, dist(other)=inf • Tx DV to all neighbors, get neighbor DVs • Compute new DV based on • dist(x)=min{DV[y,x], cost[y]} • Tx new DV periodically and on changes • “triggered updates” • Recompute when detect changes • (link down, different DV from y) CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**Count to Infinity**• Link dies, neighbors believe stale news A B C A B C B:1,B C:2,B A:1,A C:1,C B:1,B C:2,B A:1,A C:1,C A:2,B B:1,B A:2,B B:1,B B:1,B C:2,B A:1,A C:3,A B:1,B C:4,B A:1,A C:3,A • Make infinity small B:1,B C:4,B A:1,A C:5,A CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**Count to Infinity Solutions**• Hold Down • If path to D goes down, don’t update for T s. • Advertise distance to D as infinity until T • Report whole path • No loops, but $$$ • Split Horizon (poison reverse) • If A uses B to get to D, tell B that DV[A,D]=inf • Two metrics • Use both hops and other cost function CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**Split Horizon Problem**C C A B D A B D B:1,B C:1,C D:2,B A:1,A B:1,B D:2,B A:1,A C:1,C D:inf B:1,B C:1,C D:2,B A:1,A B:1,B D:2,B A:1,A C:1,C D:1,D B:1,B C:1,C D:3,C A:1,A B:1,B D:3,A A:1,A C:3,A D:inf B:1,B C:1,C D:inf A:1,A B:1,B D:inf A:1,A C:1,C D:4,A • Count to infinity slower…. B:1,B C:1,C D:5,B A:1,A B:1,B D:5,B A:1,A C:1,C D:4,A CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**Link State Protocol**• Each router has its own ID and link costs • R meets neighbors, gets their names • Tx special “Hello” packet • Tx Link State Packet (LSP) to all routers • Compute least cost paths based on most recent LSPs from all other routers • Tx new LSP when • New neighbor • Link cost changes • Link fails CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**Link State Protocol**• Broadcasting LSPs critical • Routers must have consistent graph info • Must avoid LSP storms • How to route LSPs? • Chicken and egg (a.k.a. recursion) • Flooding with hop count or path • Constrained flooding (kill duplicate LSPs) • Timestamps • Needed to determine most recent, duplicates • Sequence number/age schemes CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**Timestamps**• Knowing most recent LSP critical • Accidental use of large timestamp/seq # • Merging partitioned networks • Timestamps • Sanity checks not possible without global time • Sequence # + Aging • Sequence numbers wrap around – funny < • Age added to LSP, decrement while stored, discard when age reaches zero CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**ARPANET LSP Incident**• Source, seq#, age, neighbor list • Age was 3 bits, increments of 8 seconds • Routers required to send LSP every 60 sec • New router listens 90 seconds • One bad router can spoil the whole bunch • Issued LSPs with sequence #s a, b, and c • But a<b<c<a in circular order! • Routers flooded with a, then b, then c, then a… • Had to patch out bad source! CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**New LSP Distribution**• Source, seq#, age, neighbor list • Seq# is large (e.g., 32 bits) • No LSP accepted once seq# wraps until TRO • Age field-- in storage & on forwarding • Only store and flag to forward LSPs • Send flag and ACK flag per link per LSP • Check flags round robin • Only one LSP per source per link queue • Newer LSP overwrites LSP before sending • Send when bandwidth available on link CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**LSP with Age=0**• Router deletes LSP data when age=0 • It has expired • Router keeps LSP header to send to nbors • Router deletes LSP when all nbors have ACKed the age=0 LSP • Router must not accept LSP with age=0 unless it already has an LSP for that source • Indefinitely wandering age 0 LSPs… CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**New LSP Distribution**• Self-stabilizing • No matter how bad a state is reached, if defective/malicious nodes are disconnected, the network returns to normal “quickly” • Efficient • Low frequency periodic LSP regeneration • Responsive • Don’t have to wait to participate, except when sequence number wraps around (very rare!) CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**DV vs. LS Comparisons**• Assume n nodes, k n’bors each • Memory • DV: DVs are O(n), memory is O(nk)*** • LS: LSPs are O(k), memory is O(kn) • Bandwidth consumed • Mixed bag • DV: only propagate as far as effect change; only send to neighbors; DV size depends on n • LS: only router with changed link sends LSPs; LSP size depends only on k, not n; does not have CTI problem CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**DV vs. LS Comparisons**• Computation • Dijkstra: O(nk log n); single link change may cause many routing changes; incremental update may be possible…; hash-based sorting can reduce to O(nk) • Bellman-Ford: O(nk) per pass, but many passes; DV change to D only affects cost to D • Functionality • LS gives topology, allows troubleshooting, gives support to source routing, more info overall CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**DV vs. LS Robustness**• Both can be killed by single bad router • Misbehaving LS router might: • Claim to have a non-existent link • Claim not to have an existent link • Use strange LSP seq# progression • Fail to forward datagrams correctly • Fail to forward or to ACK LSPs • Corrupt data, seq#s in others’ LSPs • Black Hole DV Router • DV is all 0’s CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**DV vs. LS Convergence Speed**• Convergence critical to minimize transients • Critical point of comparison • DV: • Looping problem • Can’t propagate new DV until it is computed • Slower • LS: • New LSP recognized and forwarded quickly • Converges faster CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman**Other Issues**• Load splitting – multipath routing • Dynamic link costs • Routing algorithm migration • Run both • Manual • Translation • LAN links • TOS • Directives • Policy Routing • Filters • Partition Repair • Virtual links and tunneling CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman
