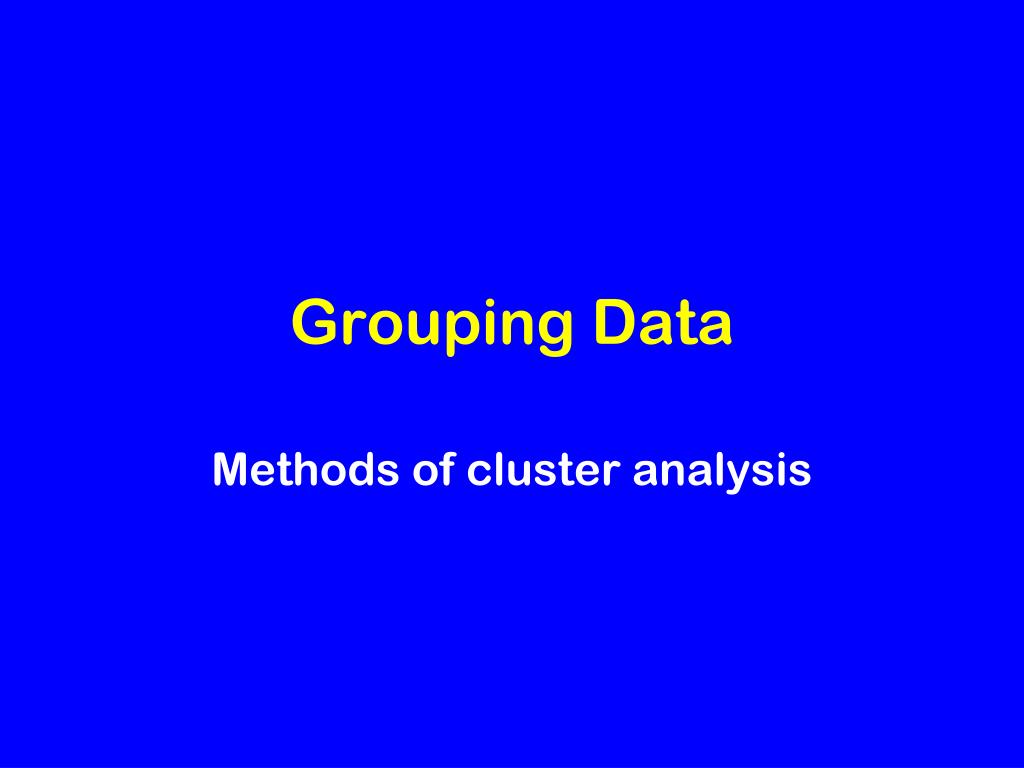

1. Grouping Data Methods of cluster analysis

2. Goals 1 • We want to identify groups of similar artifacts or features or sites or graves, etc that represent cultural, functional, or chronological differences • We want to create groups as a measurement technique to see how they vary with external variables

3. Goals 2 • We want to cluster artifacts or sites based on their location to identify spatial clusters

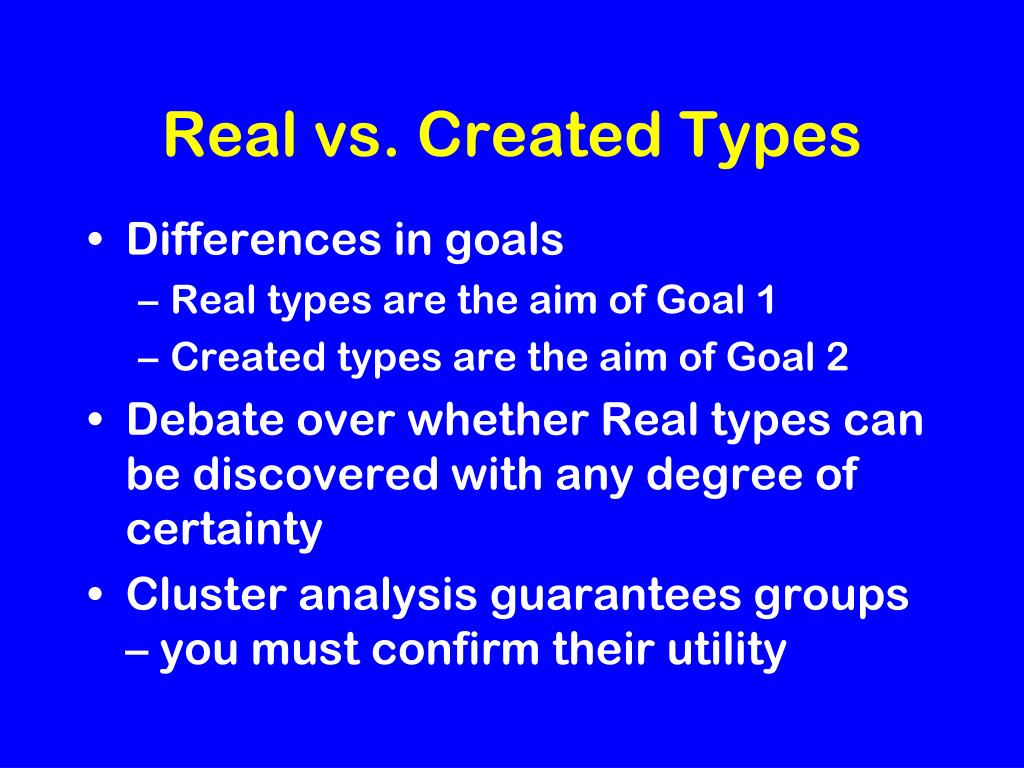

4. Real vs. Created Types • Differences in goals • Real types are the aim of Goal 1 • Created types are the aim of Goal 2 • Debate over whether Real types can be discovered with any degree of certainty • Cluster analysis guarantees groups – you must confirm their utility

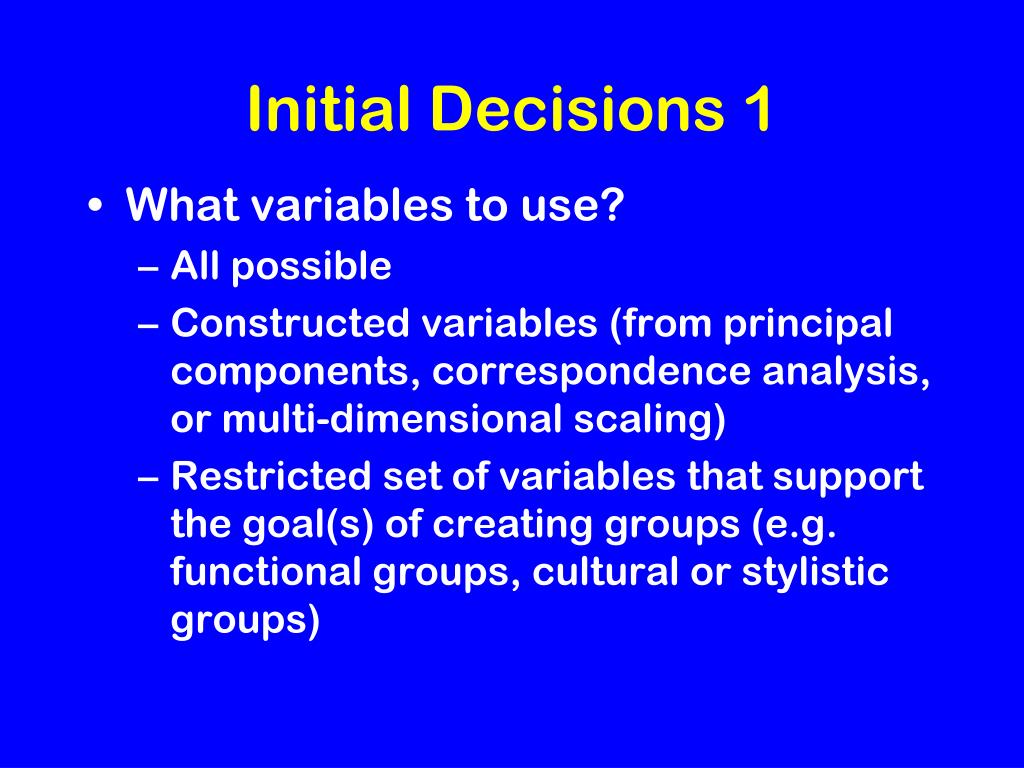

5. Initial Decisions 1 • What variables to use? • All possible • Constructed variables (from principal components, correspondence analysis, or multi-dimensional scaling) • Restricted set of variables that support the goal(s) of creating groups (e.g. functional groups, cultural or stylistic groups)

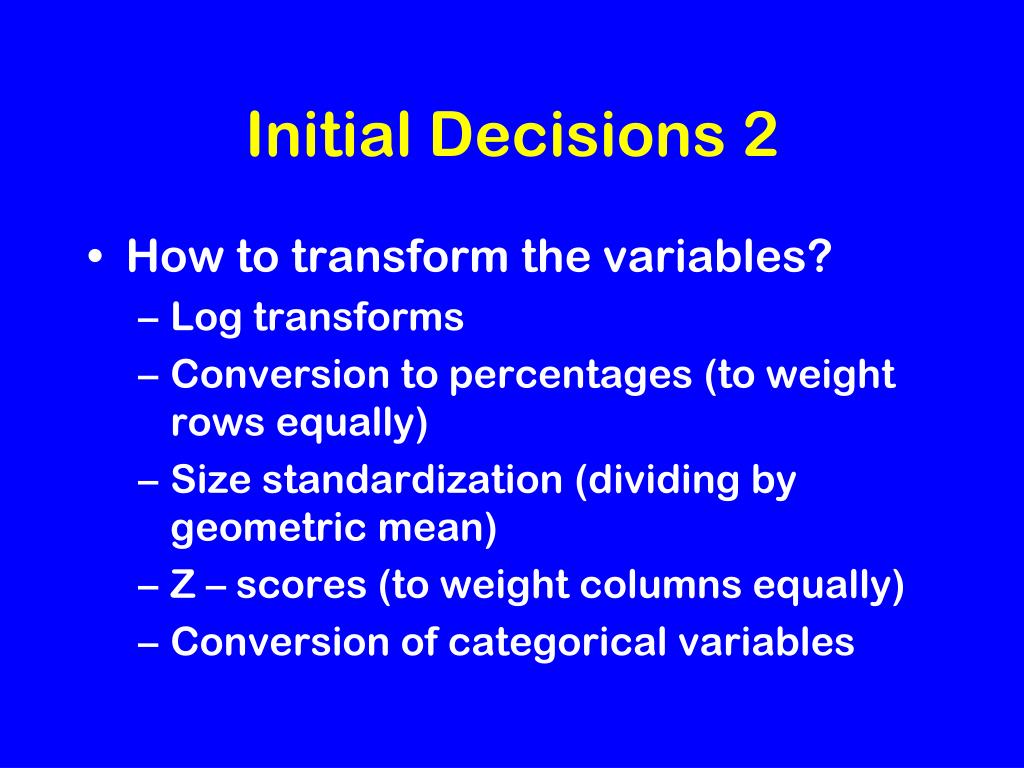

6. Initial Decisions 2 • How to transform the variables? • Log transforms • Conversion to percentages (to weight rows equally) • Size standardization (dividing by geometric mean) • Z – scores (to weight columns equally) • Conversion of categorical variables

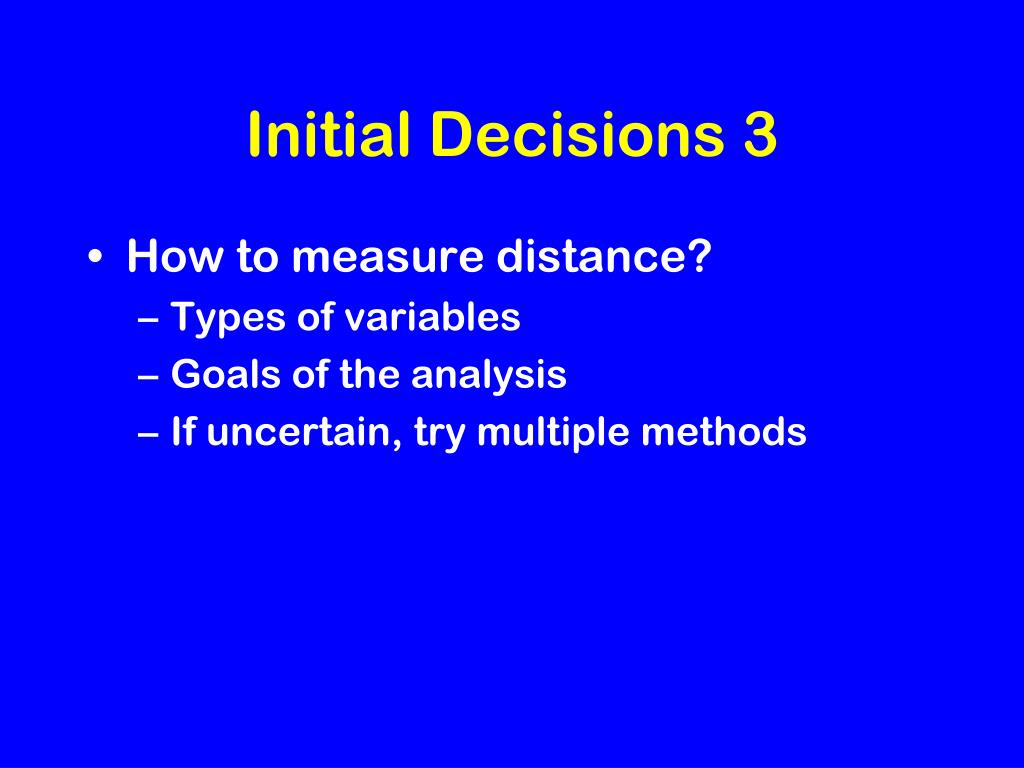

7. Initial Decisions 3 • How to measure distance? • Types of variables • Goals of the analysis • If uncertain, try multiple methods

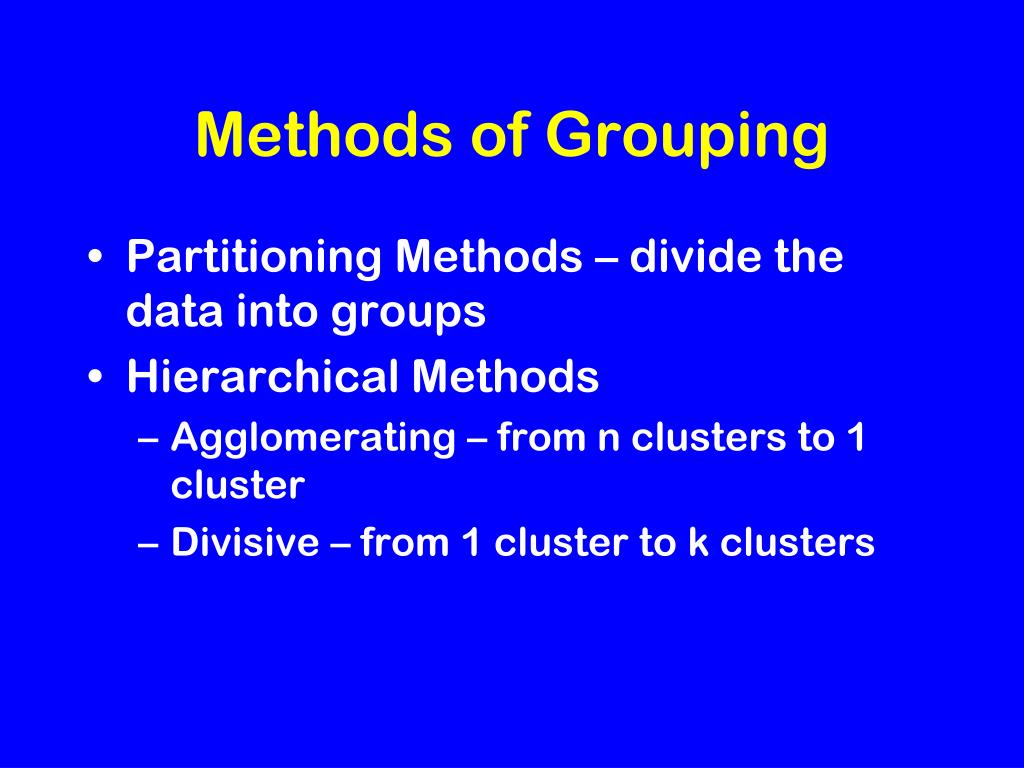

8. Methods of Grouping • Partitioning Methods – divide the data into groups • Hierarchical Methods • Agglomerating – from n clusters to 1 cluster • Divisive – from 1 cluster to k clusters

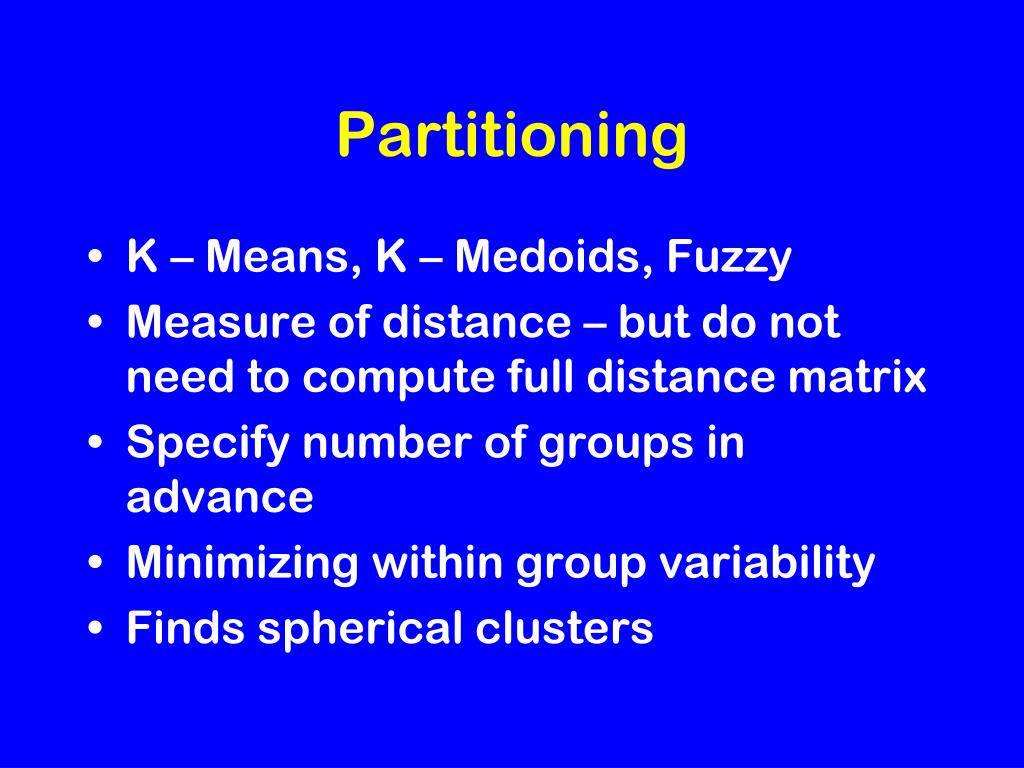

9. Partitioning • K – Means, K – Medoids, Fuzzy • Measure of distance – but do not need to compute full distance matrix • Specify number of groups in advance • Minimizing within group variability • Finds spherical clusters

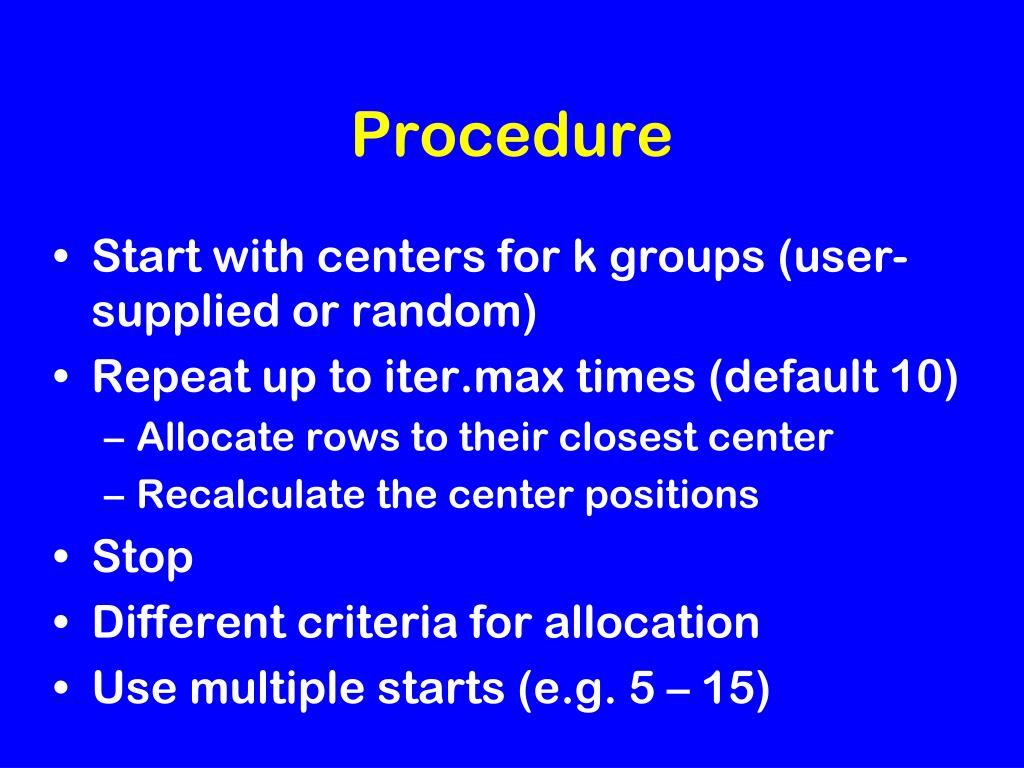

10. Procedure • Start with centers for k groups (user-supplied or random) • Repeat up to iter.max times (default 10) • Allocate rows to their closest center • Recalculate the center positions • Stop • Different criteria for allocation • Use multiple starts (e.g. 5 – 15)

11. Evaluation 1 • Compute groups for a range of cluster sizes and plot within group sums of squares to look for sharp increases • Cluster randomized versions of the data and compare the results • Examine table of statistics by group

12. Evaluation 2 • Plot groups in two dimensions with PCA, CA, or MDS • Compare the groups using data or information not included in the analysis

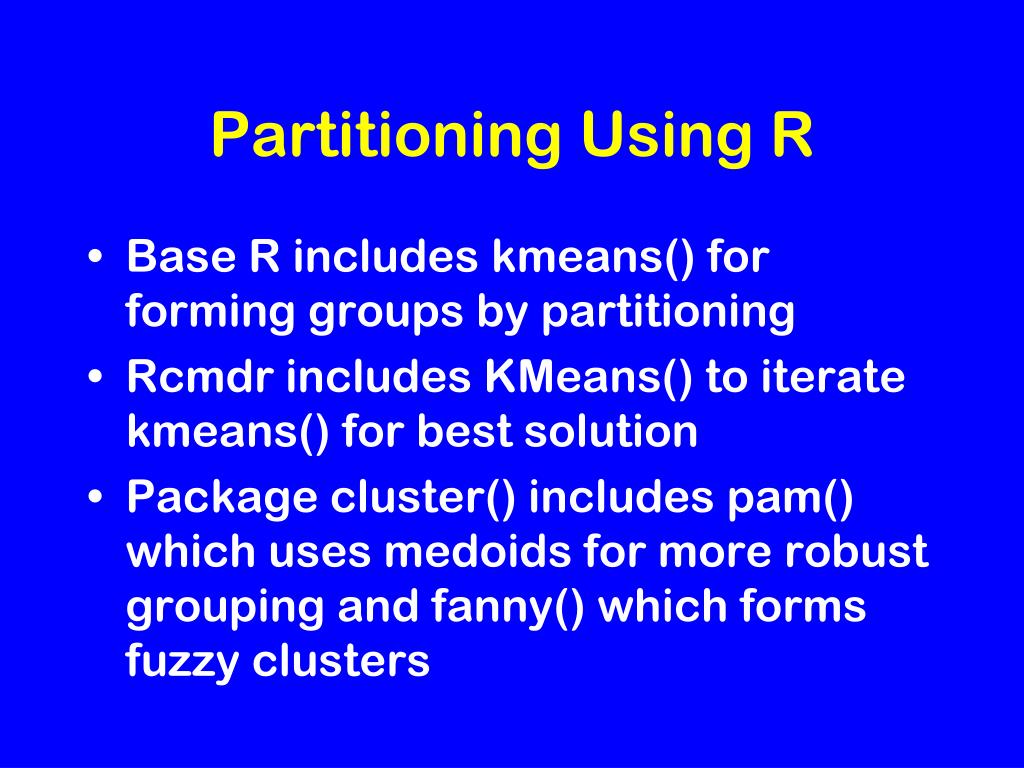

13. Partitioning Using R • Base R includes kmeans() for forming groups by partitioning • Rcmdr includes KMeans() to iterate kmeans() for best solution • Package cluster() includes pam() which uses medoids for more robust grouping and fanny() which forms fuzzy clusters

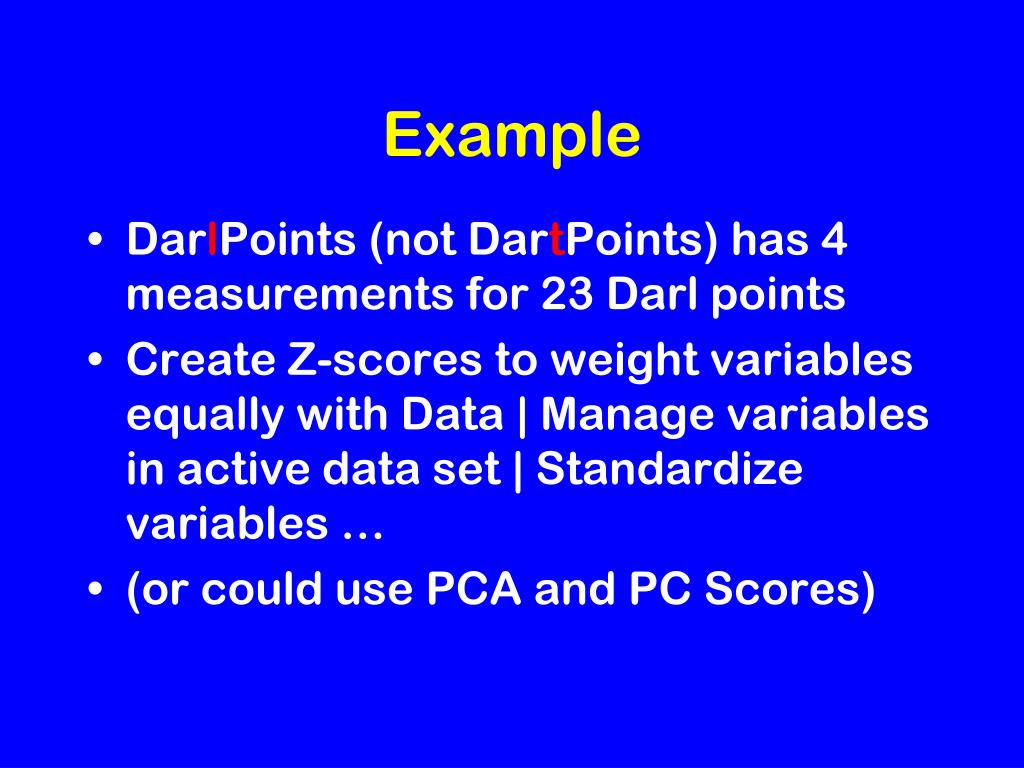

14. Example • DarlPoints (not DartPoints) has 4 measurements for 23 Darl points • Create Z-scores to weight variables equally with Data | Manage variables in active data set | Standardize variables … • (or could use PCA and PC Scores)

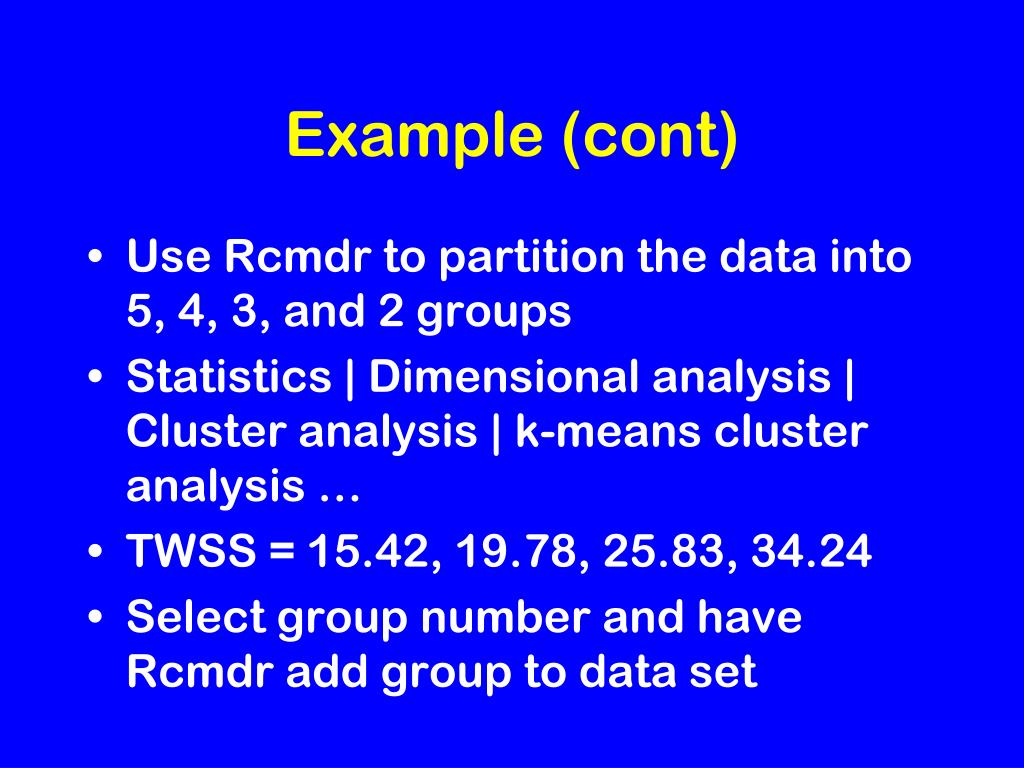

15. Example (cont) • Use Rcmdr to partition the data into 5, 4, 3, and 2 groups • Statistics | Dimensional analysis | Cluster analysis | k-means cluster analysis … • TWSS = 15.42, 19.78, 25.83, 34.24 • Select group number and have Rcmdr add group to data set

18. Evaluation • Evaluate groups against randomized data • Randomly permute each variable • Run k-means • Compare random and non-random results • Evaluate groups against external criteria (location, material, age, etc)

19. KMPlotWSS <- function(data, ming, maxg) { WSS <- sapply(ming:maxg, function(x) kmeans(data, centers = x, iter.max = 10, nstart = 10)$tot.withinss) plot(ming:maxg, WSS, las=1, type="b", xlab="Number of Groups", ylab="Total Within Sum of Squares", pch=16) print(WSS) } KMRandWSS <- function(data, samples, min, max) { KRand <- function(data, min, max){ Rnd <- apply(data, 2, sample) sapply(min:max, function(y) kmeans(Rnd, y, iter.max= 10, nstart=5)$tot.withinss) } Sim <- sapply(1:samples, function(x) KRand(data, min, max)) t(apply(Sim, 1, quantile, c(0,.005, .01, .025, .5, .975, .99, .995, 1))) }

20. # Compare data to randomized sets KMPlotWSS(DarlPoints[,6:9], 1, 10) Qtiles <- KMRandWSS(DarlPoints[,6:9], 2000, 1, 10) matlines(1:10, Qtiles[,c(1, 5, 9)], lty=c(3, 2, 3), lwd=2, col="dark gray") legend("topright", c("Observed", "Median (Random)", "Max/Min Random"), col=c("black", "dark gray", "dark gray"), lwd=c(1, 2, 2), lty=c(1, 2, 3))

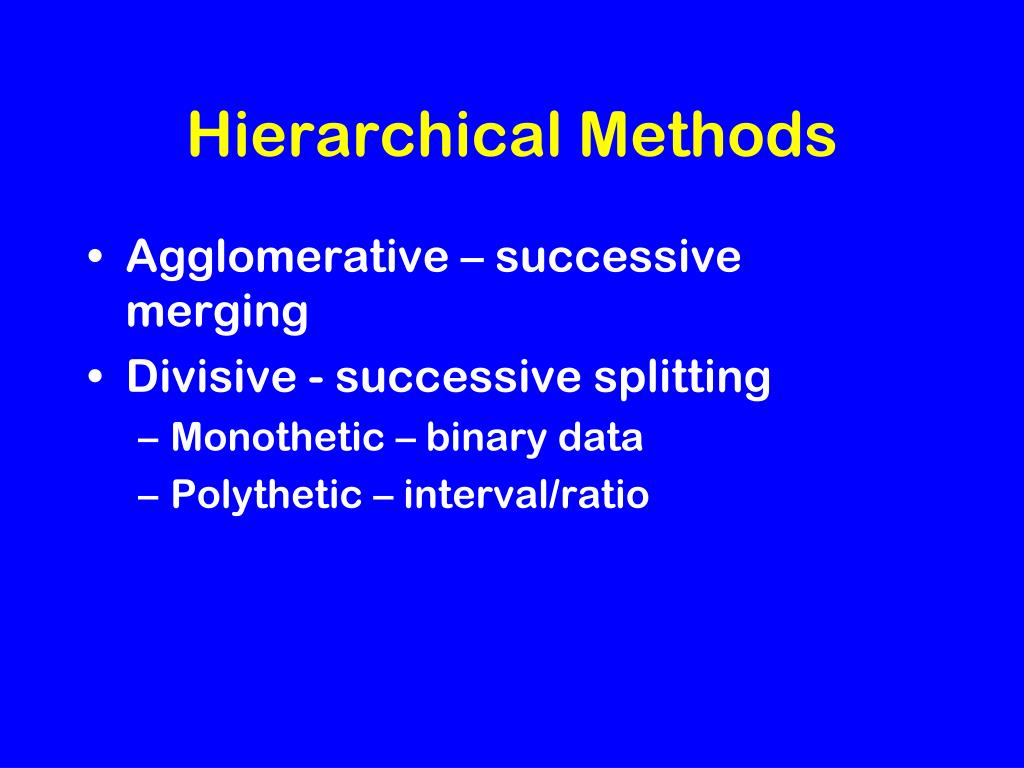

22. Hierarchical Methods • Agglomerative – successive merging • Divisive - successive splitting • Monothetic – binary data • Polythetic – interval/ratio

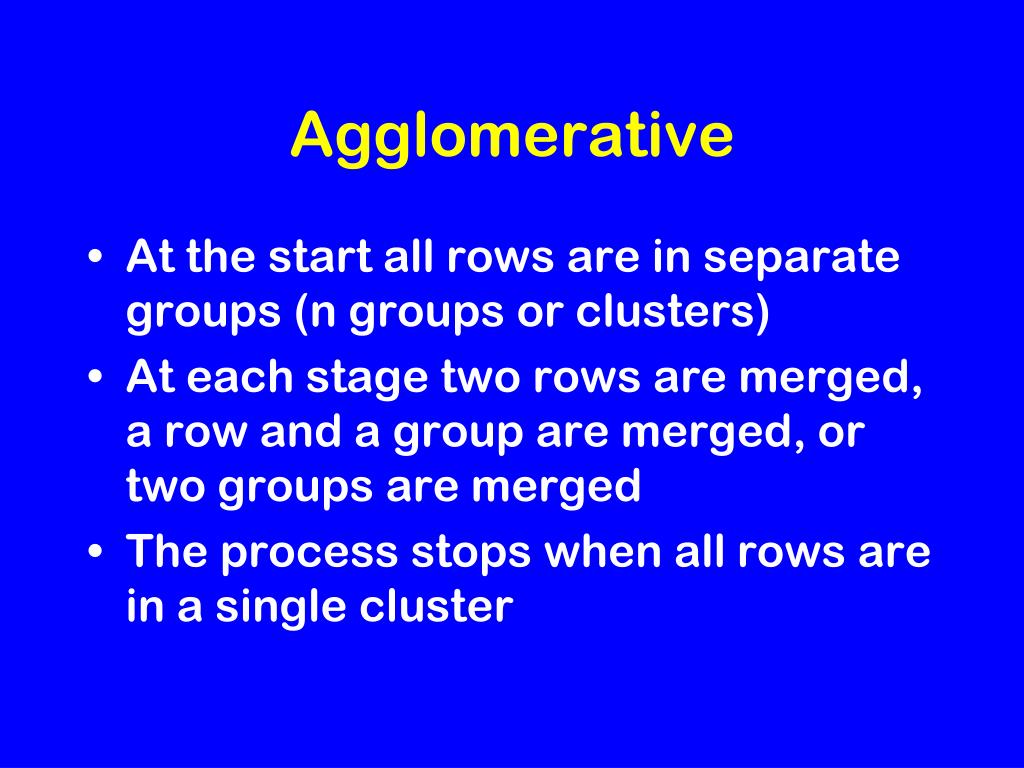

23. Agglomerative • At the start all rows are in separate groups (n groups or clusters) • At each stage two rows are merged, a row and a group are merged, or two groups are merged • The process stops when all rows are in a single cluster

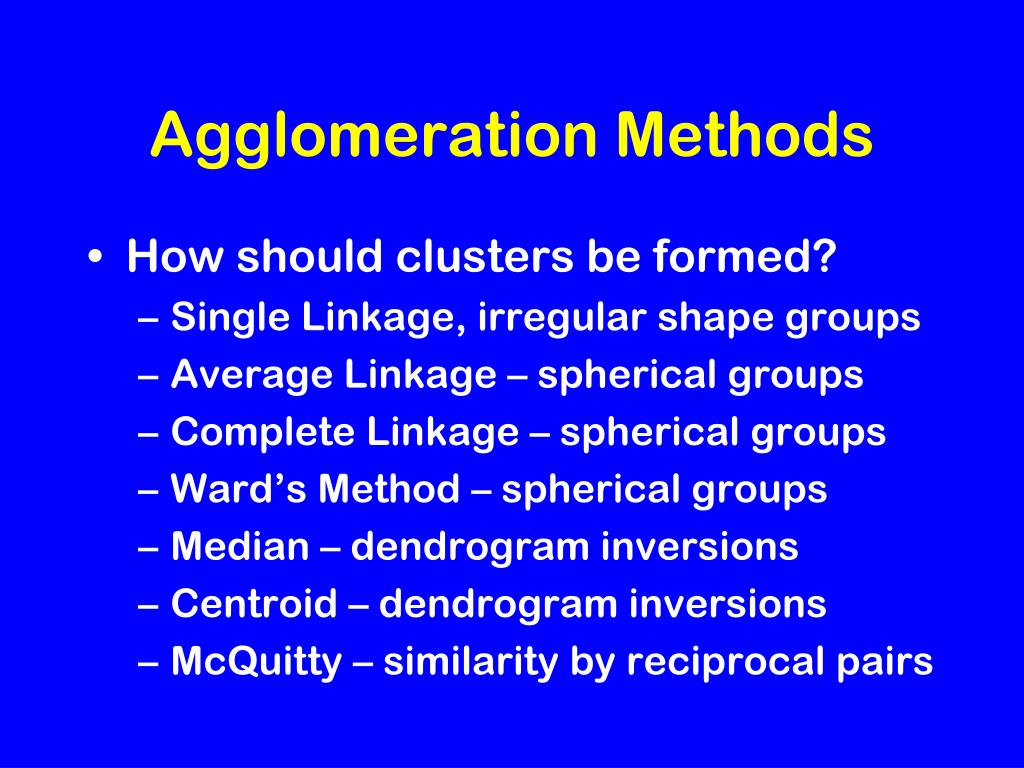

24. Agglomeration Methods • How should clusters be formed? • Single Linkage, irregular shape groups • Average Linkage – spherical groups • Complete Linkage – spherical groups • Ward’s Method – spherical groups • Median – dendrogram inversions • Centroid – dendrogram inversions • McQuitty – similarity by reciprocal pairs

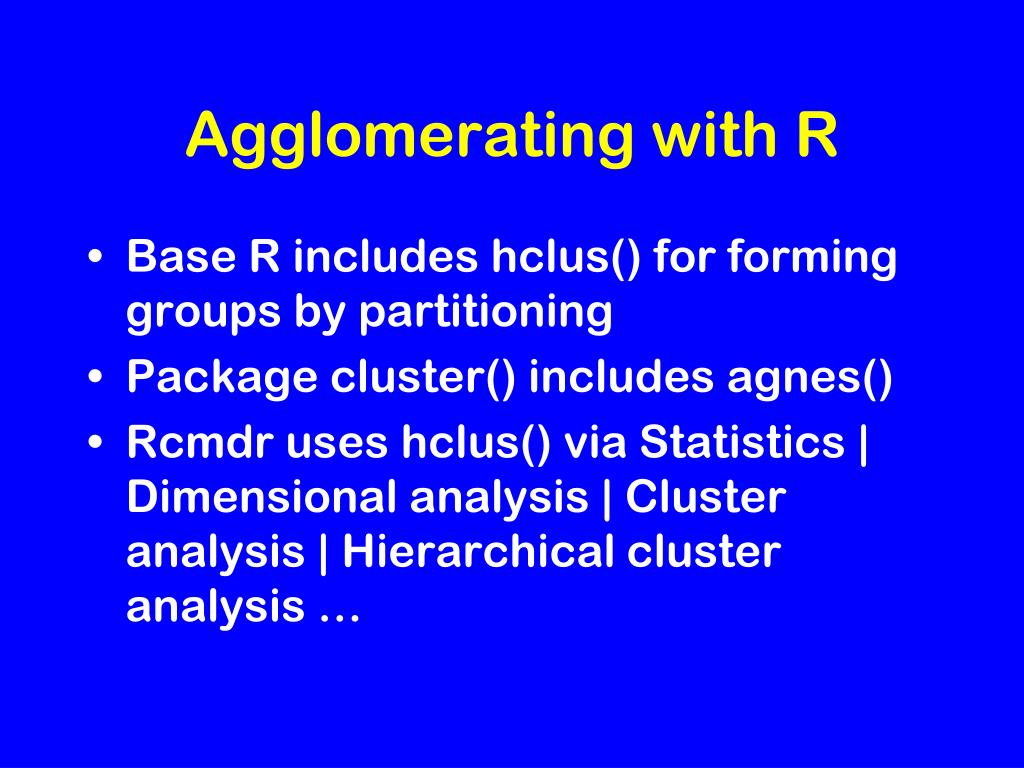

25. Agglomerating with R • Base R includes hclus() for forming groups by partitioning • Package cluster() includes agnes() • Rcmdr uses hclus() via Statistics | Dimensional analysis | Cluster analysis | Hierarchical cluster analysis …

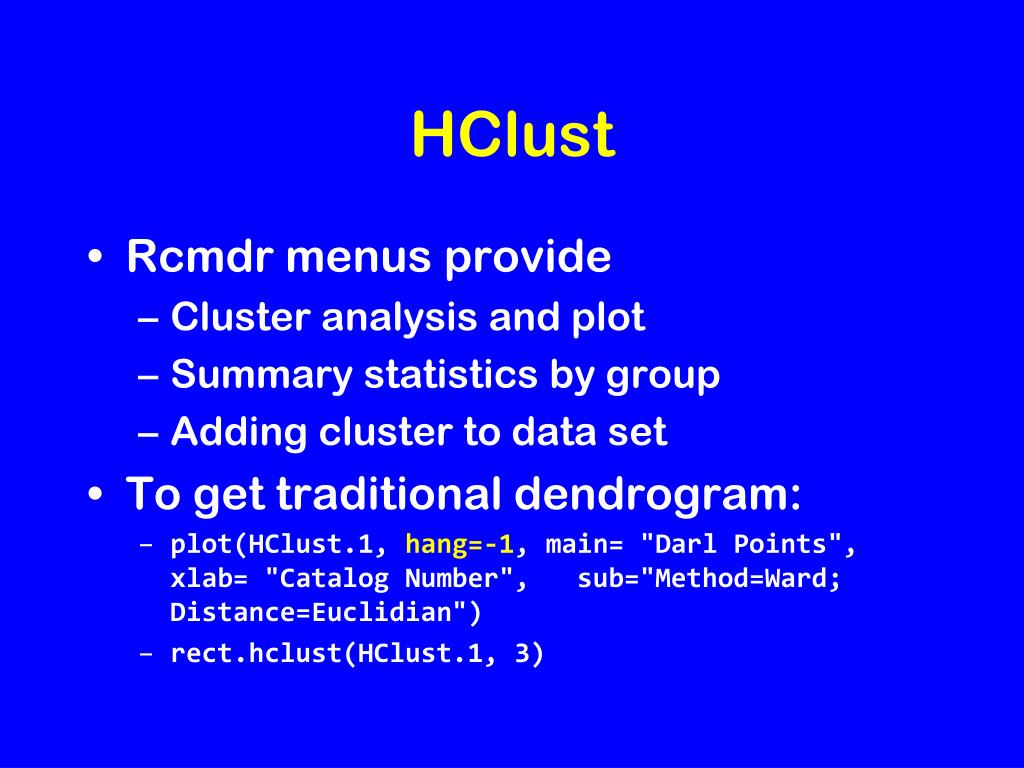

26. HClust • Rcmdr menus provide • Cluster analysis and plot • Summary statistics by group • Adding cluster to data set • To get traditional dendrogram: • plot(HClust.1, hang=-1, main= "Darl Points", xlab= "Catalog Number", sub="Method=Ward; Distance=Euclidian") • rect.hclust(HClust.1, 3)

29. summary(as.factor(cutree(HClust.1, k = 3))) # Cluster Sizes 1 2 3 11 6 6 by(model.matrix(~-1 + Z.Length + Z.Thickness + Z.Weight + Z.Width, DarlPoints), as.factor(cutree(HClust.1, k = 3)), mean) # Cluster Centroids INDICES: 1 Z.LengthZ.ThicknessZ.WeightZ.Width -0.1345150 -0.1585615 -0.2523805 -0.1241642 ------------------------------------------------------------ INDICES: 2 Z.LengthZ.ThicknessZ.WeightZ.Width -1.1085541 -0.9209550 -0.9400026 -0.8200594 ------------------------------------------------------------ INDICES: 3 Z.LengthZ.ThicknessZ.WeightZ.Width 1.355165 1.211651 1.402700 1.047694 > biplot(princomp(model.matrix(~-1 + Z.Length + Z.Thickness + Z.Weight + Z.Width, DarlPoints)), xlabs = as.character(cutree(HClust.1, k = 3)))

31. > cbind(HClust.1$merge, HClust.1$height) [,1] [,2] [,3] [1,] -12 -13 0.3983821 [2,] -2 -3 0.5112670 [3,] -9 -14 0.5247650 [4,] -10 -17 0.5572146 [5,] -15 3 0.7362171 [6,] -1 -11 0.7471874 [7,] -6 -18 0.8120594 [8,] -7 -8 0.8491895 [9,] 4 5 0.9841552 [10,] 2 6 1.2150606 [11,] -19 -21 1.2300507 [12,] 1 10 1.4059158 [13,] -22 11 1.4963400 [14,] -16 -20 1.5800167 [15,] -4 9 1.6195709 [16,] -5 12 2.1556543 [17,] -23 13 2.4007863 [18,] 7 14 2.4252670 [19,] 8 17 3.2632812 [20,] 16 18 4.9021149 [21,] 15 20 6.6290417 [22,] 19 21 18.7730146

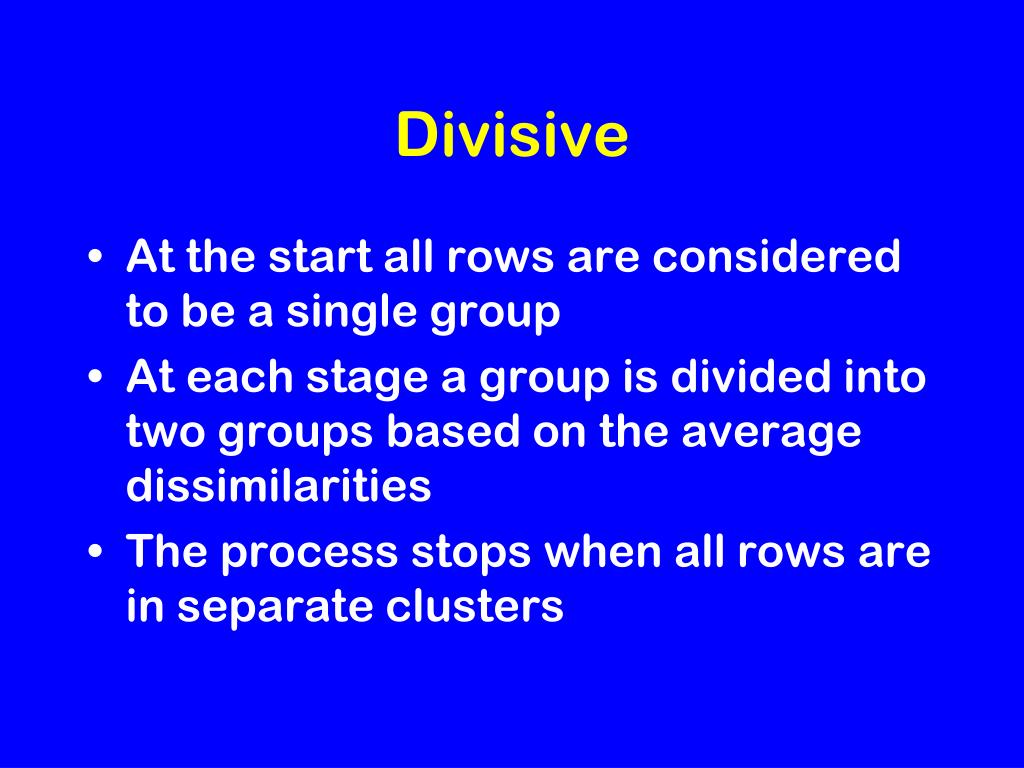

34. Divisive • At the start all rows are considered to be a single group • At each stage a group is divided into two groups based on the average dissimilarities • The process stops when all rows are in separate clusters
