Presentation Transcript

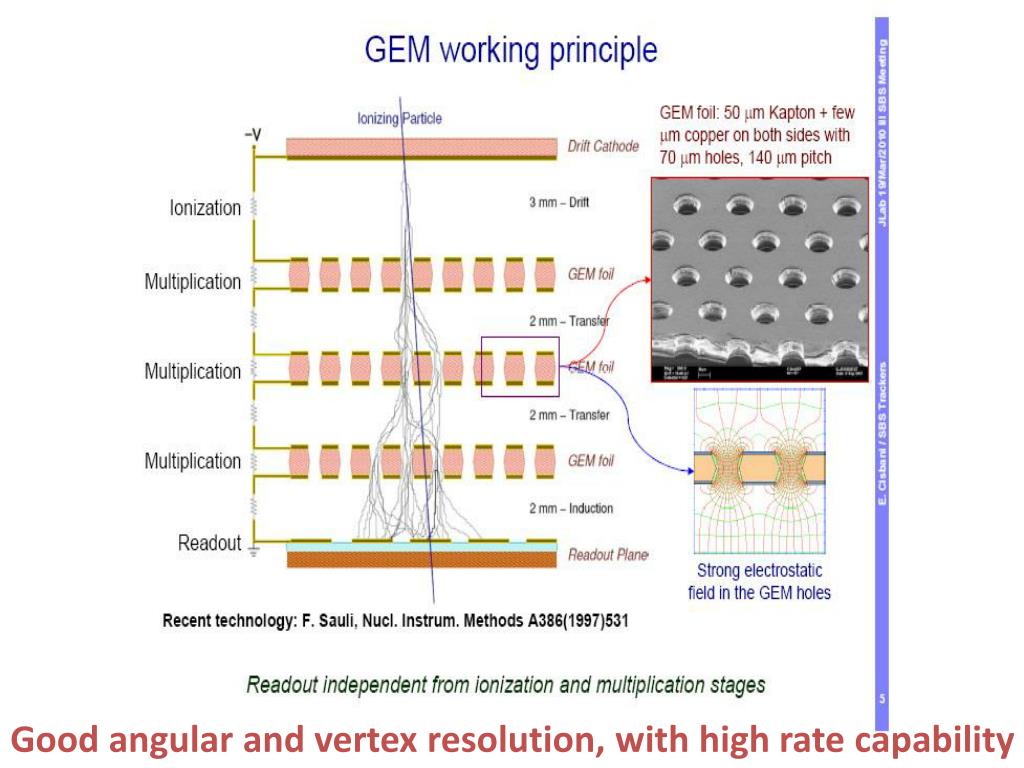

  1. Goodangular and vertex resolution, with highrate capability

  2. 70 µm 140 µm 5 µm 70 µm 55 µm 50 µm`` GEM foils Typically 5mm Cu on 50mm kapton ~104 holes/cm2

  3. The X position of a VDC Track projected onto the GEMThis value is about +/- 0.1 (units are m)

  4. Correlation Plots

  5. ADC Spectrum (Entry<50000)Pedestal and Noise Suppressed

  6. ADC values vs Strips(=248) are fired event by event(<50000)

  7. The size of the reconstructed clusters in strips(140 micron strip pitch) events=50000
