TechTalk Abusing The Hypervisor. By: Piotr T. Zbiegiel. Introduction. What is a Hypervisor?. A Hypervisor is a piece of software that exists between the physical hardware and the virtual machines on a system. It mediates access from the VMs to the underlying hardware.
E N D
TechTalkAbusing The Hypervisor By: Piotr T. Zbiegiel

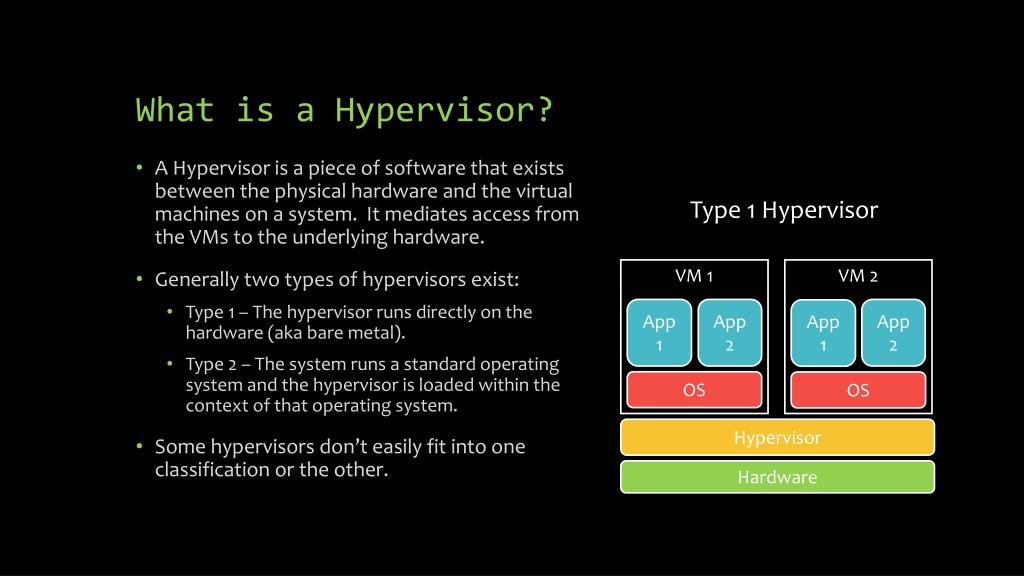

What is a Hypervisor? • A Hypervisor is a piece of software that exists between the physical hardware and the virtual machines on a system. It mediates access from the VMs to the underlying hardware. • Generally two types of hypervisors exist: • Type 1 – The hypervisor runs directly on the hardware (aka bare metal). • Type 2 – The system runs a standard operating system and the hypervisor is loaded within the context of that operating system. • Some hypervisors don’t easily fit into one classification or the other. Type 1 Hypervisor VM 1 VM 2 App 1 App 2 App 2 App 1 OS OS Hypervisor Hardware
Physical -> Virtual • VMs possess virtual components and associated drivers that mirror physical counterparts. • Displays • Memory • Disk • Network • These all present potential attack surfaces for exploiting the hypervisor or host operating system.
New *AND* Improved 0days? • Before we dive into theoretical (and not so theoretical) hypervisor attacks it pays to talk about Duqu. • Duquexploited the font parsing engine in Windows to elevate privileges and execute code. • Microsoft’s temporary workaround entailed disabling access to the TrueType font DLL. • But how did the bad guys know to try this vector? Could it be that the font parsing engine had been patched before by Microsoft?
New *AND* Improved 0days? Cont’d • Once a vulnerability is discovered in a given piece of software you can bet many more researchers will be looking for similar vulnerabilities elsewhere in the code. • Depending on how (in)effective a vendor may be at patching, this could lead to numerous related vulnerabilities and attacks being discovered. Variations on a theme, if you will.
New *AND* Improved 0days? Cont’d So what does this discussion of Duqu and zero-days have to do with hypervisor security? It demonstrates two key points we should remember about securing kernels/hypervisors. • The less a kernel does the less target area there is to attack. (Why was the Windows kernel parsing fonts?) • Previously discovered vulnerabilities may be a good indication of future vulnerabilities. It may be prudent to limit access to modules compromised in the past if at all possible.
Low-level Intercept • An attack theory where the malware would shim itself below an operating system in between the system software and hardware. • A malware hypervisor? • The operating system would have no way to detect the infection since it wouldn’t exist within the universe of the operating system. Consider that similar malware already exists. • Kernel-level rootkits can hide from the operating system but are more akin to mind-control parasites that take over the host’s brain. Ophiocordycepsunilateralis
Blue Pill • In 2006 Joanna Rutkowksa debuted new malware that slipped below the target OS and virtualized it. • Because the malware controlled all access to the underlying hardware it could “lie” to the operating system. • Kernel-level root kits previously relied on modifying the kernel in an attempt to hide. • Blue pill did not need to modify the operating system and could infect a running system. • Joanna insisted that this new class of malware was undetectable.
A Hard Pill to Swallow • Other security researcher had a problem with Joanna’s claim that the malware was undetectable. • They claimed detection would be trivial using a timing attack. • Debate on the subject raged on until the next year when a group of researchers challenged Joanna to a showdown at Black Hat 2007.
Red vs. Blue (Pills) • Joanna would secretly install her rootkit on one of two laptops. • The researchers would then install their detection software and attempt to detect the malware. • After some wrangling, including Joanna demanding up-front payment for her work on Blue Pill (to the tune of ~$400k)…the challenge never happened. Today blue-pill type malware has never been detected in the wild. • Because it doesn’t exist… • Or because it is so undetectable? (The mystery continues…)
