Lecture 13 Prawat Nagvajara

Lecture 13 Prawat Nagvajara. Pipeline Schedule Advantage: smaller latency by introducing pipelining stages thus faster clock rate Compare to a schedule that implies ripple-carry adder the clock rate is n fold Same order of hardware, i.e, linear with n

calla
Télécharger la présentation

Lecture 13 Prawat Nagvajara

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lecture 13Prawat Nagvajara • Pipeline Schedule • Advantage: smaller latency by introducing pipelining stages thus faster clock rate • Compare to a schedule that implies ripple-carry adder the clock rate is n fold • Same order of hardware, i.e, linear with n • Compare to the array multiplier the latency is the same but the hardware of the array is on the order of n square

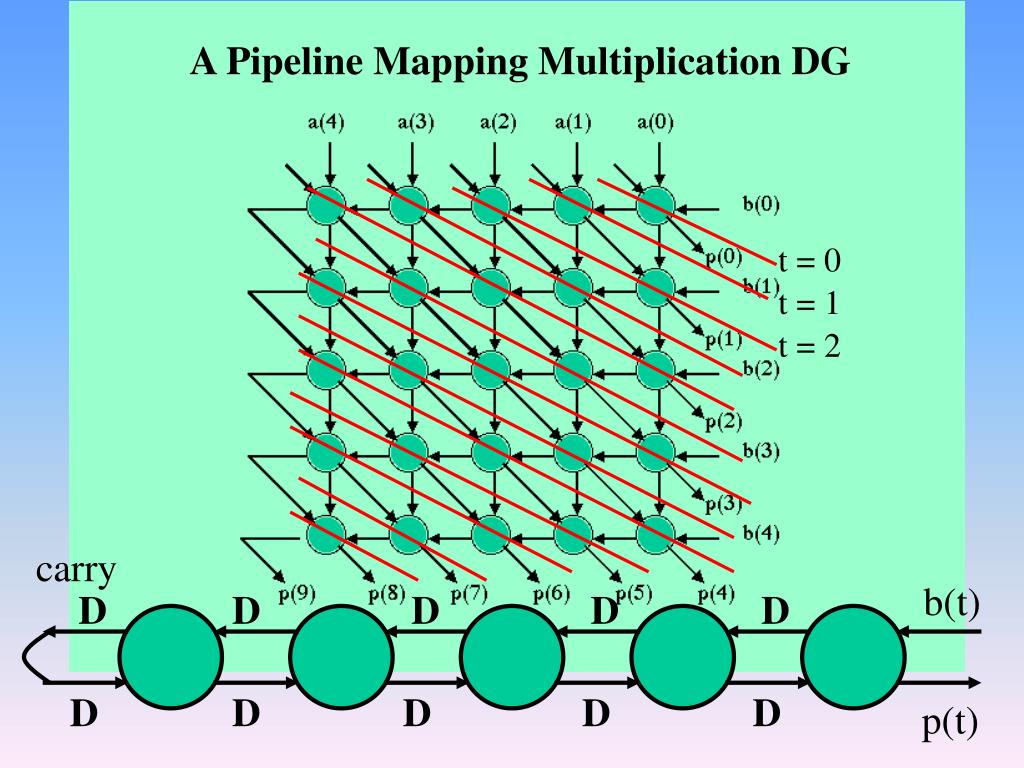

  2. A Pipeline Mapping Multiplication DG t = 0 t = 1 t = 2 carry b(t) D D D D D D D D D D p(t)

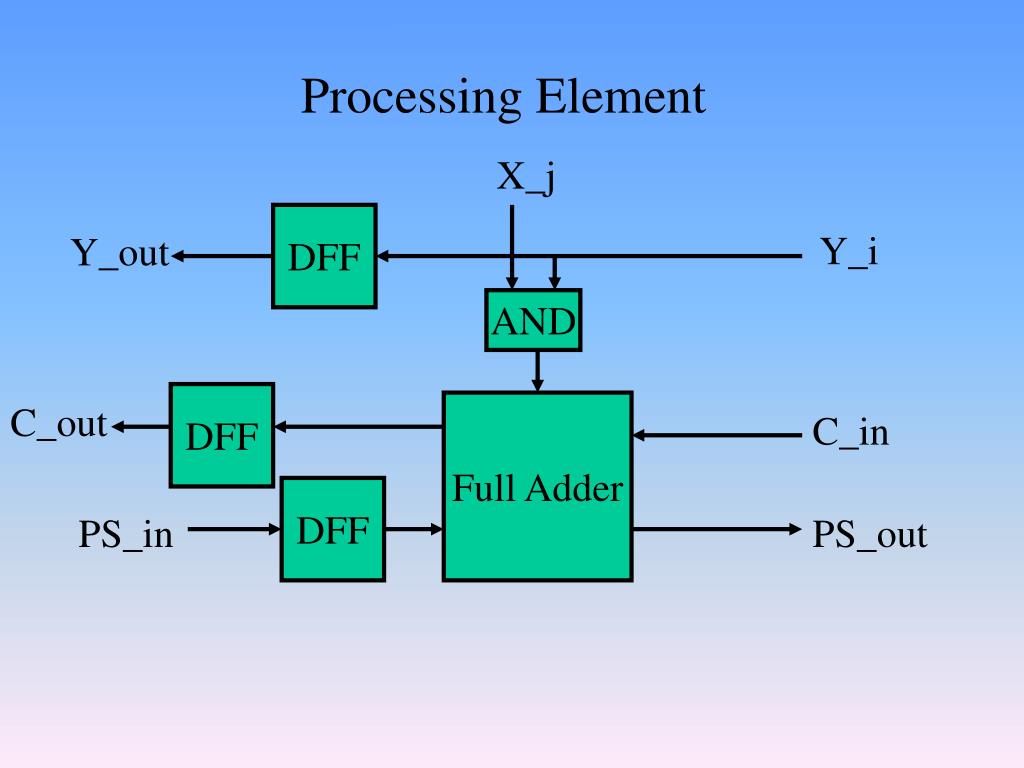

  3. Processing Element X_j DFF Y_i Y_out AND DFF C_out Full Adder C_in DFF PS_in PS_out

  4. A Pipelined Multiplier a2 a1 a0 0 0 0 0 0 0 0 0 0 • We will do an example of (111) * (111) = (110001)

  5. Snapshots at t= 0, 1 1 1 1 1 0 0 0 0 0 0 0 1 0 0 0 1 1 1 0 0 0 1 0 0 0 0 0 0 0 0

  6. Snapshots at t= 2, 3 1 1 1 1 0 1 0 0 0 0 0 0 0 0 1 1 1 1 0 1 0 1 0 0 1 0 0 0 1 0

  7. Snapshots at t= 4, 5 1 1 1 1 0 1 0 0 1 0 0 0 0 0 1 1 1 1 0 0 0 1 1 0 1 0 0 0 0 0

  8. Snapshots at t= 6, 7 1 1 1 0 0 1 0 0 1 0 0 0 1 0 0 1 1 1 0 1 0 0 1 0 0 0 0 0 1 0

  9. Snapshots at t= 8, 9 1 1 1 0 0 0 0 0 0 0 0 1 1 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 0

  10. Snapshot at t= 10 1 1 1 0 0 0 0 0 0 0 0 1 0 0 1

  11. The SchedulePartial Sum Computed at T=6 Is an Output at T=8Carry Computed at T=6 Is an Output at T=10 t=0 t=1 t=2 t=3 t=4 t=6 t=5

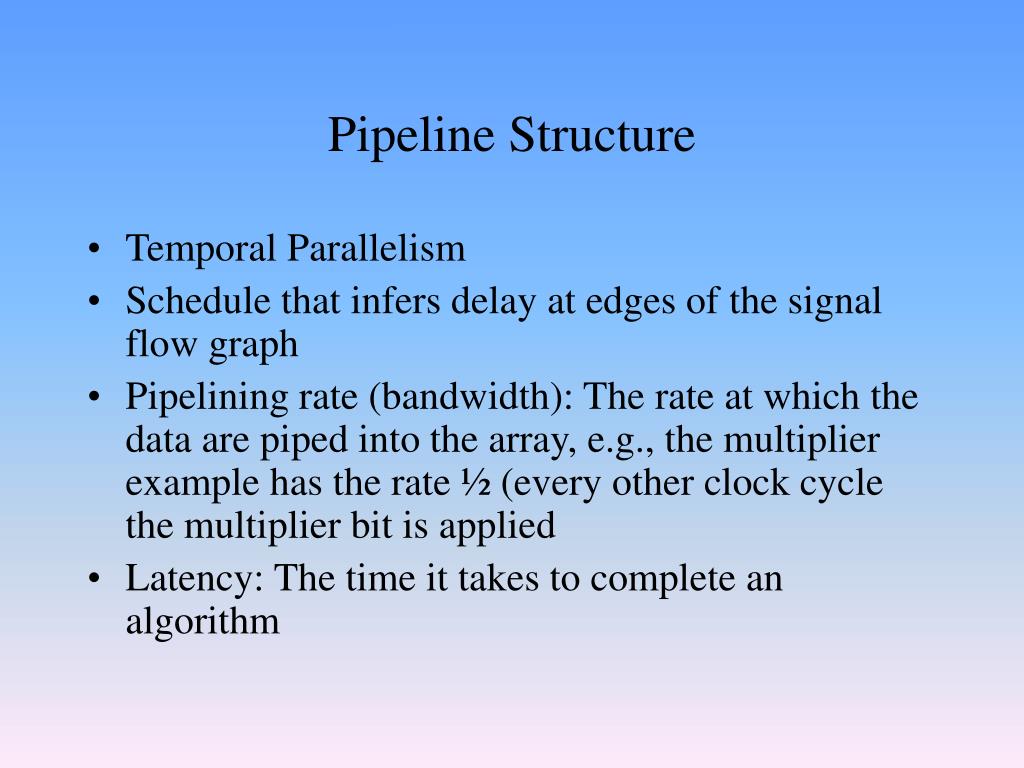

  12. Pipeline Structure • Temporal Parallelism • Schedule that infers delay at edges of the signal flow graph • Pipelining rate (bandwidth): The rate at which the data are piped into the array, e.g., the multiplier example has the rate ½ (every other clock cycle the multiplier bit is applied • Latency: The time it takes to complete an algorithm

  13. Is There Other Pipeline Multiplier?
