  1. HBase User Group Meetup 10/29/12 Jesse Yates HBase Snapshots

  2. So you wanna…. • Prevent data loss • Recover to a point in time • Backup your data • Sandbox copy of data

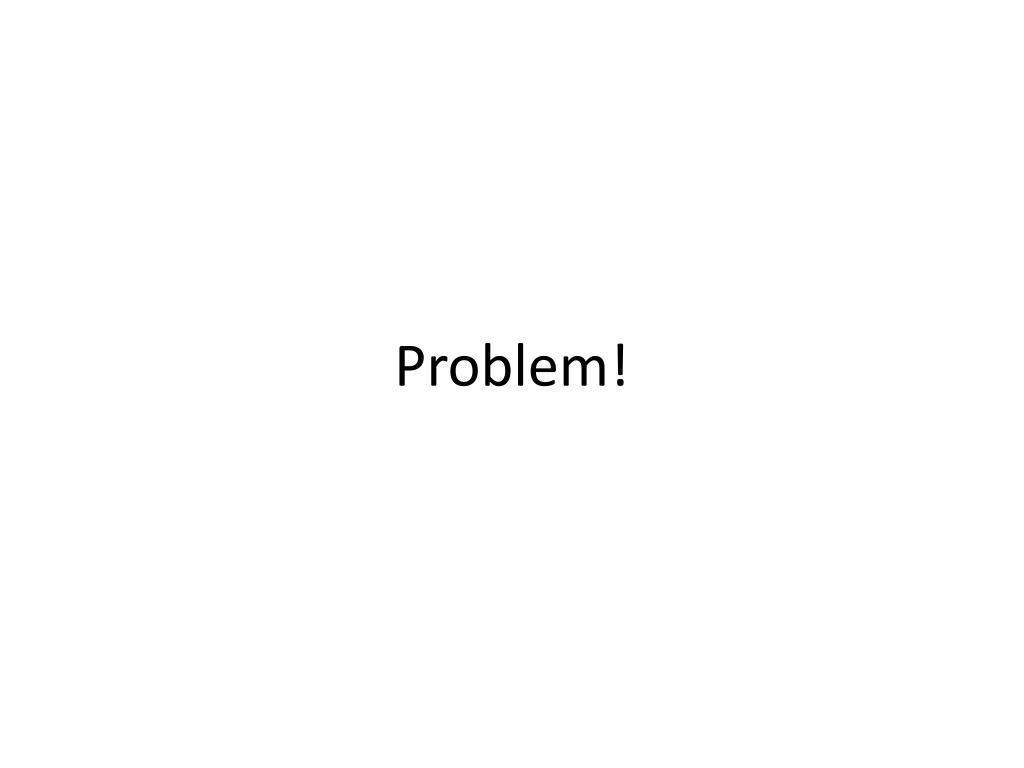

  3. Problem!

  4. a BIG Problem… • Petabytes of data • 100’s of servers • At a single point in time • Millions of writes per-second

  5. Solution!

  6. Solutions!

  7. (Obvious) Solutions!

  8. Built-in • Export • MapReduce job against HBase API • Output to single seqeunce file • Copy Table • MapReduce job against HBase API • Output to another table Yay • Simple • Heavily tested • Can do point-in-time Boo • Slow • High impact for running cluster

  9. (Less Obvious) Solution!

  10. Replication • Export all changes by tailing WAL YAY • Simple • Gets all edits • Minimal impact on running cluster Boo • Turn on from beginning • Can’t turn it off and catch up • No built-in point-in-time • Still need ETL process to get multiple copies

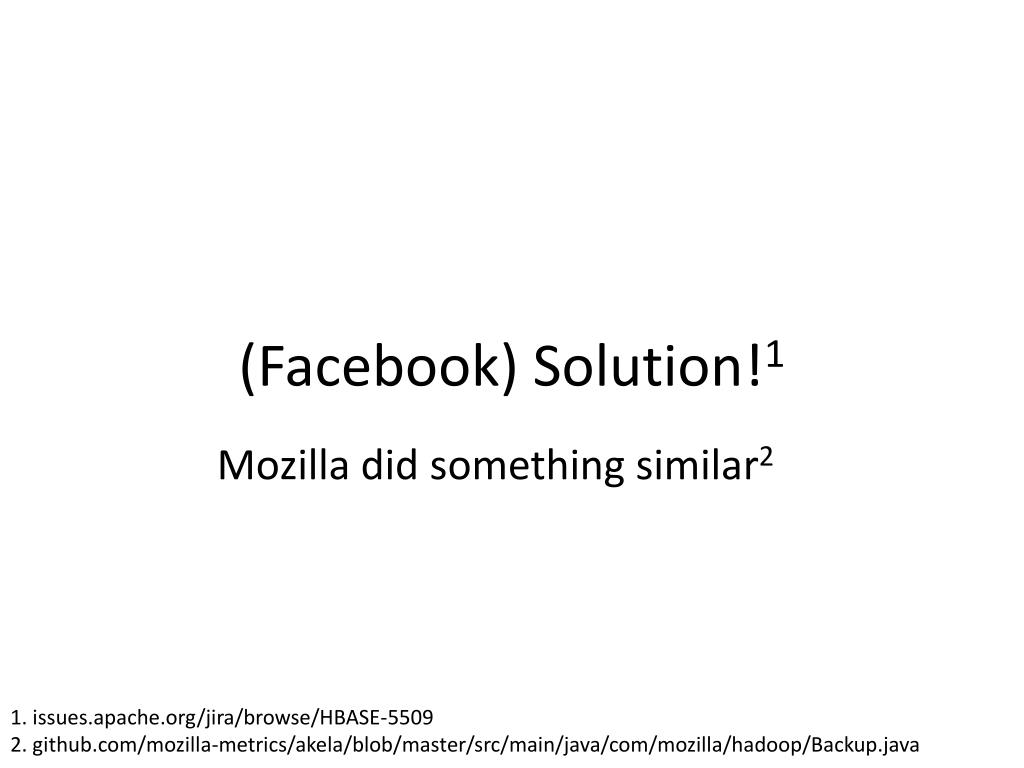

  11. (Facebook) Solution!1 • Mozilla did something similar2 1. issues.apache.org/jira/browse/HBASE-5509 2. github.com/mozilla-metrics/akela/blob/master/src/main/java/com/mozilla/hadoop/Backup.java

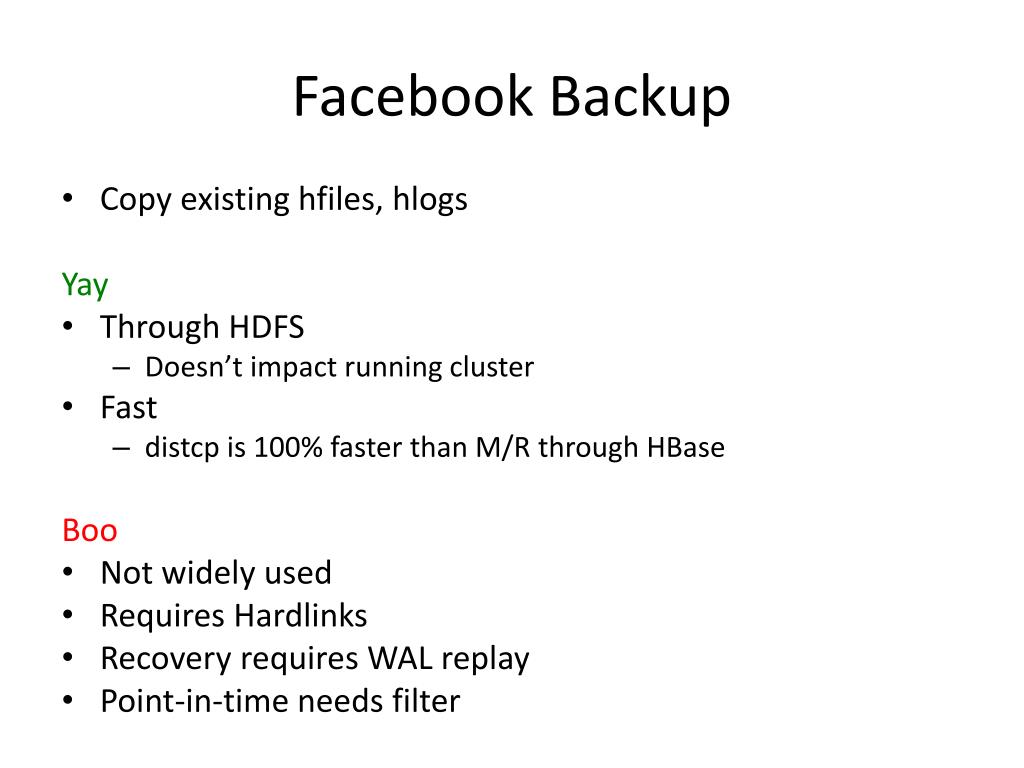

  12. Facebook Backup • Copy existing hfiles, hlogs Yay • Through HDFS • Doesn’t impact running cluster • Fast • distcp is 100% faster than M/R through HBase Boo • Not widely used • Requires Hardlinks • Recovery requires WAL replay • Point-in-time needs filter

  13. Backup through the ages Export Copy Table Replication HBase HBASE-50 HDFS Facebook

  14. Maybethis is harder than we thought…

  15. We did some work…

  16. Hardlink workarounds • HBASE-5547 • Move deleted hfiles to .archive directory • HBASE-6610 • FileLink: equivalent to Windows link files Enough to get started….

  17. Difficulties • Coordinating many servers • Minimizing unavailability • Minimize time to restore • Gotta’ be Fast

  18. HBASE-50 HBASE-6055

  19. Snapshots • Fast - zero-copy of files • Point-in-time semantics • Part of how its built • Built-in recovery • Make a table from a snapshot • SLA enforcement • Guaranteed max unavailability Coming in HBase-0.96!

  20. Snapshots?

  21. We’ve got a couple of those…

  22. Snapshot Types • Offline • Table is already disabled • Globally consistent • Consistent across all servers • Timestamp consistent • Point-in-time according to each server

  23. Offline Snapshots • Table is already disabled • Requires minimal log replay • Especially if table is cleanly disabled • State of the table when disabled • Don’t need to worry about changing state YAY • Fast! • Simple!

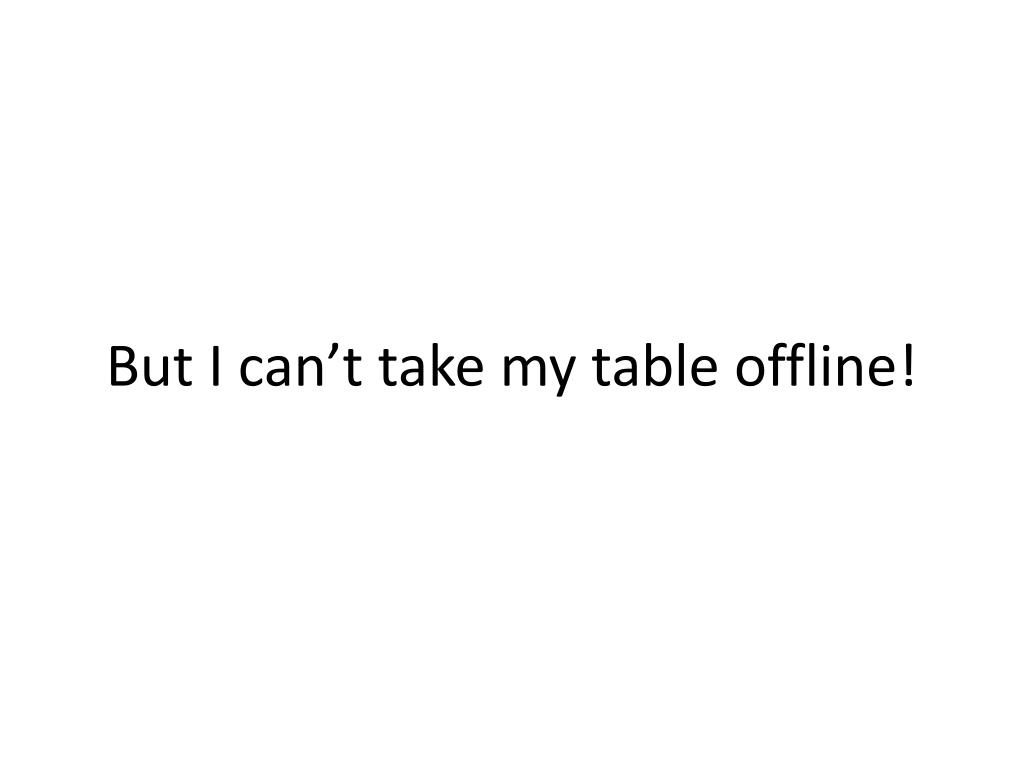

  24. But I can’t take my table offline!

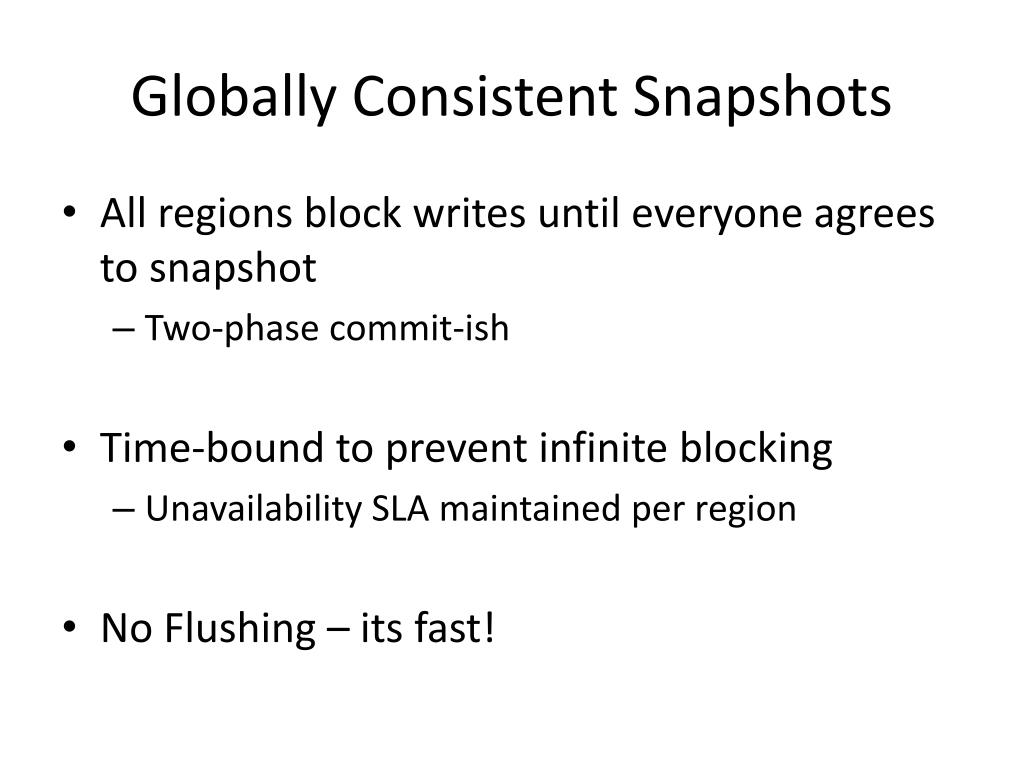

  25. Globally Consistent Snapshots • All regions block writes until everyone agrees to snapshot • Two-phase commit-ish • Time-bound to prevent infinite blocking • Unavailability SLA maintained per region • No Flushing – its fast!

  26. What could possibly go wrong?

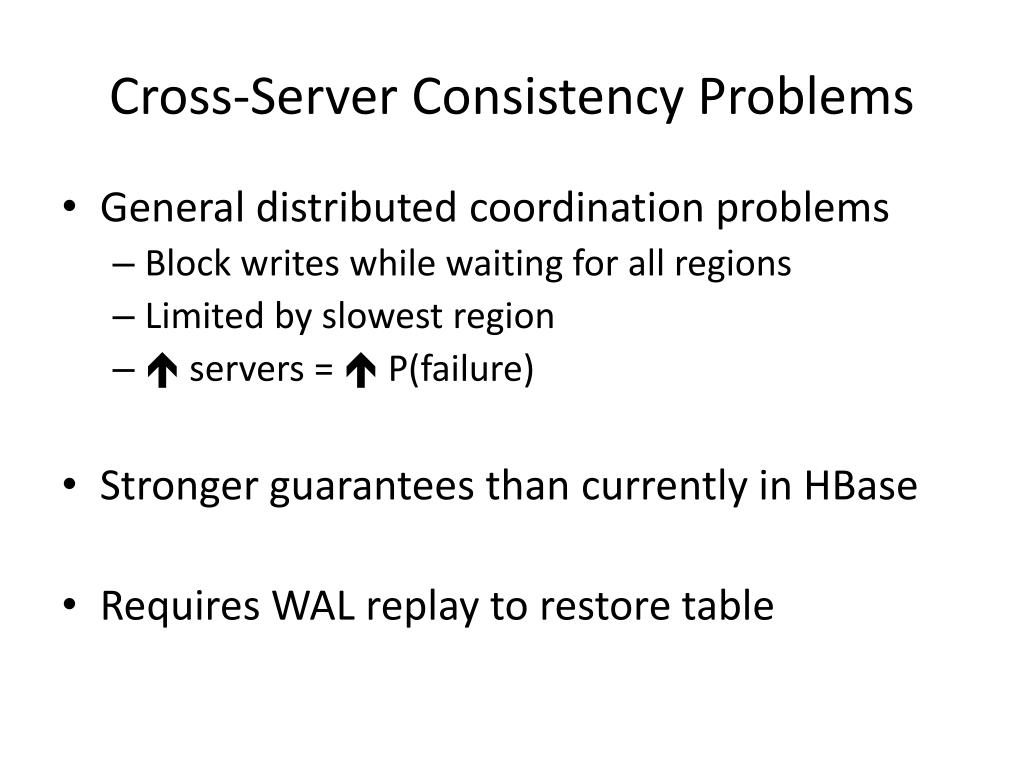

  27. Cross-Server Consistency Problems • General distributed coordination problems • Block writes while waiting for all regions • Limited by slowest region •  servers = P(failure) • Stronger guarantees than currently in HBase • Requires WAL replay to restore table

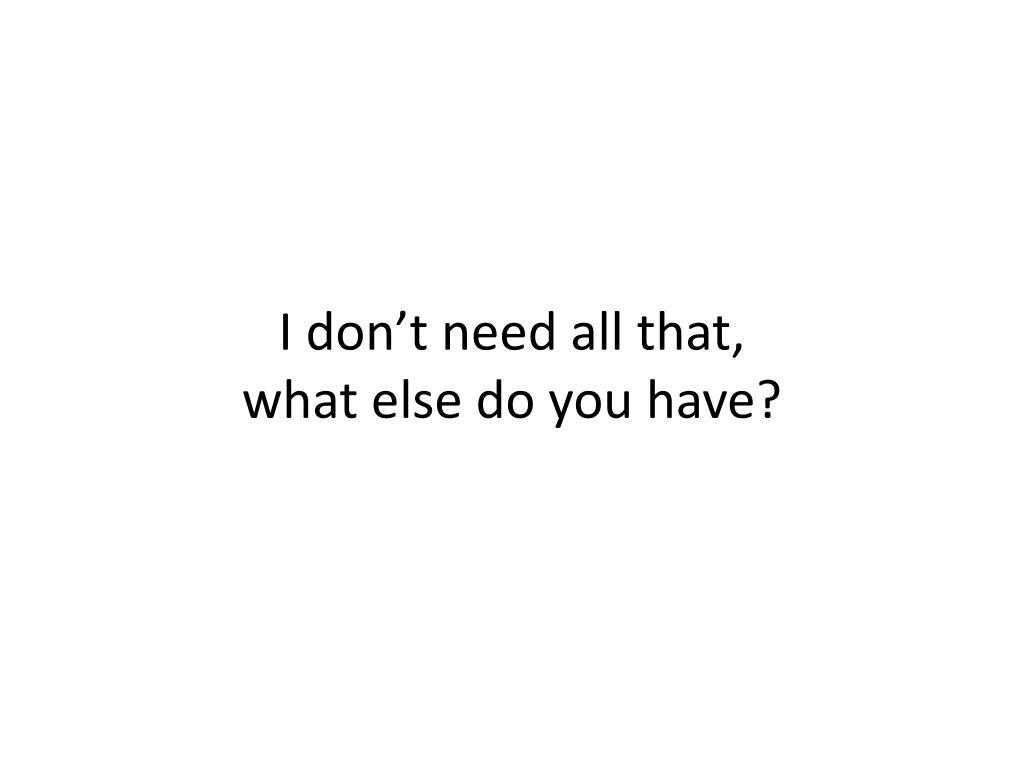

  28. I don’t need all that, what else do you have?

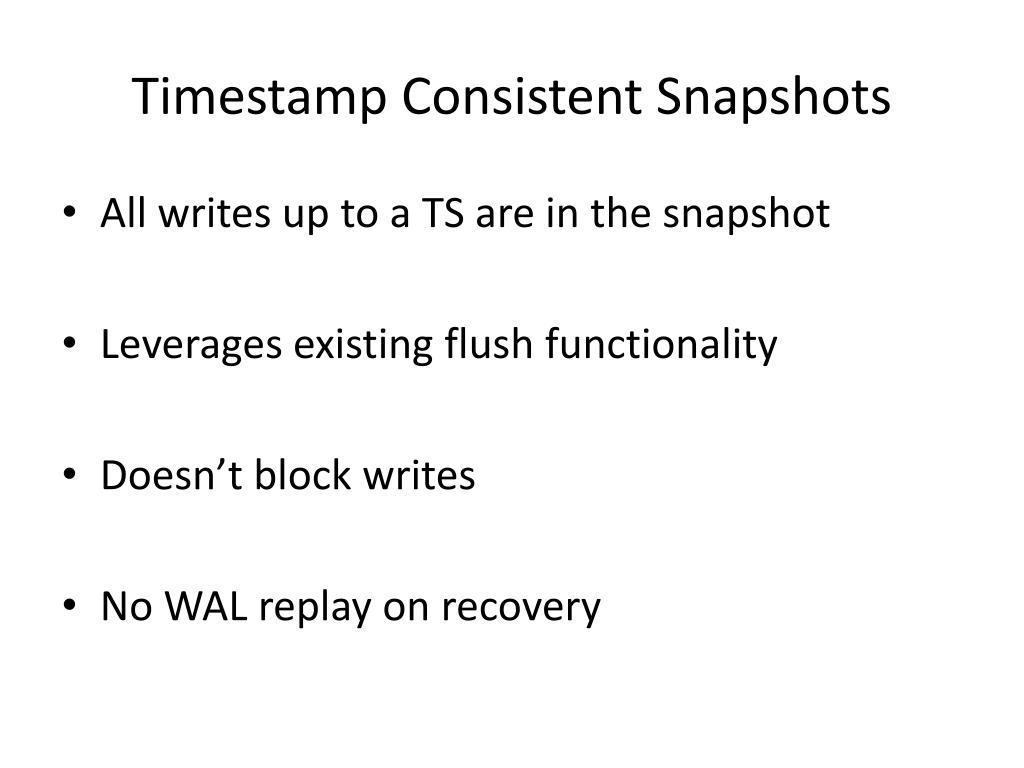

  29. Timestamp Consistent Snapshots • All writes up to a TS are in the snapshot • Leverages existing flush functionality • Doesn’t block writes • No WAL replay on recovery

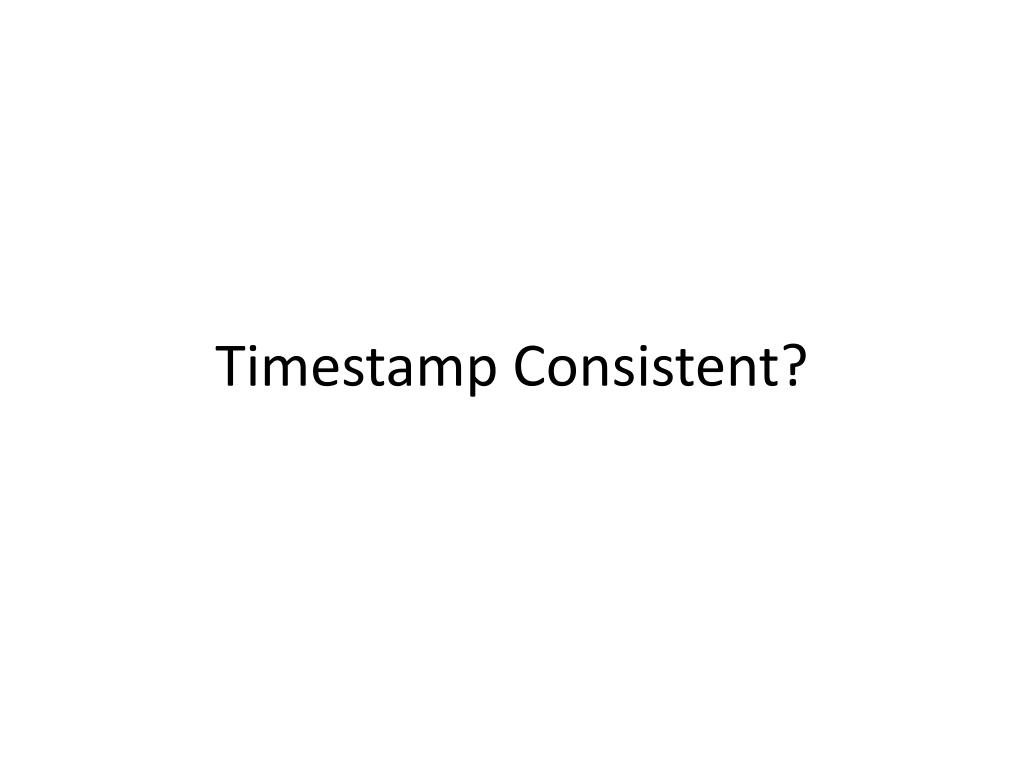

  30. Timestamp Consistent?

  31. Put/Get/Delete/Mutate/etc. MemStore Timestamp in snapshot? No Yes Snapshot Store Future Store

  32. I’ve got a snapshot,now what?

  33. Recovery • Export snapshot • Send snapshot to another cluster • Clone snapshot • Create new table from snapshot • Restore table • Rollback table to specific state

  34. Export Snapshot • Copy a full snapshot to another cluster • All required HFiles/Hlogs • Lots of options • Fancy dist-cp • Fast! • Minimal impact on running cluster

  35. Clone Table • New table from snapshot • Create multiple tables from same snapshot • Exact replica at the point-in-time • Full Read/Write on new table

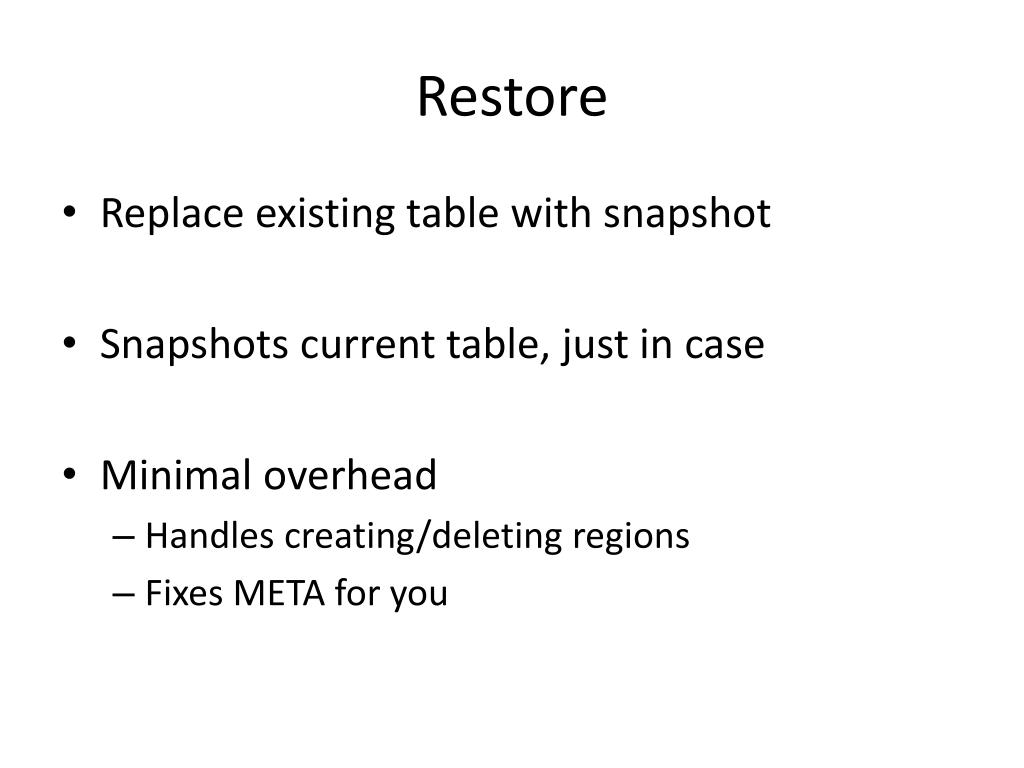

  36. Restore • Replace existing table with snapshot • Snapshots current table, just in case • Minimal overhead • Handles creating/deleting regions • Fixes META for you

  37. Whew, that’s a lot!

  38. Even more awesome!

  39. Goodies • Full support in shell • Distributed Coordination Framework • ‘Ragged Backup’ added along the way • Coming in next CDH • Backport to 0.94?

  40. Special thanks! • MatteoBertozzi • All the recovery code • Shell support • Jon Hsieh • Distributed Two-Phase Commit refactor • All our reviewers… • Stack, Ted Yu, Jon Hsieh, Matteo

  41. Thanks!Questions? Jesse Yates @jesse_yates jesse.k.yates@gmail.com
