Komponenten

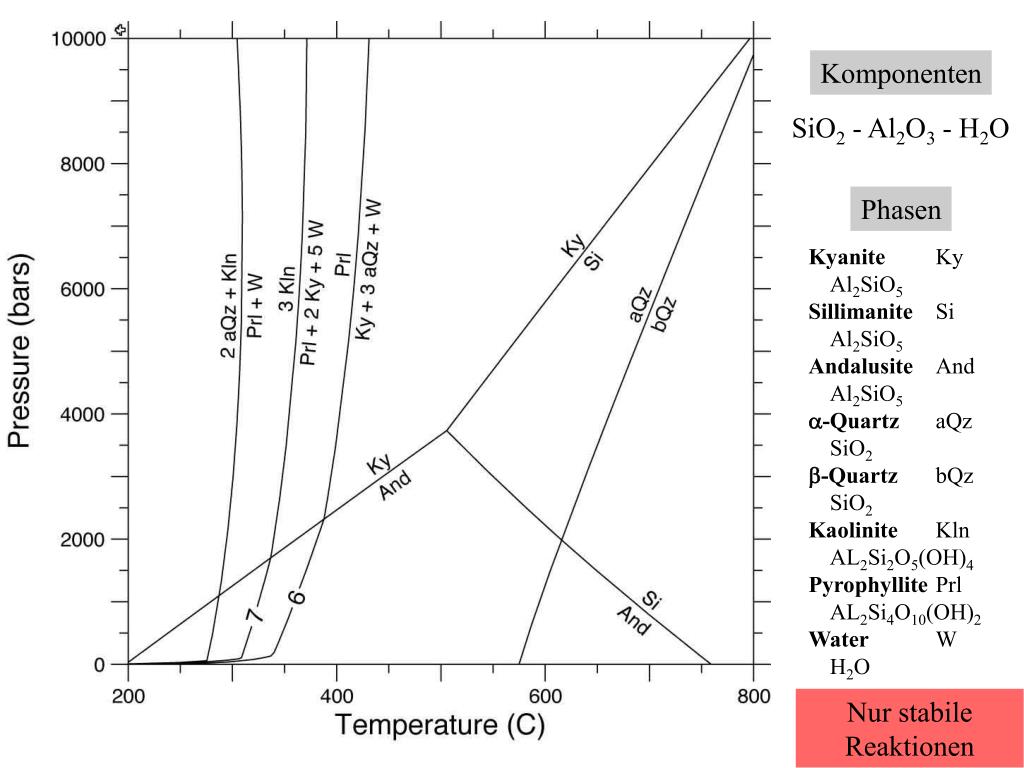

Komponenten. SiO 2 - Al 2 O 3 - H 2 O. Phasen. Kyanite Ky Al 2 SiO 5 Sillimanite Si Al 2 SiO 5 Andalusite And Al 2 SiO 5  -Quartz aQz SiO 2  -Quartz bQz SiO 2 Kaolinite Kln AL 2 Si 2 O 5 (OH) 4 Pyrophyllite Prl AL 2 Si 4 O 10 (OH) 2 Water W H 2 O.

cameo
Télécharger la présentation

Komponenten

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Komponenten SiO2 - Al2O3 - H2O Phasen Kyanite Ky Al2SiO5 Sillimanite Si Al2SiO5 Andalusite And Al2SiO5 -QuartzaQz SiO2 -QuartzbQz SiO2 Kaolinite Kln AL2Si2O5(OH)4 Pyrophyllite Prl AL2Si4O10(OH)2 Water W H2O Nur stabile Reaktionen

  2. Komponenten SiO2 - Al2O3 - H2O Phasen Kyanite Ky Al2SiO5 Sillimanite Si Al2SiO5 Andalusite And Al2SiO5 -QuartzaQz SiO2 -QuartzbQz SiO2 Nur stabile Reaktionen

  3. Komponenten SiO2 - Al2O3 - H2O Phasen Kyanite Ky Al2SiO5 Sillimanite Si Al2SiO5 Andalusite And Al2SiO5 -QuartzaQz SiO2 -QuartzbQz SiO2 alle Reaktionen

  4. Komponenten SiO2 - Al2O3 - H2O Phasen Kyanite Ky Al2SiO5 Sillimanite Si Al2SiO5 Andalusite And Al2SiO5 -QuartzaQz SiO2 -QuartzbQz SiO2 alle Reaktionen

  5. Al2SiO5 Al2SiO5

  6. T ? T ?

  7. Gesucht: für 4000 Bar und 10000 Bar: ∆aG(Sillimanit) = ∆aG(Kyanit) ∆aG(Sillimanit) - ∆aG(Kyanit) = 0 T ? T ?

  8. 678.5 oC

  9. 678.5 K

  10. Sillimanit - Kyanite Sillimanit Kyanite V0 [J/Bar] 4.9900 4.4090 0.581

  11. Sillimanit - Kyanite Sillimanit Kyanite V0 [J/Bar] 4.9900 4.4090 0.581 = 0.581·(3999) = 2324 J = 0.581·(9999) = 5810 J

  12. ≠

  13. Sillimanit - Kyanite Sillimanit Kyanite V0 [J/Bar] 4.9900 4.4090 0.581 = 0.581·(3999) = 2324 J = 0.581·(9999) = 5810 J Sillimanit - Kyanite ∆fG [J/mol] Sillimanit Kyanite 400 K 500 K 600 K 700 K 800 K 900 K 1000 K 1100 K -2388660 -2339238 -2289948 -2240847 -2191922 -2143153 -2092987 -2042207 -2389682 -2339004 -2288516 -2238279 -2188275 -2138464 -2087312 -2035566 1022 -234 -1432 -2568 -3647 -4689 -5675 -6641

  14. Sillimanit - Kyanite Sillimanit Kyanite V0 [J/Bar] 4.9900 4.4090 0.581 = 0.581·(3999) = 2324 J = 0.581·(9999) = 5810 J Sillimanit - Kyanite ∆fG [J/mol] + 2324 + 5810 Sillimanit Kyanite 400 K 500 K 600 K 700 K 800 K 900 K 1000 K 1100 K -2388660 -2339238 -2289948 -2240847 -2191922 -2143153 -2092987 -2042207 -2389682 -2339004 -2288516 -2238279 -2188275 -2138464 -2087312 -2035566 1022 -234 -1432 -2568 -3647 -4689 -5675 -6641

  15. Sillimanit - Kyanite Sillimanit Kyanite V0 [J/Bar] 4.9900 4.4090 0.581 = 0.581·(3999) = 2324 J = 0.581·(9999) = 5810 J Sillimanit - Kyanite ∆fG [J/mol] + 2324 + 5810 Sillimanit Kyanite 400 K 500 K 600 K 700 K 800 K 900 K 1000 K 1100 K -2388660 -2339238 -2289948 -2240847 -2191922 -2143153 -2092987 -2042207 -2389682 -2339004 -2288516 -2238279 -2188275 -2138464 -2087312 -2035566 1022 -234 -1432 -2568 -3647 -4689 -5675 -6641 892 -244 135 -831

  16. Sillimanit - Kyanite Sillimanit Kyanite V0 [J/Bar] 4.9900 4.4090 0.581 = 0.581·(3999) = 2324 J = 0.581·(9999) = 5810 J Sillimanit - Kyanite ∆fG [J/mol] + 2324 + 5810 Sillimanit Kyanite 400 K 500 K 600 K 700 K 800 K 900 K 1000 K 1100 K -2388660 -2339238 -2289948 -2240847 -2191922 -2143153 -2092987 -2042207 -2389682 -2339004 -2288516 -2238279 -2188275 -2138464 -2087312 -2035566 1022 -234 -1432 -2568 -3647 -4689 -5675 -6641 892 -244 135 -831 678.5 K 1014.0 K

  17. 892 -244

  18. P = 4000 Bar f1 = a·x1 + b f2 = a·x2 + b ∆rG(Sil-Ky) 892 700 K -244 600

  19. P = 4000 Bar f1 = a·x1 + b f2 = a·x2 + b ∆rG(Sil-Ky) 892 700 K -244 600 Nullpunkt (∆rG = 0) :

  20. P = 4000 Bar f1 = a·x1 + b a = (∂∆rG/∂T)P = -∆rS ∆rG(Sil-Ky) ∆rS = 11.69 J/K·mol 892 700 K -244 600

  21. P = 4000 Bar f1 = a·x1 + b a = (∂∆rG/∂T)P = -∆rS ∆rG(Sil-Ky) ∆rS = 11.69 J/K·mol 892 700 K -244 600

  22. P = 10000 Bar f1 = a·x1 + b f2 = a·x2 + b ∆rG(Sil-Ky) 135 1100 K 1000 -831 Nullpunkt (∆rG = 0) :

  23. 1014.0 K 678.5 K

  24. 1014.0 K 678.5 K

  25. Kyanit Sillimanit 1014.0 K 678.5 K
