  1. Define.XML A CASE study describing how to produce Define.XML from within SAS Dianne Weatherall Sep 2012

  2. Topics for Discussion

  3. Note • Examples and code are based on the Draft Define V2 • Slides are based on SDTM Define, but similar principles can be applied to the ADaMDefine • Key differences are explained in the Define Draft V2

  4. WHY

  5. Requirements? • What? • How? • Summary • Why? Why?

  6. Requirements? • What? • How? • Summary • Why? Why? • To describe what is included in the electronic data transfer (datasets, variables, codelists, etc) -> METADATA-> an elaborate “PROC CONTENTS” and more • To provide a user-friendly document with links to navigate easily, and to access information easily • To easily access the annotated CRF and datasets • To have a standard format to describe the electronic data transfer • Why XML? • Machine readable format for use by software applications • Browser-based report (through the use of an XSL stylesheet) • Vendor neutral, platform independent

  7. REQUIREMENTS

  8. Requirements? • What? • How? • Summary • Why? Requirements? • Metadata in a usable format, easy to capture and ability to import into SAS (recommended format = Excel) • Dataset metadata: list of domains -> name, description, class, structure, purpose, keys, location • Variable metadata:list of variables: -> name, label, type, controlled terms / format, origin, role, comment • Controlled terms:coded value, decode • Value-level metadata:variable, where, type, controlled terms or format, origin, computation method • Computational algorithms:reference name, name, computation method • Data in XPT format • Annotated CRF in PDF format • Supporting documentation: • Reviewers guide / complex algorithms in PDF format

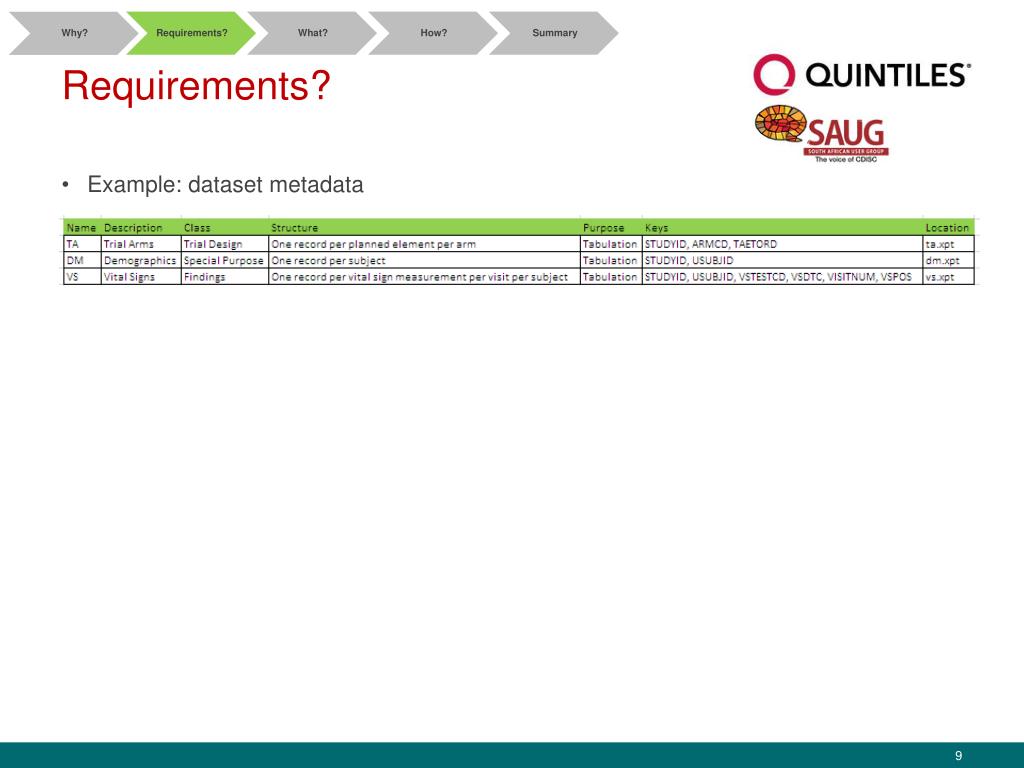

  9. Requirements? • What? • How? • Summary • Why? Requirements? • Example: dataset metadata

  10. Requirements? • What? • How? • Summary • Why? Requirements? • Example: variable metadata

  11. Requirements? • What? • How? • Summary • Why? Requirements? • Example: controlled terms • Usually includes all possibilities on the CRF, not only those in the data • Needs to be set up from the CRF, not the data

  12. Requirements? • What? • How? • Summary • Why? Requirements? • Example: value-level metadata • 2 types: SUPPQUAL (QVAL) and FINDINGS (ORRES) • Can be generated from the data, especially electronic labs

  13. Requirements? • What? • How? • Summary • Why? Requirements? • Example: computational algorithms • Used for standard algorithms that can be applied across variables • Very long derivations should rather be specified in a PDF file, and linked from the variable comment

  14. Requirements? • What? • How? • Summary • Why? Requirements? • Specification vs Metadata • Specification • Instructions to a programmer to get to the final SDTM / ADaM dataset • Contains derivations that often refer to raw variable names (for programming) • May contain SAS code in some cases • May refer to other documents (e.g. SAP etc) • Metadata • Describes the contents of the final SDTM/ADaM dataset • Contains derivations that describe in words how the data was derived (for traceability and reviewer information) • Does not contain SAS code and does not refer to raw variables • Contains links to other documents

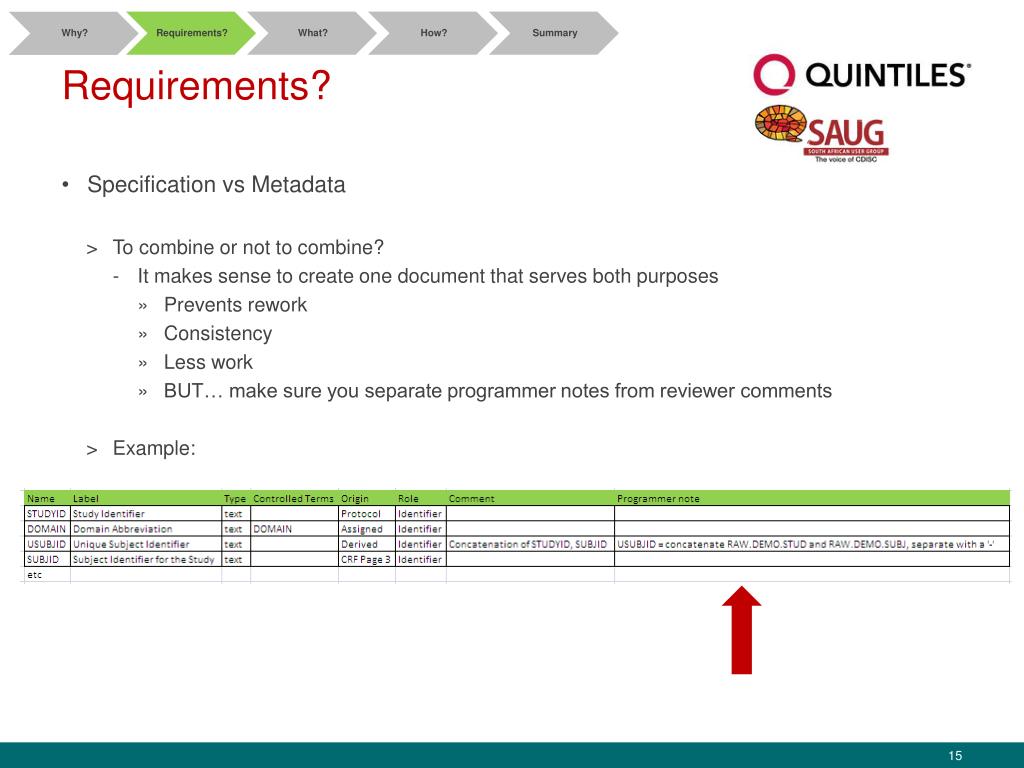

  15. Requirements? • What? • How? • Summary • Why? Requirements? • Specification vs Metadata • To combine or not to combine? • It makes sense to create one document that serves both purposes • Prevents rework • Consistency • Less work • BUT… make sure you separate programmer notes from reviewer comments • Example:

  16. WHAT

  17. What? • Define.XML with and without stylesheet

  18. Requirements? • What? • How? • Summary • Why? What?

  19. Requirements? • What? • How? • Summary • Why? What?

  20. Requirements? • What? • How? • Summary • Why? What?

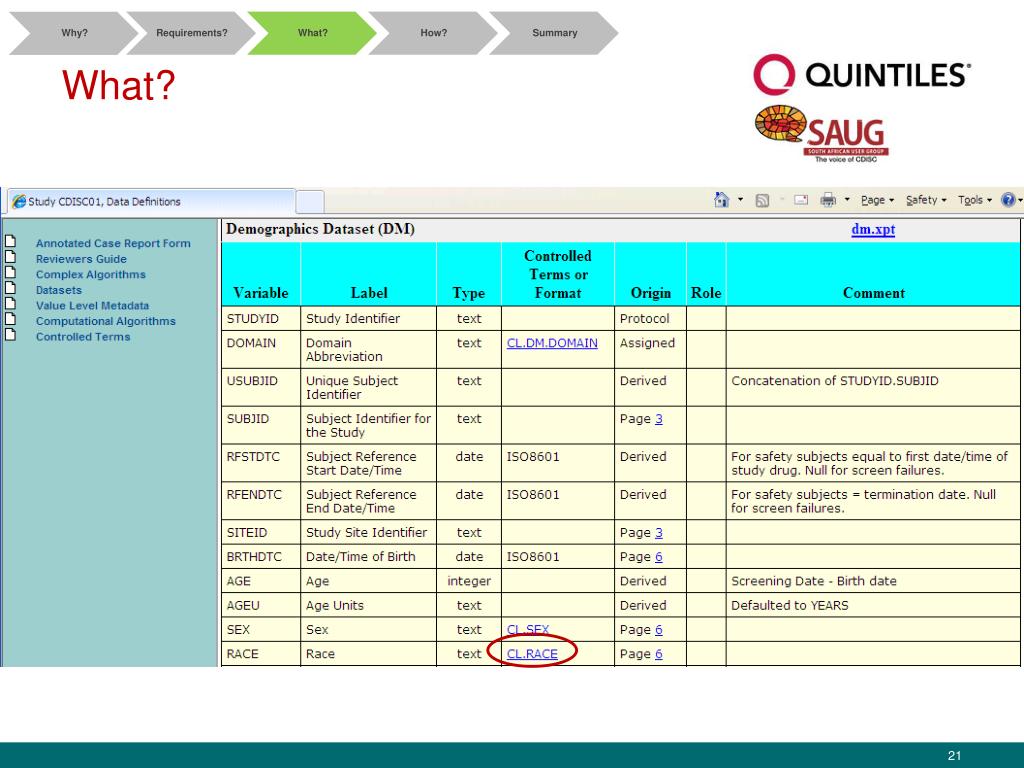

  21. Requirements? • What? • How? • Summary • Why? What?

  22. Requirements? • What? • How? • Summary • Why? What?

  23. Requirements? • What? • How? • Summary • Why? What? • Define-XML Version 2.0.0 can be used for SDTM and ADaM • Terminology: • Def: declaration of an object • Ref: reference to an object • OID: identify a metadata object • Validation of the Define.XML: • It must properly reference versions of the CDISC standards • Conform to schemas • Meet all requirements of the Define-XML Specification • Can be checked using OpenCDISC according to defined rules

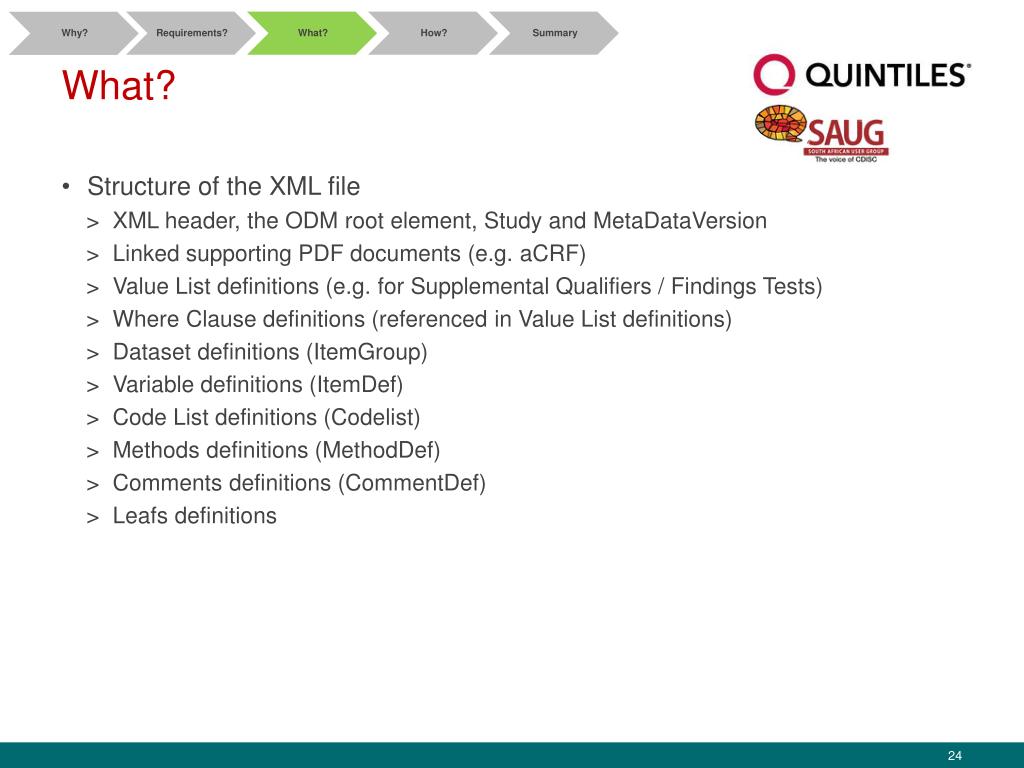

  24. Requirements? • What? • How? • Summary • Why? What? • Structure of the XML file • XML header, the ODM root element, Study and MetaDataVersion • Linked supporting PDF documents (e.g. aCRF) • Value List definitions (e.g. for Supplemental Qualifiers / Findings Tests) • Where Clause definitions (referenced in Value List definitions) • Dataset definitions (ItemGroup) • Variable definitions (ItemDef) • Code List definitions (Codelist) • Methods definitions (MethodDef) • Comments definitions (CommentDef) • Leafs definitions

  25. HOW

  26. Requirements? • What? • How? • Summary • Why? PREPARATION BEFORE WRITING TO XML FILE • Create XPT files of the SDTM datasets • Import the specifications into SAS and create a dataset containing the Dataset and Variable metadata • Import the methods into SAS and merge onto the metadata by the method name • XML does not like special characters – convert characters to text • Create a value-level metadata dataset by choosing “TESTCD”, “PARMCD” and “QNAM” variables and obtaining the values in those variables from the data • Create a codelist dataset by running through variables and value-level variables with codelists attached to them and obtaining the values for those variables • Codelists -> set up in specs vs create from data

  27. Requirements? • What? • How? • Summary • Why? How? • Create XML file within SAS using: • DATA steps • FILE and PUT statements

  28. Requirements? • What? • How? • Summary • Why? XML Header + ODM root element • Example code:

  29. Requirements? • What? • How? • Summary • Why? XML Header + ODM root element • Example code: Study-specific derivations: - Creation date/time

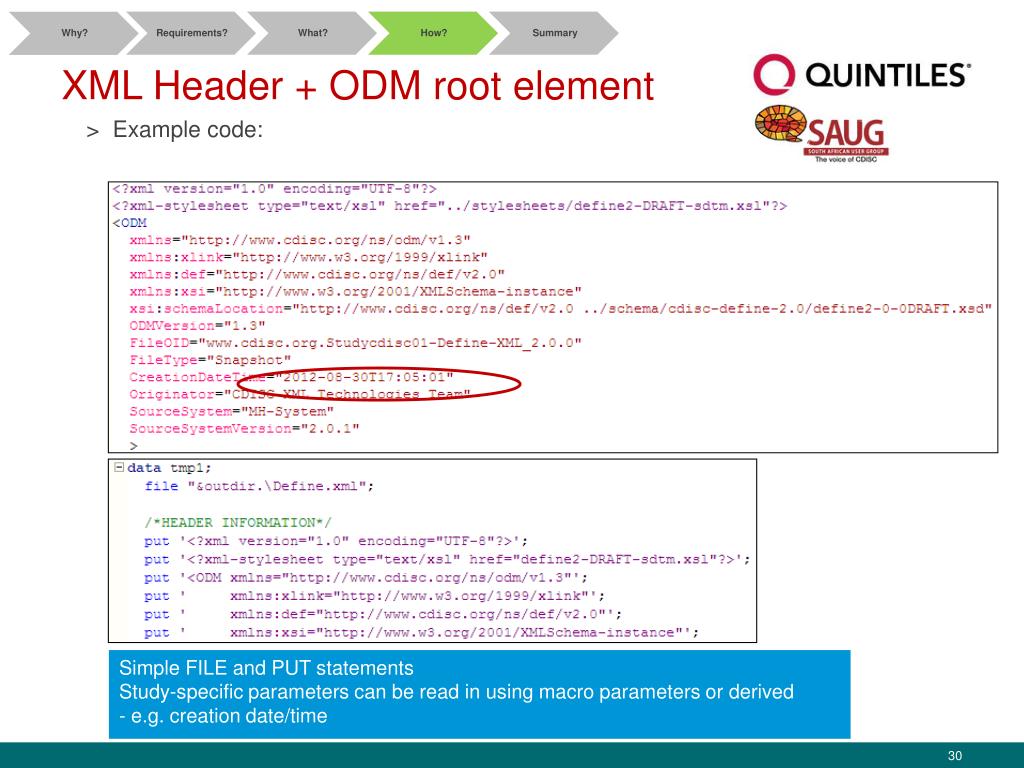

  30. Requirements? • What? • How? • Summary • Why? XML Header + ODM root element • Example code: Simple FILE and PUT statements Study-specific parameters can be read in using macro parameters or derived - e.g. creation date/time

  31. Requirements? • What? • How? • Summary • Why? Study + MetaDataVersion • Example code:

  32. Requirements? • What? • How? • Summary • Why? Study + MetaDataVersion

  33. Requirements? • What? • How? • Summary • Why? Study + MetaDataVersion • Example code: Simple FILE and PUT statements – use the MOD option on the FILE statement to append to the text file Study-specific parameters can be read in using macro parameters or derived - e.g. study name and description

  34. Requirements? • What? • How? • Summary • Why? Linked supporting PDF documents (e.g. aCRF) + Leafs definition • Example code:

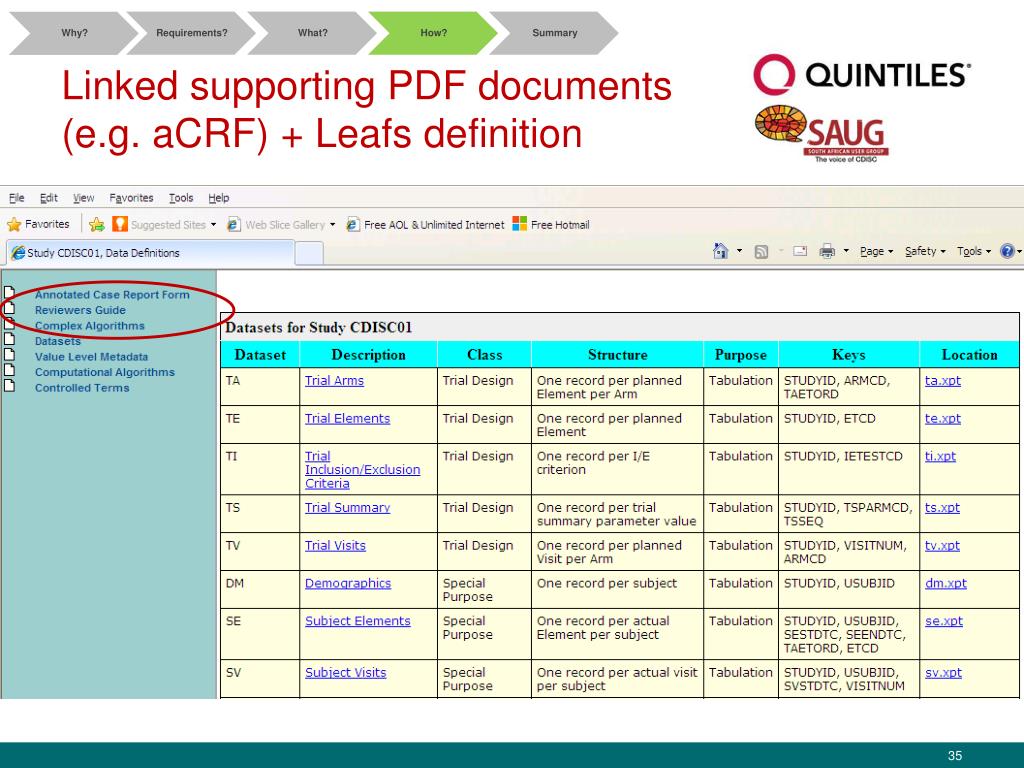

  35. Requirements? • What? • How? • Summary • Why? Linked supporting PDF documents (e.g. aCRF) + Leafs definition

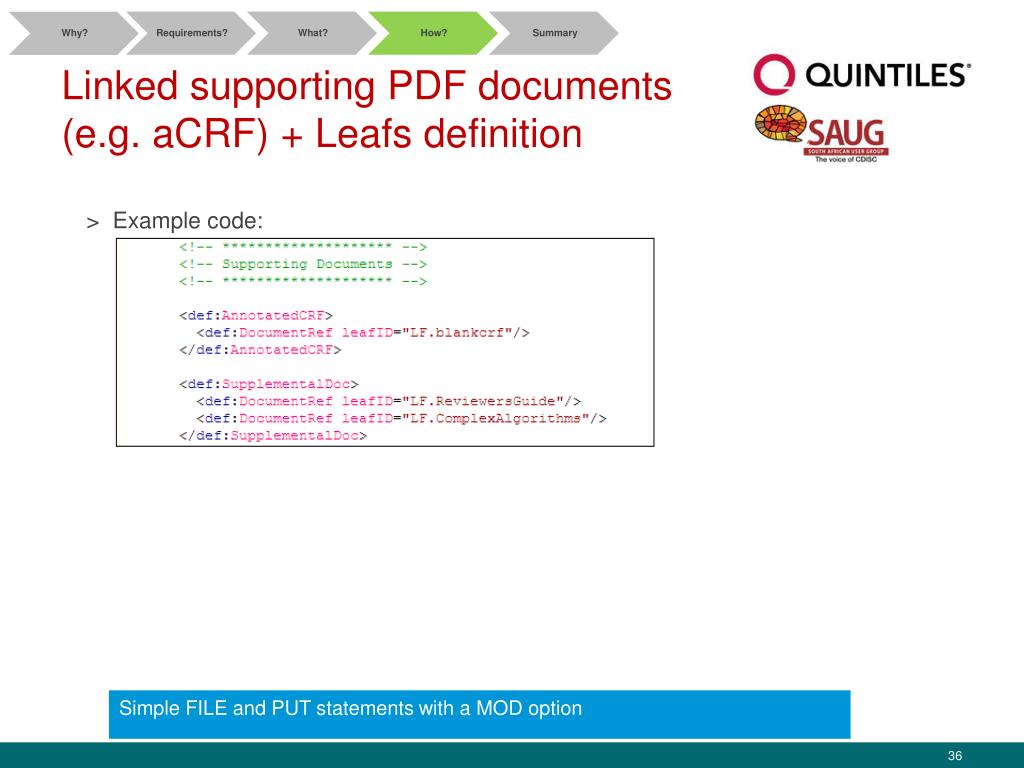

  36. Requirements? • What? • How? • Summary • Why? Linked supporting PDF documents (e.g. aCRF) + Leafs definition • Example code: Simple FILE and PUT statements with a MOD option

  37. Requirements? • What? • How? • Summary • Why? Linked supporting PDF documents (e.g. aCRF) + Leafs definition • Example code: Simple FILE and PUT statements with a MOD option

  38. Requirements? • What? • How? • Summary • Why? Value List definitions (e.g. Findings Tests) and Where Clause definitions • Example code:

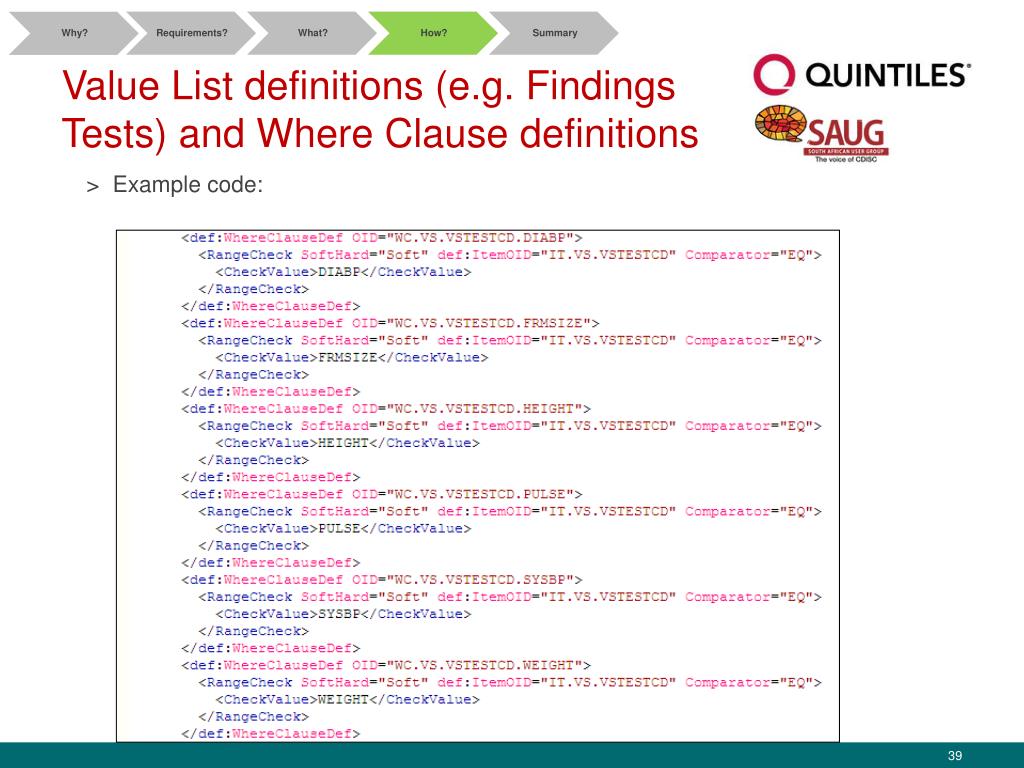

  39. Requirements? • What? • How? • Summary • Why? Value List definitions (e.g. Findings Tests) and Where Clause definitions • Example code:

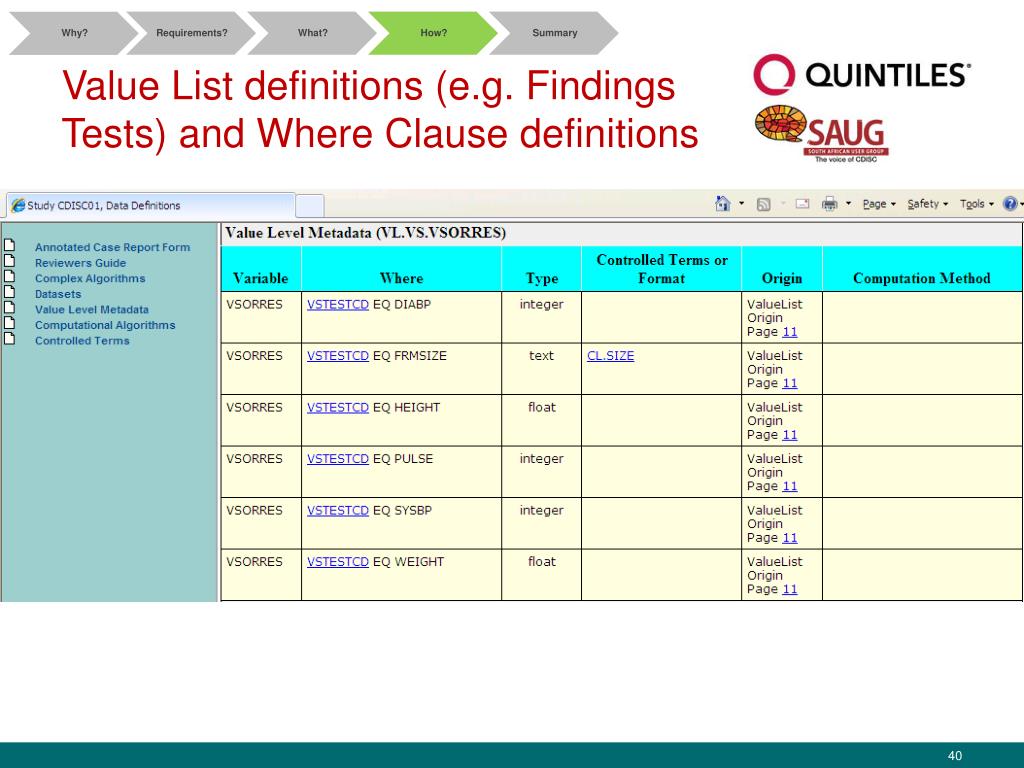

  40. Requirements? • What? • How? • Summary • Why? Value List definitions (e.g. Findings Tests) and Where Clause definitions

  41. Requirements? • What? • How? • Summary • Why? Value List definitions (e.g. Findings Tests) and Where Clause definitions • Example code: Example: VSORRES Create a dataset in SAS of value-level variables and their values. Output an ITEMREF statement for each value of VSORRES (e.g. DIABP) and reference a WHERECLAUSE.

  42. Requirements? • What? • How? • Summary • Why? Value List definitions (e.g. Findings Tests) and Where Clause definitions • Example code: Example: VSORRES Output a WHERECLAUSEDEF statement for each value of VSORRES (e.g. DIABP) and use the same WHERECLAUSE name referenced in the ITEMREF.

  43. Requirements? • What? • How? • Summary • Why? Value List definitions (e.g. for Supplemental Qualifiers) and Where Clause definitions • Example code:

  44. Requirements? • What? • How? • Summary • Why? Value List definitions (e.g. for Supplemental Qualifiers) and Where Clause definitions • Example code:

  45. Requirements? • What? • How? • Summary • Why? Value List definitions (e.g. for Supplemental Qualifiers) and Where Clause definitions

  46. Requirements? • What? • How? • Summary • Why? Value List definitions (e.g. for Supplemental Qualifiers) and Where Clause definitions • Example code: Example: SUPPDM.QVAL Output an ITEMREF statement for each value of SUPPDM.QNAM (e.g. RACE1) and reference a WHERECLAUSE.

  47. Requirements? • What? • How? • Summary • Why? Value List definitions (e.g. for Supplemental Qualifiers) and Where Clause definitions • Example code: Example: SUPPDM.QVAL Output a WHERECLAUSEDEF statement for each value of SUPPDM.QVAL (e.g. RACE1) and use the same WHERECLAUSE name referenced in the ITEMREF.

  48. Requirements? • What? • How? • Summary • Why? Dataset definitions (ItemGroup) • Dataset Definitions: • Dataset definitions: • ItemGroupDef element • Include references to variable definitions • Include references to actual data file • Variable references: • ItemDef element • Dataset definition: • def:leaf element

  49. Requirements? • What? • How? • Summary • Why? Dataset definitions (ItemGroup) • Attributes: • Repeating: • No for datasets with one record per subject • Yes for datasets with more than one record per subject • Mandatory: • Yes for required variables • No for Expected or Permissible variables • Domain: • Name of the domain • IsReferenceData: • Yes for reference datasets (no subjects) • No for subject-level datasets

  50. Requirements? • What? • How? • Summary • Why? Dataset definitions (ItemGroup) • Example code:
